Building a Production AI Code Review Assistant with Google ADK

1. The Late Night Code Review

It's 2 AM

You've been debugging for hours. The function looks right, but something's wrong. You know that feeling - when code should work but doesn't, and you can't see why anymore because you've been staring at it too long.

def dfs_search_v1(graph, start, target):
    """Find if target is reachable from start."""
    visited = set()
    stack = start  # Looks innocent enough...

    while stack:
        current = stack.pop()

        if current == target:
            return True

        if current not in visited:
            visited.add(current)

            for neighbor in graph[current]:
                if neighbor not in visited:
                    stack.append(neighbor)

    return False

The AI Developer's Journey

If you're reading this, you've likely experienced the transformation AI brings to coding. Tools like Gemini Code Assist, Claude Code, and Cursor have changed how we write code. They're incredible for generating boilerplate, suggesting implementations, and accelerating development.

But you're here because you want to go deeper. You want to understand how to build these AI systems, not just use them. You want to create something that:

• Has predictable, traceable behavior
• Can be deployed to production with confidence
• Provides consistent results you can rely on
• Shows you exactly how it makes decisions

From Consumer to Creator

Today, you'll make the leap from using AI tools to building them. You'll construct a multi-agent system that:

1. Analyzes code structure deterministically
2. Executes actual tests to verify behavior
3. Validates style compliance with real linters
4. Synthesizes findings into actionable feedback
5. Deploys to Google Cloud with full observability

2. Your First Agent Deployment

The Developer's Question

"I understand LLMs, I've used the APIs, but how do I go from a Python script to a production AI agent that scales?"

Let's answer this by setting up your environment properly, then building a simple agent to understand the basics before diving into production patterns.

Essential Setup First

Before we create any agents, let's ensure your Google Cloud environment is ready.

Need Google Cloud Credits?

• If you are attending an instructor-led workshop: Your instructor will provide you with a credit code. Please use the one they provide.
• If you are working through this Codelab on your own: You can redeem a free Google Cloud credit to cover the workshop costs. Please click this link to get a credit and follow the steps in the video guide below to apply it to your account.

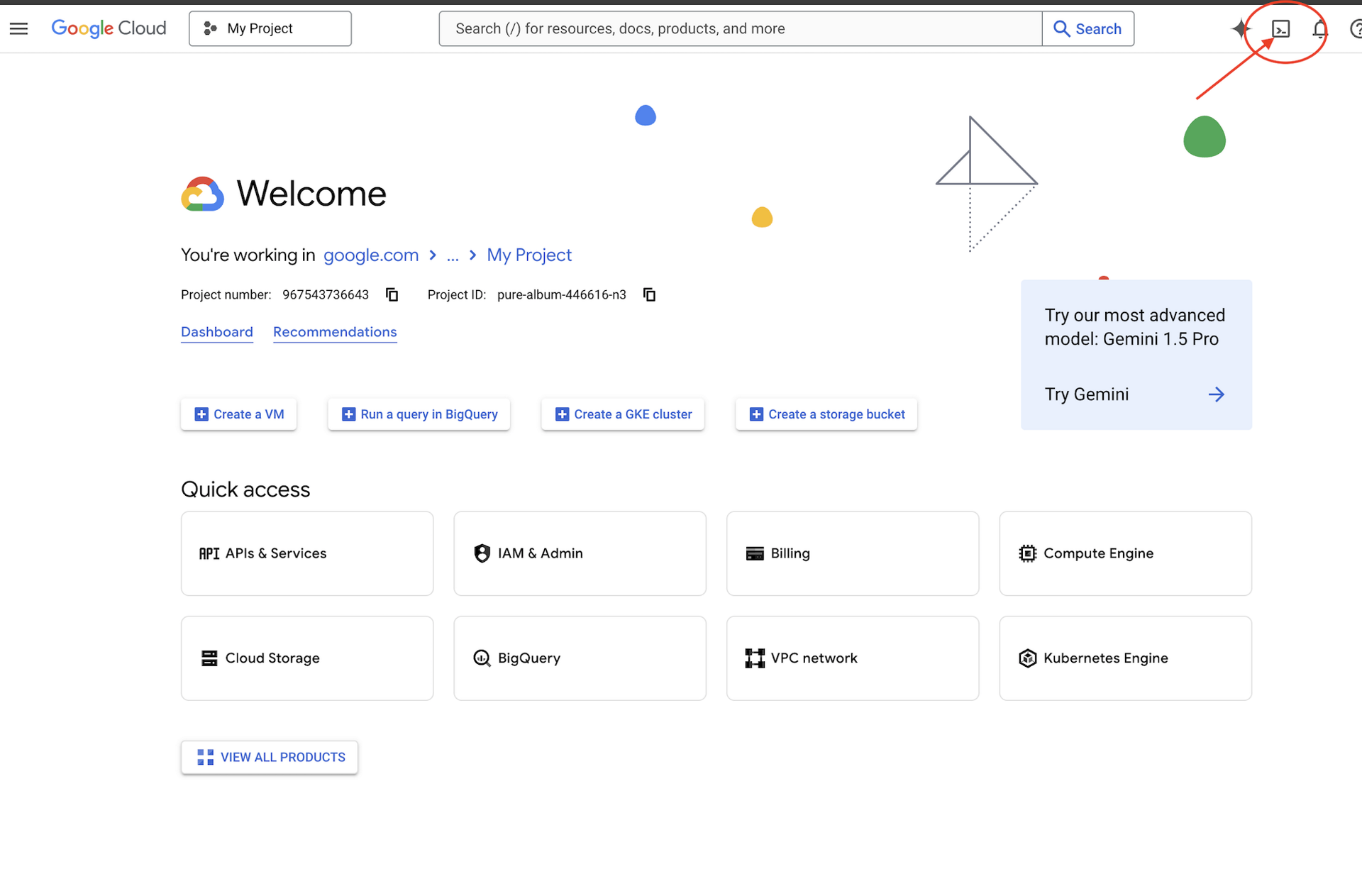

Click Activate Cloud Shell at the top of the Google Cloud console (It's the terminal shape icon at the top of the Cloud Shell pane),

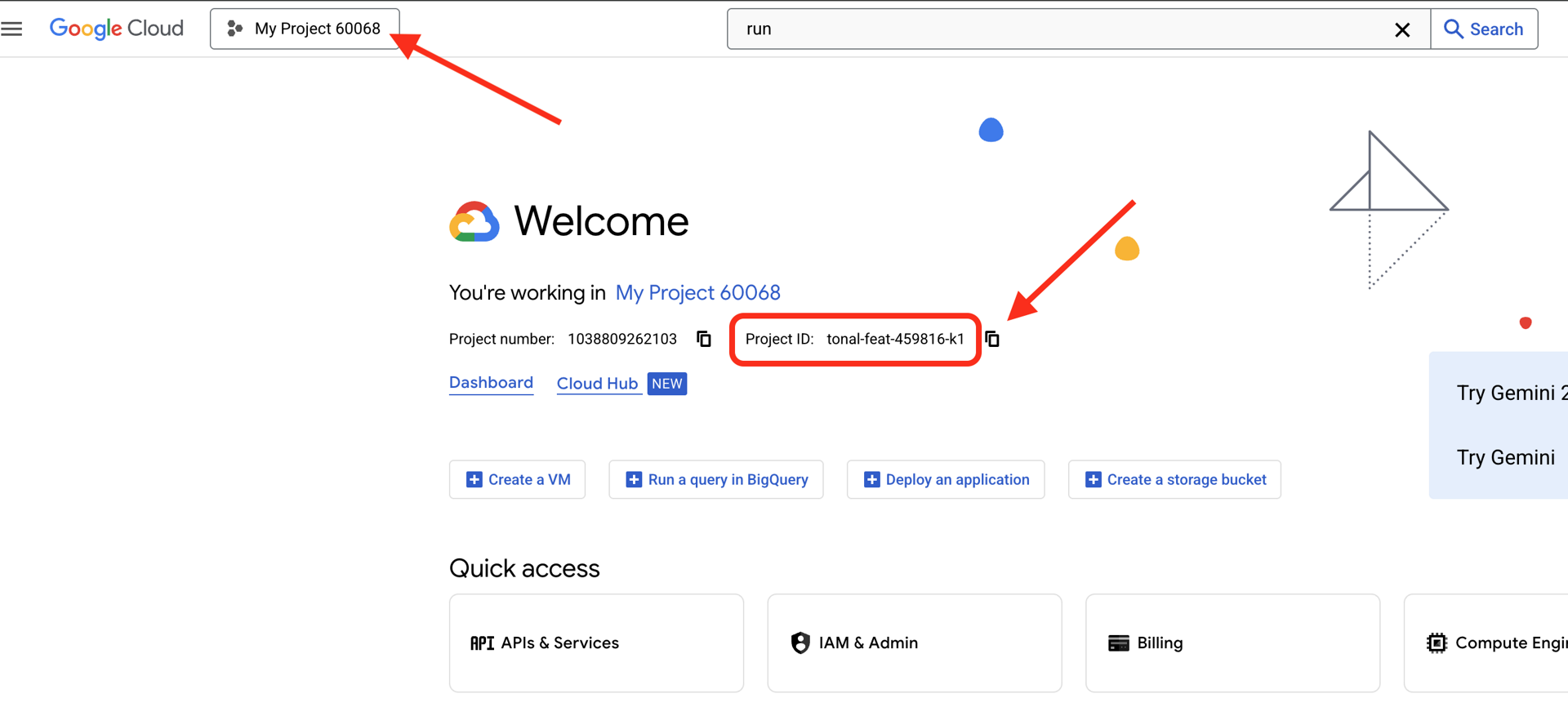

Find your Google Cloud Project ID:

• Open the Google Cloud Console: https://console.cloud.google.com
• Select the project you want to use for this workshop from the project dropdown at the top of the page.
• Your Project ID is displayed in the Project info card on the Dashboard

Step 1: Set Your Project ID

In Cloud Shell, the gcloud command-line tool is already configured. Run the following command to set your active project. This uses the $GOOGLE_CLOUD_PROJECT environment variable, which is automatically set for you in your Cloud Shell session.

gcloud config set project $GOOGLE_CLOUD_PROJECT

Note: While the command above is the most direct method in Cloud Shell, you can also set the project ID manually if needed by replacing $GOOGLE_CLOUD_PROJECT with your specific ID (e.g., gcloud config set project your-project-id-123).

Step 2: Verify Your Setup

Next, run the following commands to confirm that your project is set correctly and that you are authenticated.

# Confirm project is set
echo "Current project: $(gcloud config get-value project)"

# Check authentication status
gcloud auth list

You should see your project ID printed, and your user account listed with (ACTIVE) next to it.

If your account is not listed as active, or if you get an authentication error, run the following command to log in:

gcloud auth application-default login

Step 3: Enable Essential APIs

We need at least these APIs for the basic agent:

gcloud services enable \
    aiplatform.googleapis.com \
    compute.googleapis.com

This may take a minute or two. You'll see:

Operation "operations/..." finished successfully.

Step 4: Install ADK

# Install the ADK CLI
pip install google-adk --upgrade

# Verify installation
adk --version

You should see a version number like 1.15.0 or higher.

Now Create Your Basic Agent

With the environment ready, let's create that simple agent.

Step 5: Use ADK Create

adk create my_first_agent

Follow the interactive prompts:

Choose a model for the root agent:
1. gemini-2.5-flash
2. Other models (fill later)
Choose model (1, 2): 1

1. Google AI
2. Vertex AI
Choose a backend (1, 2): 2

Enter Google Cloud project ID [auto-detected-from-gcloud]:
Enter Google Cloud region [us-central1]:

Note: The project ID should auto-populate from your gcloud config. Just press Enter to accept it. Similarly, press Enter to accept the default region unless you have a specific preference.

Step 6: Examine What Was Created

cd my_first_agent
ls -la

You'll find three files:

.env          # Configuration (auto-populated with your project)
__init__.py   # Package marker
agent.py      # Your agent definition

Step 7: Quick Configuration Check

# Verify the .env was created correctly
cat .env

# Should show something like:
# GOOGLE_CLOUD_PROJECT=your-project-id
# GOOGLE_CLOUD_LOCATION=us-central1
# GOOGLE_GENAI_USE_VERTEXAI=1

If the project ID is missing or incorrect, edit the .env file:

nano .env  # or use your preferred editor

Step 8: Look at the Agent Code

cat agent.py

from google.adk.agents.llm_agent import Agent

root_agent = Agent(
    model='gemini-2.5-flash',
    name='root_agent',
    description='A helpful assistant for user questions.',
    instruction='Answer user questions to the best of your knowledge',
)

Simple, clean, minimal. This is your "Hello World" of agents.

Test Your Basic Agent

Step 9: Run Your Agent

cd ..
adk run my_first_agent

You should see something like:

Log setup complete: /tmp/agents_log/agent.20250930_162430.log
To access latest log: tail -F /tmp/agents_log/agent.latest.log
[user]:

Step 10: Try Some Queries

In the terminal where adk run is running, you'll see a prompt. Type your queries:

[user]: Hey, what can you do?
[root_agent]: I can help answer questions, generate text, explain concepts, assist with problem-solving, and provide information on a wide range of topics. What would you like to know or discuss?

[user]: What's the current weather in Mountain View?
[root_agent]: I'm sorry, but I cannot provide real-time weather information as I don't have access to current data or weather services. To get the current weather in Mountain View, I recommend checking a weather website or app like weather.com or using a search engine.

Notice the limitation - it can't access current data. Let's push further:

[user]: Review this Python code: def add(a, b): return a + b
[root_agent]: This is a simple Python function that adds two numbers. Here's my review:

**Strengths:**
- Clean and concise implementation
- Follows Python conventions for simple operations
- Clear function name that describes its purpose

**Suggestions for improvement:**
- Add a docstring to document the function
- Consider adding type hints for better code clarity
- You might want to handle edge cases

Here's an enhanced version:
def add(a: float, b: float) -> float:
    """Add two numbers and return their sum."""
    return a + b

Note: An Abstract Syntax Tree (AST) is a hierarchical tree representation of the syntactic structure of source code. When a programming language parser reads code, it converts the linear text into this tree structure that captures the grammatical relationships between code elements.

The agent can discuss code, but can it:

• Actually parse the AST to understand structure?
• Run tests to verify it works?
• Check style compliance?
• Remember your previous reviews?

No. This is where we need architecture.

🏃🚪 Exit with

Ctrl+C

when done exploring.

3. Preparing Your Production Workspace

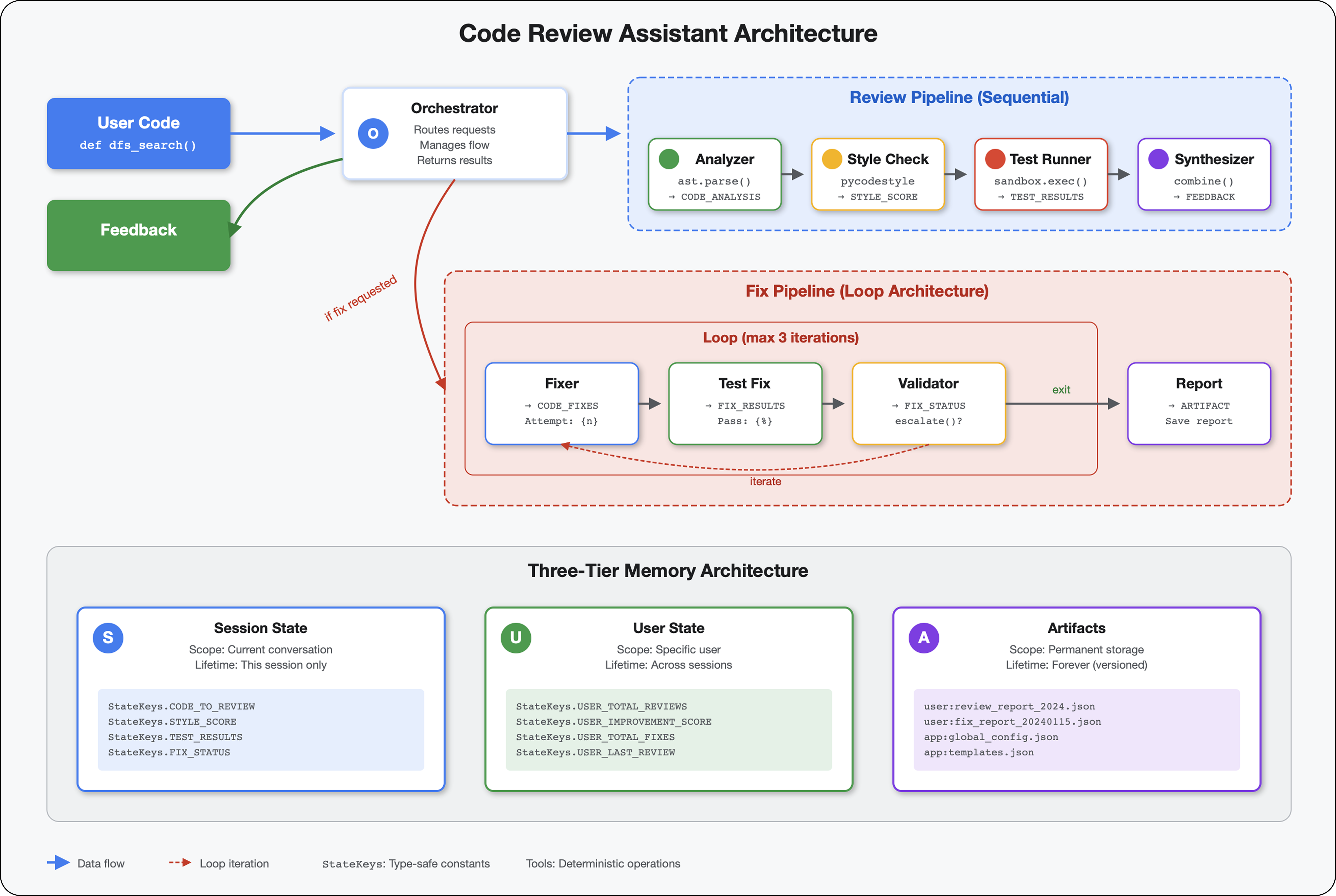

The Solution: A Production-Ready Architecture

That simple agent demonstrated the starting point, but a production system requires robust structure. We'll now set up a complete project that embodies production principles.

Setting Up the Foundation

You've already configured your Google Cloud project for the basic agent. Now let's prepare the full production workspace with all the tools, patterns, and infrastructure needed for a real system.

Step 1: Get the Structured Project

First, exit any running adk run with Ctrl+C and clean up:

# Clean up the basic agent
cd ~  # Make sure you're not inside my_first_agent
rm -rf my_first_agent

# Get the production scaffold
git clone https://github.com/ayoisio/adk-code-review-assistant.git
cd adk-code-review-assistant
git checkout codelab

Note: The codelab branch contains the complete project structure with strategic placeholders (like # MODULE_3_STEP_1_REPLACE_ME) where you'll add code as we progress.

Step 2: Create and Activate Virtual Environment

# Create the virtual environment
python -m venv .venv

# Activate it
# On macOS/Linux:
source .venv/bin/activate
# On Windows:
# .venv\Scripts\activate

Verification: Your prompt should now show (.venv) at the beginning.

Step 3: Install Dependencies

pip install -r code_review_assistant/requirements.txt

# Install the package in editable mode (enables imports)
pip install -e .

This installs:

• google-adk - The ADK framework
• pycodestyle - For PEP 8 checking
• vertexai - For cloud deployment
• Other production dependencies

The -e flag allows you to import code_review_assistant modules from anywhere.

Step 4: Configure Your Environment

# Copy the example environment file
cp .env.example .env

# Edit .env and replace the placeholders:
# - GOOGLE_CLOUD_PROJECT=your-project-id → your actual project ID
# - Keep other defaults as-is

Verification: Check your configuration:

cat .env

Should show:

GOOGLE_CLOUD_PROJECT=your-actual-project-id
GOOGLE_CLOUD_LOCATION=us-central1
GOOGLE_GENAI_USE_VERTEXAI=TRUE

Step 5: Ensure Authentication

Since you already ran gcloud auth earlier, let's just verify:

# Check current authentication
gcloud auth list

# Should show your account with (ACTIVE)
# If not, run:
gcloud auth application-default login

Step 6: Enable Additional Production APIs

We already enabled basic APIs. Now add the production ones:

gcloud services enable \
    sqladmin.googleapis.com \
    run.googleapis.com \
    cloudbuild.googleapis.com \
    artifactregistry.googleapis.com \
    storage.googleapis.com \
    cloudtrace.googleapis.com

This enables:

• SQL Admin: For Cloud SQL if using Cloud Run
• Cloud Run: For serverless deployment
• Cloud Build: For automated deployments
• Artifact Registry: For container images
• Cloud Storage: For artifacts and staging
• Cloud Trace: For observability

Step 7: Create Artifact Registry Repository

Our deployment will build container images that need a home:

gcloud artifacts repositories create code-review-assistant-repo \
    --repository-format=docker \
    --location=us-central1 \
    --description="Docker repository for Code Review Assistant"

You should see:

Created repository [code-review-assistant-repo].

If it already exists (perhaps from a previous attempt), that's fine - you'll see an error message that you can ignore.

Step 8: Grant IAM Permissions

Practitioner's Note: The deploy.sh script, used when deploying our agent in Module 7, uses Cloud Build to automate deployments. We must grant its service account the necessary permissions - a critical production security step.

# Get your project number
PROJECT_NUMBER=$(gcloud projects describe $GOOGLE_CLOUD_PROJECT \
    --format="value(projectNumber)")

# Define the service account
SERVICE_ACCOUNT="${PROJECT_NUMBER}@cloudbuild.gserviceaccount.com"

# Grant necessary roles
gcloud projects add-iam-policy-binding $GOOGLE_CLOUD_PROJECT \
    --member="serviceAccount:${SERVICE_ACCOUNT}" \
    --role="roles/run.admin"

gcloud projects add-iam-policy-binding $GOOGLE_CLOUD_PROJECT \
    --member="serviceAccount:${SERVICE_ACCOUNT}" \
    --role="roles/iam.serviceAccountUser"

gcloud projects add-iam-policy-binding $GOOGLE_CLOUD_PROJECT \
    --member="serviceAccount:${SERVICE_ACCOUNT}" \
    --role="roles/cloudsql.admin"

gcloud projects add-iam-policy-binding $GOOGLE_CLOUD_PROJECT \
    --member="serviceAccount:${SERVICE_ACCOUNT}" \
    --role="roles/storage.admin"

Each command will output:

Updated IAM policy for project [your-project-id].

What You've Accomplished

Your production workspace is now fully prepared:

✅ Google Cloud project configured and authenticated
✅ Basic agent tested to understand limitations
✅ Project code with strategic placeholders ready
✅ Dependencies isolated in virtual environment
✅ All necessary APIs enabled
✅ Container registry ready for deployments
✅ IAM permissions properly configured
✅ Environment variables set correctly

Now you're ready to build a real AI system with deterministic tools, state management, and proper architecture.

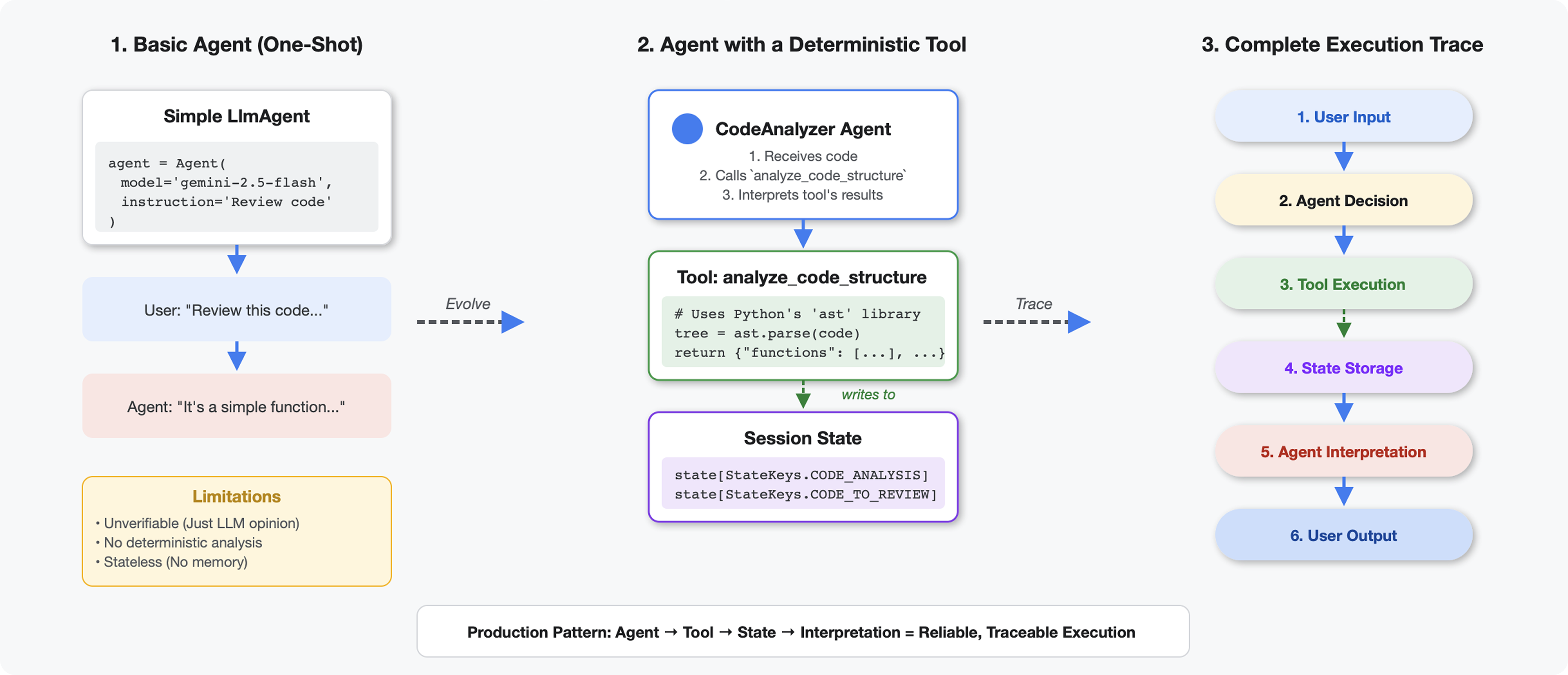

4. Building Your First Agent

What Makes Tools Different from LLMs

When you ask an LLM "how many functions are in this code?", it uses pattern matching and estimation. When you use a tool that calls Python's ast.parse(), it parses the actual syntax tree - no guessing, same result every time.

This section builds a tool that analyzes code structure deterministically, then connects it to an agent that knows when to invoke it.

Step 1: Understanding the Scaffold

Let's examine the structure you'll be filling in.

👉 Open

code_review_assistant/tools.py

You'll see the analyze_code_structure function with placeholder comments marking where you'll add code. The function already has the basic structure - you'll enhance it step by step.

Step 2: Add State Storage

State storage allows other agents in the pipeline to access your tool's results without re-running the analysis.

👉 Find:

        # MODULE_4_STEP_2_ADD_STATE_STORAGE

👉 Replace that single line with:

        # Store code and analysis for other agents to access
        tool_context.state[StateKeys.CODE_TO_REVIEW] = code
        tool_context.state[StateKeys.CODE_ANALYSIS] = analysis
        tool_context.state[StateKeys.CODE_LINE_COUNT] = len(code.splitlines())

Return Value vs State: What's the Difference?

• Return value: What the LLM sees immediately. Use for status messages, summaries, and information the LLM needs right now.
• State storage: What other agents/tools can read later. Use for detailed data that needs to persist through the pipeline.

Think of the return value as "speaking out loud" and state as "writing on a shared whiteboard" that all agents can see.

Why StateKeys Constants?

👁️🔦 Accessibility Note: If you're having trouble reading the code in these shaded blocks, use the light/dark mode toggle in the top-right corner of the code block to switch to light mode.

Notice we use StateKeys.CODE_TO_REVIEW instead of the string "code_to_review":

# Without constants - prone to typos
tool_context.state["code_to_review"] = code
tool_context.state["code_to_reveiw"]  # Typo! Returns None silently

# With constants - typos caught by IDE
tool_context.state[StateKeys.CODE_TO_REVIEW] = code
tool_context.state[StateKeys.CODE_TO_REVEIW]  # Error immediately!

The constants are defined in code_review_assistant/constants.py:

class StateKeys:
    CODE_TO_REVIEW = "code_to_review"
    CODE_ANALYSIS = "code_analysis"
    # ... more keys

This prevents bugs that would otherwise only appear in production. When multiple agents share state (like in Module 5), one typo breaks the entire pipeline silently. Constants make typos impossible - your IDE catches them immediately.

Step 3: Add Async Parsing with Thread Pools

Our tool needs to parse AST without blocking other operations. Let's add async execution with thread pools.

👉 Find:

        # MODULE_4_STEP_3_ADD_ASYNC

👉 Replace that single line with:

        # Parse in thread pool to avoid blocking the event loop
        loop = asyncio.get_event_loop()
        with ThreadPoolExecutor() as executor:
            tree = await loop.run_in_executor(executor, ast.parse, code)

Making Tools Non-Blocking

This pattern prevents the tool from freezing other operations. Here's what each part does:

The async def function signature (already in the scaffold):

• Allows this tool to use await
• Lets ADK run multiple tools concurrently
• Required by ADK for all tools

The run_in_executor pattern (what you just added):

loop = asyncio.get_event_loop()
with ThreadPoolExecutor() as executor:
    tree = await loop.run_in_executor(executor, ast.parse, code)

• Runs CPU-intensive ast.parse in a separate thread
• The await pauses this tool while the thread works
• Other tools can run during that pause
• Prevents blocking the event loop

Why both are needed:

# Just async def - still blocks everything!
async def my_tool():
    tree = ast.parse(code)  # Blocks for 100ms, nothing else runs

# With thread pool - work happens in background
async def my_tool():
    tree = await loop.run_in_executor(executor, ast.parse, code)
    # Other tools run while ast.parse works in the thread

This is ADK's recommended pattern for CPU-intensive operations, documented in the performance guide.

Step 4: Extract Comprehensive Information

Now let's extract classes, imports, and detailed metrics - everything we need for a complete code review.

👉 Find:

        # MODULE_4_STEP_4_EXTRACT_DETAILS

👉 Replace that single line with:

        # Extract comprehensive structural information
        analysis = await loop.run_in_executor(
            executor, _extract_code_structure, tree, code
        )

👉 Verify: the function

analyze_code_structure

in

tools.py

has a central body that looks like this:

# Parse in thread pool to avoid blocking the event loop
loop = asyncio.get_event_loop()
with ThreadPoolExecutor() as executor:
    tree = await loop.run_in_executor(executor, ast.parse, code)

    # Extract comprehensive structural information
    analysis = await loop.run_in_executor(
        executor, _extract_code_structure, tree, code
    )

# Store code and analysis for other agents to access
tool_context.state[StateKeys.CODE_TO_REVIEW] = code
tool_context.state[StateKeys.CODE_ANALYSIS] = analysis
tool_context.state[StateKeys.CODE_LINE_COUNT] = len(code.splitlines())

👉 Now scroll to the bottom of

tools.py

and find:

# MODULE_4_STEP_4_HELPER_FUNCTION

👉 Replace that single line with the complete helper function:

def _extract_code_structure(tree: ast.AST, code: str) -> Dict[str, Any]:
    """
    Helper function to extract structural information from AST.
    Runs in thread pool for CPU-bound work.
    """
    functions = []
    classes = []
    imports = []
    docstrings = []

    for node in ast.walk(tree):
        if isinstance(node, ast.FunctionDef):
            func_info = {
                'name': node.name,
                'args': [arg.arg for arg in node.args.args],
                'lineno': node.lineno,
                'has_docstring': ast.get_docstring(node) is not None,
                'is_async': isinstance(node, ast.AsyncFunctionDef),
                'decorators': [d.id for d in node.decorator_list
                               if isinstance(d, ast.Name)]
            }
            functions.append(func_info)

            if func_info['has_docstring']:
                docstrings.append(f"{node.name}: {ast.get_docstring(node)[:50]}...")

        elif isinstance(node, ast.ClassDef):
            methods = []
            for item in node.body:
                if isinstance(item, ast.FunctionDef):
                    methods.append(item.name)

            class_info = {
                'name': node.name,
                'lineno': node.lineno,
                'methods': methods,
                'has_docstring': ast.get_docstring(node) is not None,
                'base_classes': [base.id for base in node.bases
                                 if isinstance(base, ast.Name)]
            }
            classes.append(class_info)

        elif isinstance(node, ast.Import):
            for alias in node.names:
                imports.append({
                    'module': alias.name,
                    'alias': alias.asname,
                    'type': 'import'
                })
        elif isinstance(node, ast.ImportFrom):
            imports.append({
                'module': node.module or '',
                'names': [alias.name for alias in node.names],
                'type': 'from_import',
                'level': node.level
            })

    return {
        'functions': functions,
        'classes': classes,
        'imports': imports,
        'docstrings': docstrings,
        'metrics': {
            'line_count': len(code.splitlines()),
            'function_count': len(functions),
            'class_count': len(classes),
            'import_count': len(imports),
            'has_main': any(f['name'] == 'main' for f in functions),
            'has_if_main': '__main__' in code,
            'avg_function_length': _calculate_avg_function_length(tree)
        }
    }


def _calculate_avg_function_length(tree: ast.AST) -> float:
    """Calculate average function length in lines."""
    function_lengths = []

    for node in ast.walk(tree):
        if isinstance(node, ast.FunctionDef):
            if hasattr(node, 'end_lineno') and hasattr(node, 'lineno'):
                length = node.end_lineno - node.lineno + 1
                function_lengths.append(length)

    if function_lengths:
        return sum(function_lengths) / len(function_lengths)
    return 0.0

Why a Helper Function?

The _extract_code_structure helper is:

• Synchronous (no async) - required to run in run_in_executor
• CPU-bound - does the actual parsing work in a thread
• Testable - you can test it separately from the full tool
• Reusable - other tools could potentially use it

The main tool function (analyze_code_structure) handles async execution, state management, and error handling. The helper focuses purely on extracting information from the AST.

What Information Are We Extracting?

For each function, we capture:

• Name and arguments (for documentation)
• Line number (for error reporting)
• Whether it has a docstring (style checking)
• Decorators (detecting special patterns)

For classes, we extract:

• Methods defined in the class
• Base classes (inheritance analysis)
• Documentation status

This detailed analysis enables the style checker, test runner, and feedback synthesizer to provide specific, actionable insights.

Step 5: Connect to an Agent

Now we wire the tool to an agent that knows when to use it and how to interpret its results.

👉 Open

code_review_assistant/sub_agents/review_pipeline/code_analyzer.py

👉 Find:

# MODULE_4_STEP_5_CREATE_AGENT

👉 Replace that single line with the complete production agent:

code_analyzer_agent = Agent(
    name="CodeAnalyzer",
    model=config.worker_model,
    description="Analyzes Python code structure and identifies components",
    instruction="""You are a code analysis specialist responsible for understanding code structure.

Your task:
1. Take the code submitted by the user (it will be provided in the user message)
2. Use the analyze_code_structure tool to parse and analyze it
3. Pass the EXACT code to your tool - do not modify, fix, or "improve" it
4. Identify all functions, classes, imports, and structural patterns
5. Note any syntax errors or structural issues
6. Store the analysis in state for other agents to use

CRITICAL:
- Pass the code EXACTLY as provided to the analyze_code_structure tool
- Do not fix syntax errors, even if obvious
- Do not add missing imports or fix indentation
- The goal is to analyze what IS there, not what SHOULD be there

When calling the tool, pass the code as a string to the 'code' parameter.
If the analysis fails due to syntax errors, clearly report the error location and type.

Provide a clear summary including:
- Number of functions and classes found
- Key structural observations
- Any syntax errors or issues detected
- Overall code organization assessment""",
    tools=[FunctionTool(func=analyze_code_structure)],
    output_key="structure_analysis_summary"
)

Why Such Detailed Instructions?

The instruction's emphasis on "EXACT code" and "do not fix" is critical because:

• LLMs naturally want to be helpful and fix obvious errors
• But this is a REVIEW agent, not a FIX agent - separate concerns
• We want honest analysis of what's actually there
• The fix pipeline (Module 6) handles corrections

The numbered steps guide the LLM through the workflow clearly and reduce ambiguity about what to do when.

Common Agent Mistake: Over-Helpful LLMs

Without the "EXACT code" instruction, you get misleading results:

# User submits:
def add(a,b):return a+b  # Missing spaces, wrong style

# Without instruction, LLM "helpfully" calls tool with:
def add(a, b):
    return a + b

# Style checker analyzes the "fixed" code
# Reports: "Perfect! No issues found!"
# User gets completely wrong feedback

The explicit instruction prevents this by telling the LLM: your job is analysis, not improvement. Pass through exactly what you receive.

Understanding output_key

The output_key="structure_analysis_summary" means:

• Whatever this agent says gets stored at state["structure_analysis_summary"]
• Later agents in the pipeline can read this summary
• They don't need to re-run the analysis tool
• This is efficient: analyze once, reference many times

You'll see this summary referenced in Module 5 when we build the style checker and feedback synthesizer.

Test Your Code Analyzer

Now verify your analyzer works correctly.

👉 Run the test script:

python tests/test_code_analyzer.py

The test script automatically loads configuration from your .env file using python-dotenv, so no manual environment variable setup is needed.

Expected output:

INFO:code_review_assistant.config:Code Review Assistant Configuration Loaded:
INFO:code_review_assistant.config:  - GCP Project: your-project-id
INFO:code_review_assistant.config:  - Artifact Bucket: gs://your-project-artifacts
INFO:code_review_assistant.config:  - Models: worker=gemini-2.5-flash, critic=gemini-2.5-pro
Testing code analyzer...
INFO:code_review_assistant.tools:Tool: Analysis complete - 2 functions, 1 classes

=== Analyzer Response ===
The analysis of the provided code shows the following:

* **Functions Found:** 2
    * `add(a, b)`: A global function at line 2.
    * `multiply(self, x, y)`: A method within the `Calculator` class.

* **Classes Found:** 1
    * `Calculator`: A class defined at line 5. Contains one method, `multiply`.

* **Imports:** 0

* **Structural Patterns:** The code defines one global function and one class
  with a single method. Both are simple, each with a single return statement.

* **Syntax Errors/Issues:** No syntax errors detected.

* **Overall Code Organization:** The code is well-organized for its small size,
  clearly defining a function and a class with a method.

What just happened:

1. The test script loaded your .env configuration automatically
2. Your analyze_code_structure() tool parsed the code using Python's AST
3. The _extract_code_structure() helper extracted functions, classes, and metrics
4. Results were stored in session state using StateKeys constants
5. The Code Analyzer agent interpreted the results and provided a summary

Troubleshooting:

• "No module named ‘code_review_assistant'": Run pip install -e . from project root
• "Missing key inputs argument": Verify your .env has GOOGLE_CLOUD_PROJECT, GOOGLE_CLOUD_LOCATION, and GOOGLE_GENAI_USE_VERTEXAI=true

What You've Built

You now have a production-ready code analyzer that:

✅ Parses actual Python AST - deterministic, not pattern matching
✅ Stores results in state - other agents can access the analysis
✅ Runs asynchronously - doesn't block other tools
✅ Extracts comprehensive information - functions, classes, imports, metrics
✅ Handles errors gracefully - reports syntax errors with line numbers
✅ Connects to an agent - the LLM knows when and how to use it

Key Concepts Mastered

Tools vs Agents:

• Tools do deterministic work (AST parsing)
• Agents decide when to use tools and interpret results

Return Value vs State:

• Return: what the LLM sees immediately
• State: what persists for other agents

State Keys Constants:

• Prevent typos in multi-agent systems
• Act as contracts between agents
• Critical when agents share data

Async + Thread Pools:

• async def allows tools to pause execution
• Thread pools run CPU-bound work in background
• Together they keep the event loop responsive

Helper Functions:

• Separate sync helpers from async tools
• Makes code testable and reusable

Agent Instructions:

• Detailed instructions prevent common LLM mistakes
• Explicit about what NOT to do (don't fix code)
• Clear workflow steps for consistency

What's Next

In Module 5, you'll add:

• Style checker that reads the code from state
• Test runner that actually executes tests
• Feedback synthesizer that combines all analysis

You'll see how state flows through a sequential pipeline, and why the constants pattern matters when multiple agents read and write the same data.

5. Building a Pipeline: Multiple Agents Working Together

Introduction

In Module 4, you built a single agent that analyzes code structure. But comprehensive code review requires more than just parsing - you need style checking, test execution, and intelligent feedback synthesis.

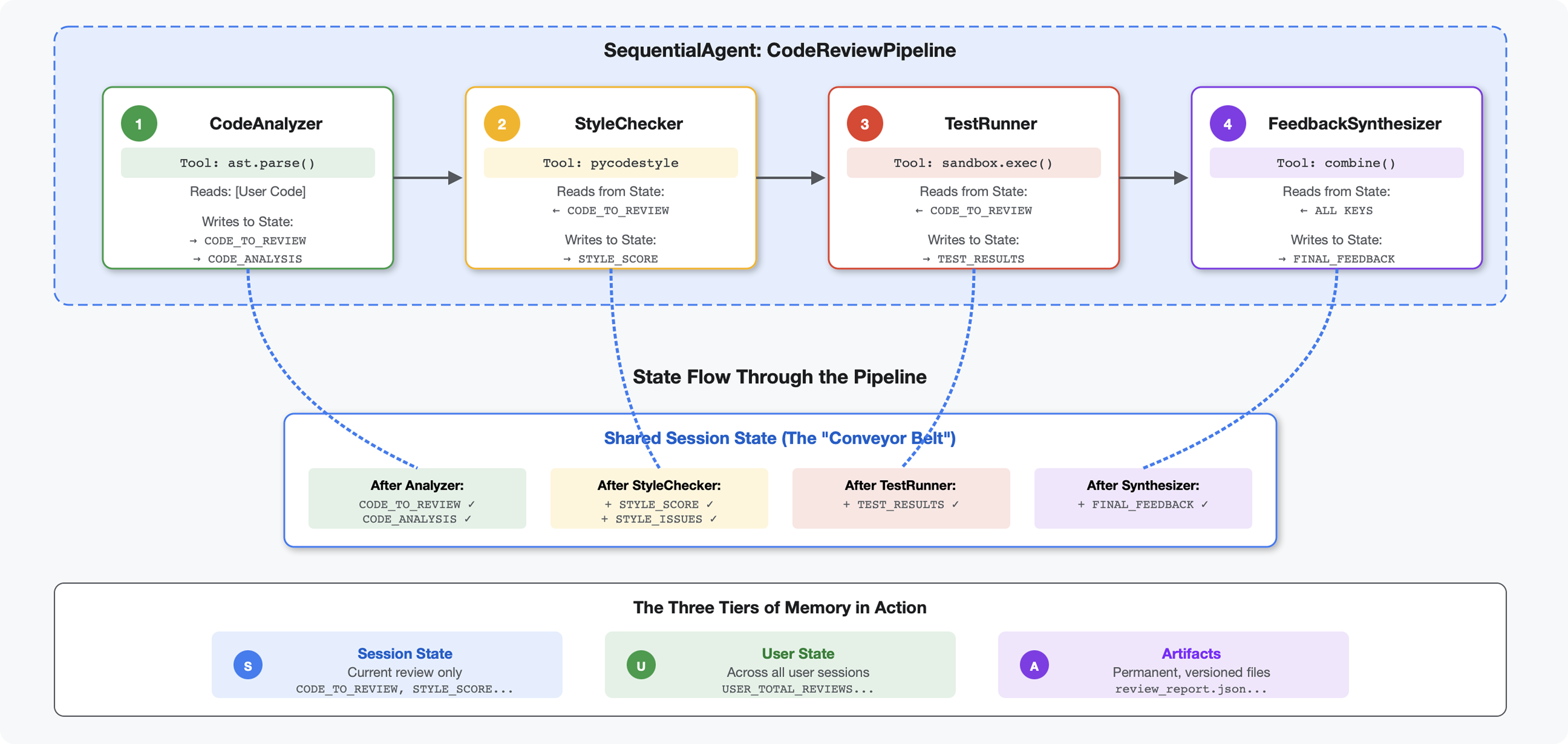

This module builds a pipeline of 4 agents that work together sequentially, each contributing specialized analysis:

1. Code Analyzer (from Module 4) - Parses structure
2. Style Checker - Identifies style violations
3. Test Runner - Executes and validates tests
4. Feedback Synthesizer - Combines everything into actionable feedback

Key concept: State as communication channel. Each agent reads what previous agents wrote to state, adds its own analysis, and passes the enriched state to the next agent. The constants pattern from Module 4 becomes critical when multiple agents share data.

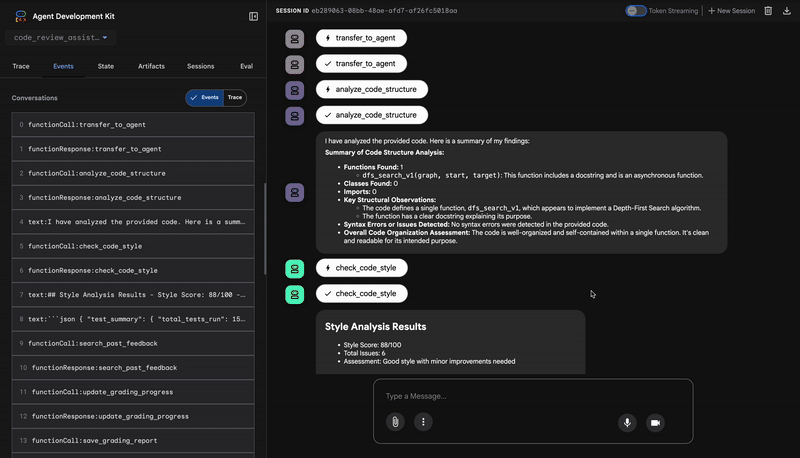

Preview of what you'll build: Submit messy code → watch state flow through 4 agents → receive comprehensive report with personalized feedback based on past patterns.

Step 1: Add Style Checker Tool + Agent

The style checker identifies PEP 8 violations using pycodestyle - a deterministic linter, not LLM-based interpretation.

Add the Style Checking Tool

👉 Open

code_review_assistant/tools.py

👉 Find:

# MODULE_5_STEP_1_STYLE_CHECKER_TOOL

👉 Replace that single line with:

async def check_code_style(code: str, tool_context: ToolContext) -> Dict[str, Any]:
    """
    Checks code style compliance using pycodestyle (PEP 8).

    Args:
        code: Python source code to check (or will retrieve from state)
        tool_context: ADK tool context

    Returns:
        Dictionary containing style score and issues
    """
    logger.info("Tool: Checking code style...")

    try:
        # Retrieve code from state if not provided
        if not code:
            code = tool_context.state.get(StateKeys.CODE_TO_REVIEW, '')
            if not code:
                return {
                    "status": "error",
                    "message": "No code provided or found in state"
                }

        # Run style check in thread pool
        loop = asyncio.get_event_loop()
        with ThreadPoolExecutor() as executor:
            result = await loop.run_in_executor(
                executor, _perform_style_check, code
            )

        # Store results in state
        tool_context.state[StateKeys.STYLE_SCORE] = result['score']
        tool_context.state[StateKeys.STYLE_ISSUES] = result['issues']
        tool_context.state[StateKeys.STYLE_ISSUE_COUNT] = result['issue_count']

        logger.info(f"Tool: Style check complete - Score: {result['score']}/100, "
                    f"Issues: {result['issue_count']}")

        return result

    except Exception as e:
        error_msg = f"Style check failed: {str(e)}"
        logger.error(f"Tool: {error_msg}", exc_info=True)

        # Set default values on error
        tool_context.state[StateKeys.STYLE_SCORE] = 0
        tool_context.state[StateKeys.STYLE_ISSUES] = []

        return {
            "status": "error",
            "message": error_msg,
            "score": 0
        }

👉 Now scroll to the end of the file and find:

# MODULE_5_STEP_1_STYLE_HELPERS

👉 Replace that single line with the helper functions:

def _perform_style_check(code: str) -> Dict[str, Any]:
    """Helper to perform style check in thread pool."""
    import io
    import sys

    with tempfile.NamedTemporaryFile(mode='w', suffix='.py', delete=False) as tmp:
        tmp.write(code)
        tmp_path = tmp.name

    try:
        # Capture stdout to get pycodestyle output
        old_stdout = sys.stdout
        sys.stdout = captured_output = io.StringIO()

        style_guide = pycodestyle.StyleGuide(
            quiet=False,  # We want output
            max_line_length=100,
            ignore=['E501', 'W503']
        )

        result = style_guide.check_files([tmp_path])

        # Restore stdout
        sys.stdout = old_stdout

        # Parse captured output
        output = captured_output.getvalue()
        issues = []

        for line in output.strip().split('\n'):
            if line and ':' in line:
                parts = line.split(':', 4)
                if len(parts) >= 4:
                    try:
                        issues.append({
                            'line': int(parts[1]),
                            'column': int(parts[2]),
                            'code': parts[3].split()[0] if len(parts) > 3 else 'E000',
                            'message': parts[3].strip() if len(parts) > 3 else 'Unknown error'
                        })
                    except (ValueError, IndexError):
                        pass

        # Add naming convention checks
        try:
            tree = ast.parse(code)
            naming_issues = _check_naming_conventions(tree)
            issues.extend(naming_issues)
        except SyntaxError:
            pass  # Syntax errors will be caught elsewhere

        # Calculate weighted score
        score = _calculate_style_score(issues)

        return {
            "status": "success",
            "score": score,
            "issue_count": len(issues),
            "issues": issues[:10],  # First 10 issues
            "summary": f"Style score: {score}/100 with {len(issues)} violations"
        }

    finally:
        if os.path.exists(tmp_path):
            os.unlink(tmp_path)


def _check_naming_conventions(tree: ast.AST) -> List[Dict[str, Any]]:
    """Check PEP 8 naming conventions."""
    naming_issues = []

    for node in ast.walk(tree):
        if isinstance(node, ast.FunctionDef):
            # Skip private/protected methods and __main__
            if not node.name.startswith('_') and node.name != node.name.lower():
                naming_issues.append({
                    'line': node.lineno,
                    'column': node.col_offset,
                    'code': 'N802',
                    'message': f"N802 function name '{node.name}' should be lowercase"
                })
        elif isinstance(node, ast.ClassDef):
            # Check if class name follows CapWords convention
            if not node.name[0].isupper() or '_' in node.name:
                naming_issues.append({
                    'line': node.lineno,
                    'column': node.col_offset,
                    'code': 'N801',
                    'message': f"N801 class name '{node.name}' should use CapWords convention"
                })

    return naming_issues


def _calculate_style_score(issues: List[Dict[str, Any]]) -> int:
    """Calculate weighted style score based on violation severity."""
    if not issues:
        return 100

    # Define weights by error type
    weights = {
        'E1': 10,  # Indentation errors
        'E2': 3,  # Whitespace errors
        'E3': 5,  # Blank line errors
        'E4': 8,  # Import errors
        'E5': 5,  # Line length
        'E7': 7,  # Statement errors
        'E9': 10,  # Syntax errors
        'W2': 2,  # Whitespace warnings
        'W3': 2,  # Blank line warnings
        'W5': 3,  # Line break warnings
        'N8': 7,  # Naming conventions
    }

    total_deduction = 0
    for issue in issues:
        code_prefix = issue['code'][:2] if len(issue['code']) >= 2 else 'E2'
        weight = weights.get(code_prefix, 3)
        total_deduction += weight

    # Cap at 100 points deduction
    return max(0, 100 - min(total_deduction, 100))

Production Pattern: Helper Function Separation

Notice the structure:

• Main tool (check_code_style): Async, handles state, error handling
• Helper (_perform_style_check): Sync, pure logic, runs in thread pool
• Sub-helpers (_check_naming_conventions, _calculate_style_score): Focused utilities

This separation provides:

• Testability: Test helpers independently
• Reusability: Other tools could use the same logic
• Thread safety: Sync helpers work in thread pools
• Maintainability: Each function has a single responsibility

The weighted scoring system (_calculate_style_score) prioritizes serious violations (indentation, syntax) over minor ones (whitespace), giving more accurate quality assessment than simple counting.

State Retrieval Pattern

The tool checks if code was provided, and retrieves from state if not:

if not code:
    code = tool_context.state.get(StateKeys.CODE_TO_REVIEW, '')

This makes the tool flexible:

• Pipeline use: Agent reads from state automatically
• Standalone use: Can pass code directly for testing
• Error handling: Validates code exists before processing

This pattern appears throughout production tools - always provide fallback to state.

Add the Style Checker Agent

👉 Open

code_review_assistant/sub_agents/review_pipeline/style_checker.py

👉 Find:

# MODULE_5_STEP_1_INSTRUCTION_PROVIDER

👉 Replace that single line with:

async def style_checker_instruction_provider(context: ReadonlyContext) -> str:
    """Dynamic instruction provider that injects state variables."""
    template = """You are a code style expert focused on PEP 8 compliance.

Your task:
1. Use the check_code_style tool to validate PEP 8 compliance
2. The tool will retrieve the ORIGINAL code from state automatically
3. Report violations exactly as found
4. Present the results clearly and confidently

CRITICAL:
- The tool checks the code EXACTLY as provided by the user
- Do not suggest the code was modified or fixed
- Report actual violations found in the original code
- If there are style issues, they should be reported honestly

Call the check_code_style tool with an empty string for the code parameter,
as the tool will retrieve the code from state automatically.

When presenting results based on what the tool returns:
- State the exact score from the tool results
- If score >= 90: "Excellent style compliance!"
- If score 70-89: "Good style with minor improvements needed"
- If score 50-69: "Style needs attention"
- If score < 50: "Significant style improvements needed"

List the specific violations found (the tool will provide these):
- Show line numbers, error codes, and messages
- Focus on the top 10 most important issues

Previous analysis: {structure_analysis_summary}

Format your response as:
## Style Analysis Results
- Style Score: [exact score]/100
- Total Issues: [count]
- Assessment: [your assessment based on score]

## Top Style Issues
[List issues with line numbers and descriptions]

## Recommendations
[Specific fixes for the most critical issues]"""

    return await instructions_utils.inject_session_state(template, context)

👉 Find:

# MODULE_5_STEP_1_STYLE_CHECKER_AGENT

👉 Replace that single line with:

style_checker_agent = Agent(
    name="StyleChecker",
    model=config.worker_model,
    description="Checks Python code style against PEP 8 guidelines",
    instruction=style_checker_instruction_provider,
    tools=[FunctionTool(func=check_code_style)],
    output_key="style_check_summary"
)

Dynamic Instruction Providers

Notice the pattern:

async def style_checker_instruction_provider(context: ReadonlyContext) -> str:
    template = """..."""
    return await instructions_utils.inject_session_state(template, context)

Why dynamic vs static instructions?

Static (what you might expect):

instruction="Check the code style and report issues"

Problem: Generic, no context about what previous agents found

Dynamic (production pattern):

instruction=style_checker_instruction_provider

• Runs every invocation - gets latest state
• Injects values like {structure_analysis_summary} from state
• Adapts instructions based on current review context
• LLM sees concrete data about this specific code

The instructions_utils.inject_session_state call replaces {key_name} placeholders with actual values from context.state.

Step 2: Add Test Runner Agent

The test runner generates comprehensive tests and executes them using the built-in code executor.

👉 Open

code_review_assistant/sub_agents/review_pipeline/test_runner.py

👉 Find:

# MODULE_5_STEP_2_INSTRUCTION_PROVIDER

👉 Replace that single line with:

async def test_runner_instruction_provider(context: ReadonlyContext) -> str:
    """Dynamic instruction provider that injects the code_to_review directly."""
    template = """You are a testing specialist who creates and runs tests for Python code.

THE CODE TO TEST IS:
{code_to_review}

YOUR TASK:
1. Understand what the function appears to do based on its name and structure
2. Generate comprehensive tests (15-20 test cases)
3. Execute the tests using your code executor
4. Analyze results to identify bugs vs expected behavior
5. Output a detailed JSON analysis

TESTING METHODOLOGY:
- Test with the most natural interpretation first
- When something fails, determine if it's a bug or unusual design
- Test edge cases, boundaries, and error scenarios
- Document any surprising behavior

Execute your tests and output ONLY valid JSON with this structure:
- "test_summary": object with "total_tests_run", "tests_passed", "tests_failed", "tests_with_errors", "critical_issues_found"
- "critical_issues": array of objects, each with "type", "description", "example_input", "expected_behavior", "actual_behavior", "severity"
- "test_categories": object with "basic_functionality", "edge_cases", "error_handling" (each containing "passed", "failed", "errors" counts)
- "function_behavior": object with "apparent_purpose", "actual_interface", "unexpected_requirements"
- "verdict": object with "status" (WORKING/BUGGY/BROKEN), "confidence" (high/medium/low), "recommendation"

Do NOT output the test code itself, only the JSON analysis."""

    return await instructions_utils.inject_session_state(template, context)

👉 Find:

# MODULE_5_STEP_2_TEST_RUNNER_AGENT

👉 Replace that single line with:

test_runner_agent = Agent(
    name="TestRunner",
    model=config.critic_model,
    description="Generates and runs tests for Python code using safe code execution",
    instruction=test_runner_instruction_provider,
    code_executor=BuiltInCodeExecutor(),
    output_key="test_execution_summary"
)

Why Critic Model for Testing?

Notice model=config.critic_model instead of worker_model:

test_runner_agent = Agent(
    model=config.critic_model,  # More capable model
    ...
)

Worker vs Critic model selection:

• Worker (gemini-2.5-flash): Fast, cheaper, good for mechanical tasks
• Critic (gemini-2.5-pro): Slower, more expensive, better reasoning

Testing requires:

• Understanding function intent from name/structure
• Generating 15-20 meaningful test cases
• Distinguishing bugs from design choices
• Analyzing failure patterns

This level of reasoning justifies the more capable (and expensive) model. The analyzer and style checker use worker models because they're more mechanical.

The Power of Code Execution

The BuiltInCodeExecutor is what separates a real code reviewer from an AI that just talks about code. When the TestRunner agent generates test cases, it actually executes them in a secure Python sandbox. This means:

• Real validation: Tests actually run, catching runtime errors that static analysis misses
• Proof, not speculation: When it says "TypeError on line 4", it's because it ran the code and saw the error
• Consistent results: The same tests produce the same results every time
• Safe execution: The sandbox is isolated from your system

This built-in executor is perfect for our use case - testing pure algorithmic code like data structures, sorting algorithms, and computational logic.

Understanding the Sandbox Limitations

The BuiltInCodeExecutor sandbox has intentional constraints:

• No package installation: Can't use pip install
• No network access: Can't make HTTP requests or access APIs
• Limited execution time: Long-running code will timeout

These aren't flaws - they're security features. By limiting the sandbox to pure Python, we can safely execute untrusted code.

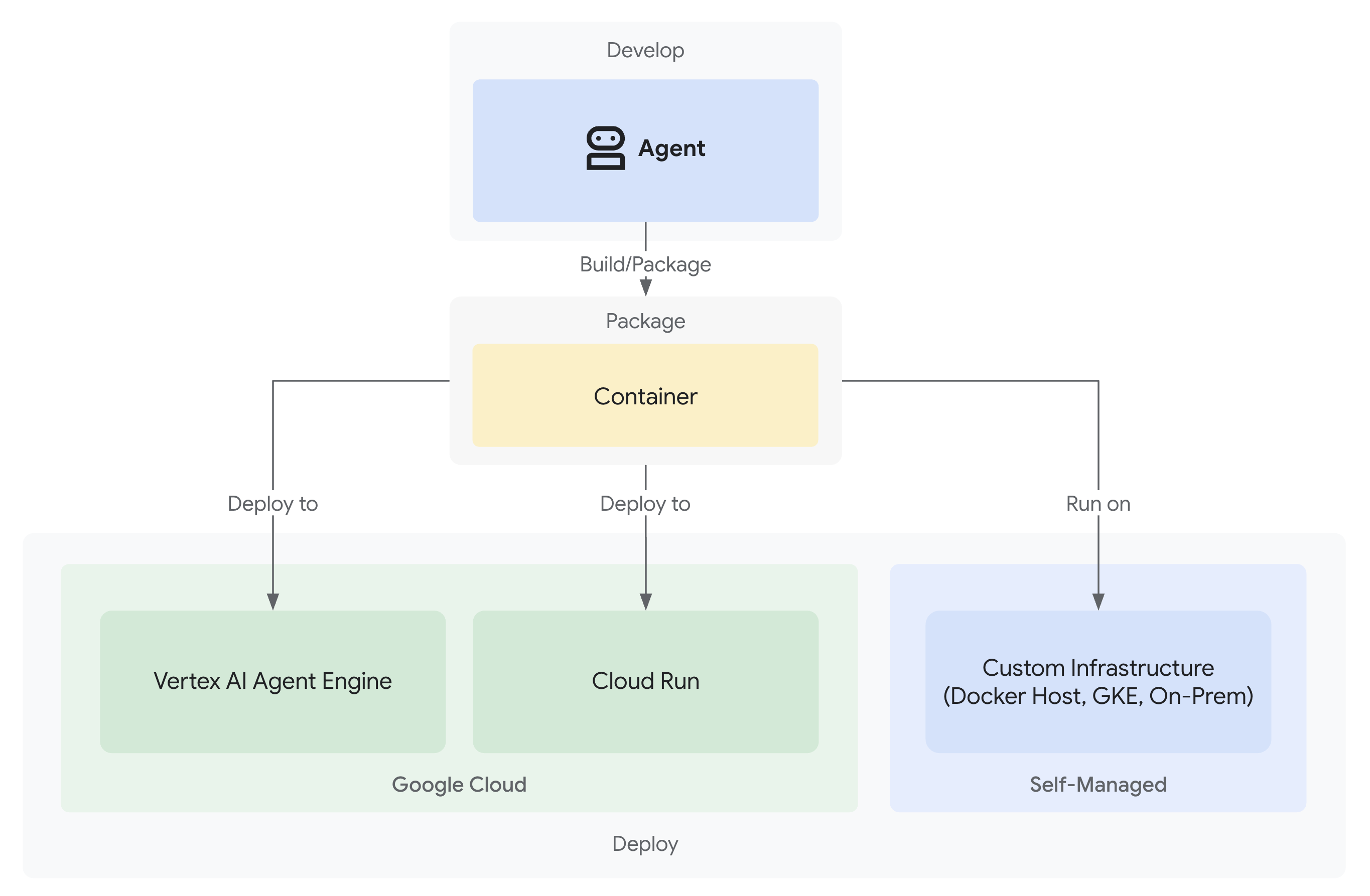

Production Alternative: For production deployments on GKE, consider the GkeCodeExecutor which runs code in isolated Kubernetes pods with gVisor.

Step 3: Understanding Memory for Cross-Session Learning

Before building the feedback synthesizer, you need to understand the difference between state and memory - two different storage mechanisms for two different purposes.

State vs Memory: The Key Distinction

Let's clarify with a concrete example from code review:

State (Current Session Only):

# Data from THIS review session
tool_context.state[StateKeys.STYLE_ISSUES] = [
    {"line": 5, "code": "E231", "message": "missing whitespace"},
    {"line": 12, "code": "E701", "message": "multiple statements"}
]

• Scope: This conversation only
• Purpose: Pass data between agents in the current pipeline
• Lives in: Session object
• Lifetime: Discarded when session ends

Memory (All Past Sessions):

# Learned from 50 previous reviews
"User frequently forgets docstrings on helper functions"
"User tends to write long functions (avg 45 lines)"
"User improved error handling after feedback in session #23"

• Scope: All past sessions for this user
• Purpose: Learn patterns, provide personalized feedback
• Lives in: MemoryService
• Lifetime: Persists across sessions, searchable

Why Feedback Needs Both:

Imagine the synthesizer creating feedback:

Using only State (current review):

"Function `calculate_total` has no docstring."

Generic, mechanical feedback.

Using State + Memory (current + past patterns):

"Function `calculate_total` has no docstring. This is the 4th review
where helper functions lacked documentation. Consider adding docstrings
as you write functions, not afterwards - you mentioned in our last
session that you find it easier that way."

Personalized, contextual, references improvement over time.

For production deployments, you have options:

Option 1: VertexAiMemoryBankService (Advanced)

• What it does: LLM-powered extraction of meaningful facts from conversations
• Search: Semantic search (understands meaning, not just keywords)
• Memory management: Automatically consolidates and updates memories over time
• Requires: Google Cloud Project + Agent Engine setup
• Use when: You want sophisticated, evolving, personalized memories
• Example: "User prefers functional programming" (extracted from 10 conversations about code style)

Option 2: Continue with InMemoryMemoryService + Persistent Sessions

• What it does: Stores full conversation history for keyword search
• Search: Basic keyword matching across past sessions
• Memory management: You control what gets stored (via add_session_to_memory)
• Requires: Only a persistent SessionService (like VertexAiSessionService or DatabaseSessionService)
• Use when: You need simple search across past conversations without LLM processing
• Example: Search "docstring" returns all sessions mentioning that word

Understanding the Service Relationship

Think of it this way:

SessionService (manages conversations):

• Stores: Events, state for current conversation
• Example: VertexAiSessionService, DatabaseSessionService, InMemorySessionService
• Use for: Current conversation persistence

MemoryService (cross-session knowledge):

• Stores: Information from past conversations
• Example:
  • InMemoryMemoryService: Stores full history, keyword search
  • VertexAiMemoryBankService: Extracts knowledge, semantic search
• Use for: Retrieving context from past sessions

They work together:

# After code review completes
session = await session_service.get_session(...)

# Add session to memory for future reference
await memory_service.add_session_to_memory(session)

# Future reviews can search memory
results = await memory_service.search_memory("docstring patterns")

You can use VertexAiSessionService without Memory Bank (just session persistence), but Memory Bank needs sessions to extract from.

How Memory Gets Populated

After each code review completes:

# At the end of a session (typically in your application code)
await memory_service.add_session_to_memory(session)

What happens:

• InMemoryMemoryService: Stores the full session events for keyword search
• VertexAiMemoryBankService: LLM extracts key facts, consolidates with existing memories

Future sessions can then query:

# In a tool, search for relevant past feedback
results = tool_context.search_memory("feedback about docstrings")

State, Memory, and Artifacts: When to Use Each

You now have three storage mechanisms:

State:

• Type: Structured data (dicts, lists, numbers, strings)
• Example: {"style_score": 75, "test_pass_rate": 0.8}
• Use when: Other agents in THIS pipeline need the data
• Access: tool_context.state[StateKeys.STYLE_SCORE]

Memory:

• Type: Searchable text from past sessions
• Example: "User struggles with error handling in API calls"
• Use when: Learning patterns to improve FUTURE sessions
• Access: tool_context.search_memory("error handling patterns")

Artifacts:

• Type: Binary files (PDFs, images, Excel files)
• Example: Final code review report with formatting
• Use when: Users need to download/view files
• Access: tool_context.save_artifact("report.pdf", pdf_bytes)

The synthesizer uses all three:

• Reads state to get current analysis
• Searches memory for past patterns
• Saves artifact for final report

Step 4: Add Feedback Synthesizer Tools and Agent

The feedback synthesizer is the most sophisticated agent in the pipeline. It orchestrates three tools, uses dynamic instructions, and combines state, memory, and artifacts.

Add the Three Synthesizer Tools

👉 Open

code_review_assistant/tools.py

👉 Find:

# MODULE_5_STEP_4_SEARCH_PAST_FEEDBACK

👉 Replace with Tool 1 - Memory Search (production version):

async def search_past_feedback(developer_id: str, tool_context: ToolContext) -> Dict[str, Any]:
    """
    Search for past feedback in memory service.

    Args:
        developer_id: ID of the developer (defaults to "default_user")
        tool_context: ADK tool context with potential memory service access

    Returns:
        Dictionary containing feedback search results
    """
    logger.info(f"Tool: Searching for past feedback for developer {developer_id}...")

    try:
        # Default developer ID if not provided
        if not developer_id:
            developer_id = tool_context.state.get(StateKeys.USER_ID, 'default_user')

        # Check if memory service is available
        if hasattr(tool_context, 'search_memory'):
            try:
                # Perform structured searches
                queries = [
                    f"developer:{developer_id} code review feedback",
                    f"developer:{developer_id} common issues",
                    f"developer:{developer_id} improvements"
                ]

                all_feedback = []
                patterns = {
                    'common_issues': [],
                    'improvements': [],
                    'strengths': []
                }

                for query in queries:
                    search_result = await tool_context.search_memory(query)

                    if search_result and hasattr(search_result, 'memories'):
                        for memory in search_result.memories[:5]:
                            memory_text = memory.text if hasattr(memory, 'text') else str(memory)
                            all_feedback.append(memory_text)

                            # Extract patterns
                            if 'style' in memory_text.lower():
                                patterns['common_issues'].append('style compliance')
                            if 'improved' in memory_text.lower():
                                patterns['improvements'].append('showing improvement')
                            if 'excellent' in memory_text.lower():
                                patterns['strengths'].append('consistent quality')

                # Store in state
                tool_context.state[StateKeys.PAST_FEEDBACK] = all_feedback
                tool_context.state[StateKeys.FEEDBACK_PATTERNS] = patterns

                logger.info(f"Tool: Found {len(all_feedback)} past feedback items")

                return {
                    "status": "success",
                    "feedback_found": True,
                    "count": len(all_feedback),
                    "summary": " | ".join(all_feedback[:3]) if all_feedback else "No feedback",
                    "patterns": patterns
                }

            except Exception as e:
                logger.warning(f"Tool: Memory search error: {e}")

        # Fallback: Check state for cached feedback
        cached_feedback = tool_context.state.get(StateKeys.USER_PAST_FEEDBACK_CACHE, [])
        if cached_feedback:
            tool_context.state[StateKeys.PAST_FEEDBACK] = cached_feedback
            return {
                "status": "success",
                "feedback_found": True,
                "count": len(cached_feedback),
                "summary": "Using cached feedback",
                "patterns": {}
            }

        # No feedback found
        tool_context.state[StateKeys.PAST_FEEDBACK] = []
        logger.info("Tool: No past feedback found")

        return {
            "status": "success",
            "feedback_found": False,
            "message": "No past feedback available - this appears to be a first submission",
            "patterns": {}
        }

    except Exception as e:
        error_msg = f"Feedback search error: {str(e)}"
        logger.error(f"Tool: {error_msg}", exc_info=True)

        tool_context.state[StateKeys.PAST_FEEDBACK] = []

        return {
            "status": "error",
            "message": error_msg,
            "feedback_found": False
        }

Production Pattern: Graceful Degradation

Notice the three-tier fallback strategy:

# 1. Try memory service if available
if hasattr(tool_context, 'search_memory'):
    # Search multiple queries, extract patterns

# 2. Fall back to cached feedback in state
cached_feedback = tool_context.state.get(StateKeys.USER_PAST_FEEDBACK_CACHE, [])
if cached_feedback:
    # Use cached data

# 3. Gracefully handle no feedback
return {"feedback_found": False, "message": "...first submission"}

This pattern ensures the tool never crashes the pipeline:

• Memory service unavailable? Use cache
• Cache empty? Return "no feedback found"
• Always returns valid response, never raises exception

Production tools prioritize resilience over perfection.

👉 Find:

# MODULE_5_STEP_4_UPDATE_GRADING_PROGRESS

👉 Replace with Tool 2 - Grading Tracker (production version):

async def update_grading_progress(tool_context: ToolContext) -> Dict[str, Any]:
    """
    Updates grading progress counters and metrics in state.
    """
    logger.info("Tool: Updating grading progress...")

    try:
        current_time = datetime.now().isoformat()

        # Build all state changes
        state_updates = {}

        # Temporary (invocation-level) state
        state_updates[StateKeys.TEMP_PROCESSING_TIMESTAMP] = current_time

        # Session-level state
        attempts = tool_context.state.get(StateKeys.GRADING_ATTEMPTS, 0) + 1
        state_updates[StateKeys.GRADING_ATTEMPTS] = attempts
        state_updates[StateKeys.LAST_GRADING_TIME] = current_time

        # User-level persistent state
        lifetime_submissions = tool_context.state.get(StateKeys.USER_TOTAL_SUBMISSIONS, 0) + 1
        state_updates[StateKeys.USER_TOTAL_SUBMISSIONS] = lifetime_submissions
        state_updates[StateKeys.USER_LAST_SUBMISSION_TIME] = current_time

        # Calculate improvement metrics
        current_style_score = tool_context.state.get(StateKeys.STYLE_SCORE, 0)
        last_style_score = tool_context.state.get(StateKeys.USER_LAST_STYLE_SCORE, 0)
        score_improvement = current_style_score - last_style_score

        state_updates[StateKeys.USER_LAST_STYLE_SCORE] = current_style_score
        state_updates[StateKeys.SCORE_IMPROVEMENT] = score_improvement

        # Track test results if available
        test_results = tool_context.state.get(StateKeys.TEST_EXECUTION_SUMMARY, {})

        # Parse if it's a string
        if isinstance(test_results, str):
            try:
                test_results = json.loads(test_results)
            except:
                test_results = {}

        if test_results and test_results.get('test_summary', {}).get('total_tests_run', 0) > 0:
            summary = test_results['test_summary']
            total = summary.get('total_tests_run', 0)
            passed = summary.get('tests_passed', 0)
            if total > 0:
                pass_rate = (passed / total) * 100
                state_updates[StateKeys.USER_LAST_TEST_PASS_RATE] = pass_rate

        # Apply all updates atomically
        for key, value in state_updates.items():
            tool_context.state[key] = value

        logger.info(f"Tool: Progress updated - Attempt #{attempts}, "
                    f"Lifetime: {lifetime_submissions}")

        return {
            "status": "success",
            "session_attempts": attempts,
            "lifetime_submissions": lifetime_submissions,
            "timestamp": current_time,
            "improvement": {
                "style_score_change": score_improvement,
                "direction": "improved" if score_improvement > 0 else "declined"
            },
            "summary": f"Attempt #{attempts} recorded, {lifetime_submissions} total submissions"
        }

    except Exception as e:
        error_msg = f"Progress update error: {str(e)}"
        logger.error(f"Tool: {error_msg}", exc_info=True)

        return {
            "status": "error",
            "message": error_msg
        }

Production Pattern: Multi-Tier State Management

This tool demonstrates ADK's three-tier state model:

# Temporary (invocation-level) - cleared after this turn
state_updates[StateKeys.TEMP_PROCESSING_TIMESTAMP] = current_time

# Session-level - persists during this conversation
state_updates[StateKeys.GRADING_ATTEMPTS] = attempts

# User-level - persists across all sessions
state_updates[StateKeys.USER_TOTAL_SUBMISSIONS] = lifetime_submissions

Why three tiers?

• Temporary: Debug info, timestamps - not needed after this turn
• Session: Current review data - needed until review ends
• User: Lifetime metrics - needed for personalization across sessions

The tool calculates improvement by comparing current scores to previous sessions:

current_style_score = tool_context.state.get(StateKeys.STYLE_SCORE, 0)
last_style_score = tool_context.state.get(StateKeys.USER_LAST_STYLE_SCORE, 0)
score_improvement = current_style_score - last_style_score

This enables feedback like "Your style improved by 15 points since last review!"

👉 Find:

# MODULE_5_STEP_4_SAVE_GRADING_REPORT

👉 Replace with Tool 3 - Artifact Saver (production version):

async def save_grading_report(feedback_text: str, tool_context: ToolContext) -> Dict[str, Any]:
    """
    Saves a detailed grading report as an artifact.

    Args:
        feedback_text: The feedback text to include in the report
        tool_context: ADK tool context for state management

    Returns:
        Dictionary containing save status and details
    """
    logger.info("Tool: Saving grading report...")

    try:
        # Gather all relevant data from state
        code = tool_context.state.get(StateKeys.CODE_TO_REVIEW, '')
        analysis = tool_context.state.get(StateKeys.CODE_ANALYSIS, {})
        style_score = tool_context.state.get(StateKeys.STYLE_SCORE, 0)
        style_issues = tool_context.state.get(StateKeys.STYLE_ISSUES, [])

        # Get test results
        test_results = tool_context.state.get(StateKeys.TEST_EXECUTION_SUMMARY, {})

        # Parse if it's a string
        if isinstance(test_results, str):
            try:
                test_results = json.loads(test_results)
            except:
                test_results = {}

        timestamp = datetime.now().isoformat()

        # Create comprehensive report dictionary
        report = {
            'timestamp': timestamp,
            'grading_attempt': tool_context.state.get(StateKeys.GRADING_ATTEMPTS, 1),
            'code': {
                'content': code,
                'line_count': len(code.splitlines()),
                'hash': hashlib.md5(code.encode()).hexdigest()
            },
            'analysis': analysis,
            'style': {
                'score': style_score,
                'issues': style_issues[:5]  # First 5 issues
            },
            'tests': test_results,
            'feedback': feedback_text,
            'improvements': {
                'score_change': tool_context.state.get(StateKeys.SCORE_IMPROVEMENT, 0),
                'from_last_score': tool_context.state.get(StateKeys.USER_LAST_STYLE_SCORE, 0)
            }
        }

        # Convert report to JSON string
        report_json = json.dumps(report, indent=2)
        report_part = types.Part.from_text(text=report_json)

        # Try to save as artifact if the service is available
        if hasattr(tool_context, 'save_artifact'):
            try:
                # Generate filename with timestamp (replace colons for filesystem compatibility)
                filename = f"grading_report_{timestamp.replace(':', '-')}.json"

                # Save the main report
                version = await tool_context.save_artifact(filename, report_part)

                # Also save a "latest" version for easy access
                await tool_context.save_artifact("latest_grading_report.json", report_part)

                logger.info(f"Tool: Report saved as {filename} (version {version})")

                # Store report in state as well for redundancy
                tool_context.state[StateKeys.USER_LAST_GRADING_REPORT] = report

                return {
                    "status": "success",
                    "artifact_saved": True,
                    "filename": filename,
                    "version": str(version),
                    "size": len(report_json),
                    "summary": f"Report saved as {filename}"
                }

            except Exception as artifact_error:
                logger.warning(f"Artifact service error: {artifact_error}, falling back to state storage")
                # Continue to fallback below

        # Fallback: Store in state if artifact service is not available or failed
        tool_context.state[StateKeys.USER_LAST_GRADING_REPORT] = report
        logger.info("Tool: Report saved to state (artifact service not available)")

        return {
            "status": "success",
            "artifact_saved": False,
            "message": "Report saved to state only",
            "size": len(report_json),
            "summary": "Report saved to session state"
        }

    except Exception as e:
        error_msg = f"Report save error: {str(e)}"
        logger.error(f"Tool: {error_msg}", exc_info=True)

        # Still try to save minimal data to state
        try:
            tool_context.state[StateKeys.USER_LAST_GRADING_REPORT] = {
                'error': error_msg,
                'feedback': feedback_text,
                'timestamp': datetime.now().isoformat()
            }
        except:
            pass

        return {
            "status": "error",
            "message": error_msg,
            "artifact_saved": False,
            "summary": f"Failed to save report: {error_msg}"
        }

Production Pattern: Comprehensive Reporting

The report aggregates data from multiple sources:

report = {
    'code': {...},           # Original submission
    'analysis': {...},       # From code_analyzer
    'style': {...},          # From style_checker
    'tests': {...},          # From test_runner
    'feedback': {...},       # From this agent
    'improvements': {...}    # Calculated from history
}

This creates a complete audit trail of the review process.

Dual storage strategy:

# Try artifact service first (persistent, downloadable)
if hasattr(tool_context, 'save_artifact'):
    await tool_context.save_artifact(filename, report_part)

# Fall back to state (always works)
tool_context.state[StateKeys.USER_LAST_GRADING_REPORT] = report

Production systems need this redundancy - if artifact storage fails, data isn't lost.

Create the Synthesizer Agent

👉 Open

code_review_assistant/sub_agents/review_pipeline/feedback_synthesizer.py

👉 Find:

# MODULE_5_STEP_4_INSTRUCTION_PROVIDER

👉 Replace with the production instruction provider:

async def feedback_instruction_provider(context: ReadonlyContext) -> str:
    """Dynamic instruction provider that injects state variables."""
    template = """You are an expert code reviewer and mentor providing constructive, educational feedback.

CONTEXT FROM PREVIOUS AGENTS:
- Structure analysis summary: {structure_analysis_summary}
- Style check summary: {style_check_summary}
- Test execution summary: {test_execution_summary}

YOUR TASK requires these steps IN ORDER:
1. Call search_past_feedback tool with developer_id="default_user"
2. Call update_grading_progress tool with no parameters
3. Carefully analyze the test results to understand what really happened
4. Generate comprehensive feedback following the structure below
5. Call save_grading_report tool with the feedback_text parameter
6. Return the feedback as your final output

CRITICAL - Understanding Test Results:
The test_execution_summary contains structured JSON. Parse it carefully:
- tests_passed = Code worked correctly
- tests_failed = Code produced wrong output
- tests_with_errors = Code crashed
- critical_issues = Fundamental problems with the code

If critical_issues array contains items, these are serious bugs that need fixing.
Do NOT count discovering bugs as test successes.

FEEDBACK STRUCTURE TO FOLLOW:

## 📊 Summary
Provide an honest assessment. Be encouraging but truthful about problems found.

## ✅ Strengths
List 2-3 things done well, referencing specific code elements.

## 📈 Code Quality Analysis

### Structure & Organization
Comment on code organization, readability, and documentation.

### Style Compliance
Report the actual style score and any specific issues.

### Test Results
Report the actual test results accurately:
- If critical_issues exist, report them as bugs to fix
- Be clear: "X tests passed, Y critical issues were found"
- List each critical issue
- Don't hide or minimize problems

## 💡 Recommendations for Improvement
Based on the analysis, provide specific actionable fixes.
If critical issues exist, fixing them is top priority.

## 🎯 Next Steps
Prioritized action list based on severity of issues.

## 💬 Encouragement
End with encouragement while being honest about what needs fixing.

Remember: Complete ALL steps including calling save_grading_report."""

    return await instructions_utils.inject_session_state(template, context)

👉 Find:

# MODULE_5_STEP_4_SYNTHESIZER_AGENT

👉 Replace with:

feedback_synthesizer_agent = Agent(
    name="FeedbackSynthesizer",
    model=config.critic_model,
    description="Synthesizes all analysis into constructive, personalized feedback",
    instruction=feedback_instruction_provider,
    tools=[
        FunctionTool(func=search_past_feedback),
        FunctionTool(func=update_grading_progress),
        FunctionTool(func=save_grading_report)
    ],
    output_key="final_feedback"
)

Production Pattern: Structured Feedback with Tool Orchestration

The synthesizer coordinates three tools in sequence:

# 1. Search memory for patterns
search_past_feedback(developer_id="default_user")

# 2. Update progress metrics (no params - reads from state)
update_grading_progress()

# 3. Save comprehensive report
save_grading_report(feedback_text=generated_feedback)

Why this order matters:

1. Memory search first - gets historical context before writing feedback
2. Progress update middle - records metrics while synthesizing
3. Report save last - captures complete feedback after generation

The instruction explicitly tells the LLM to call these in order, ensuring consistent behavior.

Critic Model for Synthesis

Like the test runner, the synthesizer uses the more capable model:

model=config.critic_model,

Why the expensive model here? The synthesizer must:

• Parse JSON from test runner (structured data)
• Distinguish bug reports from successful tests
• Integrate memory patterns with current results
• Generate personalized, encouraging feedback
• Balance honesty with encouragement

This level of nuance and reasoning justifies the cost. The mechanical agents (analyzer, style checker) save money with the worker model.

Step 5: Wire the Pipeline

Now connect all four agents into a sequential pipeline and create the root agent.

👉 Open

code_review_assistant/agent.py

👉 Add the necessary imports at the top of the file (after the existing imports):

from google.adk.agents import Agent, SequentialAgent
from code_review_assistant.sub_agents.review_pipeline.code_analyzer import code_analyzer_agent
from code_review_assistant.sub_agents.review_pipeline.style_checker import style_checker_agent
from code_review_assistant.sub_agents.review_pipeline.test_runner import test_runner_agent
from code_review_assistant.sub_agents.review_pipeline.feedback_synthesizer import feedback_synthesizer_agent

Your file should now look like:

"""
Main agent orchestration for the Code Review Assistant.
"""

from google.adk.agents import Agent, SequentialAgent
from .config import config
from code_review_assistant.sub_agents.review_pipeline.code_analyzer import code_analyzer_agent
from code_review_assistant.sub_agents.review_pipeline.style_checker import style_checker_agent
from code_review_assistant.sub_agents.review_pipeline.test_runner import test_runner_agent
from code_review_assistant.sub_agents.review_pipeline.feedback_synthesizer import feedback_synthesizer_agent

# MODULE_5_STEP_5_CREATE_PIPELINE

# MODULE_6_STEP_5_CREATE_FIX_LOOP

# MODULE_6_STEP_5_UPDATE_ROOT_AGENT

👉 Find:

# MODULE_5_STEP_5_CREATE_PIPELINE

👉 Replace that single line with:

# Create sequential pipeline
code_review_pipeline = SequentialAgent(
    name="CodeReviewPipeline",
    description="Complete code review pipeline with analysis, testing, and feedback",
    sub_agents=[
        code_analyzer_agent,
        style_checker_agent,
        test_runner_agent,
        feedback_synthesizer_agent
    ]
)

# Root agent - coordinates the review pipeline
root_agent = Agent(
    name="CodeReviewAssistant",
    model=config.worker_model,
    description="An intelligent code review assistant that analyzes Python code and provides educational feedback",
    instruction="""You are a specialized Python code review assistant focused on helping developers improve their code quality.

When a user provides Python code for review:
1. Immediately delegate to CodeReviewPipeline and pass the code EXACTLY as it was provided by the user.
2. The pipeline will handle all analysis and feedback
3. Return ONLY the final feedback from the pipeline - do not add any commentary

When a user asks what you can do or asks general questions:
- Explain your capabilities for code review
- Do NOT trigger the pipeline for non-code messages

The pipeline handles everything for code review - just pass through its final output.""",
    sub_agents=[code_review_pipeline],
    output_key="assistant_response"
)

Sequential Pipeline Dependencies

The pipeline order is critical:

agents=[
    code_analyzer_agent,       # Creates CODE_TO_REVIEW in state
    style_checker_agent,        # Reads CODE_TO_REVIEW
    test_runner_agent,          # Reads CODE_TO_REVIEW
    feedback_synthesizer_agent  # Reads all three summaries
]

What each agent needs:

• Analyzer: Only needs user input → runs first
• Style/Test: Need CODE_TO_REVIEW from analyzer
• Synthesizer: Needs all three output_key summaries

Reordering breaks dependencies. If style checker ran first:

code = tool_context.state.get(StateKeys.CODE_TO_REVIEW)  # Returns None!

Module 5 vs Final Production

At the end of Module 5, your agent.py will have:

# Module 5 - Review pipeline only
root_agent = Agent(
    sub_agents=[code_review_pipeline]  # Single pipeline
)

In Module 6, you'll add the fix pipeline:

# Module 6 - Both pipelines
root_agent = Agent(
    sub_agents=[code_review_pipeline, code_fix_pipeline]  # Two pipelines
)

The instruction will also expand to offer fixes and handle user responses. For now, focus on getting the review pipeline working correctly.

Step 6: Test Complete Pipeline

Time to see all four agents working together.

👉 Start the system:

adk web code_review_assistant

After running the adk web command, you should see output in your terminal indicating that the ADK Web Server has started, similar to this:

+-----------------------------------------------------------------------------+
| ADK Web Server started                                                      |
|                                                                             |
| For local testing, access at http://localhost:8000.                         |
+-----------------------------------------------------------------------------+

INFO:     Application startup complete.
INFO:     Uvicorn running on http://0.0.0.0:8000 (Press CTRL+C to quit)

👉 Next, to access the ADK Dev UI from your browser:

From the Web preview icon (often looks like an eye or a square with an arrow) in the Cloud Shell toolbar (usually top right), select Change port. In the pop-up window, set the port to 8000 and click "Change and Preview". Cloud Shell will then open a new browser tab or window displaying the ADK Dev UI.

👉 The agent is now running. The ADK Dev UI in your browser is your direct connection to the agent.

• Select Your Target: In the dropdown menu at the top of the UI, choose the code_review_assistant agent.

👉 Test Prompt:

Please analyze the following:
def dfs_search_v1(graph, start, target):
    """Find if target is reachable from start."""
    visited = set()
    stack = start

    while stack:
        current = stack.pop()

        if current == target:
            return True

        if current not in visited:
            visited.add(current)

            for neighbor in graph[current]:
                if neighbor not in visited:
                    stack.append(neighbor)

    return False

👉 See the code review pipeline in action:

When you submit the buggy dfs_search_v1 function, you're not just getting one answer. You're witnessing your multi-agent pipeline at work. The streaming output you see is the result of four specialized agents executing in sequence, each building upon the last.

Here's a breakdown of what each agent contributes to the final, comprehensive review, turning raw data into actionable intelligence.

1. The Code Analyzer's Structural Report

First, the CodeAnalyzer agent receives the raw code. It doesn't guess what the code does; it uses the analyze_code_structure tool to perform a deterministic Abstract Syntax Tree (AST) parse.

Its output is pure, factual data about the code's structure:

The analysis of the provided code reveals the following:

Summary:
- Functions Found: 1
- Classes Found: 0

Key Structural Observations:
- A single function, dfs_search_v1, is defined.
- It includes a docstring: "Find if target is reachable from start."
- No syntax errors were detected.

Overall Code Organization Assessment:
- The code snippet is a well-defined, self-contained function.

⭐ Value: This initial step provides a clean, reliable foundation for the other agents. It confirms the code is valid Python and identifies the exact components that need to be reviewed.

2. The Style Checker's PEP 8 Audit

Next, the StyleChecker agent takes over. It reads the code from the shared state and uses the check_code_style tool, which leverages the pycodestyle linter.

Its output is a quantifiable quality score and specific violations:

Style Analysis Results
- Style Score: 88/100
- Total Issues: 6
- Assessment: Good style with minor improvements needed

Top Style Issues
- Line 5, W293: blank line contains whitespace
- Line 19, W292: no newline at end of file

⭐ Value: This agent provides objective, non-negotiable feedback based on established community standards (PEP 8). The weighted scoring system immediately tells the user the severity of the issues.

3. The Test Runner's Critical Bug Discovery

This is where the system goes beyond surface-level analysis. The TestRunner agent generates and executes a comprehensive suite of tests to validate the code's behavior.

Its output is a structured JSON object that contains a damning verdict:

{
  "critical_issues": [
    {
      "type": "Critical Bug",
      "description": "The function's initialization `stack = start` is incorrect... When a common input like a string... is provided... the function crashes with an AttributeError.",
      "severity": "Critical"
    }
  ],
  "verdict": {
    "status": "BROKEN",
    "confidence": "high",
    "recommendation": "The function is fundamentally broken... the stack initialization line `stack = start` must be changed to `stack = [start]`."
  }
}

⭐ Value: This is the most critical insight. The agent didn't just guess; it proved the code was broken by running it. It uncovered a subtle but critical runtime bug that a human reviewer might easily miss and pinpointed the exact cause and the required fix.

4. The Feedback Synthesizer's Final Report

Finally, the FeedbackSynthesizer agent acts as the conductor. It takes the structured data from the previous three agents and crafts a single, user-friendly report that is both analytical and encouraging.

Its output is the final, polished review you see:

📊 Summary
Great effort on implementing the Depth-First Search algorithm! ... However, a critical bug in the initialization of the stack prevents the function from working correctly...

✅ Strengths
- Good Algorithm Structure
- Correct Use of `visited` Set

📈 Code Quality Analysis
...
### Style Compliance
The style analysis returned a good score of 88/100.
...
### Test Results
The automated testing revealed a critical issue... The line `stack = start` directly assigns the input... which results in an `AttributeError`.

💡 Recommendations for Improvement
**Fix the Critical Stack Initialization Bug:**
- Incorrect Code: `stack = start`
- Correct Code: `stack = [start]`

💬 Encouragement
You are very close to a perfect implementation! The core logic of your DFS algorithm is sound, which is the hardest part.

⭐ Value: This agent transforms technical data into a helpful, educational experience. It prioritizes the most important issue (the bug), explains it clearly, provides the exact solution, and does so in an encouraging tone. It successfully integrates the findings from all previous stages into a cohesive and valuable whole.

This multi-stage process demonstrates the power of an agentic pipeline. Instead of a single, monolithic response, you get a layered analysis where each agent performs a specialized, verifiable task. This leads to a review that is not only insightful but also deterministic, reliable, and deeply educational.

👉💻 Once you're done testing, return to your Cloud Shell Editor terminal and press Ctrl+C to stop the ADK Dev UI.

What You've Built

You now have a complete code review pipeline that:

✅ Parses code structure - deterministic AST analysis with helper functions
✅ Checks style - weighted scoring with naming conventions
✅ Runs tests - comprehensive test generation with structured JSON output
✅ Synthesizes feedback - integrates state + memory + artifacts
✅ Tracks progress - multi-tier state across invocations/sessions/users
✅ Learns over time - memory service for cross-session patterns
✅ Provides artifacts - downloadable JSON reports with complete audit trail

Key Concepts Mastered

Sequential Pipelines:

• Four agents executing in strict order
• Each enriches state for the next
• Dependencies determine execution sequence

Production Patterns:

• Helper function separation (sync in thread pools)
• Graceful degradation (fallback strategies)
• Multi-tier state management (temp/session/user)
• Dynamic instruction providers (context-aware)
• Dual storage (artifacts + state redundancy)

State as Communication:

• Constants prevent typos across agents
• output_key writes agent summaries to state
• Later agents read via StateKeys
• State flows linearly through pipeline

Memory vs State:

• State: current session data
• Memory: patterns across sessions
• Different purposes, different lifetimes

Tool Orchestration:

• Single-tool agents (analyzer, style_checker)
• Built-in executors (test_runner)
• Multi-tool coordination (synthesizer)

Model Selection Strategy:

• Worker model: mechanical tasks (parsing, linting, routing)
• Critic model: reasoning tasks (testing, synthesis)
• Cost optimization through appropriate selection

What's Next

In Module 6, you'll build the fix pipeline:

• LoopAgent architecture for iterative fixing
• Exit conditions via escalation
• State accumulation across iterations
• Validation and retry logic
• Integration with review pipeline to offer fixes

You'll see how the same state patterns scale to complex iterative workflows where agents attempt multiple times until success, and how to coordinate multiple pipelines in a single application.

6. Adding the Fix Pipeline: Loop Architecture

Introduction

In Module 5, you built a sequential review pipeline that analyzes code and provides feedback. But identifying problems is only half the solution - developers need help fixing them.

This module builds an automated fix pipeline that:

1. Generates fixes based on review results
2. Validates fixes by running comprehensive tests
3. Retries automatically if fixes don't work (up to 3 attempts)
4. Reports results with before/after comparisons

Key concept: LoopAgent for automatic retry. Unlike sequential agents that run once, a LoopAgent repeats its sub-agents until an exit condition is met or max iterations reached. Tools signal success by setting tool_context.actions.escalate = True.

Preview of what you'll build: Submit buggy code → review identifies issues → fix loop generates corrections → tests validate → retries if needed → final comprehensive report.

Core Concepts: LoopAgent vs Sequential

Sequential Pipeline (Module 5):

SequentialAgent(agents=[A, B, C])
# Executes: A → B → C → Done

• One-way flow
• Each agent runs exactly once
• No retry logic

Loop Pipeline (Module 6):

LoopAgent(agents=[A, B, C], max_iterations=3)
# Executes: A → B → C → (check exit) → A → B → C → (check exit) → ...

• Cyclic flow
• Agents can run multiple times
• Exits when:
  • A tool sets tool_context.actions.escalate = True (success)
  • max_iterations reached (safety limit)
  • Unhandled exception occurs (error)

Why loops for code fixing:

Code fixes often need multiple attempts:

• First attempt: Fix obvious bugs (wrong variable types)
• Second attempt: Fix secondary issues revealed by tests (edge cases)
• Third attempt: Fine-tune and validate all tests pass

Without a loop, you'd need complex conditional logic in agent instructions. With LoopAgent, retry is automatic.

Architecture comparison:

Sequential (Module 5):
User → Review Pipeline → Feedback → Done

Loop (Module 6):
User → Review Pipeline → Feedback → Fix Pipeline
                                         ↓
                          ┌──────────────┴──────────────┐
                          │   Fix Attempt Loop (1-3x)   │
                          │  ┌─────────────────────┐    │
                          │  │ 1. Generate Fixes   │    │
                          │  │ 2. Test Fixes       │    │
                          │  │ 3. Validate & Exit? │────┼─→ If escalate=True
                          │  └─────────────────────┘    │      exit loop
                          │         ↓ If not            │
                          │    Try Again (max 3)        │
                          └─────────────────────────────┘
                                     ↓
                          4. Synthesize Final Report → Done

Step 1: Add Code Fixer Agent

The code fixer generates corrected Python code based on review results.

👉 Open

code_review_assistant/sub_agents/fix_pipeline/code_fixer.py

👉 Find:

# MODULE_6_STEP_1_CODE_FIXER_INSTRUCTION_PROVIDER

👉 Replace that single line with:

async def code_fixer_instruction_provider(context: ReadonlyContext) -> str:
    """Dynamic instruction provider that injects state variables."""
    template = """You are an expert code fixing specialist.

Original Code:
{code_to_review}

Analysis Results:
- Style Score: {style_score}/100
- Style Issues: {style_issues}
- Test Results: {test_execution_summary}

Based on the test results, identify and fix ALL issues including:
- Interface bugs (e.g., if start parameter expects wrong type)
- Logic errors (e.g., KeyError when accessing graph nodes)
- Style violations
- Missing documentation

YOUR TASK:
Generate the complete fixed Python code that addresses all identified issues.

CRITICAL INSTRUCTIONS:
- Output ONLY the corrected Python code
- Do NOT include markdown code blocks (```python)
- Do NOT include any explanations or commentary
- The output should be valid, executable Python code and nothing else

Common fixes to apply based on test results:
- If tests show AttributeError with 'pop', fix: stack = [start] instead of stack = start
- If tests show KeyError accessing graph, fix: use graph.get(current, [])
- Add docstrings if missing
- Fix any style violations identified

Output the complete fixed code now:"""

    return await instructions_utils.inject_session_state(template, context)

👉 Find:

# MODULE_6_STEP_1_CODE_FIXER_AGENT

👉 Replace that single line with:

code_fixer_agent = Agent(
    name="CodeFixer",
    model=config.worker_model,
    description="Generates comprehensive fixes for all identified code issues",
    instruction=code_fixer_instruction_provider,
    code_executor=BuiltInCodeExecutor(),
    output_key="code_fixes"
)

Why Output Raw Code Only?

The instruction explicitly says "Do NOT include markdown code blocks": Bad output (will break downstream agents):

def fixed_function():
    pass

Good output (raw Python):

def fixed_function():
    pass

Why? The fix_test_runner_agent needs to execute this code directly. Markdown formatting would cause syntax errors. The output_key="code_fixes" stores raw Python in state.

Context Provider Pattern Again

Like the synthesizer in Module 5, the fixer uses dynamic instructions:

instruction=code_fixer_instruction_provider

The function reads current state each invocation:

• {code_to_review} - original buggy code
• {style_issues} - what to fix
• {test_execution_summary} - what failed

If the loop retries, the instruction sees updated state from the previous attempt.

Step 2: Add Fix Test Runner Agent

The fix test runner validates corrections by executing comprehensive tests on the fixed code.

👉 Open

code_review_assistant/sub_agents/fix_pipeline/fix_test_runner.py

👉 Find:

# MODULE_6_STEP_2_FIX_TEST_RUNNER_INSTRUCTION_PROVIDER

👉 Replace that single line with:

async def fix_test_runner_instruction_provider(context: ReadonlyContext) -> str:
    """Dynamic instruction provider that uses the clean code from the previous step."""
    template = """You are responsible for validating the fixed code by running tests.

THE FIXED CODE TO TEST:
{code_fixes}

ORIGINAL TEST RESULTS: {test_execution_summary}

YOUR TASK:
1. Understand the fixes that were applied
2. Generate the same comprehensive tests (15-20 test cases)
3. Execute the tests on the FIXED code using your code executor
4. Compare results with original test results
5. Output a detailed JSON analysis

TESTING METHODOLOGY:
- Run the same tests that revealed issues in the original code
- Verify that previously failing tests now pass
- Ensure no regressions were introduced
- Document the improvement

Execute your tests and output ONLY valid JSON with this structure:
- "passed": number of tests that passed
- "failed": number of tests that failed
- "total": total number of tests
- "pass_rate": percentage as a number
- "comparison": object with "original_pass_rate", "new_pass_rate", "improvement"
- "newly_passing_tests": array of test names that now pass
- "still_failing_tests": array of test names still failing

Do NOT output the test code itself, only the JSON analysis."""

    return await instructions_utils.inject_session_state(template, context)

👉 Find:

# MODULE_6_STEP_2_FIX_TEST_RUNNER_AGENT

👉 Replace that single line with:

fix_test_runner_agent = Agent(
    name="FixTestRunner",
    model=config.critic_model,
    description="Runs comprehensive tests on fixed code to verify all issues are resolved",
    instruction=fix_test_runner_instruction_provider,
    code_executor=BuiltInCodeExecutor(),
    output_key="fix_test_execution_summary"
)

Why JSON Output Format?

The instruction requires structured JSON output with specific fields like "passed", "failed", "total", "pass_rate", and "comparison".

Why JSON instead of natural language?

• The validator agent needs to parse numeric values
• Consistent structure across all iterations
• Easy to compare improvements quantitatively

The output_key="fix_test_execution_summary" stores this JSON in state.

Critic Model for Testing

Notice this agent uses config.critic_model:

model=config.critic_model,

This is typically a more capable model (like gemini-2.5-pro) because:

• Generating 15-20 comprehensive test cases requires sophistication
• Must understand edge cases and potential regressions
• Needs to parse original test results and compare accurately

The fixer used worker_model because code generation is more mechanical. Testing requires critical thinking.

Step 3: Add Fix Validator Agent

The validator checks if fixes were successful and decides whether to exit the loop.

Understanding the Tools

First, add the three tools the validator needs.

👉 Open

code_review_assistant/tools.py

👉 Find:

# MODULE_6_STEP_3_VALIDATE_FIXED_STYLE

👉 Replace with Tool 1 - Style Validator:

async def validate_fixed_style(tool_context: ToolContext) -> Dict[str, Any]:
    """
    Validates style compliance of the fixed code.

    Args:
        tool_context: ADK tool context containing fixed code in state

    Returns:
        Dictionary with style validation results
    """
    logger.info("Tool: Validating style of fixed code...")

    try:
        # Get the fixed code from state
        code_fixes = tool_context.state.get(StateKeys.CODE_FIXES, '')

        # Try to extract from markdown if present
        if '```python' in code_fixes:
            start = code_fixes.rfind('```python') + 9
            end = code_fixes.rfind('```')
            if start < end:
                code_fixes = code_fixes[start:end].strip()

        if not code_fixes:
            return {
                "status": "error",
                "message": "No fixed code found in state"
            }

        # Store the extracted fixed code
        tool_context.state[StateKeys.CODE_FIXES] = code_fixes

        # Run style check on fixed code
        loop = asyncio.get_event_loop()
        with ThreadPoolExecutor() as executor:
            style_result = await loop.run_in_executor(
                executor, _perform_style_check, code_fixes
            )

        # Compare with original
        original_score = tool_context.state.get(StateKeys.STYLE_SCORE, 0)
        improvement = style_result['score'] - original_score

        # Store results
        tool_context.state[StateKeys.FIXED_STYLE_SCORE] = style_result['score']
        tool_context.state[StateKeys.FIXED_STYLE_ISSUES] = style_result['issues']

        logger.info(f"Tool: Fixed code style score: {style_result['score']}/100 "
                    f"(improvement: +{improvement})")

        return {
            "status": "success",
            "fixed_style_score": style_result['score'],
            "original_style_score": original_score,
            "improvement": improvement,
            "remaining_issues": style_result['issues'],
            "perfect_style": style_result['score'] == 100
        }

    except Exception as e:
        logger.error(f"Tool: Style validation failed: {e}", exc_info=True)
        return {
            "status": "error",
            "message": str(e)
        }

👉 Find:

# MODULE_6_STEP_3_COMPILE_FIX_REPORT

👉 Replace with Tool 2 - Report Compiler:

async def compile_fix_report(tool_context: ToolContext) -> Dict[str, Any]:
    """
    Compiles comprehensive report of the fix process.

    Args:
        tool_context: ADK tool context with all fix pipeline data

    Returns:
        Comprehensive fix report
    """
    logger.info("Tool: Compiling comprehensive fix report...")

    try:
        # Gather all data
        original_code = tool_context.state.get(StateKeys.CODE_TO_REVIEW, '')
        code_fixes = tool_context.state.get(StateKeys.CODE_FIXES, '')

        # Test results
        original_tests = tool_context.state.get(StateKeys.TEST_EXECUTION_SUMMARY, {})
        fixed_tests = tool_context.state.get(StateKeys.FIX_TEST_EXECUTION_SUMMARY, {})

        # Parse if strings
        if isinstance(original_tests, str):
            try:
                original_tests = json.loads(original_tests)
            except:
                original_tests = {}

        if isinstance(fixed_tests, str):
            try:
                fixed_tests = json.loads(fixed_tests)
            except:
                fixed_tests = {}

        # Extract pass rates
        original_pass_rate = 0
        if original_tests:
            if 'pass_rate' in original_tests:
                original_pass_rate = original_tests['pass_rate']
            elif 'test_summary' in original_tests:
                # Handle test_runner_agent's JSON structure
                summary = original_tests['test_summary']
                total = summary.get('total_tests_run', 0)
                passed = summary.get('tests_passed', 0)
                if total > 0:
                    original_pass_rate = (passed / total) * 100
            elif 'passed' in original_tests and 'total' in original_tests:
                if original_tests['total'] > 0:
                    original_pass_rate = (original_tests['passed'] / original_tests['total']) * 100

        fixed_pass_rate = 0
        all_tests_pass = False
        if fixed_tests:
            if 'pass_rate' in fixed_tests:
                fixed_pass_rate = fixed_tests['pass_rate']
                all_tests_pass = fixed_tests.get('failed', 1) == 0
            elif 'passed' in fixed_tests and 'total' in fixed_tests:
                if fixed_tests['total'] > 0:
                    fixed_pass_rate = (fixed_tests['passed'] / fixed_tests['total']) * 100
                all_tests_pass = fixed_tests.get('failed', 0) == 0

        # Style scores
        original_style = tool_context.state.get(StateKeys.STYLE_SCORE, 0)
        fixed_style = tool_context.state.get(StateKeys.FIXED_STYLE_SCORE, 0)

        # Calculate improvements
        test_improvement = {
            'original_pass_rate': original_pass_rate,
            'fixed_pass_rate': fixed_pass_rate,
            'improvement': fixed_pass_rate - original_pass_rate,
            'all_tests_pass': all_tests_pass
        }

        style_improvement = {
            'original_score': original_style,
            'fixed_score': fixed_style,
            'improvement': fixed_style - original_style,
            'perfect_style': fixed_style == 100
        }

        # Determine overall status
        if all_tests_pass and style_improvement['perfect_style']:
            fix_status = 'SUCCESSFUL'
            status_emoji = '✅'
        elif test_improvement['improvement'] > 0 or style_improvement['improvement'] > 0:
            fix_status = 'PARTIAL'
            status_emoji = '⚠️'
        else:
            fix_status = 'FAILED'
            status_emoji = '❌'

        # Build comprehensive report
        report = {
            'status': fix_status,
            'status_emoji': status_emoji,
            'timestamp': datetime.now().isoformat(),
            'original_code': original_code,
            'code_fixes': code_fixes,
            'improvements': {
                'tests': test_improvement,
                'style': style_improvement
            },
            'summary': f"{status_emoji} Fix Status: {fix_status}\n"
                      f"Tests: {original_pass_rate:.1f}% → {fixed_pass_rate:.1f}%\n"
                      f"Style: {original_style}/100 → {fixed_style}/100"
        }

        # Store report in state
        tool_context.state[StateKeys.FIX_REPORT] = report
        tool_context.state[StateKeys.FIX_STATUS] = fix_status

        logger.info(f"Tool: Fix report compiled - Status: {fix_status}")
        logger.info(f"Tool: Test improvement: {original_pass_rate:.1f}% → {fixed_pass_rate:.1f}%")
        logger.info(f"Tool: Style improvement: {original_style} → {fixed_style}")

        return {
            "status": "success",
            "fix_status": fix_status,
            "report": report
        }

    except Exception as e:
        logger.error(f"Tool: Failed to compile fix report: {e}", exc_info=True)
        return {
            "status": "error",
            "message": str(e)
        }

👉 Find:

# MODULE_6_STEP_3_EXIT_FIX_LOOP

👉 Replace with Tool 3 - Loop Exit Signal:

def exit_fix_loop(tool_context: ToolContext) -> Dict[str, Any]:
    """
    Signal that fixing is complete and should exit the loop.

    Args:
        tool_context: ADK tool context

    Returns:
        Confirmation message
    """
    logger.info("Tool: Setting escalate flag to exit fix loop")

    # This is the critical line that exits the LoopAgent
    tool_context.actions.escalate = True

    return {
        "status": "success",
        "message": "Fix complete, exiting loop"
    }

The Escalate Mechanism

The exit_fix_loop tool has one critical line:

tool_context.actions.escalate = True

This signals the LoopAgent to stop iterating:

• Without escalate: Loop continues to next iteration
• With escalate: Loop exits immediately after current iteration completes

Why escalate instead of returning a special value?

• Any tool in the pipeline can set it (not just the last one)
• Works consistently across all agent types
• Clear semantic meaning: "escalate out of this loop"
• Doesn't interfere with the tool's return data

The validator decides when to call this tool based on fix quality.

Create the Validator Agent

👉 Open

code_review_assistant/sub_agents/fix_pipeline/fix_validator.py

👉 Find:

# MODULE_6_STEP_3_FIX_VALIDATOR_INSTRUCTION_PROVIDER

👉 Replace that single line with:

async def fix_validator_instruction_provider(context: ReadonlyContext) -> str:
    """Dynamic instruction provider that injects state variables."""
    template = """You are the final validation specialist for code fixes.

You have access to:
- Original issues from initial review
- Applied fixes: {code_fixes}
- Test results after fix: {fix_test_execution_summary}
- All state data from the fix process

Your responsibilities:
1. Use validate_fixed_style tool to check style compliance of fixed code
   - Pass no arguments, it will retrieve fixed code from state
2. Use compile_fix_report tool to generate comprehensive report
   - Pass no arguments, it will gather all data from state
3. Based on the report, determine overall fix status:
   - ✅ SUCCESSFUL: All tests pass, style score 100
   - ⚠️ PARTIAL: Improvements made but issues remain
   - ❌ FAILED: Fix didn't work or made things worse

4. CRITICAL: If status is SUCCESSFUL, call the exit_fix_loop tool to stop iterations
   - This prevents unnecessary additional fix attempts
   - If not successful, the loop will continue for another attempt

5. Provide clear summary of:
   - What was fixed
   - What improvements were achieved
   - Any remaining issues requiring manual attention

Be precise and quantitative in your assessment.
"""
    return await instructions_utils.inject_session_state(template, context)

👉 Find:

# MODULE_6_STEP_3_FIX_VALIDATOR_AGENT

👉 Replace that single line with:

fix_validator_agent = Agent(
    name="FixValidator",
    model=config.worker_model,
    description="Validates fixes and generates final fix report",
    instruction=fix_validator_instruction_provider,
    tools=[
        FunctionTool(func=validate_fixed_style),
        FunctionTool(func=compile_fix_report),
        FunctionTool(func=exit_fix_loop)
    ],
    output_key="final_fix_report"
)

Three Tools, One Decision

The validator orchestrates three tools in sequence:

1. validate_fixed_style()

• Checks: Style score of fixed code
• Writes to state: FIXED_STYLE_SCORE, FIXED_STYLE_ISSUES
• Agent sees: Improvement or regression

2. compile_fix_report()

• Reads: All metrics (tests, style, before/after)
• Calculates: Overall status (SUCCESSFUL/PARTIAL/FAILED)
• Writes to state: FIX_REPORT, FIX_STATUS
• Agent sees: Comprehensive comparison

3. exit_fix_loop() (conditional)

• Called: Only if status is SUCCESSFUL
• Sets: escalate = True
• Effect: Loop exits after this iteration

If the agent doesn't call exit_fix_loop, the loop continues to the next iteration.

Step 4: Understanding LoopAgent Exit Conditions

The LoopAgent has three ways to exit:

1. Success Exit (via escalate)

# Inside any tool in the loop:
tool_context.actions.escalate = True

# Effect: Loop completes current iteration, then exits
# Use when: Fix is successful and no more attempts needed

Example flow:

Iteration 1:
  CodeFixer → generates fixes
  FixTestRunner → tests show 90% pass rate
  FixValidator → compiles report, sees PARTIAL status
  → Does NOT set escalate
  → Loop continues

Iteration 2:
  CodeFixer → refines fixes based on failures
  FixTestRunner → tests show 100% pass rate
  FixValidator → compiles report, sees SUCCESSFUL status
  → Calls exit_fix_loop() which sets escalate = True
  → Loop exits after this iteration

2. Max Iterations Exit

LoopAgent(
    name="FixAttemptLoop",
    sub_agents=[...],
    max_iterations=3  # Safety limit
)

# Effect: After 3 complete iterations, loop exits regardless of escalate
# Use when: Prevent infinite loops if fixes never succeed

Example flow:

Iteration 1: PARTIAL (continue)
Iteration 2: PARTIAL (continue)
Iteration 3: PARTIAL (but max reached)
→ Loop exits, synthesizer presents best attempt

3. Error Exit

# If any agent throws unhandled exception:
raise Exception("Unexpected error")

# Effect: Loop exits immediately with error state
# Use when: Critical failure that can't be recovered

State Evolution Across Iterations:

Each iteration sees updated state from the previous attempt:

# Before Iteration 1:
state = {
    "code_to_review": "def add(a,b):return a+b",  # Original
    "style_score": 40,
    "test_execution_summary": {...}
}

# After Iteration 1:
state = {
    "code_to_review": "def add(a,b):return a+b",  # Unchanged
    "code_fixes": "def add(a, b):\n    return a + b",  # NEW
    "style_score": 40,  # Unchanged
    "fixed_style_score": 100,  # NEW
    "test_execution_summary": {...},  # Unchanged
    "fix_test_execution_summary": {...}  # NEW
}

# Iteration 2 starts with all this state
# If fixes still not perfect, code_fixes gets overwritten

Why

escalate

Instead of Return Values:

# Bad: Using return value to signal exit
def validator_agent():
    report = compile_report()
    if report['status'] == 'SUCCESSFUL':
        return {"exit": True}  # How does loop know?

# Good: Using escalate
def validator_tool(tool_context):
    report = compile_report()
    if report['status'] == 'SUCCESSFUL':
        tool_context.actions.escalate = True  # Loop knows immediately
    return {"report": report}

Benefits:

• Works from any tool, not just the last one
• Doesn't interfere with return data
• Clear semantic meaning
• Framework handles the exit logic

Debugging Loop Iterations

To see what's happening in each iteration:

# Add to validator's state writes:
iteration_count = tool_context.state.get('loop_iteration', 0) + 1
tool_context.state['loop_iteration'] = iteration_count
tool_context.state[f'iteration_{iteration_count}_status'] = fix_status

# After loop completes, inspect:
print(f"Total iterations: {state.get('loop_iteration')}")
print(f"Iter 1: {state.get('iteration_1_status')}")
print(f"Iter 2: {state.get('iteration_2_status')}")

This helps understand when and why the loop exited.

Step 5: Wire the Fix Pipeline

👉 Open

code_review_assistant/agent.py

👉 Add the fix pipeline imports (after the existing imports):

from google.adk.agents import LoopAgent  # Add this to the existing Agent, SequentialAgent line
from code_review_assistant.sub_agents.fix_pipeline.code_fixer import code_fixer_agent
from code_review_assistant.sub_agents.fix_pipeline.fix_test_runner import fix_test_runner_agent
from code_review_assistant.sub_agents.fix_pipeline.fix_validator import fix_validator_agent
from code_review_assistant.sub_agents.fix_pipeline.fix_synthesizer import fix_synthesizer_agent

Your imports should now be:

from google.adk.agents import Agent, SequentialAgent, LoopAgent
from .config import config
# Review pipeline imports (from Module 5)
from code_review_assistant.sub_agents.review_pipeline.code_analyzer import code_analyzer_agent
from code_review_assistant.sub_agents.review_pipeline.style_checker import style_checker_agent
from code_review_assistant.sub_agents.review_pipeline.test_runner import test_runner_agent
from code_review_assistant.sub_agents.review_pipeline.feedback_synthesizer import feedback_synthesizer_agent
# Fix pipeline imports (NEW)
from code_review_assistant.sub_agents.fix_pipeline.code_fixer import code_fixer_agent
from code_review_assistant.sub_agents.fix_pipeline.fix_test_runner import fix_test_runner_agent
from code_review_assistant.sub_agents.fix_pipeline.fix_validator import fix_validator_agent
from code_review_assistant.sub_agents.fix_pipeline.fix_synthesizer import fix_synthesizer_agent

👉 Find:

# MODULE_6_STEP_5_CREATE_FIX_LOOP

👉 Replace that single line with:

# Create the fix attempt loop (retries up to 3 times)
fix_attempt_loop = LoopAgent(
    name="FixAttemptLoop",
    sub_agents=[
        code_fixer_agent,      # Step 1: Generate fixes
        fix_test_runner_agent, # Step 2: Validate with tests
        fix_validator_agent    # Step 3: Check success & possibly exit
    ],
    max_iterations=3  # Try up to 3 times
)

# Wrap loop with synthesizer for final report
code_fix_pipeline = SequentialAgent(
    name="CodeFixPipeline",
    description="Automated code fixing pipeline with iterative validation",
    sub_agents=[
        fix_attempt_loop,      # Try to fix (1-3 times)
        fix_synthesizer_agent  # Present final results (always runs once)
    ]
)

Why Wrap Loop with Sequential?

The structure is:

SequentialAgent([
    LoopAgent([fix, test, validate]),  # Runs 1-3 times
    synthesizer_agent                   # Runs once
])

Why not just:

LoopAgent([fix, test, validate, synthesizer])  # Bad!

Because the synthesizer should run ONCE at the end, regardless of how many loop iterations occurred. If it were inside the loop:

• After iteration 1: Synthesizes PARTIAL result
• After iteration 2: Synthesizes again (redundant)
• After iteration 3: Synthesizes final

By wrapping, the synthesizer sees the final state after all iterations complete and creates one comprehensive report.

👉 Remove the existing

root_agent

definition:

root_agent = Agent(...)

👉 Find:

# MODULE_6_STEP_5_UPDATE_ROOT_AGENT

👉 Replace that single line with:

# Update root agent to include both pipelines
root_agent = Agent(
    name="CodeReviewAssistant",
    model=config.worker_model,
    description="An intelligent code review assistant that analyzes Python code and provides educational feedback",
    instruction="""You are a specialized Python code review assistant focused on helping developers improve their code quality.

When a user provides Python code for review:
1. Immediately delegate to CodeReviewPipeline and pass the code EXACTLY as it was provided by the user.
2. The pipeline will handle all analysis and feedback
3. Return ONLY the final feedback from the pipeline - do not add any commentary

After completing a review, if significant issues were identified:
- If style score < 100 OR tests are failing OR critical issues exist:
  * Add at the end: "\n\n💡 I can fix these issues for you. Would you like me to do that?"

- If the user responds yes or requests fixes:
  * Delegate to CodeFixPipeline
  * Return the fix pipeline's complete output AS-IS

When a user asks what you can do or general questions:
- Explain your capabilities for code review and fixing
- Do NOT trigger the pipeline for non-code messages

The pipelines handle everything for code review and fixing - just pass through their final output.""",
    sub_agents=[code_review_pipeline, code_fix_pipeline],
    output_key="assistant_response"
)

Two-Pipeline Architecture

Root Agent
  ├─ CodeReviewPipeline (Module 5)
  │    ├─ CodeAnalyzer
  │    ├─ StyleChecker
  │    ├─ TestRunner
  │    └─ FeedbackSynthesizer
  │
  └─ CodeFixPipeline (Module 6)
       ├─ FixAttemptLoop (LoopAgent, 1-3x)
       │    ├─ CodeFixer
       │    ├─ FixTestRunner
       │    └─ FixValidator (may set escalate)
       │
       └─ FixSynthesizer (runs once after loop)

Why separate pipelines?

• Review is read-only, fix modifies code (different concerns)
• User might only want review, not fixes
• Fixes depend on review results (sequential dependency)
• Clear separation makes testing easier

Step 6: Add Fix Synthesizer Agent

The synthesizer creates a user-friendly presentation of fix results after the loop completes.

👉 Open

code_review_assistant/sub_agents/fix_pipeline/fix_synthesizer.py

👉 Find:

# MODULE_6_STEP_6_FIX_SYNTHESIZER_INSTRUCTION_PROVIDER

👉 Replace that single line with:

async def fix_synthesizer_instruction_provider(context: ReadonlyContext) -> str:
    """Dynamic instruction provider that injects state variables."""
    template = """You are responsible for presenting the fix results to the user.

Based on the validation report: {final_fix_report}
Fixed code from state: {code_fixes}
Fix status: {fix_status}

Create a comprehensive yet friendly response that includes:

## 🔧 Fix Summary
[Overall status and key improvements - be specific about what was achieved]

## 📊 Metrics
- Test Results: [original pass rate]% → [new pass rate]%
- Style Score: [original]/100 → [new]/100
- Issues Fixed: X of Y

## ✅ What Was Fixed
[List each fixed issue with brief explanation of the correction made]

## 📝 Complete Fixed Code
[Include the complete, corrected code from state - this is critical]

## 💡 Explanation of Key Changes
[Brief explanation of the most important changes made and why]

[If any issues remain]
## ⚠️ Remaining Issues
[List what still needs manual attention]

## 🎯 Next Steps
[Guidance on what to do next - either use the fixed code or address remaining issues]

Save the fix report using save_fix_report tool before presenting.
Call it with no parameters - it will retrieve the report from state automatically.

Be encouraging about improvements while being honest about any remaining issues.
Focus on the educational aspect - help the user understand what was wrong and how it was fixed.
"""
    return await instructions_utils.inject_session_state(template, context)

👉 Find:

# MODULE_6_STEP_6_FIX_SYNTHESIZER_AGENT

👉 Replace that single line with:

fix_synthesizer_agent = Agent(
    name="FixSynthesizer",
    model=config.critic_model,
    description="Creates comprehensive user-friendly fix report",
    instruction=fix_synthesizer_instruction_provider,
    tools=[FunctionTool(func=save_fix_report)],
    output_key="fix_summary"
)

👉 Add

save_fix_report

tool to

tools.py

:

👉 Find:

# MODULE_6_STEP_6_SAVE_FIX_REPORT

👉 Replace with:

async def save_fix_report(tool_context: ToolContext) -> Dict[str, Any]:
    """
    Saves the fix report as an artifact.

    Args:
        tool_context: ADK tool context

    Returns:
        Save status
    """
    logger.info("Tool: Saving fix report...")

    try:
        # Get the report from state
        fix_report = tool_context.state.get(StateKeys.FIX_REPORT, {})

        if not fix_report:
            return {
                "status": "error",
                "message": "No fix report found in state"
            }

        # Convert to JSON
        report_json = json.dumps(fix_report, indent=2)
        report_part = types.Part.from_text(text=report_json)

        # Generate filename
        timestamp = datetime.now().isoformat().replace(':', '-')
        filename = f"fix_report_{timestamp}.json"

        # Try to save as artifact
        if hasattr(tool_context, 'save_artifact'):
            try:
                version = await tool_context.save_artifact(filename, report_part)
                await tool_context.save_artifact("latest_fix_report.json", report_part)

                logger.info(f"Tool: Fix report saved as {filename}")

                return {
                    "status": "success",
                    "filename": filename,
                    "version": str(version),
                    "size": len(report_json)
                }
            except Exception as e:
                logger.warning(f"Could not save as artifact: {e}")

        # Fallback: store in state
        tool_context.state[StateKeys.LAST_FIX_REPORT] = fix_report

        return {
            "status": "success",
            "message": "Fix report saved to state",
            "size": len(report_json)
        }

    except Exception as e:
        logger.error(f"Tool: Failed to save fix report: {e}", exc_info=True)
        return {
            "status": "error",
            "message": str(e)
        }

Why Synthesizer Runs After Loop

The synthesizer is OUTSIDE the loop:

SequentialAgent([
    LoopAgent([...]),  # Runs 1-3 times
    synthesizer        # Runs ONCE after loop exits
])

This means:

• It sees the FINAL state after all fix attempts
• It knows how many iterations occurred (from state)
• It presents one comprehensive report, not per-iteration reports

The instruction template references state keys that accumulate across iterations:

• {code_fixes} - last attempt's code
• {final_fix_report} - report from last validator run
• {fix_status} - SUCCESSFUL/PARTIAL/FAILED

If synthesizer were inside the loop, it would run multiple times with incomplete data.

Step 7: Test Complete Fix Pipeline

Time to see the entire loop in action.

👉 Start the system:

adk web code_review_assistant

After running the adk web command, you should see output in your terminal indicating that the ADK Web Server has started, similar to this:

+-----------------------------------------------------------------------------+
| ADK Web Server started                                                      |
|                                                                             |
| For local testing, access at http://localhost:8000.                         |
+-----------------------------------------------------------------------------+

INFO:     Application startup complete.
INFO:     Uvicorn running on http://0.0.0.0:8000 (Press CTRL+C to quit)

👉 Test Prompt:

Please analyze the following:
def dfs_search_v1(graph, start, target):
    """Find if target is reachable from start."""
    visited = set()
    stack = start

    while stack:
        current = stack.pop()

        if current == target:
            return True

        if current not in visited:
            visited.add(current)

            for neighbor in graph[current]:
                if neighbor not in visited:
                    stack.append(neighbor)

    return False

First, submit the buggy code to trigger the review pipeline. After it identifies the flaws, you will ask the agent to "Please fix the code" which triggers the powerful, iterative fix pipeline.

1. The Initial Review (Finding the Flaws)

This is the first half of the process. The four-agent review pipeline analyzes the code, checks its style, and runs a generated test suite. It correctly identifies a critical AttributeError and other issues, delivering a verdict: the code is BROKEN, with a test pass rate of only 84.21%.

2. The Automated Fix (The Loop in Action)

This is the most impressive part. When you ask the agent to fix the code, it doesn't just make one change. It kicks off an iterative Fix and Validate Loop that works just like a diligent developer: it tries a fix, tests it thoroughly, and if it's not perfect, it tries again.

Iteration #1: The First Attempt (Partial Success)

• The Fix: The CodeFixer agent reads the initial report and makes the most obvious corrections. It changes stack = start to stack = [start] and uses graph.get() to prevent KeyError exceptions.
• The Validation: The TestRunner immediately re-runs the full test suite against this new code.
• The Result: The pass rate improves significantly to 88.89%! The critical bugs are gone. However, the tests are so comprehensive that they reveal two new, subtle bugs (regressions) related to handling None as a graph or non-list neighbor values. The system marks the fix as PARTIAL.

Iteration #2: The Final Polish (100% Success)

• The Fix: Because the loop's exit condition (100% pass rate) was not met, it runs again. The CodeFixer now has more information—the two new regression failures. It generates a final, more robust version of the code that explicitly handles those edge cases.
• The Validation: The TestRunner executes the test suite one last time against the final version of the code.
• The Result: A perfect 100% pass rate. All original bugs and all regressions are resolved. The system marks the fix as SUCCESSFUL and the loop exits.

3. The Final Report: A Perfect Score

With a fully validated fix, the FixSynthesizer agent takes over to present the final report, transforming the technical data into a clear, educational summary.

Metric	Before	After	Improvement
Test Pass Rate	84.21%	100%	▲ 15.79%
Style Score	88 / 100	98 / 100	▲ 10 pts
Bugs Fixed	0 of 3	3 of 3	✅

✅ The Final, Validated Code

Here is the complete, corrected code that now passes all 19 tests, demonstrating the successful fix:

def dfs_search_v1(graph, start, target):
    """Find if target is reachable from start."""
    # Handles 'None' graph input
    if graph is None:
        return False

    visited = set()
    # Fixes the critical AttributeError
    stack = [start]

    while stack:
        current = stack.pop()

        if current == target:
            return True

        if current not in visited:
            visited.add(current)

            # Safely gets neighbors to prevent KeyError
            neighbors = graph.get(current)

            if neighbors is None:
                continue

            # Validates that neighbors are iterable
            if not isinstance(neighbors, (list, set, tuple)):
                raise TypeError(
                    f"Graph value for node '{current}' is of type "
                    f"{type(neighbors).__name__}. Expected a list, set, or tuple."
                )

            for neighbor in neighbors:
                if neighbor not in visited:
                    stack.append(neighbor)

    return False

👉💻 Once you're done testing, return to your Cloud Shell Editor terminal and press Ctrl+C to stop the ADK Dev UI.

What You've Built

You now have a complete automated fix pipeline that:

✅ Generates fixes - Based on review analysis
✅ Validates iteratively - Tests after each fix attempt
✅ Retries automatically - Up to 3 attempts for success
✅ Exits intelligently - Via escalate when successful
✅ Tracks improvements - Compares before/after metrics
✅ Provides artifacts - Downloadable fix reports

Key Concepts Mastered

LoopAgent vs Sequential:

• Sequential: One pass through agents
• LoopAgent: Repeats until exit condition or max iterations
• Exit via tool_context.actions.escalate = True

State Evolution Across Iterations:

• CODE_FIXES updated each iteration
• Test results show improvement over time
• Validator sees cumulative changes

Multi-Pipeline Architecture:

• Review pipeline: Read-only analysis (Module 5)
• Fix loop: Iterative correction (Module 6 inner loop)
• Fix pipeline: Loop + synthesizer (Module 6 outer)
• Root agent: Orchestrates based on user intent

Tools Controlling Flow:

• exit_fix_loop() sets escalate
• Any tool can signal loop completion
• Decouples exit logic from agent instructions

Max Iterations Safety:

• Prevents infinite loops
• Ensures system always responds
• Presents best attempt even if not perfect

What's Next

In the final module, you'll learn how to deploy your agent to production:

• Setting up persistent storage with VertexAiSessionService
• Deploying to Agent Engine on Google Cloud
• Monitoring and debugging production agents
• Best practices for scaling and reliability

You've built a complete multi-agent system with sequential and loop architectures. The patterns you've learned - state management, dynamic instructions, tool orchestration, and iterative refinement - are production-ready techniques used in real agentic systems.

7. Deploying to Production

Introduction

Your code review assistant is now complete with review and fix pipelines working locally. The missing piece: it only runs on your machine. In this module, you'll deploy your agent to Google Cloud, making it accessible to your team with persistent sessions and production-grade infrastructure.

What you'll learn:

• Three deployment paths: Local, Cloud Run, and Agent Engine
• Automated infrastructure provisioning
• Session persistence strategies
• Testing deployed agents

Understanding Deployment Options

The ADK supports multiple deployment targets, each with different tradeoffs:

Deployment Paths

Factor	Local (adk web)	Cloud Run (adk deploy cloud_run)	Agent Engine (adk deploy agent_engine)
Complexity	Minimal	Medium	Low
Session Persistence	In-memory only (lost on restart)	Cloud SQL (PostgreSQL)	Vertex AI managed (automatic)
Infrastructure	None (dev machine only)	Container + Database	Fully managed
Cold Start	N/A	100-2000ms	100-500ms
Scaling	Single instance	Automatic (to zero)	Automatic
Cost Model	Free (local compute)	Request-based + free tier	Compute-based
UI Support	Yes (via adk web)	Yes (via --with_ui)	No (API only)
Best For	Development/testing	Variable traffic, cost control	Production agents

Additional deployment option: Google Kubernetes Engine (GKE) is available for advanced users requiring Kubernetes-level control, custom networking, or multi-service orchestration. GKE deployment is not covered in this codelab but is documented in the ADK deployment guide.

What Gets Deployed

When deploying to Cloud Run or Agent Engine, the following is packaged and deployed:

• Your agent code (agent.py, all sub-agents, tools)
• Dependencies (requirements.txt)
• ADK API server (automatically included)
• Web UI (Cloud Run only, when --with_ui specified)

Important differences:

• Cloud Run: Uses adk deploy cloud_run CLI (builds container automatically) or gcloud run deploy (requires custom Dockerfile)
• Agent Engine: Uses adk deploy agent_engine CLI (no container building needed, directly packages Python code)

Step 1: Configure Your Environment

Configure Your .env File

Your .env file (created in Module 3) needs updates for cloud deployment. Open .env and verify/update these settings:

Required for all cloud deployments:

# Your actual GCP Project ID (REQUIRED)
GOOGLE_CLOUD_PROJECT=your-project-id

# GCP region for deployments (REQUIRED)
GOOGLE_CLOUD_LOCATION=us-central1

# Use Vertex AI (REQUIRED)
GOOGLE_GENAI_USE_VERTEXAI=true

# Model configuration (already set)
WORKER_MODEL=gemini-2.5-flash
CRITIC_MODEL=gemini-2.5-pro

Set bucket names (REQUIRED before running deploy.sh):

The deployment script creates buckets based on these names. Set them now:

# Staging bucket for Agent Engine code uploads (REQUIRED for agent-engine)
STAGING_BUCKET=gs://your-project-id-staging

# Artifact storage for reports and fixed code (REQUIRED for both cloud-run and agent-engine)
ARTIFACT_BUCKET=gs://your-project-id-artifacts

Replace your-project-id with your actual project ID in both bucket names. The script will create these buckets if they don't exist.

Optional variables (created automatically if blank):

# Agent Engine ID (populated after first deployment)
AGENT_ENGINE_ID=

# Cloud Run Database credentials (created automatically if blank)
CLOUD_SQL_INSTANCE_NAME=
DB_USER=
DB_PASSWORD=
DB_NAME=

What the script handles automatically:

• Creates staging and artifact buckets using the names you specified
• Sets up IAM permissions for service accounts
• Enables required Google Cloud APIs
• Provisions Cloud SQL for Cloud Run deployments
• Generates secure database credentials

Authentication Check

If you encounter authentication errors during deployment:

gcloud auth application-default login
gcloud config set project $GOOGLE_CLOUD_PROJECT

Step 2: Understanding the Deployment Script

The deploy.sh script provides a unified interface for all deployment modes:

./deploy.sh {local|cloud-run|agent-engine}

Script Capabilities

Infrastructure provisioning:

• API enablement (AI Platform, Storage, Cloud Build, Cloud Trace, Cloud SQL)
• IAM permission configuration (service accounts, roles)
• Resource creation (buckets, databases, instances)
• Deployment with proper flags
• Post-deployment verification

Key Script Sections

• Configuration (lines 1-35): Project, region, service names, defaults
• Helper Functions (lines 37-200): API enablement, bucket creation, IAM setup
• Main Logic (lines 202-400): Mode-specific deployment orchestration

Step 3: Prepare Agent for Agent Engine

Before deploying to Agent Engine, an agent_engine_app.py file is needed that wraps your agent for the managed runtime. This has been created for you already.

View code_review_assistant/agent_engine_app.py

👉 Open file:

"""
Agent Engine application wrapper.
This file prepares the agent for deployment to Vertex AI Agent Engine.
"""

from vertexai import agent_engines
from .agent import root_agent

# Wrap the agent in an AdkApp object for Agent Engine deployment
app = agent_engines.AdkApp(
    agent=root_agent,
    enable_tracing=True,
)

Step 4: Deploy to Agent Engine

Agent Engine is the recommended production deployment for ADK agents because it provides:

• Fully managed infrastructure (no containers to build)
• Built-in session persistence via VertexAiSessionService
• Automatic scaling from zero
• Cloud Trace integration enabled by default

How Agent Engine Differs from Other Deployments

Under the hood,

deploy.sh agent-engine

uses:

adk deploy agent_engine \
  --project=$GOOGLE_CLOUD_PROJECT \
  --region=$GOOGLE_CLOUD_LOCATION \
  --staging_bucket=$STAGING_BUCKET \
  --display_name="Code Review Assistant" \
  --trace_to_cloud \
  code_review_assistant

This command:

• Packages your Python code directly (no Docker build)
• Uploads to the staging bucket you specified in .env
• Creates a managed Agent Engine instance
• Enables Cloud Trace for observability
• Uses agent_engine_app.py to configure the runtime

Unlike Cloud Run which containerizes your code, Agent Engine runs your Python code directly in a managed runtime environment, similar to serverless functions.

Run the Deployment

From your project root:

./deploy.sh agent-engine

Deployment Phases

Watch the script execute these phases:

Phase 1: API Enablement
  ✓ aiplatform.googleapis.com
  ✓ storage-api.googleapis.com
  ✓ cloudbuild.googleapis.com
  ✓ cloudtrace.googleapis.com

Phase 2: IAM Setup
  ✓ Getting project number
  ✓ Granting Storage Object Admin
  ✓ Granting AI Platform User
  ✓ Granting Cloud Trace Agent

Phase 3: Staging Bucket
  ✓ Creating gs://your-project-id-staging
  ✓ Setting permissions

Phase 4: Artifact Bucket
  ✓ Creating gs://your-project-id-artifacts
  ✓ Configuring access

Phase 5: Validation
  ✓ Checking agent.py exists
  ✓ Verifying root_agent defined
  ✓ Checking agent_engine_app.py exists
  ✓ Validating requirements.txt

Phase 6: Build & Deploy
  ✓ Packaging agent code
  ✓ Uploading to staging bucket
  ✓ Creating Agent Engine instance
  ✓ Configuring session persistence
  ✓ Setting up Cloud Trace integration
  ✓ Running health checks

This process takes 5-10 minutes as it packages the agent and deploys it to Vertex AI infrastructure.

Save Your Agent Engine ID

Upon successful deployment:

✅ Deployment successful!
   Agent Engine ID: 7917477678498709504
   Resource Name: projects/123456789/locations/us-central1/reasoningEngines/7917477678498709504
   Endpoint: https://us-central1-aiplatform.googleapis.com/v1/...

⚠️  IMPORTANT: Save this in your .env file:
   AGENT_ENGINE_ID=7917477678498709504

Update your

.env

file immediately:

echo "AGENT_ENGINE_ID=7917477678498709504" >> .env

This ID is required for:

• Testing the deployed agent
• Updating the deployment later
• Accessing logs and traces

What Was Deployed

Your Agent Engine deployment now includes:

✅ Complete review pipeline (4 agents)
✅ Complete fix pipeline (loop + synthesizer)
✅ All tools (AST analysis, style checking, artifact generation)
✅ Session persistence (automatic via VertexAiSessionService)
✅ State management (session/user/lifetime tiers)
✅ Observability (Cloud Trace enabled)
✅ Auto-scaling infrastructure

Step 5: Test Your Deployed Agent

Update Your .env File

After deployment, verify your .env includes:

AGENT_ENGINE_ID=7917477678498709504  # From deployment output
GOOGLE_CLOUD_PROJECT=your-project-id
GOOGLE_CLOUD_LOCATION=us-central1

Run the Test Script

The project includes tests/test_agent_engine.py specifically for testing Agent Engine deployments:

python tests/test_agent_engine.py

What the Test Does

1. Authenticates with your Google Cloud project
2. Creates a session with the deployed agent
3. Sends a code review request (the DFS bug example)
4. Streams the response back via Server-Sent Events (SSE)
5. Verifies session persistence and state management

Expected Output

Authenticated with project: your-project-id
Targeting Agent Engine: projects/.../reasoningEngines/7917477678498709504

Creating new session...
Created session: 4857885913439920384

Sending query to agent and streaming response:
data: {"content": {"parts": [{"text": "I'll analyze your code..."}]}}
data: {"content": {"parts": [{"text": "**Code Structure Analysis**\n..."}]}}
data: {"content": {"parts": [{"text": "**Style Check Results**\n..."}]}}
data: {"content": {"parts": [{"text": "**Test Results**\n..."}]}}
data: {"content": {"parts": [{"text": "**Final Feedback**\n..."}]}}

Stream finished.

Verification Checklist

• ✅ Full review pipeline executes (all 4 agents)
• ✅ Streaming response shows progressive output
• ✅ Session state persists across requests
• ✅ No authentication or connection errors
• ✅ Tool calls execute successfully (AST analysis, style checking)
• ✅ Artifacts are saved (grading report accessible)

Alternative: Deploy to Cloud Run

While Agent Engine is recommended for streamlined production deployment, Cloud Run offers more control and supports the ADK web UI. This section provides an overview.

When to Use Cloud Run

Choose Cloud Run if you need:

• The ADK web UI for user interaction
• Full control over the container environment
• Custom database configurations
• Integration with existing Cloud Run services

How Cloud Run Deployment Works

Under the hood,

deploy.sh cloud-run

uses:

adk deploy cloud_run \
  --project=$GOOGLE_CLOUD_PROJECT \
  --region=$GOOGLE_CLOUD_LOCATION \
  --service_name="code-review-assistant" \
  --app_name="code_review_assistant" \
  --port=8080 \
  --with_ui \
  --artifact_service_uri="gs://$ARTIFACT_BUCKET" \
  --trace_to_cloud \
  code_review_assistant

This command:

• Builds a Docker container with your agent code
• Pushes to Google Artifact Registry
• Deploys as a Cloud Run service
• Includes the ADK web UI (--with_ui)
• Configures Cloud SQL connection (added by script after initial deployment)

The key difference from Agent Engine: Cloud Run containerizes your code and requires a database for session persistence, while Agent Engine handles both automatically.

Cloud Run Deployment Command

./deploy.sh cloud-run

What's Different

Infrastructure:

• Containerized deployment (Docker built automatically by ADK)
• Cloud SQL (PostgreSQL) for session persistence
• Database auto-created by script or uses existing instance

Session Management:

• Uses DatabaseSessionService instead of VertexAiSessionService
• Requires database credentials in .env (or auto-generated)
• State persists in PostgreSQL database

UI Support:

• Web UI available via --with_ui flag (handled by script)
• Access at: https://code-review-assistant-xyz.a.run.app

What You've Accomplished

Your production deployment includes:

✅ Automated provisioning via deploy.sh script
✅ Managed infrastructure (Agent Engine handles scaling, persistence, monitoring)
✅ Persistent state across all memory tiers (session/user/lifetime)
✅ Secure credential management (automatic generation and IAM setup)
✅ Scalable architecture (zero to thousands of concurrent users)
✅ Built-in observability (Cloud Trace integration enabled)
✅ Production-grade error handling and recovery

Key Concepts Mastered

Deployment Preparation:

• agent_engine_app.py: Wraps agent with AdkApp for Agent Engine
• AdkApp automatically configures VertexAiSessionService for persistence
• Tracing enabled via enable_tracing=True

Deployment Commands:

• adk deploy agent_engine: Packages Python code, no containers
• adk deploy cloud_run: Builds Docker container automatically
• gcloud run deploy: Alternative with custom Dockerfile

Deployment Options:

• Agent Engine: Fully managed, fastest to production
• Cloud Run: More control, supports web UI
• GKE: Advanced Kubernetes control (see GKE deployment guide)

Managed Services:

• Agent Engine handles session persistence automatically
• Cloud Run requires database setup (or auto-created)
• Both support artifact storage via GCS

Session Management:

• Agent Engine: VertexAiSessionService (automatic)
• Cloud Run: DatabaseSessionService (Cloud SQL)
• Local: InMemorySessionService (ephemeral)

Your Agent Is Live

Your code review assistant is now:

• Accessible via HTTPS API endpoints
• Persistent with state surviving restarts
• Scalable to handle team growth automatically
• Observable with complete request traces
• Maintainable through scripted deployments

What's Next? In Module 8, you'll learn to use Cloud Trace to understand your agent's performance, identify bottlenecks in the review and fix pipelines, and optimize execution times.

8. Production Observability

Introduction

Your code review assistant is now deployed and running in production on Agent Engine. But how do you know it's working well? Can you answer these critical questions:

• Is the agent responding quickly enough?
• Which operations are slowest?
• Are the fix loops completing efficiently?
• Where are performance bottlenecks?

Without observability, you're operating blind. The --trace-to-cloud flag you used during deployment automatically enabled Cloud Trace, giving you complete visibility into every request your agent processes.

In this module, you'll learn to read traces, understand your agent's performance characteristics, and identify areas for optimization.

Understanding Traces and Spans

What is a Trace?

A trace is the complete timeline of your agent handling a single request. It captures everything from when a user sends a query until the final response is delivered. Each trace shows:

• Total duration of the request
• All operations that executed
• How operations relate to each other (parent-child relationships)
• When each operation started and ended

What is a Span?

A span represents a single unit of work within a trace. Common span types in your code review assistant:

• agent_run: Execution of an agent (root agent or sub-agent)
• call_llm: Request to a language model
• execute_tool: Tool function execution
• state_read / state_write: State management operations
• code_executor: Running code with tests

Spans have:

• Name: What operation this represents
• Duration: How long it took
• Attributes: Metadata like model name, token counts, inputs/outputs
• Status: Success or failure
• Parent/child relationships: Which operations triggered which

Automatic Instrumentation

When you deployed with --trace-to-cloud, ADK automatically instruments:

• Every agent invocation and sub-agent call
• All LLM requests with token counts
• Tool executions with inputs/outputs
• State operations (read/write)
• Loop iterations in your fix pipeline
• Error conditions and retries

No code changes required - tracing is built into ADK's runtime.

Step 1: Access Cloud Trace Explorer

Open Cloud Trace in your Google Cloud Console:

1. Navigate to Cloud Trace Explorer
2. Select your project from the dropdown (should be pre-selected)
3. You should see traces from your test in Module 7

If you don't see traces yet:

The test you ran in Module 7 should have generated traces. If the list is empty, generate some trace data:

python tests/test_agent_engine.py

Wait 1-2 minutes for traces to appear in the console.

What You're Looking At

The Trace Explorer shows:

• List of traces: Each row represents one complete request
• Timeline: When requests occurred
• Duration: How long each request took
• Request details: Timestamp, latency, span count

This is your production traffic log - every interaction with your agent creates a trace.

Step 2: Examine a Review Pipeline Trace

Click on any trace in the list to open the waterfall view

You'll see a Gantt chart showing the complete execution timeline. Here's what a typical review pipeline trace looks like:

invocation (2.3s) ────────────────────────────────────────────►
├── agent_run: CodeReviewAssistant (2.2s) ──────────────────►
│   ├── state_read: CODE_TO_REVIEW (0.01s) ►
│   ├── agent_run: CodeReviewPipeline (2.1s) ─────────────►
│   │   ├── agent_run: CodeAnalyzer (0.3s) ──────►
│   │   │   ├── execute_tool: analyze_code_structure (0.1s) ──►
│   │   │   └── call_llm: gemini-2.5-flash (0.15s) ────►
│   │   ├── agent_run: StyleChecker (0.2s) ──────►
│   │   │   ├── execute_tool: check_code_style (0.1s) ──►
│   │   │   └── call_llm: gemini-2.5-flash (0.08s) ──►
│   │   ├── agent_run: TestRunner (1.2s) ─────────────►
│   │   │   └── code_executor: BuiltInCodeExecutor (0.9s) ────►
│   │   └── agent_run: FeedbackSynthesizer (0.4s) ────────►
│   │       └── call_llm: gemini-2.5-flash (0.28s) ────►

Reading the Waterfall

Each bar represents a span. The horizontal position shows when it started, and the length shows how long it took.

Key insights from this trace:

• Total latency: 2.3 seconds from request to response
• Critical path: TestRunner takes 1.2s (52% of total time)
• Bottleneck: Code execution within TestRunner takes 0.9s (75% of TestRunner's time)
• State operations: Very fast (10ms each) - not a concern
• Pipeline structure: Sequential execution - CodeAnalyzer → StyleChecker → TestRunner → FeedbackSynthesizer

Inspecting Span Details

Click on the

call_llm: gemini-2.5-flash

span under FeedbackSynthesizer

You'll see detailed attributes for this LLM call:

{
  "name": "call_llm",
  "span_kind": "LLM",
  "duration": "280ms",
  "attributes": {
    "llm.model": "models/gemini-2.5-flash",
    "llm.request_type": "GenerateContent",
    "llm.usage.prompt_tokens": 845,
    "llm.usage.completion_tokens": 234,
    "llm.usage.total_tokens": 1079,
    "llm.response.finish_reason": "STOP",
    "status_code": "OK"
  }
}

This shows:

• Which model was used
• How many tokens were consumed (input + output)
• Request duration
• Success/failure status
• The full prompt is also visible in the attributes (scroll to see it)

Understanding the Pipeline Flow

Notice how the trace reveals your architecture:

1. Root agent (CodeReviewAssistant) receives the request
2. State read retrieves the code to review
3. Review pipeline orchestrates four sub-agents sequentially
4. Each sub-agent uses tools and LLM calls to complete its work
5. Final response flows back up through the hierarchy

This visibility helps you understand exactly what happens during each request.

Step 3: Analyze a Fix Pipeline Trace

The fix pipeline is more complex because it includes loops. Let's examine how traces capture iterative behavior.

Find a trace that includes "CodeFixPipeline" in the span names

You may need to scroll through your traces or send a request that triggers the fix pipeline. If you don't have one, you can generate it:

# In your test script, respond "yes" when asked to fix issues
python tests/test_agent_engine.py

Examining Loop Structure

Here's what a fix pipeline trace with 2 iterations looks like:

agent_run: CodeFixPipeline (8.5s) ───────────────────────►
├── agent_run: FixAttemptLoop (7.8s) ───────────────────►
│   ├── loop_iteration: 1 (3.2s) ──────────►
│   │   ├── agent_run: CodeFixer (0.8s) ────►
│   │   │   └── call_llm: gemini-2.5-flash (0.7s) ───►
│   │   ├── agent_run: FixTestRunner (1.8s) ─────────►
│   │   │   └── code_executor: BuiltInCodeExecutor (1.5s) ─────►
│   │   └── agent_run: FixValidator (0.6s) ────►
│   │       ├── execute_tool: validate_fixed_style (0.2s) ──►
│   │       └── state_write: FIX_STATUS = "PARTIAL" ►
│   │
│   ├── loop_iteration: 2 (4.5s) ─────────────────►
│   │   ├── agent_run: CodeFixer (1.0s) ──────►
│   │   │   └── call_llm: gemini-2.5-flash (0.9s) ───►
│   │   ├── agent_run: FixTestRunner (2.0s) ────────►
│   │   │   └── code_executor: BuiltInCodeExecutor (1.7s) ─────►
│   │   └── agent_run: FixValidator (1.5s) ──────►
│   │       ├── execute_tool: compile_fix_report (0.3s) ──►
│   │       └── state_write: FIX_STATUS = "SUCCESSFUL" ►
│   │
│   └── loop_exit: escalation_triggered ►
│
└── agent_run: FixSynthesizer (0.7s) ────►
    ├── execute_tool: save_fix_report (0.2s) ──►
    └── call_llm: gemini-2.5 (0.4s) ────►

Key Observations About Loops

Iteration patterns:

• Two iterations: First attempt achieved partial success, second completed fully
• Progressive cost: Iteration 2 takes longer (4.5s vs 3.2s)
• State tracking: Each iteration writes FIX_STATUS to state
• Exit mechanism: Loop terminates via escalation when FIX_STATUS = "SUCCESSFUL"

What this reveals:

• Your loop architecture is working correctly
• Most fixes complete in 1-2 iterations (good design)
• Each iteration includes: fix generation → testing → validation
• Code execution dominates each iteration (1.5-1.7s)
• The loop properly exits when conditions are met

Cost breakdown:

• Iteration 1: 3.2s
• Iteration 2: 4.5s (longer due to accumulated context)
• Total loop: 7.8s
• Synthesis: 0.7s
• Total fix pipeline: 8.5s

Comparing to Review Pipeline

Review pipeline: ~2.3s
Fix pipeline: ~8.5s (with 2 iterations)

The fix pipeline takes ~3.7x longer, which makes sense:

• It includes iterative refinement
• It runs code multiple times (once per iteration)
• It accumulates context from previous attempts

Step 4: What You've Discovered

Performance Patterns

From examining traces, you now know:

Review pipeline:

• Typical duration: 2-3 seconds
• Main time consumer: TestRunner (code execution)
• LLM calls: Fast (100-300ms each)
• State operations: Negligible (10ms)

Fix pipeline:

• Typical duration: 4-5 seconds per iteration
• Most fixes: 1-2 iterations
• Code execution: 1.5-2.0 seconds per iteration
• Progressive cost: Later iterations take longer

What's fast:

• State reads/writes (10ms)
• Tool executions for analysis (100ms)
• Individual LLM calls (100-300ms)

What's slow (but necessary):

• Code execution with tests (0.9-2.0s)
• Multiple loop iterations (cumulative)

Where to Look for Issues

When reviewing traces in production, watch for:

• Unusually long traces (>15 seconds) - investigate what went wrong
• Failed spans (status != OK) - errors in execution
• Excessive loop iterations (>2) - fix quality issues
• Very high token counts - prompt optimization opportunities

What You've Learned

Through Cloud Trace, you now understand:

✅ Request flow: Complete execution path through your pipelines
✅ Performance characteristics: What's fast, what's slow, and why
✅ Loop behavior: How iterations execute and terminate
✅ Span hierarchy: How operations nest within each other
✅ Trace navigation: Reading waterfall charts effectively
✅ Token visibility: Where LLM costs accumulate

Key Concepts Mastered

Traces and Spans:

• Traces = complete request timelines
• Spans = individual operations within traces
• Waterfall view shows execution hierarchy
• Automatic instrumentation via ADK

Performance Analysis:

• Reading Gantt chart visualizations
• Identifying critical paths
• Understanding duration distributions
• Spotting bottlenecks

Production Visibility:

• Every operation traced automatically
• Token usage captured per LLM call
• State changes visible and traceable
• Loop iterations individually tracked

What's Next

Continue exploring Cloud Trace:

• Monitor traces regularly to catch issues early
• Compare traces to identify performance regressions
• Use trace data to inform optimization decisions
• Filter by duration to find slow requests

Advanced observability (optional):

• Export traces to BigQuery for complex analysis (docs)
• Create custom dashboards in Cloud Monitoring
• Set up alerts for performance degradation
• Correlate traces with application logs

9. Conclusion: From Prototype to Production

What You've Built

You started with just seven lines of code and built a production-grade AI agent system:

# Where we started (7 lines)
agent = Agent(
    model="gemini-2.5-flash",
    instruction="Review Python code for issues"
)

# Where we ended (production system)
- Two distinct multi-agent pipelines (review and fix) built from 8 specialized agents.
- An iterative fix loop architecture for automated validation and retries.
- Real AST-based code analysis tools for deterministic, accurate feedback.
- Robust state management using the "constants pattern" for type-safe communication.
- Fully automated deployment to a managed, scalable cloud infrastructure.
- Complete, built-in observability with Cloud Trace for production monitoring.

Key Architectural Patterns Mastered

Pattern	Implementation	Production Impact
Tool Integration	AST analysis, style checking	Real validation, not just LLM opinions
Sequential Pipelines	Review → Fix workflows	Predictable, debuggable execution
Loop Architecture	Iterative fixing with exit conditions	Self-improving until success
State Management	Constants pattern, three-tier memory	Type-safe, maintainable state handling
Production Deployment	Agent Engine via deploy.sh	Managed, scalable infrastructure
Observability	Cloud Trace integration	Full visibility into production behavior

Production Insights from Traces

Your Cloud Trace data revealed critical insights:
✅ Bottleneck identified: TestRunner's LLM calls dominate latency
✅ Tool performance: AST analysis executes in 100ms (excellent)
✅ Success rate: Fix loops converge within 2-3 iterations
✅ Token usage: ~600 tokens per review, ~1800 for fixes

These insights drive continuous improvement.

Clean Up Resources (Optional)

If you're done experimenting and want to avoid charges:

Delete Agent Engine deployment:

import vertexai

client = vertexai.Client(  # For service interactions via client.agent_engines
    project="PROJECT_ID",
    location="LOCATION",
)

RESOURCE_NAME = "projects/{PROJECT_ID}/locations/{LOCATION}/reasoningEngines/{RESOURCE_ID}"

client.agent_engines.delete(
    name=RESOURCE_NAME,
    force=True, # Optional, if the agent has resources (e.g. sessions, memory)
)

Delete Cloud Run service (if created):

gcloud run services delete code-review-assistant \
    --region=$GOOGLE_CLOUD_LOCATION \
    --quiet

Delete Cloud SQL instance (if created):

gcloud sql instances delete your-project-db \
    --quiet

Clean up storage buckets:

gsutil -m rm -r gs://your-project-staging
gsutil -m rm -r gs://your-project-artifacts

Next Steps

With your foundation complete, consider these enhancements:

1. Add more languages: Extend tools to support JavaScript, Go, Java
2. Integrate with GitHub: Automatic PR reviews
3. Implement caching: Reduce latency for common patterns
4. Add specialized agents: Security scanning, performance analysis
5. Enable A/B testing: Compare different models and prompts
6. Export metrics: Send traces to specialized observability platforms

Key Takeaways

1. Start simple, iterate fast: Seven lines to production in manageable steps
2. Tools over prompts: Real AST analysis beats "please check for bugs"
3. State management matters: Constants pattern prevents typo bugs
4. Loops need exit conditions: Always set max iterations and escalation
5. Deploy with automation: deploy.sh handles all the complexity
6. Observability is non-negotiable: You can't improve what you can't measure

Resources for Continued Learning

• ADK Documentation
• Advanced ADK Patterns
• Agent Engine Guide
• Cloud Run Documentation
• Cloud Trace Documentation

Your Journey Continues

You've built more than a code review assistant—you've mastered the patterns for building any production AI agent:
✅ Complex workflows with multiple specialized agents
✅ Real tool integration for genuine capabilities
✅ Production deployment with proper observability
✅ State management for maintainable systems

These patterns scale from simple assistants to complex autonomous systems. The foundation you've built here will serve you well as you tackle increasingly sophisticated agent architectures.

Welcome to production AI agent development. Your code review assistant is just the beginning.
