1. 简介
借助 A2UI，AI 智能体可以生成丰富的交互式用户界面，这些界面可在 Web、移动设备和桌面设备上以原生方式呈现，而无需执行任意代码。A2UI 不会仅提供文本响应或执行有风险的代码，而是让智能体发送声明式组件描述，供客户端使用自己的原生 widget 进行呈现。这就像让智能体说一种通用的界面语言。
在此实践实验室中，您将首先使用智能体开发套件 (ADK) 和 Gemini 3.1 Flash Image（又称 Nano Banana 2）创建一个图片生成智能体。然后，您将使用 A2UI 创建一个超越典型聊天机器人的自定义界面，展示如何动态生成界面以实现更丰富的智能体-用户互动。
学习内容
- 使用 ADK Python 创建代理
- 配置代理以将 A2UI 组件流式传输到前端
- 创建自定义前端以呈现 A2UI 元素
前提条件
- AI 智能体的基础知识
- 对 Python 语法有基本的了解
- 对前端概念有基本的了解
2. 设置
按照以下说明初始化本 Codelab 所需的 Google Cloud 项目。初始化项目后，建议您在 Cloud Shell 中运行本 Codelab，因为 Cloud Shell 随附了运行本 Codelab 所需的所有工具。
如果您希望在本地环境中运行此 Codelab，则需要在继续操作之前安装 Python、uv 和代码编辑器。除非另有说明，否则此 Codelab 中的所有说明都假定您是在 Cloud Shell 中运行此 Codelab。
自定进度的环境设置

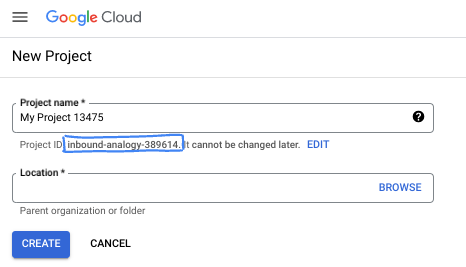

- 登录 Google Cloud 控制台，然后创建一个新项目或重复使用现有项目。如果您还没有 Gmail 或 Google Workspace 账号，则必须创建一个。
- 项目名称是此项目参与者的显示名称。它是 Google API 尚未使用的字符串。您可以随时对其进行更新。
- 项目 ID 在所有 Google Cloud 项目中是唯一的，并且是不可变的（一经设置便无法更改）。Cloud 控制台会自动生成一个唯一字符串；通常情况下，您无需关注该字符串。在大多数 Codelab 中，您都需要引用项目 ID（通常用
PROJECT_ID标识）。如果您不喜欢生成的 ID，可以再随机生成一个 ID。或者，您也可以尝试自己的项目 ID，看看是否可用。完成此步骤后便无法更改该 ID，并且此 ID 在项目期间会一直保留。 - 此外，还有第三个值，即部分 API 使用的项目编号，供您参考。如需详细了解所有这三个值，请参阅文档。
- 接下来，您需要在 Cloud 控制台中启用结算功能，以便使用 Cloud 资源/API。运行此 Codelab 应该不会产生太多的费用（如果有的话）。若要关闭资源以避免产生超出本教程范围的结算费用，您可以删除自己创建的资源或删除项目。Google Cloud 新用户符合参与 300 美元免费试用计划的条件。
启动 Cloud Shell
虽然可以通过笔记本电脑对 Google Cloud 进行远程操作，但在此 Codelab 中，您将使用 Google Cloud Shell，这是一个在云端运行的命令行环境。
在 Google Cloud 控制台 中，点击右上角工具栏中的 Cloud Shell 图标：
预配和连接到环境应该只需要片刻时间。完成后，您应该会看到如下内容：
这个虚拟机已加载了您需要的所有开发工具。它提供了一个持久的 5 GB 主目录，并且在 Google Cloud 中运行，大大增强了网络性能和身份验证功能。您在此 Codelab 中的所有工作都可以在浏览器中完成。您无需安装任何程序。
3. 创建新的 ADK 代理
- 为本次研讨会创建一个名为
a2ui_lab的文件夹：
mkdir -p ~/a2ui_lab && cd ~/a2ui_lab
- 在此文件夹中配置 uv 软件包管理系统并安装依赖项：
uv init && uv add google-adk fastapi uvicorn a2ui-agent-sdk
- 启用 AI Platform API（用于进行 Gemini 模型调用）
gcloud services enable aiplatform.googleapis.com
- 在此文件夹中初始化 ADK 代理：
export GOOGLE_CLOUD_PROJECT=`gcloud config get project`
uv run adk create --model gemini-3.5-flash --project $GOOGLE_CLOUD_PROJECT --region global art_creator
您应该会看到如下所示的输出：
$ uv run adk create --model gemini-3.5-flash --project $GOOGLE_CLOUD_PROJECT --region global art_creator Agent created in ~/a2ui_lab/art_creator: - .env - __init__.py - agent.py ⚠️ WARNING: Secrets (like GOOGLE_API_KEY) are stored in .env. Please ensure .env is added to your .gitignore to avoid committing secrets to version control.
请注意，uv run 是在当前 uv 代码库（我们在运行 uv init 时创建）的上下文中执行命令的命令。添加 google-adk 软件包依赖项时，命令 adk 已安装到此代码库中。
在 ADK 文档中，您经常会看到不带 uv run 前缀的 adk 命令，但在本研讨会中运行命令时，请务必在 adk 前面加上 uv run 前缀，以便运行正确的命令行实用程序。
现在，基本智能体结构已创建完毕，我们可以在 agent.py 中定义图片生成智能体。
- 使用以下命令打开 Cloud Shell 编辑器：
cloudshell workspace ~/a2ui_lab
- 将
art_creator/agent.py的内容替换为以下代码：
art_creator/agent.py
import os
import time
from google.adk.agents.llm_agent import Agent
from google.adk.tools.tool_context import ToolContext
from google.genai import types
# Load env variables
from dotenv import load_dotenv
load_dotenv(os.path.join(os.path.dirname(__file__), ".env"))
async def generate_image(prompt: str, tool_context: ToolContext) -> dict:
"""Generates a high-quality image based on the user's detailed description prompt.
Args:
prompt: A descriptive text prompt describing the image to generate.
tool_context: Context for the tool execution.
"""
from google.genai import Client
client = Client(
vertexai=True,
project=os.environ.get("GOOGLE_CLOUD_PROJECT"),
location=os.environ.get("GOOGLE_CLOUD_LOCATION", "global")
)
try:
response = client.models.generate_content(
model="gemini-3.1-flash-image",
contents=prompt,
config=types.GenerateContentConfig(
response_modalities=['TEXT', 'IMAGE'],
)
)
image_bytes = None
for part in response.parts or []:
if part.inline_data is not None:
image_bytes = part.inline_data.data
break
if not image_bytes:
return {"status": "failed", "detail": "No image data returned"}
filename = f"image_{int(time.time())}.png"
await tool_context.save_artifact(
filename,
types.Part.from_bytes(data=image_bytes, mime_type='image/png'),
)
return {
"status": "success",
"filename": filename,
"url": f"/api/artifacts/{tool_context.session.id}/{filename}"
}
except Exception as e:
return {"status": "failed", "detail": str(e)}
root_agent = Agent(
name="art_agent",
model="gemini-3.5-flash",
description="A basic art generation agent.",
instruction=(
"You are an art assistant. When the user describes an image they want to generate, "
"use the generate_image tool to create it, then return a text message containing the image's URL."
),
tools=[generate_image],
)
- 您现在可以使用命令
uv run adk web在 ADK 的开发界面中测试代理：
uv run adk web --port 8080 --allow_origins "*" --reload_agents
然后，点击“网页预览”按钮，并选择“在端口 8080 上预览”。这将在浏览器中打开开发界面。

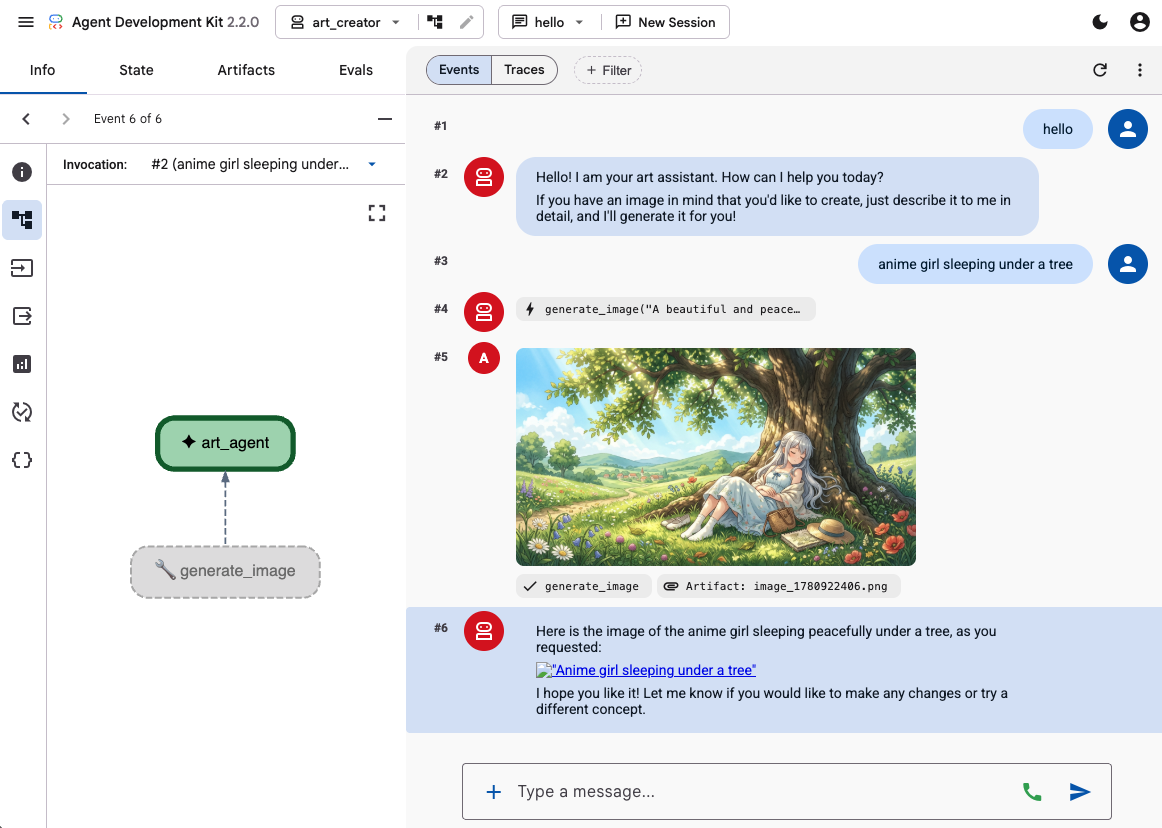

使用 ADK 的开发界面，通过向智能体提供一些提示来测试其功能，例如：
- 动漫女孩在树下睡觉。粉彩色。16:9
- 照片：湖面映照着一间小屋。傍晚时分。怀旧感。
您应该会看到智能体以文本和生成的图片进行回答。
4. 创建简单的前端
现在，我们将为智能体构建一个专用 Web 应用。我们将使用 FastAPI 运行 ADK 运行程序，并提供一个简单的单页聊天界面。
首先，在终端中输入 Ctrl+C，停止 ADK 开发服务器。然后，在工作区根目录 (~/a2ui_lab/main.py) 中创建一个名为 main.py 的文件，其中包含以下内容：
main.py
import os
import logging
from fastapi import FastAPI, HTTPException
from fastapi.staticfiles import StaticFiles
from pydantic import BaseModel
from google.adk.runners import InMemoryRunner
from google.adk.agents.run_config import RunConfig
from google.genai import types
from art_creator.agent import root_agent
logging.basicConfig(level=logging.INFO)
logger = logging.getLogger(__name__)
app = FastAPI(title="Art Agent - Simple Chat")
class ChatRequest(BaseModel):
prompt: str
session_id: str = "default_session"
static_dir = os.path.join(os.path.dirname(__file__), "static")
os.makedirs(static_dir, exist_ok=True)
runner = InMemoryRunner(agent=root_agent)
runner.auto_create_session = True
@app.get("/api/artifacts/{session_id}/{filename}")
async def get_artifact(session_id: str, filename: str):
user_id = "default_user"
part = await runner.artifact_service.load_artifact(
app_name=runner.app_name,
user_id=user_id,
filename=filename,
session_id=session_id
)
if not part:
raise HTTPException(status_code=404, detail="Artifact not found")
if part.inline_data:
from fastapi.responses import Response
return Response(content=part.inline_data.data, media_type=part.inline_data.mime_type)
raise HTTPException(status_code=400, detail="Unsupported artifact format")
@app.post("/api/chat")
async def chat_endpoint(request: ChatRequest):
if not request.prompt.strip():
raise HTTPException(status_code=400, detail="Prompt cannot be empty")
user_id = "default_user"
content = types.Content(
role="user",
parts=[types.Part.from_text(text=request.prompt)]
)
full_response_text = ""
try:
async for event in runner.run_async(
user_id=user_id,
session_id=request.session_id,
new_message=content,
run_config=RunConfig(save_input_blobs_as_artifacts=True),
):
if event.content and event.content.parts:
if event.author != "user":
for part in event.content.parts:
if part.text:
full_response_text += part.text
elif part.inline_data:
try:
# Process raw binary/custom text parts (A2UI callback packages)
text_data = part.inline_data.data.decode("utf-8")
full_response_text += text_data
except Exception:
pass
except Exception as e:
logger.exception("Error running ADK agent:")
raise HTTPException(status_code=500, detail=str(e))
image_url = None
try:
artifact_keys = await runner.artifact_service.list_artifact_keys(
app_name=runner.app_name,
user_id=user_id,
session_id=request.session_id
)
image_keys = [k for k in artifact_keys if k.startswith("image_") and k.endswith(".png")]
if image_keys:
sorted_keys = sorted(image_keys, reverse=True)
image_url = f"/api/artifacts/{request.session_id}/{sorted_keys[0]}"
except Exception:
pass
return {
"text": full_response_text.strip(),
"image_url": image_url
}
app.mount("/static", StaticFiles(directory=static_dir), name="static")
@app.get("/")
async def read_index():
from fastapi.responses import FileResponse
return FileResponse(os.path.join(static_dir, "index.html"))
接下来，创建 static 目录以存储前端文件：
mkdir -p static
现在，添加索引 HTML (static/index.html)：
static/index.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Art Agent - Simple Chat</title>
<link rel="stylesheet" href="/static/style.css">
</head>
<body>
<div class="container">
<div id="chat-messages" class="messages">
<div class="message system">
<strong>System:</strong> Welcome to the Art Agent! Describe the image you want to generate.
</div>
</div>
<form id="chat-form" class="input-form">
<input type="text" id="user-input" placeholder="Type image description..." autocomplete="off" required>
<button type="submit">Generate</button>
</form>
</div>
<script src="/static/app.js"></script>
</body>
</html>
样式 CSS (static/style.css)：
static/style.css
body {
font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, Helvetica, Arial, sans-serif;
background-color: #f7f9fa;
margin: 0;
padding: 20px;
display: flex;
justify-content: center;
}
.container {
width: 100%;
max-width: 600px;
background: #ffffff;
border: 1px solid #e1e8ed;
border-radius: 8px;
box-shadow: 0 2px 4px rgba(0,0,0,0.05);
display: flex;
flex-direction: column;
height: 80vh;
}
.messages {
flex: 1;
overflow-y: auto;
padding: 20px;
display: flex;
flex-direction: column;
gap: 12px;
}
.message {
padding: 10px 14px;
border-radius: 6px;
max-width: 85%;
line-height: 1.4;
word-wrap: break-word;
}
.message.user {
background-color: #e8f5fe;
align-self: flex-end;
}
.message.agent {
background-color: #f1f3f4;
align-self: flex-start;
}
.message.system {
background-color: #fff;
border: 1px solid #e1e8ed;
color: #657786;
align-self: center;
font-size: 13px;
text-align: center;
}
.input-form {
display: flex;
border-top: 1px solid #e1e8ed;
padding: 12px;
}
.input-form input {
flex: 1;
border: 1px solid #ccc;
border-radius: 4px;
padding: 10px;
font-size: 14px;
outline: none;
}
.input-form button {
background-color: #1da1f2;
color: white;
border: none;
border-radius: 4px;
padding: 10px 16px;
margin-left: 8px;
font-size: 14px;
font-weight: bold;
cursor: pointer;
}
.input-form button:hover {
background-color: #1a91da;
}
.generated-img {
max-width: 100%;
border-radius: 4px;
margin-top: 8px;
display: block;
}
.image-card {
border: 1px solid #ddd;
border-radius: 6px;
padding: 12px;
background-color: #fff;
margin-top: 8px;
}
.btn-download {
background-color: #1da1f2;
color: white;
border: none;
border-radius: 4px;
padding: 8px 12px;
font-size: 13px;
font-weight: bold;
cursor: pointer;
margin-top: 8px;
width: 100%;
}
最后，添加 JavaScript 控制器 (static/app.js)：
static/app.js
document.addEventListener('DOMContentLoaded', () => {
const chatForm = document.getElementById('chat-form');
const userInput = document.getElementById('user-input');
const chatMessages = document.getElementById('chat-messages');
const sessionId = "session_" + Math.random().toString(36).substring(2, 9);
chatForm.addEventListener('submit', async (e) => {
e.preventDefault();
const prompt = userInput.value.trim();
if (!prompt) return;
userInput.value = '';
appendMessage('user', prompt);
const tempBubble = appendMessage('agent', '...');
try {
const response = await fetch('/api/chat', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({ prompt, session_id: sessionId })
});
const data = await response.json();
tempBubble.remove();
const textValue = (data && typeof data === 'object' && data.text) ? data.text : "";
const imageUrl = (data && typeof data === 'object' && data.image_url) ? data.image_url : null;
appendMessage('agent', textValue, imageUrl);
} catch (error) {
tempBubble.remove();
appendMessage('agent', `Error: ${error.message}`);
}
});
function appendMessage(sender, text, imageUrl = null) {
const bubble = document.createElement('div');
bubble.className = `message ${sender}`;
const content = document.createElement('span');
content.innerHTML = `<strong>${sender === 'user' ? 'You' : 'Agent'}:</strong> `;
const textNode = document.createTextNode(text);
content.appendChild(textNode);
bubble.appendChild(content);
// Always format multi-line JSON blocks nicely if the message is from the agent and looks like JSON
if (sender === 'agent' && text && (text.startsWith('{') || text.startsWith('['))) {
bubble.style.fontFamily = 'monospace';
bubble.style.whiteSpace = 'pre-wrap';
bubble.style.fontSize = '12px';
}
if (imageUrl) {
const card = document.createElement('div');
card.className = 'image-card';
const img = document.createElement('img');
img.src = imageUrl;
img.className = 'generated-img';
card.appendChild(img);
const dlBtn = document.createElement('button');
dlBtn.className = 'btn-download';
dlBtn.textContent = 'Download PNG';
dlBtn.onclick = () => {
const link = document.createElement('a');
link.href = imageUrl;
link.download = `generation-${Date.now()}.png`;
link.click();
};
card.appendChild(dlBtn);
bubble.appendChild(card);
}
chatMessages.appendChild(bubble);
chatMessages.scrollTop = chatMessages.scrollHeight;
return bubble;
}
});
通过启动 FastAPI 服务器来测试您的 Web 应用：
uv run python -m uvicorn main:app --port 8080 --host 0.0.0.0

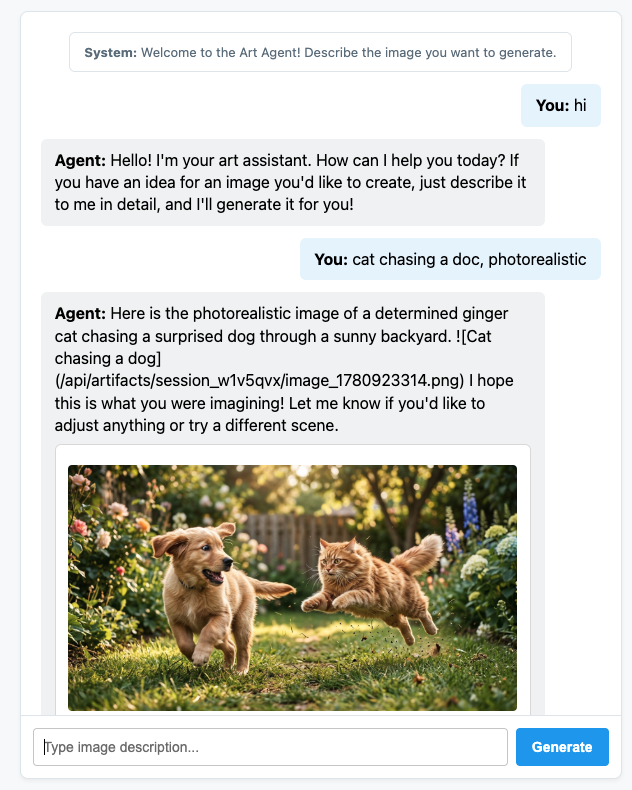

使用端口 8080 上的网页预览功能访问自定义聊天。现在，您可以直接与代理对话了。
5. 配置代理以发出 A2UI 消息
现在，我们来更新智能体，使其返回结构化界面，而不仅仅是文本。我们将使用官方 a2ui-agent-sdk 为智能体构建一个支持 A2UI 的系统提示。
使用 A2UI SDK 时，我们不直接定义代理指令，而是使用 A2uiSchemaManager 类，该类将构建代理的系统提示，以了解 A2UI 的界面生成功能，包括提供对组件目录、完整组件架构和使用示例（如有）的访问权限。
- 首先，按 Ctrl+C 停止 FastAPI 服务器。
- 修改
art_creator/agent.py以集成A2uiSchemaManager和新的a2ui_callback钩子：
art_creator/agent.py
import os
import time
from google.adk.agents.llm_agent import Agent
from google.adk.tools.tool_context import ToolContext
from google.genai import types
from a2ui.schema.manager import A2uiSchemaManager
from a2ui.basic_catalog.provider import BasicCatalog
# Load env variables
from dotenv import load_dotenv
load_dotenv(os.path.join(os.path.dirname(__file__), ".env"))
async def generate_image(prompt: str, tool_context: ToolContext) -> dict:
"""Generates a high-quality image based on the user's detailed description prompt."""
from google.genai import Client
client = Client(
vertexai=True,
project=os.environ.get("GOOGLE_CLOUD_PROJECT"),
location=os.environ.get("GOOGLE_CLOUD_LOCATION", "global")
)
try:
response = client.models.generate_content(
model="gemini-3.1-flash-image",
contents=prompt,
config=types.GenerateContentConfig(
response_modalities=['TEXT', 'IMAGE'],
)
)
image_bytes = None
for part in response.parts or []:
if part.inline_data is not None:
image_bytes = part.inline_data.data
break
if not image_bytes:
return {"status": "failed", "detail": "No image data returned"}
filename = f"image_{int(time.time())}.png"
await tool_context.save_artifact(
filename,
types.Part.from_bytes(data=image_bytes, mime_type='image/png'),
)
return {
"status": "success",
"filename": filename,
"url": f"/api/artifacts/{tool_context.session.id}/{filename}"
}
except Exception as e:
return {"status": "failed", "detail": str(e)}
schema_manager = A2uiSchemaManager(
version="0.8",
catalogs=[BasicCatalog.get_config("0.8")],
)
instruction = schema_manager.generate_system_prompt(
role_description=(
"You are a specialized Image Creator agent. "
"When given an image description, analyze the prompt and ask the user for any missing details. "
"The image generation prompt should include: "
"Subject, environment, style, lighting, color and mood. "
),
workflow_description=(
"1. if the user greets you, greet the user back explaining your purpose. "
"2. if the user describes an image, DO NOT GENERATE IT IMMEDIATELY: compare with "
" the ideal generation prompt and ask the user for any missing details using "
" rich A2UI UI elements only. NOTE: only run this step once per image, if the user "
" decides to not detail one or more elements it is ok. "
"3. combine the original prompt with the responses in the UI elements and call `generate_image` "
" with the generated prompt. "
" DO NOT INCLUDE EXAMPLES IN THE GENERATED PROMPT, ONLY THE ELEMENTS THE USER ASKED FOR. "
"4. display the resulting image to the user in a card including the image, the prompt and a "
" download button"
),
ui_description=(
"Use Card, Text, Image, Multichoice and Button components to present the options. "
"Always include a single choice selection box for image resolution (1K, 2K or 4K) and one for "
"aspect ratio (1:1, 16:9 or 9:16). "
"When rendering the final output (generated image) always render the generated image using an "
"Image component with the url bound to the image's URL/path returned by the tool. "
"Add a Text component with the prompt that generated the image. "
"Include a Button component labeled 'Download PNG' to allow downloading the image. "
"Do NOT use markdown formatting in text values. Use the usageHint property for heading levels instead. "
"Respond ONLY with the A2UI JSON array. Do NOT include any text "
"outside the JSON. Put all explanations into Text components."
),
include_schema=True,
)
root_agent = Agent(
model="gemini-3.5-flash",
name="art_agent_a2ui",
instruction=instruction,
tools=[generate_image],
)
请注意，现在智能体指令是通过 schema_manager.generate_system_prompt 调用生成的，而不是硬编码在智能体定义中。
通过启动 FastAPI 服务器来测试您的 Web 应用：
uv run python -m uvicorn main:app --port 8080 --host 0.0.0.0

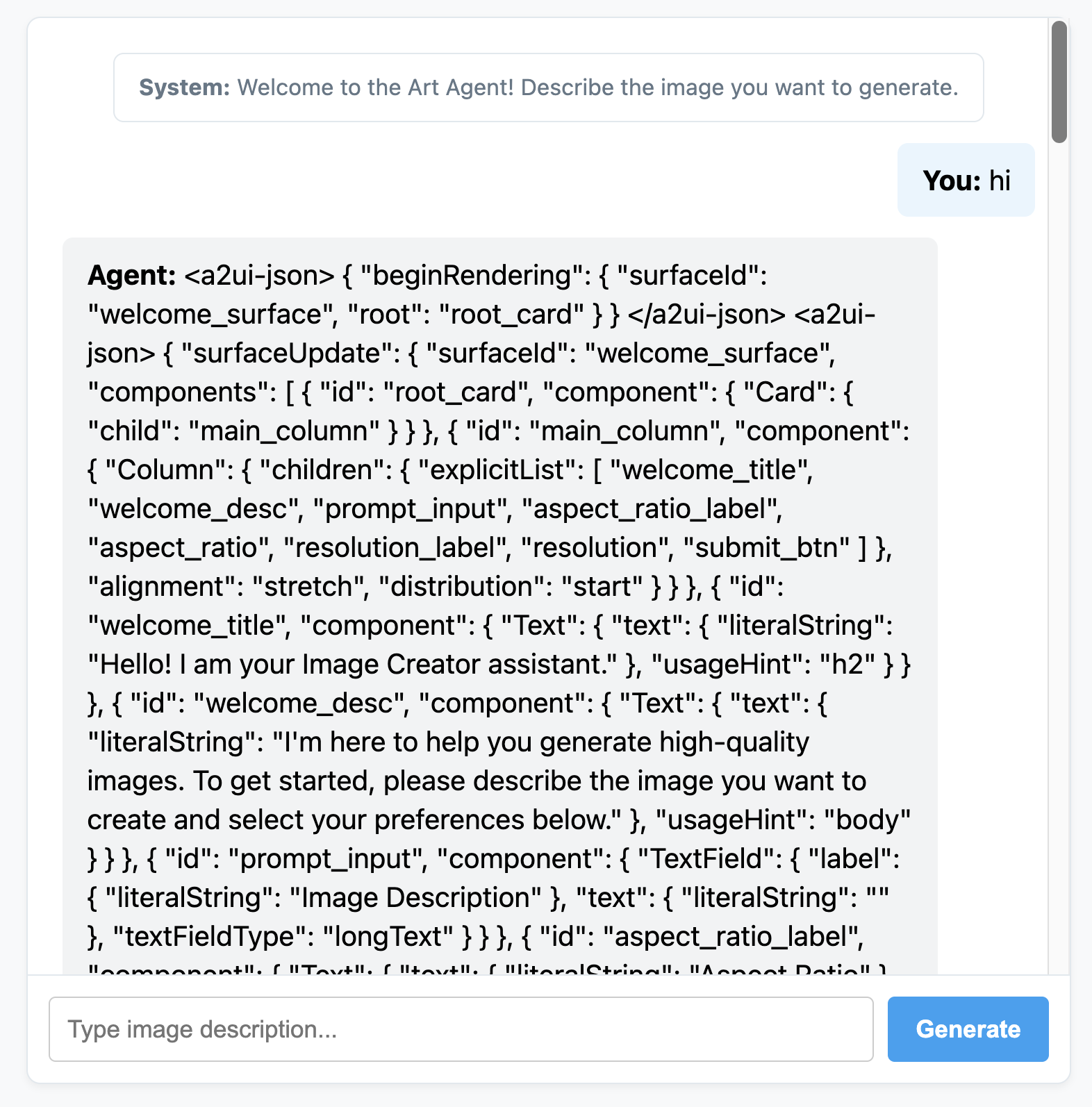

使用端口 8080 上的网页预览功能访问自定义聊天。您会注意到，现在智能体输出的是 JSON 消息，而不是普通文本。这是 A2UI 元素的内部表示形式，我们将在下一部分中渲染这些元素。
6. 为代理创建自定义前端
在此阶段，我们的客户端会收到一份干净的 A2UI 消息列表（beginRendering、surfaceUpdate 和 dataModelUpdate）。现在，我们将使用纯 JavaScript 构建自定义客户端渲染引擎，以查看这些组件的实际效果。
以下是包含 A2UI 解析和渲染逻辑的完整静态/app.js：
static/app.js
document.addEventListener('DOMContentLoaded', () => {
const chatForm = document.getElementById('chat-form');
const userInput = document.getElementById('user-input');
const chatMessages = document.getElementById('chat-messages');
const sessionId = "session_" + Math.random().toString(36).substring(2, 9);
async function sendChat(prompt, showInUi = true) {
if (!prompt) return;
if (showInUi) {
appendMessage('user', prompt);
}
const tempBubble = appendMessage('agent', '...');
try {
const response = await fetch('/api/chat', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({ prompt, session_id: sessionId })
});
const data = await response.json();
tempBubble.remove();
let text = data.text || "";
let a2uiMessages = [];
// 1. Extract <a2ui-json> blocks
const a2uiRegex = /<a2ui-json>(.*?)<\/a2ui-json>/gs;
let match;
while ((match = a2uiRegex.exec(text)) !== null) {
try {
const jsonStr = match[1].trim();
const parsed = JSON.parse(jsonStr);
const parsedList = Array.isArray(parsed) ? parsed : [parsed];
for (const msg of parsedList) {
if (msg && typeof msg === 'object') {
a2uiMessages.push(msg);
}
}
} catch (e) {
console.error("Error parsing <a2ui-json> block:", e);
}
}
// 2. Extract <a2a_datapart_json> blocks (for robust history/callback parsing)
const a2aRegex = /<a2a_datapart_json>(.*?)<\/a2a_datapart_json>/gs;
while ((match = a2aRegex.exec(text)) !== null) {
try {
const jsonStr = match[1].trim();
const parsed = JSON.parse(jsonStr);
const dataMsg = (parsed && parsed.kind === 'data') ? parsed.data : parsed;
if (dataMsg && typeof dataMsg === 'object') {
a2uiMessages.push(dataMsg);
}
} catch (e) {
console.error("Error parsing <a2a_datapart_json> block:", e);
}
}
// 3. Clean XML and A2UI JSON tags from displayed conversational text
const cleanText = text.replace(/<(a2ui-json|a2a_datapart_json)>.*?<\/\1>/gs, '').trim();
const imageUrl = (data && typeof data === 'object' && data.image_url) ? data.image_url : null;
appendMessage('agent', cleanText, imageUrl, a2uiMessages);
} catch (error) {
tempBubble.remove();
appendMessage('agent', `Error: ${error.message}`);
}
}
chatForm.addEventListener('submit', async (e) => {
e.preventDefault();
const prompt = userInput.value.trim();
if (!prompt) return;
userInput.value = '';
await sendChat(prompt, true);
});
function renderA2UI(a2uiMessages) {
try {
let rootId = null;
const components = {};
const dataModel = {};
for (const msg of a2uiMessages) {
if (msg.beginRendering) {
rootId = msg.beginRendering.root;
} else if (msg.surfaceUpdate) {
for (const item of msg.surfaceUpdate.components) {
components[item.id] = item.component;
}
} else if (msg.dataModelUpdate) {
for (const item of msg.dataModelUpdate.contents) {
const val = item.valueString !== undefined ? item.valueString :
item.valueBool !== undefined ? item.valueBool :
item.valueInt !== undefined ? item.valueInt :
item.valueDouble !== undefined ? item.valueDouble : item.valueString;
dataModel[item.key] = val;
}
}
}
if (!rootId || Object.keys(components).length === 0) {
return null;
}
function resolveValue(valObj) {
if (!valObj) return '';
let val = '';
if (typeof valObj === 'string') val = valObj;
else if (valObj.literalString !== undefined) val = valObj.literalString;
else if (valObj.path !== undefined) val = dataModel[valObj.path] || '';
else val = JSON.stringify(valObj);
// Dynamically replace any wrong session IDs in artifact URLs with the active sessionId
if (typeof val === 'string' && val.includes('/api/artifacts/')) {
val = val.replace(/\/api\/artifacts\/session_[a-z0-9]+/g, `/api/artifacts/${sessionId}`);
}
return val;
}
function buildElement(id) {
try {
const compDesc = components[id];
if (!compDesc) return null;
const type = Object.keys(compDesc)[0];
const props = compDesc[type];
const el = document.createElement('div');
el.className = `a2ui-component a2ui-${type.toLowerCase()}`;
el.style.margin = '4px 0';
if (type === 'Column') {
el.style.display = 'flex';
el.style.flexDirection = 'column';
el.style.gap = '8px';
const children = props.children?.explicitList || [];
for (const childId of children) {
const childEl = buildElement(childId);
if (childEl) el.appendChild(childEl);
}
} else if (type === 'Row') {
el.style.display = 'flex';
el.style.flexDirection = 'row';
el.style.gap = '8px';
el.style.alignItems = 'center';
const children = props.children?.explicitList || [];
for (const childId of children) {
const childEl = buildElement(childId);
if (childEl) el.appendChild(childEl);
}
} else if (type === 'Card') {
el.style.border = '1px solid #ddd';
el.style.borderRadius = '6px';
el.style.padding = '12px';
el.style.backgroundColor = '#fdfdfd';
el.style.marginTop = '8px';
if (props.child) {
const childEl = buildElement(props.child);
if (childEl) el.appendChild(childEl);
}
} else if (type === 'Text') {
const textVal = resolveValue(props.text);
const tag = props.usageHint === 'h1' ? 'h3' :
props.usageHint === 'h2' ? 'h4' : 'p';
const textEl = document.createElement(tag);
textEl.textContent = textVal;
textEl.style.margin = '0 0 4px 0';
el.appendChild(textEl);
} else if (type === 'Image') {
const srcVal = resolveValue(props.url) || resolveValue(props.src);
const imgEl = document.createElement('img');
imgEl.src = srcVal;
imgEl.style.maxWidth = '100%';
imgEl.style.borderRadius = '4px';
imgEl.style.display = 'block';
imgEl.style.marginTop = '6px';
imgEl.className = 'generated-img';
el.appendChild(imgEl);
} else if (type === 'Divider') {
const hrEl = document.createElement('hr');
hrEl.style.border = '0';
hrEl.style.borderTop = '1px solid #eee';
hrEl.style.margin = '12px 0';
el.appendChild(hrEl);
} else if (type === 'MultipleChoice') {
const labelVal = resolveValue(props.label);
const options = props.options?.explicitList || (Array.isArray(props.options) ? props.options : []);
const container = document.createElement('div');
container.style.display = 'flex';
container.style.flexDirection = 'column';
container.style.gap = '4px';
container.style.margin = '8px 0';
if (labelVal) {
const labelEl = document.createElement('label');
labelEl.textContent = labelVal;
labelEl.style.fontSize = '12px';
labelEl.style.fontWeight = 'bold';
container.appendChild(labelEl);
}
const selectEl = document.createElement('select');
selectEl.className = 'a2ui-select';
selectEl.name = id;
for (const option of options) {
const optEl = document.createElement('option');
optEl.value = option.value !== undefined ? option.value : (option.id !== undefined ? option.id : '');
optEl.textContent = resolveValue(option.label);
selectEl.appendChild(optEl);
}
container.appendChild(selectEl);
el.appendChild(container);
} else if (type === 'Button') {
let labelVal = props.label ? resolveValue(props.label) : '';
if (!labelVal && props.child) {
const childComp = components[props.child];
if (childComp && childComp.Text) {
labelVal = resolveValue(childComp.Text.text);
}
}
const btnEl = document.createElement('button');
btnEl.className = 'btn-download';
btnEl.textContent = labelVal || 'Submit';
btnEl.addEventListener('click', (e) => {
e.preventDefault();
const action = props.action;
let downloadUrl = null;
if (action && (action.name === 'download_file' || action.name === 'download') && action.context) {
const urlContext = action.context.find(ctx => ctx.key === 'url');
if (urlContext) {
downloadUrl = resolveValue(urlContext.value);
}
}
const isDownload = downloadUrl || (labelVal && labelVal.toLowerCase().includes('download'));
if (isDownload) {
const finalUrl = downloadUrl || (el.closest('.message')?.querySelector('img')?.src);
if (finalUrl) {
const link = document.createElement('a');
link.href = finalUrl;
link.download = `generation-${Date.now()}.png`;
link.click();
}
} else {
const bubbleEl = el.closest('.message');
const selects = bubbleEl.querySelectorAll('.a2ui-select');
let answers = [];
selects.forEach(sel => {
let labelText = sel.previousSibling ? sel.previousSibling.textContent : sel.name;
const selectedText = sel.options[sel.selectedIndex]?.textContent || sel.value;
answers.push(`- ${labelText}: ${selectedText}`);
});
if (answers.length > 0) {
const responseText = `Selected options:\n` + answers.join('\n');
sendChat(responseText, false);
} else {
sendChat(labelVal || 'Submit', false);
}
}
});
el.appendChild(btnEl);
}
return el;
} catch (err) {
console.error('Error building component:', id, err);
return null;
}
}
return buildElement(rootId);
} catch (err) {
console.error('Error in renderA2UI:', err);
return null;
}
}
function appendMessage(sender, text, imageUrl = null, a2ui = null) {
const bubble = document.createElement('div');
bubble.className = `message ${sender}`;
const textSpan = document.createElement('span');
textSpan.innerHTML = `<strong>${sender === 'user' ? 'You' : 'Agent'}:</strong> `;
bubble.appendChild(textSpan);
if (text) {
const textContent = document.createTextNode(text);
textSpan.appendChild(textContent);
}
if (sender === 'agent' && a2ui && a2ui.length > 0) {
const a2uiEl = renderA2UI(a2ui);
if (a2uiEl) {
bubble.appendChild(a2uiEl);
}
}
if (imageUrl) {
const imgContainer = document.createElement('div');
imgContainer.style.marginTop = '8px';
const img = document.createElement('img');
img.src = imageUrl;
img.style.maxWidth = '100%';
img.style.borderRadius = '4px';
img.className = 'generated-img';
imgContainer.appendChild(img);
bubble.appendChild(imgContainer);
}
chatMessages.appendChild(bubble);
chatMessages.scrollTop = chatMessages.scrollHeight;
return bubble;
}
});
再次启动 FastAPI 应用服务器：
uv run python -m uvicorn main:app --port 8080 --host 0.0.0.0

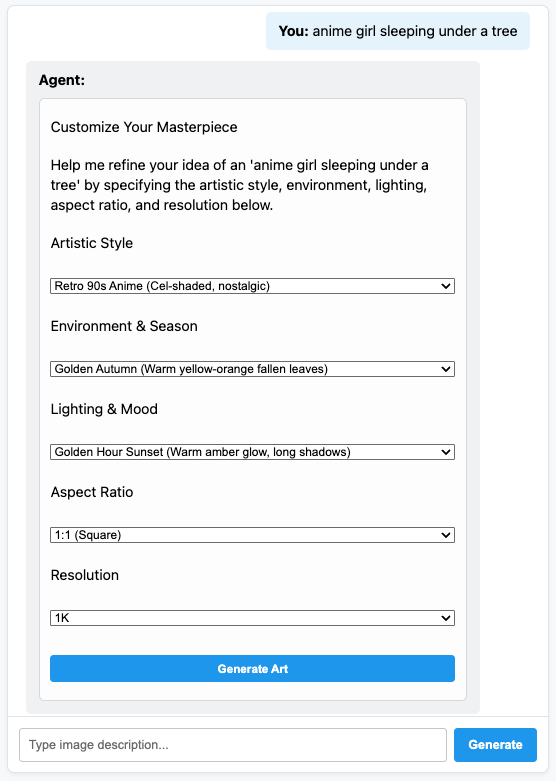

并与完全动态的 A2UI Art Creator 代理对话！
7. 恭喜！
您构建了一个使用 A2UI 动态生成界面元素的 ADK 智能体。您可以探索各种框架集成，也可以探索下方参考资料中的文档，继续您的学习之旅。
构建生产环境前端
在此研讨会中，我们出于教学目的使用了自定义的纯 JS 前端，但在实际应用中，您可以使用以下官方 A2UI 渲染器之一来构建前端：
平台 | 渲染程序 | 安装 |
Web（React） | @a2ui/react | npm install @a2ui/react |
Web (Lit) | @a2ui/lit | npm install @a2ui/lit |
Web (Angular) | @a2ui/angular | npm install @a2ui/angular |
移动设备/桌面设备 | Flutter GenUI SDK |
