1. 簡介
AI 代理程式可透過 A2UI 生成豐富的互動式使用者介面，並在網頁、行動裝置和電腦上以原生方式呈現，不必執行任意程式碼。A2UI 可讓服務專員傳送聲明式元件說明，供用戶使用自己的原生小工具算繪，而非僅傳送文字回覆或執行有風險的程式碼。就像讓代理程式使用通用 UI 語言。
在本實作實驗室中，您會先使用 Agent Development Kit (ADK) 和 Gemini 3.1 Flash Image (又稱 Nano Banana 2)，建立圖像生成代理。接著，您會使用 A2UI 建立自訂介面，突破一般聊天機器人的限制，展示如何動態生成介面，實現更豐富的代理與使用者互動。
課程內容
- 使用 ADK Python 建立代理
- 設定代理程式，將 A2UI 元件串流至前端
- 建立自訂前端，用於算繪 A2UI 元素
必要條件
- AI 代理的基本知識
- 對 Python 語法有基本瞭解
- 對前端概念有基本瞭解
2. 設定
請按照下列操作說明，初始化本程式碼研究室所需的 Google Cloud 專案。初始化專案後，建議您在 Cloud Shell 上運作執行這個程式碼實驗室，因為 Cloud Shell 內建執行實驗室所需的所有工具。
如果您偏好在本機環境中執行本程式碼研究室，請先安裝 Python、uv 和程式碼編輯器，再繼續操作。除非另有說明，否則本程式碼研究室中的所有操作說明，都假設您是在 Cloud Shell 中執行。
自修實驗室環境設定
- 登入 Google Cloud 控制台，然後建立新專案或重複使用現有專案。如果沒有 Gmail 或 Google Workspace 帳戶，請先建立帳戶。
- 專案名稱是這個專案參與者的顯示名稱。這是 Google API 未使用的字元字串。你隨時可以更新。
- 專案 ID 在所有 Google Cloud 專案中都是專屬 ID，而且不可變更 (設定後就無法變更)。Cloud Console 會自動產生專屬字串，通常您不需要在意這個字串。在大多數程式碼研究室中，您需要參照專案 ID (通常會標示為
PROJECT_ID)。如果您不喜歡產生的 ID，可以產生另一個隨機 ID。或者，您也可以嘗試使用自己的 ID，看看是否可用。完成這個步驟後，ID 就無法變更，而且會在專案期間保持不變。 - 請注意，部分 API 會使用第三個值，也就是「專案編號」。如要進一步瞭解這三個值，請參閱說明文件。
- 接著，您需要在 Cloud 控制台中啟用帳單，才能使用 Cloud 資源/API。完成這個程式碼研究室的費用不高，甚至可能完全免費。如要關閉資源，避免在本教學課程結束後繼續產生費用，請刪除您建立的資源或專案。Google Cloud 新使用者可參加價值$300 美元的免費試用計畫。
啟動 Cloud Shell
雖然可以透過筆電遠端操作 Google Cloud，但在本程式碼研究室中，您將使用 Google Cloud Shell，這是可在雲端執行的指令列環境。
在 Google Cloud 控制台中，點選右上角工具列的 Cloud Shell 圖示：
佈建並連線至環境的作業需要一些時間才能完成。完成後，您應該會看到如下的內容：
這部虛擬機器搭載各種您需要的開發工具，而且主目錄提供 5 GB 的永久儲存空間。此外，這部虛擬機器可在 Google Cloud 運作，大幅提升網路效能並強化驗證功能。您可以在瀏覽器中完成本程式碼研究室的所有工作，不需安裝任何軟體。
3. 建立新的 ADK 代理程式
- 建立名為
a2ui_lab的資料夾，用於存放本研討會的內容：
mkdir -p ~/a2ui_lab && cd ~/a2ui_lab
- 在這個資料夾中設定 uv 套件管理工具，並安裝依附元件：
uv init && uv add google-adk fastapi uvicorn a2ui-agent-sdk
- 啟用 AI Platform API (用於呼叫 Gemini 模型)
gcloud services enable aiplatform.googleapis.com
- 在這個資料夾中初始化 ADK 代理程式：
export GOOGLE_CLOUD_PROJECT=`gcloud config get project`
uv run adk create --model gemini-3.5-flash --project $GOOGLE_CLOUD_PROJECT --region global art_creator
畫面會顯示類似如下的輸出：
$ uv run adk create --model gemini-3.5-flash --project $GOOGLE_CLOUD_PROJECT --region global art_creator Agent created in ~/a2ui_lab/art_creator: - .env - __init__.py - agent.py ⚠️ WARNING: Secrets (like GOOGLE_API_KEY) are stored in .env. Please ensure .env is added to your .gitignore to avoid committing secrets to version control.
請注意，uv run 是在目前 uv 存放區的環境中執行指令的指令，我們在執行 uv init 時建立了這個存放區。新增 google-adk 套件依附元件時，adk 指令會安裝到這個存放區。
在 ADK 說明文件中，您經常會看到沒有 uv run 前置字串的 adk 指令，但在本研討會中執行指令時，請務必在 adk 前加上 uv run，確保執行正確的指令列公用程式。
基本代理架構建立完成後，我們就能在 agent.py 中定義圖片生成代理。
- 使用下列指令開啟 Cloud Shell 編輯器：
cloudshell workspace ~/a2ui_lab
- 將
art_creator/agent.py的內容替換為下列程式碼：
art_creator/agent.py
import os
import time
from google.adk.agents.llm_agent import Agent
from google.adk.tools.tool_context import ToolContext
from google.genai import types
# Load env variables
from dotenv import load_dotenv
load_dotenv(os.path.join(os.path.dirname(__file__), ".env"))
async def generate_image(prompt: str, tool_context: ToolContext) -> dict:
"""Generates a high-quality image based on the user's detailed description prompt.
Args:
prompt: A descriptive text prompt describing the image to generate.
tool_context: Context for the tool execution.
"""
from google.genai import Client
client = Client(
vertexai=True,
project=os.environ.get("GOOGLE_CLOUD_PROJECT"),
location=os.environ.get("GOOGLE_CLOUD_LOCATION", "global")
)
try:
response = client.models.generate_content(
model="gemini-3.1-flash-image",
contents=prompt,
config=types.GenerateContentConfig(
response_modalities=['TEXT', 'IMAGE'],
)
)
image_bytes = None
for part in response.parts or []:
if part.inline_data is not None:
image_bytes = part.inline_data.data
break
if not image_bytes:
return {"status": "failed", "detail": "No image data returned"}
filename = f"image_{int(time.time())}.png"
await tool_context.save_artifact(
filename,
types.Part.from_bytes(data=image_bytes, mime_type='image/png'),
)
return {
"status": "success",
"filename": filename,
"url": f"/api/artifacts/{tool_context.session.id}/{filename}"
}
except Exception as e:
return {"status": "failed", "detail": str(e)}
root_agent = Agent(
name="art_agent",
model="gemini-3.5-flash",
description="A basic art generation agent.",
instruction=(
"You are an art assistant. When the user describes an image they want to generate, "
"use the generate_image tool to create it, then return a text message containing the image's URL."
),
tools=[generate_image],
)
- 您現在可以使用
uv run adk web指令，在 ADK 的開發 UI 中測試代理程式：
uv run adk web --port 8080 --allow_origins "*" --reload_agents

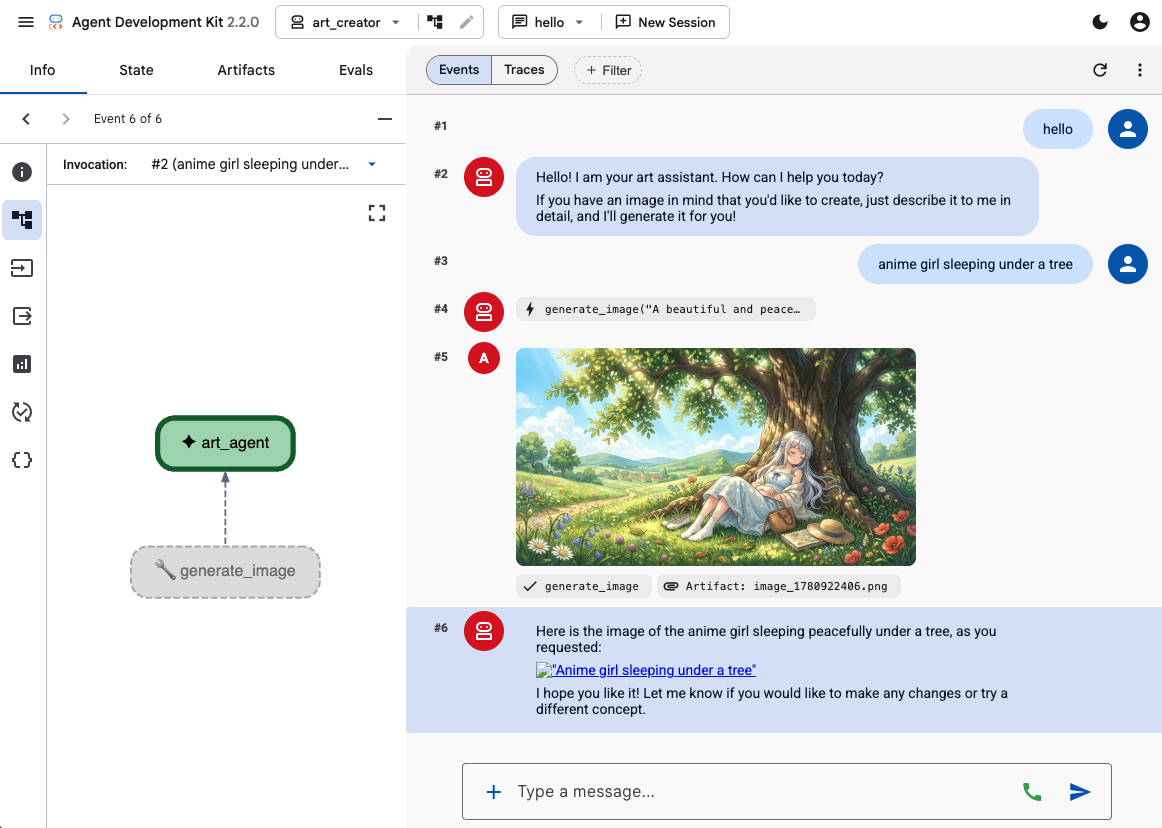

然後按一下「網頁預覽」按鈕，並選取「透過以下通訊埠預覽：8080」。這會在瀏覽器中開啟開發使用者介面。
使用 ADK 的開發 UI 提供幾個提示，測試代理的功能，例如：
- 動漫女孩在樹下睡覺。粉彩色調。16:9
- 相片：湖面映照著小屋，時間是傍晚，營造出懷舊感。
代理應會回覆文字和生成的圖片。

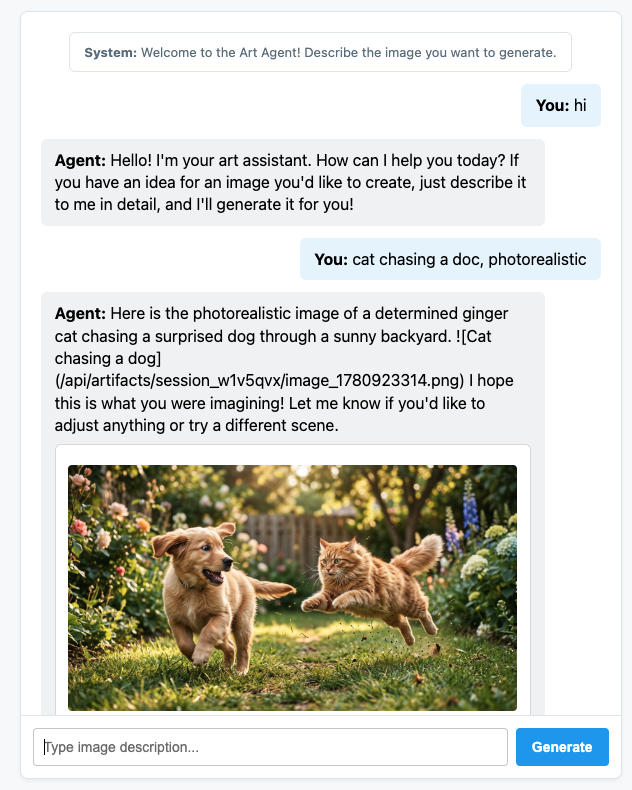

4. 建立簡單的前端
現在我們要為代理建立專屬網頁應用程式。我們將使用 FastAPI 執行 ADK 執行器，並提供簡單的單頁聊天介面。
首先，在終端機輸入 Ctrl+C，停止 ADK 開發伺服器。接著在工作區根目錄 (~/a2ui_lab/main.py) 中建立名為 main.py 的檔案，並加入下列內容：
main.py
import os
import logging
from fastapi import FastAPI, HTTPException
from fastapi.staticfiles import StaticFiles
from pydantic import BaseModel
from google.adk.runners import InMemoryRunner
from google.adk.agents.run_config import RunConfig
from google.genai import types
from art_creator.agent import root_agent
logging.basicConfig(level=logging.INFO)
logger = logging.getLogger(__name__)
app = FastAPI(title="Art Agent - Simple Chat")
class ChatRequest(BaseModel):
prompt: str
session_id: str = "default_session"
static_dir = os.path.join(os.path.dirname(__file__), "static")
os.makedirs(static_dir, exist_ok=True)
runner = InMemoryRunner(agent=root_agent)
runner.auto_create_session = True
@app.get("/api/artifacts/{session_id}/{filename}")
async def get_artifact(session_id: str, filename: str):
user_id = "default_user"
part = await runner.artifact_service.load_artifact(
app_name=runner.app_name,
user_id=user_id,
filename=filename,
session_id=session_id
)
if not part:
raise HTTPException(status_code=404, detail="Artifact not found")
if part.inline_data:
from fastapi.responses import Response
return Response(content=part.inline_data.data, media_type=part.inline_data.mime_type)
raise HTTPException(status_code=400, detail="Unsupported artifact format")
@app.post("/api/chat")
async def chat_endpoint(request: ChatRequest):
if not request.prompt.strip():
raise HTTPException(status_code=400, detail="Prompt cannot be empty")
user_id = "default_user"
content = types.Content(
role="user",
parts=[types.Part.from_text(text=request.prompt)]
)
full_response_text = ""
try:
async for event in runner.run_async(
user_id=user_id,
session_id=request.session_id,
new_message=content,
run_config=RunConfig(save_input_blobs_as_artifacts=True),
):
if event.content and event.content.parts:
if event.author != "user":
for part in event.content.parts:
if part.text:
full_response_text += part.text
elif part.inline_data:
try:
# Process raw binary/custom text parts (A2UI callback packages)
text_data = part.inline_data.data.decode("utf-8")
full_response_text += text_data
except Exception:
pass
except Exception as e:
logger.exception("Error running ADK agent:")
raise HTTPException(status_code=500, detail=str(e))
image_url = None
try:
artifact_keys = await runner.artifact_service.list_artifact_keys(
app_name=runner.app_name,
user_id=user_id,
session_id=request.session_id
)
image_keys = [k for k in artifact_keys if k.startswith("image_") and k.endswith(".png")]
if image_keys:
sorted_keys = sorted(image_keys, reverse=True)
image_url = f"/api/artifacts/{request.session_id}/{sorted_keys[0]}"
except Exception:
pass
return {
"text": full_response_text.strip(),
"image_url": image_url
}
app.mount("/static", StaticFiles(directory=static_dir), name="static")
@app.get("/")
async def read_index():
from fastapi.responses import FileResponse
return FileResponse(os.path.join(static_dir, "index.html"))
接著，建立 static 目錄來儲存前端檔案：
mkdir -p static
現在新增索引 HTML (static/index.html)：
static/index.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Art Agent - Simple Chat</title>
<link rel="stylesheet" href="/static/style.css">
</head>
<body>
<div class="container">
<div id="chat-messages" class="messages">
<div class="message system">
<strong>System:</strong> Welcome to the Art Agent! Describe the image you want to generate.
</div>
</div>
<form id="chat-form" class="input-form">
<input type="text" id="user-input" placeholder="Type image description..." autocomplete="off" required>
<button type="submit">Generate</button>
</form>
</div>
<script src="/static/app.js"></script>
</body>
</html>
以及樣式 CSS (static/style.css)：
static/style.css
body {
font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, Helvetica, Arial, sans-serif;
background-color: #f7f9fa;
margin: 0;
padding: 20px;
display: flex;
justify-content: center;
}
.container {
width: 100%;
max-width: 600px;
background: #ffffff;
border: 1px solid #e1e8ed;
border-radius: 8px;
box-shadow: 0 2px 4px rgba(0,0,0,0.05);
display: flex;
flex-direction: column;
height: 80vh;
}
.messages {
flex: 1;
overflow-y: auto;
padding: 20px;
display: flex;
flex-direction: column;
gap: 12px;
}
.message {
padding: 10px 14px;
border-radius: 6px;
max-width: 85%;
line-height: 1.4;
word-wrap: break-word;
}
.message.user {
background-color: #e8f5fe;
align-self: flex-end;
}
.message.agent {
background-color: #f1f3f4;
align-self: flex-start;
}
.message.system {
background-color: #fff;
border: 1px solid #e1e8ed;
color: #657786;
align-self: center;
font-size: 13px;
text-align: center;
}
.input-form {
display: flex;
border-top: 1px solid #e1e8ed;
padding: 12px;
}
.input-form input {
flex: 1;
border: 1px solid #ccc;
border-radius: 4px;
padding: 10px;
font-size: 14px;
outline: none;
}
.input-form button {
background-color: #1da1f2;
color: white;
border: none;
border-radius: 4px;
padding: 10px 16px;
margin-left: 8px;
font-size: 14px;
font-weight: bold;
cursor: pointer;
}
.input-form button:hover {
background-color: #1a91da;
}
.generated-img {
max-width: 100%;
border-radius: 4px;
margin-top: 8px;
display: block;
}
.image-card {
border: 1px solid #ddd;
border-radius: 6px;
padding: 12px;
background-color: #fff;
margin-top: 8px;
}
.btn-download {
background-color: #1da1f2;
color: white;
border: none;
border-radius: 4px;
padding: 8px 12px;
font-size: 13px;
font-weight: bold;
cursor: pointer;
margin-top: 8px;
width: 100%;
}
最後，新增 JavaScript 控制器 (static/app.js)：
static/app.js
document.addEventListener('DOMContentLoaded', () => {
const chatForm = document.getElementById('chat-form');
const userInput = document.getElementById('user-input');
const chatMessages = document.getElementById('chat-messages');
const sessionId = "session_" + Math.random().toString(36).substring(2, 9);
chatForm.addEventListener('submit', async (e) => {
e.preventDefault();
const prompt = userInput.value.trim();
if (!prompt) return;
userInput.value = '';
appendMessage('user', prompt);
const tempBubble = appendMessage('agent', '...');
try {
const response = await fetch('/api/chat', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({ prompt, session_id: sessionId })
});
const data = await response.json();
tempBubble.remove();
const textValue = (data && typeof data === 'object' && data.text) ? data.text : "";
const imageUrl = (data && typeof data === 'object' && data.image_url) ? data.image_url : null;
appendMessage('agent', textValue, imageUrl);
} catch (error) {
tempBubble.remove();
appendMessage('agent', `Error: ${error.message}`);
}
});
function appendMessage(sender, text, imageUrl = null) {
const bubble = document.createElement('div');
bubble.className = `message ${sender}`;
const content = document.createElement('span');
content.innerHTML = `<strong>${sender === 'user' ? 'You' : 'Agent'}:</strong> `;
const textNode = document.createTextNode(text);
content.appendChild(textNode);
bubble.appendChild(content);
// Always format multi-line JSON blocks nicely if the message is from the agent and looks like JSON
if (sender === 'agent' && text && (text.startsWith('{') || text.startsWith('['))) {
bubble.style.fontFamily = 'monospace';
bubble.style.whiteSpace = 'pre-wrap';
bubble.style.fontSize = '12px';
}
if (imageUrl) {
const card = document.createElement('div');
card.className = 'image-card';
const img = document.createElement('img');
img.src = imageUrl;
img.className = 'generated-img';
card.appendChild(img);
const dlBtn = document.createElement('button');
dlBtn.className = 'btn-download';
dlBtn.textContent = 'Download PNG';
dlBtn.onclick = () => {
const link = document.createElement('a');
link.href = imageUrl;
link.download = `generation-${Date.now()}.png`;
link.click();
};
card.appendChild(dlBtn);
bubble.appendChild(card);
}
chatMessages.appendChild(bubble);
chatMessages.scrollTop = chatMessages.scrollHeight;
return bubble;
}
});
啟動 FastAPI 伺服器，測試網頁應用程式：
uv run python -m uvicorn main:app --port 8080 --host 0.0.0.0
使用通訊埠 8080 上的「網頁預覽」存取自訂對話，即可直接與服務專員對話。
5. 設定代理程式，發出 A2UI 訊息
現在，請更新代理程式，傳回結構化 UI，而非僅傳回文字。我們會使用官方 a2ui-agent-sdk，為代理程式建構可辨識 A2UI 的系統提示。
使用 A2UI SDK 時，我們不會直接定義代理程式指令，而是使用 A2uiSchemaManager 類別，建構代理程式的系統提示，瞭解 A2UI 的介面生成功能，包括存取元件目錄、完整元件結構定義和使用範例 (如有)。
- 首先，請使用 Ctrl+C 停止 FastAPI 伺服器。
- 修改
art_creator/agent.py，整合A2uiSchemaManager和新的a2ui_callbackHook：
art_creator/agent.py
import os
import time
from google.adk.agents.llm_agent import Agent
from google.adk.tools.tool_context import ToolContext
from google.genai import types
from a2ui.schema.manager import A2uiSchemaManager
from a2ui.basic_catalog.provider import BasicCatalog
# Load env variables
from dotenv import load_dotenv
load_dotenv(os.path.join(os.path.dirname(__file__), ".env"))
async def generate_image(prompt: str, tool_context: ToolContext) -> dict:
"""Generates a high-quality image based on the user's detailed description prompt."""
from google.genai import Client
client = Client(
vertexai=True,
project=os.environ.get("GOOGLE_CLOUD_PROJECT"),
location=os.environ.get("GOOGLE_CLOUD_LOCATION", "global")
)
try:
response = client.models.generate_content(
model="gemini-3.1-flash-image",
contents=prompt,
config=types.GenerateContentConfig(
response_modalities=['TEXT', 'IMAGE'],
)
)
image_bytes = None
for part in response.parts or []:
if part.inline_data is not None:
image_bytes = part.inline_data.data
break
if not image_bytes:
return {"status": "failed", "detail": "No image data returned"}
filename = f"image_{int(time.time())}.png"
await tool_context.save_artifact(
filename,
types.Part.from_bytes(data=image_bytes, mime_type='image/png'),
)
return {
"status": "success",
"filename": filename,
"url": f"/api/artifacts/{tool_context.session.id}/{filename}"
}
except Exception as e:
return {"status": "failed", "detail": str(e)}
schema_manager = A2uiSchemaManager(
version="0.8",
catalogs=[BasicCatalog.get_config("0.8")],
)
instruction = schema_manager.generate_system_prompt(
role_description=(
"You are a specialized Image Creator agent. "
"When given an image description, analyze the prompt and ask the user for any missing details. "
"The image generation prompt should include: "
"Subject, environment, style, lighting, color and mood. "
),
workflow_description=(
"1. if the user greets you, greet the user back explaining your purpose. "
"2. if the user describes an image, DO NOT GENERATE IT IMMEDIATELY: compare with "
" the ideal generation prompt and ask the user for any missing details using "
" rich A2UI UI elements only. NOTE: only run this step once per image, if the user "
" decides to not detail one or more elements it is ok. "
"3. combine the original prompt with the responses in the UI elements and call `generate_image` "
" with the generated prompt. "
" DO NOT INCLUDE EXAMPLES IN THE GENERATED PROMPT, ONLY THE ELEMENTS THE USER ASKED FOR. "
"4. display the resulting image to the user in a card including the image, the prompt and a "
" download button"
),
ui_description=(
"Use Card, Text, Image, Multichoice and Button components to present the options. "
"Always include a single choice selection box for image resolution (1K, 2K or 4K) and one for "
"aspect ratio (1:1, 16:9 or 9:16). "
"When rendering the final output (generated image) always render the generated image using an "
"Image component with the url bound to the image's URL/path returned by the tool. "
"Add a Text component with the prompt that generated the image. "
"Include a Button component labeled 'Download PNG' to allow downloading the image. "
"Do NOT use markdown formatting in text values. Use the usageHint property for heading levels instead. "
"Respond ONLY with the A2UI JSON array. Do NOT include any text "
"outside the JSON. Put all explanations into Text components."
),
include_schema=True,
)
root_agent = Agent(
model="gemini-3.5-flash",
name="art_agent_a2ui",
instruction=instruction,
tools=[generate_image],
)
請注意，現在代理程式指令是由 schema_manager.generate_system_prompt 呼叫產生，而不是以硬式編碼方式寫入代理程式定義。
啟動 FastAPI 伺服器，測試網頁應用程式：
uv run python -m uvicorn main:app --port 8080 --host 0.0.0.0

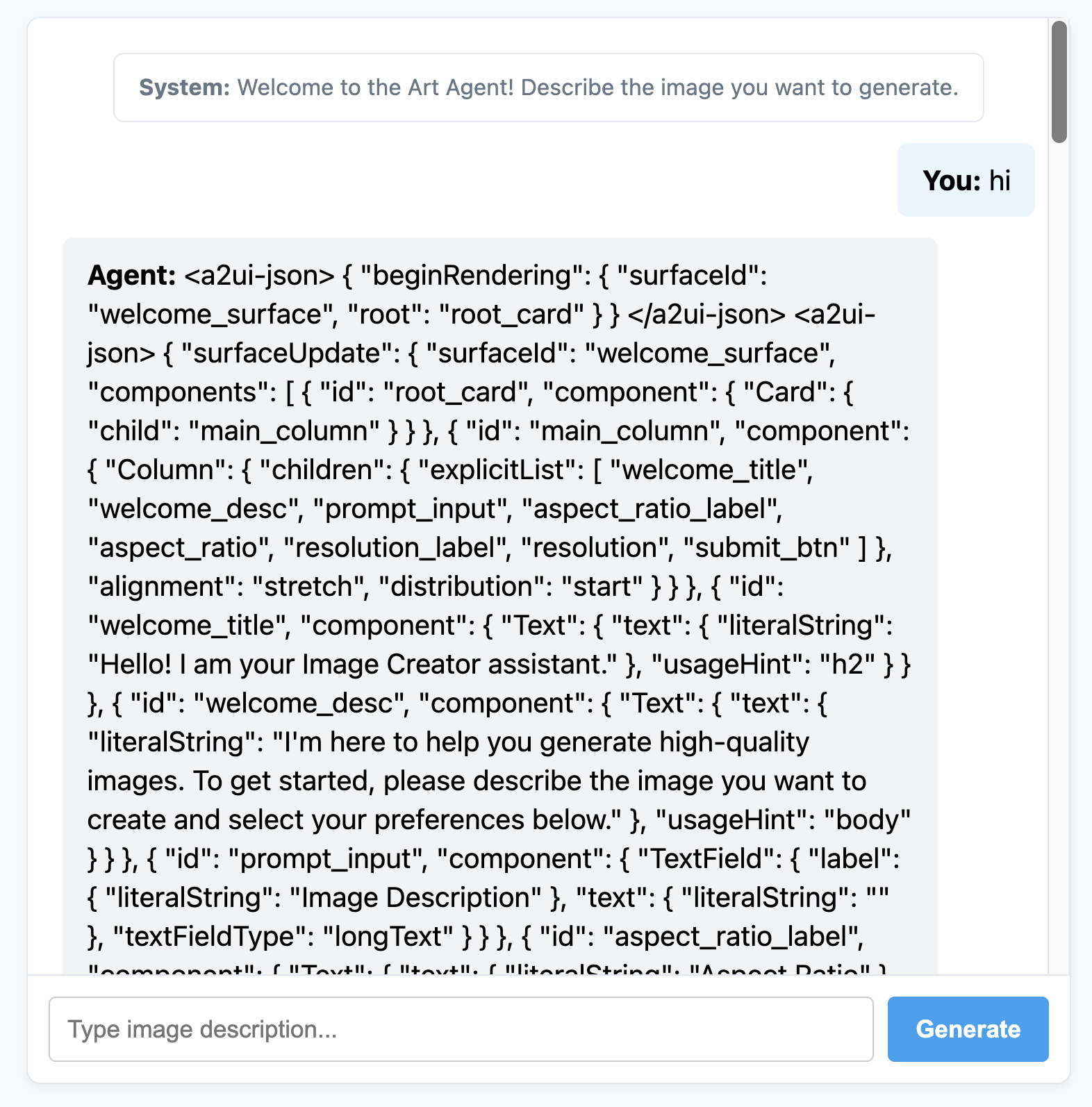

使用通訊埠 8080 上的「網頁預覽」存取自訂對話。你會發現，現在代理程式會發出 JSON 訊息，而不是一般文字。這是 A2UI 元素的內部表示法，我們將在下一節中算繪這些元素。

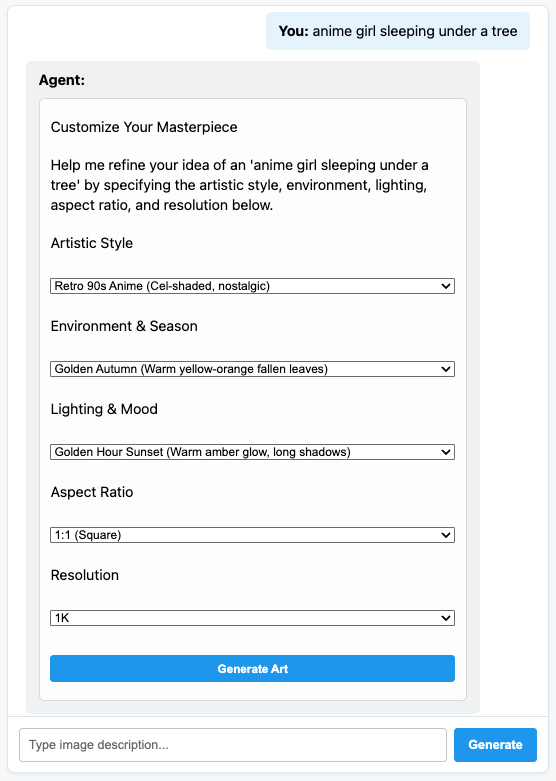

6. 為代理程式建立自訂前端
在這個階段，用戶端會取得乾淨的 A2UI 訊息清單 (beginRendering、surfaceUpdate 和 dataModelUpdate)。現在，我們將以純 JavaScript 建構自訂用戶端轉譯引擎，實際查看這些元件。
以下是完整的 static/app.js，其中包含 A2UI 剖析和算繪邏輯：
static/app.js
document.addEventListener('DOMContentLoaded', () => {
const chatForm = document.getElementById('chat-form');
const userInput = document.getElementById('user-input');
const chatMessages = document.getElementById('chat-messages');
const sessionId = "session_" + Math.random().toString(36).substring(2, 9);
async function sendChat(prompt, showInUi = true) {
if (!prompt) return;
if (showInUi) {
appendMessage('user', prompt);
}
const tempBubble = appendMessage('agent', '...');
try {
const response = await fetch('/api/chat', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({ prompt, session_id: sessionId })
});
const data = await response.json();
tempBubble.remove();
let text = data.text || "";
let a2uiMessages = [];
// 1. Extract <a2ui-json> blocks
const a2uiRegex = /<a2ui-json>(.*?)<\/a2ui-json>/gs;
let match;
while ((match = a2uiRegex.exec(text)) !== null) {
try {
const jsonStr = match[1].trim();
const parsed = JSON.parse(jsonStr);
const parsedList = Array.isArray(parsed) ? parsed : [parsed];
for (const msg of parsedList) {
if (msg && typeof msg === 'object') {
a2uiMessages.push(msg);
}
}
} catch (e) {
console.error("Error parsing <a2ui-json> block:", e);
}
}
// 2. Extract <a2a_datapart_json> blocks (for robust history/callback parsing)
const a2aRegex = /<a2a_datapart_json>(.*?)<\/a2a_datapart_json>/gs;
while ((match = a2aRegex.exec(text)) !== null) {
try {
const jsonStr = match[1].trim();
const parsed = JSON.parse(jsonStr);
const dataMsg = (parsed && parsed.kind === 'data') ? parsed.data : parsed;
if (dataMsg && typeof dataMsg === 'object') {
a2uiMessages.push(dataMsg);
}
} catch (e) {
console.error("Error parsing <a2a_datapart_json> block:", e);
}
}
// 3. Clean XML and A2UI JSON tags from displayed conversational text
const cleanText = text.replace(/<(a2ui-json|a2a_datapart_json)>.*?<\/\1>/gs, '').trim();
const imageUrl = (data && typeof data === 'object' && data.image_url) ? data.image_url : null;
appendMessage('agent', cleanText, imageUrl, a2uiMessages);
} catch (error) {
tempBubble.remove();
appendMessage('agent', `Error: ${error.message}`);
}
}
chatForm.addEventListener('submit', async (e) => {
e.preventDefault();
const prompt = userInput.value.trim();
if (!prompt) return;
userInput.value = '';
await sendChat(prompt, true);
});
function renderA2UI(a2uiMessages) {
try {
let rootId = null;
const components = {};
const dataModel = {};
for (const msg of a2uiMessages) {
if (msg.beginRendering) {
rootId = msg.beginRendering.root;
} else if (msg.surfaceUpdate) {
for (const item of msg.surfaceUpdate.components) {
components[item.id] = item.component;
}
} else if (msg.dataModelUpdate) {
for (const item of msg.dataModelUpdate.contents) {
const val = item.valueString !== undefined ? item.valueString :
item.valueBool !== undefined ? item.valueBool :
item.valueInt !== undefined ? item.valueInt :
item.valueDouble !== undefined ? item.valueDouble : item.valueString;
dataModel[item.key] = val;
}
}
}
if (!rootId || Object.keys(components).length === 0) {
return null;
}
function resolveValue(valObj) {
if (!valObj) return '';
let val = '';
if (typeof valObj === 'string') val = valObj;
else if (valObj.literalString !== undefined) val = valObj.literalString;
else if (valObj.path !== undefined) val = dataModel[valObj.path] || '';
else val = JSON.stringify(valObj);
// Dynamically replace any wrong session IDs in artifact URLs with the active sessionId
if (typeof val === 'string' && val.includes('/api/artifacts/')) {
val = val.replace(/\/api\/artifacts\/session_[a-z0-9]+/g, `/api/artifacts/${sessionId}`);
}
return val;
}
function buildElement(id) {
try {
const compDesc = components[id];
if (!compDesc) return null;
const type = Object.keys(compDesc)[0];
const props = compDesc[type];
const el = document.createElement('div');
el.className = `a2ui-component a2ui-${type.toLowerCase()}`;
el.style.margin = '4px 0';
if (type === 'Column') {
el.style.display = 'flex';
el.style.flexDirection = 'column';
el.style.gap = '8px';
const children = props.children?.explicitList || [];
for (const childId of children) {
const childEl = buildElement(childId);
if (childEl) el.appendChild(childEl);
}
} else if (type === 'Row') {
el.style.display = 'flex';
el.style.flexDirection = 'row';
el.style.gap = '8px';
el.style.alignItems = 'center';
const children = props.children?.explicitList || [];
for (const childId of children) {
const childEl = buildElement(childId);
if (childEl) el.appendChild(childEl);
}
} else if (type === 'Card') {
el.style.border = '1px solid #ddd';
el.style.borderRadius = '6px';
el.style.padding = '12px';
el.style.backgroundColor = '#fdfdfd';
el.style.marginTop = '8px';
if (props.child) {
const childEl = buildElement(props.child);
if (childEl) el.appendChild(childEl);
}
} else if (type === 'Text') {
const textVal = resolveValue(props.text);
const tag = props.usageHint === 'h1' ? 'h3' :
props.usageHint === 'h2' ? 'h4' : 'p';
const textEl = document.createElement(tag);
textEl.textContent = textVal;
textEl.style.margin = '0 0 4px 0';
el.appendChild(textEl);
} else if (type === 'Image') {
const srcVal = resolveValue(props.url) || resolveValue(props.src);
const imgEl = document.createElement('img');
imgEl.src = srcVal;
imgEl.style.maxWidth = '100%';
imgEl.style.borderRadius = '4px';
imgEl.style.display = 'block';
imgEl.style.marginTop = '6px';
imgEl.className = 'generated-img';
el.appendChild(imgEl);
} else if (type === 'Divider') {
const hrEl = document.createElement('hr');
hrEl.style.border = '0';
hrEl.style.borderTop = '1px solid #eee';
hrEl.style.margin = '12px 0';
el.appendChild(hrEl);
} else if (type === 'MultipleChoice') {
const labelVal = resolveValue(props.label);
const options = props.options?.explicitList || (Array.isArray(props.options) ? props.options : []);
const container = document.createElement('div');
container.style.display = 'flex';
container.style.flexDirection = 'column';
container.style.gap = '4px';
container.style.margin = '8px 0';
if (labelVal) {
const labelEl = document.createElement('label');
labelEl.textContent = labelVal;
labelEl.style.fontSize = '12px';
labelEl.style.fontWeight = 'bold';
container.appendChild(labelEl);
}
const selectEl = document.createElement('select');
selectEl.className = 'a2ui-select';
selectEl.name = id;
for (const option of options) {
const optEl = document.createElement('option');
optEl.value = option.value !== undefined ? option.value : (option.id !== undefined ? option.id : '');
optEl.textContent = resolveValue(option.label);
selectEl.appendChild(optEl);
}
container.appendChild(selectEl);
el.appendChild(container);
} else if (type === 'Button') {
let labelVal = props.label ? resolveValue(props.label) : '';
if (!labelVal && props.child) {
const childComp = components[props.child];
if (childComp && childComp.Text) {
labelVal = resolveValue(childComp.Text.text);
}
}
const btnEl = document.createElement('button');
btnEl.className = 'btn-download';
btnEl.textContent = labelVal || 'Submit';
btnEl.addEventListener('click', (e) => {
e.preventDefault();
const action = props.action;
let downloadUrl = null;
if (action && (action.name === 'download_file' || action.name === 'download') && action.context) {
const urlContext = action.context.find(ctx => ctx.key === 'url');
if (urlContext) {
downloadUrl = resolveValue(urlContext.value);
}
}
const isDownload = downloadUrl || (labelVal && labelVal.toLowerCase().includes('download'));
if (isDownload) {
const finalUrl = downloadUrl || (el.closest('.message')?.querySelector('img')?.src);
if (finalUrl) {
const link = document.createElement('a');
link.href = finalUrl;
link.download = `generation-${Date.now()}.png`;
link.click();
}
} else {
const bubbleEl = el.closest('.message');
const selects = bubbleEl.querySelectorAll('.a2ui-select');
let answers = [];
selects.forEach(sel => {
let labelText = sel.previousSibling ? sel.previousSibling.textContent : sel.name;
const selectedText = sel.options[sel.selectedIndex]?.textContent || sel.value;
answers.push(`- ${labelText}: ${selectedText}`);
});
if (answers.length > 0) {
const responseText = `Selected options:\n` + answers.join('\n');
sendChat(responseText, false);
} else {
sendChat(labelVal || 'Submit', false);
}
}
});
el.appendChild(btnEl);
}
return el;
} catch (err) {
console.error('Error building component:', id, err);
return null;
}
}
return buildElement(rootId);
} catch (err) {
console.error('Error in renderA2UI:', err);
return null;
}
}
function appendMessage(sender, text, imageUrl = null, a2ui = null) {
const bubble = document.createElement('div');
bubble.className = `message ${sender}`;
const textSpan = document.createElement('span');
textSpan.innerHTML = `<strong>${sender === 'user' ? 'You' : 'Agent'}:</strong> `;
bubble.appendChild(textSpan);
if (text) {
const textContent = document.createTextNode(text);
textSpan.appendChild(textContent);
}
if (sender === 'agent' && a2ui && a2ui.length > 0) {
const a2uiEl = renderA2UI(a2ui);
if (a2uiEl) {
bubble.appendChild(a2uiEl);
}
}
if (imageUrl) {
const imgContainer = document.createElement('div');
imgContainer.style.marginTop = '8px';
const img = document.createElement('img');
img.src = imageUrl;
img.style.maxWidth = '100%';
img.style.borderRadius = '4px';
img.className = 'generated-img';
imgContainer.appendChild(img);
bubble.appendChild(imgContainer);
}
chatMessages.appendChild(bubble);
chatMessages.scrollTop = chatMessages.scrollHeight;
return bubble;
}
});
再次啟動 FastAPI 應用程式伺服器：
uv run python -m uvicorn main:app --port 8080 --host 0.0.0.0
與完全動態的 A2UI Art Creator 代理程式對話！
7. 恭喜！
您已建構 ADK 代理，可使用 A2UI 動態產生 UI 元素。如要繼續學習，請探索各種架構整合，或參閱下列參考資料中的說明文件。
建構正式版前端
在本研討會中，我們基於教學目的使用了自訂的純 JS 前端，但實際工作環境中，您會使用其中一個官方 A2UI 算繪器建構前端：
平台 | 轉譯器 | 安裝 |
網頁 (React) | @a2ui/react | npm install @a2ui/react |
網頁 (Lit) | @a2ui/lit | npm install @a2ui/lit |
網頁 (Angular) | @a2ui/angular | npm install @a2ui/angular |
行動裝置/電腦 | Flutter GenUI SDK |
