1. 准备工作
随着 AI 智能体处理跨多天的多轮长时间交互并执行长期的多步任务，大语言模型 (LLM) 在会话中始终保持无状态。如果用户明天返回到代理，模型会从头开始，除非应用可以重建必要的上下文。
解决此问题的简单方法是令牌填充，即将完整的对话历史记录、工具执行日志和代码库直接附加到每个有效提示。虽然从技术上讲，数百万 token 的大上下文窗口可以实现这一点，但上下文填充会带来严重的运营阻力：每轮的 token 成本呈二次方级增长，响应延迟会增加到数十秒，并且模型会受到“中间丢失”上下文降级的影响。
若要构建可靠的 AI 智能体，您需要采用双层记忆架构：
- 短期会话缓冲区：使用有令牌限制的滑动窗口在活动内存中缓存最近的对话轮次。此层级要求在每个回合中进行亚毫秒级的高吞吐量内存中查找，因此 Memorystore for Valkey 是理想之选。
- 长期持久记忆：跨会话存储结构化实体、用户偏好和情景事实。此层级需要事务完整性、多租户安全性以及跨关系数据和向量的混合检索，因此 AlloyDB for PostgreSQL 是理想之选。
了解四种记忆类型
强大的记忆架构依赖于用户体验历程中的四种互补的记忆类型：
内存类型 | 存储的内容 | 存储层 | 生命周期 |
缓冲（短期） | 近期原始对话轮次 | Memorystore for Valkey | 活跃会话 |
总结记忆 | 压缩的旧对话历史记录 | Memorystore for Valkey | 多轮窗口 |
情景记忆 | 过往操作、事件和工具输出 | AlloyDB for PostgreSQL（向量） | 永久 |
实体和规则内存 | 用户偏好、限制和否决 | AlloyDB for PostgreSQL（结构化 SQL + 向量） | 永久 |
分层内存的实测影响
在多轮开发对话（45 轮以上，包含大量工具输出日志）中进行的内部基准测试表明，与简单的上下文填充相比，该模型可显著节省资源：
指标 / 维度 | 简单粗暴的上下文填充 | 分层内存（AlloyDB + Memorystore） | 测试中的净影响 |
有效提示大小（旋转 45 度） | 747,033 个 token | 83,262 个 token | 提示小了 88.9% |
45 回合响应延迟时间 | 33.5 秒 | 6.7 秒 | 响应速度提升 80.0% |
累计会话令牌数 | 1,790 万个 token | 409 万个 token | 节省了 72.0% 的总 token 和费用 |
规则和限制召回 | 随回合数增加而降低 | 防止重要知识在总结中丢失 | 通过混合搜索保留 |
您将执行的操作
- 预配 AlloyDB for PostgreSQL 和 Memorystore for Valkey。
- 启用
google_ml_integration并配置数据库端事务性自动嵌入 (ai.initialize_embeddings)。 - 实现一个短期 Valkey 会话缓冲区，并采用“先总结再修剪”流水线模式。
- 使用 AlloyDB 的原生 AI 函数（即
ai.generate）原生提取长期实体 - 使用 AlloyDB 的原生混合搜索功能 (
ai.hybrid_search) 和倒数排序融合 (RRF) 重新排名功能，以高准确度和相关性查询长期事实。 - 构建一个三层企业工具权限评估器和一个后台内存压缩引擎。
- 使用 Google 智能体开发套件 (ADK) 将双层记忆架构直接集成到自主智能体中。
所需条件
- 启用了结算功能的 Google Cloud 项目。
- 网络浏览器，例如 Chrome。
- 具备 Python 和 SQL 方面的基础知识，包括有使用 Studio、CLI 等针对 AlloyDB 运行 SQL 查询的经验。
受众群体与费用
- 受众群体：AI 开发者、后端工程师和数据库架构师。
- 预计费用：在此 Codelab 中创建的 Google Cloud 资源大约需要 1.50 美元。
2. 设置和要求
启动 Cloud Shell
在此 Codelab 中，您将在 Google Cloud Shell 中运行命令。Google Cloud Shell 是一种云托管式终端，预配置了 gcloud、psql 和 python3。
- 打开 Google Cloud 控制台。
- 点击 Cloud 控制台右上角的激活 Cloud Shell。
- 验证身份验证：
gcloud auth list
export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID
export REGION=us-east1
export GENAI_LOCATION=us
export ZONE=us-east1-b
export ADBCLUSTER=agent-memory-cluster
export ADBINSTANCE=agent-memory-instance
export VALKEYINSTANCE=agent-memory-cache
export VM_NAME=agent-dev-vm
启用 Google Cloud API 并创建开发虚拟机
在 Cloud Shell 中运行以下命令，以启用所需的 API：
gcloud services enable \
alloydb.googleapis.com \
memorystore.googleapis.com \
aiplatform.googleapis.com \
compute.googleapis.com \
servicenetworking.googleapis.com \
networkconnectivity.googleapis.com
在 default VPC 网络中创建一个 Compute Engine 虚拟机实例，以托管您的 Python 开发环境以及 AlloyDB 和 Memorystore for Valkey：
gcloud compute instances create $VM_NAME \
--zone=$ZONE \
--machine-type=e2-standard-2 \
--scopes=cloud-platform \
--network=default \
--shielded-secure-boot
3. 预配 AlloyDB 和 Memorystore for Valkey
在此步骤中，您将预配 AlloyDB for PostgreSQL 集群和主实例，建立专用服务网络，并启动 Memorystore for Valkey 实例。
创建 Private Service Access IP 范围
AlloyDB 需要 Virtual Private Cloud (VPC) 网络中的专用 IP 范围。假设您使用的是 default VPC 网络：
- 创建专用 IP 范围分配：
gcloud compute addresses create psa-range \
--global \
--purpose=VPC_PEERING \
--prefix-length=24 \
--description="VPC private service access" \
--network=default
- 建立专用 VPC 对等互连连接：
gcloud services vpc-peerings connect \
--service=servicenetworking.googleapis.com \
--ranges=psa-range \
--network=default
创建 AlloyDB 集群和主实例
- 为系统初始化创建初始集群密码：
export PGPASSWORD=`openssl rand -hex 12`
- 创建免费试用集群：
gcloud alloydb clusters create $ADBCLUSTER \
--password=$PGPASSWORD \
--network=default \
--region=$REGION \
--subscription-type=TRIAL
- 创建主实例：
gcloud alloydb instances create $ADBINSTANCE \
--instance-type=PRIMARY \
--cpu-count=2 \
--region=$REGION \
--cluster=$ADBCLUSTER
预配 Memorystore for Valkey 实例
在创建实例之前，您需要在网络和区域中设置服务连接政策 (gcp-memorystore)。Memorystore for Valkey 需要此政策。
- 为 Memorystore 创建服务连接政策：
gcloud network-connectivity service-connection-policies create memorystore-policy \
--network=default \
--region=$REGION \
--service-class=gcp-memorystore \
--subnets=projects/$PROJECT_ID/regions/$REGION/subnetworks/default
- 创建 Memorystore for Valkey 实例：
gcloud memorystore instances create $VALKEYINSTANCE \
--location=$REGION \
--shard-count=1 \
--replica-count=0 \
--node-type=SHARED_CORE_NANO \
--psc-auto-connections="network=projects/$PROJECT_ID/global/networks/default,projectId=$PROJECT_ID"
授予 Vertex AI IAM 权限
向 AlloyDB 服务账号授予必要的 IAM 权限，以调用 Agent Platform 的嵌入模型：
PROJECT_ID=$(gcloud config get-value project)
gcloud projects add-iam-policy-binding $PROJECT_ID \
--member="serviceAccount:service-$(gcloud projects describe $PROJECT_ID --format="value(projectNumber)")@gcp-sa-alloydb.iam.gserviceaccount.com" \
--role="roles/aiplatform.user"
4. 初始化环境并访问端点
设置 AlloyDB IAM 身份验证和数据库标志
在 AlloyDB 实例上启用 IAM 数据库身份验证 (alloydb.iam_authentication=on) 和 AI 查询引擎 (google_ml_integration.enable_ai_query_engine=on)：
gcloud beta alloydb instances update $ADBINSTANCE \
--cluster=$ADBCLUSTER \
--region=$REGION \
--update-mode=FORCE_APPLY \
--database-flags=alloydb.iam_authentication=on,google_ml_integration.enable_ai_query_engine=on
接下来，以超级用户权限添加您的 Google Cloud 账号作为基于 IAM 的数据库用户：
export USER_ACCOUNT=$(gcloud config get-value account)
gcloud alloydb users create $USER_ACCOUNT \
--cluster=$ADBCLUSTER \
--region=$REGION \
--type=IAM_BASED \
--db-roles=alloydbsuperuser
在 Cloud Shell 中检索内部 VPC 端点
在通过 SSH 登录到开发虚拟机之前，请在 Cloud Shell 中检索 AlloyDB 和 Memorystore for Valkey 的内部 VPC IP 地址：
# Export GCP Project ID, Region, and IAM User
export PROJECT_ID=$(gcloud config get-value project)
export REGION=us-east1
export DB_USER=$(gcloud config get-value account)
# Retrieve Internal VPC IP Addresses for AlloyDB & Memorystore for Valkey
export DB_HOST=$(gcloud alloydb instances describe $ADBINSTANCE --cluster=$ADBCLUSTER --region=$REGION --format="value(ipAddress)")
export DB_PORT=5432
export DB_NAME=postgres
export VALKEY_HOST=$(gcloud memorystore instances describe $VALKEYINSTANCE --location=$REGION --format="value(discoveryEndpoints[0].address)")
export VALKEY_PORT=6379
# Verify exported endpoints
echo "Project ID: $PROJECT_ID"
echo "Region: $REGION"
echo "AlloyDB Private IP: $DB_HOST"
echo "IAM DB User: $DB_USER"
echo "Valkey Private IP: $VALKEY_HOST"
通过 SSH 连接到开发虚拟机并导出连接变量
通过 SSH 从 Cloud Shell 连接到位于同一 VPC 网络中的 Compute Engine 开发虚拟机 (agent-dev-vm)：
gcloud compute ssh $VM_NAME --zone=$ZONE
登录开发虚拟机后，导出上述项目配置和连接端点输出（将
export PROJECT_ID=<YOUR_PROJECT_ID>
export REGION=us-east1
export GENAI_LOCATION=us
export DB_HOST=<YOUR_ALLOYDB_PRIVATE_IP>
export DB_PORT=5432
export DB_NAME=postgres
export DB_USER=<YOUR_IAM_DB_USER>
export VALKEY_HOST=<YOUR_VALKEY_PRIVATE_IP>
export VALKEY_PORT=6379
初始化 Python 虚拟环境
在开发虚拟机中，我们先创建本地工作目录：
mkdir -p ~/alloydb_agent_memory && cd ~/alloydb_agent_memory
现在，我们来安装系统 Python 虚拟环境软件包，对应用默认凭证 (ADC) 进行身份验证，并设置工作区：
sudo apt-get update && sudo apt-get install -y python3-venv python3-pip
python3 -m venv venv
source venv/bin/activate
最后，在新虚拟环境中，我们将安装依赖项：
gcloud auth application-default login
pip install psycopg2-binary valkey redis google-genai
5. 系统架构和代码模块层次结构
构建内容概览

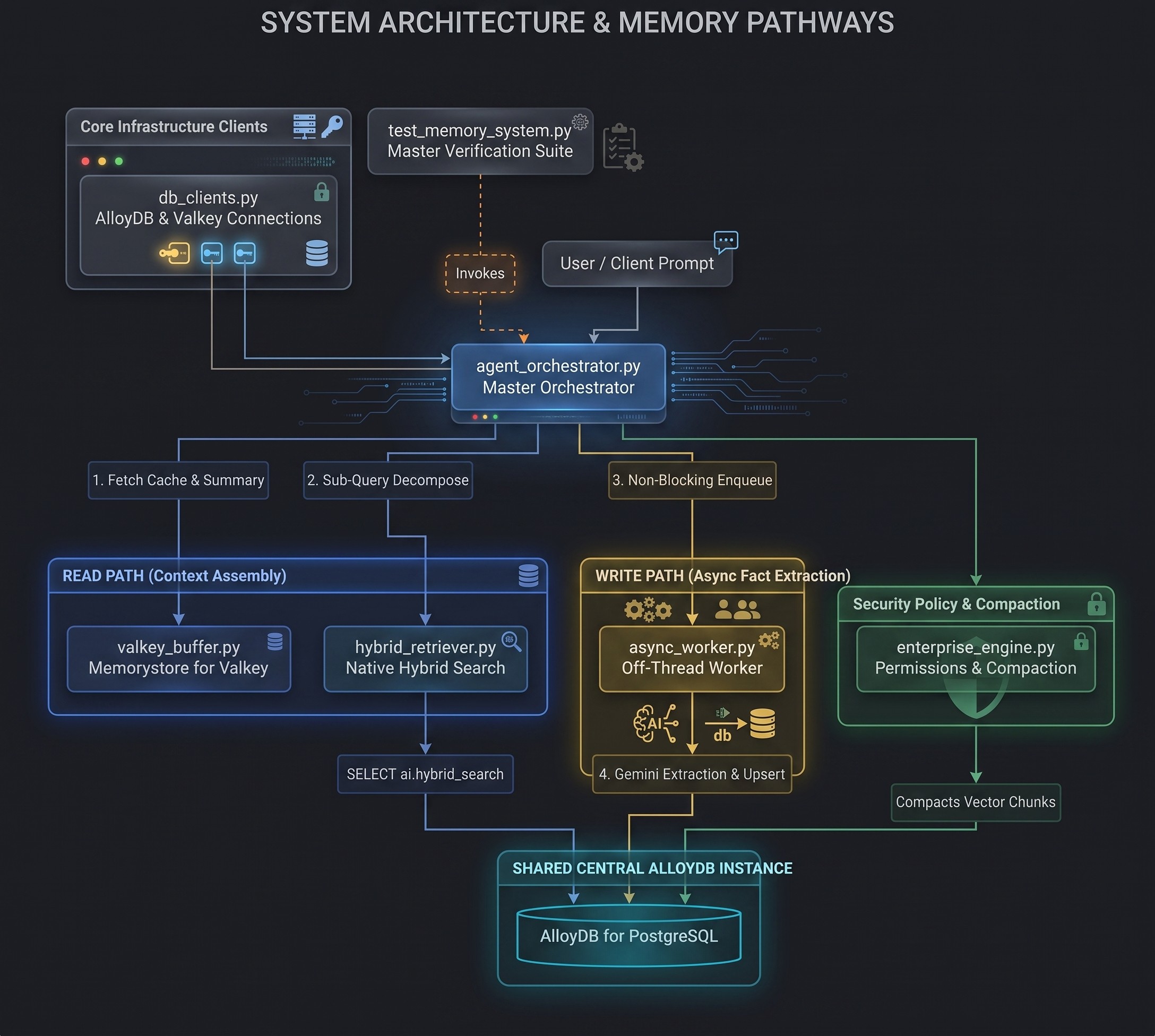

在实现各个 Python 脚本之前，请先查看下面的系统架构。此示例应用分为 7 个模块化 Python 脚本，这些脚本通过两个主要执行路径与同一个 AlloyDB for PostgreSQL 数据库实例进行交互：
- 读取路径 (
hybrid_retriever.py)：使用 AlloyDB AIai.generate()在 PostgreSQL 中直接将复合多部分问题分解为单方面子查询，并使用 AlloyDB 的原生混合搜索 (ai.hybrid_search) 查询长期记忆。 - 写入路径 (
async_worker.py)：使用 Gemini Flash 从对话交换中异步提取结构化实体事实并将其插入到agent_entities中的线程外后台队列工作器。
模块层次结构和系统角色
模块文件 | 系统层 | 主要责任 |
| 连接层 | 建立与 AlloyDB 的 SSL 加密 IAM 身份验证，以及与 Memorystore for Valkey 的套接字弹性连接。 |
| 短期记忆 | 在 Valkey 中管理亚毫秒级会话历史记录，实现 Summarize-Before-Trim 滚动摘要。 |
| 写入路径工作器 | 运行一个线程外守护程序后台队列工作器，该工作器使用 Gemini Flash 提取实体事实，并将其插入或更新到 AlloyDB 中。 |
| 读取路径检索器 | 使用数据库内 AlloyDB AI |
| 主要代理循环 | 协调端到端对话执行循环：短期提取、长期搜索、提示组装、LLM 执行和异步入队。 |
| 治理与管理 | 针对工具执行强制实施三层安全政策，并汇总历史记忆。 |
| 测试和评估 | 主验证套件，用于执行多轮和多会话场景，测量节省的令牌百分比，并验证内存精确度。 |
6. 设置 AlloyDB AI 架构和事务性自动嵌入
目标和架构概览
在本模块中，您将定义 AlloyDB 的数据库架构，以用于情景记忆和长期记忆、索引策略以及数据库端自动嵌入。
- 情景向量存储区 (
episodic_memory_embeddings)：使用 HNSW 向量索引 (vector_cosine_ops) 编入索引的非结构化对话转写块。 - 长期实体存储区 (
agent_entities)：存储的结构化事实、用户选择和项目规则，附带范围元数据（global、project、session）。包括通过 RUM 编入索引的自动生成的 PostgreSQL 全文搜索列 (summary_tsv)。 - 数据库端自动嵌入 (
ai.initialize_embeddings)：通过 Agent Platformtext-embedding-005在后台自动将新的或更新的纯文本行嵌入到summary_embedding中。
连接到 AlloyDB Studio
- 前往 Google Cloud 控制台中的 AlloyDB for Postgres 页面。
- 点击主实例。
- 在左侧导航栏中，点击 AlloyDB Studio。
- 选择
postgres数据库 - 使用
IAM database authentication进行身份验证
实现和源代码
连接到 AlloyDB PostgreSQL 数据库后，执行以下 DDL 查询：
-- 1. Enable google_ml_integration extension
CREATE EXTENSION IF NOT EXISTS google_ml_integration CASCADE;
CREATE EXTENSION IF NOT EXISTS vector CASCADE;
CREATE EXTENSION IF NOT EXISTS rum CASCADE;
SET google_ml_integration.enable_preview_ai_functions = true;
-- 2. Create Episodic Memory Vector Store Tables
CREATE TABLE IF NOT EXISTS episodic_memory_collections (
uuid UUID PRIMARY KEY,
name VARCHAR,
cmetadata JSONB
);
CREATE TABLE IF NOT EXISTS episodic_memory_embeddings (
uuid UUID PRIMARY KEY,
collection_id UUID REFERENCES episodic_memory_collections(uuid) ON DELETE CASCADE,
embedding VECTOR(768),
document VARCHAR,
cmetadata JSONB,
custom_id VARCHAR,
created_at TIMESTAMPTZ DEFAULT NOW()
);
CREATE INDEX IF NOT EXISTS episodic_memory_embedding_idx
ON episodic_memory_embeddings
USING hnsw (embedding vector_cosine_ops)
WITH (m = 16, ef_construction = 64);
-- 3. Create Entity & Preference Table with Metadata Scope & Auto-Generated TSVector Column
CREATE TABLE IF NOT EXISTS agent_entities (
entity_id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
user_id TEXT NOT NULL,
entity_name TEXT NOT NULL,
project_id TEXT DEFAULT 'global',
session_id TEXT,
scope TEXT NOT NULL DEFAULT 'project', -- 'global', 'project', 'session'
summary TEXT NOT NULL,
summary_embedding VECTOR(768),
summary_tsv TSVECTOR GENERATED ALWAYS AS (
to_tsvector('english', entity_name || ' ' || summary)
) STORED,
updated_at TIMESTAMPTZ DEFAULT NOW(),
UNIQUE (user_id, entity_name)
);
CREATE INDEX IF NOT EXISTS agent_entities_scope_idx
ON agent_entities (user_id, project_id, scope);
CREATE INDEX IF NOT EXISTS agent_entities_embedding_idx
ON agent_entities USING hnsw (summary_embedding vector_cosine_ops);
CREATE INDEX IF NOT EXISTS agent_entities_tsv_idx
ON agent_entities USING rum (summary_tsv rum_tsvector_ops);
-- 4. Create User Permissions Table for Tool Execution Controls
CREATE TABLE IF NOT EXISTS user_permissions (
permission_id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
user_id TEXT NOT NULL,
project_id TEXT NOT NULL DEFAULT 'global',
tool_name TEXT NOT NULL,
command_pattern TEXT NOT NULL,
action TEXT NOT NULL CHECK (action IN ('ALLOW', 'BLOCK')),
created_at TIMESTAMPTZ DEFAULT NOW(),
updated_at TIMESTAMPTZ DEFAULT NOW()
);
CREATE INDEX IF NOT EXISTS idx_user_permissions_lookup
ON user_permissions (user_id, project_id, tool_name);
-- 5. Register Gemini 3.5 Flash Model Endpoint in AlloyDB
-- Replace PROJECT_ID with your Google Cloud project ID
CALL google_ml.create_model(
model_id => 'gemini-3.5-flash',
model_request_url => 'https://aiplatform.googleapis.com/v1/projects/PROJECT_ID/locations/global/publishers/google/models/gemini-3.5-flash:generateContent',
model_qualified_name => 'gemini-3.5-flash',
model_provider => 'google',
model_type => 'llm',
model_auth_type => 'alloydb_service_agent_iam'
);
初始化事务性自动嵌入并注册 Gemini 模型
接下来，在单独的查询执行块中执行 CALL 语句，以注册自动嵌入后台进程和 Gemini 3.5 Flash 模型端点：
-- 6. Register Database-Side Transactional Auto-Embedding
CALL ai.initialize_embeddings(
model_id => 'text-embedding-005',
table_name => 'agent_entities',
content_column => 'summary',
embedding_column => 'summary_embedding',
incremental_refresh_mode => 'transactional',
batch_size => 10
);
7. 配置 AlloyDB 和 Valkey 连接客户端
目标和架构概览
在此模块中，您将与 AlloyDB for PostgreSQL（长期内存）和 Memorystore for Valkey（短期缓存）建立安全的网络连接。
- AlloyDB IAM 身份验证：使用
gcloud auth application-default print-access-token检索用于无密码、SSL 加密数据库连接 (sslmode="require") 的短期 OAuth2 令牌。 - Valkey 网络弹性：将
redis.Redis配置为具有 5.0 秒的套接字超时时间 (socket_timeout=5.0)，以便在单节点或集群 Valkey 实例中安全地处理 VPC 网络操作。
实现和源代码
在工作目录中创建脚本 db_clients.py：
import os
import subprocess
import psycopg2
import redis
# Initialize database & Valkey connection clients from environment variables
DB_HOST = os.getenv("DB_HOST", "127.0.0.1")
DB_PORT = os.getenv("DB_PORT", "5432")
DB_NAME = os.getenv("DB_NAME", "postgres")
DB_USER = os.getenv("DB_USER")
VALKEY_HOST = os.getenv("VALKEY_HOST", "127.0.0.1")
VALKEY_PORT = int(os.getenv("VALKEY_PORT", "6379"))
def get_db_connection():
# Fetch Application Default Credentials (ADC) token for IAM Database Authentication & enable SSL encryption
access_token = subprocess.check_output(
["gcloud", "auth", "application-default", "print-access-token"], text=True
).strip()
return psycopg2.connect(
host=DB_HOST,
port=DB_PORT,
dbname=DB_NAME,
user=DB_USER,
password=access_token,
sslmode="require"
)
def get_valkey_client():
return redis.Redis(
host=VALKEY_HOST,
port=VALKEY_PORT,
db=0,
socket_timeout=5.0,
socket_connect_timeout=5.0
)
if __name__ == "__main__":
print(f"Connecting to AlloyDB via IAM Auth ({DB_USER}) at {DB_HOST}:{DB_PORT} and Valkey at {VALKEY_HOST}:{VALKEY_PORT}...")
print("Database and Valkey connection client modules loaded successfully.")
8. 在 Memorystore for Valkey 中缓存短期会话状态
目标和架构概览
在此模块中，您将使用 Memorystore for Valkey 构建一个亚毫秒级短期上下文缓存，实现自动化的先总结后截断模式。
- Valkey 滑动窗口：活跃对话轮次以 JSON 字符串形式存储在键
session:{session_id}:turns中。 - Redis 哈希标记 (
{session_id})：键格式session:{session_id}:turns和session:{session_id}:summary使用 Redis 集群哈希标记 ({...})，强制将两个键都放在同一哈希槽中，以确保在任何单节点或集群 Valkey 部署中实现原子执行。 - Summarize-Before-Trim：当对话轮数超过
trigger_limit时，Gemini Flash 会将即将被剪裁的旧对话轮总结为滚动文本摘要 (session:{session_id}:summary)，然后再将原始历史记录剪裁为window_size。
实现和源代码
在工作目录中创建脚本 valkey_buffer.py：
import json
import logging
import time
from typing import Any, Dict, List
import redis
logger = logging.getLogger(__name__)
IN_MEMORY_VALKEY_FALLBACK: Dict[str, Any] = {}
VALKEY_COMPACTION_TOKENS = 0
def get_valkey_compaction_tokens() -> int:
return VALKEY_COMPACTION_TOKENS
def append_session_turn_with_rolling_summary(
valkey_client: redis.Redis,
llm_client: Any,
session_id: str,
user_msg: str,
ai_msg: str,
trigger_limit: int = 10,
window_size: int = 4
) -> None:
"""Appends turn to Valkey. Before trimming old turns, summarizes them into a rolling summary."""
global VALKEY_COMPACTION_TOKENS
# Use Redis Hash Tags {session_id} so both keys hash to the same cluster slot
turns_key = "session:{" + session_id + "}:turns"
summary_key = "session:{" + session_id + "}:summary"
try:
# 1. Append new turn messages
valkey_client.rpush(turns_key, json.dumps({"role": "user", "content": user_msg}))
valkey_client.rpush(turns_key, json.dumps({"role": "assistant", "content": ai_msg}))
raw_turns = valkey_client.lrange(turns_key, 0, -1)
# 2. Check if total turns exceed summary trigger threshold
msg_trigger_count = trigger_limit * 2
msg_window_count = window_size * 2
if len(raw_turns) > msg_trigger_count:
turns_to_prune = raw_turns[:-msg_window_count]
existing_summary = valkey_client.get(summary_key)
existing_summary_text = (
existing_summary.decode('utf-8') if isinstance(existing_summary, bytes) else (existing_summary or "")
)
pruned_text = "\n".join([
f"{json.loads(t)['role']}: {json.loads(t)['content']}" for t in turns_to_prune
])
prompt = f"""Update the existing rolling conversation summary with the old turns about to be trimmed.
Retain key constraints, user choices, technical decisions, and ongoing goals.
Existing Summary:
{existing_summary_text if existing_summary_text else 'No prior summary.'}
Old turns about to be trimmed:
{pruned_text}
Updated Rolling Summary:"""
VALKEY_COMPACTION_TOKENS += max(1, len(prompt) // 4)
updated_summary_text = llm_client.models.generate_content(
model="gemini-3.5-flash", contents=prompt
).text.strip()
# Execute commands directly to support all Redis/Valkey cluster topologies
valkey_client.set(summary_key, updated_summary_text)
valkey_client.ltrim(turns_key, -msg_window_count, -1)
logger.info("Updated rolling summary and trimmed Valkey buffer for session %s", session_id)
except (redis.exceptions.RedisError, Exception) as e:
logger.warning("Valkey operation warning (%s). Falling back to in-memory short-term buffer.", e)
if turns_key not in IN_MEMORY_VALKEY_FALLBACK:
IN_MEMORY_VALKEY_FALLBACK[turns_key] = []
IN_MEMORY_VALKEY_FALLBACK[turns_key].append({"role": "user", "content": user_msg})
IN_MEMORY_VALKEY_FALLBACK[turns_key].append({"role": "assistant", "content": ai_msg})
# In-memory summarize-before-trim fallback logic
msg_trigger_count = trigger_limit * 2
msg_window_count = window_size * 2
raw_fallback_turns = IN_MEMORY_VALKEY_FALLBACK[turns_key]
if len(raw_fallback_turns) > msg_trigger_count:
turns_to_prune = raw_fallback_turns[:-msg_window_count]
existing_summary_text = IN_MEMORY_VALKEY_FALLBACK.get(summary_key, "")
pruned_text = "\n".join([f"{t['role']}: {t['content']}" for t in turns_to_prune])
prompt = f"""Update the existing rolling conversation summary with the old turns about to be trimmed.
Retain key constraints, user choices, technical decisions, and ongoing goals.
Existing Summary:
{existing_summary_text if existing_summary_text else 'No prior summary.'}
Old turns about to be trimmed:
{pruned_text}
Updated Rolling Summary:"""
VALKEY_COMPACTION_TOKENS += max(1, len(prompt) // 4)
for attempt in range(4):
try:
updated_summary_text = llm_client.models.generate_content(
model="gemini-3.5-flash", contents=prompt
).text.strip()
break
except Exception as e:
if ("429" in str(e) or "RESOURCE_EXHAUSTED" in str(e)) and attempt < 3:
time.sleep(3 * (2 ** attempt))
else:
raise
IN_MEMORY_VALKEY_FALLBACK[summary_key] = updated_summary_text
IN_MEMORY_VALKEY_FALLBACK[turns_key] = raw_fallback_turns[-msg_window_count:]
def get_session_context_buffer(
valkey_client: redis.Redis,
session_id: str
) -> Dict[str, Any]:
"""Retrieves rolling summary + sliding window history from Valkey to build prompt context."""
turns_key = "session:{" + session_id + "}:turns"
summary_key = "session:{" + session_id + "}:summary"
try:
summary = valkey_client.get(summary_key)
summary_text = summary.decode('utf-8') if isinstance(summary, bytes) else (summary or "")
raw_turns = valkey_client.lrange(turns_key, 0, -1)
recent_turns = [json.loads(t) for t in raw_turns]
return {
"rolling_summary": summary_text,
"recent_turns": recent_turns
}
except (redis.exceptions.RedisError, Exception) as e:
logger.warning("Valkey read error (%s). Using in-memory short-term fallback buffer.", e)
summary_text = IN_MEMORY_VALKEY_FALLBACK.get(summary_key, "")
recent_turns = IN_MEMORY_VALKEY_FALLBACK.get(turns_key, [])
return {"rolling_summary": summary_text, "recent_turns": recent_turns}
9. 提取实体（后台内存工作器）
目标和架构概览
在此模块中，您将构建一个线程外写入路径后台提取工作器 (AsyncMemoryWorker)，用于提取长期实体事实，而不会减慢交互式 AI 回答的速度。
- 非阻塞队列工作器：启动守护程序线程 (
queue.Queue)，以便开发者聊天返回立即返回，而无需等待 LLM 提取或数据库写入。 - 线程外实体事实提取：在后台调用 Gemini Flash (
model="gemini-3.5-flash",response_mime_type="application/json") 来解析结构化实体，而不会阻塞面向用户的对话轮次。 - 时间指代消解 (
build_temporal_rules_prompt)：强制执行将相对时间表达式（例如“当前”、“上一个会话”）转换为明确的会话 ID（例如session_id）的规则。 - 架构更新插入：提示 Gemini Flash 返回实体（
entity_name、project_id、scope、summary）的 JSON 数组，并通过参数化 PostgreSQLON CONFLICT DO UPDATE语句将纯文本写入agent_entities。
实现和源代码
在工作目录中创建脚本 async_worker.py：
import json
import logging
import queue
import threading
import time
from typing import Dict, Any, Optional
import psycopg2
logger = logging.getLogger(__name__)
def build_temporal_rules_prompt(active_session_id: str, prev_session_id: Optional[str] = None) -> str:
"""REUSABLE PROMPT HELPER: Defines temporal coreference rules for both Read and Write paths."""
return f"""TEMPORAL COREFERENCE RULES:
1. Do not use relative temporal words like 'currently', 'now', 'this session', 'previous session', or 'last session'.
2. Replace any relative temporal reference with explicit session identifiers:
- Active Session: '{active_session_id}'
- Previous Session: '{prev_session_id if prev_session_id else active_session_id}'
(e.g., write 'User prefers Python in session {active_session_id}' instead of 'User currently prefers Python')."""
class AsyncMemoryWorker:
"""Off-thread daemon queue worker performing background entity extraction and upserts into AlloyDB."""
def __init__(self, conn_factory, llm_client):
self.conn_factory = conn_factory
self.llm_client = llm_client
self.work_queue = queue.Queue()
self.total_extraction_tokens = 0
self.worker_thread = threading.Thread(target=self._run_worker, daemon=True)
self.worker_thread.start()
def enqueue_extraction(
self, user_id: str, session_id: str, user_msg: str, ai_msg: str, prev_session_id: Optional[str] = None
):
self.work_queue.put((user_id, session_id, user_msg, ai_msg, prev_session_id))
def _run_worker(self):
while True:
item = self.work_queue.get()
if item is None:
break
user_id, session_id, user_msg, ai_msg, prev_session_id = item
try:
self._extract_and_upsert(user_id, session_id, user_msg, ai_msg, prev_session_id)
except Exception as e:
logger.error("Background extraction failed: %s", e)
finally:
self.work_queue.task_done()
def _extract_and_upsert(
self, user_id: str, session_id: str, user_msg: str, ai_msg: str, prev_session_id: Optional[str] = None
):
temporal_rules = build_temporal_rules_prompt(session_id, prev_session_id)
json_fmt = '[{"entity_name": "...", "project_id": "...", "scope": "global|project|session", "summary": "..."}]'
prompt = f"""Extract key preferences and named entities from this exchange.
Format output strictly as a JSON array of objects with structure: {json_fmt}.
{temporal_rules}
Rules for Scope:
- 'global': Universal developer preferences.
- 'project': Architecture, database choices, timeouts, and rules for a specific project.
- 'session': Ephemeral task state tied strictly to a single session.
User: {user_msg}
AI: {ai_msg}
Output (JSON array only):"""
self.total_extraction_tokens += max(1, len(prompt) // 4)
for attempt in range(4):
try:
response = self.llm_client.models.generate_content(
model="gemini-3.5-flash",
contents=prompt,
config={"response_mime_type": "application/json"}
)
break
except Exception as e:
if ("429" in str(e) or "RESOURCE_EXHAUSTED" in str(e)) and attempt < 3:
time.sleep(3 * (2 ** attempt))
else:
raise
content = str(response.text).strip()
if not content:
return
extracted_list = json.loads(content)
if not isinstance(extracted_list, list):
return
upsert_sql = """
INSERT INTO agent_entities (user_id, entity_name, project_id, session_id, scope, summary, updated_at)
VALUES (%s, %s, %s, %s, %s, %s, NOW())
ON CONFLICT (user_id, entity_name)
DO UPDATE SET
project_id = EXCLUDED.project_id,
session_id = EXCLUDED.session_id,
scope = EXCLUDED.scope,
summary = EXCLUDED.summary,
updated_at = NOW();
"""
conn = self.conn_factory()
try:
with conn:
with conn.cursor() as cur:
for item in extracted_list:
e_name = item.get("entity_name", "General_Fact")
p_id = item.get("project_id", "global")
s_scope = item.get("scope", "project")
summary = item.get("summary", "")
if e_name and summary:
cur.execute(upsert_sql, (user_id, e_name, p_id, session_id, s_scope, summary))
logger.info("Saved %d entities for user %s", len(extracted_list), user_id)
finally:
conn.close()
10. 使用原生混合搜索查询长期记忆
目标和架构概览
在本模块中，您将实现读取路径子查询分解、时态查询重写、元数据范围隔离，并使用 AlloyDB 的原生混合搜索 (ai.hybrid_search)。
- 数据库内子查询分解 (
rewrite_and_decompose_query)：直接在 PostgreSQL 中使用 AlloyDB AI 的内置函数ai.generate()将复合问题分解为具有标准化会话 ID 的单方面子查询，防止多主题查询降低向量搜索准确性。 - 索引级范围过滤：构建数据库端 SQL 过滤条件 (
filter_condition => "user_id = '%s' AND (project_id = '%s' OR scope = 'global')")，以隔离每个用户和项目的记忆，同时包含全局开发者偏好设置。 - AlloyDB 原生混合搜索 (
ai.hybrid_search)：使用倒数排名融合 (RRF) 将向量余弦相似度 (public.<=>) 与 AlloyDB 中的全文搜索 (rum) 相结合，以提供最佳准确率、召回率和相关性。
实现和源代码
在工作目录中创建脚本 hybrid_retriever.py：
import os
import json
import logging
from typing import Any, Dict, List, Optional
import psycopg2
from psycopg2.extras import RealDictCursor
from async_worker import build_temporal_rules_prompt
logger = logging.getLogger(__name__)
def rewrite_and_decompose_query(
conn: Any,
llm_client: Any,
text: str,
active_session_id: str,
prev_session_id: Optional[str] = None
) -> List[str]:
"""Read-Path LLM Query Normalizer & Sub-Query Decomposer using AlloyDB AI ai.generate() directly in PostgreSQL."""
temporal_rules = build_temporal_rules_prompt(active_session_id, prev_session_id)
prompt = f"""You are a query normalization and decomposition tool for an AI agent's memory retrieval system.
Tasks:
1. Normalize any relative temporal phrases in the user query into explicit session identifiers.
{temporal_rules}
2. Decompose compound user queries asking about multiple distinct topics into up to 4 concise, single-topic search queries. Ensure all distinct questions (both general developer preferences and project-specific architecture/rules) are preserved as separate sub-queries.
3. Return ONLY a valid JSON array of strings containing the sub-queries.
Example Output Format:
["general developer coding preferences", "CloudRetail backend stack in session sess_2026_01", "CloudRetail timeout rules in session sess_2026_01"]
Text to Process: {text}
JSON Output:"""
try:
with conn.cursor() as cur:
cur.execute("SET google_ml_integration.enable_preview_ai_functions = true;")
cur.execute("SELECT ai.generate(prompt => %s::text, model_id => 'gemini-3.5-flash'::varchar(100));", (prompt,))
row = cur.fetchone()
if row and row[0]:
res_text = str(row[0]).strip()
clean_text = res_text
if clean_text.startswith("```"):
clean_text = clean_text.removeprefix("```json").removeprefix("```").removesuffix("```").strip()
parsed = json.loads(clean_text)
if isinstance(parsed, list) and len(parsed) > 0:
return [str(q).strip() for q in parsed]
return [text]
except Exception as e:
logger.error("Error in in-database ai.generate sub-query decomposition: %s", e)
return [text]
def rewrite_temporal_query(
conn: Any,
llm_client: Any,
text: str,
active_session_id: str,
prev_session_id: Optional[str] = None
) -> str:
"""Backward-compatible wrapper returning first decomposed query string."""
queries = rewrite_and_decompose_query(conn, llm_client, text, active_session_id, prev_session_id)
return queries[0] if queries else text
def retrieve_hybrid_entities(
conn,
llm_client: Any,
user_id: str,
active_session_id: str,
query_text: str,
query_embedding: Optional[List[float]] = None,
prev_session_id: Optional[str] = None,
project_id: Optional[str] = None,
k: int = 20
) -> Dict[str, Any]:
"""Queries long-term entities using Sub-Query Decomposition, metadata scope filtering, and parameterized AlloyDB hybrid search."""
sub_queries = rewrite_and_decompose_query(
conn=conn, llm_client=llm_client, text=query_text, active_session_id=active_session_id, prev_session_id=prev_session_id
)
all_search_queries = list(dict.fromkeys(sub_queries + [query_text]))
retrieved_entities: Dict[str, Any] = {}
filter_cond = f"user_id = '{user_id}' AND (project_id = '{project_id}' OR scope = 'global')" if project_id else f"user_id = '{user_id}'"
query_sql = """
SELECT e.entity_name, e.summary, e.project_id, e.scope, e.updated_at
FROM ai.hybrid_search(
search_inputs => %s::JSONB[],
include_json_output => false
) h
JOIN agent_entities e ON e.entity_name = h.id
WHERE e.user_id = %s
LIMIT %s;
"""
from google import genai
embed_client = genai.Client(
vertexai=True,
project=os.getenv("PROJECT_ID"),
location=os.getenv("REGION", "us-east1")
)
for sq in all_search_queries:
try:
emb_resp = embed_client.models.embed_content(model="text-embedding-005", contents=sq)
sq_embedding = emb_resp.embeddings[0].values
vector_literal = f"'{sq_embedding}'::vector"
except Exception as e:
logger.error(f"Failed to generate embedding for sub-query: {sq}. Error: {e}")
# Fallback to zero vector to prevent Postgres from crashing
sq_embedding = [0.0] * 768
vector_literal = f"'{sq_embedding}'::vector"
search_inputs = [
json.dumps({
"data_type": "vector",
"weight": 0.4,
"table_name": "agent_entities",
"key_column": "entity_name",
"vec_column": "summary_embedding",
"distance_operator": "public.<=>",
"limit": 20,
"query_vector": vector_literal,
"filter_condition": filter_cond
}),
json.dumps({
"data_type": "text",
"weight": 0.6,
"table_name": "agent_entities",
"key_column": "entity_name",
"text_column": "summary_tsv",
"limit": 20,
"ranking_function": "ts_rank",
"query_text_input": sq,
"filter_condition": filter_cond
})
]
with conn.cursor(cursor_factory=RealDictCursor) as cur:
try:
cur.execute("SET google_ml_integration.enable_preview_ai_functions = true;")
cur.execute(query_sql, (search_inputs, user_id, k))
rows = cur.fetchall()
for row in rows:
name = row["entity_name"]
if name not in retrieved_entities:
retrieved_entities[name] = {
"summary": row["summary"],
"project_id": row["project_id"],
"scope": row["scope"],
"updated_at": row["updated_at"].isoformat() if row["updated_at"] else None
}
except Exception as e:
logger.error("Error executing hybrid search for sub-query '%s': %s", sq, e)
return retrieved_entities
11. 构建并运行端到端智能体记忆循环
目标和架构概览
在本模块中，您将构建主要代理编排函数 (run_agent_turn)，该函数可将短期缓存检索、长期记忆搜索、提示组装、LLM 生成和后台记忆提取相结合。
- 短期上下文：提取有效的 Valkey 对话轮次和滚动摘要 (
get_session_context_buffer)。 - 长期搜索：通过
retrieve_hybrid_entities查询 AlloyDB，使用按有效项目 ID 和全局范围过滤的分解子查询。 - 系统提示格式设置：将包含长期实体、短期摘要、近期对话和用户提示的
build_agent_prompt组装成节省令牌的系统提示。 - 异步队列入队：在 Valkey 中缓存 turn，并将后台提取排入
AsyncMemoryWorker队列，而不会阻塞返回载荷。
实现和源代码
在工作目录中创建脚本 agent_orchestrator.py：
import logging
import time
from typing import Any, Dict, Optional, Tuple
import redis
from valkey_buffer import get_session_context_buffer, append_session_turn_with_rolling_summary
from hybrid_retriever import rewrite_temporal_query, retrieve_hybrid_entities
from async_worker import AsyncMemoryWorker
logger = logging.getLogger(__name__)
def build_agent_prompt(
rolling_summary: str,
recent_turns: list[Dict[str, Any]],
retrieved_entities: Dict[str, Any],
user_query: str
) -> str:
"""Assembles structured system prompt with long-term memory & short-term context."""
entity_lines = [
f"- {name}: {info['summary']}" for name, info in retrieved_entities.items()
]
entity_context = "\n".join(entity_lines) if entity_lines else "No relevant entity facts."
history_lines = [f"{t['role']}: {t['content']}" for t in recent_turns]
history_str = "\n".join(history_lines)
return f"""You are an intelligent, context-aware AI assistant.
[LONG-TERM PREFERENCES & ENTITIES]
{entity_context}
[SHORT-TERM ROLLING SUMMARY]
{rolling_summary if rolling_summary else 'No prior summary.'}
[RECENT DIALOGUE]
{history_str}
User: {user_query}
AI:"""
def run_agent_turn(
db_conn,
valkey_client: redis.Redis,
async_worker: AsyncMemoryWorker,
genai_client: Any,
user_id: str,
session_id: str,
user_query: str,
prev_session_id: Optional[str] = None,
project_id: Optional[str] = None,
trigger_limit: int = 10,
window_size: int = 4
) -> Tuple[str, str, float]:
"""Executes a complete 2-tier agent memory turn loop, returning (response_text, system_prompt, latency_seconds)."""
import time
start_time = time.time()
# 1. Fetch short-term rolling summary + recent turns from Valkey
buffer_data = get_session_context_buffer(valkey_client, session_id)
rolling_summary = buffer_data["rolling_summary"]
recent_turns = buffer_data["recent_turns"]
# 2. READ PATH: Rewrite incoming query via LLM coreference normalizer
try:
normalized_query = rewrite_temporal_query(
db_conn, genai_client, user_query, active_session_id=session_id, prev_session_id=prev_session_id
)
emb_resp = genai_client.models.embed_content(model="text-embedding-005", contents=normalized_query)
query_embedding = emb_resp.embeddings[0].values
except Exception:
query_embedding = None
# Retrieve relevant long-term entities from AlloyDB via hybrid search
retrieved_entities = retrieve_hybrid_entities(
conn=db_conn,
llm_client=genai_client,
user_id=user_id,
active_session_id=session_id,
query_text=user_query,
query_embedding=query_embedding,
prev_session_id=prev_session_id,
project_id=project_id,
k=20
)
# 3. Assemble system prompt
system_prompt = build_agent_prompt(
rolling_summary, recent_turns, retrieved_entities, user_query
)
# 4. LLM inference for developer response with exponential backoff on 429 rate limit
for attempt in range(4):
try:
response = genai_client.models.generate_content(
model="gemini-3.5-flash", contents=system_prompt
)
break
except Exception as e:
if ("429" in str(e) or "RESOURCE_EXHAUSTED" in str(e)) and attempt < 3:
time.sleep(3 * (2 ** attempt))
else:
raise
ai_response = str(response.text)
# 5. Cache turn in short-term Valkey buffer (with Summarize-Before-Trim check)
append_session_turn_with_rolling_summary(
valkey_client=valkey_client,
llm_client=genai_client,
session_id=session_id,
user_msg=user_query,
ai_msg=ai_response,
trigger_limit=trigger_limit,
window_size=window_size
)
# 6. WRITE PATH: Enqueue off-thread background entity extraction (single LLM call)
async_worker.enqueue_extraction(user_id, session_id, user_query, ai_response, prev_session_id)
latency = time.time() - start_time
return ai_response, system_prompt, latency
12. 实现企业权限控制和内存压缩
目标和架构概览
在本模块中，您将为工具执行和数据库内存压缩 (AgentMemoryEngine) 构建企业安全控制。
- 3 级权限评估 (
evaluate_tool_permission)：- 层级 1（一次性 Valkey 授权）：检查 TTL 为 300 秒的一次性授权密钥 (
one_time_perm:{session_id}:{cmd_hash})。如果存在，则立即删除键并返回ALLOW。 - 第 2 级和第 3 级（PostgreSQL 政策规则）：先查询与项目级规则 (
project_id) 匹配的user_permissions，然后再查询与全局规则 ('global') 匹配的。 - 回退：如果不存在匹配的政策，则返回
PROMPT_USER。
- 层级 1（一次性 Valkey 授权）：检查 TTL 为 300 秒的一次性授权密钥 (
- 内存压缩 (
compact_old_memories)：使用上限为 50 行的 SQL CTE 查询，将episodic_memory_embeddings中早于retention_days的历史原始向量事件聚合为agent_entities中的单个整合摘要。
实现和源代码
在工作目录中创建脚本 enterprise_engine.py：
import hashlib
import logging
import re
from typing import Any, Dict, Tuple
import psycopg2
import redis
logger = logging.getLogger(__name__)
class AgentMemoryEngine:
"""Framework-agnostic Enterprise Memory Engine for tool execution permissions & safe compaction."""
def __init__(self, valkey_client: redis.Redis, db_conn: Any):
self.valkey_client = valkey_client
self.db_conn = db_conn
def evaluate_tool_permission(
self,
user_id: str,
project_id: str,
session_id: str,
tool_name: str,
tool_args: Dict[str, Any]
) -> Tuple[str, str]:
"""Evaluates 3-tier execution permissions: Allow-Once (Valkey), Project (AlloyDB), Global (AlloyDB)."""
command_str = str(tool_args.get("CommandLine", "") or tool_args)
# Tier 1: Allow-Once (Single-Use Valkey Check with 300s TTL)
cmd_hash = hashlib.sha256(command_str.encode("utf-8")).hexdigest()[:16]
valkey_key = f"one_time_perm:{session_id}:{cmd_hash}"
if self.valkey_client.get(valkey_key):
self.valkey_client.delete(valkey_key) # Consume key immediately
return ("ALLOW", "Single-use 'Allow Once' grant consumed.")
# Tier 2 & Tier 3: Query AlloyDB user_permissions table
query_sql = """
SELECT command_pattern, action, project_id
FROM user_permissions
WHERE user_id = %s AND tool_name = %s AND project_id IN (%s, 'global')
ORDER BY CASE WHEN project_id = %s THEN 1 ELSE 2 END;
"""
with self.db_conn.cursor() as cur:
cur.execute(query_sql, (user_id, tool_name, project_id, project_id))
rules = cur.fetchall()
for pattern, action, scope in rules:
if re.search(pattern, command_str, flags=re.IGNORECASE):
return (action, f"Matched {scope}-scoped rule: {pattern}")
# Fallback: Prompt Human User
return ("PROMPT_USER", "No matching permission rule found.")
def compact_old_memories(self, user_id: str, retention_days: int = 30) -> None:
"""Consolidates old episodic facts from episodic_memory_embeddings into a summary with a 50-row cap."""
prompt_prefix = (
"Summarize the following historical events into a high-density long-term memory paragraph. "
"Retain key constraints, tool choices, and project rules:\n"
)
# Capped CTE prevents string_agg from exceeding model context window limits
compaction_sql = """
WITH old_events AS (
SELECT document AS content
FROM episodic_memory_embeddings
WHERE cmetadata->>'user_id' = %s
AND created_at < NOW() - (INTERVAL '1 day' * %s)
ORDER BY created_at ASC
LIMIT 50
),
consolidated AS (
SELECT ai.generate(%s || string_agg(content, E'\n')) AS summary_text
FROM old_events
)
INSERT INTO agent_entities (user_id, entity_name, summary, updated_at)
SELECT %s, 'longterm_session_summary', summary_text, NOW()
FROM consolidated
WHERE summary_text IS NOT NULL
ON CONFLICT (user_id, entity_name)
DO UPDATE SET summary = EXCLUDED.summary, updated_at = NOW();
"""
prune_sql = """
DELETE FROM episodic_memory_embeddings
WHERE uuid IN (
SELECT uuid FROM episodic_memory_embeddings
WHERE cmetadata->>'user_id' = %s
AND created_at < NOW() - (INTERVAL '1 day' * %s)
ORDER BY created_at ASC
LIMIT 50
);
"""
try:
with self.db_conn:
with self.db_conn.cursor() as cur:
cur.execute("SET google_ml_integration.enable_preview_ai_functions = true;")
cur.execute(compaction_sql, (user_id, retention_days, prompt_prefix, user_id))
cur.execute(prune_sql, (user_id, retention_days))
logger.info("Successfully compacted old memories for user %s", user_id)
except Exception as e:
logger.error("Error during memory compaction: %s", e)
13. 运行端到端多轮内存验证
目标和架构概览
在本最终模块中，您将构建并执行主端到端验证脚本 (test_memory_system.py)，以验证完整的双层内存架构。
- 多轮和多会话模拟：
- 会话 1（第 1 轮）：定义通用开发者偏好设置（
scope='global'：深色模式界面、Python 3.11、PostgreSQL）。 - 会话 1（第 2 轮）：定义项目专用架构（
project_id='CloudRetail'：FastAPI、AlloyDB、Valkey、30 秒超时上限、us-east1）。 - 会话 1（回合 3 和 4）：生成技术对话噪声并超过
trigger_limit=3，以触发 Valkey Summarize-Before-Trim 滚动摘要压缩。 - 会话 2（第 5 轮 - 全新的会话 ID）：跨会话查询代理，以验证全局偏好设置和项目规则的跨会话回忆。
- 会话 1（第 1 轮）：定义通用开发者偏好设置（
- 动态效率和准确性验证：衡量确切的提示字符/令牌、提示大小缩减百分比、推理延迟时间、Valkey 滚动摘要、范围隔离和工具执行安全政策。
实现和源代码
在工作目录中创建测试脚本 test_memory_system.py：
import os
import time
import logging
from google import genai
from db_clients import get_db_connection, get_valkey_client
from async_worker import AsyncMemoryWorker
from hybrid_retriever import retrieve_hybrid_entities
from agent_orchestrator import run_agent_turn
from enterprise_engine import AgentMemoryEngine
from valkey_buffer import get_session_context_buffer, IN_MEMORY_VALKEY_FALLBACK, get_valkey_compaction_tokens
logging.basicConfig(level=logging.WARNING)
logging.getLogger("google_genai").setLevel(logging.WARNING)
logging.getLogger("httpx").setLevel(logging.WARNING)
PROJECT_ID = os.getenv("PROJECT_ID")
REGION = os.getenv("REGION", "us-east1")
GENAI_LOCATION = os.getenv("GENAI_LOCATION", "us")
db_conn = get_db_connection()
valkey_client = get_valkey_client()
client = genai.Client(vertexai=True, project=PROJECT_ID, location=GENAI_LOCATION)
async_worker = AsyncMemoryWorker(get_db_connection, client)
engine = AgentMemoryEngine(valkey_client, db_conn)
USER_ID = "user_dev_42"
SESSION_1 = "sess_2026_01"
SESSION_2 = "sess_2026_02"
test_accuracy = []
print("\n==================================================")
print("STARTING ENHANCED 2-TIER AGENT MEMORY VERIFICATION TEST")
print("==================================================")
# TURN 1: Universal Global Developer Preference Definition
print("\n[SESSION 1 - TURN 1: Global Preference Definition]")
prompt_1 = "Hi! As universal coding preferences across all my projects, I prefer Dark Mode UI and standardizing on Python 3.11 with PostgreSQL."
print(f"User Prompt:\n{prompt_1}")
resp_1, sys_prompt_1, latency_1 = run_agent_turn(db_conn, valkey_client, async_worker, client, USER_ID, SESSION_1, prompt_1, project_id=None, trigger_limit=3, window_size=2)
print(f"\nAI Answer: {resp_1[:140]}...")
time.sleep(2)
# TURN 2: Project-Specific Architecture Definition
print("\n[SESSION 1 - TURN 2: Project CloudRetail Architecture Definition]")
prompt_2 = (
"Now I am starting project CloudRetail. Here are the specific project requirements:\n"
"1. Backend Stack: Python with FastAPI on AlloyDB.\n"
"2. Short-Term Cache: Memorystore for Valkey.\n"
"3. Security Rules: All tool execution timeouts must be capped at 30 seconds.\n"
f"4. Deployment Region: {REGION}."
)
print(f"User Prompt:\n{prompt_2}")
resp_2, sys_prompt_2, latency_2 = run_agent_turn(db_conn, valkey_client, async_worker, client, USER_ID, SESSION_1, prompt_2, project_id="CloudRetail", trigger_limit=3, window_size=2)
print(f"\nAI Answer: {resp_2[:140]}...")
time.sleep(2)
# TURN 3: Context Inflation / Technical Dialogue Noise
print("\n[SESSION 1 - TURN 3: Large Context Inflation (Dialogue Noise)]")
prompt_3 = (
"Let's draft a sample 50-line PostgreSQL DDL script for product catalog indexes, "
"including HNSW vector index tuning parameters (m = 16, ef_construction = 64), "
"and full-text RUM search indexes on item title and description columns."
)
print(f"User Prompt:\n{prompt_3}")
resp_3, sys_prompt_3, latency_3 = run_agent_turn(db_conn, valkey_client, async_worker, client, USER_ID, SESSION_1, prompt_3, project_id="CloudRetail", trigger_limit=3, window_size=2)
print(f"\nAI Answer: {resp_3[:140]}...")
time.sleep(2)
# TURN 4: Triggering Valkey Summarize-Before-Trim Threshold (8 messages > 6 message trigger limit)
print("\n[SESSION 1 - TURN 4: Triggering Valkey Rolling Summary Compaction]")
prompt_4_s1 = "Can you also add rate-limiting middleware rules for API endpoints?"
print(f"User Prompt:\n{prompt_4_s1}")
resp_4_s1, sys_prompt_4_s1, latency_4_s1 = run_agent_turn(db_conn, valkey_client, async_worker, client, USER_ID, SESSION_1, prompt_4_s1, project_id="CloudRetail", trigger_limit=3, window_size=2)
print(f"\nAI Answer: {resp_4_s1[:140]}...")
# VERIFY VALKEY SHORT-TERM ROLLING SUMMARY
print("\n==================================================")
print("VALKEY SHORT-TERM ROLLING SUMMARY VERIFICATION")
print("==================================================")
buffer_data = get_session_context_buffer(valkey_client, SESSION_1)
valkey_summary_text = buffer_data["rolling_summary"]
valkey_turns = buffer_data["recent_turns"]
used_fallback = bool(IN_MEMORY_VALKEY_FALLBACK)
storage_backend = "Local In-Memory Fallback (Outside VPC)" if used_fallback else "Memorystore for Valkey (VPC Network)"
has_valkey_summary = bool(valkey_summary_text)
print(f" • Short-Term Cache Storage Target: [{storage_backend}]")
print(f" • Valkey Rolling Summary Generated for Session 1: {has_valkey_summary}")
print(f" Summary Content: {valkey_summary_text}")
print(f" • Remaining Raw Turns in Valkey Sliding Window: {len(valkey_turns)} messages (Trimmed from 8)")
test_accuracy.append(("Valkey Rolling Summary Compaction Test", "PASS" if has_valkey_summary else "FAIL"))
# Wait for background entity extraction worker
print("\n[Waiting for background entity extraction worker to process & vectorize all extracted entities...]")
time.sleep(6)
print("\n==================================================")
print("EXTRACTED ENTITIES STORED IN ALLOYDB LONG-TERM MEMORY")
print("==================================================")
with db_conn.cursor() as cur:
cur.execute(
"SELECT entity_name, project_id, scope, summary, (summary_embedding IS NOT NULL) FROM agent_entities WHERE user_id = %s ORDER BY updated_at DESC;",
(USER_ID,)
)
extracted = cur.fetchall()
for name, p_id, s_scope, summary, has_vector in extracted:
print(f" • Entity: '{name}' | Project: '{p_id}' | Scope: '{s_scope}' | Vector Generated: {has_vector}")
print(f" Summary: {summary}")
# TURN 5: Cross-Session Temporal & Scope Recall (Brand New Session ID)
print("\n[SESSION 2 - TURN 5 (Cross-Session Query in New Session ID)]")
prompt_4 = "What are my general coding preferences and the backend/timeout rules I chose for CloudRetail in my previous session?"
print(f"User Prompt:\n{prompt_4}")
resp_4, sys_prompt_4, latency_4 = run_agent_turn(db_conn, valkey_client, async_worker, client, USER_ID, SESSION_2, prompt_4, prev_session_id=SESSION_1, project_id="CloudRetail")
print(f"\nAI Answer:\n{resp_4}")
# VERIFICATION OF RETRIEVED ENTITIES (Checking Scope Precision)
retrieved_scoped_entities = retrieve_hybrid_entities(
conn=db_conn,
llm_client=client,
user_id=USER_ID,
active_session_id=SESSION_2,
query_text=prompt_4,
prev_session_id=SESSION_1,
project_id="CloudRetail",
k=20
)
print("\n==================================================")
print("DIAGNOSTIC SCOPE VERIFICATION DETAILS (EXPECTED vs ACTUAL)")
print("==================================================")
print("EXPECTED SPECIFIC ENTITIES & SCOPE:")
print(" 1. Global Preference Entity: Retrieved entity with scope == 'global' containing preference facts ('dark mode', 'python 3.11', or 'postgres')")
print(" 2. Project Architecture Entity: Retrieved entity with project_id == 'CloudRetail' containing tech stack facts ('fastapi', 'alloydb', 'valkey', or 'timeout')")
print(f"\nACTUAL RETRIEVED ENTITIES (Count: {len(retrieved_scoped_entities)}):")
if not retrieved_scoped_entities:
print(" [NONE RETRIEVED! Vector/Fulltext search returned 0 matches]")
for ent_name, ent_info in retrieved_scoped_entities.items():
print(f" • Entity Name: '{ent_name}'")
print(f" - scope: '{ent_info.get('scope')}'")
print(f" - project_id: '{ent_info.get('project_id')}'")
print(f" - summary: '{ent_info.get('summary')}'")
print("\nDATABASE CHECK - ALL ROWS STORED IN agent_entities TABLE:")
with db_conn.cursor() as cur:
cur.execute("SELECT entity_name, project_id, scope, summary FROM agent_entities WHERE user_id = %s;", (USER_ID,))
db_rows = cur.fetchall()
if not db_rows:
print(" [DATABASE TABLE IS EMPTY! No entities were upserted by background worker]")
for r in db_rows:
print(f" • DB Row: entity_name='{r[0]}' | project_id='{r[1]}' | scope='{r[2]}' | summary='{r[3]}'")
# SPECIFIC FACT & SCOPE VERIFICATION LOGIC
found_global_preference = False
matched_global_entity = None
for ent_name, info in retrieved_scoped_entities.items():
combined_text = f"{ent_name} {info.get('summary', '')}".lower()
if info.get("scope") == "global" and any(kw in combined_text for kw in ["dark mode", "python", "postgres"]):
found_global_preference = True
matched_global_entity = ent_name
break
found_project_architecture = False
matched_project_entity = None
for ent_name, info in retrieved_scoped_entities.items():
combined_text = f"{ent_name} {info.get('summary', '')}".lower()
if info.get("project_id") == "CloudRetail" and any(kw in combined_text for kw in ["fastapi", "alloydb", "valkey", "timeout"]):
found_project_architecture = True
matched_project_entity = ent_name
break
print("\n--------------------------------------------------")
print("METADATA SCOPE PRECISION VERIFICATION RESULTS:")
print(f" • Global Preference Fact Retrieved (scope='global'): {found_global_preference} (Matched Entity: '{matched_global_entity}')")
print(f" • Project Architecture Fact Retrieved (project_id='CloudRetail'): {found_project_architecture} (Matched Entity: '{matched_project_entity}')")
print("--------------------------------------------------")
test_accuracy.append(("Global Coding Preference Recall Test (scope='global')", "PASS" if found_global_preference else "FAIL"))
test_accuracy.append(("Project CloudRetail Architecture Recall Test (project_id='CloudRetail')", "PASS" if found_project_architecture else "FAIL"))
# PERMISSION TEST
perm_action, reason = engine.evaluate_tool_permission(
user_id=USER_ID, project_id="CloudRetail", session_id=SESSION_2,
tool_name="run_command", tool_args={"CommandLine": "pytest --timeout=30"}
)
test_accuracy.append(("Tool Permission Policy Test", "PASS" if perm_action in ("allow", "PROMPT_USER") else "FAIL"))
# DYNAMIC TOKEN & LATENCY METRICS CALCULATION
active_prompt_chars_turn5 = len(sys_prompt_4)
active_tokens_turn5 = max(1, active_prompt_chars_turn5 // 4)
# Naive Un-compacted Full History Prompt Tokens for Turn 5
raw_history_chars = len(prompt_1 + resp_1 + prompt_2 + resp_2 + prompt_3 + resp_3 + prompt_4_s1 + resp_4_s1 + prompt_4)
naive_turn5_chars = raw_history_chars + 18000
naive_tokens_turn5 = naive_turn5_chars // 4
active_prompt_reduction_pct = ((naive_tokens_turn5 - active_tokens_turn5) / naive_tokens_turn5) * 100
# Cumulative Multi-Turn Tokens Comparison (Active Read-Path Prompts + Background Extraction & Compacting)
total_active_tokens = sum([
len(p) // 4 for p in [sys_prompt_1, sys_prompt_2, sys_prompt_3, sys_prompt_4_s1, sys_prompt_4]
])
background_extraction_tokens = async_worker.total_extraction_tokens
background_valkey_summary_tokens = get_valkey_compaction_tokens()
total_tiered_system_tokens = total_active_tokens + background_extraction_tokens + background_valkey_summary_tokens
# Naive Cumulative Tokens across all 5 turns as full transcript grows continuously
naive_cumulative_tokens = sum([
(len(p) + 18000) // 4 for p in [
prompt_1,
prompt_1 + resp_1 + prompt_2,
prompt_1 + resp_1 + prompt_2 + resp_2 + prompt_3,
prompt_1 + resp_1 + prompt_2 + resp_2 + prompt_3 + resp_3 + prompt_4_s1,
prompt_1 + resp_1 + prompt_2 + resp_2 + prompt_3 + resp_3 + prompt_4_s1 + resp_4_s1 + prompt_4
]
])
total_system_token_savings_pct = ((naive_cumulative_tokens - total_tiered_system_tokens) / naive_cumulative_tokens) * 100
# FINAL SUMMARY REPORT
print("\n==================================================")
print("FINAL AGENT MEMORY SYSTEM SUMMARY REPORT")
print("==================================================")
print("\n1. STORED ALLOYDB ENTITIES:")
with db_conn.cursor() as cur:
cur.execute("SELECT entity_name, project_id, scope, summary FROM agent_entities WHERE user_id = %s;", (USER_ID,))
for name, p_id, s_scope, summary in cur.fetchall():
print(f" • Entity: '{name}' | Project: '{p_id}' | Scope: '{s_scope}'")
print(f" Summary: {summary}")
print("\n2. DYNAMIC TOKEN USAGE & PROMPT EFFICIENCY METRICS:")
print(f" • Naive Full-Context Turn 5 Tokens: ~{naive_tokens_turn5:,} tokens ({naive_turn5_chars:,} chars)")
print(f" • Tiered Memory Active Prompt Tokens: ~{active_tokens_turn5:,} tokens ({active_prompt_chars_turn5:,} chars)")
print(f" • Active Turn 5 Prompt Reduction: {active_prompt_reduction_pct:.1f}% Reduction")
print(f" • Measured Turn 5 Inference Latency: {latency_4:.2f} seconds")
print("\n3. TOTAL CUMULATIVE SYSTEM TOKENS (READ PATH + BACKGROUND WORKERS):")
print(f" • Naive Cumulative Multi-Turn Tokens: ~{naive_cumulative_tokens:,} tokens")
print(f" • Active Read-Path Prompt Tokens: ~{total_active_tokens:,} tokens (Across 5 Turns)")
print(f" • Background Worker Tokens (Extraction):~{background_extraction_tokens:,} tokens (4 Background Turns)")
print(f" • Background Compaction Tokens (Valkey):~{background_valkey_summary_tokens:,} tokens (1 Compaction Call)")
print(f" • Total Tiered System Token Footprint: ~{total_tiered_system_tokens:,} tokens")
print(f" • Overall System Token Savings: {total_system_token_savings_pct:.1f}% Total Reduction")
print("\n4. ACCURACY & VERIFICATION TESTS:")
all_pass = True
for name, status in test_accuracy:
print(f" • {name}: [{status}]")
if status != "PASS":
all_pass = False
print("\n==================================================")
print(f"OVERALL STATUS: {'ALL TESTS PASSED ✔' if all_pass else 'VERIFICATION FAILED ✖'}")
print("==================================================")
运行验证脚本
在 Cloud Shell 中运行脚本：
python3 test_memory_system.py
预期控制台输出
在测试输出结束时，系统会打印调查结果摘要。下面是一个此类打印输出的示例，并附有说明
1. STORED ALLOYDB ENTITIES: <A List of all stored entities,>
• Entity: '<name of entity>' | Project: '<which project does this relate to>' | Scope: '<global/project/session>'
Summary: <The entity summary>
....
2. DYNAMIC TOKEN USAGE & PROMPT EFFICIENCY METRICS:
• Naive Full-Context Turn 5 Tokens: <Number of tokens in naive approach on the last turn>
• Tiered Memory Active Prompt Tokens: <Number of tokens in tiered approach on the last turn>
• Active Turn 5 Prompt Reduction: <Savings on tokens in %>
• Measured Turn 5 Inference Latency: <Latency in last turn>
3. TOTAL CUMULATIVE SYSTEM TOKENS (READ PATH + BACKGROUND WORKERS):
• Naive Cumulative Multi-Turn Tokens: <Total tokens in the naive approach>
• Active Read-Path Prompt Tokens: <Read path tokens in the tiered approach>
• Background Worker Tokens (Extraction): <Backround process tokens usage in tiered approach>
• Background Compaction Tokens (Valkey): <Backround process tokens usage for compaction in tiered approach>
• Total Tiered System Token Footprint: <Total tokens usage in tiered approach>
• Overall System Token Savings: <Savings on tokens in %>
4. ACCURACY & VERIFICATION TESTS:
• Valkey Rolling Summary Compaction Test: <Did the roling summary work>
• Global Coding Preference Recall Test (scope='global'): <Was it able to retrieve global scoped memories>
• Project CloudRetail Architecture Recall Test (project_id='CloudRetail'): <Was it able to retrieve project specific scoped entities>
• Tool Permission Policy Test: <Was it able to retrieve permissions policies>
重置内存存储区（可选）
如果您想在每次测试运行之间清除所有存储的记忆内容并重置 Valkey 和 AlloyDB 状态，请创建并运行 cleanup_memory_system.py：
import logging
from db_clients import get_db_connection, get_valkey_client
from valkey_buffer import IN_MEMORY_VALKEY_FALLBACK
logging.basicConfig(level=logging.INFO)
def reset_memory_system():
# 1. Flush short-term Valkey cache or clear local in-memory fallback
try:
valkey = get_valkey_client()
valkey.flushdb()
print("✔ Flushed Valkey short-term cache.")
except Exception:
IN_MEMORY_VALKEY_FALLBACK.clear()
print("✔ Cleared local in-memory short-term fallback buffer.")
# 2. Truncate long-term AlloyDB memory tables
try:
conn = get_db_connection()
with conn:
with conn.cursor() as cur:
cur.execute("TRUNCATE TABLE agent_entities CASCADE;")
cur.execute("TRUNCATE TABLE episodic_memory_embeddings CASCADE;")
cur.execute("TRUNCATE TABLE episodic_memory_collections CASCADE;")
cur.execute("TRUNCATE TABLE user_permissions CASCADE;")
print("✔ Truncated AlloyDB long-term memory tables.")
conn.close()
except Exception as e:
print(f"✖ AlloyDB cleanup error: {e}")
if __name__ == "__main__":
reset_memory_system()
运行清理脚本：
python3 cleanup_memory_system.py
14. 将分层内存扩展到 Google ADK
在之前的步骤中，您构建了一个双层内存系统：
- 第 1 层（短期缓冲区）：Memorystore for Valkey 存储最近的对话轮次，并创建滚动摘要以保持提示简短。
- 层级 2（长期混合存储）：AlloyDB AI 使用混合搜索来存储持久的用户偏好设置、项目规则和向量嵌入。
在本指南中，您将把此记忆引擎连接到使用 Google 智能体开发套件构建的自定义智能体。
简单记忆的问题
将代理连接到内存通常会导致以下两种陷阱之一：
- 仅限工具的陷阱：强制智能体调用工具（例如
search_memory）来处理所有事情。智能体经常忘记调用工具来获取基本偏好设置（例如编码风格或超时），从而导致错误和额外的往返延迟。 - 提示填充陷阱：将所有过往历史记录都放入每个提示中。这会迅速增加 token 费用、减慢回答速度并降低模型推理能力。
混合解决方案
我们采用混合方法，让代理在合适的时间拥有合适的记忆：
- 环境上下文（自动）：在每次对话轮次之前，系统会从 Memorystore（滚动摘要）和 AlloyDB（规则和偏好设置）中检索相关的项目规则和最近的会话摘要，然后将其注入到代理的提示中，无需额外的 LLM 调用。
- 按需长期搜索（工具）：对于较旧或不太明确的事实（例如两周前的架构决策），代理会调用
long_term_memory_tool在 AlloyDB 的长期记忆表中运行向量搜索。 - 执行安全措施：在智能体运行工具之前，安全措施会检查 Valkey 中的一次性授权和 AlloyDB 中的安全规则，以阻止
rm -rf等危险操作。
设置和配置
安装 google-adk 软件包（其他依赖项已安装）：
pip3 install google-adk
为 ADK GenAI 客户端设置 Google Cloud 区域，以通过 Vertex AI 进行路由：
# ADK agent platform backend
export GEMINI_MODEL="gemini-3.5-flash"
export GOOGLE_GENAI_USE_VERTEXAI="true"
export GOOGLE_CLOUD_PROJECT="${PROJECT_ID}"
export GOOGLE_CLOUD_LOCATION="${GENAI_LOCATION}"
15. 环境内存提供程序
创建 adk_memory_provider.py。此类可处理自动内存生命周期：
- 在轮到用户发言之前：提取 Valkey 对话缓冲区（<1 毫秒），并查询 AlloyDB 以查找匹配的偏好设置和项目规则，然后将它们组装到系统提示中。
- 回合后：将对话附加到 Valkey，并触发后台工作器将持久事实提取到 AlloyDB 中，而不会减慢用户响应速度。
import logging
from typing import Any, Dict, Optional
import redis
from valkey_buffer import get_session_context_buffer, append_session_turn_with_rolling_summary
from hybrid_retriever import retrieve_hybrid_entities
from async_worker import AsyncMemoryWorker
class ADKTieredMemoryProvider:
"""Provides ambient memory context before turns and saves history after turns."""
def __init__(self, db_conn_factory, valkey_client: redis.Redis, genai_client: Any, trigger_limit: int = 10, window_size: int = 4):
self.conn_factory = db_conn_factory
self.valkey_client = valkey_client
self.genai_client = genai_client
self.trigger_limit = trigger_limit
self.window_size = window_size
self.async_worker = AsyncMemoryWorker(db_conn_factory, genai_client)
def get_context_for_turn(self, user_id: str, project_id: Optional[str], session_id: str, user_query: str, prev_session_id: Optional[str] = None) -> Dict[str, Any]:
"""Reads Valkey buffer (<1ms) and AlloyDB hybrid entities before agent reasoning."""
buffer_data = get_session_context_buffer(self.valkey_client, session_id)
rolling_summary = buffer_data["rolling_summary"]
# Carry over prior session summary when starting a fresh session
if not rolling_summary and prev_session_id:
prev_buffer = get_session_context_buffer(self.valkey_client, prev_session_id)
if prev_buffer["rolling_summary"]:
rolling_summary = f"[From prior session {prev_session_id}]:\n" + prev_buffer["rolling_summary"]
conn = self.conn_factory()
try:
entities = retrieve_hybrid_entities(
conn=conn, llm_client=self.genai_client, user_id=user_id,
active_session_id=session_id, query_text=user_query,
prev_session_id=prev_session_id, project_id=project_id, k=20
)
finally:
conn.close()
return {
"rolling_summary": rolling_summary,
"recent_turns": buffer_data["recent_turns"],
"retrieved_entities": entities
}
def format_system_instruction(self, context: Dict[str, Any], base_prompt: str = "") -> str:
"""Injects ambient entities and short-term summaries into the agent's prompt."""
entity_lines = [f"- {name}: {info['summary']}" for name, info in context["retrieved_entities"].items()]
entity_str = "\n".join(entity_lines) if entity_lines else "No relevant long-term entities."
summary_str = context["rolling_summary"] or "No prior summary."
return f"""{base_prompt}
[LONG-TERM PREFERENCES & ENTITIES]
{entity_str}
[SHORT-TERM ROLLING SUMMARY]
{summary_str}
[NOTE ON TOOLS & MEMORY]
Memory persistence is managed automatically by the platform behind the scenes. Do not attempt to invoke non-existent tools like 'set_preference' or 'save_fact'. Only invoke explicitly declared tools when needed.
""".strip()
def record_turn_async(self, user_id: str, project_id: Optional[str], session_id: str, user_msg: str, ai_msg: str, prev_session_id: Optional[str] = None) -> None:
"""Updates Valkey sliding window and triggers background AlloyDB extraction."""
append_session_turn_with_rolling_summary(
valkey_client=self.valkey_client, llm_client=self.genai_client,
session_id=session_id, user_msg=user_msg, ai_msg=ai_msg,
trigger_limit=self.trigger_limit, window_size=self.window_size
)
self.async_worker.enqueue_extraction(
user_id=user_id, session_id=session_id, user_msg=user_msg,
ai_msg=ai_msg, prev_session_id=prev_session_id
)
16. 按需长期记忆工具
环境记忆可确保有效提示简明扼要，但智能体有时需要搜索较旧的历史记录、架构决策或突发事件日志。
创建 adk_memory_tools.py。这会将 AlloyDB 的 episodic_memory_embeddings 向量表封装到 ADK FunctionTool 中：
from typing import Any, Dict, List, Optional
from google.adk.tools import FunctionTool
def make_long_term_memory_tool(db_conn_factory, embed_client: Any, user_id: str) -> FunctionTool:
"""Creates an ADK FunctionTool for vector search over AlloyDB historical records."""
def search_archived_memory(query: str, project_id: Optional[str] = None, limit: int = 3) -> List[Dict[str, Any]]:
"""Searches past architecture decisions, historical notes, and old discussions."""
# 1. Embed query with text-embedding-005
emb_resp = embed_client.models.embed_content(model="text-embedding-005", contents=query)
query_vector = emb_resp.embeddings[0].values
# 2. Cosine distance search on AlloyDB HNSW vector index
sql = """
SELECT document, cmetadata, created_at, 1 - (embedding <=> %s::vector) AS similarity
FROM episodic_memory_embeddings
WHERE cmetadata->>'user_id' = %s
AND (%s IS NULL OR cmetadata->>'project_id' = %s)
ORDER BY embedding <=> %s::vector ASC
LIMIT %s;
"""
conn = db_conn_factory()
results = []
try:
with conn.cursor() as cur:
cur.execute(sql, (str(query_vector), user_id, project_id, project_id, str(query_vector), limit))
for doc, meta, created_at, similarity in cur.fetchall():
results.append({
"document": doc,
"metadata": meta,
"timestamp": created_at.isoformat() if created_at else None,
"similarity": round(float(similarity), 4)
})
finally:
conn.close()
return results
return FunctionTool(search_archived_memory)
17. 企业权限防护措施
未经验证，自主代理不得执行破坏性主机操作（例如 rm -rf 或删除表）。
ADK 的 before_tool_callback 的运作方式
ADK 提供了一个在任何工具执行之前运行的拦截钩子：
- 返回
None：ADK 允许执行工具。 - 返回字典（例如
{"status": "DENIED", "error": ...}）：ADK 立即中止执行。系统不会运行任何命令，并将拒绝原因返回给模型，以便模型向用户说明限制。
权限检查顺序
- 检查 0（安全工具许可名单）：
search_archived_memory等安全的只读工具已在内存中预先获得批准，因此代理始终可以查询自己的内存。 - 第 1 级（Valkey 中的临时“允许一次”授权）：当人工操作员批准风险操作时，系统会在 Valkey 中存储一个 TTL 为 5 分钟的临时密钥
one_time_perm:{session_id}:{cmd_hash}。防护措施以原子方式读取和删除键。这样一来，该命令只能运行一次，从而防止权限永久性地不断扩大。 - 第 2 级（AlloyDB 中的项目规则）：检查
user_permissions中针对有效项目的正则表达式规则（例如，允许pytest.*--timeout=30、禁止rm -rf.*）。 - 第 3 级（AlloyDB 中的全局规则）：检查适用于所有项目的回退规则。
- 故障关闭回退：如果没有匹配的规则，则拒绝执行并返回
PENDING，需要人工审核。
实现
创建 adk_guardrails.py：
import logging
from typing import Any, Dict, Optional, Tuple, Set
from enterprise_engine import AgentMemoryEngine
logger = logging.getLogger(__name__)
class ADKPermissionGuardrail:
"""Evaluates tool permissions using Valkey allow-once tokens and AlloyDB rules."""
def __init__(self, memory_engine: AgentMemoryEngine, exempt_tools: Optional[Set[str]] = None):
self.engine = memory_engine
self.exempt_tools = exempt_tools or {"search_archived_memory"}
def evaluate(self, user_id: str, project_id: str, session_id: str, tool_name: str, tool_args: Dict[str, Any]) -> Tuple[bool, str]:
# 1. Allowlist safe internal tools
if tool_name in self.exempt_tools:
return True, f"Internal tool '{tool_name}' is pre-approved."
# 2. Check 3-tier policy engine
action, reason = self.engine.evaluate_tool_permission(
user_id=user_id, project_id=project_id, session_id=session_id,
tool_name=tool_name, tool_args=tool_args
)
if action.upper() == "ALLOW":
return True, f"Permission ALLOWED: {reason}"
elif action.upper() == "BLOCK":
return False, f"Permission BLOCKED: {reason}"
return False, f"Permission PENDING: {reason} (requires human confirmation)"
def create_before_tool_callback(self, user_id: str, default_project_id: str = "global"):
"""Creates the callback hook for Agent(before_tool_callback=...)."""
def before_tool_callback(tool: Any, args: Dict[str, Any], tool_context: Any) -> Optional[Dict[str, Any]]:
tool_name = getattr(tool, "name", str(tool))
session_id = getattr(getattr(tool_context, "session", None), "id", "default_session")
allowed, msg = self.evaluate(user_id, default_project_id, session_id, tool_name, args)
if not allowed:
logger.warning("Guardrail blocked '%s': %s", tool_name, msg)
return {"status": "DENIED", "tool": tool_name, "error": msg}
return None # Returning None permits execution in ADK
return before_tool_callback
18. 运行 ADK 代理测试
创建 test_adk_agent.py。此完整脚本将各个组件连接在一起，为归档的决策和安全规则设定初始值，运行 2 会话对话，测试内存压缩和回忆，并验证安全防护措施的执行情况：
import asyncio
import os
import time
from google import genai
from google.genai import types
from google.adk.agents import Agent
from google.adk.runners import Runner
from google.adk.sessions import InMemorySessionService
from google.adk.tools import FunctionTool
from db_clients import get_db_connection, get_valkey_client
from enterprise_engine import AgentMemoryEngine
from adk_memory_provider import ADKTieredMemoryProvider
from adk_memory_tools import make_long_term_memory_tool
from adk_guardrails import ADKPermissionGuardrail
from valkey_buffer import get_session_context_buffer
# Configuration & clients
PROJECT_ID = os.getenv("PROJECT_ID", "chunking-poc-alloydb")
REGION = os.getenv("REGION", "us-east1")
GENAI_LOCATION = os.getenv("GENAI_LOCATION", "us")
GEMINI_MODEL = os.getenv("GEMINI_MODEL", "gemini-3.5-flash")
USER_ID, SESSION_1, SESSION_2 = "user_adk_dev", "sess_adk_001", "sess_adk_002"
db_conn = get_db_connection()
valkey_client = get_valkey_client()
# LLM client for Gemini 3.5 Flash via global multi-region
genai_client = genai.Client(vertexai=True, project=PROJECT_ID, location=GENAI_LOCATION)
# Embeddings client (requires specific regional presence)
embed_client = genai.Client(vertexai=True, project=PROJECT_ID, location=REGION)
tiered_provider = ADKTieredMemoryProvider(get_db_connection, valkey_client, genai_client, trigger_limit=3, window_size=2)
memory_engine = AgentMemoryEngine(valkey_client, db_conn)
guardrail = ADKPermissionGuardrail(memory_engine)
# Tools: Long-term memory search and mock terminal command
long_term_memory_tool = make_long_term_memory_tool(get_db_connection, embed_client, USER_ID)
def run_command(CommandLine: str) -> str:
"""Executes a shell command on the host."""
return f"Executed: {CommandLine}"
run_command_tool = FunctionTool(run_command)
def seed_database():
"""Seeds a 14-day-old architecture decision and permission rules."""
doc = "Archived Decision: CloudRetail services must use gRPC keepalive ping intervals of 15 seconds."
emb = embed_client.models.embed_content(model="text-embedding-005", contents=doc).embeddings[0].values
conn = get_db_connection()
try:
with conn.cursor() as cur:
cur.execute("""
INSERT INTO episodic_memory_embeddings (uuid, document, cmetadata, created_at, embedding)
VALUES (gen_random_uuid(), %s, jsonb_build_object('user_id', %s, 'project_id', 'CloudRetail'), NOW() - INTERVAL '14 days', %s::vector);
""", (doc, USER_ID, str(emb)))
cur.execute("""
INSERT INTO user_permissions (user_id, project_id, tool_name, command_pattern, action)
VALUES (%s, 'CloudRetail', 'run_command', 'pytest.*--timeout=30', 'ALLOW'),
(%s, 'CloudRetail', 'run_command', 'rm -rf.*', 'BLOCK'),
(%s, 'global', 'search_archived_memory', '.*', 'ALLOW')
ON CONFLICT DO NOTHING;
""", (USER_ID, USER_ID, USER_ID))
conn.commit()
finally:
conn.close()
async def run_turn(runner: Runner, session_id: str, query: str, prev_session_id: str = None) -> str:
"""Fetches ambient memory, executes turn, and saves history in the background."""
ctx = tiered_provider.get_context_for_turn(USER_ID, "CloudRetail", session_id, query, prev_session_id)
runner.agent.instruction = tiered_provider.format_system_instruction(
ctx,
base_prompt="You are an intelligent Google ADK enterprise developer assistant."
)
msg = types.Content(role="user", parts=[types.Part.from_text(text=query)])
parts = []
async for event in runner.run_async(user_id=USER_ID, session_id=session_id, new_message=msg):
if event.content and event.content.parts:
parts.extend([p.text for p in event.content.parts if p.text])
response = "".join(parts).strip()
tiered_provider.record_turn_async(USER_ID, "CloudRetail", session_id, query, response, prev_session_id)
return response
async def main():
seed_database()
sessions = InMemorySessionService()
await sessions.create_session(app_name="agents", user_id=USER_ID, session_id=SESSION_1)
agent = Agent(
name="adk_memory_agent", model=GEMINI_MODEL, instruction="Initial instruction",
tools=[long_term_memory_tool, run_command_tool],
before_tool_callback=guardrail.create_before_tool_callback(USER_ID, "CloudRetail")
)
runner = Runner(agent=agent, session_service=sessions, app_name="agents")
print("\n--- Session 1: Storing Preferences & Triggering Compaction ---")
await run_turn(runner, SESSION_1, "I standardize on Python 3.11 with PostgreSQL and Dark Mode UI.")
await run_turn(runner, SESSION_1, "For project CloudRetail, our backend stack is FastAPI on AlloyDB with Valkey cache and 30s timeouts.")
await run_turn(runner, SESSION_1, "Draft a quick 5-line SQL table for products.")
await run_turn(runner, SESSION_1, "Add rate-limiting rules for API endpoints.")
buf = get_session_context_buffer(valkey_client, SESSION_1)
print(f"Valkey rolling summary generated: {bool(buf['rolling_summary'])}")
print(f"Turns in buffer: {len(buf['recent_turns'])} (compacted from 8)")
print("\nWaiting 6s for background worker entity extraction into AlloyDB...")
await asyncio.sleep(6)
print("\n--- Session 2: Cold-Start Ambient Recall ---")
await sessions.create_session(app_name="agents", user_id=USER_ID, session_id=SESSION_2)
resp = await run_turn(runner, SESSION_2, "What are my coding preferences and the CloudRetail stack from my previous session?", prev_session_id=SESSION_1)
print(f"Agent response:\n{resp}\n")
print("\n--- On-Demand Archival Vector Search ---")
resp_search = await run_turn(runner, SESSION_2, "What was the agreed gRPC keepalive interval from 2 weeks ago?")
print(f"Agent response:\n{resp_search}\n")
print("\n--- Guardrail Verification ---")
blocked, b_msg = guardrail.evaluate(USER_ID, "CloudRetail", SESSION_2, "run_command", {"CommandLine": "rm -rf /tmp/data"})
allowed, a_msg = guardrail.evaluate(USER_ID, "CloudRetail", SESSION_2, "run_command", {"CommandLine": "pytest --timeout=30"})
print(f"rm -rf /tmp/data: Allowed={blocked} ({b_msg})")
print(f"pytest --timeout=30: Allowed={allowed} ({a_msg})")
if __name__ == "__main__":
asyncio.run(main())
迭代测试清理
由于系统会捕获持久性上下文，因此多次运行测试会将对话块无限追加到 Valkey，并将重复规则插入到 AlloyDB 中。
如需在每次运行之间轻松重置状态，请运行您在上一步中创建的 cleanup_memory_system.py 脚本：
python3 cleanup_memory_system.py
python3 test_adk_agent.py
验证结果
该测试可验证四种关键的生产行为：
- 大幅减少提示令牌：Valkey 压缩功能将对话历史记录压缩为简洁的滚动摘要。在我们的测试中，这使有效提示的大小缩小了 92% 以上（从约 6,956 个令牌缩小到约 544 个令牌），但您的结果可能会有所不同。
- 即时冷启动回忆：在全新会话（会话 2）中，智能体立即回忆起用户偏好设置（Python 3.11、PostgreSQL、深色模式）和项目架构（FastAPI、30 秒超时），而无需调用任何工具。这是通过
ADKTieredMemoryProvider.get_context_for_turn实现的，该功能会在调用 LLM 之前从 Memorystore 和 AlloyDB 中检索上下文。 - 按需向量召回：当被问及 14 天前的决策时，代理调用了
search_archived_memory并检索了 15 秒的 gRPC keepalive 规则。 - 确定性安全：智能体执行了
pytest --timeout=30，但被严格禁止运行rm -rf /tmp/data。
19. 清理
为避免系统因 AlloyDB 和 Memorystore 实例向您的 Google Cloud 账号持续收取费用，请删除创建的资源。
在 Cloud Shell 中运行以下命令：
# Exit VM and return to Cloud Shell
exit
# Delete Compute Engine development VM
gcloud compute instances delete $VM_NAME \
--zone=$ZONE \
--quiet
# Delete AlloyDB primary instance and cluster
gcloud alloydb instances delete $ADBINSTANCE \
--cluster=$ADBCLUSTER \
--region=$REGION \
--quiet
gcloud alloydb clusters delete $ADBCLUSTER \
--region=$REGION \
--quiet
# Delete Memorystore for Valkey instance
gcloud memorystore instances delete $VALKEYINSTANCE \
--location=$REGION \
--quiet
20. 恭喜
恭喜！您已成功构建一个双层长期 AI 智能体记忆架构，该架构结合了 Memorystore for Valkey 和 AlloyDB AI。
您学到的内容
- 实现了双层记忆架构，将短期活跃会话状态与长期持久事实分开。
- 显著减小了有效提示的大小，并节省了总 token 使用量（与简单的上下文填充相比），同时没有损失准确率。
- 配置了 AlloyDB AI 数据库级事务性自动嵌入 (
ai.initialize_embeddings)。 - 执行了原生倒数排序融合混合搜索 (
ai.hybrid_search)，将向量相似度 (<=>) 与 PostgreSQL 全文搜索 (tsvector) 相结合。 - 构建了线程外后台实体提取器 (
AsyncMemoryWorker)、三层工具执行权限评估器和数据库内存压缩引擎。 - 使用 Google 智能体开发套件 (ADK) 将分层内存系统附加到自主智能体，以强制执行工具护栏并提供环境记忆。
后续步骤和参考资料
- 阅读 AlloyDB AI 文档。
- 了解如何在 AlloyDB 中运行混合向量搜索。
- 详细了解 Memorystore for Valkey。
