1. 事前準備
AI 代理會處理多輪互動，時間可能長達數天，並執行長期多步驟工作，但大型語言模型 (LLM) 本質上在各個工作階段之間仍處於無狀態。如果使用者明天返回代理程式，模型會從頭開始，除非應用程式可以重建必要的脈絡。
解決這個問題的簡單方法是塞入權杖，也就是直接將完整的對話記錄、工具執行記錄和程式碼集附加到每個有效提示。雖然數百萬個詞元的脈絡窗口在技術上可行，但脈絡填充會造成嚴重的運作阻礙：每回合的詞元成本會以二次方比例增加、回應延遲會增加到數十秒，且模型會因「中間遺失」而導致脈絡品質下降。
如要打造可靠的 AI 代理，需要雙層記憶體架構：
- 短期工作階段緩衝區：使用以符記為界的滑動視窗，在主動記憶體中快取最近的對話輪次。這個層級需要在每回合中進行次毫秒級的高輸送量記憶體內查閱，因此Memorystore for Valkey 是理想選擇。
- 長期持續記憶體：儲存跨工作階段的結構化實體、使用者偏好設定和情節事實。這個層級需要交易完整性、多租戶安全性，以及跨關聯式資料和向量的混合式擷取作業，因此 AlloyDB for PostgreSQL 是合適的選擇。
瞭解四種記憶體類型
完善的記憶架構需要四種互補的記憶類型，涵蓋整個使用者歷程：
記憶體類型 | 儲存內容 | 儲存層 | 壽命 |
緩衝區 (短期) | 近期原始對話輪次 | Memorystore for Valkey | 執行中的工作階段 |
摘要記憶體 | 先前對話的壓縮記錄 | Memorystore for Valkey | 多輪對話視窗 |
情節記憶 | 過去的動作、事件和工具輸出內容 | AlloyDB for PostgreSQL (向量) | 永久 |
實體和規則記憶體 | 使用者偏好設定、限制和否決 | AlloyDB for PostgreSQL (結構化 SQL + 向量) | 永久 |
分層記憶體帶來的影響
在多輪開發對話 (45 輪以上，且有大量工具輸出記錄) 中進行的內部基準測試顯示，相較於單純的內容填充，這項技術可大幅節省費用：
指標 / 維度 | 天真地濫填脈絡資訊 | 分層記憶體 (AlloyDB + Memorystore) | 測試中的淨影響 |
啟用提示大小 (轉 45 度) | 747,033 個權杖 | 83,262 個權杖 | 提示縮減 88.9% |
Turn 45 response latency | 33.5 秒 | 6.7 秒 | 回應速度提升 80.0% |
累計工作階段符記 | 1,790 萬個詞元 | 409 萬個詞元 | 總共節省 72.0% 的權杖和費用 |
規則和限制召回 | 回合數越多，效果越差 | 避免重要知識在摘要中遺失 | 透過混合搜尋保留 |
學習內容
- 佈建 AlloyDB for PostgreSQL 和 Memorystore for Valkey。
- 啟用
google_ml_integration並設定資料庫端的交易式自動嵌入 (ai.initialize_embeddings)。 - 使用「先摘要再修剪」管道模式，實作短期 Valkey 工作階段緩衝區。
- 使用 AlloyDB 的原生 AI 函式 (即
ai.generate) 原生擷取長期實體 - 使用 AlloyDB 的原生混合搜尋功能 (
ai.hybrid_search) 和倒數排名融合 (RRF) 重新排序，準確且相關地查詢長期事實。 - 建構 3 層企業工具權限評估器和背景記憶體壓縮引擎。
- 使用 Google Agent Development Kit (ADK)，將 2 層記憶體架構直接整合至自主代理。
軟硬體需求
- 已啟用計費功能的 Google Cloud 專案。
- 網路瀏覽器，例如 Chrome。
- 具備 Python 和 SQL 的基礎知識，包括使用 Studio、CLI 等對 AlloyDB 執行 SQL 查詢的經驗。
目標對象與費用
- 目標對象：AI 開發人員、後端工程師和資料庫架構師。
- 預估費用：本程式碼研究室中建立的 Google Cloud 資源費用約為 $1.50 美元。
2. 設定和需求條件
啟動 Cloud Shell
在本程式碼研究室中，您將在 Google Cloud Shell 中執行指令。這項雲端代管的終端機已預先設定 gcloud、psql 和 python3。
- 開啟 Google Cloud 控制台。
- 點選 Cloud Shell 右上方的「啟用 Cloud Shell」。
- 驗證：
gcloud auth list
export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID
export REGION=us-east1
export GENAI_LOCATION=us
export ZONE=us-east1-b
export ADBCLUSTER=agent-memory-cluster
export ADBINSTANCE=agent-memory-instance
export VALKEYINSTANCE=agent-memory-cache
export VM_NAME=agent-dev-vm
啟用 Google Cloud API 並建立開發 VM
在 Cloud Shell 執行下列指令，啟用必要的 API：
gcloud services enable \
alloydb.googleapis.com \
memorystore.googleapis.com \
aiplatform.googleapis.com \
compute.googleapis.com \
servicenetworking.googleapis.com \
networkconnectivity.googleapis.com
在 default 虛擬私有雲網路中建立 Compute Engine VM 執行個體，以便託管 Python 開發環境，以及 AlloyDB 和 Memorystore for Valkey：
gcloud compute instances create $VM_NAME \
--zone=$ZONE \
--machine-type=e2-standard-2 \
--scopes=cloud-platform \
--network=default \
--shielded-secure-boot
3. 佈建 AlloyDB 和 Memorystore for Valkey
在這個步驟中，您將佈建 AlloyDB for PostgreSQL 叢集和主要執行個體、建立私人服務網路，並啟動 Memorystore for Valkey 執行個體。
建立私人服務連線 IP 範圍
AlloyDB 需要虛擬私有雲 (VPC) 網路中的私人 IP 範圍。假設您使用 default 虛擬私有雲網路：
- 建立私人 IP 範圍分配：
gcloud compute addresses create psa-range \
--global \
--purpose=VPC_PEERING \
--prefix-length=24 \
--description="VPC private service access" \
--network=default
- 建立私人虛擬私有雲對等互連連線：
gcloud services vpc-peerings connect \
--service=servicenetworking.googleapis.com \
--ranges=psa-range \
--network=default
建立 AlloyDB 叢集和主要執行個體
- 建立系統初始化用的初始叢集密碼：
export PGPASSWORD=`openssl rand -hex 12`
- 建立免費試用叢集：
gcloud alloydb clusters create $ADBCLUSTER \
--password=$PGPASSWORD \
--network=default \
--region=$REGION \
--subscription-type=TRIAL
- 建立主要執行個體：
gcloud alloydb instances create $ADBINSTANCE \
--instance-type=PRIMARY \
--cpu-count=2 \
--region=$REGION \
--cluster=$ADBCLUSTER
佈建 Memorystore for Valkey 執行個體
建立執行個體前，請先在網路和區域中建立服務連線政策 (gcp-memorystore)。
- 為 Memorystore 建立服務連線政策：
gcloud network-connectivity service-connection-policies create memorystore-policy \
--network=default \
--region=$REGION \
--service-class=gcp-memorystore \
--subnets=projects/$PROJECT_ID/regions/$REGION/subnetworks/default
- 建立 Memorystore for Valkey 執行個體：
gcloud memorystore instances create $VALKEYINSTANCE \
--location=$REGION \
--shard-count=1 \
--replica-count=0 \
--node-type=SHARED_CORE_NANO \
--psc-auto-connections="network=projects/$PROJECT_ID/global/networks/default,projectId=$PROJECT_ID"
授予 Vertex AI IAM 權限
授予 AlloyDB 服務帳戶必要的 IAM 權限，以叫用 Agent Platform 的嵌入模型：
PROJECT_ID=$(gcloud config get-value project)
gcloud projects add-iam-policy-binding $PROJECT_ID \
--member="serviceAccount:service-$(gcloud projects describe $PROJECT_ID --format="value(projectNumber)")@gcp-sa-alloydb.iam.gserviceaccount.com" \
--role="roles/aiplatform.user"
4. 初始化環境和存取端點
設定 AlloyDB IAM 驗證和資料庫旗標
在 AlloyDB 執行個體上啟用 IAM 資料庫驗證 (alloydb.iam_authentication=on) 和 AI 查詢引擎 (google_ml_integration.enable_ai_query_engine=on)：
gcloud beta alloydb instances update $ADBINSTANCE \
--cluster=$ADBCLUSTER \
--region=$REGION \
--update-mode=FORCE_APPLY \
--database-flags=alloydb.iam_authentication=on,google_ml_integration.enable_ai_query_engine=on
接著，以具備超級使用者權限的 IAM 型資料庫使用者身分，新增 Google Cloud 帳戶：
export USER_ACCOUNT=$(gcloud config get-value account)
gcloud alloydb users create $USER_ACCOUNT \
--cluster=$ADBCLUSTER \
--region=$REGION \
--type=IAM_BASED \
--db-roles=alloydbsuperuser
在 Cloud Shell 中擷取內部虛擬私有雲端點
透過 SSH 連線至開發 VM 之前，請先在 Cloud Shell 中擷取 AlloyDB 和 Memorystore for Valkey 的內部 VPC IP 位址：
# Export GCP Project ID, Region, and IAM User
export PROJECT_ID=$(gcloud config get-value project)
export REGION=us-east1
export DB_USER=$(gcloud config get-value account)
# Retrieve Internal VPC IP Addresses for AlloyDB & Memorystore for Valkey
export DB_HOST=$(gcloud alloydb instances describe $ADBINSTANCE --cluster=$ADBCLUSTER --region=$REGION --format="value(ipAddress)")
export DB_PORT=5432
export DB_NAME=postgres
export VALKEY_HOST=$(gcloud memorystore instances describe $VALKEYINSTANCE --location=$REGION --format="value(discoveryEndpoints[0].address)")
export VALKEY_PORT=6379
# Verify exported endpoints
echo "Project ID: $PROJECT_ID"
echo "Region: $REGION"
echo "AlloyDB Private IP: $DB_HOST"
echo "IAM DB User: $DB_USER"
echo "Valkey Private IP: $VALKEY_HOST"
透過 SSH 登入開發 VM 並匯出連線變數
透過 Cloud Shell，以 SSH 連線至位於相同虛擬私有雲網路的 Compute Engine 開發 VM (agent-dev-vm)：
gcloud compute ssh $VM_NAME --zone=$ZONE
登入開發 VM 後，請匯出上述專案設定和連線端點輸出內容 (將
export PROJECT_ID=<YOUR_PROJECT_ID>
export REGION=us-east1
export GENAI_LOCATION=us
export DB_HOST=<YOUR_ALLOYDB_PRIVATE_IP>
export DB_PORT=5432
export DB_NAME=postgres
export DB_USER=<YOUR_IAM_DB_USER>
export VALKEY_HOST=<YOUR_VALKEY_PRIVATE_IP>
export VALKEY_PORT=6379
初始化 Python 虛擬環境
在開發 VM 中，首先建立您的目前使用的目錄：
mkdir -p ~/alloydb_agent_memory && cd ~/alloydb_agent_memory
現在，請安裝系統 Python 虛擬環境套件、驗證應用程式預設憑證 (ADC)，並設定工作區：
sudo apt-get update && sudo apt-get install -y python3-venv python3-pip
python3 -m venv venv
source venv/bin/activate
最後，我們會在新的虛擬環境中安裝依附元件：
gcloud auth application-default login
pip install psycopg2-binary valkey redis google-genai

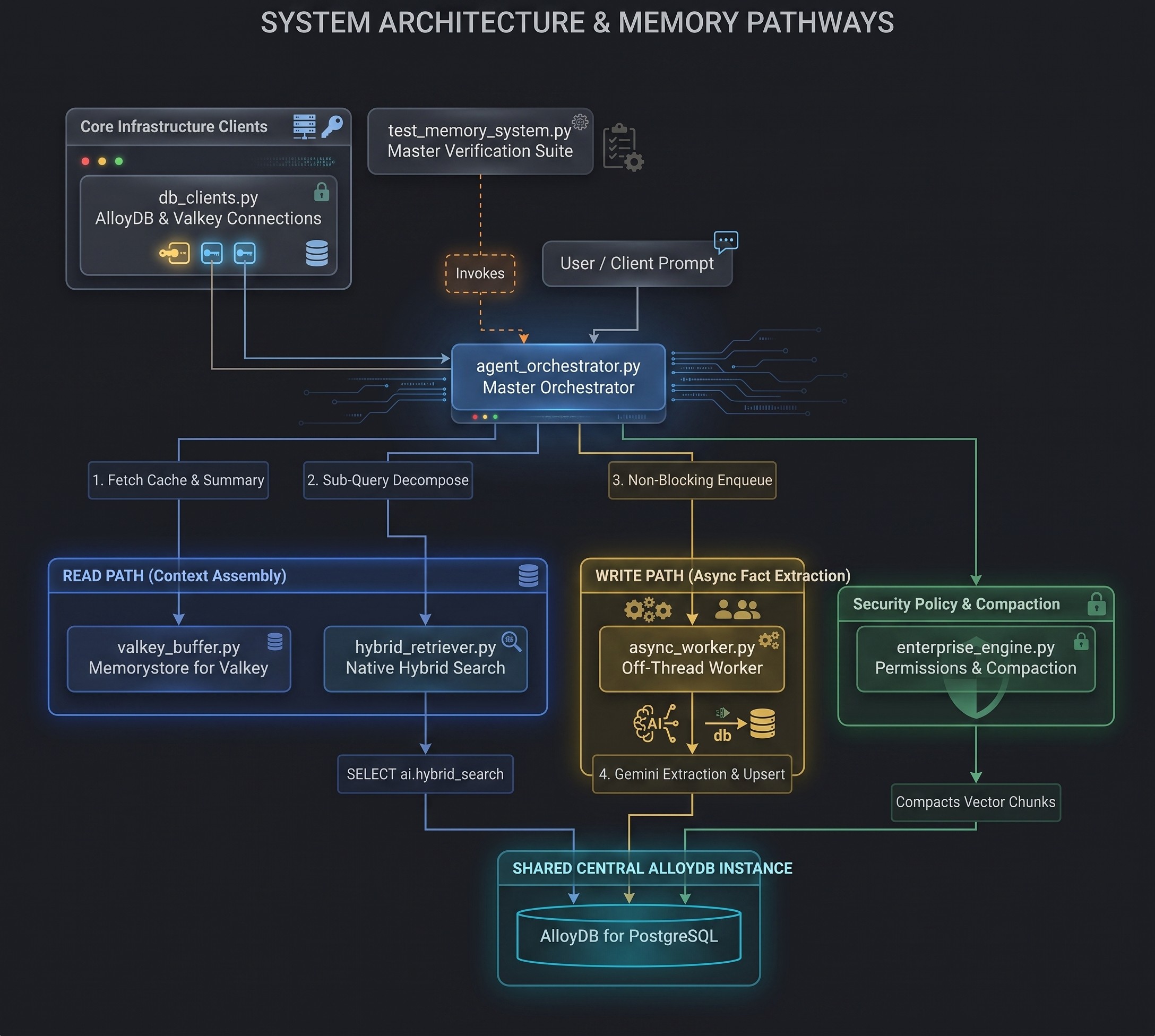

5. 系統架構和程式碼模組階層
建構內容總覽
實作個別 Python 指令碼前，請先查看下方的系統架構。這個範例應用程式分為 7 個模組化 Python 指令碼，在兩個主要執行路徑中運作，並與同一個 AlloyDB for PostgreSQL 資料庫執行個體互動：
- 讀取路徑 (
hybrid_retriever.py)：使用 AlloyDB AIai.generate()直接在 PostgreSQL 中將複合式多部分問題分解為單一面向的子查詢，並使用 AlloyDB 的原生混合搜尋 (ai.hybrid_search) 查詢長期記憶。 - 寫入路徑 (
async_worker.py)：非執行緒背景佇列工作人員，使用 Gemini Flash 從對話交換中非同步擷取結構化實體事實，並將其 upsert 到agent_entities中。
模組階層和系統角色
模組檔案 | 系統圖層 | 主要責任 |
| 連線層 | 建立與 AlloyDB 的 SSL 加密 IAM 驗證，以及與 Memorystore for Valkey 的插座復原連線。 |
| 短期記憶 | 在 Valkey 中管理毫秒級的會話記錄，實作 Summarize-Before-Trim 滾動摘要。 |
| 寫入路徑工作站 | 執行執行緒外的常駐程式背景佇列工作站，使用 Gemini Flash 擷取實體事實，並將其插入/更新至 AlloyDB。 |
| 讀取路徑擷取器 | 使用資料庫內 AlloyDB AI |
| 主要代理迴圈 | 協調端對端回合執行迴圈：短期擷取、長期搜尋、提示組裝、LLM 執行和非同步佇列。 |
| 治理與管理 | 強制執行工具執行的 3 層安全政策，並彙整過往記憶體。 |
| 測試與評估 | 主驗證套件會執行多輪和多工作階段情境、評估節省的權杖百分比，並驗證記憶體準確度。 |
6. 設定 AlloyDB AI 結構定義和交易自動嵌入
目標和架構總覽
在本單元中，您將定義 AlloyDB 的資料庫結構定義，用於情節和長期記憶、索引策略，以及資料庫端自動嵌入。
- 情節向量儲存庫 (
episodic_memory_embeddings)：使用 HNSW 向量索引 (vector_cosine_ops) 編入索引的非結構化對話記錄區塊。 - 長期實體儲存空間 (
agent_entities)：儲存結構化事實、使用者選擇和專案規則，並附帶範圍中繼資料 (global、project、session)。包括透過 RUM 建立索引的自動產生 PostgreSQL 全文搜尋欄 (summary_tsv)。 - 資料庫端自動嵌入 (
ai.initialize_embeddings)：在背景透過 Agent Platformtext-embedding-005，自動將新的或更新的純文字資料列嵌入summary_embedding。
連線至 AlloyDB Studio
- 前往 Google Cloud 控制台的「AlloyDB for Postgres」頁面。
- 按一下主要執行個體。
- 在左側導覽區中，按一下「AlloyDB Studio」。
- 選取
postgres資料庫 - 透過
IAM database authentication進行驗證
導入和原始碼
連線至 AlloyDB PostgreSQL 資料庫後，請執行下列 DDL 查詢：
-- 1. Enable google_ml_integration extension
CREATE EXTENSION IF NOT EXISTS google_ml_integration CASCADE;
CREATE EXTENSION IF NOT EXISTS vector CASCADE;
CREATE EXTENSION IF NOT EXISTS rum CASCADE;
SET google_ml_integration.enable_preview_ai_functions = true;
-- 2. Create Episodic Memory Vector Store Tables
CREATE TABLE IF NOT EXISTS episodic_memory_collections (
uuid UUID PRIMARY KEY,
name VARCHAR,
cmetadata JSONB
);
CREATE TABLE IF NOT EXISTS episodic_memory_embeddings (
uuid UUID PRIMARY KEY,
collection_id UUID REFERENCES episodic_memory_collections(uuid) ON DELETE CASCADE,
embedding VECTOR(768),
document VARCHAR,
cmetadata JSONB,
custom_id VARCHAR,
created_at TIMESTAMPTZ DEFAULT NOW()
);
CREATE INDEX IF NOT EXISTS episodic_memory_embedding_idx
ON episodic_memory_embeddings
USING hnsw (embedding vector_cosine_ops)
WITH (m = 16, ef_construction = 64);
-- 3. Create Entity & Preference Table with Metadata Scope & Auto-Generated TSVector Column
CREATE TABLE IF NOT EXISTS agent_entities (
entity_id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
user_id TEXT NOT NULL,
entity_name TEXT NOT NULL,
project_id TEXT DEFAULT 'global',
session_id TEXT,
scope TEXT NOT NULL DEFAULT 'project', -- 'global', 'project', 'session'
summary TEXT NOT NULL,
summary_embedding VECTOR(768),
summary_tsv TSVECTOR GENERATED ALWAYS AS (
to_tsvector('english', entity_name || ' ' || summary)
) STORED,
updated_at TIMESTAMPTZ DEFAULT NOW(),
UNIQUE (user_id, entity_name)
);
CREATE INDEX IF NOT EXISTS agent_entities_scope_idx
ON agent_entities (user_id, project_id, scope);
CREATE INDEX IF NOT EXISTS agent_entities_embedding_idx
ON agent_entities USING hnsw (summary_embedding vector_cosine_ops);
CREATE INDEX IF NOT EXISTS agent_entities_tsv_idx
ON agent_entities USING rum (summary_tsv rum_tsvector_ops);
-- 4. Create User Permissions Table for Tool Execution Controls
CREATE TABLE IF NOT EXISTS user_permissions (
permission_id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
user_id TEXT NOT NULL,
project_id TEXT NOT NULL DEFAULT 'global',
tool_name TEXT NOT NULL,
command_pattern TEXT NOT NULL,
action TEXT NOT NULL CHECK (action IN ('ALLOW', 'BLOCK')),
created_at TIMESTAMPTZ DEFAULT NOW(),
updated_at TIMESTAMPTZ DEFAULT NOW()
);
CREATE INDEX IF NOT EXISTS idx_user_permissions_lookup
ON user_permissions (user_id, project_id, tool_name);
-- 5. Register Gemini 3.5 Flash Model Endpoint in AlloyDB
-- Replace PROJECT_ID with your Google Cloud project ID
CALL google_ml.create_model(
model_id => 'gemini-3.5-flash',
model_request_url => 'https://aiplatform.googleapis.com/v1/projects/PROJECT_ID/locations/global/publishers/google/models/gemini-3.5-flash:generateContent',
model_qualified_name => 'gemini-3.5-flash',
model_provider => 'google',
model_type => 'llm',
model_auth_type => 'alloydb_service_agent_iam'
);
初始化交易式自動嵌入，並註冊 Gemini 模型
接著，在個別的查詢執行區塊中執行 CALL 陳述式，註冊自動嵌入背景程序和 Gemini 3.5 Flash 模型端點：
-- 6. Register Database-Side Transactional Auto-Embedding
CALL ai.initialize_embeddings(
model_id => 'text-embedding-005',
table_name => 'agent_entities',
content_column => 'summary',
embedding_column => 'summary_embedding',
incremental_refresh_mode => 'transactional',
batch_size => 10
);
7. 設定 AlloyDB 和 Valkey 連線用戶端
目標和架構總覽
在本單元中，您將建立與 AlloyDB for PostgreSQL (長期記憶體) 和 Memorystore for Valkey (短期快取) 的安全網路連線。
- AlloyDB IAM 驗證：使用
gcloud auth application-default print-access-token擷取短期 OAuth2 權杖，用於無密碼的 SSL 加密資料庫連線 (sslmode="require")。 - Valkey 網路韌性：設定
redis.Redis的通訊端逾時時間為 5.0 秒 (socket_timeout=5.0)，以便在單一節點或叢集 Valkey 執行個體中安全地處理虛擬私有雲網路作業。
導入和原始碼
在目前使用的目錄中建立指令碼 db_clients.py：
import os
import subprocess
import psycopg2
import redis
# Initialize database & Valkey connection clients from environment variables
DB_HOST = os.getenv("DB_HOST", "127.0.0.1")
DB_PORT = os.getenv("DB_PORT", "5432")
DB_NAME = os.getenv("DB_NAME", "postgres")
DB_USER = os.getenv("DB_USER")
VALKEY_HOST = os.getenv("VALKEY_HOST", "127.0.0.1")
VALKEY_PORT = int(os.getenv("VALKEY_PORT", "6379"))
def get_db_connection():
# Fetch Application Default Credentials (ADC) token for IAM Database Authentication & enable SSL encryption
access_token = subprocess.check_output(
["gcloud", "auth", "application-default", "print-access-token"], text=True
).strip()
return psycopg2.connect(
host=DB_HOST,
port=DB_PORT,
dbname=DB_NAME,
user=DB_USER,
password=access_token,
sslmode="require"
)
def get_valkey_client():
return redis.Redis(
host=VALKEY_HOST,
port=VALKEY_PORT,
db=0,
socket_timeout=5.0,
socket_connect_timeout=5.0
)
if __name__ == "__main__":
print(f"Connecting to AlloyDB via IAM Auth ({DB_USER}) at {DB_HOST}:{DB_PORT} and Valkey at {VALKEY_HOST}:{VALKEY_PORT}...")
print("Database and Valkey connection client modules loaded successfully.")
8. 在 Memorystore for Valkey 中快取短期工作階段狀態
目標和架構總覽
在本單元中，您將在 Memorystore for Valkey 中建構次毫秒級的短期內容快取，並實作自動化的「Summarize-Before-Trim」模式。
- Valkey 滑動視窗：有效對話輪次會以 JSON 字串形式儲存在
session:{session_id}:turns鍵中。 - Redis 雜湊標記 (
{session_id})：金鑰格式session:{session_id}:turns和session:{session_id}:summary使用 Redis 叢集雜湊標記 ({...})，強制將兩個金鑰放在同一個雜湊位置，確保在任何單一節點或叢集 Valkey 部署中，都能以原子方式執行。 - Summarize-Before-Trim：當回合數超過
trigger_limit時，Gemini Flash 會先將即將刪除的舊回合總結成滾動式文字摘要 (session:{session_id}:summary)，再將原始記錄刪減至window_size。
導入和原始碼
在目前使用的目錄中建立指令碼 valkey_buffer.py：
import json
import logging
import time
from typing import Any, Dict, List
import redis
logger = logging.getLogger(__name__)
IN_MEMORY_VALKEY_FALLBACK: Dict[str, Any] = {}
VALKEY_COMPACTION_TOKENS = 0
def get_valkey_compaction_tokens() -> int:
return VALKEY_COMPACTION_TOKENS
def append_session_turn_with_rolling_summary(
valkey_client: redis.Redis,
llm_client: Any,
session_id: str,
user_msg: str,
ai_msg: str,
trigger_limit: int = 10,
window_size: int = 4
) -> None:
"""Appends turn to Valkey. Before trimming old turns, summarizes them into a rolling summary."""
global VALKEY_COMPACTION_TOKENS
# Use Redis Hash Tags {session_id} so both keys hash to the same cluster slot
turns_key = "session:{" + session_id + "}:turns"
summary_key = "session:{" + session_id + "}:summary"
try:
# 1. Append new turn messages
valkey_client.rpush(turns_key, json.dumps({"role": "user", "content": user_msg}))
valkey_client.rpush(turns_key, json.dumps({"role": "assistant", "content": ai_msg}))
raw_turns = valkey_client.lrange(turns_key, 0, -1)
# 2. Check if total turns exceed summary trigger threshold
msg_trigger_count = trigger_limit * 2
msg_window_count = window_size * 2
if len(raw_turns) > msg_trigger_count:
turns_to_prune = raw_turns[:-msg_window_count]
existing_summary = valkey_client.get(summary_key)
existing_summary_text = (
existing_summary.decode('utf-8') if isinstance(existing_summary, bytes) else (existing_summary or "")
)
pruned_text = "\n".join([
f"{json.loads(t)['role']}: {json.loads(t)['content']}" for t in turns_to_prune
])
prompt = f"""Update the existing rolling conversation summary with the old turns about to be trimmed.
Retain key constraints, user choices, technical decisions, and ongoing goals.
Existing Summary:
{existing_summary_text if existing_summary_text else 'No prior summary.'}
Old turns about to be trimmed:
{pruned_text}
Updated Rolling Summary:"""
VALKEY_COMPACTION_TOKENS += max(1, len(prompt) // 4)
updated_summary_text = llm_client.models.generate_content(
model="gemini-3.5-flash", contents=prompt
).text.strip()
# Execute commands directly to support all Redis/Valkey cluster topologies
valkey_client.set(summary_key, updated_summary_text)
valkey_client.ltrim(turns_key, -msg_window_count, -1)
logger.info("Updated rolling summary and trimmed Valkey buffer for session %s", session_id)
except (redis.exceptions.RedisError, Exception) as e:
logger.warning("Valkey operation warning (%s). Falling back to in-memory short-term buffer.", e)
if turns_key not in IN_MEMORY_VALKEY_FALLBACK:
IN_MEMORY_VALKEY_FALLBACK[turns_key] = []
IN_MEMORY_VALKEY_FALLBACK[turns_key].append({"role": "user", "content": user_msg})
IN_MEMORY_VALKEY_FALLBACK[turns_key].append({"role": "assistant", "content": ai_msg})
# In-memory summarize-before-trim fallback logic
msg_trigger_count = trigger_limit * 2
msg_window_count = window_size * 2
raw_fallback_turns = IN_MEMORY_VALKEY_FALLBACK[turns_key]
if len(raw_fallback_turns) > msg_trigger_count:
turns_to_prune = raw_fallback_turns[:-msg_window_count]
existing_summary_text = IN_MEMORY_VALKEY_FALLBACK.get(summary_key, "")
pruned_text = "\n".join([f"{t['role']}: {t['content']}" for t in turns_to_prune])
prompt = f"""Update the existing rolling conversation summary with the old turns about to be trimmed.
Retain key constraints, user choices, technical decisions, and ongoing goals.
Existing Summary:
{existing_summary_text if existing_summary_text else 'No prior summary.'}
Old turns about to be trimmed:
{pruned_text}
Updated Rolling Summary:"""
VALKEY_COMPACTION_TOKENS += max(1, len(prompt) // 4)
for attempt in range(4):
try:
updated_summary_text = llm_client.models.generate_content(
model="gemini-3.5-flash", contents=prompt
).text.strip()
break
except Exception as e:
if ("429" in str(e) or "RESOURCE_EXHAUSTED" in str(e)) and attempt < 3:
time.sleep(3 * (2 ** attempt))
else:
raise
IN_MEMORY_VALKEY_FALLBACK[summary_key] = updated_summary_text
IN_MEMORY_VALKEY_FALLBACK[turns_key] = raw_fallback_turns[-msg_window_count:]
def get_session_context_buffer(
valkey_client: redis.Redis,
session_id: str
) -> Dict[str, Any]:
"""Retrieves rolling summary + sliding window history from Valkey to build prompt context."""
turns_key = "session:{" + session_id + "}:turns"
summary_key = "session:{" + session_id + "}:summary"
try:
summary = valkey_client.get(summary_key)
summary_text = summary.decode('utf-8') if isinstance(summary, bytes) else (summary or "")
raw_turns = valkey_client.lrange(turns_key, 0, -1)
recent_turns = [json.loads(t) for t in raw_turns]
return {
"rolling_summary": summary_text,
"recent_turns": recent_turns
}
except (redis.exceptions.RedisError, Exception) as e:
logger.warning("Valkey read error (%s). Using in-memory short-term fallback buffer.", e)
summary_text = IN_MEMORY_VALKEY_FALLBACK.get(summary_key, "")
recent_turns = IN_MEMORY_VALKEY_FALLBACK.get(turns_key, [])
return {"rolling_summary": summary_text, "recent_turns": recent_turns}
9. Extract Entities Off-Thread (Background Memory Worker)
目標和架構總覽
在本單元中，您將建構離線寫入路徑背景擷取工作者 (AsyncMemoryWorker)，擷取長期實體事實，不會拖慢互動式 AI 回覆速度。
- 非封鎖佇列 Worker：啟動 Daemon 執行緒 (
queue.Queue)，讓開發人員即時通訊立即傳回，不必等待 LLM 擷取或資料庫寫入。 - 離線執行實體事實擷取作業：在背景呼叫 Gemini Flash (
model="gemini-3.5-flash"、response_mime_type="application/json") 來剖析結構化實體，不會阻礙使用者對話。 - 時間共同參照解析 (
build_temporal_rules_prompt)：強制執行規則，將相對時間運算式 (例如「目前」、「上個工作階段」) 轉換為明確的工作階段 ID (例如session_id)。 - 架構 Upsert：提示 Gemini Flash 傳回實體 (
entity_name、project_id、scope、summary) 的 JSON 陣列，並透過參數化 PostgreSQLON CONFLICT DO UPDATE陳述式將純文字寫入agent_entities。
導入和原始碼
在目前使用的目錄中建立指令碼 async_worker.py：
import json
import logging
import queue
import threading
import time
from typing import Dict, Any, Optional
import psycopg2
logger = logging.getLogger(__name__)
def build_temporal_rules_prompt(active_session_id: str, prev_session_id: Optional[str] = None) -> str:
"""REUSABLE PROMPT HELPER: Defines temporal coreference rules for both Read and Write paths."""
return f"""TEMPORAL COREFERENCE RULES:
1. Do not use relative temporal words like 'currently', 'now', 'this session', 'previous session', or 'last session'.
2. Replace any relative temporal reference with explicit session identifiers:
- Active Session: '{active_session_id}'
- Previous Session: '{prev_session_id if prev_session_id else active_session_id}'
(e.g., write 'User prefers Python in session {active_session_id}' instead of 'User currently prefers Python')."""
class AsyncMemoryWorker:
"""Off-thread daemon queue worker performing background entity extraction and upserts into AlloyDB."""
def __init__(self, conn_factory, llm_client):
self.conn_factory = conn_factory
self.llm_client = llm_client
self.work_queue = queue.Queue()
self.total_extraction_tokens = 0
self.worker_thread = threading.Thread(target=self._run_worker, daemon=True)
self.worker_thread.start()
def enqueue_extraction(
self, user_id: str, session_id: str, user_msg: str, ai_msg: str, prev_session_id: Optional[str] = None
):
self.work_queue.put((user_id, session_id, user_msg, ai_msg, prev_session_id))
def _run_worker(self):
while True:
item = self.work_queue.get()
if item is None:
break
user_id, session_id, user_msg, ai_msg, prev_session_id = item
try:
self._extract_and_upsert(user_id, session_id, user_msg, ai_msg, prev_session_id)
except Exception as e:
logger.error("Background extraction failed: %s", e)
finally:
self.work_queue.task_done()
def _extract_and_upsert(
self, user_id: str, session_id: str, user_msg: str, ai_msg: str, prev_session_id: Optional[str] = None
):
temporal_rules = build_temporal_rules_prompt(session_id, prev_session_id)
json_fmt = '[{"entity_name": "...", "project_id": "...", "scope": "global|project|session", "summary": "..."}]'
prompt = f"""Extract key preferences and named entities from this exchange.
Format output strictly as a JSON array of objects with structure: {json_fmt}.
{temporal_rules}
Rules for Scope:
- 'global': Universal developer preferences.
- 'project': Architecture, database choices, timeouts, and rules for a specific project.
- 'session': Ephemeral task state tied strictly to a single session.
User: {user_msg}
AI: {ai_msg}
Output (JSON array only):"""
self.total_extraction_tokens += max(1, len(prompt) // 4)
for attempt in range(4):
try:
response = self.llm_client.models.generate_content(
model="gemini-3.5-flash",
contents=prompt,
config={"response_mime_type": "application/json"}
)
break
except Exception as e:
if ("429" in str(e) or "RESOURCE_EXHAUSTED" in str(e)) and attempt < 3:
time.sleep(3 * (2 ** attempt))
else:
raise
content = str(response.text).strip()
if not content:
return
extracted_list = json.loads(content)
if not isinstance(extracted_list, list):
return
upsert_sql = """
INSERT INTO agent_entities (user_id, entity_name, project_id, session_id, scope, summary, updated_at)
VALUES (%s, %s, %s, %s, %s, %s, NOW())
ON CONFLICT (user_id, entity_name)
DO UPDATE SET
project_id = EXCLUDED.project_id,
session_id = EXCLUDED.session_id,
scope = EXCLUDED.scope,
summary = EXCLUDED.summary,
updated_at = NOW();
"""
conn = self.conn_factory()
try:
with conn:
with conn.cursor() as cur:
for item in extracted_list:
e_name = item.get("entity_name", "General_Fact")
p_id = item.get("project_id", "global")
s_scope = item.get("scope", "project")
summary = item.get("summary", "")
if e_name and summary:
cur.execute(upsert_sql, (user_id, e_name, p_id, session_id, s_scope, summary))
logger.info("Saved %d entities for user %s", len(extracted_list), user_id)
finally:
conn.close()
10. 使用原生混合搜尋查詢長期記憶庫
目標和架構總覽
在本單元中，您將實作讀取路徑子查詢分解、時間查詢重寫、中繼資料範圍隔離，並使用 AlloyDB 的原生混合搜尋 (ai.hybrid_search)。
- 資料庫內子查詢分解 (
rewrite_and_decompose_query)：直接在 PostgreSQL 內使用 AlloyDB AI 的內建函式ai.generate()，將複合問題分解為單一面向的子查詢，並正規化工作階段 ID，避免多主題查詢降低向量搜尋準確度。 - 索引層級範圍篩選：建構資料庫端的 SQL 篩選器 (
filter_condition => "user_id = '%s' AND (project_id = '%s' OR scope = 'global')")，以隔離每個使用者和專案的記憶體，同時納入全域開發人員偏好設定。 - AlloyDB 原生混合搜尋 (
ai.hybrid_search)：在 AlloyDB 中，使用 Reciprocal Rank Fusion (RRF) 將向量餘弦相似度 (public.<=>) 與全文搜尋 (rum) 結合，提供最佳準確度、召回率和相關性。
導入和原始碼
在目前使用的目錄中建立指令碼 hybrid_retriever.py：
import os
import json
import logging
from typing import Any, Dict, List, Optional
import psycopg2
from psycopg2.extras import RealDictCursor
from async_worker import build_temporal_rules_prompt
logger = logging.getLogger(__name__)
def rewrite_and_decompose_query(
conn: Any,
llm_client: Any,
text: str,
active_session_id: str,
prev_session_id: Optional[str] = None
) -> List[str]:
"""Read-Path LLM Query Normalizer & Sub-Query Decomposer using AlloyDB AI ai.generate() directly in PostgreSQL."""
temporal_rules = build_temporal_rules_prompt(active_session_id, prev_session_id)
prompt = f"""You are a query normalization and decomposition tool for an AI agent's memory retrieval system.
Tasks:
1. Normalize any relative temporal phrases in the user query into explicit session identifiers.
{temporal_rules}
2. Decompose compound user queries asking about multiple distinct topics into up to 4 concise, single-topic search queries. Ensure all distinct questions (both general developer preferences and project-specific architecture/rules) are preserved as separate sub-queries.
3. Return ONLY a valid JSON array of strings containing the sub-queries.
Example Output Format:
["general developer coding preferences", "CloudRetail backend stack in session sess_2026_01", "CloudRetail timeout rules in session sess_2026_01"]
Text to Process: {text}
JSON Output:"""
try:
with conn.cursor() as cur:
cur.execute("SET google_ml_integration.enable_preview_ai_functions = true;")
cur.execute("SELECT ai.generate(prompt => %s::text, model_id => 'gemini-3.5-flash'::varchar(100));", (prompt,))
row = cur.fetchone()
if row and row[0]:
res_text = str(row[0]).strip()
clean_text = res_text
if clean_text.startswith("```"):
clean_text = clean_text.removeprefix("```json").removeprefix("```").removesuffix("```").strip()
parsed = json.loads(clean_text)
if isinstance(parsed, list) and len(parsed) > 0:
return [str(q).strip() for q in parsed]
return [text]
except Exception as e:
logger.error("Error in in-database ai.generate sub-query decomposition: %s", e)
return [text]
def rewrite_temporal_query(
conn: Any,
llm_client: Any,
text: str,
active_session_id: str,
prev_session_id: Optional[str] = None
) -> str:
"""Backward-compatible wrapper returning first decomposed query string."""
queries = rewrite_and_decompose_query(conn, llm_client, text, active_session_id, prev_session_id)
return queries[0] if queries else text
def retrieve_hybrid_entities(
conn,
llm_client: Any,
user_id: str,
active_session_id: str,
query_text: str,
query_embedding: Optional[List[float]] = None,
prev_session_id: Optional[str] = None,
project_id: Optional[str] = None,
k: int = 20
) -> Dict[str, Any]:
"""Queries long-term entities using Sub-Query Decomposition, metadata scope filtering, and parameterized AlloyDB hybrid search."""
sub_queries = rewrite_and_decompose_query(
conn=conn, llm_client=llm_client, text=query_text, active_session_id=active_session_id, prev_session_id=prev_session_id
)
all_search_queries = list(dict.fromkeys(sub_queries + [query_text]))
retrieved_entities: Dict[str, Any] = {}
filter_cond = f"user_id = '{user_id}' AND (project_id = '{project_id}' OR scope = 'global')" if project_id else f"user_id = '{user_id}'"
query_sql = """
SELECT e.entity_name, e.summary, e.project_id, e.scope, e.updated_at
FROM ai.hybrid_search(
search_inputs => %s::JSONB[],
include_json_output => false
) h
JOIN agent_entities e ON e.entity_name = h.id
WHERE e.user_id = %s
LIMIT %s;
"""
from google import genai
embed_client = genai.Client(
vertexai=True,
project=os.getenv("PROJECT_ID"),
location=os.getenv("REGION", "us-east1")
)
for sq in all_search_queries:
try:
emb_resp = embed_client.models.embed_content(model="text-embedding-005", contents=sq)
sq_embedding = emb_resp.embeddings[0].values
vector_literal = f"'{sq_embedding}'::vector"
except Exception as e:
logger.error(f"Failed to generate embedding for sub-query: {sq}. Error: {e}")
# Fallback to zero vector to prevent Postgres from crashing
sq_embedding = [0.0] * 768
vector_literal = f"'{sq_embedding}'::vector"
search_inputs = [
json.dumps({
"data_type": "vector",
"weight": 0.4,
"table_name": "agent_entities",
"key_column": "entity_name",
"vec_column": "summary_embedding",
"distance_operator": "public.<=>",
"limit": 20,
"query_vector": vector_literal,
"filter_condition": filter_cond
}),
json.dumps({
"data_type": "text",
"weight": 0.6,
"table_name": "agent_entities",
"key_column": "entity_name",
"text_column": "summary_tsv",
"limit": 20,
"ranking_function": "ts_rank",
"query_text_input": sq,
"filter_condition": filter_cond
})
]
with conn.cursor(cursor_factory=RealDictCursor) as cur:
try:
cur.execute("SET google_ml_integration.enable_preview_ai_functions = true;")
cur.execute(query_sql, (search_inputs, user_id, k))
rows = cur.fetchall()
for row in rows:
name = row["entity_name"]
if name not in retrieved_entities:
retrieved_entities[name] = {
"summary": row["summary"],
"project_id": row["project_id"],
"scope": row["scope"],
"updated_at": row["updated_at"].isoformat() if row["updated_at"] else None
}
except Exception as e:
logger.error("Error executing hybrid search for sub-query '%s': %s", sq, e)
return retrieved_entities
11. 建構及執行端對端代理程式記憶體迴圈
目標和架構總覽
在本單元中，您將建構主要代理程式協調函式 (run_agent_turn)，結合短期快取檢索、長期記憶體搜尋、提示組裝、LLM 生成和背景記憶體擷取。
- 短期情境：擷取有效的 Valkey 對話輪次和滾動摘要 (
get_session_context_buffer)。 - 長期搜尋：透過
retrieve_hybrid_entities查詢 AlloyDB，使用依有效專案 ID 和全域範圍篩選的分解子查詢。 - 系統提示格式：將
build_agent_prompt長期實體、短期摘要、近期對話和使用者提示組合成有效率的系統提示。 - 非同步佇列加入佇列：將回合快取至 Valkey，並將背景擷取作業加入
AsyncMemoryWorker佇列，不會封鎖傳回的酬載。
導入和原始碼
在目前使用的目錄中建立指令碼 agent_orchestrator.py：
import logging
import time
from typing import Any, Dict, Optional, Tuple
import redis
from valkey_buffer import get_session_context_buffer, append_session_turn_with_rolling_summary
from hybrid_retriever import rewrite_temporal_query, retrieve_hybrid_entities
from async_worker import AsyncMemoryWorker
logger = logging.getLogger(__name__)
def build_agent_prompt(
rolling_summary: str,
recent_turns: list[Dict[str, Any]],
retrieved_entities: Dict[str, Any],
user_query: str
) -> str:
"""Assembles structured system prompt with long-term memory & short-term context."""
entity_lines = [
f"- {name}: {info['summary']}" for name, info in retrieved_entities.items()
]
entity_context = "\n".join(entity_lines) if entity_lines else "No relevant entity facts."
history_lines = [f"{t['role']}: {t['content']}" for t in recent_turns]
history_str = "\n".join(history_lines)
return f"""You are an intelligent, context-aware AI assistant.
[LONG-TERM PREFERENCES & ENTITIES]
{entity_context}
[SHORT-TERM ROLLING SUMMARY]
{rolling_summary if rolling_summary else 'No prior summary.'}
[RECENT DIALOGUE]
{history_str}
User: {user_query}
AI:"""
def run_agent_turn(
db_conn,
valkey_client: redis.Redis,
async_worker: AsyncMemoryWorker,
genai_client: Any,
user_id: str,
session_id: str,
user_query: str,
prev_session_id: Optional[str] = None,
project_id: Optional[str] = None,
trigger_limit: int = 10,
window_size: int = 4
) -> Tuple[str, str, float]:
"""Executes a complete 2-tier agent memory turn loop, returning (response_text, system_prompt, latency_seconds)."""
import time
start_time = time.time()
# 1. Fetch short-term rolling summary + recent turns from Valkey
buffer_data = get_session_context_buffer(valkey_client, session_id)
rolling_summary = buffer_data["rolling_summary"]
recent_turns = buffer_data["recent_turns"]
# 2. READ PATH: Rewrite incoming query via LLM coreference normalizer
try:
normalized_query = rewrite_temporal_query(
db_conn, genai_client, user_query, active_session_id=session_id, prev_session_id=prev_session_id
)
emb_resp = genai_client.models.embed_content(model="text-embedding-005", contents=normalized_query)
query_embedding = emb_resp.embeddings[0].values
except Exception:
query_embedding = None
# Retrieve relevant long-term entities from AlloyDB via hybrid search
retrieved_entities = retrieve_hybrid_entities(
conn=db_conn,
llm_client=genai_client,
user_id=user_id,
active_session_id=session_id,
query_text=user_query,
query_embedding=query_embedding,
prev_session_id=prev_session_id,
project_id=project_id,
k=20
)
# 3. Assemble system prompt
system_prompt = build_agent_prompt(
rolling_summary, recent_turns, retrieved_entities, user_query
)
# 4. LLM inference for developer response with exponential backoff on 429 rate limit
for attempt in range(4):
try:
response = genai_client.models.generate_content(
model="gemini-3.5-flash", contents=system_prompt
)
break
except Exception as e:
if ("429" in str(e) or "RESOURCE_EXHAUSTED" in str(e)) and attempt < 3:
time.sleep(3 * (2 ** attempt))
else:
raise
ai_response = str(response.text)
# 5. Cache turn in short-term Valkey buffer (with Summarize-Before-Trim check)
append_session_turn_with_rolling_summary(
valkey_client=valkey_client,
llm_client=genai_client,
session_id=session_id,
user_msg=user_query,
ai_msg=ai_response,
trigger_limit=trigger_limit,
window_size=window_size
)
# 6. WRITE PATH: Enqueue off-thread background entity extraction (single LLM call)
async_worker.enqueue_extraction(user_id, session_id, user_query, ai_response, prev_session_id)
latency = time.time() - start_time
return ai_response, system_prompt, latency
12. 實作企業權限控制和記憶體壓縮
目標和架構總覽
在本單元中，您將建構企業安全控管機制，用於工具執行和資料庫記憶體壓縮 (AgentMemoryEngine)。
- 3 層級權限評估 (
evaluate_tool_permission)：- 第 1 層 (單次使用 Valkey 授權)：檢查單次使用授權金鑰 (
one_time_perm:{session_id}:{cmd_hash})，存留時間為 300 秒。如果存在，則立即刪除金鑰並傳回ALLOW。 - 第 2 和第 3 層 (PostgreSQL 政策規則)：查詢
user_permissions先比對專案範圍規則 (project_id)，再比對全域規則 ('global')。 - 備援：如果沒有相符的政策，則傳回
PROMPT_USER。
- 第 1 層 (單次使用 Valkey 授權)：檢查單次使用授權金鑰 (
- 記憶體壓縮 (
compact_old_memories)：使用上限為 50 列的 SQL CTE 查詢，將早於retention_days的episodic_memory_embeddings原始向量事件匯總為agent_entities中的單一合併摘要。
導入和原始碼
在目前使用的目錄中建立指令碼 enterprise_engine.py：
import hashlib
import logging
import re
from typing import Any, Dict, Tuple
import psycopg2
import redis
logger = logging.getLogger(__name__)
class AgentMemoryEngine:
"""Framework-agnostic Enterprise Memory Engine for tool execution permissions & safe compaction."""
def __init__(self, valkey_client: redis.Redis, db_conn: Any):
self.valkey_client = valkey_client
self.db_conn = db_conn
def evaluate_tool_permission(
self,
user_id: str,
project_id: str,
session_id: str,
tool_name: str,
tool_args: Dict[str, Any]
) -> Tuple[str, str]:
"""Evaluates 3-tier execution permissions: Allow-Once (Valkey), Project (AlloyDB), Global (AlloyDB)."""
command_str = str(tool_args.get("CommandLine", "") or tool_args)
# Tier 1: Allow-Once (Single-Use Valkey Check with 300s TTL)
cmd_hash = hashlib.sha256(command_str.encode("utf-8")).hexdigest()[:16]
valkey_key = f"one_time_perm:{session_id}:{cmd_hash}"
if self.valkey_client.get(valkey_key):
self.valkey_client.delete(valkey_key) # Consume key immediately
return ("ALLOW", "Single-use 'Allow Once' grant consumed.")
# Tier 2 & Tier 3: Query AlloyDB user_permissions table
query_sql = """
SELECT command_pattern, action, project_id
FROM user_permissions
WHERE user_id = %s AND tool_name = %s AND project_id IN (%s, 'global')
ORDER BY CASE WHEN project_id = %s THEN 1 ELSE 2 END;
"""
with self.db_conn.cursor() as cur:
cur.execute(query_sql, (user_id, tool_name, project_id, project_id))
rules = cur.fetchall()
for pattern, action, scope in rules:
if re.search(pattern, command_str, flags=re.IGNORECASE):
return (action, f"Matched {scope}-scoped rule: {pattern}")
# Fallback: Prompt Human User
return ("PROMPT_USER", "No matching permission rule found.")
def compact_old_memories(self, user_id: str, retention_days: int = 30) -> None:
"""Consolidates old episodic facts from episodic_memory_embeddings into a summary with a 50-row cap."""
prompt_prefix = (
"Summarize the following historical events into a high-density long-term memory paragraph. "
"Retain key constraints, tool choices, and project rules:\n"
)
# Capped CTE prevents string_agg from exceeding model context window limits
compaction_sql = """
WITH old_events AS (
SELECT document AS content
FROM episodic_memory_embeddings
WHERE cmetadata->>'user_id' = %s
AND created_at < NOW() - (INTERVAL '1 day' * %s)
ORDER BY created_at ASC
LIMIT 50
),
consolidated AS (
SELECT ai.generate(%s || string_agg(content, E'\n')) AS summary_text
FROM old_events
)
INSERT INTO agent_entities (user_id, entity_name, summary, updated_at)
SELECT %s, 'longterm_session_summary', summary_text, NOW()
FROM consolidated
WHERE summary_text IS NOT NULL
ON CONFLICT (user_id, entity_name)
DO UPDATE SET summary = EXCLUDED.summary, updated_at = NOW();
"""
prune_sql = """
DELETE FROM episodic_memory_embeddings
WHERE uuid IN (
SELECT uuid FROM episodic_memory_embeddings
WHERE cmetadata->>'user_id' = %s
AND created_at < NOW() - (INTERVAL '1 day' * %s)
ORDER BY created_at ASC
LIMIT 50
);
"""
try:
with self.db_conn:
with self.db_conn.cursor() as cur:
cur.execute("SET google_ml_integration.enable_preview_ai_functions = true;")
cur.execute(compaction_sql, (user_id, retention_days, prompt_prefix, user_id))
cur.execute(prune_sql, (user_id, retention_days))
logger.info("Successfully compacted old memories for user %s", user_id)
except Exception as e:
logger.error("Error during memory compaction: %s", e)
13. 執行端對端多輪記憶體驗證
目標和架構總覽
在本最後一個單元中，您將建構及執行主端對端驗證指令碼 (test_memory_system.py)，驗證完整的 2 層記憶體架構。
- 多輪和多工作階段模擬：
- 第 1 個工作階段 (第 1 輪)：定義通用開發人員偏好設定 (
scope='global'：深色模式 UI、Python 3.11、PostgreSQL)。 - 第 1 個工作階段 (第 2 輪)：定義專案專屬架構 (
project_id='CloudRetail'：FastAPI、AlloyDB、Valkey、30 秒逾時上限、us-east1)。 - 第 1 個工作階段 (第 3 和第 4 輪)：產生技術對話噪音，並超過
trigger_limit=3，觸發 Valkey Summarize-Before-Trim 滾動摘要壓縮。 - 工作階段 2 (第 5 輪 - 全新工作階段 ID)：跨工作階段查詢代理程式，驗證是否能跨工作階段回想全域偏好設定和專案規則。
- 第 1 個工作階段 (第 1 輪)：定義通用開發人員偏好設定 (
- 動態效率與準確率驗證：測量確切的提示詞字元/詞元、提示詞大小縮減百分比、推論延遲、Valkey 滾動摘要、範圍隔離和工具執行安全政策。
導入和原始碼
在目前使用的目錄中建立測試腳本 test_memory_system.py：
import os
import time
import logging
from google import genai
from db_clients import get_db_connection, get_valkey_client
from async_worker import AsyncMemoryWorker
from hybrid_retriever import retrieve_hybrid_entities
from agent_orchestrator import run_agent_turn
from enterprise_engine import AgentMemoryEngine
from valkey_buffer import get_session_context_buffer, IN_MEMORY_VALKEY_FALLBACK, get_valkey_compaction_tokens
logging.basicConfig(level=logging.WARNING)
logging.getLogger("google_genai").setLevel(logging.WARNING)
logging.getLogger("httpx").setLevel(logging.WARNING)
PROJECT_ID = os.getenv("PROJECT_ID")
REGION = os.getenv("REGION", "us-east1")
GENAI_LOCATION = os.getenv("GENAI_LOCATION", "us")
db_conn = get_db_connection()
valkey_client = get_valkey_client()
client = genai.Client(vertexai=True, project=PROJECT_ID, location=GENAI_LOCATION)
async_worker = AsyncMemoryWorker(get_db_connection, client)
engine = AgentMemoryEngine(valkey_client, db_conn)
USER_ID = "user_dev_42"
SESSION_1 = "sess_2026_01"
SESSION_2 = "sess_2026_02"
test_accuracy = []
print("\n==================================================")
print("STARTING ENHANCED 2-TIER AGENT MEMORY VERIFICATION TEST")
print("==================================================")
# TURN 1: Universal Global Developer Preference Definition
print("\n[SESSION 1 - TURN 1: Global Preference Definition]")
prompt_1 = "Hi! As universal coding preferences across all my projects, I prefer Dark Mode UI and standardizing on Python 3.11 with PostgreSQL."
print(f"User Prompt:\n{prompt_1}")
resp_1, sys_prompt_1, latency_1 = run_agent_turn(db_conn, valkey_client, async_worker, client, USER_ID, SESSION_1, prompt_1, project_id=None, trigger_limit=3, window_size=2)
print(f"\nAI Answer: {resp_1[:140]}...")
time.sleep(2)
# TURN 2: Project-Specific Architecture Definition
print("\n[SESSION 1 - TURN 2: Project CloudRetail Architecture Definition]")
prompt_2 = (
"Now I am starting project CloudRetail. Here are the specific project requirements:\n"
"1. Backend Stack: Python with FastAPI on AlloyDB.\n"
"2. Short-Term Cache: Memorystore for Valkey.\n"
"3. Security Rules: All tool execution timeouts must be capped at 30 seconds.\n"
f"4. Deployment Region: {REGION}."
)
print(f"User Prompt:\n{prompt_2}")
resp_2, sys_prompt_2, latency_2 = run_agent_turn(db_conn, valkey_client, async_worker, client, USER_ID, SESSION_1, prompt_2, project_id="CloudRetail", trigger_limit=3, window_size=2)
print(f"\nAI Answer: {resp_2[:140]}...")
time.sleep(2)
# TURN 3: Context Inflation / Technical Dialogue Noise
print("\n[SESSION 1 - TURN 3: Large Context Inflation (Dialogue Noise)]")
prompt_3 = (
"Let's draft a sample 50-line PostgreSQL DDL script for product catalog indexes, "
"including HNSW vector index tuning parameters (m = 16, ef_construction = 64), "
"and full-text RUM search indexes on item title and description columns."
)
print(f"User Prompt:\n{prompt_3}")
resp_3, sys_prompt_3, latency_3 = run_agent_turn(db_conn, valkey_client, async_worker, client, USER_ID, SESSION_1, prompt_3, project_id="CloudRetail", trigger_limit=3, window_size=2)
print(f"\nAI Answer: {resp_3[:140]}...")
time.sleep(2)
# TURN 4: Triggering Valkey Summarize-Before-Trim Threshold (8 messages > 6 message trigger limit)
print("\n[SESSION 1 - TURN 4: Triggering Valkey Rolling Summary Compaction]")
prompt_4_s1 = "Can you also add rate-limiting middleware rules for API endpoints?"
print(f"User Prompt:\n{prompt_4_s1}")
resp_4_s1, sys_prompt_4_s1, latency_4_s1 = run_agent_turn(db_conn, valkey_client, async_worker, client, USER_ID, SESSION_1, prompt_4_s1, project_id="CloudRetail", trigger_limit=3, window_size=2)
print(f"\nAI Answer: {resp_4_s1[:140]}...")
# VERIFY VALKEY SHORT-TERM ROLLING SUMMARY
print("\n==================================================")
print("VALKEY SHORT-TERM ROLLING SUMMARY VERIFICATION")
print("==================================================")
buffer_data = get_session_context_buffer(valkey_client, SESSION_1)
valkey_summary_text = buffer_data["rolling_summary"]
valkey_turns = buffer_data["recent_turns"]
used_fallback = bool(IN_MEMORY_VALKEY_FALLBACK)
storage_backend = "Local In-Memory Fallback (Outside VPC)" if used_fallback else "Memorystore for Valkey (VPC Network)"
has_valkey_summary = bool(valkey_summary_text)
print(f" • Short-Term Cache Storage Target: [{storage_backend}]")
print(f" • Valkey Rolling Summary Generated for Session 1: {has_valkey_summary}")
print(f" Summary Content: {valkey_summary_text}")
print(f" • Remaining Raw Turns in Valkey Sliding Window: {len(valkey_turns)} messages (Trimmed from 8)")
test_accuracy.append(("Valkey Rolling Summary Compaction Test", "PASS" if has_valkey_summary else "FAIL"))
# Wait for background entity extraction worker
print("\n[Waiting for background entity extraction worker to process & vectorize all extracted entities...]")
time.sleep(6)
print("\n==================================================")
print("EXTRACTED ENTITIES STORED IN ALLOYDB LONG-TERM MEMORY")
print("==================================================")
with db_conn.cursor() as cur:
cur.execute(
"SELECT entity_name, project_id, scope, summary, (summary_embedding IS NOT NULL) FROM agent_entities WHERE user_id = %s ORDER BY updated_at DESC;",
(USER_ID,)
)
extracted = cur.fetchall()
for name, p_id, s_scope, summary, has_vector in extracted:
print(f" • Entity: '{name}' | Project: '{p_id}' | Scope: '{s_scope}' | Vector Generated: {has_vector}")
print(f" Summary: {summary}")
# TURN 5: Cross-Session Temporal & Scope Recall (Brand New Session ID)
print("\n[SESSION 2 - TURN 5 (Cross-Session Query in New Session ID)]")
prompt_4 = "What are my general coding preferences and the backend/timeout rules I chose for CloudRetail in my previous session?"
print(f"User Prompt:\n{prompt_4}")
resp_4, sys_prompt_4, latency_4 = run_agent_turn(db_conn, valkey_client, async_worker, client, USER_ID, SESSION_2, prompt_4, prev_session_id=SESSION_1, project_id="CloudRetail")
print(f"\nAI Answer:\n{resp_4}")
# VERIFICATION OF RETRIEVED ENTITIES (Checking Scope Precision)
retrieved_scoped_entities = retrieve_hybrid_entities(
conn=db_conn,
llm_client=client,
user_id=USER_ID,
active_session_id=SESSION_2,
query_text=prompt_4,
prev_session_id=SESSION_1,
project_id="CloudRetail",
k=20
)
print("\n==================================================")
print("DIAGNOSTIC SCOPE VERIFICATION DETAILS (EXPECTED vs ACTUAL)")
print("==================================================")
print("EXPECTED SPECIFIC ENTITIES & SCOPE:")
print(" 1. Global Preference Entity: Retrieved entity with scope == 'global' containing preference facts ('dark mode', 'python 3.11', or 'postgres')")
print(" 2. Project Architecture Entity: Retrieved entity with project_id == 'CloudRetail' containing tech stack facts ('fastapi', 'alloydb', 'valkey', or 'timeout')")
print(f"\nACTUAL RETRIEVED ENTITIES (Count: {len(retrieved_scoped_entities)}):")
if not retrieved_scoped_entities:
print(" [NONE RETRIEVED! Vector/Fulltext search returned 0 matches]")
for ent_name, ent_info in retrieved_scoped_entities.items():
print(f" • Entity Name: '{ent_name}'")
print(f" - scope: '{ent_info.get('scope')}'")
print(f" - project_id: '{ent_info.get('project_id')}'")
print(f" - summary: '{ent_info.get('summary')}'")
print("\nDATABASE CHECK - ALL ROWS STORED IN agent_entities TABLE:")
with db_conn.cursor() as cur:
cur.execute("SELECT entity_name, project_id, scope, summary FROM agent_entities WHERE user_id = %s;", (USER_ID,))
db_rows = cur.fetchall()
if not db_rows:
print(" [DATABASE TABLE IS EMPTY! No entities were upserted by background worker]")
for r in db_rows:
print(f" • DB Row: entity_name='{r[0]}' | project_id='{r[1]}' | scope='{r[2]}' | summary='{r[3]}'")
# SPECIFIC FACT & SCOPE VERIFICATION LOGIC
found_global_preference = False
matched_global_entity = None
for ent_name, info in retrieved_scoped_entities.items():
combined_text = f"{ent_name} {info.get('summary', '')}".lower()
if info.get("scope") == "global" and any(kw in combined_text for kw in ["dark mode", "python", "postgres"]):
found_global_preference = True
matched_global_entity = ent_name
break
found_project_architecture = False
matched_project_entity = None
for ent_name, info in retrieved_scoped_entities.items():
combined_text = f"{ent_name} {info.get('summary', '')}".lower()
if info.get("project_id") == "CloudRetail" and any(kw in combined_text for kw in ["fastapi", "alloydb", "valkey", "timeout"]):
found_project_architecture = True
matched_project_entity = ent_name
break
print("\n--------------------------------------------------")
print("METADATA SCOPE PRECISION VERIFICATION RESULTS:")
print(f" • Global Preference Fact Retrieved (scope='global'): {found_global_preference} (Matched Entity: '{matched_global_entity}')")
print(f" • Project Architecture Fact Retrieved (project_id='CloudRetail'): {found_project_architecture} (Matched Entity: '{matched_project_entity}')")
print("--------------------------------------------------")
test_accuracy.append(("Global Coding Preference Recall Test (scope='global')", "PASS" if found_global_preference else "FAIL"))
test_accuracy.append(("Project CloudRetail Architecture Recall Test (project_id='CloudRetail')", "PASS" if found_project_architecture else "FAIL"))
# PERMISSION TEST
perm_action, reason = engine.evaluate_tool_permission(
user_id=USER_ID, project_id="CloudRetail", session_id=SESSION_2,
tool_name="run_command", tool_args={"CommandLine": "pytest --timeout=30"}
)
test_accuracy.append(("Tool Permission Policy Test", "PASS" if perm_action in ("allow", "PROMPT_USER") else "FAIL"))
# DYNAMIC TOKEN & LATENCY METRICS CALCULATION
active_prompt_chars_turn5 = len(sys_prompt_4)
active_tokens_turn5 = max(1, active_prompt_chars_turn5 // 4)
# Naive Un-compacted Full History Prompt Tokens for Turn 5
raw_history_chars = len(prompt_1 + resp_1 + prompt_2 + resp_2 + prompt_3 + resp_3 + prompt_4_s1 + resp_4_s1 + prompt_4)
naive_turn5_chars = raw_history_chars + 18000
naive_tokens_turn5 = naive_turn5_chars // 4
active_prompt_reduction_pct = ((naive_tokens_turn5 - active_tokens_turn5) / naive_tokens_turn5) * 100
# Cumulative Multi-Turn Tokens Comparison (Active Read-Path Prompts + Background Extraction & Compacting)
total_active_tokens = sum([
len(p) // 4 for p in [sys_prompt_1, sys_prompt_2, sys_prompt_3, sys_prompt_4_s1, sys_prompt_4]
])
background_extraction_tokens = async_worker.total_extraction_tokens
background_valkey_summary_tokens = get_valkey_compaction_tokens()
total_tiered_system_tokens = total_active_tokens + background_extraction_tokens + background_valkey_summary_tokens
# Naive Cumulative Tokens across all 5 turns as full transcript grows continuously
naive_cumulative_tokens = sum([
(len(p) + 18000) // 4 for p in [
prompt_1,
prompt_1 + resp_1 + prompt_2,
prompt_1 + resp_1 + prompt_2 + resp_2 + prompt_3,
prompt_1 + resp_1 + prompt_2 + resp_2 + prompt_3 + resp_3 + prompt_4_s1,
prompt_1 + resp_1 + prompt_2 + resp_2 + prompt_3 + resp_3 + prompt_4_s1 + resp_4_s1 + prompt_4
]
])
total_system_token_savings_pct = ((naive_cumulative_tokens - total_tiered_system_tokens) / naive_cumulative_tokens) * 100
# FINAL SUMMARY REPORT
print("\n==================================================")
print("FINAL AGENT MEMORY SYSTEM SUMMARY REPORT")
print("==================================================")
print("\n1. STORED ALLOYDB ENTITIES:")
with db_conn.cursor() as cur:
cur.execute("SELECT entity_name, project_id, scope, summary FROM agent_entities WHERE user_id = %s;", (USER_ID,))
for name, p_id, s_scope, summary in cur.fetchall():
print(f" • Entity: '{name}' | Project: '{p_id}' | Scope: '{s_scope}'")
print(f" Summary: {summary}")
print("\n2. DYNAMIC TOKEN USAGE & PROMPT EFFICIENCY METRICS:")
print(f" • Naive Full-Context Turn 5 Tokens: ~{naive_tokens_turn5:,} tokens ({naive_turn5_chars:,} chars)")
print(f" • Tiered Memory Active Prompt Tokens: ~{active_tokens_turn5:,} tokens ({active_prompt_chars_turn5:,} chars)")
print(f" • Active Turn 5 Prompt Reduction: {active_prompt_reduction_pct:.1f}% Reduction")
print(f" • Measured Turn 5 Inference Latency: {latency_4:.2f} seconds")
print("\n3. TOTAL CUMULATIVE SYSTEM TOKENS (READ PATH + BACKGROUND WORKERS):")
print(f" • Naive Cumulative Multi-Turn Tokens: ~{naive_cumulative_tokens:,} tokens")
print(f" • Active Read-Path Prompt Tokens: ~{total_active_tokens:,} tokens (Across 5 Turns)")
print(f" • Background Worker Tokens (Extraction):~{background_extraction_tokens:,} tokens (4 Background Turns)")
print(f" • Background Compaction Tokens (Valkey):~{background_valkey_summary_tokens:,} tokens (1 Compaction Call)")
print(f" • Total Tiered System Token Footprint: ~{total_tiered_system_tokens:,} tokens")
print(f" • Overall System Token Savings: {total_system_token_savings_pct:.1f}% Total Reduction")
print("\n4. ACCURACY & VERIFICATION TESTS:")
all_pass = True
for name, status in test_accuracy:
print(f" • {name}: [{status}]")
if status != "PASS":
all_pass = False
print("\n==================================================")
print(f"OVERALL STATUS: {'ALL TESTS PASSED ✔' if all_pass else 'VERIFICATION FAILED ✖'}")
print("==================================================")
執行驗證指令碼
在 Cloud Shell 中執行指令碼：
python3 test_memory_system.py
預期的控制台輸出內容
測試輸出內容的結尾會列印調查結果摘要。以下是這類列印內容的範例，並附上說明
1. STORED ALLOYDB ENTITIES: <A List of all stored entities,>
• Entity: '<name of entity>' | Project: '<which project does this relate to>' | Scope: '<global/project/session>'
Summary: <The entity summary>
....
2. DYNAMIC TOKEN USAGE & PROMPT EFFICIENCY METRICS:
• Naive Full-Context Turn 5 Tokens: <Number of tokens in naive approach on the last turn>
• Tiered Memory Active Prompt Tokens: <Number of tokens in tiered approach on the last turn>
• Active Turn 5 Prompt Reduction: <Savings on tokens in %>
• Measured Turn 5 Inference Latency: <Latency in last turn>
3. TOTAL CUMULATIVE SYSTEM TOKENS (READ PATH + BACKGROUND WORKERS):
• Naive Cumulative Multi-Turn Tokens: <Total tokens in the naive approach>
• Active Read-Path Prompt Tokens: <Read path tokens in the tiered approach>
• Background Worker Tokens (Extraction): <Backround process tokens usage in tiered approach>
• Background Compaction Tokens (Valkey): <Backround process tokens usage for compaction in tiered approach>
• Total Tiered System Token Footprint: <Total tokens usage in tiered approach>
• Overall System Token Savings: <Savings on tokens in %>
4. ACCURACY & VERIFICATION TESTS:
• Valkey Rolling Summary Compaction Test: <Did the roling summary work>
• Global Coding Preference Recall Test (scope='global'): <Was it able to retrieve global scoped memories>
• Project CloudRetail Architecture Recall Test (project_id='CloudRetail'): <Was it able to retrieve project specific scoped entities>
• Tool Permission Policy Test: <Was it able to retrieve permissions policies>
重設記憶體儲存空間 (選用)
如要清除所有儲存的記憶體，並在測試執行之間重設 Valkey 和 AlloyDB 狀態，請建立並執行 cleanup_memory_system.py：
import logging
from db_clients import get_db_connection, get_valkey_client
from valkey_buffer import IN_MEMORY_VALKEY_FALLBACK
logging.basicConfig(level=logging.INFO)
def reset_memory_system():
# 1. Flush short-term Valkey cache or clear local in-memory fallback
try:
valkey = get_valkey_client()
valkey.flushdb()
print("✔ Flushed Valkey short-term cache.")
except Exception:
IN_MEMORY_VALKEY_FALLBACK.clear()
print("✔ Cleared local in-memory short-term fallback buffer.")
# 2. Truncate long-term AlloyDB memory tables
try:
conn = get_db_connection()
with conn:
with conn.cursor() as cur:
cur.execute("TRUNCATE TABLE agent_entities CASCADE;")
cur.execute("TRUNCATE TABLE episodic_memory_embeddings CASCADE;")
cur.execute("TRUNCATE TABLE episodic_memory_collections CASCADE;")
cur.execute("TRUNCATE TABLE user_permissions CASCADE;")
print("✔ Truncated AlloyDB long-term memory tables.")
conn.close()
except Exception as e:
print(f"✖ AlloyDB cleanup error: {e}")
if __name__ == "__main__":
reset_memory_system()
執行清除指令碼：
python3 cleanup_memory_system.py
14. 將分層記憶體擴充至 Google ADK
在先前的步驟中，您建構了 2 層記憶體系統：
- 第 1 層 (短期緩衝區)：Memorystore for Valkey 會儲存最近的對話輪次，並建立滾動摘要，確保提示內容簡短。
- 第 2 層 (長期混合式商店)：AlloyDB AI 會使用混合式搜尋功能，儲存耐久的使用者偏好設定、專案規則和向量嵌入。
在本指南中，您會將這個記憶體引擎連結至使用 Google Agent Development Kit 建構的自訂代理。
簡單記憶體的問題
將代理程式連結至記憶體通常會導致下列其中一個陷阱：
- 只使用工具的陷阱：強制代理呼叫工具 (例如
search_memory) 處理所有事項。代理程式經常忘記呼叫基本偏好設定 (例如編碼樣式或逾時) 的工具，導致錯誤和額外的往返行程緩慢。 - 提示塞爆陷阱：將所有過往記錄都塞進每個提示。這會導致詞元費用快速增加、回覆速度變慢，以及模型推理能力下降。
混合型解決方案
我們採用混合式做法，讓代理程式在適當的時機取得適當的記憶體：
- 環境脈絡 (自動)：在每個回合開始前，系統會從 Memorystore (滾動式摘要) 和 AlloyDB (規則和偏好設定) 擷取相關專案規則和最近的會話摘要，然後不需額外呼叫 LLM，即可將這些資訊插入代理程式的提示。
- 隨選長期搜尋 (工具)：如果是較舊或較冷門的事實 (例如兩週前的架構決策)，代理程式會呼叫
long_term_memory_tool，在 AlloyDB 的長期記憶體表格中執行向量搜尋。 - 執行防護措施：在代理程式執行工具前，防護措施會檢查 Valkey 中的單次授權和 AlloyDB 中的安全規則，以封鎖危險動作，例如
rm -rf。
設定與配置
安裝 google-adk 套件 (其他依附元件已安裝完畢)：
pip3 install google-adk
設定 ADK GenAI 用戶端的 Google Cloud 區域，以便透過 Vertex AI 傳送：
# ADK agent platform backend
export GEMINI_MODEL="gemini-3.5-flash"
export GOOGLE_GENAI_USE_VERTEXAI="true"
export GOOGLE_CLOUD_PROJECT="${PROJECT_ID}"
export GOOGLE_CLOUD_LOCATION="${GENAI_LOCATION}"
15. 環境記憶體供應器
建立 adk_memory_provider.py。這個類別會自動處理記憶體生命週期：
- 輪到你說話前：擷取 Valkey 對話緩衝區 (小於 1 毫秒)，並查詢 AlloyDB 中相符的偏好設定和專案規則，然後將這些資訊組合成系統提示。
- 輪到使用者：將對話附加至 Valkey，並觸發背景工作人員將持久性事實擷取至 AlloyDB，不會延遲使用者回應。
import logging
from typing import Any, Dict, Optional
import redis
from valkey_buffer import get_session_context_buffer, append_session_turn_with_rolling_summary
from hybrid_retriever import retrieve_hybrid_entities
from async_worker import AsyncMemoryWorker
class ADKTieredMemoryProvider:
"""Provides ambient memory context before turns and saves history after turns."""
def __init__(self, db_conn_factory, valkey_client: redis.Redis, genai_client: Any, trigger_limit: int = 10, window_size: int = 4):
self.conn_factory = db_conn_factory
self.valkey_client = valkey_client
self.genai_client = genai_client
self.trigger_limit = trigger_limit
self.window_size = window_size
self.async_worker = AsyncMemoryWorker(db_conn_factory, genai_client)
def get_context_for_turn(self, user_id: str, project_id: Optional[str], session_id: str, user_query: str, prev_session_id: Optional[str] = None) -> Dict[str, Any]:
"""Reads Valkey buffer (<1ms) and AlloyDB hybrid entities before agent reasoning."""
buffer_data = get_session_context_buffer(self.valkey_client, session_id)
rolling_summary = buffer_data["rolling_summary"]
# Carry over prior session summary when starting a fresh session
if not rolling_summary and prev_session_id:
prev_buffer = get_session_context_buffer(self.valkey_client, prev_session_id)
if prev_buffer["rolling_summary"]:
rolling_summary = f"[From prior session {prev_session_id}]:\n" + prev_buffer["rolling_summary"]
conn = self.conn_factory()
try:
entities = retrieve_hybrid_entities(
conn=conn, llm_client=self.genai_client, user_id=user_id,
active_session_id=session_id, query_text=user_query,
prev_session_id=prev_session_id, project_id=project_id, k=20
)
finally:
conn.close()
return {
"rolling_summary": rolling_summary,
"recent_turns": buffer_data["recent_turns"],
"retrieved_entities": entities
}
def format_system_instruction(self, context: Dict[str, Any], base_prompt: str = "") -> str:
"""Injects ambient entities and short-term summaries into the agent's prompt."""
entity_lines = [f"- {name}: {info['summary']}" for name, info in context["retrieved_entities"].items()]
entity_str = "\n".join(entity_lines) if entity_lines else "No relevant long-term entities."
summary_str = context["rolling_summary"] or "No prior summary."
return f"""{base_prompt}
[LONG-TERM PREFERENCES & ENTITIES]
{entity_str}
[SHORT-TERM ROLLING SUMMARY]
{summary_str}
[NOTE ON TOOLS & MEMORY]
Memory persistence is managed automatically by the platform behind the scenes. Do not attempt to invoke non-existent tools like 'set_preference' or 'save_fact'. Only invoke explicitly declared tools when needed.
""".strip()
def record_turn_async(self, user_id: str, project_id: Optional[str], session_id: str, user_msg: str, ai_msg: str, prev_session_id: Optional[str] = None) -> None:
"""Updates Valkey sliding window and triggers background AlloyDB extraction."""
append_session_turn_with_rolling_summary(
valkey_client=self.valkey_client, llm_client=self.genai_client,
session_id=session_id, user_msg=user_msg, ai_msg=ai_msg,
trigger_limit=self.trigger_limit, window_size=self.window_size
)
self.async_worker.enqueue_extraction(
user_id=user_id, session_id=session_id, user_msg=user_msg,
ai_msg=ai_msg, prev_session_id=prev_session_id
)
16. 隨選長期記憶庫工具
環境記憶體會讓有效提示保持簡短，但有時代理程式需要搜尋較舊的歷來附註、架構決策或事件記錄。
建立 adk_memory_tools.py。這會將 AlloyDB 的episodic_memory_embeddings向量資料表包裝成 ADK FunctionTool：
from typing import Any, Dict, List, Optional
from google.adk.tools import FunctionTool
def make_long_term_memory_tool(db_conn_factory, embed_client: Any, user_id: str) -> FunctionTool:
"""Creates an ADK FunctionTool for vector search over AlloyDB historical records."""
def search_archived_memory(query: str, project_id: Optional[str] = None, limit: int = 3) -> List[Dict[str, Any]]:
"""Searches past architecture decisions, historical notes, and old discussions."""
# 1. Embed query with text-embedding-005
emb_resp = embed_client.models.embed_content(model="text-embedding-005", contents=query)
query_vector = emb_resp.embeddings[0].values
# 2. Cosine distance search on AlloyDB HNSW vector index
sql = """
SELECT document, cmetadata, created_at, 1 - (embedding <=> %s::vector) AS similarity
FROM episodic_memory_embeddings
WHERE cmetadata->>'user_id' = %s
AND (%s IS NULL OR cmetadata->>'project_id' = %s)
ORDER BY embedding <=> %s::vector ASC
LIMIT %s;
"""
conn = db_conn_factory()
results = []
try:
with conn.cursor() as cur:
cur.execute(sql, (str(query_vector), user_id, project_id, project_id, str(query_vector), limit))
for doc, meta, created_at, similarity in cur.fetchall():
results.append({
"document": doc,
"metadata": meta,
"timestamp": created_at.isoformat() if created_at else None,
"similarity": round(float(similarity), 4)
})
finally:
conn.close()
return results
return FunctionTool(search_archived_memory)
17. 企業權限防護機制
未經驗證，自主代理程式不得執行破壞性主機動作 (例如 rm -rf 或捨棄表格)。
ADK 的 before_tool_callback 運作方式
ADK 提供攔截掛鉤，會在執行任何工具之前執行：
- 傳回
None：ADK 允許執行工具。 - 傳回字典 (例如
{"status": "DENIED", "error": ...})：ADK 會立即中止執行。系統不會執行任何指令，並將拒絕原因傳回模型，以便向使用者說明限制。
權限檢查順序
- 檢查 0 (安全工具允許清單)：系統會在記憶體中預先核准
search_archived_memory等安全唯讀工具，因此代理程式一律可以查詢自己的記憶體。 - 第 1 層 (Valkey 中的暫時性「允許一次」授權)：當人工操作員核准高風險動作時，系統會在 Valkey 中儲存暫時性金鑰
one_time_perm:{session_id}:{cmd_hash}，存留時間為 5 分鐘。防護措施會在一個不可分割的作業中讀取及刪除金鑰。這樣一來，指令只會執行一次，避免權限永久擴增。 - 第 2 層 (AlloyDB 中的專案規則)：檢查有效專案的
user_permissions中的 regex 規則 (例如允許pytest.*--timeout=30、封鎖rm -rf.*)。 - 第 3 層 (AlloyDB 中的全域規則)：檢查適用於所有專案的回溯規則。
- 失敗關閉後備：如果沒有相符的規則，系統會拒絕執行並傳回
PENDING，需要人工審查。
導入作業
建立 adk_guardrails.py：
import logging
from typing import Any, Dict, Optional, Tuple, Set
from enterprise_engine import AgentMemoryEngine
logger = logging.getLogger(__name__)
class ADKPermissionGuardrail:
"""Evaluates tool permissions using Valkey allow-once tokens and AlloyDB rules."""
def __init__(self, memory_engine: AgentMemoryEngine, exempt_tools: Optional[Set[str]] = None):
self.engine = memory_engine
self.exempt_tools = exempt_tools or {"search_archived_memory"}
def evaluate(self, user_id: str, project_id: str, session_id: str, tool_name: str, tool_args: Dict[str, Any]) -> Tuple[bool, str]:
# 1. Allowlist safe internal tools
if tool_name in self.exempt_tools:
return True, f"Internal tool '{tool_name}' is pre-approved."
# 2. Check 3-tier policy engine
action, reason = self.engine.evaluate_tool_permission(
user_id=user_id, project_id=project_id, session_id=session_id,
tool_name=tool_name, tool_args=tool_args
)
if action.upper() == "ALLOW":
return True, f"Permission ALLOWED: {reason}"
elif action.upper() == "BLOCK":
return False, f"Permission BLOCKED: {reason}"
return False, f"Permission PENDING: {reason} (requires human confirmation)"
def create_before_tool_callback(self, user_id: str, default_project_id: str = "global"):
"""Creates the callback hook for Agent(before_tool_callback=...)."""
def before_tool_callback(tool: Any, args: Dict[str, Any], tool_context: Any) -> Optional[Dict[str, Any]]:
tool_name = getattr(tool, "name", str(tool))
session_id = getattr(getattr(tool_context, "session", None), "id", "default_session")
allowed, msg = self.evaluate(user_id, default_project_id, session_id, tool_name, args)
if not allowed:
logger.warning("Guardrail blocked '%s': %s", tool_name, msg)
return {"status": "DENIED", "tool": tool_name, "error": msg}
return None # Returning None permits execution in ADK
return before_tool_callback
18. 執行 ADK 代理測試
建立 test_adk_agent.py。這個完整指令碼會將元件連結在一起、植入已封存的決策和安全規則、執行 2 個工作階段的對話、測試記憶體壓縮和回想功能，並驗證安全防護措施的執行情況：
import asyncio
import os
import time
from google import genai
from google.genai import types
from google.adk.agents import Agent
from google.adk.runners import Runner
from google.adk.sessions import InMemorySessionService
from google.adk.tools import FunctionTool
from db_clients import get_db_connection, get_valkey_client
from enterprise_engine import AgentMemoryEngine
from adk_memory_provider import ADKTieredMemoryProvider
from adk_memory_tools import make_long_term_memory_tool
from adk_guardrails import ADKPermissionGuardrail
from valkey_buffer import get_session_context_buffer
# Configuration & clients
PROJECT_ID = os.getenv("PROJECT_ID", "chunking-poc-alloydb")
REGION = os.getenv("REGION", "us-east1")
GENAI_LOCATION = os.getenv("GENAI_LOCATION", "us")
GEMINI_MODEL = os.getenv("GEMINI_MODEL", "gemini-3.5-flash")
USER_ID, SESSION_1, SESSION_2 = "user_adk_dev", "sess_adk_001", "sess_adk_002"
db_conn = get_db_connection()
valkey_client = get_valkey_client()
# LLM client for Gemini 3.5 Flash via global multi-region
genai_client = genai.Client(vertexai=True, project=PROJECT_ID, location=GENAI_LOCATION)
# Embeddings client (requires specific regional presence)
embed_client = genai.Client(vertexai=True, project=PROJECT_ID, location=REGION)
tiered_provider = ADKTieredMemoryProvider(get_db_connection, valkey_client, genai_client, trigger_limit=3, window_size=2)
memory_engine = AgentMemoryEngine(valkey_client, db_conn)
guardrail = ADKPermissionGuardrail(memory_engine)
# Tools: Long-term memory search and mock terminal command
long_term_memory_tool = make_long_term_memory_tool(get_db_connection, embed_client, USER_ID)
def run_command(CommandLine: str) -> str:
"""Executes a shell command on the host."""
return f"Executed: {CommandLine}"
run_command_tool = FunctionTool(run_command)
def seed_database():
"""Seeds a 14-day-old architecture decision and permission rules."""
doc = "Archived Decision: CloudRetail services must use gRPC keepalive ping intervals of 15 seconds."
emb = embed_client.models.embed_content(model="text-embedding-005", contents=doc).embeddings[0].values
conn = get_db_connection()
try:
with conn.cursor() as cur:
cur.execute("""
INSERT INTO episodic_memory_embeddings (uuid, document, cmetadata, created_at, embedding)
VALUES (gen_random_uuid(), %s, jsonb_build_object('user_id', %s, 'project_id', 'CloudRetail'), NOW() - INTERVAL '14 days', %s::vector);
""", (doc, USER_ID, str(emb)))
cur.execute("""
INSERT INTO user_permissions (user_id, project_id, tool_name, command_pattern, action)
VALUES (%s, 'CloudRetail', 'run_command', 'pytest.*--timeout=30', 'ALLOW'),
(%s, 'CloudRetail', 'run_command', 'rm -rf.*', 'BLOCK'),
(%s, 'global', 'search_archived_memory', '.*', 'ALLOW')
ON CONFLICT DO NOTHING;
""", (USER_ID, USER_ID, USER_ID))
conn.commit()
finally:
conn.close()
async def run_turn(runner: Runner, session_id: str, query: str, prev_session_id: str = None) -> str:
"""Fetches ambient memory, executes turn, and saves history in the background."""
ctx = tiered_provider.get_context_for_turn(USER_ID, "CloudRetail", session_id, query, prev_session_id)
runner.agent.instruction = tiered_provider.format_system_instruction(
ctx,
base_prompt="You are an intelligent Google ADK enterprise developer assistant."
)
msg = types.Content(role="user", parts=[types.Part.from_text(text=query)])
parts = []
async for event in runner.run_async(user_id=USER_ID, session_id=session_id, new_message=msg):
if event.content and event.content.parts:
parts.extend([p.text for p in event.content.parts if p.text])
response = "".join(parts).strip()
tiered_provider.record_turn_async(USER_ID, "CloudRetail", session_id, query, response, prev_session_id)
return response
async def main():
seed_database()
sessions = InMemorySessionService()
await sessions.create_session(app_name="agents", user_id=USER_ID, session_id=SESSION_1)
agent = Agent(
name="adk_memory_agent", model=GEMINI_MODEL, instruction="Initial instruction",
tools=[long_term_memory_tool, run_command_tool],
before_tool_callback=guardrail.create_before_tool_callback(USER_ID, "CloudRetail")
)
runner = Runner(agent=agent, session_service=sessions, app_name="agents")
print("\n--- Session 1: Storing Preferences & Triggering Compaction ---")
await run_turn(runner, SESSION_1, "I standardize on Python 3.11 with PostgreSQL and Dark Mode UI.")
await run_turn(runner, SESSION_1, "For project CloudRetail, our backend stack is FastAPI on AlloyDB with Valkey cache and 30s timeouts.")
await run_turn(runner, SESSION_1, "Draft a quick 5-line SQL table for products.")
await run_turn(runner, SESSION_1, "Add rate-limiting rules for API endpoints.")
buf = get_session_context_buffer(valkey_client, SESSION_1)
print(f"Valkey rolling summary generated: {bool(buf['rolling_summary'])}")
print(f"Turns in buffer: {len(buf['recent_turns'])} (compacted from 8)")
print("\nWaiting 6s for background worker entity extraction into AlloyDB...")
await asyncio.sleep(6)
print("\n--- Session 2: Cold-Start Ambient Recall ---")
await sessions.create_session(app_name="agents", user_id=USER_ID, session_id=SESSION_2)
resp = await run_turn(runner, SESSION_2, "What are my coding preferences and the CloudRetail stack from my previous session?", prev_session_id=SESSION_1)
print(f"Agent response:\n{resp}\n")
print("\n--- On-Demand Archival Vector Search ---")
resp_search = await run_turn(runner, SESSION_2, "What was the agreed gRPC keepalive interval from 2 weeks ago?")
print(f"Agent response:\n{resp_search}\n")
print("\n--- Guardrail Verification ---")
blocked, b_msg = guardrail.evaluate(USER_ID, "CloudRetail", SESSION_2, "run_command", {"CommandLine": "rm -rf /tmp/data"})
allowed, a_msg = guardrail.evaluate(USER_ID, "CloudRetail", SESSION_2, "run_command", {"CommandLine": "pytest --timeout=30"})
print(f"rm -rf /tmp/data: Allowed={blocked} ({b_msg})")
print(f"pytest --timeout=30: Allowed={allowed} ({a_msg})")
if __name__ == "__main__":
asyncio.run(main())
反覆測試清理
由於系統會擷取持續性內容，因此多次執行測試會不斷將對話區塊附加至 Valkey，並將重複規則插入 AlloyDB。
如要輕鬆重設執行之間的狀態，請執行您在上一個步驟中建立的 cleanup_memory_system.py 指令碼：
python3 cleanup_memory_system.py
python3 test_adk_agent.py
驗證結果
這項測試會驗證四項重要的生產行為：
- 大幅減少提示權杖：Valkey 壓縮功能會將對話記錄壓縮成簡潔的滾動摘要，在我們的測試中，這項功能將有效提示大小縮減了 92% 以上 (從約 6,956 個權杖縮減至約 544 個權杖)，實際結果可能有所不同。
- 即時回想冷啟動：在全新工作階段 (工作階段 2) 中，代理程式立即回想使用者偏好設定 (Python 3.11、PostgreSQL、深色模式) 和專案架構 (FastAPI、30 秒逾時)，完全不必呼叫任何工具。這項功能是由
ADKTieredMemoryProvider.get_context_for_turn啟用，可在呼叫 LLM 前從 Memorystore 和 AlloyDB 擷取背景資訊。 - 隨選向量召回：當系統詢問 14 天前的決策時，代理程式會叫用
search_archived_memory，並擷取 15 秒的 gRPC 存活規則。 - 確定性安全：代理程式執行
pytest --timeout=30，但嚴格禁止執行rm -rf /tmp/data。
19. 清理
如要避免系統持續向您的 Google Cloud 帳戶收取 AlloyDB 和 Memorystore 執行個體的費用，請刪除建立的資源。
在 Cloud Shell 中執行下列指令：
# Exit VM and return to Cloud Shell
exit
# Delete Compute Engine development VM
gcloud compute instances delete $VM_NAME \
--zone=$ZONE \
--quiet
# Delete AlloyDB primary instance and cluster
gcloud alloydb instances delete $ADBINSTANCE \
--cluster=$ADBCLUSTER \
--region=$REGION \
--quiet
gcloud alloydb clusters delete $ADBCLUSTER \
--region=$REGION \
--quiet
# Delete Memorystore for Valkey instance
gcloud memorystore instances delete $VALKEYINSTANCE \
--location=$REGION \
--quiet
20. 恭喜
恭喜！您已成功建構 2 層式長期 AI 代理記憶體架構，結合了 Memorystore for Valkey 和 AlloyDB AI。
目前所學內容
- 實作雙層記憶體架構，將短期執行中工作階段狀態與長期持續性事實分開。
- 大幅縮減有效提示大小，並節省總權杖用量，且準確度不打折。
- 已設定資料庫層級的 AlloyDB AI 交易自動嵌入 (
ai.initialize_embeddings)。 - 執行原生倒數排名融合混合搜尋 (
ai.hybrid_search)，結合向量相似度 (<=>) 與 PostgreSQL 全文搜尋 (tsvector)。 - 建構了離線程背景實體擷取器 (
AsyncMemoryWorker)、3 層工具執行權限評估器，以及資料庫記憶體壓縮引擎。 - 使用 Google Agent Development Kit (ADK) 將分層記憶體系統附加至自主代理，強制執行工具防護措施並提供周遭記憶體。
後續步驟和參考資料
- 參閱 AlloyDB AI 說明文件。
- 瞭解如何在 AlloyDB 中執行混合型向量搜尋。
- 進一步瞭解 Memorystore for Valkey。
