開始使用 AlloyDB AI 的向量嵌入

1. 簡介

在本程式碼研究室中,您將瞭解如何結合向量搜尋與 Vertex AI 嵌入功能,使用 AlloyDB AI。這個實驗室是 AlloyDB AI 功能專屬實驗室系列的一部分。詳情請參閱說明文件中的 AlloyDB AI 頁面


必要條件

  • 對 Google Cloud 控制台有基本瞭解
  • 指令列介面和 Google Shell 的基本技能

課程內容

  • 如何部署 AlloyDB 叢集和主要執行個體
  • 如何從 Google Compute Engine VM 連線至 AlloyDB
  • 如何建立資料庫及啟用 AlloyDB AI
  • 如何將資料載入資料庫
  • 如何在 AlloyDB 中使用 Vertex AI 嵌入模型
  • 如何使用 Vertex AI 生成模型充實結果
  • 如何使用向量索引提升效能

軟硬體需求

  • Google Cloud 帳戶和 Google Cloud 專案
  • 網路瀏覽器,例如 Chrome

2. 設定和需求

自行設定環境

  1. 登入 Google Cloud 控制台,然後建立新專案或重複使用現有專案。如果沒有 Gmail 或 Google Workspace 帳戶,請建立帳戶




  • 專案名稱是這個專案參與者的顯示名稱。這是 Google API 未使用的字元字串。你隨時可以更新。
  • 專案 ID 在所有 Google Cloud 專案中都是不重複的,而且設定後即無法變更。Cloud 控制台會自動產生專屬字串,通常您不需要理會該字串。在大多數程式碼研究室中,您需要參照專案 ID (通常標示為 PROJECT_ID)。如果您不喜歡產生的 ID,可以產生另一個隨機 ID。你也可以嘗試使用自己的名稱,看看是否可用。完成這個步驟後就無法變更,且專案期間會維持不變。
  • 請注意,有些 API 會使用第三個值,也就是「專案編號」。如要進一步瞭解這三種值,請參閱說明文件
  1. 接著,您需要在 Cloud 控制台中啟用帳單,才能使用 Cloud 資源/API。完成這個程式碼研究室的費用不高,甚至可能完全免費。如要關閉資源,避免在本教學課程結束後繼續產生費用,請刪除您建立的資源或專案。Google Cloud 新使用者可參加價值$300 美元的免費試用計畫。

啟動 Cloud Shell

雖然您可以透過筆電遠端操作 Google Cloud,但在本程式碼研究室中,您將使用 Google Cloud Shell,這是可在雲端執行的指令列環境。

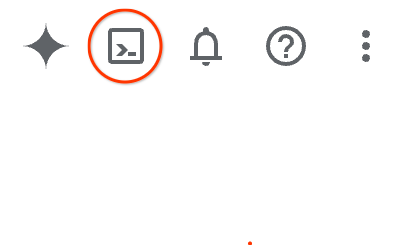

Google Cloud 控制台中,點選右上工具列的 Cloud Shell 圖示:


佈建並連線至環境的作業很快就能完成。完成後,您應該會看到如下的內容:


這部虛擬機器搭載各種您需要的開發工具,提供永久的 5 GB 主目錄,而且在 Google Cloud 中運作,可大幅提升網路效能和驗證。您可以在瀏覽器中完成本程式碼研究室的所有作業。您不需要安裝任何軟體。

3. 事前準備

啟用 API

輸出:

在 Cloud Shell 中,確認專案 ID 是否已設定完畢:

gcloud config set project [YOUR-PROJECT-ID]

設定 PROJECT_ID 環境變數:

PROJECT_ID=$(gcloud config get-value project)

啟用所有必要服務:

gcloud services enable alloydb.googleapis.com \
                       compute.googleapis.com \
                       cloudresourcemanager.googleapis.com \
                       servicenetworking.googleapis.com \
                       aiplatform.googleapis.com

預期的輸出內容:

student@cloudshell:~ (test-project-001-402417)$ gcloud config set project test-project-001-402417
Updated property [core/project].
student@cloudshell:~ (test-project-001-402417)$ PROJECT_ID=$(gcloud config get-value project)
Your active configuration is: [cloudshell-14650]
student@cloudshell:~ (test-project-001-402417)$
student@cloudshell:~ (test-project-001-402417)$ gcloud services enable alloydb.googleapis.com \
                       compute.googleapis.com \
                       cloudresourcemanager.googleapis.com \
                       servicenetworking.googleapis.com \
                       aiplatform.googleapis.com
Operation "operations/acat.p2-4470404856-1f44ebd8-894e-4356-bea7-b84165a57442" finished successfully.

設定預設區域,以便使用 Vertex AI 嵌入模型。進一步瞭解 Vertex AI 服務地區。本範例使用的是 us-central1 區域。

gcloud config set compute/region us-central1

4. 部署 AlloyDB

建立 AlloyDB 叢集前,我們需要虛擬私有雲中可用的私人 IP 範圍,供日後的 AlloyDB 執行個體使用。如果沒有,我們就必須建立,並指派給內部 Google 服務使用,之後才能建立叢集和執行個體。

建立私人 IP 範圍

我們需要在虛擬私有雲中為 AlloyDB 設定 Private Service Access。這裡的假設是專案中具有「預設」虛擬私有雲網路,且所有動作都會使用該網路。

建立私人 IP 範圍:

gcloud compute addresses create psa-range \
    --global \
    --purpose=VPC_PEERING \
    --prefix-length=24 \
    --description="VPC private service access" \
    --network=default

使用分配的 IP 範圍建立私人連線:

gcloud services vpc-peerings connect \
    --service=servicenetworking.googleapis.com \
    --ranges=psa-range \
    --network=default

預期的控制台輸出內容:

student@cloudshell:~ (test-project-402417)$ gcloud compute addresses create psa-range \
    --global \
    --purpose=VPC_PEERING \
    --prefix-length=24 \
    --description="VPC private service access" \
    --network=default
Created [https://www.googleapis.com/compute/v1/projects/test-project-402417/global/addresses/psa-range].

student@cloudshell:~ (test-project-402417)$ gcloud services vpc-peerings connect \
    --service=servicenetworking.googleapis.com \
    --ranges=psa-range \
    --network=default
Operation "operations/pssn.p24-4470404856-595e209f-19b7-4669-8a71-cbd45de8ba66" finished successfully.

student@cloudshell:~ (test-project-402417)$

建立 AlloyDB 叢集

在本節中,我們將在 us-central1 區域建立 AlloyDB 叢集。

定義 postgres 使用者的密碼。您可以自行定義密碼,也可以使用隨機函式產生密碼

export PGPASSWORD=`openssl rand -hex 12`

預期的控制台輸出內容:

student@cloudshell:~ (test-project-402417)$ export PGPASSWORD=`openssl rand -hex 12`

請記下 PostgreSQL 密碼,以供日後使用。

echo $PGPASSWORD

日後以 postgres 使用者身分連線至執行個體時,需要使用這個密碼。建議您將這組號碼寫下來或複製到某處,以供日後使用。

預期的控制台輸出內容:

student@cloudshell:~ (test-project-402417)$ echo $PGPASSWORD
bbefbfde7601985b0dee5723

建立免費試用叢集

如果您先前未使用過 AlloyDB,可以建立免費試用叢集:

定義區域和 AlloyDB 叢集名稱。我們將使用 us-central1 地區,並以 alloydb-aip-01 做為叢集名稱:

export REGION=us-central1
export ADBCLUSTER=alloydb-aip-01

執行指令來建立叢集:

gcloud alloydb clusters create $ADBCLUSTER \
    --password=$PGPASSWORD \
    --network=default \
    --region=$REGION \
    --subscription-type=TRIAL

預期的控制台輸出內容:

export REGION=us-central1
export ADBCLUSTER=alloydb-aip-01
gcloud alloydb clusters create $ADBCLUSTER \
    --password=$PGPASSWORD \
    --network=default \
    --region=$REGION \
    --subscription-type=TRIAL
Operation ID: operation-1697655441138-6080235852277-9e7f04f5-2012fce4
Creating cluster...done.

在同一個 Cloud Shell 工作階段中,為叢集建立 AlloyDB 主要執行個體。如果連線中斷,您需要再次定義區域和叢集名稱環境變數。

gcloud alloydb instances create $ADBCLUSTER-pr \
    --instance-type=PRIMARY \
    --cpu-count=8 \
    --region=$REGION \
    --cluster=$ADBCLUSTER

預期的控制台輸出內容:

student@cloudshell:~ (test-project-402417)$ gcloud alloydb instances create $ADBCLUSTER-pr \
    --instance-type=PRIMARY \
    --cpu-count=8 \
    --region=$REGION \
    --availability-type ZONAL \
    --cluster=$ADBCLUSTER
Operation ID: operation-1697659203545-6080315c6e8ee-391805db-25852721
Creating instance...done.

建立 AlloyDB Standard 叢集

如果這不是專案中的第一個 AlloyDB 叢集,請繼續建立標準叢集。

定義區域和 AlloyDB 叢集名稱。我們將使用 us-central1 地區,並以 alloydb-aip-01 做為叢集名稱:

export REGION=us-central1
export ADBCLUSTER=alloydb-aip-01

執行指令來建立叢集:

gcloud alloydb clusters create $ADBCLUSTER \
    --password=$PGPASSWORD \
    --network=default \
    --region=$REGION

預期的控制台輸出內容:

export REGION=us-central1
export ADBCLUSTER=alloydb-aip-01
gcloud alloydb clusters create $ADBCLUSTER \
    --password=$PGPASSWORD \
    --network=default \
    --region=$REGION
Operation ID: operation-1697655441138-6080235852277-9e7f04f5-2012fce4
Creating cluster...done.

在同一個 Cloud Shell 工作階段中,為叢集建立 AlloyDB 主要執行個體。如果連線中斷,您需要再次定義區域和叢集名稱環境變數。

gcloud alloydb instances create $ADBCLUSTER-pr \
    --instance-type=PRIMARY \
    --cpu-count=2 \
    --region=$REGION \
    --cluster=$ADBCLUSTER

預期的控制台輸出內容:

student@cloudshell:~ (test-project-402417)$ gcloud alloydb instances create $ADBCLUSTER-pr \
    --instance-type=PRIMARY \
    --cpu-count=2 \
    --region=$REGION \
    --availability-type ZONAL \
    --cluster=$ADBCLUSTER
Operation ID: operation-1697659203545-6080315c6e8ee-391805db-25852721
Creating instance...done.

5. 連線至 AlloyDB

AlloyDB 是透過僅限私人的連線部署,因此我們需要安裝 PostgreSQL 用戶端的 VM,才能使用資料庫。

部署 GCE VM

在與 AlloyDB 叢集相同的區域和 VPC 中建立 GCE VM。

在 Cloud Shell 中執行下列指令:

export ZONE=us-central1-a
gcloud compute instances create instance-1 \
    --zone=$ZONE \
    --create-disk=auto-delete=yes,boot=yes,image=projects/debian-cloud/global/images/$(gcloud compute images list --filter="family=debian-12 AND family!=debian-12-arm64" --format="value(name)") \
    --scopes=https://www.googleapis.com/auth/cloud-platform

預期的控制台輸出內容:

student@cloudshell:~ (test-project-402417)$ export ZONE=us-central1-a
student@cloudshell:~ (test-project-402417)$ export ZONE=us-central1-a
gcloud compute instances create instance-1 \
    --zone=$ZONE \
    --create-disk=auto-delete=yes,boot=yes,image=projects/debian-cloud/global/images/$(gcloud compute images list --filter="family=debian-12 AND family!=debian-12-arm64" --format="value(name)") \
    --scopes=https://www.googleapis.com/auth/cloud-platform

Created [https://www.googleapis.com/compute/v1/projects/test-project-402417/zones/us-central1-a/instances/instance-1].
NAME: instance-1
ZONE: us-central1-a
MACHINE_TYPE: n1-standard-1
PREEMPTIBLE:
INTERNAL_IP: 10.128.0.2
EXTERNAL_IP: 34.71.192.233
STATUS: RUNNING

安裝 Postgres 用戶端

在已部署的 VM 上安裝 PostgreSQL 用戶端軟體

連線至 VM:

gcloud compute ssh instance-1 --zone=us-central1-a

預期的控制台輸出內容:

student@cloudshell:~ (test-project-402417)$ gcloud compute ssh instance-1 --zone=us-central1-a
Updating project ssh metadata...working..Updated [https://www.googleapis.com/compute/v1/projects/test-project-402417].
Updating project ssh metadata...done.
Waiting for SSH key to propagate.
Warning: Permanently added 'compute.5110295539541121102' (ECDSA) to the list of known hosts.
Linux instance-1.us-central1-a.c.gleb-test-short-001-418811.internal 6.1.0-18-cloud-amd64 #1 SMP PREEMPT_DYNAMIC Debian 6.1.76-1 (2024-02-01) x86_64

The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
student@instance-1:~$

在 VM 內執行下列指令,安裝軟體:

sudo apt-get update
sudo apt-get install --yes postgresql-client

預期的控制台輸出內容:

student@instance-1:~$ sudo apt-get update
sudo apt-get install --yes postgresql-client
Get:1 https://packages.cloud.google.com/apt google-compute-engine-bullseye-stable InRelease [5146 B]
Get:2 https://packages.cloud.google.com/apt cloud-sdk-bullseye InRelease [6406 B]
Hit:3 https://deb.debian.org/debian bullseye InRelease
Get:4 https://deb.debian.org/debian-security bullseye-security InRelease [48.4 kB]
Get:5 https://packages.cloud.google.com/apt google-compute-engine-bullseye-stable/main amd64 Packages [1930 B]
Get:6 https://deb.debian.org/debian bullseye-updates InRelease [44.1 kB]
Get:7 https://deb.debian.org/debian bullseye-backports InRelease [49.0 kB]
...redacted...
update-alternatives: using /usr/share/postgresql/13/man/man1/psql.1.gz to provide /usr/share/man/man1/psql.1.gz (psql.1.gz) in auto mode
Setting up postgresql-client (13+225) ...
Processing triggers for man-db (2.9.4-2) ...
Processing triggers for libc-bin (2.31-13+deb11u7) ...

連線至執行個體

使用 psql 從 VM 連線至主要執行個體。

在同一個 Cloud Shell 分頁中,開啟連至 instance-1 VM 的 SSH 工作階段。

使用記下的 AlloyDB 密碼 (PGPASSWORD) 值和 AlloyDB 叢集 ID,從 GCE VM 連線至 AlloyDB:

export PGPASSWORD=<Noted password>
export PROJECT_ID=$(gcloud config get-value project)
export REGION=us-central1
export ADBCLUSTER=alloydb-aip-01
export INSTANCE_IP=$(gcloud alloydb instances describe $ADBCLUSTER-pr --cluster=$ADBCLUSTER --region=$REGION --format="value(ipAddress)")
psql "host=$INSTANCE_IP user=postgres sslmode=require"

預期的控制台輸出內容:

student@instance-1:~$ export PGPASSWORD=CQhOi5OygD4ps6ty
student@instance-1:~$ ADBCLUSTER=alloydb-aip-01
student@instance-1:~$ REGION=us-central1
student@instance-1:~$ INSTANCE_IP=$(gcloud alloydb instances describe $ADBCLUSTER-pr --cluster=$ADBCLUSTER --region=$REGION --format="value(ipAddress)")
gleb@instance-1:~$ psql "host=$INSTANCE_IP user=postgres sslmode=require"
psql (15.6 (Debian 15.6-0+deb12u1), server 15.5)
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, compression: off)
Type "help" for help.

postgres=>

關閉 psql 工作階段:

exit

6. 準備資料庫

我們需要建立資料庫、啟用 Vertex AI 整合功能、建立資料庫物件,以及匯入資料。

授予 AlloyDB 必要權限

將 Vertex AI 權限新增至 AlloyDB 服務代理。

使用頂端的「+」符號開啟另一個 Cloud Shell 分頁。


在新的 Cloud Shell 分頁中執行下列指令:

PROJECT_ID=$(gcloud config get-value project)
gcloud projects add-iam-policy-binding $PROJECT_ID \
  --member="serviceAccount:service-$(gcloud projects describe $PROJECT_ID --format="value(projectNumber)")@gcp-sa-alloydb.iam.gserviceaccount.com" \
  --role="roles/aiplatform.user"

預期的控制台輸出內容:

student@cloudshell:~ (test-project-001-402417)$ PROJECT_ID=$(gcloud config get-value project)
Your active configuration is: [cloudshell-11039]
student@cloudshell:~ (test-project-001-402417)$ gcloud projects add-iam-policy-binding $PROJECT_ID \
  --member="serviceAccount:service-$(gcloud projects describe $PROJECT_ID --format="value(projectNumber)")@gcp-sa-alloydb.iam.gserviceaccount.com" \
  --role="roles/aiplatform.user"
Updated IAM policy for project [test-project-001-402417].
bindings:
- members:
  - serviceAccount:service-4470404856@gcp-sa-alloydb.iam.gserviceaccount.com
  role: roles/aiplatform.user
- members:
...
etag: BwYIEbe_Z3U=
version: 1


在分頁中執行「exit」指令,關閉分頁:

exit

建立資料庫

建立資料庫快速入門。

在 GCE VM 工作階段中執行下列指令:

建立資料庫:

psql "host=$INSTANCE_IP user=postgres" -c "CREATE DATABASE quickstart_db"

預期的控制台輸出內容:

student@instance-1:~$ psql "host=$INSTANCE_IP user=postgres" -c "CREATE DATABASE quickstart_db"
CREATE DATABASE
student@instance-1:~$

啟用 Vertex AI 整合功能

在資料庫中啟用 Vertex AI 整合功能和 pgvector 擴充功能。

在 GCE VM 中執行:

psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db" -c "CREATE EXTENSION IF NOT EXISTS google_ml_integration CASCADE"
psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db" -c "CREATE EXTENSION IF NOT EXISTS vector"

預期的控制台輸出內容:

student@instance-1:~$ psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db" -c "CREATE EXTENSION IF NOT EXISTS google_ml_integration CASCADE"
psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db" -c "CREATE EXTENSION IF NOT EXISTS vector"
CREATE EXTENSION
CREATE EXTENSION
student@instance-1:~$

匯入資料

下載準備好的資料,然後匯入新資料庫。

在 GCE VM 中執行:

gsutil cat gs://cloud-training/gcc/gcc-tech-004/cymbal_demo_schema.sql |psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db"
gsutil cat gs://cloud-training/gcc/gcc-tech-004/cymbal_products.csv |psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db" -c "\copy cymbal_products from stdin csv header"
gsutil cat gs://cloud-training/gcc/gcc-tech-004/cymbal_inventory.csv |psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db" -c "\copy cymbal_inventory from stdin csv header"
gsutil cat gs://cloud-training/gcc/gcc-tech-004/cymbal_stores.csv |psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db" -c "\copy cymbal_stores from stdin csv header"

預期的控制台輸出內容:

student@instance-1:~$ gsutil cat gs://cloud-training/gcc/gcc-tech-004/cymbal_demo_schema.sql |psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db"
SET
SET
SET
SET
SET
 set_config
------------

(1 row)
SET
SET
SET
SET
SET
SET
CREATE TABLE
ALTER TABLE
CREATE TABLE
ALTER TABLE
CREATE TABLE
ALTER TABLE
CREATE TABLE
ALTER TABLE
CREATE SEQUENCE
ALTER TABLE
ALTER SEQUENCE
ALTER TABLE
ALTER TABLE
ALTER TABLE
student@instance-1:~$ gsutil cat gs://cloud-training/gcc/gcc-tech-004/cymbal_products.csv |psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db" -c "\copy cymbal_products from stdin csv header"
COPY 941
student@instance-1:~$ gsutil cat gs://cloud-training/gcc/gcc-tech-004/cymbal_inventory.csv |psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db" -c "\copy cymbal_inventory from stdin csv header"
COPY 263861
student@instance-1:~$ gsutil cat gs://cloud-training/gcc/gcc-tech-004/cymbal_stores.csv |psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db" -c "\copy cymbal_stores from stdin csv header"
COPY 4654
student@instance-1:~$

7. 計算嵌入

匯入資料後,我們在 cymbal_products 表格中取得產品資料,在 cymbal_inventory 表格中取得各商店的可用產品數量,並在 cymbal_stores 表格中取得商店清單。我們需要根據產品說明計算向量資料,並使用 embedding 函式執行這項作業。我們將使用 Vertex AI 整合功能,根據產品說明計算向量資料,並將資料新增至表格。如要進一步瞭解使用的技術,請參閱說明文件

建立嵌入欄

使用 psql 連線至資料庫,並在 cymbal_products 資料表中,使用嵌入函式建立含有向量資料的虛擬資料欄。嵌入函式會根據 product_description 欄提供的資料,從 Vertex AI 傳回向量資料。

psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db"

連線至資料庫後,在 psql 工作階段中執行:

ALTER TABLE cymbal_products ADD COLUMN embedding vector(768) GENERATED ALWAYS AS (embedding('text-embedding-005',product_description)) STORED;

這項指令會建立虛擬資料欄,並填入向量資料。

預期的控制台輸出內容:

student@instance-1:~$ psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db"
psql (13.11 (Debian 13.11-0+deb11u1), server 14.7)
WARNING: psql major version 13, server major version 14.
         Some psql features might not work.
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, bits: 256, compression: off)
Type "help" for help.

quickstart_db=> ALTER TABLE cymbal_products ADD COLUMN embedding vector(768) GENERATED ALWAYS AS (embedding('text-embedding-004',product_description)) STORED;
ALTER TABLE
quickstart_db=>

8. 執行相似度搜尋

現在,我們可以根據說明計算出的向量值,以及要求取得的向量值,執行相似度搜尋。

您可以從同一個 psql 指令列介面執行 SQL 查詢,也可以使用 AlloyDB Studio。在 AlloyDB Studio 中,多列和複雜的輸出內容可能會看起來更好。

連線至 AlloyDB Studio

在後續章節中,所有需要連線至資料庫的 SQL 指令,都可以在 AlloyDB Studio 中執行。如要執行指令,請按一下主要執行個體,開啟 AlloyDB 叢集的網頁控制台介面。


然後按一下左側的 AlloyDB Studio:


選擇 quickstart_db 資料庫和使用者 postgres,並提供建立叢集時記下的密碼。然後按一下「驗證」按鈕。


系統會開啟 AlloyDB Studio 介面。如要在資料庫中執行指令,請按一下右側的「Editor 1」分頁標籤。


系統會開啟介面,供您執行 SQL 指令


如果您偏好使用 psql 指令列,請按照替代路徑操作,並從 VM SSH 工作階段連線至資料庫,如先前章節所述。

從 psql 執行相似度搜尋

如果資料庫工作階段已中斷連線,請使用 psql 或 AlloyDB Studio 重新連線至資料庫。

連線至資料庫:

psql "host=$INSTANCE_IP user=postgres dbname=quickstart_db"

執行查詢,取得與客戶要求最相關的可用產品清單。我們要傳遞給 Vertex AI 以取得向量值的請求類似「這裡適合種植哪種果樹?」

以下是您可以執行的查詢,選取最適合我們要求的 10 個項目:

SELECT
        cp.product_name,
        left(cp.product_description,80) as description,
        cp.sale_price,
        cs.zip_code,
        (cp.embedding <=> embedding('text-embedding-005','What kind of fruit trees grow well here?')::vector) as distance
FROM
        cymbal_products cp
JOIN cymbal_inventory ci on
        ci.uniq_id=cp.uniq_id
JOIN cymbal_stores cs on
        cs.store_id=ci.store_id
        AND ci.inventory>0
        AND cs.store_id = 1583
ORDER BY
        distance ASC
LIMIT 10;

預期的輸出內容如下:

quickstart_db=> SELECT
        cp.product_name,
        left(cp.product_description,80) as description,
        cp.sale_price,
        cs.zip_code,
        (cp.embedding <=> embedding('text-embedding-005','What kind of fruit trees grow well here?')::vector) as distance
FROM
        cymbal_products cp
JOIN cymbal_inventory ci on
        ci.uniq_id=cp.uniq_id
JOIN cymbal_stores cs on
        cs.store_id=ci.store_id
        AND ci.inventory>0
        AND cs.store_id = 1583
ORDER BY
        distance ASC
LIMIT 10;
      product_name       |                                   description                                    | sale_price | zip_code |      distance
-------------------------+----------------------------------------------------------------------------------+------------+----------+---------------------
 Cherry Tree             | This is a beautiful cherry tree that will produce delicious cherries. It is an d |      75.00 |    93230 | 0.43922018972266397
 Meyer Lemon Tree        | Meyer Lemon trees are California's favorite lemon tree! Grow your own lemons by  |         34 |    93230 |  0.4685112926118228
 Toyon                   | This is a beautiful toyon tree that can grow to be over 20 feet tall. It is an e |      10.00 |    93230 |  0.4835677149651668
 California Lilac        | This is a beautiful lilac tree that can grow to be over 10 feet tall. It is an d |       5.00 |    93230 |  0.4947204525907498
 California Peppertree   | This is a beautiful peppertree that can grow to be over 30 feet tall. It is an e |      25.00 |    93230 |  0.5054166905547247
 California Black Walnut | This is a beautiful walnut tree that can grow to be over 80 feet tall. It is a d |     100.00 |    93230 |  0.5084219510932597
 California Sycamore     | This is a beautiful sycamore tree that can grow to be over 100 feet tall. It is  |     300.00 |    93230 |  0.5140519790508755
 Coast Live Oak          | This is a beautiful oak tree that can grow to be over 100 feet tall. It is an ev |     500.00 |    93230 |  0.5143126438081371
 Fremont Cottonwood      | This is a beautiful cottonwood tree that can grow to be over 100 feet tall. It i |     200.00 |    93230 |  0.5174774727252058
 Madrone                 | This is a beautiful madrona tree that can grow to be over 80 feet tall. It is an |      50.00 |    93230 |  0.5227400803389093

9. 改善回覆

您可以運用查詢結果改善用戶端應用程式的回應,並將提供的查詢結果做為提示的一部分,傳送給 Vertex AI 生成式基礎語言模型,準備有意義的輸出內容。

為此,我們打算生成含有向量搜尋結果的 JSON,然後將生成的 JSON 新增至 Vertex AI 中文字 LLM 模型的提示,藉此建立有意義的輸出內容。首先,我們會生成 JSON,然後在 Vertex AI Studio 中測試,最後將其併入 SQL 陳述式,以便在應用程式中使用。

以 JSON 格式產生輸出內容

修改查詢,以 JSON 格式產生輸出內容,並只傳回一個資料列,以便傳遞至 Vertex AI

以下是查詢範例:

WITH trees as (
SELECT
        cp.product_name,
        left(cp.product_description,80) as description,
        cp.sale_price,
        cs.zip_code,
        cp.uniq_id as product_id
FROM
        cymbal_products cp
JOIN cymbal_inventory ci on
        ci.uniq_id=cp.uniq_id
JOIN cymbal_stores cs on
        cs.store_id=ci.store_id
        AND ci.inventory>0
        AND cs.store_id = 1583
ORDER BY
        (cp.embedding <=> embedding('text-embedding-005','What kind of fruit trees grow well here?')::vector) ASC
LIMIT 1)
SELECT json_agg(trees) FROM trees;

以下是預期的 JSON 輸出內容:

[{"product_name":"Cherry Tree","description":"This is a beautiful cherry tree that will produce delicious cherries. It is an d","sale_price":75.00,"zip_code":93230,"product_id":"d536e9e823296a2eba198e52dd23e712"}]

在 Vertex AI Studio 中執行提示

我們可以將產生的 JSON 做為提示的一部分,提供給 Vertex AI Studio 中的生成式 AI 文字模型

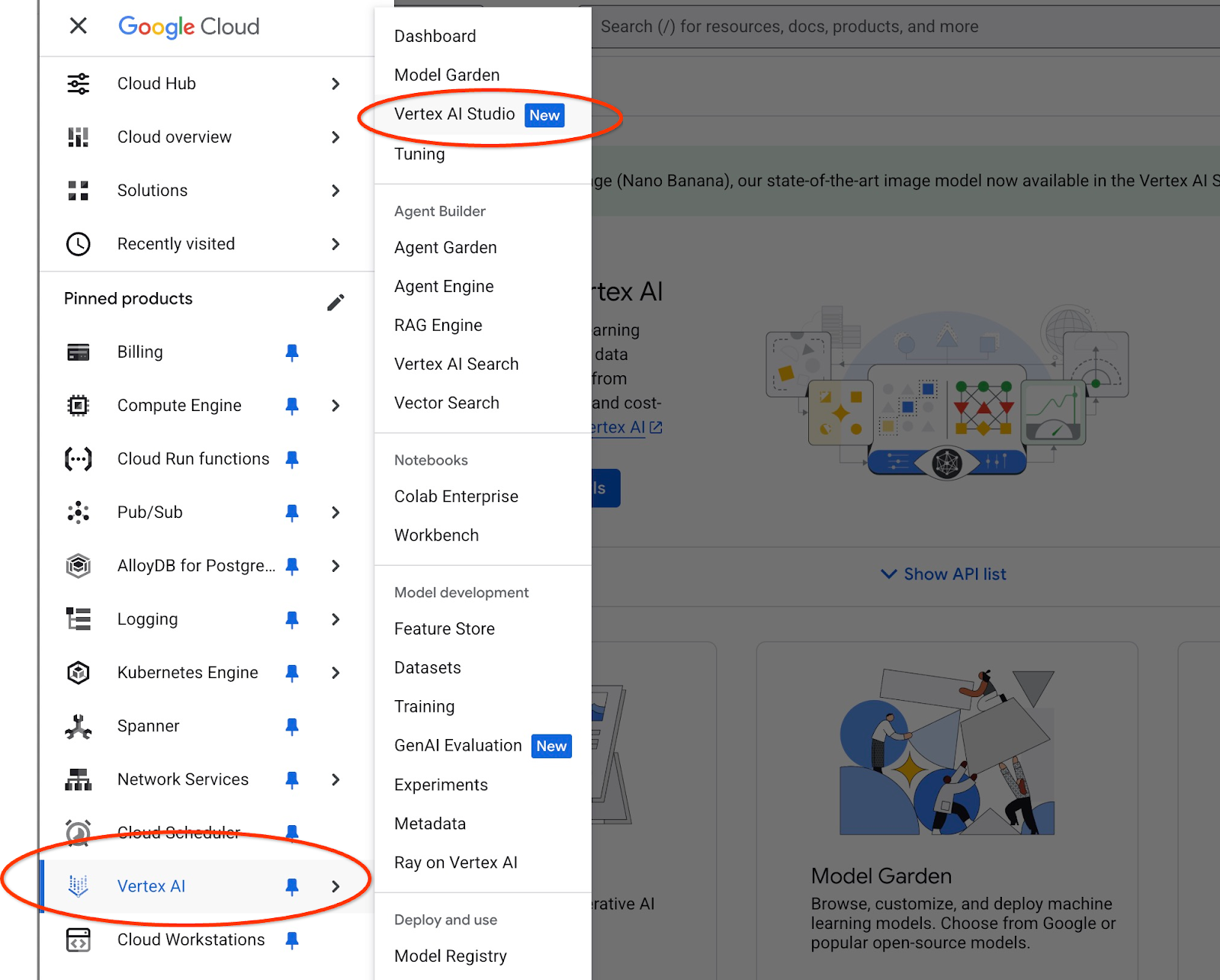

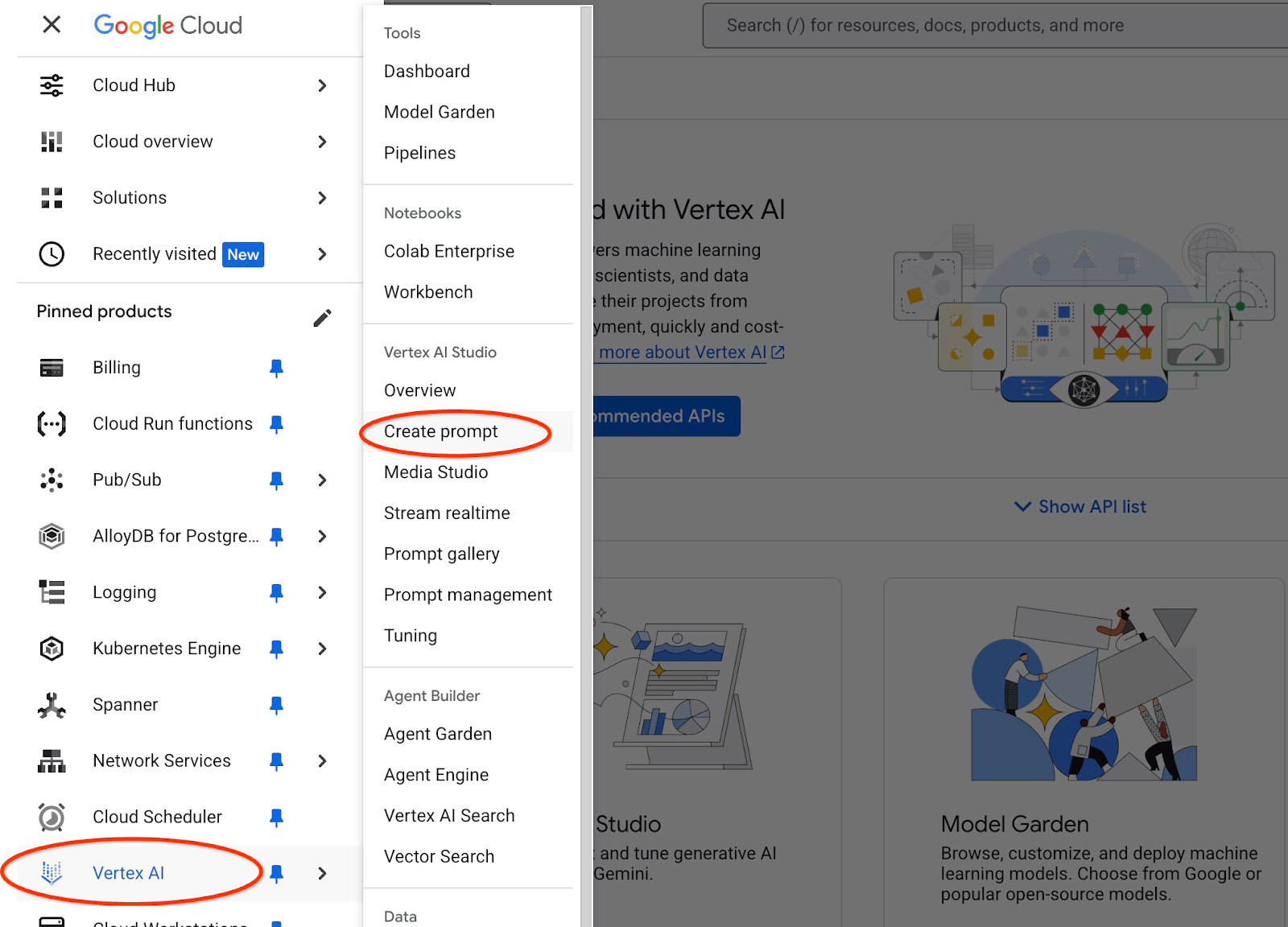

在 Cloud 控制台中開啟 Vertex AI Studio。

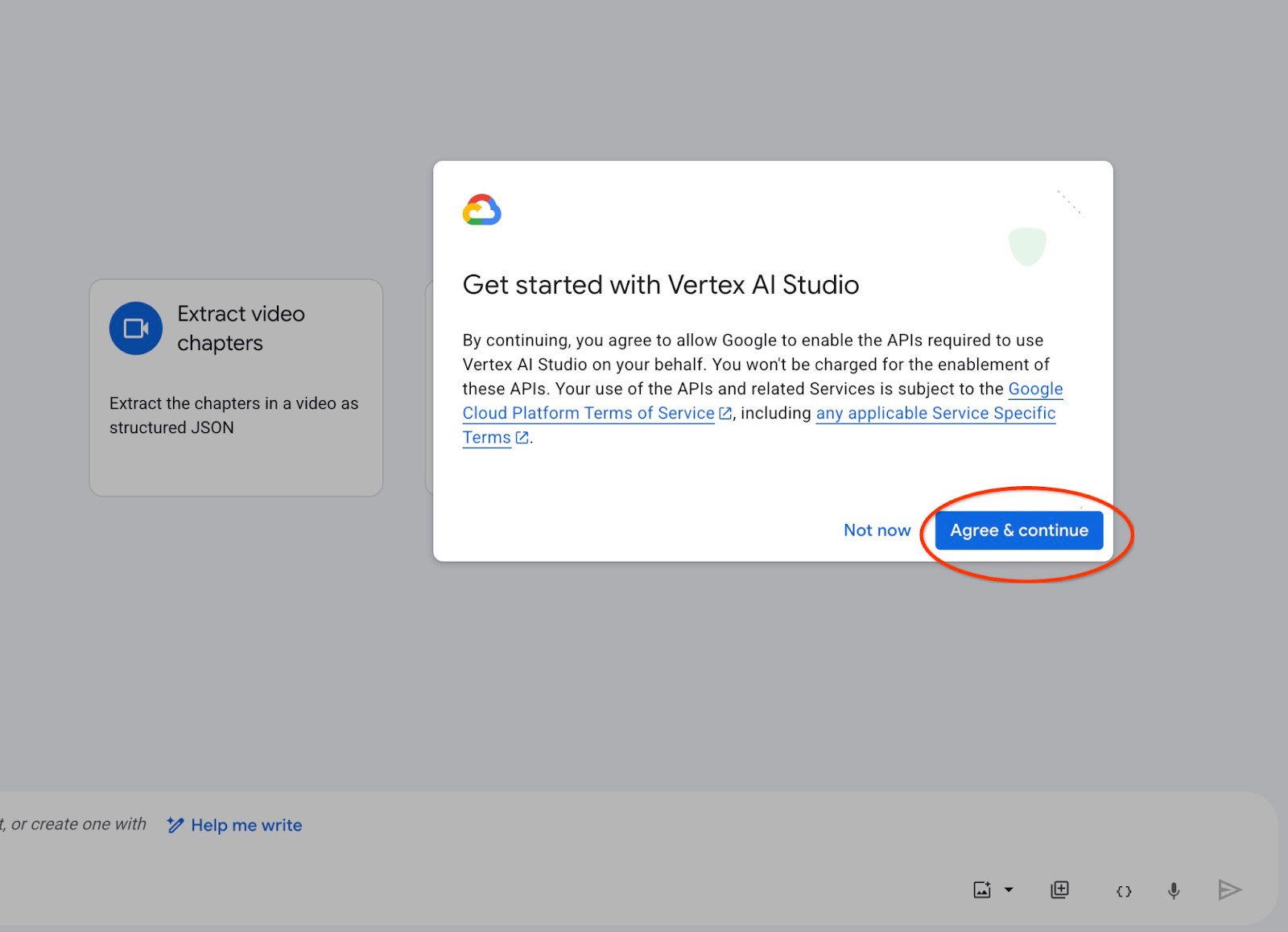

如果先前未使用過,系統可能會要求您同意使用條款。按下「同意並繼續」按鈕

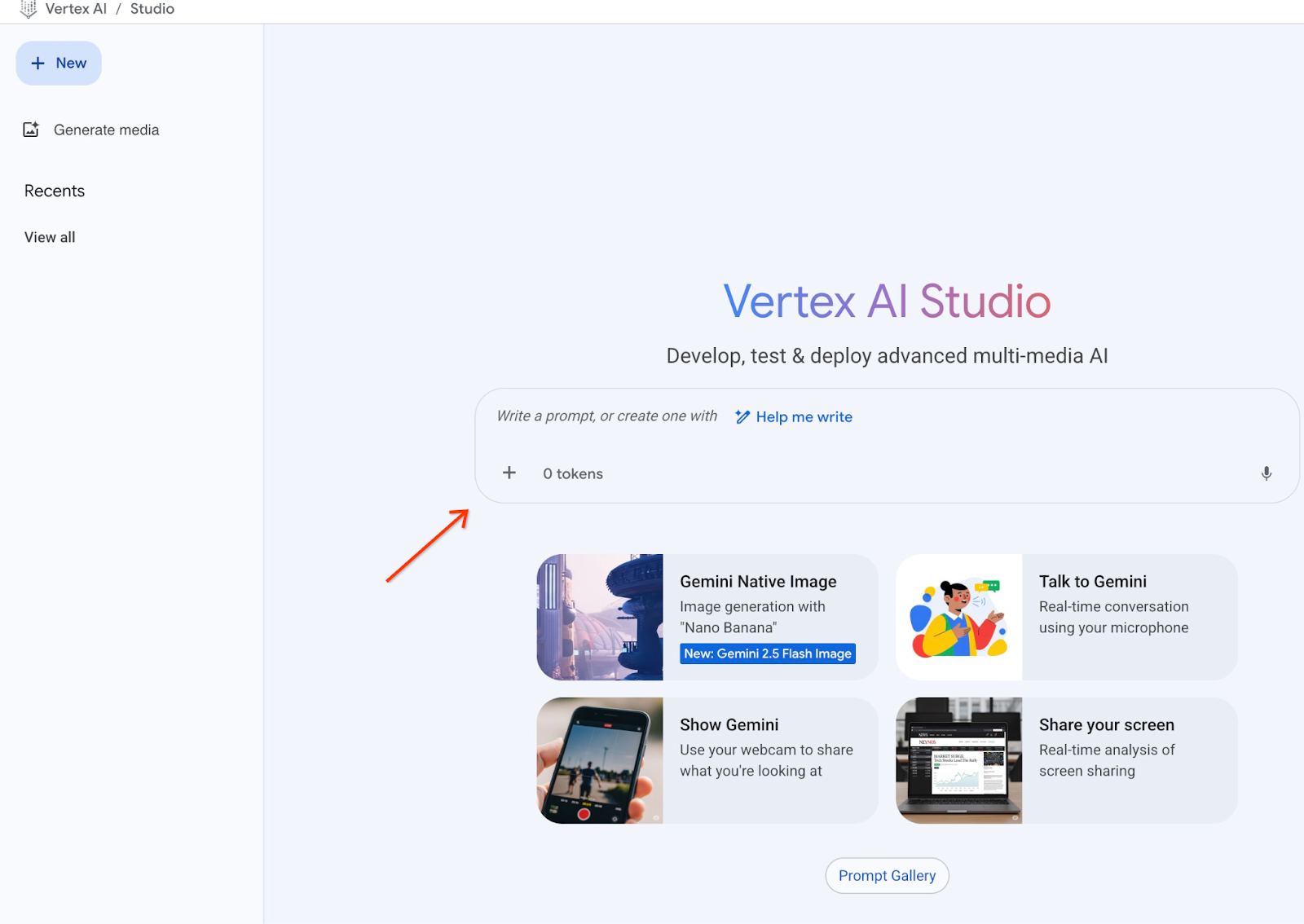

在介面中撰寫提示。


系統可能會要求您啟用其他 API,但您可以忽略這項要求。我們不需要任何其他 API 即可完成實驗室。

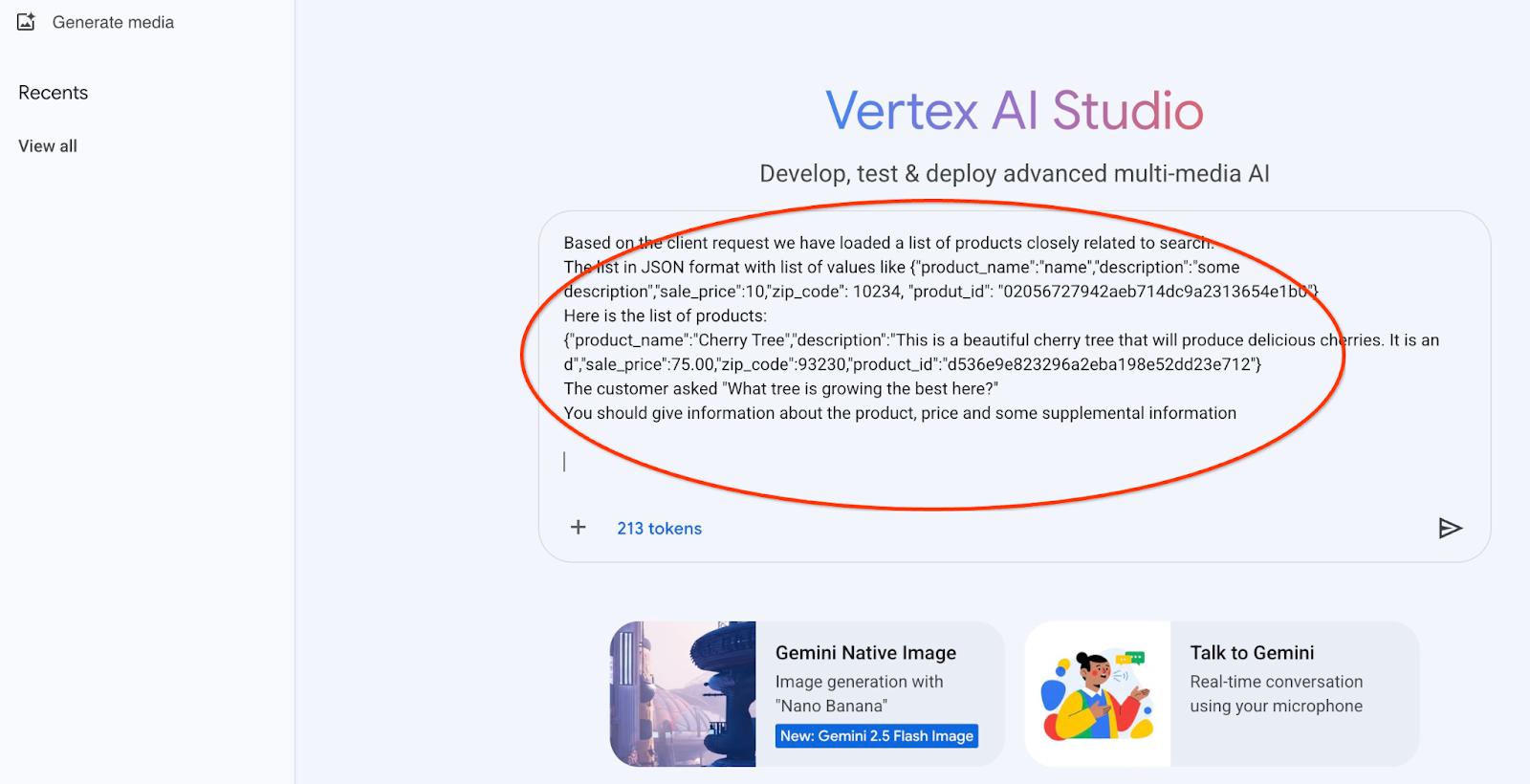

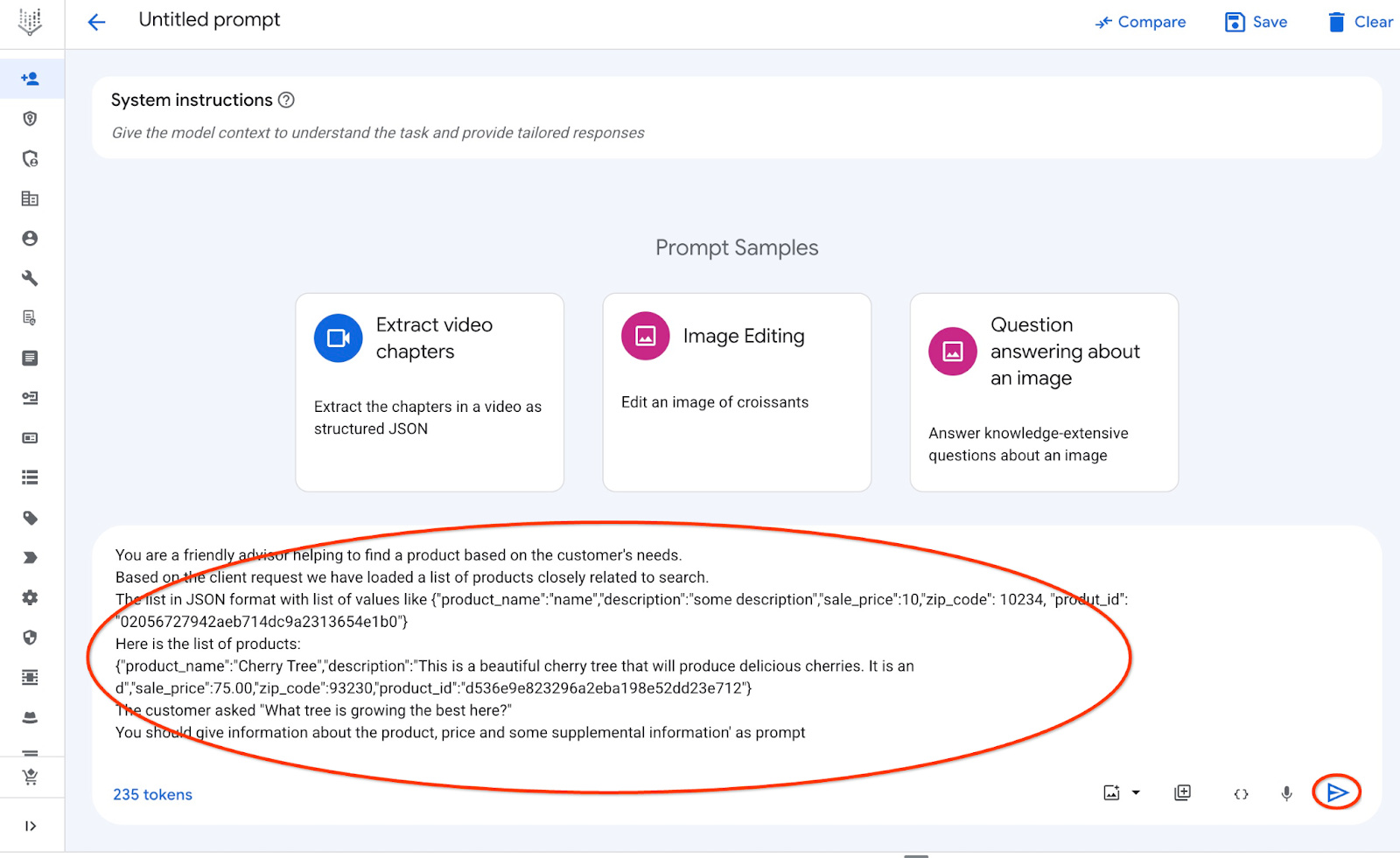

以下是我們將使用的提示,以及有關樹木的早期查詢的 JSON 輸出內容:

你是一位友善的顧問,可根據顧客需求協助尋找產品。

根據客戶要求,我們已載入與搜尋內容密切相關的產品清單。

JSON 格式的清單,包含值清單,例如:{"product_name":"name","description":"some description","sale_price":10,"zip_code": 10234, "produt_id": "02056727942aeb714dc9a2313654e1b0"}

以下是產品清單:

{"product_name":"Cherry Tree","description":"This is a beautiful cherry tree that will produce delicious cherries. It is an d","sale_price":75.00,"zip_code":93230,"product_id":"d536e9e823296a2eba198e52dd23e712"}

顧客問:「這裡最適合種什麼樹?」

你應提供產品、價格和一些補充資訊

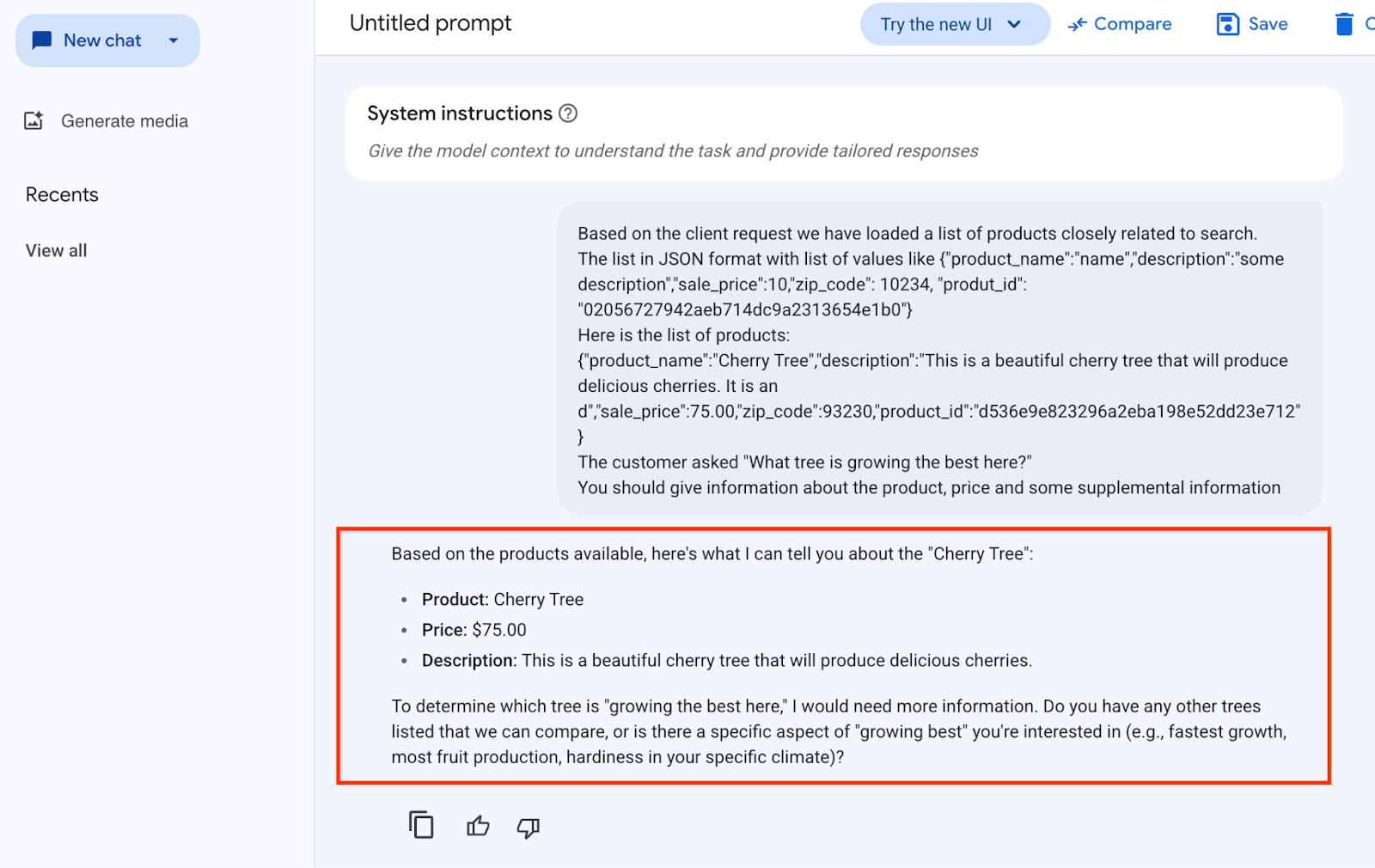

以下是使用 gemini-2.5-flash-light 模型,並以 JSON 值執行提示的結果:


本範例中,模型回覆的答案如下。請注意,由於模型和參數會隨時間變更,因此您收到的答案可能有所不同:

「根據現有產品,以下是『櫻桃樹』的相關資訊:

產品:櫻桃樹

價格:$75.00 美元

說明:這是一棵美麗的櫻桃樹,會結出美味的櫻桃。

如要判斷哪棵樹「在這裡長得最好」,我需要更多資訊。你是否列出其他樹木可供比較,或是對『最適合生長』的特定方面感興趣 (例如生長速度最快、產量最多、在特定氣候條件下最耐寒)?

在 PSQL 中執行提示詞

我們可以透過 AlloyDB AI 與 Vertex AI 的整合功能,直接在資料庫中使用 SQL,從生成模型取得相同的回覆。但如要使用 gemini-1.5-flash 模型,我們需要先註冊。

驗證 google_ml_integration 擴充功能。版本應為 1.4.2 以上。

如先前所示,從 psql 連線至 quickstart_db 資料庫 (或使用 AlloyDB Studio),然後執行下列指令:

SELECT extversion from pg_extension where extname='google_ml_integration';

檢查 google_ml_integration.enable_model_support 資料庫旗標。

show google_ml_integration.enable_model_support;

psql 工作階段的預期輸出內容為「on」:

postgres=> show google_ml_integration.enable_model_support;
 google_ml_integration.enable_model_support
--------------------------------------------
 on
(1 row)

如果顯示「off」,則需要將 google_ml_integration.enable_model_support 資料庫旗標設為「on」。如要執行這項操作,可以使用 AlloyDB 網頁版主控台介面,或執行下列 gcloud 指令。

PROJECT_ID=$(gcloud config get-value project)
REGION=us-central1
ADBCLUSTER=alloydb-aip-01
gcloud beta alloydb instances update $ADBCLUSTER-pr \
  --database-flags google_ml_integration.enable_model_support=on \
  --region=$REGION \
  --cluster=$ADBCLUSTER \
  --project=$PROJECT_ID \
  --update-mode=FORCE_APPLY

這項指令會在背景執行,大約需要 3 到 5 分鐘。然後再次驗證標記。

查詢需要兩個模型。第一個是已使用的 text-embedding-005 模型,第二個是其中一個通用的 Google Gemini 模型。

我們從文字嵌入模型開始。如要在 psql 或 AlloyDB Studio 中註冊模型執行作業,請執行下列程式碼:

CALL
  google_ml.create_model(
    model_id => 'text-embedding-005',
    model_provider => 'google',
    model_qualified_name => 'text-embedding-005',
    model_type => 'text_embedding',
    model_auth_type => 'alloydb_service_agent_iam',
    model_in_transform_fn => 'google_ml.vertexai_text_embedding_input_transform',
    model_out_transform_fn => 'google_ml.vertexai_text_embedding_output_transform');

我們需要註冊的下一個模型是 gemini-2.0-flash-001,這個模型會用於生成易於理解的輸出內容。

CALL
  google_ml.create_model(
    model_id => 'gemini-2.5-flash',
    model_request_url => 'publishers/google/models/gemini-2.5-flash:streamGenerateContent',
    model_provider => 'google',
    model_auth_type => 'alloydb_service_agent_iam');

您隨時可以從 google_ml.model_info_view 中選取資訊,驗證已註冊的模型清單。

select model_id,model_type from google_ml.model_info_view;

以下是輸出內容範例

quickstart_db=> select model_id,model_type from google_ml.model_info_view;
        model_id         |   model_type
-------------------------+----------------
 textembedding-gecko     | text_embedding
 textembedding-gecko@001 | text_embedding
 text-embedding-005      | text_embedding
 gemini-2.5-flash        | generic
(4 rows)

現在,我們可以使用子查詢 JSON 產生內容,並透過 SQL 將其做為提示的一部分,提供給生成式 AI 文字模型。

在資料庫的 psql 或 AlloyDB Studio 工作階段中執行查詢

WITH trees AS (
SELECT
        cp.product_name,
        cp.product_description AS description,
        cp.sale_price,
        cs.zip_code,
        cp.uniq_id AS product_id
FROM
        cymbal_products cp
JOIN cymbal_inventory ci ON
        ci.uniq_id = cp.uniq_id
JOIN cymbal_stores cs ON
        cs.store_id = ci.store_id
        AND ci.inventory>0
        AND cs.store_id = 1583
ORDER BY
        (cp.embedding <=> embedding('text-embedding-005',
        'What kind of fruit trees grow well here?')::vector) ASC
LIMIT 1),
prompt AS (
SELECT
        'You are a friendly advisor helping to find a product based on the customer''s needs.
Based on the client request we have loaded a list of products closely related to search.
The list in JSON format with list of values like {"product_name":"name","product_description":"some description","sale_price":10}
Here is the list of products:' || json_agg(trees) || 'The customer asked "What kind of fruit trees grow well here?"
You should give information about the product, price and some supplemental information' AS prompt_text
FROM
        trees),
response AS (
SELECT
        json_array_elements(google_ml.predict_row( model_id =>'gemini-2.5-flash',
        request_body => json_build_object('contents',
        json_build_object('role',
        'user',
        'parts',
        json_build_object('text',
        prompt_text)))))->'candidates'->0->'content'->'parts'->0->'text' AS resp
FROM
        prompt)
SELECT
        string_agg(resp::text,
        ' ')
FROM
        response;

預期的輸出內容如下。輸出內容可能因模型版本和參數而異:

"Hello there! I can certainly help you with finding a great fruit tree for your area.\n\nBased on what grows well, we have a wonderful **Cherry Tree** that could be a perfect fit!\n\nThis beautiful cherry tree is an excellent choice for producing delicious cherries right in your garden. It's an deciduous tree that typically" " grows to about 15 feet tall. Beyond its fruit, it offers lovely aesthetics with dark green leaves in the summer that transition to a beautiful red in the fall, making it great for shade and privacy too.\n\nCherry trees generally prefer a cool, moist climate and sandy soil, and they are best suited for USDA Zones" " 4-9. Given the zip code you're inquiring about (93230), which is typically in USDA Zone 9, this Cherry Tree should thrive wonderfully!\n\nYou can get this magnificent tree for just **$75.00**.\n\nLet me know if you have any other questions!" "

10. 建立向量索引

我們的資料集相當小,回覆時間主要取決於與 AI 模型的互動。但當您有數百萬個向量時,向量搜尋部分可能會佔用大量回應時間,並對系統造成高負載。為改善這點,我們可以在向量上建立索引。

建立 ScaNN 索引

如要建構 SCANN 索引,我們還需要啟用一個擴充功能。alloydb_scann 擴充功能提供介面,讓我們能使用 Google ScaNN 演算法處理 ANN 類型的向量索引。

CREATE EXTENSION IF NOT EXISTS alloydb_scann;

預期輸出內容:

quickstart_db=> CREATE EXTENSION IF NOT EXISTS alloydb_scann;
CREATE EXTENSION
Time: 27.468 ms
quickstart_db=>

現在可以建立索引。在下列範例中,我將大多數參數保留為預設值,只為索引提供分割區數量 (num_leaves):

CREATE INDEX cymbal_products_embeddings_scann ON cymbal_products
  USING scann (embedding cosine)
  WITH (num_leaves=31, max_num_levels = 2);

如要瞭解如何調整索引參數,請參閱說明文件

預期輸出內容:

quickstart_db=> CREATE INDEX cymbal_products_embeddings_scann ON cymbal_products
  USING scann (embedding cosine)
  WITH (num_leaves=31, max_num_levels = 2);
CREATE INDEX
quickstart_db=>

比較回覆

現在我們可以在 EXPLAIN 模式下執行向量搜尋查詢,並驗證是否已使用索引。

EXPLAIN (analyze)
WITH trees as (
SELECT
        cp.product_name,
        left(cp.product_description,80) as description,
        cp.sale_price,
        cs.zip_code,
        cp.uniq_id as product_id
FROM
        cymbal_products cp
JOIN cymbal_inventory ci on
        ci.uniq_id=cp.uniq_id
JOIN cymbal_stores cs on
        cs.store_id=ci.store_id
        AND ci.inventory>0
        AND cs.store_id = 1583
ORDER BY
        (cp.embedding <=> embedding('text-embedding-005','What kind of fruit trees grow well here?')::vector) ASC
LIMIT 1)
SELECT json_agg(trees) FROM trees;

預期輸出內容 (為求清楚已刪除部分內容):

...
Aggregate (cost=16.59..16.60 rows=1 width=32) (actual time=2.875..2.877 rows=1 loops=1)
-> Subquery Scan on trees (cost=8.42..16.59 rows=1 width=142) (actual time=2.860..2.862 rows=1 loops=1)
-> Limit (cost=8.42..16.58 rows=1 width=158) (actual time=2.855..2.856 rows=1 loops=1)
-> Nested Loop (cost=8.42..6489.19 rows=794 width=158) (actual time=2.854..2.855 rows=1 loops=1)
-> Nested Loop (cost=8.13..6466.99 rows=794 width=938) (actual time=2.742..2.743 rows=1 loops=1)
-> Index Scan using cymbal_products_embeddings_scann on cymbal_products cp (cost=7.71..111.99 rows=876 width=934) (actual time=2.724..2.724 rows=1 loops=1)
Order By: (embedding <=> '[0.008864171,0.03693164,-0.024245683,-0.00355923,0.0055611245,0.015985578,...<redacted>...5685,-0.03914233,-0.018452475,0.00826032,-0.07372604]'::vector)
-> Index Scan using walmart_inventory_pkey on cymbal_inventory ci (cost=0.42..7.26 rows=1 width=37) (actual time=0.015..0.015 rows=1 loops=1)
Index Cond: ((store_id = 1583) AND (uniq_id = (cp.uniq_id)::text))
...

從輸出內容中,我們可清楚看出查詢使用的是「Index Scan using cymbal_products_embeddings_scann on cymbal_products」。

如果我們執行查詢時沒有說明:

WITH trees as (
SELECT
        cp.product_name,
        left(cp.product_description,80) as description,
        cp.sale_price,
        cs.zip_code,
        cp.uniq_id as product_id
FROM
        cymbal_products cp
JOIN cymbal_inventory ci on
        ci.uniq_id=cp.uniq_id
JOIN cymbal_stores cs on
        cs.store_id=ci.store_id
        AND ci.inventory>0
        AND cs.store_id = 1583
ORDER BY
        (cp.embedding <=> embedding('text-embedding-005','What kind of fruit trees grow well here?')::vector) ASC
LIMIT 1)
SELECT json_agg(trees) FROM trees;

預期輸出內容:

[{"product_name":"Meyer Lemon Tree","description":"Meyer Lemon trees are California's favorite lemon tree! Grow your own lemons by ","sale_price":34,"zip_code":93230,"product_id":"02056727942aeb714dc9a2313654e1b0"}]

我們可以看到結果略有不同,傳回的不是未建立索引時搜尋結果頂端的櫻桃樹,而是第二個選項「邁耶檸檬樹」。因此,這個索引可提供效能,但仍足夠準確,可提供優質結果。

您可以在說明文件頁面中,試用向量可用的不同索引,以及更多整合 LangChain 的實驗室和範例。

11. 清除環境

完成實驗室後,請終止 AlloyDB 執行個體和叢集。

刪除 AlloyDB 叢集和所有執行個體

如果您使用過 AlloyDB 試用版,如果您打算使用試用叢集測試其他實驗室和資源,請勿刪除試用叢集。您將無法在同一個專案中建立其他試用叢集。

使用 force 選項終止叢集,這也會刪除叢集中的所有執行個體。

如果連線中斷,且所有先前的設定都遺失,請在 Cloud Shell 中定義專案和環境變數:

gcloud config set project <your project id>
export REGION=us-central1
export ADBCLUSTER=alloydb-aip-01
export PROJECT_ID=$(gcloud config get-value project)

刪除叢集:

gcloud alloydb clusters delete $ADBCLUSTER --region=$REGION --force

預期的控制台輸出內容:

student@cloudshell:~ (test-project-001-402417)$ gcloud alloydb clusters delete $ADBCLUSTER --region=$REGION --force
All of the cluster data will be lost when the cluster is deleted.

Do you want to continue (Y/n)?  Y

Operation ID: operation-1697820178429-6082890a0b570-4a72f7e4-4c5df36f
Deleting cluster...done.

刪除 AlloyDB 備份

刪除叢集的所有 AlloyDB 備份:

for i in $(gcloud alloydb backups list --filter="CLUSTER_NAME: projects/$PROJECT_ID/locations/$REGION/clusters/$ADBCLUSTER" --format="value(name)" --sort-by=~createTime) ; do gcloud alloydb backups delete $(basename $i) --region $REGION --quiet; done

預期的控制台輸出內容:

student@cloudshell:~ (test-project-001-402417)$ for i in $(gcloud alloydb backups list --filter="CLUSTER_NAME: projects/$PROJECT_ID/locations/$REGION/clusters/$ADBCLUSTER" --format="value(name)" --sort-by=~createTime) ; do gcloud alloydb backups delete $(basename $i) --region $REGION --quiet; done
Operation ID: operation-1697826266108-60829fb7b5258-7f99dc0b-99f3c35f
Deleting backup...done.

現在可以刪除 VM 了

刪除 GCE VM

在 Cloud Shell 中執行下列指令:

export GCEVM=instance-1
export ZONE=us-central1-a
gcloud compute instances delete $GCEVM \
    --zone=$ZONE \
    --quiet

預期的控制台輸出內容:

student@cloudshell:~ (test-project-001-402417)$ export GCEVM=instance-1
export ZONE=us-central1-a
gcloud compute instances delete $GCEVM \
    --zone=$ZONE \
    --quiet
Deleted

12. 恭喜

恭喜您完成本程式碼研究室。

涵蓋內容

  • 如何部署 AlloyDB 叢集和主要執行個體
  • 如何從 Google Compute Engine VM 連線至 AlloyDB
  • 如何建立資料庫及啟用 AlloyDB AI
  • 如何將資料載入資料庫
  • 如何在 AlloyDB 中使用 Vertex AI 嵌入模型
  • 如何使用 Vertex AI 生成模型充實結果
  • 如何使用向量索引提升效能

13. 問卷調查

輸出:

您會如何使用本教學課程?

僅閱讀內容 閱讀內容並完成練習
