建構生成式 UI (GenUI) 應用程式

1. 簡介

在本程式碼實驗室中,您將使用 Flutter、Firebase AI Logic 和新的 genui 套件,建構工作清單應用程式。您將從以文字為基礎的即時通訊應用程式開始,透過 GenUI 升級應用程式,讓代理程式有權建立自己的 UI,最後建構自訂的互動式 UI 元件,您和代理程式可以直接操控。

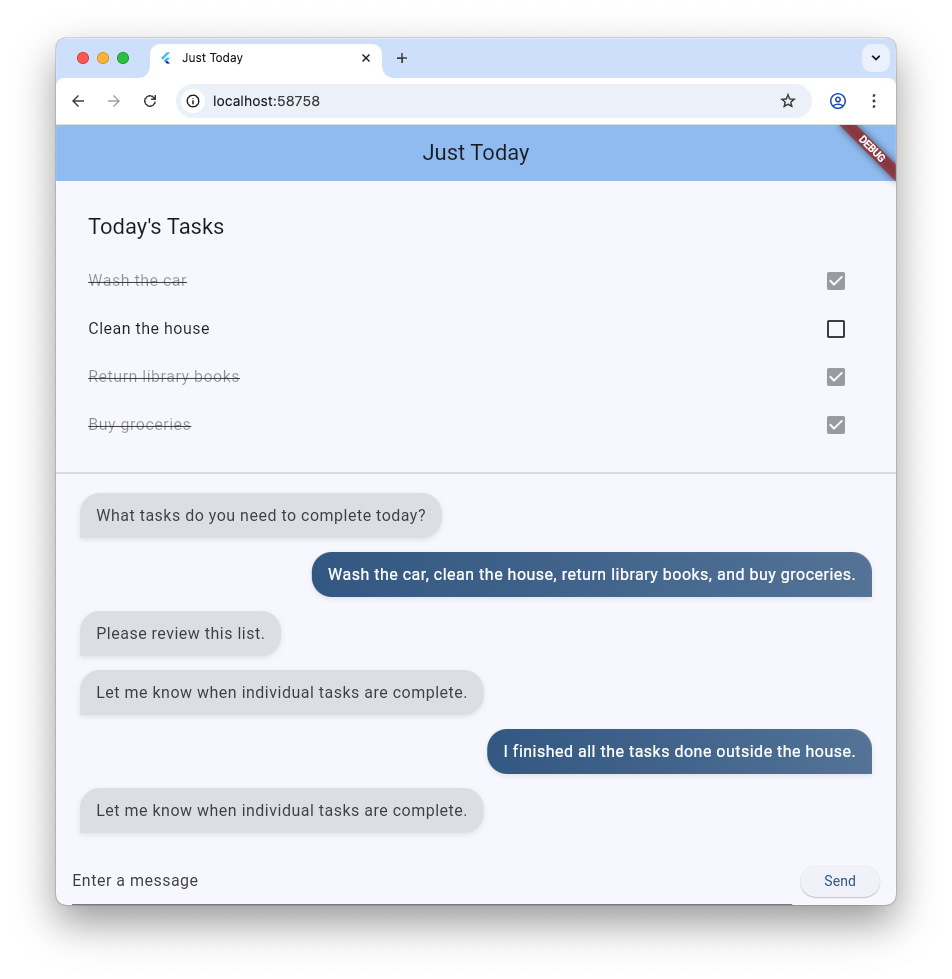

在 Chrome 中執行的工作清單應用程式

學習內容

  • 使用 Flutter 和 Firebase AI Logic 建構基本即時通訊介面
  • 整合 genui 套件,生成式 AI 驅動的介面
  • 新增進度列,指出應用程式何時在等待代理的回覆
  • 建立具名介面,並在 UI 的專屬位置顯示。
  • 建構自訂 GenUI 目錄元件,控管工作呈現方式

軟硬體需求

本程式碼實驗室適合中級 Flutter 開發人員。

2. 事前準備

設定 Flutter 專案

  1. 如果尚未安裝,請在本機安裝 Flutter SDK。
  2. 開啟終端機並執行 flutter create,建立新專案:
    flutter create intro_to_genui
    cd intro_to_genui

  3. 在 Flutter 專案中新增必要的依附元件:
    flutter pub add firebase_core firebase_ai genui json_schema_builder

    最終的 dependencies 區段應如下所示 (版本號碼可能略有不同):
    dependencies:
      flutter:
        sdk: flutter

      cupertino_icons: ^1.0.9
      firebase_core: ^4.15.0
      firebase_ai: ^4.0.0
      genui: ^0.10.3
      json_schema_builder: ^0.1.7

  4. 執行 flutter pub get 下載所有套件。如果系統提示有較新的套件版本,可以執行 flutter pub outdated 檢查版本,並執行 flutter pub upgrade 更新依附元件。

設定 Firebase 專案

  1. 如果尚未安裝 Firebase CLI,請先安裝。
  2. 使用 Google 帳戶登入 Firebase:
    firebase login

  3. 安裝 FlutterFire CLI:
    dart pub global activate flutterfire_cli

  4. 在 Flutter 專案目錄中執行下列指令,設定 Flutter 專案使用 Firebase:
    flutterfire configure

    這項指令會執行下列動作:
    1. 詢問您要使用現有的 Firebase 專案,還是建立新的 Firebase 專案。選取「建立新的 Firebase 專案」。
    2. 詢問您要為 Flutter 應用程式指定哪個平台 (iOS、Android、網頁)。請選取「Web」。

flutterfire configure 指令會自動建立 Firebase 專案,並在該專案中建立新的 Firebase 網頁應用程式。接著,指令會建立 Firebase 設定檔 (firebase_options.dart),並自動新增至 Flutter 專案的 lib/ 目錄。

請注意,本程式碼研究室的應用程式僅適用於電腦上安裝的 Flutter SDK 和 Chrome (也就是以網頁應用程式形式建構)。不過,由於這個應用程式是以 Flutter 建構而成,因此也能在其他平台上運作!因此,在程式碼研究室結束時,請嘗試重新執行 flutterfire configure,新增對 iOS、Android 或其他平台的支持,然後在該平台上重建應用程式。

詳情請參閱將 Firebase 新增至 Flutter 應用程式的操作說明。

設定 Firebase AI Logic

  1. 登入 Firebase 控制台。使用登入 Firebase CLI 時所用的 Google 帳戶。
  2. 選取您剛才使用 FlutterFire CLI 建立的 Firebase 專案。
  3. 在左側導覽選單中,依序選取「AI Services」>「AI Logic」。
  4. 按一下「開始使用」,啟動導覽工作流程。
  5. 選取要從 Gemini Developer API 開始,然後按照畫面上的指示設定 Firebase AI Logic。

您已在「設定 Flutter 專案」一節中,取得使用 Firebase AI Logic 所需的 FlutterFire 外掛程式。您已準備好在下一個步驟中開始編寫應用程式程式碼!

3. 搭建基本對話介面

在導入生成式 UI 之前,應用程式需要先建立基礎:由 Firebase AI Logic 驅動的基本文字即時通訊應用程式。為了快速開始,請複製並貼上聊天介面的完整設定。

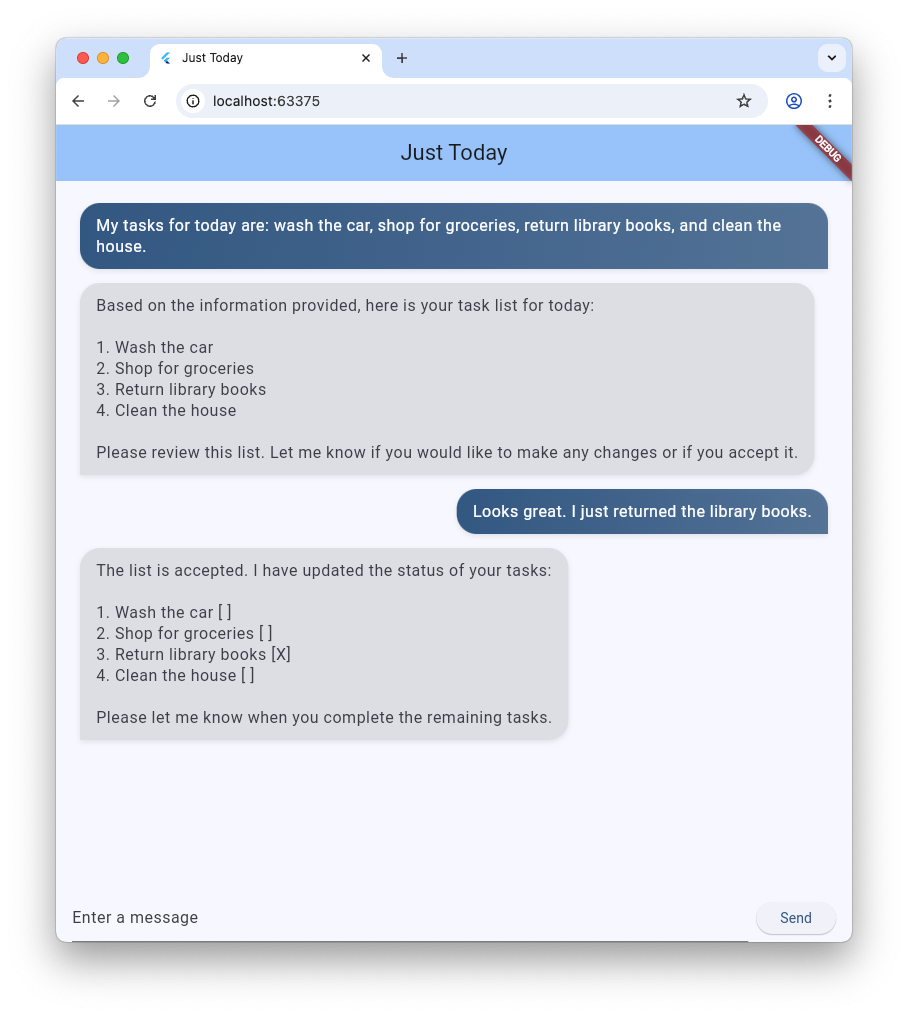

文字版應用程式

建立訊息泡泡小工具

應用程式需要小工具,才能顯示使用者和服務專員的訊息。建立名為 lib/message_bubble.dart 的新檔案,並加入下列類別:

import 'package:flutter/material.dart';

class MessageBubble extends StatelessWidget {
  final String text;
  final bool isUser;

  const MessageBubble({super.key, required this.text, required this.isUser});

  @override
  Widget build(BuildContext context) {
    final theme = Theme.of(context);
    final colorScheme = theme.colorScheme;

    final bubbleColor = isUser
        ? colorScheme.primary
        : colorScheme.surfaceContainerHighest;

    final textColor = isUser
        ? colorScheme.onPrimary
        : colorScheme.onSurfaceVariant;

    return Padding(
      padding: const EdgeInsets.symmetric(vertical: 6.0, horizontal: 8.0),
      child: Column(
        crossAxisAlignment: isUser
            ? CrossAxisAlignment.end
            : CrossAxisAlignment.start,
        children: [
          Row(
            mainAxisAlignment: isUser
                ? MainAxisAlignment.end
                : MainAxisAlignment.start,
            children: [
              Flexible(
                child: Container(
                  padding: const EdgeInsets.symmetric(
                    horizontal: 16.0,
                    vertical: 12.0,
                  ),
                  decoration: BoxDecoration(
                    color: bubbleColor,
                    borderRadius: BorderRadius.only(
                      topLeft: const Radius.circular(20),
                      topRight: const Radius.circular(20),
                      bottomLeft: Radius.circular(isUser ? 20 : 0),
                      bottomRight: Radius.circular(isUser ? 0 : 20),
                    ),
                    boxShadow: [
                      BoxShadow(
                        color: Colors.black.withAlpha(20),
                        blurRadius: 4,
                        offset: const Offset(0, 2),
                      ),
                    ],
                    gradient: isUser
                        ? LinearGradient(
                            colors: [
                              colorScheme.primary,
                              colorScheme.primary.withAlpha(200),
                            ],
                            begin: Alignment.topLeft,
                            end: Alignment.bottomRight,
                          )
                        : null,
                  ),
                  child: Text(
                    text,
                    style: theme.textTheme.bodyLarge?.copyWith(
                      color: textColor,
                      height: 1.3,
                    ),
                  ),
                ),
              ),
            ],
          ),
          const SizedBox(height: 2),
        ],
      ),
    );
  }
}

MessageBubble 是顯示單一即時通訊訊息的 StatelessWidget。本程式碼研究室稍後會使用這個小工具顯示你和代理程式的訊息,但它基本上只是個花俏的 Text 小工具。

在 main.dart 中實作 Chat UI

將 lib/main.dart 的所有內容替換為下列完整的文字聊天機器人實作:

import 'package:flutter/material.dart';
import 'package:firebase_core/firebase_core.dart';
import 'package:firebase_ai/firebase_ai.dart';
import 'package:intro_to_genui/message_bubble.dart';
import 'firebase_options.dart';

Future<void> main() async {
  WidgetsFlutterBinding.ensureInitialized();
  await Firebase.initializeApp(options: DefaultFirebaseOptions.currentPlatform);
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Just Today',
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.blue),
      ),
      home: const MyHomePage(),
    );
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({super.key});

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

sealed class ConversationItem {}

class TextItem extends ConversationItem {
  final String text;
  final bool isUser;
  TextItem({required this.text, this.isUser = false});
}

class _MyHomePageState extends State<MyHomePage> {
  final List<ConversationItem> _items = [];
  final _textController = TextEditingController();
  final _scrollController = ScrollController();
  late final ChatSession _chatSession;

  @override
  void initState() {
    super.initState();
    final model = FirebaseAI.googleAI().generativeModel(
      model: 'gemini-3.5-flash',
    );
    _chatSession = model.startChat();
    _chatSession.sendMessage(Content.text(systemInstruction));
  }

  void _scrollToBottom() {
    WidgetsBinding.instance.addPostFrameCallback((_) {
      if (_scrollController.hasClients) {
        _scrollController.animateTo(
          _scrollController.position.maxScrollExtent,
          duration: const Duration(milliseconds: 300),
          curve: Curves.easeOut,
        );
      }
    });
  }

  @override
  void dispose() {
    _textController.dispose();
    _scrollController.dispose();
    super.dispose();
  }

  Future<void> _addMessage() async {
    final text = _textController.text;

    if (text.trim().isEmpty) {
      return;
    }
    _textController.clear();

    setState(() {
      _items.add(TextItem(text: text, isUser: true));
    });

    _scrollToBottom();

    final response = await _chatSession.sendMessage(Content.text(text));

    if (response.text?.isNotEmpty ?? false) {
      setState(() {
        _items.add(TextItem(text: response.text!, isUser: false));
      });
      _scrollToBottom();
    }
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        backgroundColor: Theme.of(context).colorScheme.inversePrimary,
        title: const Text('Just Today'),
      ),
      body: Column(
        children: [
          Expanded(
            child: ListView(
              controller: _scrollController,
              padding: const EdgeInsets.all(16),
              children: [
                for (final item in _items)
                  switch (item) {
                    TextItem() => MessageBubble(
                          text: item.text,
                          isUser: item.isUser,
                        ),
                  },
              ],
            ),
          ),
          SafeArea(
            child: Padding(
              padding: const EdgeInsets.symmetric(horizontal: 16.0),
              child: Row(
                children: [
                  Expanded(
                    child: TextField(
                      controller: _textController,
                      onSubmitted: (_) => _addMessage(),
                      decoration: const InputDecoration(
                        hintText: 'Enter a message',
                      ),
                    ),
                  ),
                  const SizedBox(width: 8),
                  ElevatedButton(
                    onPressed: _addMessage,
                    child: const Text('Send'),
                  ),
                ],
              ),
            ),
          ),
        ],
      ),
    );
  }
}

const systemInstruction = '''
  ## PERSONA
  You are an expert task planner.

  ## GOAL
  Work with me to produce a list of tasks that I should do today, and then track
  the completion status of each one.

  ## RULES
  Talk with me only about tasks that I should do today.
  Do not engage in conversation about any other topic.
  Do not offer suggestions unless I ask for them.
  Do not offer encouragement unless I ask for it.
  Do not offer advice unless I ask for it.
  Do not offer opinions unless I ask for them.

  ## PROCESS
  ### Planning
  *   Ask me for information about tasks that I should do today.
  *   Synthesize a list of tasks from that information.
  *   Ask clarifying questions if you need to.
  *   When you have a list of tasks that you think I should do today, present it
    to me for review.
  *   Respond to my suggestions for changes, if I have any, until I accept the
    list.

  ### Tracking
  *   Once the list is accepted, ask me to let you know when individual tasks are
    complete.
  *   If I tell you a task is complete, mark it as complete.
  *   Once all tasks are complete, send a message acknowledging that, and then
    end the conversation.
''';

您剛才複製並貼上的 main.dart 檔案會使用 Firebase AI Logic 和 systemInstruction 中的提示詞,設定基本 ChatSession。這個類別會維護 TextItem 元素清單,並使用您先前建立的 MessageBubble 小工具,將這些元素與使用者查詢一併顯示,藉此管理對話輪次。

請先確認以下幾點,再繼續操作:

  • initState 方法用於設定與 Firebase AI Logic 的連線。
  • 應用程式提供 TextField 和按鈕,可將訊息傳送給代理。
  • _addMessage 方法會將使用者的訊息傳送給代理。
  • _items 清單會儲存對話記錄。
  • 訊息會使用 MessageBubble 小工具顯示在 ListView 中。

測試應用程式

完成後,您就可以執行並測試應用程式。

flutter run -d chrome

試著與代理討論你今天想完成的任務。雖然純文字 UI 也能完成工作,但 GenUI 可讓體驗更輕鬆快速。

完成測試後,請在終端機中按下 q (或 Ctrl+C) 停止執行中的應用程式,再繼續下一個步驟。

4. 整合 GenUI 套件

現在要從純文字升級為生成式 UI。您會將基本的 Firebase 訊息迴圈,替換為 GenUI Conversation、Catalog 和 SurfaceController 物件。讓 AI 模型在對話串中例項化實際的 Flutter 小工具。

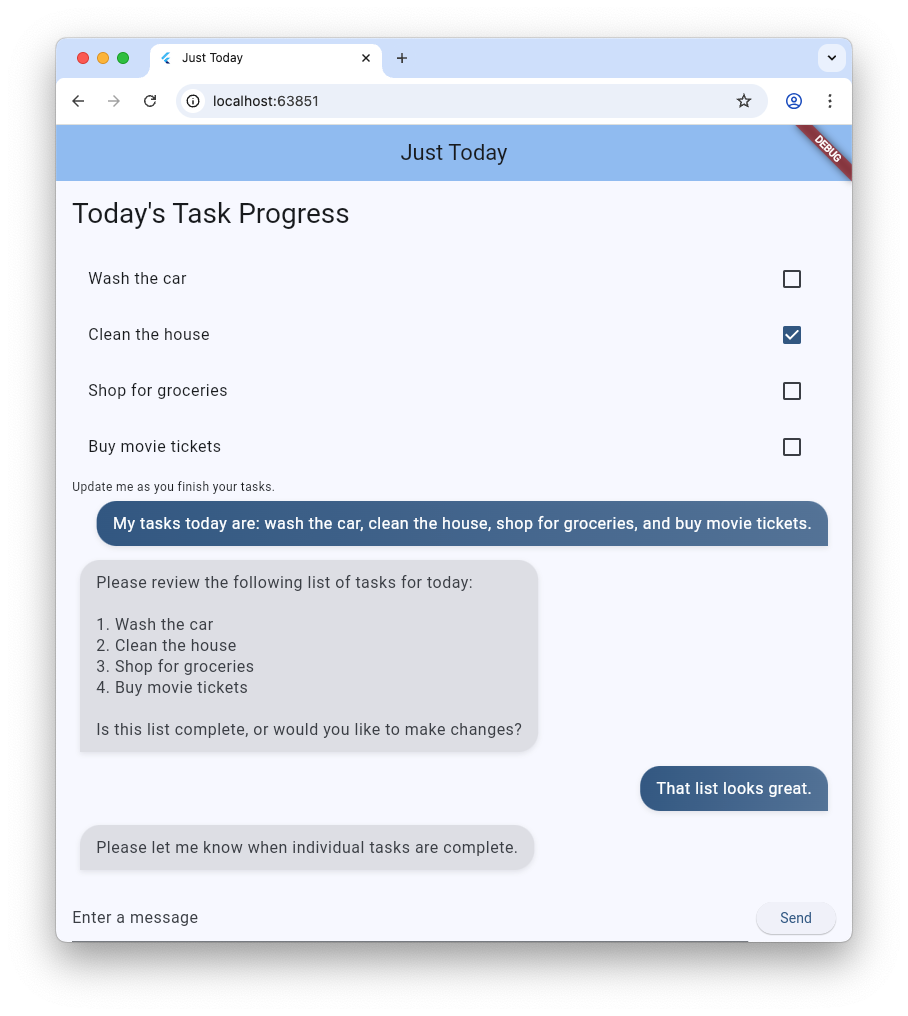

整合 GenUI 的應用程式版本

genui 套件提供五個類別,您會在整個程式碼研究室中使用這些類別:

  • SurfaceController 會將模型產生的 UI 對應至畫面。
  • A2uiTransportAdapter 可將內部 GenUI 要求與任何外部語言模型連結。
  • Conversation 會使用單一整合 API,為 Flutter 應用程式包裝控制器和傳輸轉接器。
  • Catalog 說明語言模型可使用的小工具和屬性。
  • Surface 是用來顯示模型生成 UI 的小工具。

準備顯示生成的 Surface

在 lib/main.dart 中,現有程式碼包含 TextItem 類別,代表對話中的單一簡訊。在 TextItem 類別後方,立即新增 SurfaceItem 類別,代表代理建立的 Surface:

class TextItem extends ConversationItem {
  // ... existing code ...
}

// New!
class SurfaceItem extends ConversationItem {
  final String surfaceId;
  SurfaceItem({required this.surfaceId});
}

初始化 GenUI 建構模塊

在 lib/main.dart 頂端匯入 genui 程式庫:

import 'package:genui/genui.dart' hide TextPart;
import 'package:genui/genui.dart' as genui;

genui 套件和 firebase_ai 套件都包含 TextPart 類別。以這種方式匯入 genui,可將 TextPart 的版本命名空間設為 genui.TextPart,避免名稱衝突。

在 _MyHomePageState 的 _chatSession 後方宣告核心功能控制器:

class _MyHomePageState extends State<MyHomePage> {
  // ... existing members
  late final ChatSession _chatSession;

  // Add GenUI controllers
  late final SurfaceController _controller;
  late final A2uiTransportAdapter _transport;
  late final Conversation _conversation;
  late final Catalog catalog;

接著,更新 initState 以準備 GenUI 程式庫的控制器。

從 initState 中移除這一行:

_chatSession.sendMessage(Content.text(systemInstruction));

然後新增下列程式碼:

@override
void initState() {
  // ... existing code ...

  // Initialize the GenUI Catalog.
  // The genui package provides a default set of primitive widgets (like text
  // and basic buttons) out of the box using this class.
  catalog = BasicCatalogItems.asCatalog();

  // Create a SurfaceController to manage the state of generated surfaces.
  _controller = SurfaceController(catalogs: [catalog]);

  // Create a transport adapter that will process messages to and from the
  // agent, looking for A2UI messages.
  _transport = A2uiTransportAdapter(onSend: _sendAndReceive);

  // Link the transport and SurfaceController together in a Conversation,
  // which provides your app a unified API for interacting with the agent.
  _conversation = Conversation(
    controller: _controller,
    transport: _transport,
  );
}

這段程式碼會建立 Conversation 外觀,用於管理控制器和轉接程式。這段對話會為應用程式提供事件串流,讓應用程式掌握代理建立的內容,並提供傳送訊息給代理的方法。

接著,建立對話事件的監聽器。包括介面相關事件,以及簡訊和錯誤事件:

@override
void initState() {
  // ... existing code ...

  // Listen to GenUI stream events to update the UI
  _conversation.events.listen((event) {
    setState(() {
      switch (event) {
        case ConversationSurfaceAdded added:
          _items.add(SurfaceItem(surfaceId: added.surfaceId));
          _scrollToBottom();
        case ConversationSurfaceRemoved removed:
          _items.removeWhere(
            (item) =>
                item is SurfaceItem && item.surfaceId == removed.surfaceId,
          );
        case ConversationContentReceived content:
          _items.add(TextItem(text: content.text, isUser: false));
          _scrollToBottom();
        case ConversationError error:
          debugPrint('GenUI Error: ${error.error}');
        default:
      }
    });
  });
}

最後,建立系統提示並傳送給代理:

  @override
  void initState() {
    // ... existing code ...

    // Create the system prompt for the agent, which will include this app's
    // system instruction as well as the schema for the catalog.
    final promptBuilder = PromptBuilder.chat(
      catalog: catalog,
      systemPromptFragments: [systemInstruction],
    );

    // Send the prompt into the Conversation, which will subsequently route it
    // to Firebase using the transport mechanism.
    _conversation.sendRequest(
      ChatMessage.system(promptBuilder.systemPromptJoined()),
    );
  }

此外,請更新 _MyHomePageState 中的 dispose() 方法,以便在處置小工具時,妥善清理新加入的 GenUI 控制器:

  @override
  void dispose() {
    _conversation.dispose();
    _transport.dispose();
    _controller.dispose();
    _textController.dispose();
    _scrollController.dispose();
    super.dispose();
  }

顯示介面

接著,更新 ListView 的 build 方法,在 _items 清單中顯示 SurfaceItem:

Expanded(
  child: ListView(
    controller: _scrollController,
    padding: const EdgeInsets.all(16),
    children: [
      for (final item in _items)
        switch (item) {
          TextItem() => MessageBubble(
            text: item.text,
            isUser: item.isUser,
          ),
          // New!
          SurfaceItem() => Surface(
            surfaceContext: _controller.contextFor(
              item.surfaceId,
            ),
          ),
        },
    ],
  ),
),

Surface 小工具的建構函式會採用 surfaceContext,告知小工具負責顯示哪個介面。先前建立的 SurfaceController (即 _controller) 會提供每個介面的定義和狀態,並確保更新時會重建。

將 GenUI 連結至 Firebase AI Logic

genui 套件採用「自備模型」做法,也就是由您決定要使用哪個 LLM。在本例中,您使用的是 Firebase AI Logic,但這個套件可與各種代理程式和供應商搭配使用。

不過,這也代表您需要承擔額外責任:您必須將 genui 套件生成的訊息傳送給所選代理,並將代理的回覆傳回 genui。

為此,您要定義上一步程式碼中參照的 _sendAndReceive 方法。在 lib/main.dart 中,於 _MyHomePageState 類別內新增 _sendAndReceive (例如緊接在 late final Catalog catalog; 行之後):

class _MyHomePageState extends State<MyHomePage> {
  // ... existing code ...
  late final Catalog catalog;

  // New!
  Future<void> _sendAndReceive(ChatMessage msg) async {
    final buffer = StringBuffer();

    // Reconstruct the message part fragments
    for (final part in msg.parts) {
      if (part.isUiInteractionPart) {
        buffer.write(part.asUiInteractionPart!.interaction);
      } else if (part is genui.TextPart) {
        buffer.write(part.text);
      }
    }

    if (buffer.isEmpty) {
      return;
    }

    final text = buffer.toString();

    // Send the string to Firebase AI Logic.
    final response = await _chatSession.sendMessage(Content.text(text));

    if (response.text?.isNotEmpty ?? false) {
      // Feed the response back into GenUI's transportation layer
      _transport.addChunk(response.text!);
    }
  }

每當需要傳送訊息給代理程式時,genui 套件就會呼叫這個方法。方法結尾的 addChunk 呼叫會將代理的回覆傳回 genui 套件,讓套件處理回覆並產生 UI。

最後,請將現有的 _addMessage 方法完全替換為這個新版本,這樣訊息就會轉送至 Conversation,而不是直接傳送至 Firebase:

  Future<void> _addMessage() async {
    final text = _textController.text;

    if (text.trim().isEmpty) {
      return;
    }

    _textController.clear();

    setState(() {
      _items.add(TextItem(text: text, isUser: true));
    });

    _scrollToBottom();

    // Send the user's input through GenUI instead of directly to Firebase.
    await _conversation.sendRequest(ChatMessage.user(text));
  }

大功告成!再次嘗試執行應用程式。除了文字訊息,您還會看到代理生成 UI 介面,例如按鈕、文字小工具等。

您甚至可以要求代理以特定方式顯示 UI。例如「以欄顯示我的工作,並提供按鈕將各項工作標示為完成」。

5. 新增等待狀態

LLM 生成作業為非同步。等待回覆時,即時通訊介面需要停用輸入按鈕並顯示進度指標,讓使用者知道 GenUI 正在建立內容。幸好,genui 套件提供 Listenable,可用於追蹤對話狀態。該 ConversationState 值包含 isWaiting 屬性,用於判斷模型是否正在生成內容。

使用 ValueListenableBuilder 包裝輸入控制項

在 lib/main.dart 的 _MyHomePageState build 方法中,找出 Column 底部的 SafeArea 小工具,並使用監聽 _conversation.state 的 ValueListenableBuilder 包裝其子項 Row (包含 TextField 和 ElevatedButton)。檢查 state.isWaiting 時,您可以在模型生成內容時停用輸入功能:

SafeArea(
  child: Padding(
    padding: const EdgeInsets.symmetric(horizontal: 16.0),
    // Wrap the Row in a ValueListenableBuilder:
    child: ValueListenableBuilder<ConversationState>(
      valueListenable: _conversation.state,
      builder: (context, state, child) {
        return Row(
          children: [
            Expanded(
              child: TextField(
                controller: _textController,
                // Also disable the Enter key submission when waiting!
                onSubmitted: state.isWaiting ? null : (_) => _addMessage(),
                decoration: const InputDecoration(
                  hintText: 'Enter a message',
                ),
              ),
            ),
            const SizedBox(width: 8),
            ElevatedButton(
              // Disable the send button when the model is generating
              onPressed: state.isWaiting ? null : _addMessage,
              child: const Text('Send'),
            ),
          ],
        );
      },
    ),
  ),
),

新增進度列

在 _MyHomePageState 的 build 方法中,將主要 Column 小工具包裝在 Stack 內,並新增 ValueListenableBuilder,將 LinearProgressIndicator 算繪為該 Stack 的第二個子項。完成後,Scaffold 的 body 應如下所示:

body: Stack( // New!
  children: [
    Column(
      children: [
        // ... existing Expanded and SafeArea widgets ...
      ],
    ),
    // Listen to the state again, this time to render a progress indicator
    ValueListenableBuilder<ConversationState>(
      valueListenable: _conversation.state,
      builder: (context, state, child) {
        if (state.isWaiting) {
          return const LinearProgressIndicator();
        }
        return const SizedBox.shrink();
      },
    ),
  ],
),

6. 保留 GenUI Surface

到目前為止,工作清單都是在捲動的即時通訊訊息串中顯示,每當有新訊息或介面時,就會附加到清單中。在下一個步驟中,您將瞭解如何命名介面,並在 UI 中的特定位置顯示介面。

首先,在 lib/main.dart 頂端,於 void main() 之前,宣告要用做介面 ID 的常數:

const taskDisplaySurfaceId = 'task_display';

接著,在 initState() 中,更新 Conversation 監聽器中的 switch 陳述式,確保不會將任何具有該 ID 的介面新增至 _items。如要達成這個目標,請在 if 陳述式中包裝 _items.add(...) 和 _scrollToBottom() 行,藉此更新 _conversation.events.listen 內的 case ConversationSurfaceAdded added: 分支:

_conversation.events.listen((event) {
  setState(() {
    switch (event) {
      case ConversationSurfaceAdded added:
        // Wrap these two lines in an if check:
        if (added.surfaceId != taskDisplaySurfaceId) {
          _items.add(SurfaceItem(surfaceId: added.surfaceId));
          _scrollToBottom();
        }
      case ConversationSurfaceRemoved removed:
        // ... existing code ...

接著,在 _MyHomePageState.build 中開啟小工具樹狀結構的版面配置結構,在聊天記錄正前方建立固定介面的空間。在 Expanded(child: ListView(...)) 程式碼前,插入 AnimatedSize 和 const Divider() 做為主要 Column 的前兩個子項:

body: Stack(
  children: [
    Column(
      children: [
        // Insert these two new widgets at the top of the Column:
        AnimatedSize(
          duration: const Duration(milliseconds: 300),
          child: Container(
            padding: const EdgeInsets.all(16),
            alignment: Alignment.topLeft,
            child: Surface(
              surfaceContext: _controller.contextFor(
                taskDisplaySurfaceId,
              ),
            ),
          ),
        ),
        const Divider(),
        Expanded(
          child: ListView(
            // ... existing code ...

到目前為止,代理可自由建立及使用介面。如要提供更具體的指示,請返回系統提示。在 systemInstruction 常數中儲存的提示詞結尾,新增下列 ## USER INTERFACE 區段:

const systemInstruction = '''
  // ... existing prompt content ...

  ## USER INTERFACE
  *   To display the list of tasks create one and only one instance of the
    TaskDisplay catalog item. Use "$taskDisplaySurfaceId" as its surface ID.
  *   Update $taskDisplaySurfaceId as necessary when the list changes.
  *   $taskDisplaySurfaceId must include a button for each task that I can use
    to mark it complete. When I use that button to mark a task complete, it
    should send you a message indicating what I've done.
  *   Avoid repeating the same information in a single message.
  *   When responding with text, rather than A2UI messages, be brief.
''';

請務必為代理提供明確的指令,說明何時及如何使用 UI 介面。只要指示代理使用特定目錄項目和介面 ID (並重複使用單一執行個體),就能確保代理建立您想看到的介面。

還有更多工作要做,但您可以嘗試再次執行應用程式,看看代理是否會在 UI 頂端建立工作顯示介面。

7. 建立自訂目錄小工具

此時 TaskDisplay 目錄項目不存在。在接下來的幾個步驟中,您將建立資料結構定義、剖析該結構定義的類別、小工具,以及整合所有項目的目錄項目,藉此修正這個問題。

首先,在專案的 lib/ 目錄下建立名為 task_display.dart 的新檔案,並新增下列匯入項目:

import 'package:flutter/material.dart';
import 'package:genui/genui.dart';
import 'package:json_schema_builder/json_schema_builder.dart';

建立資料結構定義

接著,定義代理在建立工作顯示畫面時提供的資料架構。這項程序會使用 json_schema_builder 套件中的一些精細建構函式,但基本上,您只需定義用於代理往來訊息的 JSON 結構定義。

請先從參照元件名稱的基本 S.object 著手:

final taskDisplaySchema = S.object(
  properties: {
    'component': S.string(enumValues: ['TaskDisplay']),
  },
);

接著,將 title、tasks、name、isCompleted 和 completeAction 新增至結構定義屬性。

final taskDisplaySchema = S.object(
  properties: {
    'component': S.string(enumValues: ['TaskDisplay']),
    'title': S.string(description: 'The title of the task list'),
    'tasks': S.list(
      description: 'A list of tasks to be completed today',
      items: S.object(
        properties: {
          'name': S.string(description: 'The name of the task to be completed'),
          'isCompleted': S.boolean(
            description: 'Whether the task is completed',
          ),
          'completeAction': A2uiSchemas.action(
            description:
                'The action performed when the user has completed the task.',
          ),
        },
      ),
    ),
  },
);

請查看 completeAction 屬性。這是使用 A2uiSchemas.action 建立的,也就是代表 A2UI 動作的架構屬性建構函式。在結構定義中加入動作後,應用程式基本上會告訴代理程式:「嘿,當你給我工作時,也請提供動作的名稱和中繼資料,我可以用這些資料告訴你工作已完成。」稍後,當使用者輕觸核取方塊時,應用程式就會叫用該動作。

接著,將 required 欄位新增至結構定義。指示代理每次都填入特定屬性。在這種情況下,每項屬性都是必要屬性!

final taskDisplaySchema = S.object(
  properties: {
    'component': S.string(enumValues: ['TaskDisplay']),
    'title': S.string(description: 'The title of the task list'),
    'tasks': S.list(
      description: 'A list of tasks to be completed today',
      items: S.object(
        properties: {
          'name': S.string(description: 'The name of the task to be completed'),
          'isCompleted': S.boolean(
            description: 'Whether the task is completed',
          ),
          'completeAction': A2uiSchemas.action(
            description:
                'The action performed when the user has completed the task.',
          ),
        },
        // New!
        required: ['name', 'isCompleted', 'completeAction'],
      ),
    ),
  },
  // New!
  required: ['title', 'tasks'],
);

建立資料剖析類別

建立這個元件的執行個體時,代理會傳送符合結構定義的資料。新增兩個類別,將傳入的 JSON 剖析為強型別 Dart 物件。請注意 _TaskDisplayData 如何處理根結構,同時將內部陣列剖析作業委派給 _TaskData。

class _TaskData {
  final String name;
  final bool isCompleted;
  final String actionName;
  final JsonMap? actionContext;

  _TaskData({
    required this.name,
    required this.isCompleted,
    required this.actionName,
    this.actionContext,
  });

  factory _TaskData.fromJson(Map<String, Object?> json) {
    try {
      final action = json['completeAction']! as JsonMap;
      final event = action['event']! as JsonMap;

      return _TaskData(
        name: json['name'] as String,
        isCompleted: json['isCompleted'] as bool,
        actionName: event['name'] as String,
        actionContext: event['context'] as JsonMap?,
      );
    } catch (e) {
      throw Exception('Invalid JSON for _TaskData: $e');
    }
  }
}

class _TaskDisplayData {
  final String title;
  final List<_TaskData> tasks;

  _TaskDisplayData({required this.title, required this.tasks});

  factory _TaskDisplayData.fromJson(Map<String, Object?> json) {
    try {
      return _TaskDisplayData(
        title: (json['title'] as String?) ?? 'Tasks',
        tasks: (json['tasks'] as List<Object?>)
            .map((e) => _TaskData.fromJson(e as Map<String, Object?>))
            .toList(),
      );
    } catch (e) {
      throw Exception('Invalid JSON for _TaskDisplayData: $e');
    }
  }
}

如果您曾使用 Flutter 建構應用程式,這些類別可能與您建立的類別相似。這些函式接受 JsonMap,並傳回包含從 JSON 剖析資料的強型別物件。

查看 _TaskData 中的 actionName 和 actionContext 欄位。這些動作是從 JSON 的 completeAction 屬性擷取而來,包含動作名稱和資料背景資訊 (參照動作在 GenUI 資料模型中的位置)。稍後會用來建立 UserActionEvent。

資料模型是集中式、可觀測的儲存庫,用於儲存所有動態 UI 狀態,由 genui 程式庫維護。代理從目錄建立 UI 元件時,也會建立與元件結構定義相符的資料物件。這個資料物件會儲存在用戶端的資料模型中,因此可用於建構小工具,並在後續傳送給代理程式的訊息中參照 (例如您即將連線至小工具的 completeAction)。

新增小工具

現在,請建立小工具來顯示清單。這個函式應接受 _TaskDisplayData 類別的例項,以及工作完成時要叫用的回呼。

class _TaskDisplay extends StatelessWidget {
  final _TaskDisplayData data;
  final void Function(_TaskData) onCompleteTask;

  const _TaskDisplay({required this.data, required this.onCompleteTask});

  @override
  Widget build(BuildContext context) {
    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      mainAxisSize: MainAxisSize.min,
      children: [
        Padding(
          padding: const EdgeInsets.all(16.0),
          child: Text(
            data.title,
            style: Theme.of(context).textTheme.titleLarge,
          ),
        ),
        ...data.tasks.map(
          (task) => CheckboxListTile(
            title: Text(
              task.name,
              style: TextStyle(
                decoration: task.isCompleted
                    ? TextDecoration.lineThrough
                    : TextDecoration.none,
              ),
            ),
            value: task.isCompleted,
            onChanged: task.isCompleted
                ? null
                : (val) {
                    if (val == true) {
                      onCompleteTask(task);
                    }
                  },
          ),
        ),
      ],
    );
  }
}

建立 CatalogItem

建立結構定義、剖析器和 widget 後,您現在可以建立 CatalogItem,將這些項目連結在一起。

在 task_display.dart 底部,建立 taskDisplay 做為頂層變數,使用 _TaskDisplayData 剖析傳入的 JSON,並建構 _TaskDisplay 小工具的例項。

final taskDisplay = CatalogItem(
  name: 'TaskDisplay',
  dataSchema: taskDisplaySchema,
  widgetBuilder: (itemContext) {
    final json = itemContext.data as Map<String, Object?>;
    final data = _TaskDisplayData.fromJson(json);

    return _TaskDisplay(
      data: data,
      onCompleteTask: (task) async {
        // We will implement this next!
      },
    );
  },
);

實作 onCompleteTask

為了讓小工具正常運作,它必須在工作完成時回報給代理。使用下列程式碼取代空白的 onCompleteTask 預留位置,透過工作資料中的 completeAction 建立及傳送事件。

onCompleteTask: (task) async {
  // A data context is a reference to a location in the data model. This line
  // turns that reference into a concrete data object that the agent can use.
  // It's kind of like taking a pointer and replacing it with the value it
  // points to.
  final JsonMap resolvedContext = await resolveContext(
    itemContext.dataContext,
    task.actionContext,
  );

  // Dispatch an event back to the agent, letting it know a task was completed.
  // This will be sent to the agent in an A2UI message that includes the name
  // of the action, the surface ID, and the resolved data context.
  itemContext.dispatchEvent(
    UserActionEvent(
      name: task.actionName,
      sourceComponentId: itemContext.id,
      context: resolvedContext,
    ),
  );
}

註冊目錄項目

最後,開啟 main.dart,匯入新檔案,並與其他目錄項目一起註冊。

在 lib/main.dart 頂端新增這項匯入項目:

import 'task_display.dart';

將 initState() 函式中的 catalog = BasicCatalogItems.asCatalog(); 替換為:

// The Catalog is immutable, so use copyWith to create a new version
// that includes our custom catalog item along with the basics.
catalog = BasicCatalogItems.asCatalog().copyWith(newItems: [taskDisplay]);

大功告成!熱重新啟動應用程式,即可查看變更。

8. 嘗試與代理互動的不同方式

在 Chrome 中執行的工作清單應用程式

現在您已將新小工具新增至目錄,並在應用程式的 UI 中為小工具預留空間,接下來就能開始使用代理程式。GenUI 的主要優點之一,是提供兩種與資料互動的方式:透過按鈕和核取方塊等應用程式 UI,以及透過能理解自然語言並推論資料的代理。歡迎嘗試這兩種做法!

  • 在文字欄位中描述三或四項工作,然後觀察這些工作是否顯示在清單中。
  • 使用核取方塊,將工作切換為完成或未完成。
  • 建立一份包含 5 到 6 項工作的清單,然後要求代理移除需要開車前往某處的工作。
  • 請智慧助理將重複性工作清單建立為個別項目 (「我要為媽媽、爸爸和奶奶購買節慶卡片。請為這些項目建立個別工作。」)。
  • 請代理將所有工作標示為完成或未完成,或勾選前兩、三項工作。

9. 恭喜

恭喜!您已使用生成式 UI 和 Flutter 建構 AI 輔助的工作追蹤應用程式。

目前所學內容

  • 使用 Flutter Firebase SDK 與 Google 基礎模型互動
  • 使用 GenUI 算繪 Gemini 生成的互動式介面
  • 使用預先決定的靜態算繪 ID,在版面配置中固定介面
  • 設計自訂結構定義和小工具目錄,打造穩健的互動循環

參考文件
