Building a Multi-Agent System

1. Introduction

Overview

In this lab, you will go beyond simple chatbots and build a distributed multi-agent system.

While a single LLM can answer questions, real-world complexity often requires specialized roles. You don't ask your backend engineer to design the UI, and you don't ask your designer to optimize database queries. Similarly, we can create specialized AI agents that focus on one task and coordinate with each other to solve complex problems.

You will build a Course Creation System consisting of:

Researcher Agent: Using google_search to find up-to-date information.
Judge Agent: Critiquing the research for quality and completeness.
Content Builder Agent: Turning the research into a structured course.
Orchestrator Agent: Managing the workflow and communication between these specialists.

Prerequisites

Basic Python knowledge.
Familiarity with Google Cloud Console.

What you'll do

Define a tool-using agent (researcher) that can search the web.
Implement structured output with Pydantic for the judge.
Connect to remote agents using the Agent-to-Agent (A2A) protocol.
Construct a LoopAgent to create a feedback loop between the researcher and judge.
Run the distributed system locally using the ADK.
Deploy the multi-agent system to Google Cloud Run.

Architecture & Orchestration Principles

Before we write code, let's understand how these agents work together. We are building a Course Creation Pipeline.

The System Design

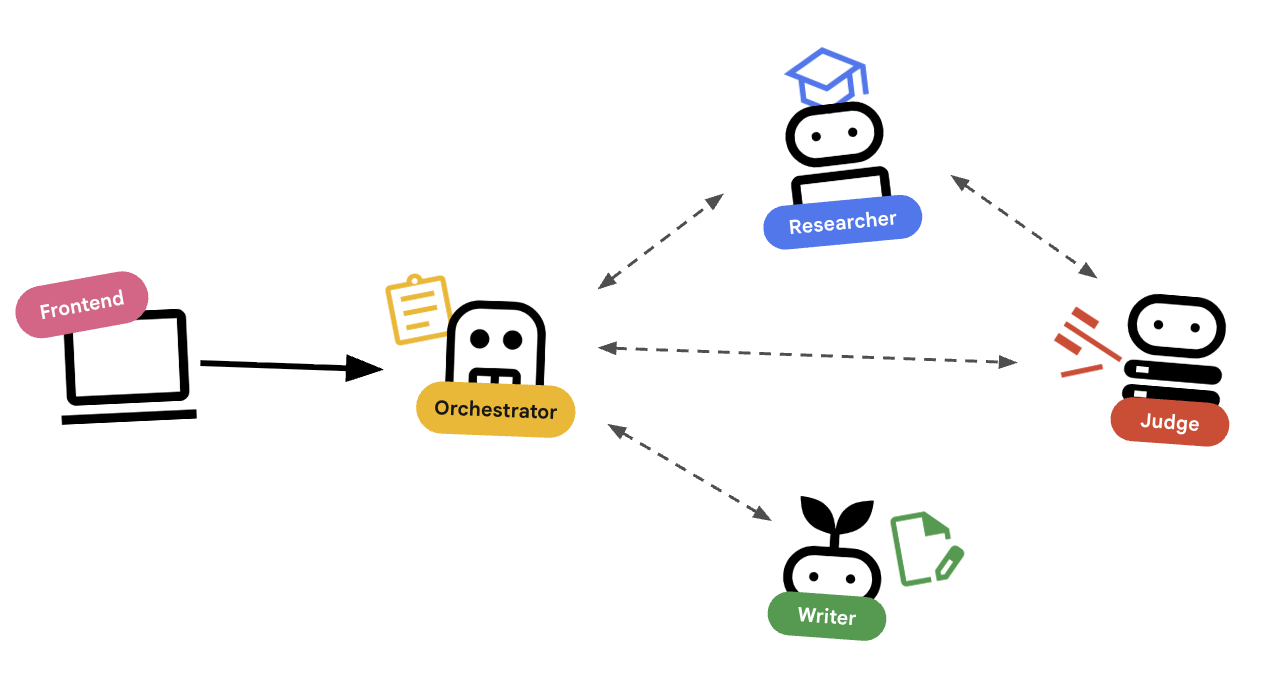

Architecture Diagram

Orchestrating with Agents

Standard agents (like the Researcher) do work. Orchestrator Agents (like LoopAgent or SequentialAgent) manage other agents. They don't have their own tools; their "tool" is delegation.

LoopAgent: This acts like a while loop in code. It runs a sequence of agents repeatedly until a condition is met (or max iterations reached). We use this for the Research Loop:
- Researcher finds info.
- Judge critiques it.
- If Judge says "Fail", the EscalationChecker lets the loop continue.
- If Judge says "Pass", the EscalationChecker breaks the loop.
SequentialAgent: This acts like a standard script execution. It runs agents one after another. We use this for the High-Level Pipeline:
- First, run the Research Loop (until it finishes with good data).
- Then, run the Content Builder (to write the course).

By combining these, we create a robust system that can self-correct before generating the final output.

2. Setup

Environment Setup

Open Cloud Shell: Open a new tab and type in shell.cloud.google.com

Get the Starter Code

Clone the starter repository into your home directory:

cd ~
git clone https://github.com/amitkmaraj/prai-roadshow-lab-1-starter.git
cd prai-roadshow-lab-1-starter

Run the init script to associate onramp credits with billing.
```
chmod +x ./init.sh
./init.sh
```
Open this folder in your editor.

Enable APIs

Now that you have a new project, run the following command to enable the necessary Google Cloud services:

gcloud services enable \
    run.googleapis.com \
    artifactregistry.googleapis.com \
    cloudbuild.googleapis.com \
    aiplatform.googleapis.com \
    compute.googleapis.com

This may take a few seconds.

Install Dependencies

We use uv for fast dependency management.

Install the project dependencies:

# Ensure you have uv installed: pip install uv
uv sync

Set your Google Cloud Project ID.
- Tip: You can find your Project ID in the Cloud Console dashboard, or by running gcloud config get-value project.
```
export GOOGLE_CLOUD_PROJECT=$(gcloud config get-value project)
```
Set the remaining environment variables:
```
export GOOGLE_CLOUD_LOCATION=us-central1
export GOOGLE_GENAI_USE_VERTEXAI=true
```
Warning: Environment variables are not persisted across new terminal sessions. If you open a new terminal tab, you must re-run these export commands.

3. 🕵️ The Researcher Agent

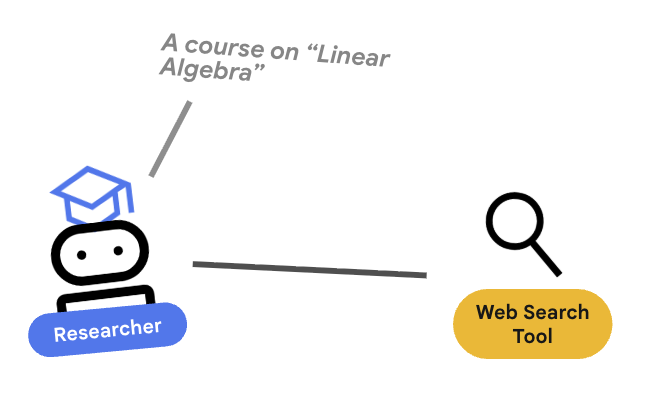

Researcher Agent

The Researcher is a specialist. Its only job is to find information. To do this, it needs access to a tool: Google Search.

Why separate the Researcher?

Deep Dive: Why not just have one agent do everything?

Small, focused agents are easier to evaluate and debug. If the research is bad, you iterate on the Researcher's prompt. If the course formatting is bad, you iterate on the Content Builder. In a monolithic "do-it-all" prompt, fixing one thing often breaks another.

If you are working in Cloud Shell, run the following command to open Cloud Shell editor:
```
cloudshell workspace .
```
If you are working in your local environment, open your favorite IDE.
Open agents/researcher/agent.py.
You will see a skeleton with a TODO.

Add the following code to define the researcher agent:

# ... existing imports ...

# Define the Researcher Agent
researcher = Agent(
    name="researcher",
    model=MODEL,
    description="Gathers information on a topic using Google Search.",
    instruction="""
    You are an expert researcher. Your goal is to find comprehensive and accurate information on the user's topic.
    Use the `google_search` tool to find relevant information.
    Summarize your findings clearly.
    If you receive feedback that your research is insufficient, use the feedback to refine your next search.
    """,
    tools=[google_search],
)

root_agent = researcher

Key Concept: Tool Use

Notice we pass tools=[google_search]. The ADK handles the complexity of describing this tool to the LLM. When the model decides it needs information, it generates a structured tool call, the ADK executes the Python function google_search, and feeds the result back to the model.

4. ⚖️ The Judge Agent

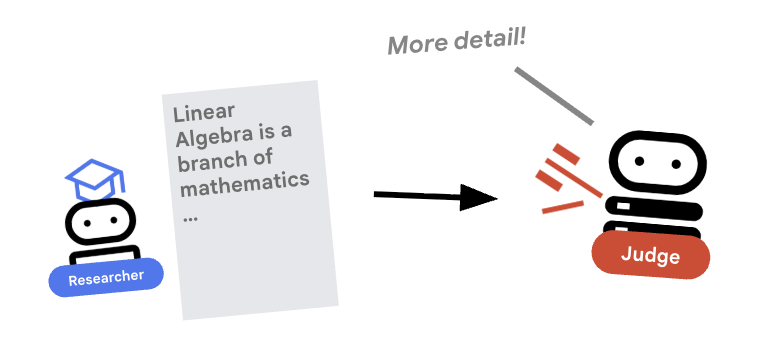

Judge Agent

The Researcher works hard, but LLMs can be lazy. We need a Judge to review the work. The Judge accepts the research and returns a structured Pass/Fail assessment.

Structured Output

Deep Dive: To automate workflows, we need predictable outputs. A rambling text review is hard to parse programmatically. By enforcing a JSON schema (using Pydantic), we ensure the Judge returns a boolean pass or fail that our code can reliably act upon.

Open agents/judge/agent.py.

Define the JudgeFeedback schema and the judge agent.

# 1. Define the Schema
class JudgeFeedback(BaseModel):
    """Structured feedback from the Judge agent."""
    status: Literal["pass", "fail"] = Field(
        description="Whether the research is sufficient ('pass') or needs more work ('fail')."
    )
    feedback: str = Field(
        description="Detailed feedback on what is missing. If 'pass', a brief confirmation."
    )

# 2. Define the Agent
judge = Agent(
    name="judge",
    model=MODEL,
    description="Evaluates research findings for completeness and accuracy.",
    instruction="""
    You are a strict editor.
    Evaluate the 'research_findings' against the user's original request.
    If the findings are missing key info, return status='fail'.
    If they are comprehensive, return status='pass'.
    """,
    output_schema=JudgeFeedback,
    # Disallow delegation because it should only output the schema
    disallow_transfer_to_parent=True,
    disallow_transfer_to_peers=True,
)

root_agent = judge

Key Concept: Restricting Agent Behavior

We set disallow_transfer_to_parent=True and disallow_transfer_to_peers=True. This forces the Judge to only return the structured JudgeFeedback. It cannot decide to "chat" with the user or delegate to another agent. This makes it a deterministic component in our logic flow.

5. 🧪 Testing in Isolation

Before connecting them, we can verify that each agent works. The ADK allows you to run agents individually.

Key Concept: The Interactive Runtime

adk run spins up a lightweight environment where you are the "user". This allows you to test the agent's instructions and tool usage in isolation. If the agent fails here (e.g., can't use Google Search), it will definitely fail in the orchestration.

Run the Researcher interactively. Note we point to the specific agent directory:

# This runs the researcher agent in interactive mode
uv run adk run agents/researcher

In the chat prompt, type:
```
Find the population of Tokyo in 2020
```
It should use the Google Search tool and return the answer.Note: If you see an error indicating the project, location and use of vertex is not set, make sure your project ID is set and execute the following:
```
export GOOGLE_CLOUD_PROJECT=$(gcloud config get-value project)
export GOOGLE_CLOUD_LOCATION=us-central1
export GOOGLE_GENAI_USE_VERTEXAI=true
```
Exit the chat (Ctrl+C).
Run the Judge interactively:
```
uv run adk run agents/judge
```
In the chat prompt, simulate the input:
```
Topic: Tokyo. Findings: Tokyo is a city.
```
It should return status='fail' because the findings are too brief.

6. ✍️ The Content Builder Agent

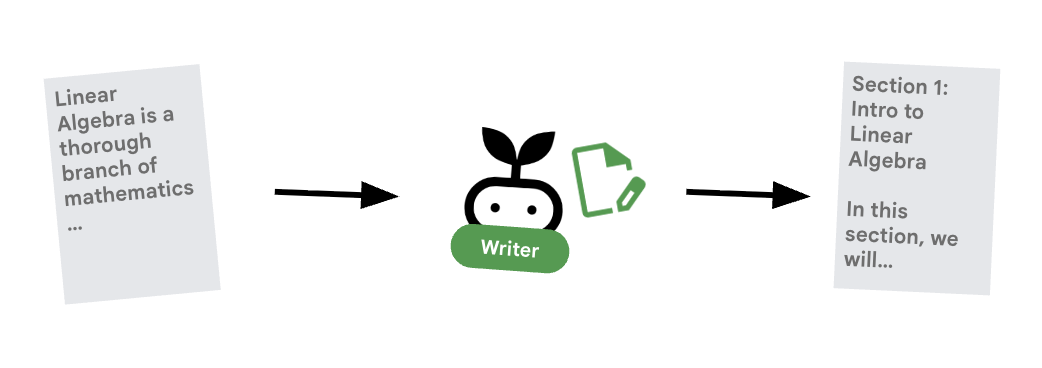

Content Builder

The Content Builder is the creative writer. It takes the approved research and turns it into a course.

Open agents/content_builder/agent.py.

Define the content_builder agent.

content_builder = Agent(
    name="content_builder",
    model=MODEL,
    description="Transforms research findings into a structured course.",
    instruction="""
    You are an expert course creator.
    Take the approved 'research_findings' and transform them into a well-structured, engaging course module.

    **Formatting Rules:**
    1. Start with a main title using a single `#` (H1).
    2. Use `##` (H2) for main section headings.
    3. Use bullet points and clear paragraphs.
    4. Maintain a professional but engaging tone.

    Ensure the content directly addresses the user's original request.
    """,
)
root_agent = content_builder

Key Concept: Context Propagation

You might wonder: "How does the Content Builder know what the Researcher found?" In the ADK, agents in a pipeline share a session.state. Later, in the Orchestrator, we will configure the Researcher and Judge to save their outputs to this shared state. The Content Builder's prompt effectively has access to this history.

7. 🎻 The Orchestrator

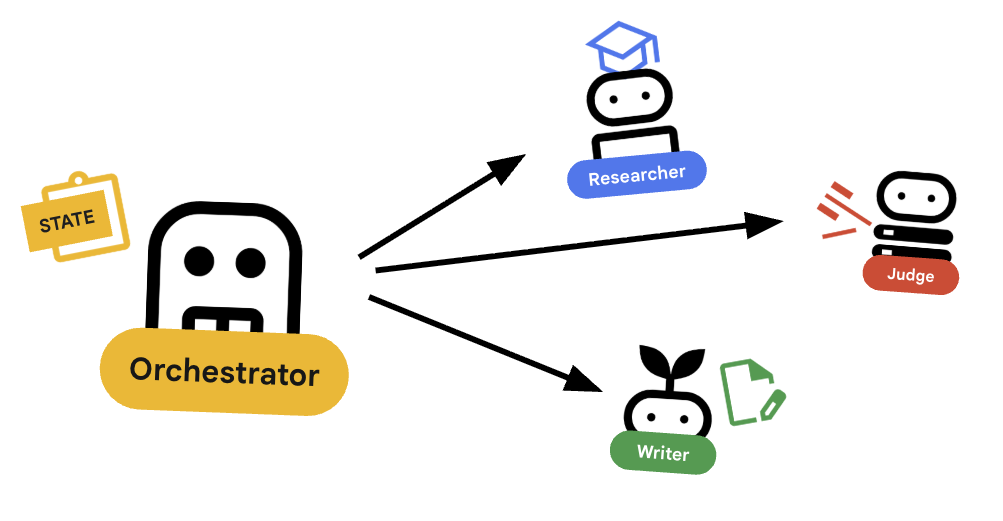

Orchestrator Agent

The Orchestrator is the manager of our multi-agent team. Unlike the specialist agents (Researcher, Judge, Content Builder) who perform specific tasks, the Orchestrator's job is to coordinate the workflow and ensure information flows correctly between them.

🌐 The Architecture: Agent-to-Agent (A2A)

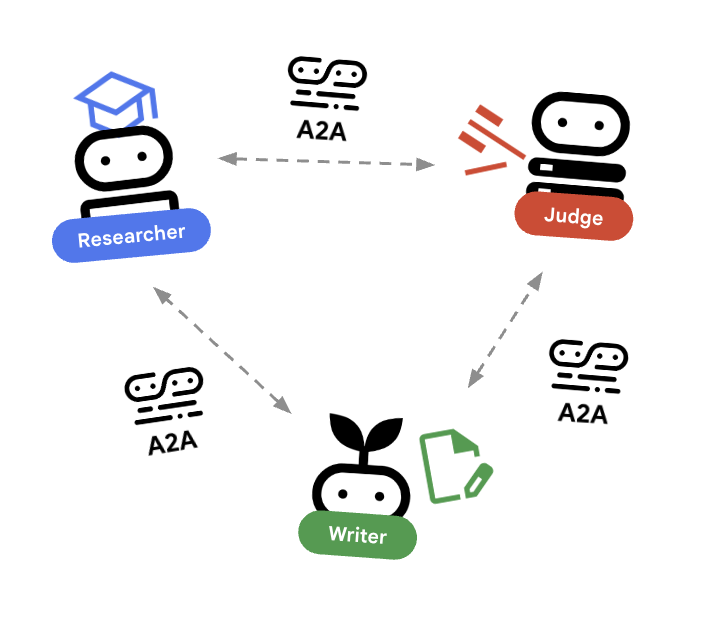

A2A Architecture

In this lab, we are building a distributed system. Instead of running all agents in a single Python process, we deploy them as independent microservices. This allows each agent to scale independently and fail without crashing the entire system.

To make this possible, we use the Agent-to-Agent (A2A) protocol.

The A2A Protocol

Deep Dive: In a production system, agents run on different servers (or even different clouds). The A2A protocol creates a standard way for them to discover and talk to each other over HTTP. RemoteA2aAgent is the ADK client for this protocol.

Open agents/orchestrator/agent.py.
Locate the comment # TODO: Define Remote Agents or the section for remote agent definitions.

Add the following code to define the connections. Make sure to place this after the imports and before any other agent definitions.

# ... existing code ...

# Connect to the Researcher (Localhost port 8001)
researcher_url = os.environ.get("RESEARCHER_AGENT_CARD_URL", "http://localhost:8001/a2a/agent/.well-known/agent-card.json")
researcher = RemoteA2aAgent(
    name="researcher",
    agent_card=researcher_url,
    description="Gathers information using Google Search.",
    # IMPORTANT: Save the output to state for the Judge to see
    after_agent_callback=create_save_output_callback("research_findings"),
    # IMPORTANT: Use authenticated client for communication
    httpx_client=create_authenticated_client(researcher_url)
)

# Connect to the Judge (Localhost port 8002)
judge_url = os.environ.get("JUDGE_AGENT_CARD_URL", "http://localhost:8002/a2a/agent/.well-known/agent-card.json")
judge = RemoteA2aAgent(
    name="judge",
    agent_card=judge_url,
    description="Evaluates research.",
    after_agent_callback=create_save_output_callback("judge_feedback"),
    httpx_client=create_authenticated_client(judge_url)
)

# Content Builder (Localhost port 8003)
content_builder_url = os.environ.get("CONTENT_BUILDER_AGENT_CARD_URL", "http://localhost:8003/a2a/agent/.well-known/agent-card.json")
content_builder = RemoteA2aAgent(
    name="content_builder",
    agent_card=content_builder_url,
    description="Builds the course.",
    httpx_client=create_authenticated_client(content_builder_url)
)

8. 🛑 The Escalation Checker

A loop needs a way to stop. If the Judge says "Pass", we want to exit the loop immediately and move to the Content Builder.

Custom Logic with BaseAgent

Deep Dive: Not all agents use LLMs. Sometimes you need simple Python logic. BaseAgent lets you define an agent that just runs code. In this case, we check the session state and use EventActions(escalate=True) to signal the LoopAgent to stop.

Still in agents/orchestrator/agent.py.
Find the EscalationChecker TODO placeholder.

Replace it with the following implementation:

class EscalationChecker(BaseAgent):
    """Checks the judge's feedback and escalates (breaks the loop) if it passed."""

    async def _run_async_impl(
        self, ctx: InvocationContext
    ) -> AsyncGenerator[Event, None]:
        # Retrieve the feedback saved by the Judge
        feedback = ctx.session.state.get("judge_feedback")
        print(f"[EscalationChecker] Feedback: {feedback}")

        # Check for 'pass' status
        is_pass = False
        if isinstance(feedback, dict) and feedback.get("status") == "pass":
            is_pass = True
        # Handle string fallback if JSON parsing failed
        elif isinstance(feedback, str) and '"status": "pass"' in feedback:
            is_pass = True

        if is_pass:
            # 'escalate=True' tells the parent LoopAgent to stop looping
            yield Event(author=self.name, actions=EventActions(escalate=True))
        else:
            # Continue the loop
            yield Event(author=self.name)

escalation_checker = EscalationChecker(name="escalation_checker")

Key Concept: Control Flow via Events

Agents communicate not just with text, but with Events. By yielding an event with escalate=True, this agent sends a signal up to its parent (the LoopAgent). The LoopAgent is programmed to catch this signal and terminate the loop.

9. 🔁 The Research Loop

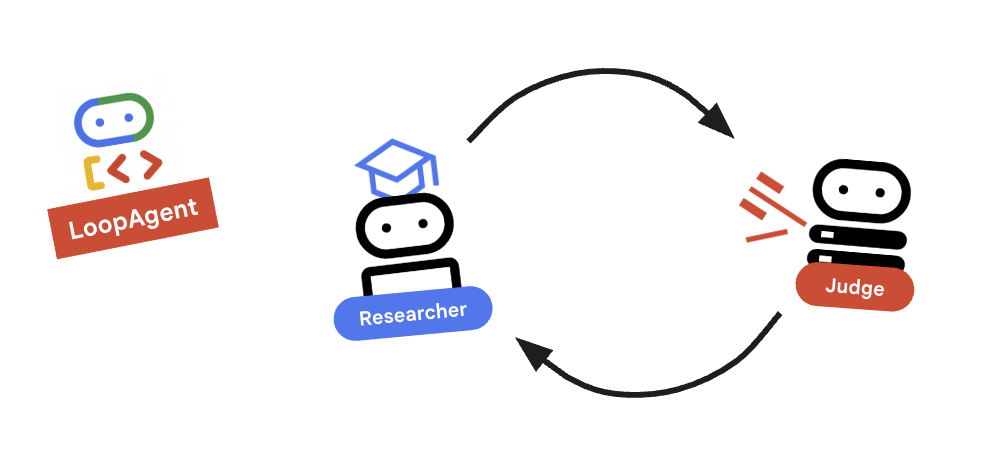

Research Loop

We need a feedback loop: Research -> Judge -> (Fail) -> Research -> ...

Still in agents/orchestrator/agent.py.

Add the research_loop definition. Place this after the EscalationChecker class and escalation_checker instance.

research_loop = LoopAgent(
    name="research_loop",
    description="Iteratively researches and judges until quality standards are met.",
    sub_agents=[researcher, judge, escalation_checker],
    max_iterations=3,
)

Key Concept: LoopAgent

The LoopAgent cycles through its sub_agents in order.

researcher: Finds data.
judge: Evaluates data.
escalation_checker: Decides whether to yield Event(escalate=True). If escalate=True happens, the loop breaks early. Otherwise, it restarts at the researcher (up to max_iterations).

10. 🔗 The Final Pipeline

Final Pipeline

Finally, stitch it all together.

Still in agents/orchestrator/agent.py.

Define the root_agent at the bottom of the file. Ensure this replaces any existing root_agent = None placeholder.

root_agent = SequentialAgent(
    name="course_creation_pipeline",
    description="A pipeline that researches a topic and then builds a course from it.",
    sub_agents=[research_loop, content_builder],
)

Key Concept: Hierarchical Composition

Notice that research_loop is itself an agent (a LoopAgent). We treat it just like any other sub-agent in the SequentialAgent. This composability allows you to build complex logic by nesting simple patterns (loops inside sequences, sequences inside routers, etc.).

11. 💻 Run Locally

Before we run everything, let's look at how the ADK simulates the distributed environment locally.

Deep Dive: How Local Development Works

In a microservices architecture, every agent runs as its own server. When you deploy, you'll have 4 different Cloud Run services. Simulating this locally can be painful if you have to open 4 terminal tabs and run 4 commands.

This script starts uvicorn processes for the Researcher (port 8001), Judge (8002), and Content Builder (8003). It sets environment variables like RESEARCHER_AGENT_CARD_URL and passes them to the Orchestrator (port 8004). This is exactly how we'll configure it in the cloud later!

App Running

Run the orchestration script:
```
./run_local.sh
```
This starts 4 separate processes.
Test it:
- If using Cloud Shell: Click the Web Preview button (top right of the terminal) -> Preview on port 8080 -> Change port to 8000.
- If running locally: Open http://localhost:8000 in your browser.
- Prompt: "Create a course about the history of coffee."
- Observe: The Orchestrator will call the Researcher. The output goes to the Judge. If the Judge fails it, the loop continues!
Troubleshooting:
- "Internal Server Error" / Auth Errors: If you see authentication errors (e.g., related to google-auth), ensure you have run gcloud auth application-default login if running on a local machine. In Cloud Shell, ensure your GOOGLE_CLOUD_PROJECT environment variable is set correctly.
- Terminal Errors: If the command fails in a new terminal window, remember to re-export your environment variables (GOOGLE_CLOUD_PROJECT, etc.).
Testing Agents in Isolation: Even when the full system is running, you can test specific agents by targeting their ports directly. This is useful for debugging a specific component without triggering the entire chain.
- Researcher Only (Port 8001): http://localhost:8001
- Judge Only (Port 8002): http://localhost:8002
- Content Builder Only (Port 8003): http://localhost:8003
- Orchestrator (Port 8004): http://localhost:8004 (Direct access to Orchestrator logic)

12. 🚀 Deploy to Cloud Run

The ultimate validation is running in the cloud. We will deploy each agent as a separate service.

Understanding Deployment Configuration

When deploying agents to Cloud Run, we pass several environment variables to configure their behavior and connectivity:

GOOGLE_CLOUD_PROJECT: Ensures the agent uses the correct Google Cloud project for logging and Vertex AI calls.
GOOGLE_GENAI_USE_VERTEXAI: Tells the agent framework (ADK) to use Vertex AI for model inference instead of calling Gemini APIs directly.
[AGENT]_AGENT_CARD_URL: This is crucial for the Orchestrator. It tells the Orchestrator where to find the remote agents. By setting this to the deployed Cloud Run URL (specifically the agent card path), we enable the Orchestrator to discover and communicate with the Researcher, Judge, and Content Builder over the internet.

Deploy the Researcher:

gcloud run deploy researcher \
  --source agents/researcher/ \
  --region us-central1 \
  --allow-unauthenticated \
  --labels dev-tutorial=prod-ready-1 \
  --set-env-vars GOOGLE_CLOUD_PROJECT=$GOOGLE_CLOUD_PROJECT \
  --set-env-vars GOOGLE_GENAI_USE_VERTEXAI="true"

Capture the URL:

RESEARCHER_URL=$(gcloud run services describe researcher --region us-central1 --format='value(status.url)')
echo $RESEARCHER_URL

Deploy the Judge:

gcloud run deploy judge \
  --source agents/judge/ \
  --region us-central1 \
  --allow-unauthenticated \
  --labels dev-tutorial=prod-ready-1 \
  --set-env-vars GOOGLE_CLOUD_PROJECT=$GOOGLE_CLOUD_PROJECT \
  --set-env-vars GOOGLE_GENAI_USE_VERTEXAI="true"

Capture the URL:

JUDGE_URL=$(gcloud run services describe judge --region us-central1 --format='value(status.url)')
echo $JUDGE_URL

Deploy the Content Builder:

gcloud run deploy content-builder \
  --source agents/content_builder/ \
  --region us-central1 \
  --allow-unauthenticated \
  --labels dev-tutorial=prod-ready-1 \
  --set-env-vars GOOGLE_CLOUD_PROJECT=$GOOGLE_CLOUD_PROJECT \
  --set-env-vars GOOGLE_GENAI_USE_VERTEXAI="true"

Capture the URL:

CONTENT_BUILDER_URL=$(gcloud run services describe content-builder --region us-central1 --format='value(status.url)')
echo $CONTENT_BUILDER_URL

Deploy the Orchestrator: Use the captured environment variables to configure the Orchestrator.

gcloud run deploy orchestrator \
  --source agents/orchestrator/ \
  --region us-central1 \
  --allow-unauthenticated \
  --labels dev-tutorial=prod-ready-1 \
  --set-env-vars RESEARCHER_AGENT_CARD_URL=$RESEARCHER_URL/a2a/agent/.well-known/agent-card.json \
  --set-env-vars JUDGE_AGENT_CARD_URL=$JUDGE_URL/a2a/agent/.well-known/agent-card.json \
  --set-env-vars CONTENT_BUILDER_AGENT_CARD_URL=$CONTENT_BUILDER_URL/a2a/agent/.well-known/agent-card.json \
  --set-env-vars GOOGLE_CLOUD_PROJECT=$GOOGLE_CLOUD_PROJECT \
  --set-env-vars GOOGLE_GENAI_USE_VERTEXAI="true"

Capture the URL:

ORCHESTRATOR_URL=$(gcloud run services describe orchestrator --region us-central1 --format='value(status.url)')
echo $ORCHESTRATOR_URL

Deploy the Frontend:

gcloud run deploy course-creator \
    --source app \
    --region us-central1 \
    --allow-unauthenticated \
    --labels dev-tutorial=prod-ready-1 \
    --set-env-vars AGENT_SERVER_URL=$ORCHESTRATOR_URL \
    --set-env-vars GOOGLE_CLOUD_PROJECT=$GOOGLE_CLOUD_PROJECT

Test Remote Deployment: Open the URL of your deployed Orchestrator. It's now running entirely in the cloud, utilizing Google's serverless infrastructure to scale your agents!Hint: You will find all the micro-services and their URLs in the Cloud Run interface

13. Summary

Congratulations! You have successfully built and deployed a production-ready, distributed multi-agent system.

What we've accomplished

Decomposed a Complex Task: Instead of one giant prompt, we split the work into specialized roles (Researcher, Judge, Content Builder).
Implemented Quality Control: We used a LoopAgent and a structured Judge to ensure only high-quality information reaches the final step.
Built for Production: By using the Agent-to-Agent (A2A) protocol and Cloud Run, we created a system where each agent is an independent, scalable microservice. This is far more robust than running everything in a single Python script.
Orchestration: We used SequentialAgent and LoopAgent to define clear control flow patterns.

Next Steps

Now that you have the foundation, you can extend this system:

Add more tools: Give the Researcher access to internal documents or APIs.
Improve the Judge: Add more specific criteria or even a "Human in the Loop" step.
Swap Models: Try using different models for different agents (e.g., a faster model for the Judge, a stronger model for the Content Writer).

You are now ready to build complex, reliable agentic workflows on Google Cloud!
