Deploy ADK agents to Google Kubernetes Engine (GKE)

1. Introduction

Overview

This lab bridges the critical gap between developing a powerful multi-agent system and deploying it for real-world use. While building agents locally is a great start, production applications require a platform that is scalable, reliable, and secure.

In this lab, you will take a multi-agent system built with the Google Agent Development Kit (ADK) and deploy it to a production-grade environment on Google Kubernetes Engine (GKE).

Film concept team agent

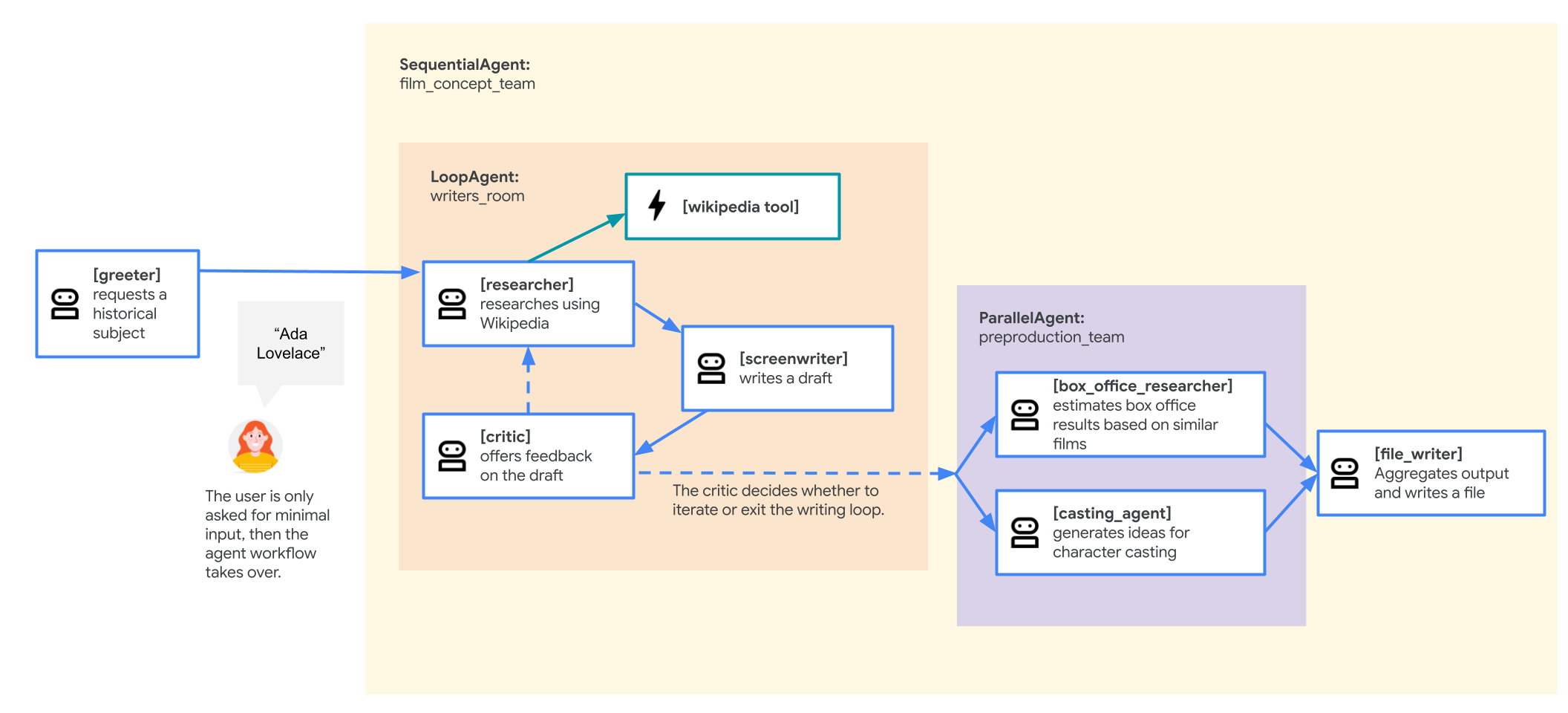

The sample application used in this lab is a "film concept team" composed of multiple collaborating agents: a researcher, a screenwriter, and a file writer. These agents work together to help a user brainstorm and outline a movie pitch about a historical figure.

diagram of agent flow

Why deploy to GKE?

To prepare your agent for the demands of a production environment, you need a platform built for scalability, security, and cost-efficiency. Google Kubernetes Engine (GKE) provides this powerful and flexible foundation for running your containerized application.

This provides several advantages for your production workload:

  • Automatic scaling & performance: Handle unpredictable traffic with the HorizontalPodAutoscaler (HPA), which automatically adds or removes agent replicas based on load. For more demanding AI workloads, you can attach hardware accelerators like GPUs and TPUs.
  • Cost-effective resource management: Optimize costs with GKE Autopilot, which automatically manages the underlying infrastructure so you only pay for the resources your application requests.
  • Integrated security & observability: Securely connect to other Google Cloud services using Workload Identity, which avoids the need to manage and store service account keys. All application logs are automatically streamed to Cloud Logging for centralized monitoring and debugging.
  • Control & portability: Avoid vendor lock-in with open-source Kubernetes. Your application is portable and can run on any Kubernetes cluster, on-premises or in other clouds.

What you'll learn

In this lab, you learn how to perform the following tasks:

  • Provision a GKE Autopilot cluster.
  • Containerize an application with a Dockerfile and push the image to Artifact Registry.
  • Securely connect your application to Google Cloud APIs using Workload Identity.
  • Write and apply Kubernetes manifests for a Deployment and Service.
  • Expose an application to the internet with a LoadBalancer.
  • Configure autoscaling with a HorizontalPodAutoscaler (HPA).

2. Project setup

Google Account

If you don't already have a personal Google Account, you must create a Google Account.

Use a personal account instead of a work or school account.

Sign-in to the Google Cloud Console

Sign-in to the Google Cloud Console using a personal Google account.

Enable Billing

Set up a personal billing account

If you set up billing using Google Cloud credits, you can skip this step.

To set up a personal billing account, go here to enable billing in the Cloud Console.

Some Notes:

  • Completing this lab should cost less than $1 USD in Cloud resources.
  • You can follow the steps at the end of this lab to delete resources to avoid further charges.
  • New users are eligible for the $300 USD Free Trial.

Create a project (optional)

If you do not have a current project you'd like to use for this lab, create a new project here.

3. Open Cloud Shell Editor

  1. Click this link to navigate directly to Cloud Shell Editor
  2. If prompted to authorize at any point today, click Authorize to continue.Click to authorize Cloud Shell
  3. If the terminal doesn't appear at the bottom of the screen, open it:
    • Click View
    • Click TerminalOpen new terminal in Cloud Shell Editor
  4. In the terminal, set your project with this command:
    gcloud config set project [PROJECT_ID]
    • Example:
      gcloud config set project lab-project-id-example
    • If you can't remember your project ID, you can list all your project IDs with:
      gcloud projects list
      Set project id in Cloud Shell Editor terminal
  5. You should see this message:
    Updated property [core/project].

4. Enable APIs

To use GKE, Artifact Registry, Cloud Build, and Vertex AI, you need to enable their respective APIs in your Google Cloud project.

  • In the terminal, enable the APIs:
    gcloud services enable \
  container.googleapis.com \
  artifactregistry.googleapis.com \
  cloudbuild.googleapis.com \
  aiplatform.googleapis.com
    When this finish running, you should see an output like the following:
    Operation "operations/acf.p2-176675280136-b03ab5e4-3483-4ebf-9655-43dc3b345c63" finished successfully.

Introducing the APIs

  • Google Kubernetes Engine API (container.googleapis.com) allows you to create and manage the GKE cluster that runs your agent. GKE provides a managed environment for deploying, managing, and scaling your containerized applications using Google infrastructure.
  • Artifact Registry API (artifactregistry.googleapis.com) provides a secure, private repository to store your agent's container image. It is the evolution of Container Registry and integrates seamlessly with GKE and Cloud Build.
  • Cloud Build API (cloudbuild.googleapis.com) is used by the gcloud builds submit command to build your container image in the cloud from your Dockerfile. It is a serverless CI/CD platform that executes your builds on Google Cloud infrastructure.
  • Vertex AI API (aiplatform.googleapis.com) enables your deployed agent to communicate with Gemini models to perform its core tasks. It provides the unified API for all of Google Cloud's AI services.

5. Prepare your development environment

Create the directory structure

  1. In the terminal, create the project directory and the necessary subdirectories:
    mkdir -p ~/adk_multiagent_system_gke/workflow_agents
cd ~/adk_multiagent_system_gke
  2. In the terminal, run the following command to open the directory in the Cloud Shell Editor explorer.
    cloudshell open-workspace ~/adk_multiagent_systems

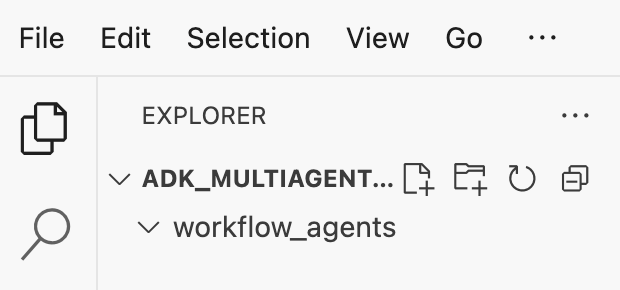

  3. The explorer panel on the left will refresh. You should now see the directories you created.
    screenshot of current file structure
    As you create files in the following steps, you will see the files populate in this directory.

Create starter files

You will now create the necessary starter files for the application.

  1. Create callback_logging.py by running the following in the terminal. This file handles logging for observability.
    cat <<EOF > ~/adk_multiagent_systems/callback_logging.py
"""
Provides helper functions for observability. Handles formatting and sending
agent queries, responses, and tool calls to Google Cloud Logging to aid
in monitoring and debugging.
"""
import logging
import google.cloud.logging

from google.adk.agents.callback_context import CallbackContext
from google.adk.models import LlmResponse, LlmRequest


def log_query_to_model(callback_context: CallbackContext, llm_request: LlmRequest):
    cloud_logging_client = google.cloud.logging.Client()
    cloud_logging_client.setup_logging()
    if llm_request.contents and llm_request.contents[-1].role == 'user':
         if llm_request.contents[-1].parts and "text" in llm_request.contents[-1].parts:
            last_user_message = llm_request.contents[-1].parts[0].text
            logging.info(f"[query to {callback_context.agent_name}]: " + last_user_message)

def log_model_response(callback_context: CallbackContext, llm_response: LlmResponse):
    cloud_logging_client = google.cloud.logging.Client()
    cloud_logging_client.setup_logging()
    if llm_response.content and llm_response.content.parts:
        for part in llm_response.content.parts:
            if part.text:
                logging.info(f"[response from {callback_context.agent_name}]: " + part.text)
            elif part.function_call:
                logging.info(f"[function call from {callback_context.agent_name}]: " + part.function_call.name)
EOF
  2. Create workflow_agents/__init__.py by running the following in the terminal. This marks the directory as a Python package.
    cat <<EOF > ~/adk_multiagent_systems/workflow_agents/__init__.py
"""
Marks the directory as a Python package and exposes the agent module,
allowing the ADK to discover and register the agents defined within.
"""
from . import agent
EOF
  3. Create workflow_agents/agent.py by running the following in the terminal. This file contains the core logic for your multi-agent team.
    cat <<EOF > ~/adk_multiagent_systems/workflow_agents/agent.py
"""
Defines the core multi-agent workflow. Configures individual agents (Researcher,
Screenwriter, File Writer), assigns their specific tools, and orchestrates
their collaboration using the ADK's SequentialAgent pattern.
"""
import os
import logging
import google.cloud.logging

from callback_logging import log_query_to_model, log_model_response
from dotenv import load_dotenv

from google.adk import Agent
from google.adk.agents import SequentialAgent, LoopAgent, ParallelAgent
from google.adk.tools.tool_context import ToolContext
from google.adk.tools.langchain_tool import LangchainTool  # import
from google.genai import types

from langchain_community.tools import WikipediaQueryRun
from langchain_community.utilities import WikipediaAPIWrapper


cloud_logging_client = google.cloud.logging.Client()
cloud_logging_client.setup_logging()

load_dotenv()

model_name = os.getenv("MODEL")
print(model_name)

# Tools


def append_to_state(
    tool_context: ToolContext, field: str, response: str
) -> dict[str, str]:
    """Append new output to an existing state key.

    Args:
        field (str): a field name to append to
        response (str): a string to append to the field

    Returns:
        dict[str, str]: {"status": "success"}
    """
    existing_state = tool_context.state.get(field, [])
    tool_context.state[field] = existing_state + [response]
    logging.info(f"[Added to {field}] {response}")
    return {"status": "success"}


def write_file(
    tool_context: ToolContext,
    directory: str,
    filename: str,
    content: str
) -> dict[str, str]:
    target_path = os.path.join(directory, filename)
    os.makedirs(os.path.dirname(target_path), exist_ok=True)
    with open(target_path, "w") as f:
        f.write(content)
    return {"status": "success"}


# Agents

file_writer = Agent(
    name="file_writer",
    model=model_name,
    description="Creates marketing details and saves a pitch document.",
    instruction="""
    PLOT_OUTLINE:
    { PLOT_OUTLINE? }

    INSTRUCTIONS:
    - Create a marketable, contemporary movie title suggestion for the movie described in the PLOT_OUTLINE. If a title has been suggested in PLOT_OUTLINE, you can use it, or replace it with a better one.
    - Use your 'write_file' tool to create a new txt file with the following arguments:
        - for a filename, use the movie title
        - Write to the 'movie_pitches' directory.
        - For the 'content' to write, extract the following from the PLOT_OUTLINE:
            - A logline
            - Synopsis or plot outline
    """,
    generate_content_config=types.GenerateContentConfig(
        temperature=0,
    ),
    tools=[write_file],
)

screenwriter = Agent(
    name="screenwriter",
    model=model_name,
    description="As a screenwriter, write a logline and plot outline for a biopic about a historical character.",
    instruction="""
    INSTRUCTIONS:
    Your goal is to write a logline and three-act plot outline for an inspiring movie about a historical character(s) described by the PROMPT: { PROMPT? }

    - If there is CRITICAL_FEEDBACK, use those thoughts to improve upon the outline.
    - If there is RESEARCH provided, feel free to use details from it, but you are not required to use it all.
    - If there is a PLOT_OUTLINE, improve upon it.
    - Use the 'append_to_state' tool to write your logline and three-act plot outline to the field 'PLOT_OUTLINE'.
    - Summarize what you focused on in this pass.

    PLOT_OUTLINE:
    { PLOT_OUTLINE? }

    RESEARCH:
    { research? }

    CRITICAL_FEEDBACK:
    { CRITICAL_FEEDBACK? }
    """,
    generate_content_config=types.GenerateContentConfig(
        temperature=0,
    ),
    tools=[append_to_state],
)

researcher = Agent(
    name="researcher",
    model=model_name,
    description="Answer research questions using Wikipedia.",
    instruction="""
    PROMPT:
    { PROMPT? }

    PLOT_OUTLINE:
    { PLOT_OUTLINE? }

    CRITICAL_FEEDBACK:
    { CRITICAL_FEEDBACK? }

    INSTRUCTIONS:
    - If there is a CRITICAL_FEEDBACK, use your wikipedia tool to do research to solve those suggestions
    - If there is a PLOT_OUTLINE, use your wikipedia tool to do research to add more historical detail
    - If these are empty, use your Wikipedia tool to gather facts about the person in the PROMPT
    - Use the 'append_to_state' tool to add your research to the field 'research'.
    - Summarize what you have learned.
    Now, use your Wikipedia tool to do research.
    """,
    generate_content_config=types.GenerateContentConfig(
        temperature=0,
    ),
    tools=[
        LangchainTool(tool=WikipediaQueryRun(api_wrapper=WikipediaAPIWrapper())),
        append_to_state,
    ],
)

film_concept_team = SequentialAgent(
    name="film_concept_team",
    description="Write a film plot outline and save it as a text file.",
    sub_agents=[
        researcher,
        screenwriter,
        file_writer
    ],
)

root_agent = Agent(
    name="greeter",
    model=model_name,
    description="Guides the user in crafting a movie plot.",
    instruction="""
    - Let the user know you will help them write a pitch for a hit movie. Ask them for
      a historical figure to create a movie about.
    - When they respond, use the 'append_to_state' tool to store the user's response
      in the 'PROMPT' state key and transfer to the 'film_concept_team' agent
    """,
    generate_content_config=types.GenerateContentConfig(
        temperature=0,
    ),
    tools=[append_to_state],
    sub_agents=[film_concept_team],
)
EOF

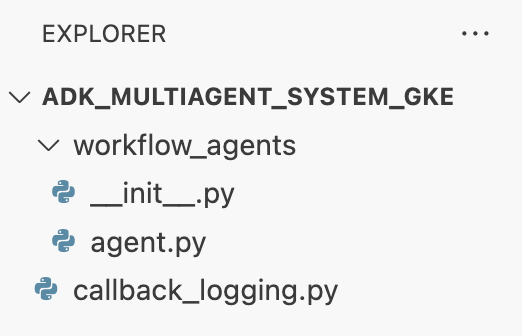

Your file structure should now look like this:
screenshot of current file structure

Set up the virtual environment

  • In the terminal, create and activate a virtual environment using uv. This ensures your project dependencies don't conflict with the system Python.
    uv venv
source .venv/bin/activate

Install requirements

  1. Run the following command in the terminal to create the requirements.txt file.
    cat <<EOF > ~/adk_multiagent_systems/requirements.txt
# Lists all Python dependencies required to run the multi-agent system,
# including the Google ADK, LangChain community tools, and web server libraries.
langchain-community==0.3.20
wikipedia==1.4.0
google-adk==1.8.0
fastapi==0.121.2
uvicorn==0.38.0
EOF
  2. Install the required packages into your virtual environment in the terminal.
    uv pip install -r requirements.txt

Set up environment variables

  1. Use the following command in the terminal to create the .env file, automatically inserting your project ID and region.
    cat <<EOF > ~/adk_multiagent_systems/.env
GOOGLE_CLOUD_PROJECT="$(gcloud config get-value project)"
GOOGLE_CLOUD_PROJECT_NUMBER="$(gcloud projects describe $(gcloud config get-value project) --format='value(projectNumber)')"
GOOGLE_CLOUD_LOCATION="us-central1"
GOOGLE_GENAI_USE_VERTEXAI=true
MODEL="gemini-2.5-flash"
EOF
  2. In the terminal, load the variables into your shell session.
    source .env

Recap

In this section, you established the local foundation for your project:

  • Created the directory structure and necessary agent starter files (agent.py, callback_logging.py, requirements.txt).
  • Isolated your dependencies using a virtual environment (uv).
  • Configured environment variables (.env) to store project-specific details like your Project ID and Region.

6. Explore the agent file

You have set up the source code for the lab, including a pre-written, multi-agent system. Before you deploy the application, it's helpful to understand how the agents are defined. The core agent logic resides in workflow_agents/agent.py.

  1. In the Cloud Shell Editor, use the file explorer on the left to navigate to adk_multiagent_system_gke/workflow_agents/ and open the agent.py file.
  2. Take a moment to look through the file. You don't need to understand every line, but notice the high-level structure:
    • Individual agents: The file defines three distinct Agent objects: researcher, screenwriter, and file_writer. Each agent is given a specific instruction (its prompt) and a list of tools it is allowed to use (like the WikipediaQueryRun tool or a custom write_file tool).
    • Agent composition: The individual agents are chained together into a SequentialAgent called film_concept_team. This tells the ADK to run these agents one after another, passing the state from one to the next.
    • The root agent: A root_agent (named "greeter") is defined to handle the initial user interaction. When the user provides a prompt, this agent saves it to the application's state and then transfers control to the film_concept_team workflow.

Understanding this structure helps clarify what you are about to deploy: not just a single agent, but a coordinated team of specialized agents orchestrated by the ADK.

7. Create a GKE Autopilot cluster

With your environment prepared, the next step is to provision the infrastructure where your agent application will run. You will create a GKE Autopilot cluster, which serves as the foundation for your deployment. We use Autopilot mode because it handles the complex management of the cluster's underlying nodes, scaling, and security, allowing you to focus purely on deploying your application.

  1. In the terminal, create a new GKE Autopilot cluster named adk-cluster.
    gcloud container clusters create-auto adk-cluster \
  --location=$GOOGLE_CLOUD_LOCATION \
  --project=$GOOGLE_CLOUD_PROJECT
    This command provisions a fully managed Kubernetes cluster. GKE Autopilot automatically configures nodes, scaling, and security, simplifying cluster operations.
  2. Once the cluster is created, configure kubectl to connect to it by running this in the terminal:
    gcloud container clusters get-credentials adk-cluster \
  --location=$GOOGLE_CLOUD_LOCATION \
  --project=$GOOGLE_CLOUD_PROJECT
    This command connects your local environment to your new GKE cluster. It automatically fetches the cluster's endpoint and authentication credentials and updates a local configuration file (~/.kube/config). From this point on, the kubectl command-line tool will be authenticated and directed to communicate with your adk-cluster.

Recap

In this section, you provisioned the infrastructure:

  • Created a fully managed GKE Autopilot cluster using gcloud.
  • Configured your local kubectl tool to authenticate and communicate with the new cluster.

8. Containerize and push the application

Your agent's code currently exists only in your Cloud Shell environment. To run it on GKE, you must first package it into a container image. A container image is a static, portable file that bundles your application's code with all its dependencies. When you run this image, it becomes a live container.

This process involves three key steps:

  • Create an entry point: Define a main.py file to turn your agent logic into a runnable web server.
  • Define the container image: Create a Dockerfile that acts as a blueprint for building your container image.
  • Build and push: Use Cloud Build to execute the Dockerfile, creating the container image and pushing it to Google Artifact Registry, a secure repository for your images.

Prepare the application for deployment

Your ADK agent needs a web server to receive requests. The main.py file will serve as this entry point, using the FastAPI framework to expose your agent's functionality over HTTP.

  1. In the root of the adk_multiagent_system_gke directory in the terminal, create a new file called main.py.
    cat <<EOF > ~/adk_multiagent_systems/main.py
"""
Serves as the application entry point. Initializes the FastAPI web server,
discovers the agents defined in the workflow directory, and exposes them
via HTTP endpoints for interaction.
"""

import os

import uvicorn
from fastapi import FastAPI
from google.adk.cli.fast_api import get_fast_api_app

# Get the directory where main.py is located
AGENT_DIR = os.path.dirname(os.path.abspath(__file__))

# Configure the session service (e.g., SQLite for local storage)
SESSION_SERVICE_URI = "sqlite:///./sessions.db"

# Configure CORS to allow requests from various origins for this lab
ALLOWED_ORIGINS = ["http://localhost", "http://localhost:8080", "*"]

# Enable the ADK's built-in web interface
SERVE_WEB_INTERFACE = True

# Call the ADK function to discover agents and create the FastAPI app
app: FastAPI = get_fast_api_app(
    agents_dir=AGENT_DIR,
    session_service_uri=SESSION_SERVICE_URI,
    allow_origins=ALLOWED_ORIGINS,
    web=SERVE_WEB_INTERFACE,
)

# You can add more FastAPI routes or configurations below if needed
# Example:
# @app.get("/hello")
# async def read_root():
#     return {"Hello": "World"}

if __name__ == "__main__":
    # Get the port from the PORT environment variable provided by the container runtime
    # Run the Uvicorn server, listening on all available network interfaces (0.0.0.0)
    uvicorn.run(app, host="0.0.0.0", port=int(os.environ.get("PORT", 8080)))
EOF
    This file uses the ADK library to discover the agents in your project and wrap them in a FastAPI web application. The uvicorn server runs this application, listening on host 0.0.0.0 to accept connections from any IP address and on the port specified by the PORT environment variable, which we will set later in our Kubernetes manifest.

    At this point, your file structure as seen in the explorer panel in the Cloud Shell Editor should look like this: screenshot of current file structure

Containerize the ADK agent with Docker

To deploy our application to GKE, we first need to package it into a container image, which bundles our application's code with all the libraries and dependencies it needs to run. We will use Docker to create this container image.

  1. In the root of the adk_multiagent_system_gke directory in the terminal, create a new file called Dockerfile.
    cat <<'EOF' > ~/adk_multiagent_systems/Dockerfile
# Defines the blueprint for the container image. Installs dependencies,
# sets up a secure non-root user, and specifies the startup command to run the
# agent web server.

# Use an official lightweight Python image as the base
FROM python:3.13-slim

# Set the working directory inside the container
WORKDIR /app

# Create a non-root user for security best practices
RUN adduser --disabled-password --gecos "" myuser

# Copy and install dependencies first to leverage Docker's layer caching
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt

# Copy all application code into the container
COPY . .

# Create the directory where the agent will write files at runtime
# The -p flag ensures the command doesn't fail if the directory already exists
RUN mkdir -p movie_pitches

# Change ownership of EVERYTHING in /app to the non-root user
# Without this, the running agent would be denied permission to write files.
RUN chown -R myuser:myuser /app

# Switch the active user from root to the non-root user
USER myuser

# Add the user's local binary directory to the system's PATH
ENV PATH="/home/myuser/.local/bin:$PATH"

# Define the command to run when the container starts
CMD ["sh", "-c", "uvicorn main:app --host 0.0.0.0 --port $PORT"]
EOF
    At this point, your file structure as seen in the explorer panel in the Cloud Shell Editor should look like this: screenshot of current file structure

Build and push the container image to Artifact Registry

Now that you have a Dockerfile, you will use Cloud Build to build the image and push it to Artifact Registry, a secure, private registry integrated with Google Cloud services. GKE will pull the image from this registry to run your application.

  1. In the terminal, create a new Artifact Registry repository to store your container image.
    gcloud artifacts repositories create adk-repo \
  --repository-format=docker \
  --location=$GOOGLE_CLOUD_LOCATION \
  --description="ADK repository"
  2. In the terminal, use gcloud builds submit to build your container image and push it to the repository.
    gcloud builds submit \
  --tag $GOOGLE_CLOUD_LOCATION-docker.pkg.dev/$GOOGLE_CLOUD_PROJECT/adk-repo/adk-agent:latest \
  --project=$GOOGLE_CLOUD_PROJECT \
  .
    This single command uses Cloud Build, a serverless CI/CD platform, to execute the steps in your Dockerfile. It builds the image in the cloud, tags it with the address of your Artifact Registry repository, and pushes it there automatically.
  3. From the terminal, verify the image is built:
    gcloud artifacts docker images list \
  $GOOGLE_CLOUD_LOCATION-docker.pkg.dev/$GOOGLE_CLOUD_PROJECT/adk-repo \
  --project=$GOOGLE_CLOUD_PROJECT

Recap

In this section, you packaged your code for deployment:

  • Created a main.py entry point to wrap your agents in a FastAPI web server.
  • Defined a Dockerfile to bundle your code and dependencies into a portable image.
  • Used Cloud Build to build the image and push it to a secure Artifact Registry repository.

9. Create Kubernetes manifests

Now that your container image is built and stored in Artifact Registry, you need to instruct GKE on how to run it. This involves two main activities:

  • Configuring permissions: You will create a dedicated identity for your agent within the cluster and grant it secure access to the Google Cloud APIs it needs (specifically, Vertex AI).
  • Defining the application state: You will write a Kubernetes manifest file, a YAML document that declaratively defines everything your application needs to run, including the container image, environment variables, and how it should be exposed to the network.

Configure Kubernetes Service Account for Vertex AI

Your agent needs permission to communicate with the Vertex AI API to access Gemini models. The most secure, recommended method for granting this permission in GKE is Workload Identity. Workload Identity allows you to link a Kubernetes-native identity (a Kubernetes Service Account) with a Google Cloud identity (an IAM Service Account), completely avoiding the need to download, manage, and store static JSON keys.

  1. In the terminal, create the Kubernetes Service Account (adk-agent-sa). This creates an identity for your agent inside the GKE cluster that your pods can use.
    kubectl create serviceaccount adk-agent-sa
  2. In the terminal, link your Kubernetes Service Account to Google Cloud IAM by creating a policy binding. This command grants the aiplatform.user role to your adk-agent-sa, allowing it to securely invoke the Vertex AI API.
    gcloud projects add-iam-policy-binding projects/${GOOGLE_CLOUD_PROJECT} \
    --role=roles/aiplatform.user \
    --member=principal://iam.googleapis.com/projects/${GOOGLE_CLOUD_PROJECT_NUMBER}/locations/global/workloadIdentityPools/${GOOGLE_CLOUD_PROJECT}.svc.id.goog/subject/ns/default/sa/adk-agent-sa \
    --condition=None

Create the Kubernetes manifest files

Kubernetes uses YAML manifest files to define the desired state of your application. You will create a deployment.yaml file containing two essential Kubernetes objects: a Deployment and a Service.

  1. From the terminal, generate the deployment.yaml file.
    cat <<EOF > ~/adk_multiagent_systems/deployment.yaml
# Defines the Kubernetes resources required to deploy the application to GKE.
# Includes the Deployment (to run the container pods) and the Service
# (to expose the application via a Load Balancer).
apiVersion: apps/v1
kind: Deployment
metadata:
  name: adk-agent
spec:
  replicas: 1
  selector:
    matchLabels:
      app: adk-agent
  template:
    metadata:
      labels:
        app: adk-agent
    spec:
      # Assign the Kubernetes Service Account for Workload Identity
      serviceAccountName: adk-agent-sa
      containers:
      - name: adk-agent
        imagePullPolicy: Always
        # The path to the container image in Artifact Registry
        image: ${GOOGLE_CLOUD_LOCATION}-docker.pkg.dev/${GOOGLE_CLOUD_PROJECT}/adk-repo/adk-agent:latest
        # Define the resources for GKE Autopilot to provision
        resources:
          limits:
            memory: "1Gi"
            cpu: "1000m"
            ephemeral-storage: "512Mi"
          requests:
            memory: "1Gi"
            cpu: "1000m"
            ephemeral-storage: "512Mi"
        ports:
        - containerPort: 8080
        # Environment variables passed to the application
        env:
        - name: PORT
          value: "8080"
        - name: GOOGLE_CLOUD_PROJECT
          value: ${GOOGLE_CLOUD_PROJECT}
        - name: GOOGLE_CLOUD_LOCATION
          value: ${GOOGLE_CLOUD_LOCATION}
        - name: GOOGLE_GENAI_USE_VERTEXAI
          value: "true"
        - name: MODEL
          value: "gemini-2.5-flash"
---
apiVersion: v1
kind: Service
metadata:
  name: adk-agent
spec:
  # Create a public-facing Network Load Balancer with an external IP
  type: LoadBalancer
  ports:
  - port: 80
    targetPort: 8080
  selector:
    app: adk-agent
EOF

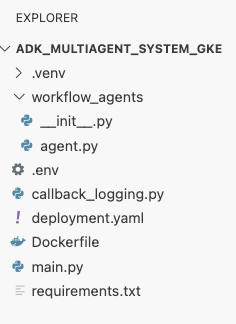

    At this point, your file structure as seen in the explorer panel in the Cloud Shell Editor should look like this:screenshot of current file structure

Recap

In this section, you defined the security and deployment configuration:

  • Created a Kubernetes Service Account and linked it to Google Cloud IAM using Workload Identity, allowing your pods to securely access Vertex AI without managing keys.
  • Generated a deployment.yaml file that defines the Deployment (how to run the pods) and the Service (how to expose them via a Load Balancer).

10. Deploy the application to GKE

With your manifest file defined and your container image pushed to Artifact Registry, you are now ready to deploy your application. In this task, you will use kubectl to apply your configuration to the GKE cluster and then monitor the status to ensure your agent starts up correctly.

  1. In your terminal, apply the deployment.yaml manifest to your cluster.
    kubectl apply -f deployment.yaml
    The kubectl apply command sends your deployment.yaml file to the Kubernetes API server. The server then reads your configuration and orchestrates the creation of the Deployment and Service objects.
  2. In the terminal, check the status of your deployment in real-time. Wait for the pods to be in the Running state.
    kubectl get pods -l=app=adk-agent --watch
    You will see the pod move through several phases:
    • Pending: The pod has been accepted by the cluster, but the container hasn't been created yet.
    • Container creating: GKE is pulling your container image from Artifact Registry and starting the container.
    • Running: Success! The container is running, and your agent application is live.
  3. Once the status shows Running, press CTRL+C in the terminal to stop the watch command and return to the command prompt.

Recap

In this section, you launched the workload:

  • Used kubectl apply to send your manifest to the cluster.
  • Monitored the Pod lifecycle (Pending -> ContainerCreating -> Running) to ensure the application started successfully.

11. Interact with the agent

Your ADK agent is now running live on GKE and is exposed to the internet via a public Load Balancer. You will connect to the agent's web interface to interact with it and verify that the entire system is working correctly.

Find the external IP Address of your service

To access the agent, you first need to get the public IP address that GKE provisioned for your Service.

  1. In the terminal, run the following command to get the details of your service.
    kubectl get service adk-agent
  2. Look for the value in the EXTERNAL-IP column. It may take a minute or two for the IP address to be assigned after you first deploy the service. If it shows as pending, wait a minute and run the command again. The output will look similar to this:
    NAME                TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)        AGE
adk-agent-service   LoadBalancer   10.120.12.234   34.123.45.67    80:31234/TCP   5m
    The address listed under EXTERNAL-IP (e.g., 34.123.45.67) is the public entry point to your agent.

Test the deployed agent

Now you can use the public IP address to access the ADK's built-in web UI directly from your browser.

  1. Copy the external IP address (EXTERNAL-IP) from the terminal.
  2. Open a new tab in your web browser and type in http://[EXTERNAL-IP], replacing [EXTERNAL-IP] with the IP address you copied.
  3. You should now see the ADK web interface.
  4. Ensure workflow_agents is selected in the agent drop-down menu.
  5. Toggle on Token Streaming.
  6. Type hello and hit enter to begin a new conversation.
  7. Observe the result. The agent should respond quickly with its greeting: "I can help you write a pitch for a hit movie. What historical figure would you like to make a movie about?"
  8. When prompted to choose a historical character, choose one that interests you. Some ideas include:
    • the most successful female pirate in history
    • the woman who invented the first computer compiler
    • a legendary lawman of the American Wild West

Recap

In this section, you verified the deployment:

  • Retrieved the External IP address allocated by the LoadBalancer.
  • Accessed the ADK Web UI via a browser to confirm the multi-agent system is responsive and functional.

12. Configure autoscaling

A key challenge in production is handling unpredictable user traffic. Hard-coding a fixed number of replicas, as you did in the previous task, means you either overpay for idle resources or risk poor performance during traffic spikes. GKE solves this with automatic scaling.

You will configure a HorizontalPodAutoscaler (HPA), a Kubernetes controller that automatically adjusts the number of running pods in your Deployment based on real-time CPU utilization.

  1. In the Cloud Shell Editor terminal, create a new hpa.yaml file in the root of the adk_multiagent_system_gke directory.
    cloudshell edit ~/adk_multiagent_systems/hpa.yaml
  2. Add the following content to the new hpa.yaml file:
    # Configures the HorizontalPodAutoscaler (HPA) to automatically scale
# the number of running agent pods up or down based on CPU utilization
# to handle varying traffic loads.

apiVersion: autoscaling/v1
kind: HorizontalPodAutoscaler
metadata:
  name: adk-agent-hpa
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: adk-agent
  minReplicas: 1
  maxReplicas: 5
  targetCPUUtilizationPercentage: 50

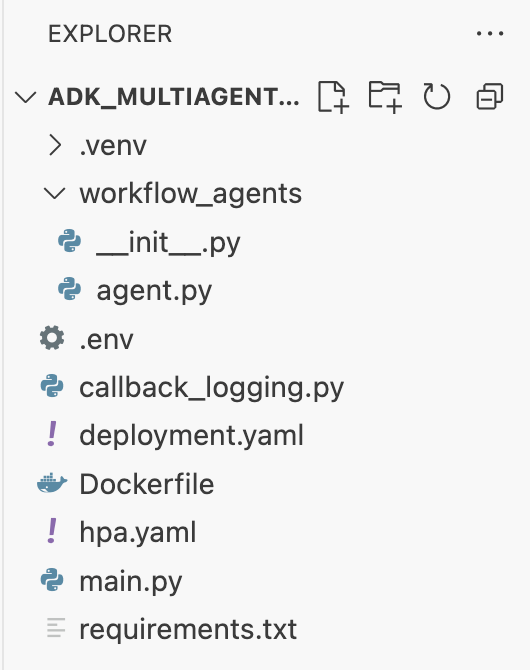

    This HPA object targets our adk-agent Deployment. It ensures there is always at least 1 pod running, sets a maximum of 5 pods, and will add/remove replicas to keep average CPU utilization around 50%.At this point, your file structure as seen in the explorer panel in the Cloud Shell Editor should look like this: screenshot of current file structure
  3. Apply the HPA to your cluster by pasting this into the terminal.
    kubectl apply -f hpa.yaml

Verify the autoscaler

The HPA is now active and monitoring your deployment. You can inspect its status to see it in action.

  1. Run the following command in the terminal to get the status of your HPA.
    kubectl get hpa adk-agent-hpa
    The output will look similar to this:
    NAME            REFERENCE          TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
adk-agent-hpa   Deployment/adk-agent   0%/50%    1         5         1          30s
    Your agent will now automatically scale in response to traffic.

Recap

In this section, you optimized for production traffic:

  • Created an hpa.yaml manifest to define scaling rules.
  • Deployed the HorizontalPodAutoscaler (HPA) to automatically adjust the number of pod replicas based on CPU utilization.

13. Preparing for production

Note: The following sections are for informational purposes only and do not contain further steps to execute. They are designed to provide context and best practices for taking your application to production.

Tune performance with resource allocation

In GKE Autopilot, you control the amount of CPU and memory provisioned for your application by specifying resource requests in your deployment.yaml.

If you find your agent is slow or crashing due to a lack of memory, you can increase its resource allocation by editing the resources block in your deployment.yaml and reapplying the file with kubectl apply.

For example, to double the memory:

# In deployment.yaml
# ...
        resources:
          requests:
            memory: "2Gi"  # Increased from 1Gi
            cpu: "1000m"
# ...

Automate your workflow with CI/CD

In this lab, you ran commands manually. The professional practice is to create a CI/CD (Continuous Integration/Continuous Deployment) pipeline. By connecting a source code repository (like GitHub) to a Cloud Build trigger, you can automate the entire deployment.

With a pipeline, every time you push a code change, Cloud Build can automatically:

  1. Build the new container image.
  2. Push the image to Artifact Registry.
  3. Apply the updated Kubernetes manifests to your GKE cluster.

Manage secrets securely

In this lab, you stored configuration in a .env file and passed it to your application. This is convenient for development but is not secure for sensitive data like API keys. The recommended best practice is to use Secret Manager to securely store secrets.

GKE has a native integration with Secret Manager that allows you to mount secrets directly into your pods as either environment variables or files, without them ever being checked into your source code.

Here is the Clean up resources section you requested, inserted just before the Conclusion section.

14. Clean up resources

To avoid incurring charges to your Google Cloud account for the resources used in this tutorial, either delete the project that contains the resources, or keep the project and delete the individual resources.

Delete the GKE cluster

The GKE cluster is the primary cost driver in this lab. Deleting it stops the compute charges.

  1. In the terminal, run the following command:
    gcloud container clusters delete adk-cluster \
  --location=$GOOGLE_CLOUD_LOCATION \
  --quiet

Delete the Artifact Registry repository

Container images stored in Artifact Registry incur storage costs.

  1. In the terminal, run the following command:
    gcloud artifacts repositories delete adk-repo \
  --location=$GOOGLE_CLOUD_LOCATION \
  --quiet

Delete the project (Optional)

If you created a new project specifically for this lab and don't plan to use it again, the easiest way to clean up is to delete the entire project.

  1. In the terminal, run the following command (replace [YOUR_PROJECT_ID] with your actual project ID):
    gcloud projects delete [YOUR_PROJECT_ID]

15. Conclusion

Congratulations! You have successfully deployed a multi-agent ADK application to a production-grade GKE cluster. This is a significant achievement that covers the core lifecycle of a modern cloud-native application, providing you with a solid foundation for deploying your own complex agentic systems.

Recap

In this lab, you've learned to:

Useful resources
