One Million Vectors, Zero Loops: Generating Embeddings at Scale with AlloyDB

1. Overview

In this codelab, you will build a scalable Knowledge Base search application. Instead of managing a complex ETL pipeline with Python scripts and loops to generate vector embeddings, you will use AlloyDB AI to handle embedding generation natively within the database using a single SQL command.

What you'll build

A high-performance "searchable" knowledge base database application.

What you'll learn

You will learn how to:

• Provision an AlloyDB Cluster and enable AI extensions.
• Generate synthetic data (50,000+ rows) using SQL.
• Backfill vector embeddings for the entire dataset using Batch Processing.
• Set up Real-Time Incremental Triggers to auto-embed new data.
• Perform Hybrid Search (Vector + SQL Filters) for "Flexing Context."

Requirements

• A browser, such as Chrome or Firefox.
• A Google Cloud project with billing enabled.
• Basic familiarity with SQL.

2. Before you begin

Create a project

1. In the Google Cloud Console, on the project selector page, select or create a Google Cloud project.
2. Make sure that billing is enabled for your Cloud project. Learn how to check if billing is enabled on a project.

For trying this codelab out, you can use the GCP Trial Billing Credit Link: https://bit.ly/ez-alloydb4

How to redeem credits using this link? Refer.

3. You'll use Cloud Shell, a command-line environment running in Google Cloud. Click Activate Cloud Shell at the top of the Google Cloud console.

4. Once connected to Cloud Shell, you check that you're already authenticated and that the project is set to your project ID using the following command:

gcloud auth list

5. Run the following command in Cloud Shell to confirm that the gcloud command knows about your project.

gcloud config list project

6. If your project is not set, use the following command to set it:

gcloud config set project <YOUR_PROJECT_ID>

7. Enable the required APIs: Follow the link and enable the APIs.

Alternatively you can use the gcloud command for this. Refer documentation for gcloud commands and usage.

gcloud services enable \
  alloydb.googleapis.com \
  compute.googleapis.com \
  cloudresourcemanager.googleapis.com \
  servicenetworking.googleapis.com \
  aiplatform.googleapis.com

Gotchas & Troubleshooting

The "Ghost Project" Syndrome	You ran gcloud config set project, but you're actually looking at a different project in the Console UI. Check the project ID in the top-left dropdown!
The Billing Barricade	You enabled the project, but forgot the billing account. AlloyDB is a high-performance engine; it won't start if the "gas tank" (billing) is empty.
API Propagation Lag	You clicked "Enable APIs," but the command line still says Service Not Enabled. Give it 60 seconds. The cloud needs a moment to wake up its neurons.
Quota Quags	If you're using a brand-new trial account, you might hit a regional quota for AlloyDB instances. If us-central1 fails, try us-east1.
"Hidden" Service Agent	Sometimes the AlloyDB Service Agent isn't automatically granted the aiplatform.user role. If your SQL queries can't talk to Gemini later, this is usually the culprit.

3. Database setup

In this lab we'll use AlloyDB as the database for the test data. It uses clusters to hold all of the resources, such as databases and logs. Each cluster has a primary instance that provides an access point to the data. Tables will hold the actual data.

Let's create an AlloyDB cluster, instance and table where the test dataset will be loaded.

1. Click the button or Copy the link below to your browser where you have the Google Cloud Console user logged in.

One Click & Run

2. Once this step is complete the repo will be cloned to your local cloud shell editor and you will be able to run the command below from with the project folder (important to make sure you are in the project directory):

sh run.sh

3. Now use the UI (clicking the link in the terminal or clicking the "preview on web" link in the terminal.
4. Enter your details for project id, cluster and instance names to get started.
5. Go grab a coffee while the logs scroll & you can read about how it's doing this behind the scenes here. It may take about 10-15 minutes.

Important: For testing it locally or from anywhere, go to the AlloyDB instance, click "EDIT" and click "Enable Public IP" or "Public IP Connectivity" (not the outbound one) and enter "0.0.0.0/0" in "Authorized External Networks" for development purposes but once done, remove & disable public ip connectivity.

Gotchas & Troubleshooting

The "Patience" Problem	Database clusters are heavy infrastructure. If you refresh the page or kill the Cloud Shell session because it "looks stuck," you might end up with a "ghost" instance that is partially provisioned and impossible to delete without manual intervention.
Region Mismatch	If you enabled your APIs in us-central1 but try to provision the cluster in asia-south1, you might run into quota issues or Service Account permission delays. Stick to one region for the whole lab!
Zombie Clusters	If you previously used the same name for a cluster and didn't delete it, the script might say the cluster name already exists. Cluster names must be unique within a project.
Cloud Shell Timeout	If your coffee break takes 30 minutes, Cloud Shell might go to sleep and disconnect the sh run.sh process. Keep the tab active!

4. Schema Provisioning

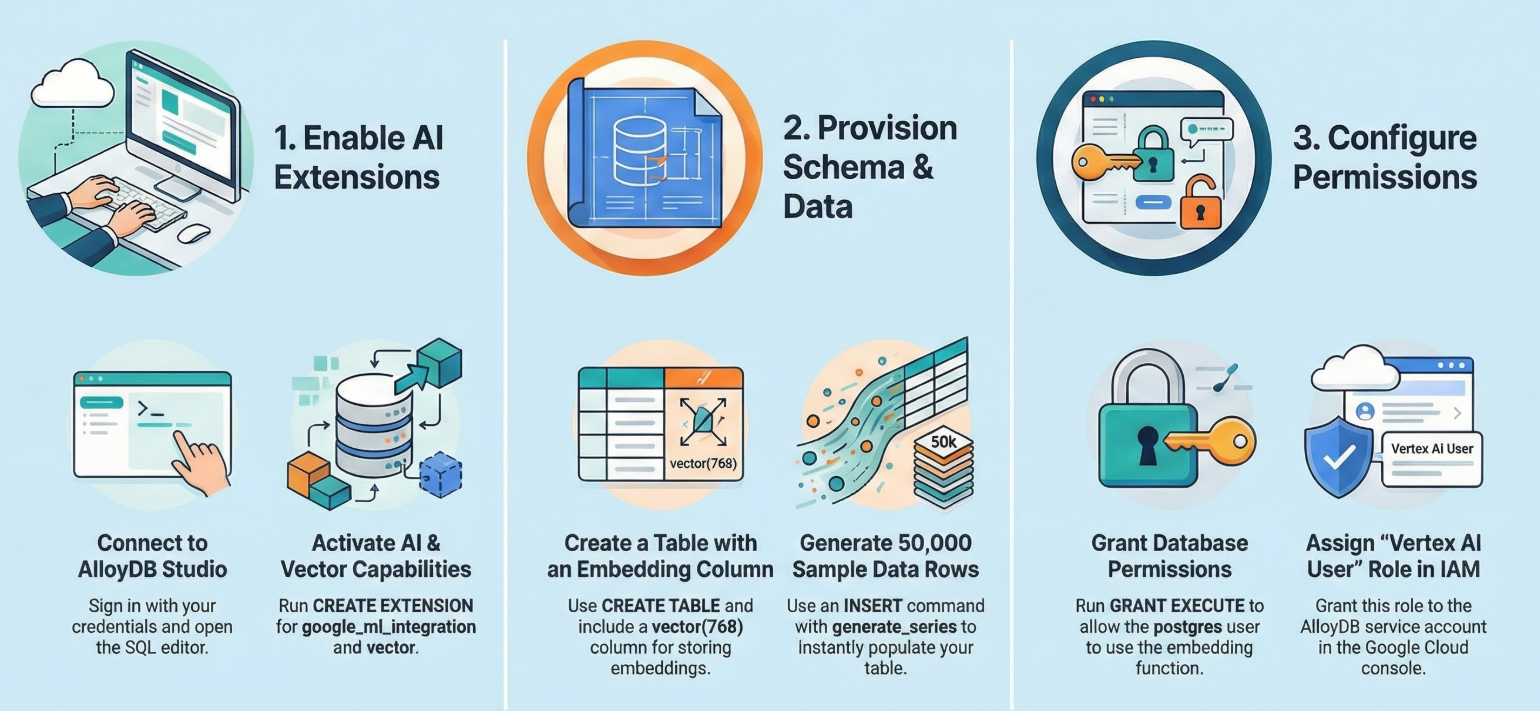

In this step, we'll cover the following:

Once you have your AlloyDB cluster and instance running, head over to the AlloyDB Studio SQL editor to enable the AI extensions and provision the schema.

You may need to wait for your instance to finish being created. Once it is, sign into AlloyDB using the credentials you created when you created the cluster. Use the following data for authenticating to PostgreSQL:

• Username : "postgres"
• Database : "postgres"
• Password : "alloydb" (or whatever you set at the time of creation)

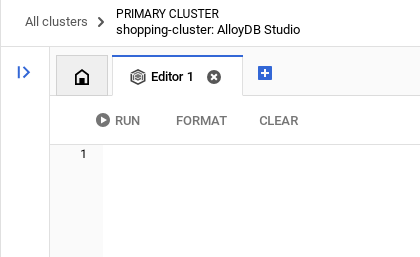

Once you have authenticated successfully into AlloyDB Studio, SQL commands are entered in the Editor. You can add multiple Editor windows using the plus to the right of the last window.

You'll enter commands for AlloyDB in editor windows, using the Run, Format, and Clear options as necessary.

Enable Extensions

For building this app, we will use the extensions pgvector and google_ml_integration. The pgvector extension allows you to store and search vector embeddings. The google_ml_integration extension provides functions you use to access Vertex AI prediction endpoints to get predictions in SQL. Enable these extensions by running the following DDLs:

CREATE EXTENSION IF NOT EXISTS google_ml_integration CASCADE;
CREATE EXTENSION IF NOT EXISTS vector;

Create a table

We need a dataset to demonstrate scale. Instead of importing a CSV, we will generate 50,000 rows of synthetic "Help Articles" instantly using SQL.

You can create a table using the DDL statement below in the AlloyDB Studio:

-- 1. Create the table
CREATE TABLE help_articles (
    id SERIAL PRIMARY KEY,
    title TEXT,
    category TEXT,
    product_version TEXT,
    content_body TEXT,
    embedding vector(768) -- Dimension for text-embedding-005
);

-- 2. Generate 50,000 rows of synthetic data
INSERT INTO help_articles (title, category, product_version, content_body)
SELECT
    'Help Article ' || i,
    CASE
        WHEN i % 3 = 0 THEN 'Billing'
        WHEN i % 3 = 1 THEN 'Technical'
        ELSE 'General'
    END,
    CASE
        WHEN i % 2 = 0 THEN '2.0'
        ELSE '1.0'
    END,
    'This article covers common issues regarding ' ||
    CASE
        WHEN i % 3 = 0 THEN 'payment failures, invoice disputes, and credit card updates.'
        WHEN i % 3 = 1 THEN 'connection timeouts, latency issues, and API errors.'
        ELSE 'account profile settings, password resets, and user roles.'
    END
FROM generate_series(1, 50000) AS i;

The item_vector column will allow storage for the vector values of the text.

Verify the data:

SELECT count(*) FROM help_articles;
-- Output: 50000

Enable Database Flags

Go to the Instance configuration console, click "Edit Primary", go to Advanced Configuration and click "Add Database Flags".

1. Verify that the google_ml_integration.enable_model_support flag is set to on:

If not, enter it in the flags drop down and set it to "ON" and update instance.

2. Verify that google_ml_integration.enable_faster_embedding_generation flag is set to on:

If not, enter it in the flags drop down and set it to "ON" and update instance.

Steps to configure database flags:

1. In the Google Cloud console, go to the Clusters page.

Go to Clusters

2. Click a cluster in the Resource Name column.
3. In the Overview page, go to Instances in your cluster, select an instance, and then click Edit.
4. Add, modify, or delete a database flag from your instance:

Add a flag

1. To add a database flag to your instance, click Add flag.
2. Select a flag from the New database flag list.
3. Provide a value for the flag.
4. Click Done.
5. Click Update instance.
6. Verify that the google_ml_integration extension is version 1.5.2 or higher:

To check your extension version with the following command:

SELECT extversion FROM pg_extension WHERE extname = 'google_ml_integration';

If you need to update the extension to higher, use the command:

ALTER EXTENSION google_ml_integration UPDATE;

Grant Permission

1. To let a user manage auto embedding generation, grant INSERT, UPDATE, and DELETE permissions on the google_ml.embed_gen_progress and google_ml.embed_gen_settings tables:

GRANT INSERT, UPDATE, DELETE ON google_ml.embed_gen_progress TO postgres;

‘postgres' is the USER_NAME for which the permissions are granted.

2. Run the below statement to grant execute on the "embedding" function:

GRANT EXECUTE ON FUNCTION embedding TO postgres;

Grant Vertex AI User ROLE to the AlloyDB service account

From Google Cloud IAM console, grant the AlloyDB service account (that looks like this: service-<<PROJECT_NUMBER>>@gcp-sa-alloydb.iam.gserviceaccount.com) access to the role "Vertex AI User". PROJECT_NUMBER will have your project number.

Alternatively you can run the below command from the Cloud Shell Terminal:

PROJECT_ID=$(gcloud config get-value project)


gcloud projects add-iam-policy-binding $PROJECT_ID \
  --member="serviceAccount:service-$(gcloud projects describe $PROJECT_ID --format="value(projectNumber)")@gcp-sa-alloydb.iam.gserviceaccount.com" \
--role="roles/aiplatform.user"

Gotchas & Troubleshooting

The "Password Amnesia" Loop	If you used the "One Click" setup and can't remember your password, go to the Instance basic information page in the console and click "Edit" to reset the postgres password.
The "Extension Not Found" Error	If CREATE EXTENSION fails, it's often because the instance is still in a "Maintenance" or "Updating" state from the initial provisioning. Go check if instance creation step is complete and wait a few seconds if needed.

5. The "One-Shot" Vector Generation

This is the core of the lab. Instead of writing a Python loop to process these 50,000 rows, we will use the ai.initialize_embeddings function.

This single command does two things:

1. Backfills all existing rows.
2. Creates a Trigger to auto-embed future rows.

Run the below SQL statement from the AlloyDB Query Editor

CALL ai.initialize_embeddings(
  model_id => 'text-embedding-005',
  table_name => 'help_articles',
  content_column => 'content_body',
  embedding_column => 'embedding',
  incremental_refresh_mode => 'transactional'
);

Verify the Embeddings

Check that the embedding column is now populated:

SELECT id, left(content_body, 30), substring(embedding::text, 1, 30) as vector_partial
FROM help_articles;

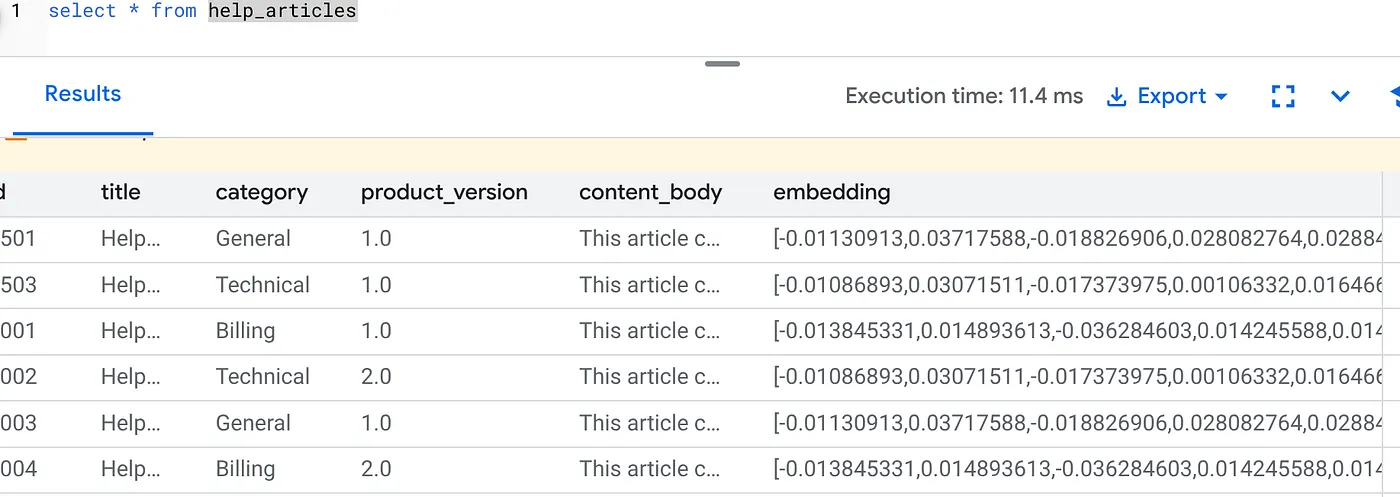

You should see a result similar to the below:

What just happened?

1. Backfill at Scale: It automatically sweeps through your existing 50,000 rows and generates embeddings via Vertex AI.
2. Automation: By setting incremental_refresh_mode => ‘transactional', AlloyDB automatically sets up the internal triggers. Any new row inserted into help_articles will have its embedding generated instantly.
3. You can optionally set the incremental_refresh_mode => ‘None' so you can only get the statement to do bulk updates and manually call ai.refresh_embeddings() for updating all rows embeddings.

You just replaced a Kafka queue, a Python worker, and a migration script with 6 lines of SQL. Here is the detailed official documentation for all attributes.

Real-Time Trigger Test

Let's verify that the "Zero Loop" automation works for new data.

1. Insert a new row:

INSERT INTO help_articles (title, category, product_version, content_body)
VALUES ('New Scaling Guide', 'Technical', '2.0', 'How to scale AlloyDB to millions of transactions.');

2. Check immediately:

SELECT embedding FROM help_articles WHERE title = 'New Scaling Guide';

Result:

You should see the vector generated instantly without running any external script.

Tuning Batch Size

Currently AlloyDB defaults batch size to 50 out of the box. While defaults work great out of the box, AlloyDB still gives users the control to tune the perfect configuration for your unique model and dataset.

CALL ai.initialize_embeddings(
  model_id => 'text-embedding-005',
  table_name => 'help_articles',
  content_column => 'content_body',
  embedding_column => 'embedding',
  incremental_refresh_mode => 'transactional',
  batch_size => 20
);

However users need to be aware of quota limits that can limit the performance. To review the recommended AlloyDB quotas, consult the "Before you begin" section in the documentation.

Gotchas & Troubleshooting

The IAM Propagation Gap	You ran the gcloud IAM command, but the SQL CALL still fails with a permission error. IAM changes can take a little time to propagate through the Google backbone. Take a breath.
Vector Dimension Mismatch	The help_articles table is set to VECTOR(768)on the column content_body. If you try to use a different model (like a 1536-dim model) later, your inserts will explode. Stick to text-embedding-005.

6. Flexing Context Search

Now we perform a Hybrid Search. We combine semantic understanding (Vector) with business logic (SQL Filters).

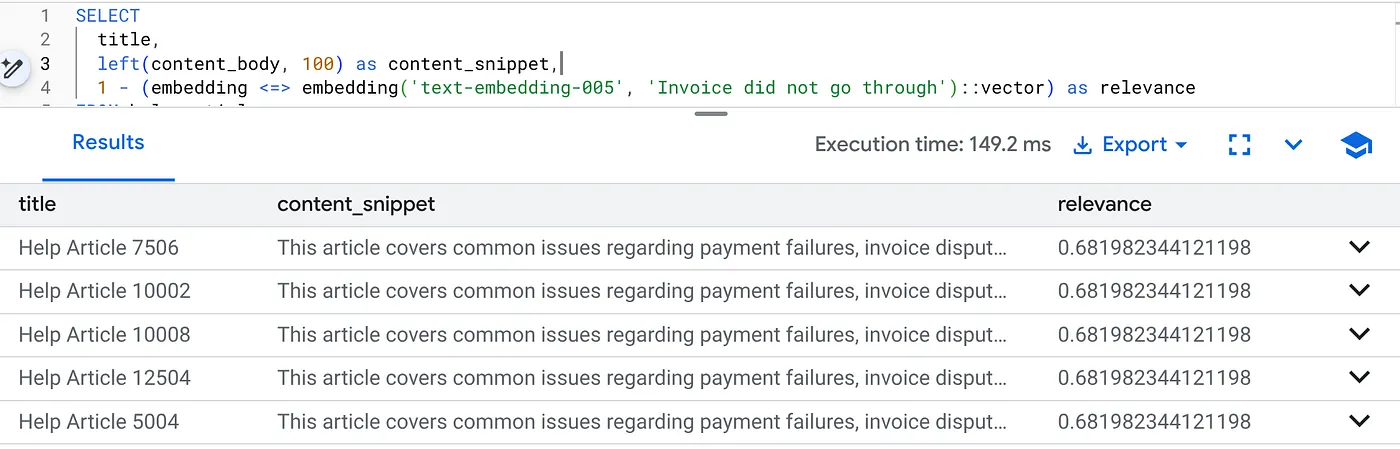

Run this query to find billing issues specifically for Product Version 2.0:

SELECT
  title,
  left(content_body, 100) as content_snippet,
  1 - (embedding <=> embedding('text-embedding-005', 'Invoice did not go through')::vector) as relevance
FROM help_articles
WHERE category = 'Billing'  -- Hard SQL Filter
  AND product_version = '2.0' -- Hard SQL Filter
ORDER BY relevance DESC
LIMIT 5;

This is Flexing Context. The search "flexes" to understand the user's intent ("billing issues") while respecting the rigid business constraints (Version 2.0).

Why this wins for Startups & Migrations

1. Zero Infrastructure Debt: You didn't spin up a separate Vector DB (Pinecone/Milvus). You didn't write a separate ETL job. It's all in Postgres.
2. Real-Time Updates: By using the ‘transactional' mode, your search index is never stale. The moment data is committed, it is vector-ready.
3. Scale: AlloyDB is built on Google's infrastructure. It can handle the bulk generation of millions of vectors faster than your Python script ever could.

Gotchas & Troubleshooting

Production Performance Gotcha	Problem: Fast for 50,000 rows. Very slow for 1 million rows if the category filter isn't selective enough.Solution:Add a Vector Index: For production scale, you must create an index:CREATE INDEX ON help_articles USING hnsw (embedding vector_cosine_ops);Verify Index Usage: Run EXPLAIN ANALYZE SELECT ... to ensure the database is using the index and not doing a sequential scan.
The "Model Mismatch" Disaster	Problem: You initialized the column using text-embedding-005 in the CALL procedure. If you accidentally use a different model (e.g., text-embedding-004 or an OSS model) in the SELECT query function embedding('model-name', ...), the dimensions might match (768), but the vector space will be totally different.The query runs without error, but the results are completely irrelevant (garbage relevance scores).Troubleshooting:Ensure the model_id in ai.initialize_embeddings matches the model_id in your SELECT query exactly.
The "Silent Empty" Result (Over-Filtering)	Problem: Hybrid search is an "AND" operation. It requires Semantic Match AND SQL Match.If a user searches for "Billing help" but the product_version column has ‘2.0.1' instead of ‘2.0', the result is zero rows, even if the vector match is 99%.Troubleshooting: Run the query without the vector sort first to see if the SQL filters (WHERE category...) are actually returning data. Check for case sensitivity (Billing vs billing).
4. Permission/Quota Errors (The 500 Error)	Problem:The embedding() function in the SELECT clause makes a real-time network call to Vertex AI.If the database service account loses the Vertex AI User role, or if you hit the Vertex AI API quota (QPM), the entire SQL query will fail.Troubleshooting: Check Cloud Logging for AlloyDB. Ensure the IAM Role is still active. Wrap the function in a TRY/CATCH block in stored procedures if high resilience is needed.
5. Null Embeddings	Problem:If you insert data before the model is fully initialized or if the background worker fails, some rows might have NULL in the embedding column.NULL <=> Vector returns NULL. These rows disappear from the sort order.Troubleshooting: Run SELECT count(*) FROM help_articles WHERE embedding IS NULL; to verify 100% coverage.

7. Clean up

Once this lab is done, do not forget to delete alloyDB cluster and instance.

Go to https://console.cloud.google.com/alloydb/clusters. Select the cluster you want to delete by clicking on the vertical ellipsis next to it and click DELETE.

It should clean up the cluster along with its instance(s).

8. Congratulations

You've successfully built a scalable Knowledge Base search application. Instead of managing a complex ETL pipeline with Python scripts and loops to generate vector embeddings, you used AlloyDB AI to handle embedding generation natively within the database using a single SQL command.

What we covered

• We killed the "Python For-Loop" for data processing.
• We generated 50,000 vectors with one SQL command.
• We automated future vector generation with triggers.
• We performed Hybrid Search.

Next Steps

• Try this with your own dataset.
• Explore AlloyDB AI Documentation.
• Check out the Code Vipassana website for more workshops.
