Building a Real-Time Surplus Engine with Gemini 3 Flash & AlloyDB

1. Overview

In this codelab, you will build Neighbor Loop, a sustainable surplus-sharing app that treats intelligence as a first-class citizen of the data layer.

By integrating Gemini 3.0 Flash and AlloyDB AI, you will move past basic storage into the realm of In-Database Intelligence. You'll learn how to perform multimodal item analysis and semantic discovery directly within SQL, eliminating the "AI Tax" of latency and architectural bloat.

What you'll build

A high-performance "swipe-to-match" web application for community surplus sharing.

What you'll learn

• One-Click Provisioning: How to set up an AlloyDB cluster and instance designed for AI workloads.
• In-Database Embeddings: Generating text-embedding-005 vectors directly within INSERT statements.

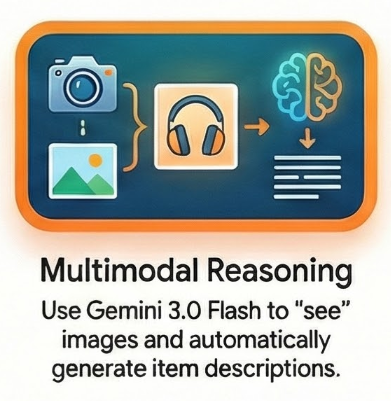

• Multimodal Reasoning: Using Gemini 3.0 Flash to "see" items and generate witty, dating-style bios automatically.
• Semantic Discovery: Performing logic-based "vibe checks" inside SQL queries using the ai.if() function to filter results based on context, not just math.

The Architecture

Neighbor Loop bypasses traditional application-layer bottlenecks. Instead of pulling data out to process it, we use:

1. AlloyDB AI: To generate and store vectors in real-time.
2. Google Cloud Storage: To store images
3. Gemini 3.0 Flash: To perform sub-second reasoning on image and text data directly via SQL.
4. Cloud Run: To host a lightweight, single-file Flask backend.

Requirements

• A browser, such as Chrome or Firefox.
• A Google Cloud project with billing enabled.
• Basic familiarity with SQL and Python.

2. Before you begin

Create a project

1. In the Google Cloud Console, on the project selector page, select or create a Google Cloud project.
2. Make sure that billing is enabled for your Cloud project. Learn how to check if billing is enabled on a project.

For trying this codelab out, you can use the GCP Trial Billing Credit Link: https://bit.ly/ez-alloydb3

How to redeem credits using this link? Refer.

3. You'll use Cloud Shell, a command-line environment running in Google Cloud. Click Activate Cloud Shell at the top of the Google Cloud console.

4. Once connected to Cloud Shell, you check that you're already authenticated and that the project is set to your project ID using the following command:

gcloud auth list

5. Run the following command in Cloud Shell to confirm that the gcloud command knows about your project.

gcloud config list project

6. If your project is not set, use the following command to set it:

gcloud config set project <YOUR_PROJECT_ID>

7. Enable the required APIs: Follow the link and enable the APIs.

Alternatively you can use the gcloud command for this. Refer documentation for gcloud commands and usage.

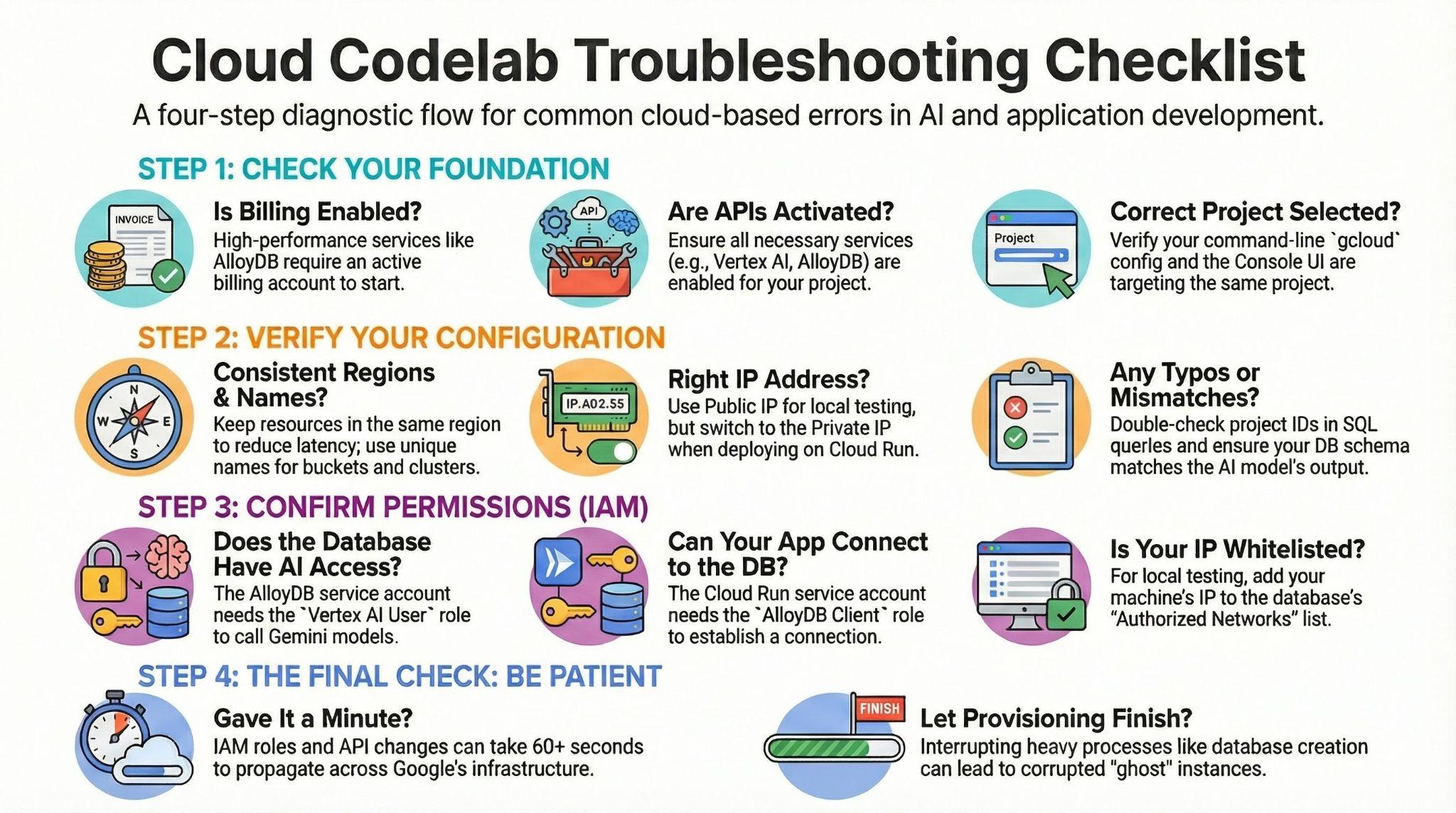

Gotchas & Troubleshooting

The "Ghost Project" Syndrome	You ran gcloud config set project, but you're actually looking at a different project in the Console UI. Check the project ID in the top-left dropdown!
The Billing Barricade	You enabled the project, but forgot the billing account. AlloyDB is a high-performance engine; it won't start if the "gas tank" (billing) is empty.
API Propagation Lag	You clicked "Enable APIs," but the command line still says Service Not Enabled. Give it 60 seconds. The cloud needs a moment to wake up its neurons.
Quota Quags	If you're using a brand-new trial account, you might hit a regional quota for AlloyDB instances. If us-central1 fails, try us-east1.
"Hidden" Service Agent	Sometimes the AlloyDB Service Agent isn't automatically granted the aiplatform.user role. If your SQL queries can't talk to Gemini later, this is usually the culprit.

3. Database setup

In this lab we'll use AlloyDB as the database for the test data. It uses clusters to hold all of the resources, such as databases and logs. Each cluster has a primary instance that provides an access point to the data. Tables will hold the actual data.

Let's create an AlloyDB cluster, instance and table where the test dataset will be loaded.

1. Click the button or Copy the link below to your browser where you have the Google Cloud Console user logged in.

One Click & Run

2. Once this step is complete the repo will be cloned to your local cloud shell editor and you will be able to run the command below from with the project folder (important to make sure you are in the project directory):

sh run.sh

3. Now use the UI (clicking the link in the terminal or clicking the "preview on web" link in the terminal.
4. Enter your details for project id, cluster and instance names to get started.
5. Go grab a coffee while the logs scroll & you can read about how it's doing this behind the scenes here.

Important: For testing it locally or from anywhere, go to the AlloyDB instance, click "EDIT" and click "Enable Public IP" or "Public IP Connectivity" (not the outbound one) and enter "0.0.0.0/0" in "Authorized External Networks" for development purposes but once done, remove & disable public ip connectivity.

Gotchas & Troubleshooting

The "Patience" Problem	Database clusters are heavy infrastructure. If you refresh the page or kill the Cloud Shell session because it "looks stuck," you might end up with a "ghost" instance that is partially provisioned and impossible to delete without manual intervention.
Region Mismatch	If you enabled your APIs in us-central1 but try to provision the cluster in asia-south1, you might run into quota issues or Service Account permission delays. Stick to one region for the whole lab!
Zombie Clusters	If you previously used the same name for a cluster and didn't delete it, the script might say the cluster name already exists. Cluster names must be unique within a project.
Cloud Shell Timeout	If your coffee break takes 30 minutes, Cloud Shell might go to sleep and disconnect the sh run.sh process. Keep the tab active!

4. Schema Provisioning

Once you have your AlloyDB cluster and instance running, head over to the AlloyDB Studio SQL editor to enable the AI extensions and provision the schema.

You may need to wait for your instance to finish being created. Once it is, sign into AlloyDB using the credentials you created when you created the cluster. Use the following data for authenticating to PostgreSQL:

• Username : "postgres"
• Database : "postgres"
• Password : "alloydb" (or whatever you set at the time of creation)

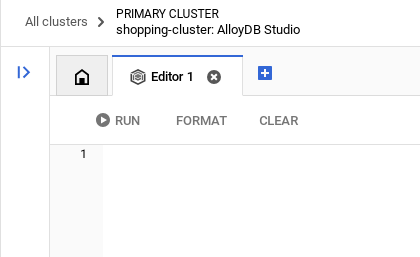

Once you have authenticated successfully into AlloyDB Studio, SQL commands are entered in the Editor. You can add multiple Editor windows using the plus to the right of the last window.

You'll enter commands for AlloyDB in editor windows, using the Run, Format, and Clear options as necessary.

Enable Extensions

For building this app, we will use the extensions pgvector and google_ml_integration. The pgvector extension allows you to store and search vector embeddings. The google_ml_integration extension provides functions you use to access Vertex AI prediction endpoints to get predictions in SQL. Enable these extensions by running the following DDLs:

CREATE EXTENSION IF NOT EXISTS google_ml_integration CASCADE;
CREATE EXTENSION IF NOT EXISTS vector;

Create a table

You can create a table using the DDL statement below in the AlloyDB Studio:

-- Items Table (The "Profile" you swipe on)
CREATE TABLE items (
   item_id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
   owner_id UUID,
   provider_name TEXT,
   provider_phone TEXT,
   title TEXT,
   bio TEXT,
   category TEXT,
   image_url TEXT,
   item_vector VECTOR(768),
   status TEXT DEFAULT 'available',
   created_at TIMESTAMP DEFAULT NOW()
);

-- Swipes Table (The Interaction)
CREATE TABLE swipes (
   swipe_id SERIAL PRIMARY KEY,
   swiper_id UUID,
   item_id UUID REFERENCES items(item_id),
   direction TEXT CHECK (direction IN ('left', 'right')),
   is_match BOOLEAN DEFAULT FALSE,
   created_at TIMESTAMP DEFAULT NOW()
);

The item_vector column will allow storage for the vector values of the text.

Grant Permission

Run the below statement to grant execute on the "embedding" function:

GRANT EXECUTE ON FUNCTION embedding TO postgres;

Grant Vertex AI User ROLE to the AlloyDB service account

From Google Cloud IAM console, grant the AlloyDB service account (that looks like this: service-<<PROJECT_NUMBER>>@gcp-sa-alloydb.iam.gserviceaccount.com) access to the role "Vertex AI User". PROJECT_NUMBER will have your project number.

Alternatively you can run the below command from the Cloud Shell Terminal:

PROJECT_ID=$(gcloud config get-value project)


gcloud projects add-iam-policy-binding $PROJECT_ID \
  --member="serviceAccount:service-$(gcloud projects describe $PROJECT_ID --format="value(projectNumber)")@gcp-sa-alloydb.iam.gserviceaccount.com" \
--role="roles/aiplatform.user"

Register Gemini 3 Flash model in AlloyDB

Run the below SQL statement from the AlloyDB Query Editor

CALL google_ml.create_model(
   model_id => 'gemini-3-flash-preview',
   model_request_url => 'https://aiplatform.googleapis.com/v1/projects/<<YOUR_PROJECT_ID>>/locations/global/publishers/google/models/gemini-3-flash-preview:generateContent',
   model_qualified_name => 'gemini-3-flash-preview',
   model_provider => 'google',
   model_type => 'llm',
   model_auth_type => 'alloydb_service_agent_iam'
);
--replace <<YOUR_PROJECT_ID>> with your project id.

Gotchas & Troubleshooting

The "Password Amnesia" Loop	If you used the "One Click" setup and can't remember your password, go to the Instance basic information page in the console and click "Edit" to reset the postgres password.
The "Extension Not Found" Error	If CREATE EXTENSION fails, it's often because the instance is still in a "Maintenance" or "Updating" state from the initial provisioning. Go check if instance creation step is complete and wait a few seconds if needed.
The IAM Propagation Gap	You ran the gcloud IAM command, but the SQL CALL still fails with a permission error. IAM changes can take a little time to propagate through the Google backbone. Take a breath.
Vector Dimension Mismatch	The items table is set to VECTOR(768). If you try to use a different model (like a 1536-dim model) later, your inserts will explode. Stick to text-embedding-005.
Project ID Typo	In the create_model call, if you leave the brackets « » or mistype your project ID, the model registration will look successful but fail during the first actual query. Double-check your string!

5. Image Storage (Google Cloud Storage)

To store the photos of our surplus items, we use a GCS bucket. For the purpose of this demo app, we want the images to be publicly accessible so they render instantly in our swipe cards.

1. Create a Bucket: Create a new bucket in your GCP project (e.g., neighborloop-images), preferably in the same region as your database and application.
2. Configure Public Access: * Navigate to the bucket's Permissions tab.
3. Add the allUsers principal.
4. Assign the Storage Object Viewer role (so everyone can see the photos) and the Storage Object Creator role (for demo upload purposes).

Alternative (Service Account): If you prefer not to use public access, ensure your application's Service Account is granted full access to AlloyDB and the necessary Storage roles to manage objects securely.

Gotchas & Troubleshooting

The Region Drag	If your database is in us-central1 and your bucket is in europe-west1, you are literally slowing down your AI. The "vibe check" happens fast, but fetching the image for the UI will feel sluggish. Keep them in the same region!
Bucket Name Uniqueness	Bucket names are a global namespace. If you try to name your bucket neighborloop-images, someone else likely already has it. If your creation fails, add a random suffix.
The "Creator" vs. "Viewer" Mix-up	The "Creator" vs. "Viewer" Mix-up: If you only add "Viewer," your app will crash when a user tries to list a new item because it doesn't have permission to write the file. You need both for this specific demo setup.

6. Let's create the application

Clone this repo into your project and let's walk through it.

Github Repo

1. To clone this, from your Cloud Shell Terminal (in the root directory or from wherever you want to create this project), run the following command:

git clone https://github.com/AbiramiSukumaran/neighbor-loop

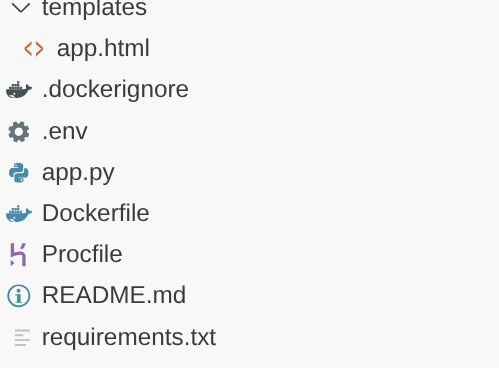

This should create the project and you can verify that in the Cloud Shell Editor.

2. How to get your Gemini API Key
3. Visit Google AI Studio: Go to aistudio.google.com.
4. Sign In: Use the same Google Account you are using for your Google Cloud project.
5. Create API Key:
6. On the left-hand sidebar, click on "Get API key".
7. Click the button "Create API key in new project".
8. Copy the Key: Once the key is generated, click the copy icon.
9. Now set the environment variables in the .env file

GEMINI_API_KEY=<<YOUR_GEMINI_API_KEY>>
DATABASE_URL=postgresql+pg8000://postgres:<<YOUR_PASSWORD>>@<<HOST_IP>>:<<PORT>>/postgres
GCS_BUCKET_NAME=<<YOUR_GCS_BUCKET>>

Replace the values for placeholders <<YOUR_GEMINI_API_KEY>>, <<YOUR_PASSWORD>, <<HOST_IP>>, <<PORT>> and <<YOUR_GCS_BUCKET>>.

Important: Your HOST_IP should be the public IP address of your AlloyDB instance in this case when you're testing locally. You can find this in AlloyDB instance's "Connectivity Configuration" section. Click that "View Connectivity Configuration" link and from the "Connectivity" page that opens up, copy the instance's host and port from the "Public IP Address" entry.

Gotchas & Troubleshooting

Multiple Account Confusion	If you are logged into multiple Google accounts (Personal vs. Work), AI Studio might default to the wrong one. Check the avatar in the top right corner to ensure it matches your GCP Project account.
The "Free Tier" Quota Hit	If you are using the Free of Charge tier, there are rate limits (RPM - Requests Per Minute). If you "swipe" too fast in Neighbor Loop, you might get a 429 Too Many Requests error. Slow down!
Exposed Key Security	If you accidentally git commit your .env file with the key inside. Always add .env to your .gitignore.
The "Connection Timeout" Void	You used the Private IP address in your .env file but you are trying to connect from outside the VPC (like your local machine). Private IPs are only reachable from within the same Google Cloud network. Switch to the Public IP!
The Port 5432 Assumption	While 5432 is the standard PostgreSQL port, AlloyDB sometimes requires specific port configurations if you are using an Auth Proxy. For this lab, ensure you are using :5432 at the end of your host string.
The "Authorized Networks" Gatekeeper	Even if you have the Public IP, AlloyDB will "Refuse Connection" unless you have whitelisted the IP address of the machine running the code.Fix: In the AlloyDB instance settings, add 0.0.0.0/0 (for temporary testing only!) or your specific IP to the Authorized Networks.
SSL/TLS Handshake Failure	AlloyDB prefers secure connections. If your DATABASE_URL doesn't specify the driver correctly (like using pg8000), the handshake might fail silently, leaving you with a generic "Database not reachable" error.
The "Primary vs. Read Pool" Swap	If you accidentally copy the IP address of the Read Pool instead of the Primary Instance, your app will work for searching items but will crash with a "Read-only" error when you try to list a new item. Always use the Primary Instance IP for writes.

7. Let's check the code

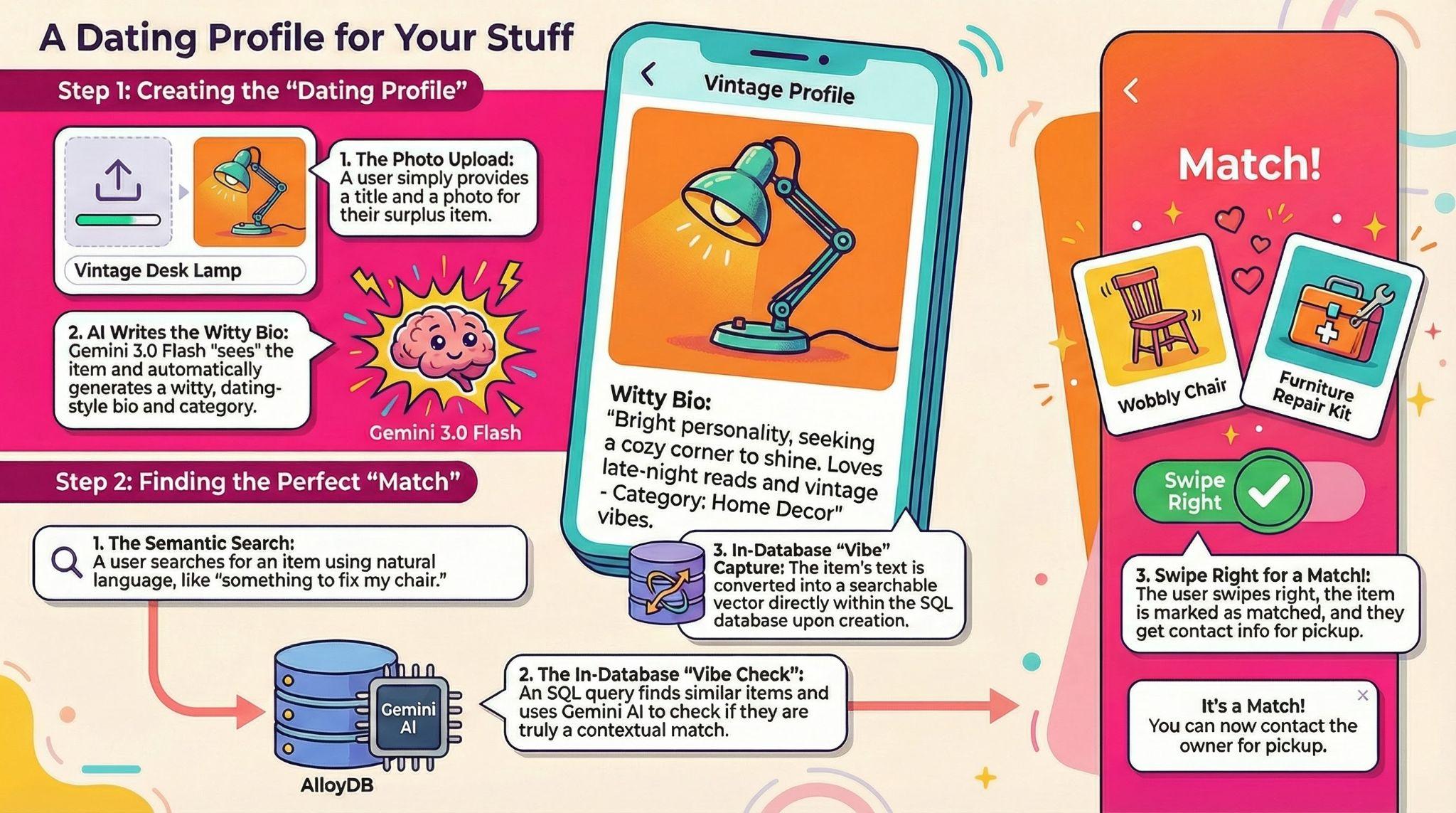

The "Dating Profile" for your Stuff

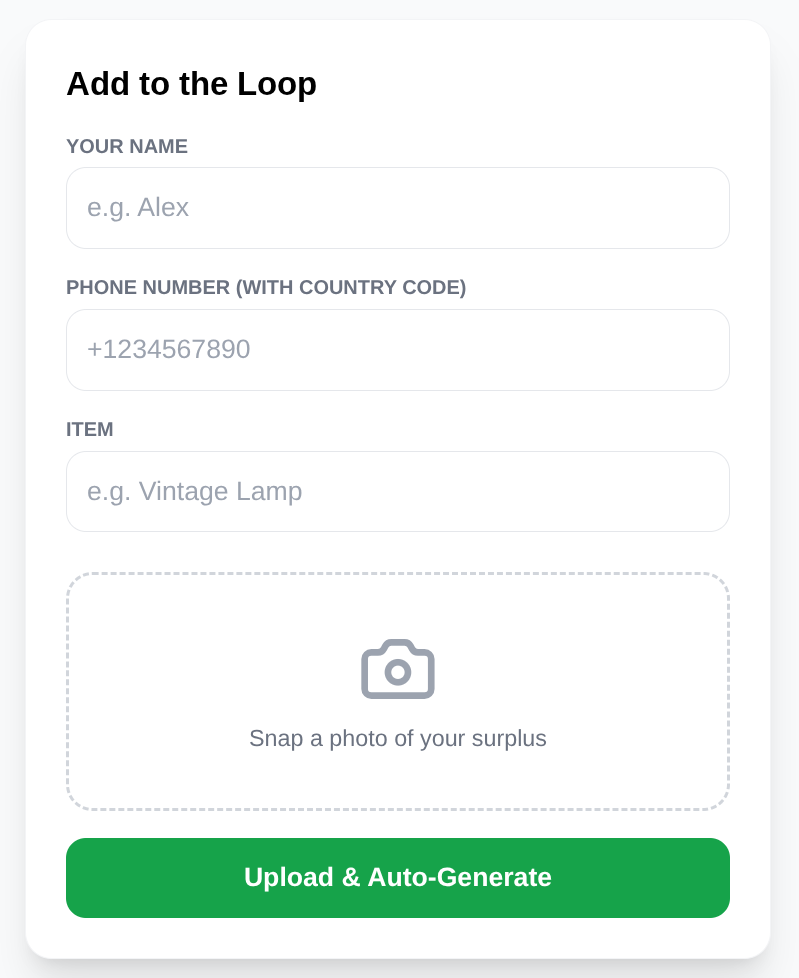

When a user uploads a photo of an item, they shouldn't have to write a long description. I use Gemini 3 Flash to "see" the item and write the listing for them.

In the backend, the user just provides a title and a photo. Gemini handles the rest:

prompt = """
You are a witty community manager for NeighborLoop.
Analyze this surplus item and return JSON:
{
   "bio": "First-person witty dating-style profile bio for the product, not longer than 2 lines",
   "category": "One-word category",
   "tags": ["tag1", "tag2"]
}
"""
response = genai_client.models.generate_content(
   model="gemini-3-flash-preview",
   contents=[types.Part.from_bytes(data=image_bytes, mime_type="image/jpeg"), prompt],
   config=types.GenerateContentConfig(response_mime_type="application/json")
)

Real-time In-Database Embeddings

One of the coolest features of AlloyDB is the ability to generate embeddings without leaving the SQL context. Instead of calling an embedding model in Python and sending the vector back to the DB, I do it all in one INSERT statement using the embedding() function:

INSERT INTO items (owner_id, provider_name, provider_phone, title, bio, category, image_url, status, item_vector)
VALUES (
   :owner, :name, :phone, :title, :bio, :cat, :url, 'available',
   embedding('text-embedding-005', :title || ' ' || :bio)::vector
)

This ensures that every item is "searchable" by its meaning the second it's posted. And note that this is the part that covers the "listing the product" feature of the Neighbor Loop app.

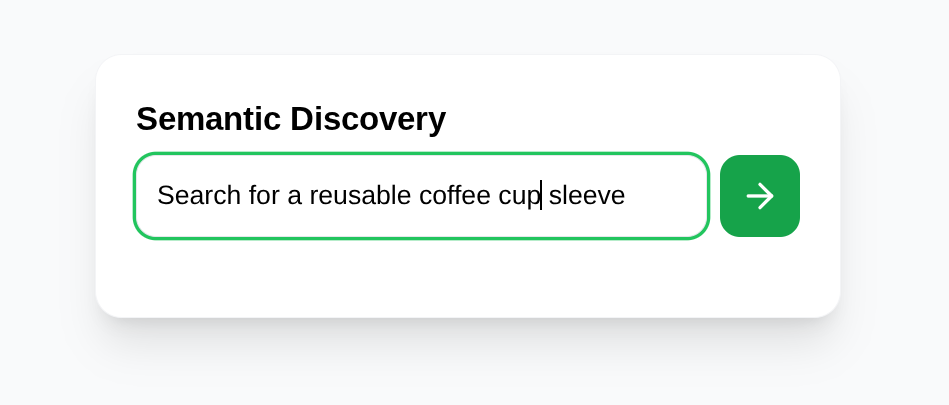

Advanced Vector Search and Smart Filtering with Gemini 3.0

Standard keyword search is limited. If you search for "something to fix my chair," a traditional database might return nothing if the word "chair" isn't in a title. Neighbor Loop solves this with AlloyDB AI's advanced vector search.

By using the pgvector extension and AlloyDB's optimized storage, we can perform extremely fast similarity searches. But the real "magic" happens when we combine vector proximity with LLM-based logic.

AlloyDB AI allows us to call models like Gemini directly within our SQL queries. This means we can perform a Semantic Discovery that includes a logic-based "sanity check" using the ai.if() function:

SELECT item_id, title, bio, category, image_url,
      1 - (item_vector <=> embedding('text-embedding-005', :query)::vector) as score
FROM items
WHERE status = 'available'
 AND item_vector IS NOT NULL
 AND ai.if(
       prompt => 'Does this text: "' || bio ||'" match the user request: "' ||  :query || '", at least 60%? "',
       model_id => 'gemini-3-flash-preview'
     )
ORDER BY score DESC
LIMIT 5

This query represents a major architectural shift: we are moving logic to the data. Instead of pulling thousands of results into application code to filter them, Gemini 3 Flash performs a "vibe check" inside the database engine. This reduces latency, lowers egress costs, and ensures that the results aren't just mathematically similar, but contextually relevant.

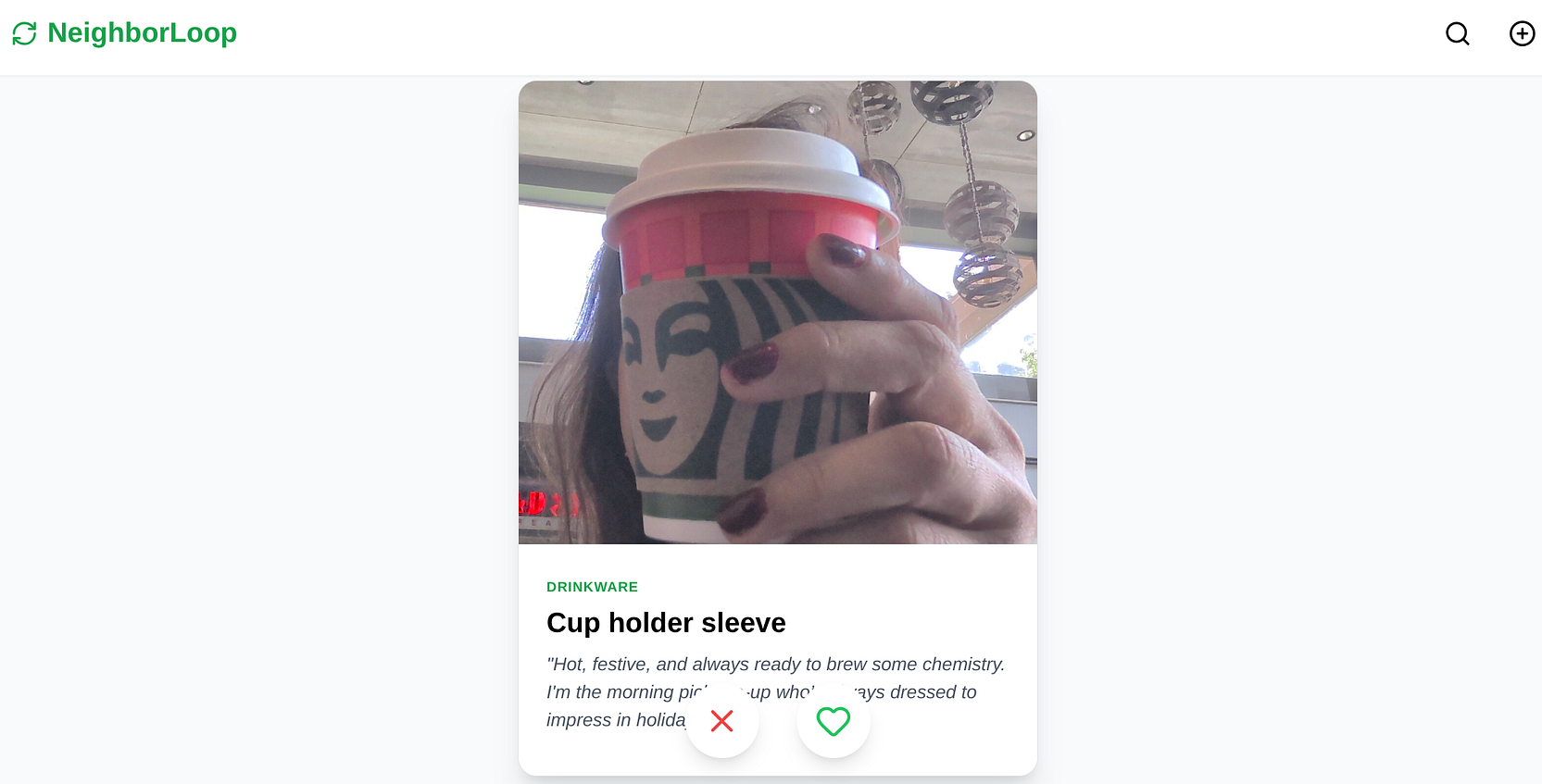

The "Swipe to Match" Loop

The UI is a classic deck of cards.

Swipe Left: Discard.

Swipe Right: It's a match!

When you swipe right, the backend records the interaction in our swipes table and marks the item as matched. The frontend instantly triggers a modal showing the provider's contact info so you can arrange the pickup.

8. Let's deploy it to Cloud Run

1. Deploy it on Cloud Run by running the following command from the Cloud Shell Terminal where the project is cloned and make sure you are inside the project's root folder.

Run this in your Cloud Shell terminal:

gcloud beta run deploy neighbor-loop \
   --source . \
   --region=us-central1 \
   --network=<<YOUR_NETWORK_NAME>> \
   --subnet=<<YOUR_SUBNET_NAME>> \
   --allow-unauthenticated \
   --vpc-egress=all-traffic \
   --set-env-vars GEMINI_API_KEY=<<YOUR_GEMINI_API_KEY>>,DATABASE_URL=postgresql+pg8000://postgres:<<YOUR_PASSWORD>>@<<PRIVATE_IP_HOST>>:<<PORT>>/postgres,GCS_BUCKET_NAME=<<YOUR_GCS_BUCKET>>

Replace the values for placeholders <<YOUR_GEMINI_API_KEY>>, <<YOUR_PASSWORD>, <<PRIVATE_IP_HOST>>, <<PORT>> and <<YOUR_GCS_BUCKET>>

Important:

1. Your HOST_IP should be the private IP address of your AlloyDB instance in this case when you're deploying to Cloud Run. You can find this in AlloyDB instance's "Connectivity Configuration" section. Click that "View Connectivity Configuration" link and from the "Connectivity" page that opens up, copy the instance's host and port from the "Private IP Address" entry.
2. Since we are using **--vpc-egress=all-traffic****, Cloud Run will talk to the database securely over your internal Google network.**
3. At this point, you can safely remove 0.0.0.0/0 from your Authorized External Networks list of IP addresses.
4. If you have followed the 2 steps from the codelab mentioned initially for easy set up of AlloyDB Cluster and Instance, you would have the details of network, subnet, in those steps.

Once the command finishes, it will spit out a Service URL. Copy it.

2. Grant the AlloyDB Client role to the Cloud Run service account.This allows your serverless application to securely tunnel into the database.

Run this in your Cloud Shell terminal:

# 1. Get your Project ID and Project Number
PROJECT_ID=$(gcloud config get-value project)
PROJECT_NUMBER=$(gcloud projects describe $PROJECT_ID --format="value(projectNumber)")

# 2. Grant the AlloyDB Client role
gcloud projects add-iam-policy-binding $PROJECT_ID \
--member="serviceAccount:$[e-mail]" \
--role="roles/alloydb.client"

Now use the service URL (Cloud Run endpoint you copied earlier) and test the app. Upload a photo of that old power tool, and let Gemini do the rest!

Gotchas & Troubleshooting

The "Revision Failed" Loop	If the deployment finishes but the URL gives a 500 Internal Server Error, check the logs! This is usually caused by a missing Environment Variable (like a typo in your DATABASE_URL) or the Cloud Run Service Account lacking permissions to read from your GCS bucket.
The IAM "Shadow" Role	Even if you have permission to deploy, the Cloud Run Service Account (usually [project-number][e-mail]) needs the AlloyDB Client role to actually establish a connection to the database.

9. High Level Troubleshooting

10. Demo

You should be able to use your end point for tests.

But for demo purposes for a few days, you can play with this:

Demo App

11. Clean up

Once this lab is done, do not forget to delete alloyDB cluster and instance.

Go to https://console.cloud.google.com/alloydb/clusters. Select the cluster you want to delete by clicking on the vertical ellipsis next to it and click DELETE.

It should clean up the cluster along with its instance(s).

12. Congratulations

You've successfully built the Neighbor Loop app for sustainable communities with Google Cloud. By moving the embedding and Gemini 3 Flash AI logic into AlloyDB, the app is incredibly fast (subject to the deployment settings) and the code is remarkably clean. We aren't just storing data — we're storing intent.

The combination of Gemini 3 Flash's speed and AlloyDB's optimized vector processing is truly the next frontier for community-driven platforms.
