Men-deploy Inferensi vLLM TPU yang Terpisah dengan llm-d di GKE

1. Pengantar

Dalam codelab ini, Anda akan mempelajari cara men-deploy layanan inferensi berperforma tinggi dan terpisah di Google Kubernetes Engine (GKE) menggunakan TPU Google Cloud. Anda akan menggunakan llm-d, framework open source untuk inferensi LLM terdistribusi, guna memisahkan fase pengisian awal dan decoding di beberapa host TPU, menyiapkan caching KV bersama, dan GKE Inference Gateway.

Penyiapan ini menyimulasikan lingkungan produksi untuk menyajikan model besar seperti Qwen3-32B dengan throughput tinggi dan latensi rendah.

Yang akan Anda lakukan

  • Buat jaringan VPC kustom dengan MTU yang dioptimalkan untuk traffic akselerator.
  • Sediakan cluster GKE dengan add-on driver CSI GCS Fuse dan Ray Operator.
  • Buat 8 node pool khusus untuk slice TPU v6e (total 32 chip).
  • Konfigurasi Workload Identity dan izin untuk akses GCS.
  • Deploy llm-d untuk mengelola penyajian yang terpisah dari model Qwen3-32B.
  • Verifikasi deployment dengan uji tolok ukur.

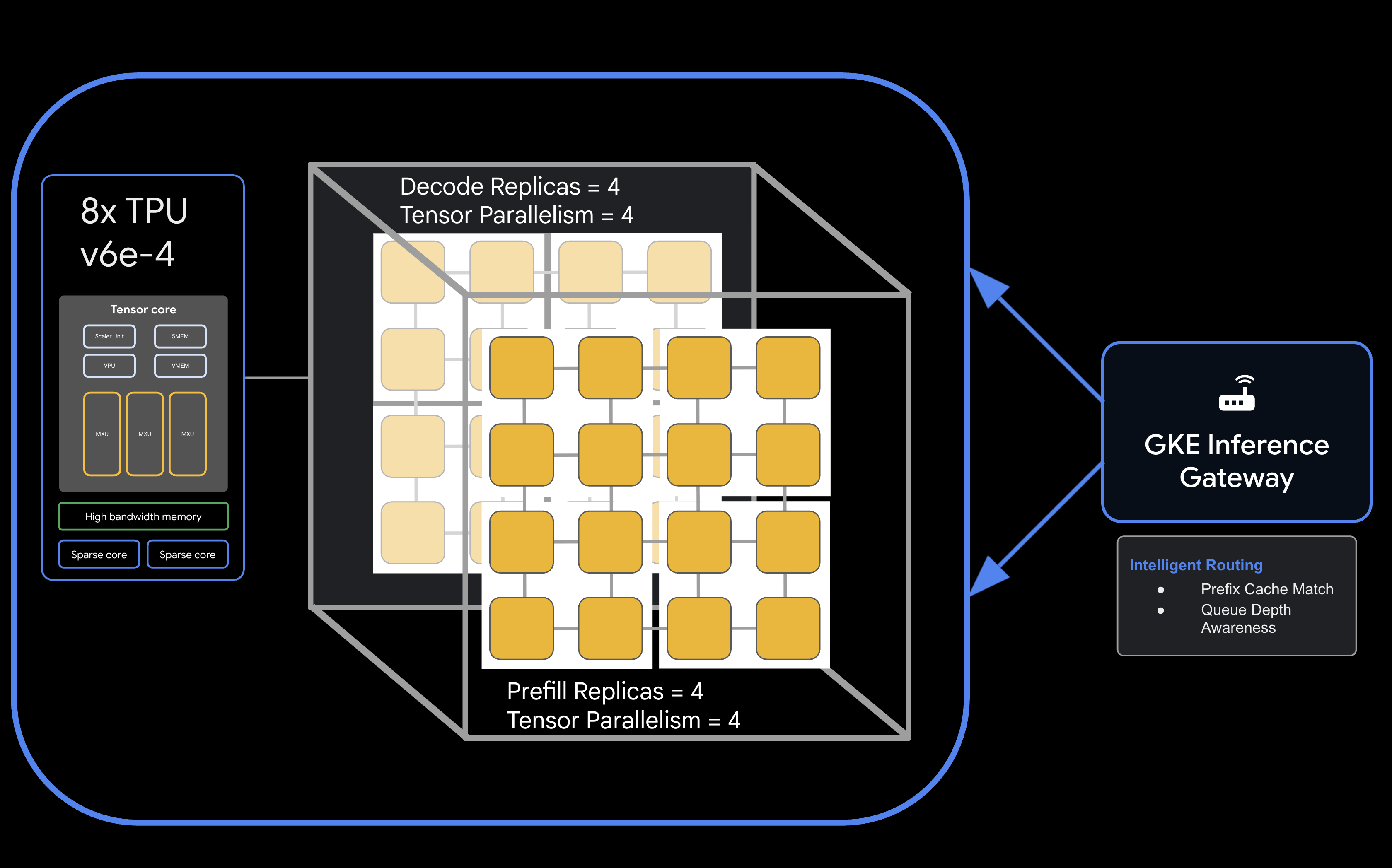

Arsitektur

![llm-d disaggregated serving architecture showing model split into 4 2x2 replicas of prefill and the same for decode]

Yang Anda butuhkan

  • Project Google Cloud yang mengaktifkan penagihan.
  • Reservasi Google Cloud untuk resource TPU v6e (32 chip, ct6e-standard-4t).
  • Token Akses Pengguna Hugging Face untuk mendownload bobot model.
  • Cloud Shell atau terminal lokal dengan gcloud, kubectl, dan helm yang terinstal.
  • Perkiraan Durasi: 60 menit
  • Estimasi Biaya: Lab ini melibatkan resource TPU yang signifikan dan akan dikenai biaya minimal $60 untuk menyelesaikan project. Pastikan Anda mengikuti langkah-langkah pembersihan segera setelah menyelesaikan latihan.

2. Sebelum memulai

Membuat atau Memilih Project Google Cloud

  1. Di Konsol Google Cloud, pilih atau buat project Google Cloud.
  2. Pastikan penagihan diaktifkan untuk project Cloud Anda.

Mulai Cloud Shell

  1. Klik Activate Cloud Shell di bagian atas konsol Google Cloud.
  2. Verifikasi autentikasi:
gcloud auth list
  1. Konfirmasi project Anda:
gcloud config get project
  1. Tetapkan jika perlu:
export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID

Mengaktifkan API

Aktifkan layanan Google Cloud yang diperlukan:

gcloud services enable \
    container.googleapis.com \
    compute.googleapis.com \
    iam.googleapis.com \
    cloudresourcemanager.googleapis.com

Menetapkan Variabel Lingkungan

Tentukan variabel berikut di shell Anda. Ganti <YOUR_ZONE> dengan zona TPU yang dialokasikan, <YOUR_RESERVATION_NAME> dengan ID reservasi, dan <YOUR_HUGGING_FACE_TOKEN> dengan token Anda.

export PROJECT_ID=$(gcloud config get-value project)
export ZONE="<YOUR_ZONE>" # e.g., us-east5-a
export REGION=${ZONE%-*}
export NAMESPACE=default
export CLUSTER_NAME="qwen-serving-cluster"
export GVNIC_NETWORK_PREFIX="qwen-serving"
export RESERVATION_NAME="<YOUR_RESERVATION_NAME>"
export HF_TOKEN="<YOUR_HUGGING_FACE_TOKEN>"

3. Membuat Jaringan Kustom

Penayangan yang diuraikan memerlukan konfigurasi jaringan tertentu untuk menangani traffic bandwidth tinggi antara node pengisian dan decoding.

  1. Buat jaringan VPC dengan MTU besar (8896) untuk komunikasi akselerator yang efisien:
    gcloud compute --project=${PROJECT_ID} \
    networks create ${GVNIC_NETWORK_PREFIX}-main \
    --subnet-mode=auto \
    --bgp-routing-mode=regional \
    --mtu=8896
  2. Buat subnet untuk cluster:
    gcloud compute --project=${PROJECT_ID} \
    networks subnets create ${GVNIC_NETWORK_PREFIX}-tpu \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --region=${REGION} \
    --range=10.10.0.0/18
  3. Buat subnet khusus proxy yang diperlukan untuk GKE Gateway API:
    gcloud compute networks subnets create ${GVNIC_NETWORK_PREFIX}-proxy \
    --purpose=REGIONAL_MANAGED_PROXY \
    --role=ACTIVE \
    --region=${REGION} \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --range=172.16.0.0/26
  4. Buat aturan firewall untuk mengizinkan komunikasi internal:
    gcloud compute --project=${PROJECT_ID} firewall-rules create ${GVNIC_NETWORK_PREFIX}-allow-internal \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --allow=all \
    --source-ranges=172.16.0.0/12,10.0.0.0/8 \
    --description="Allow all internal traffic within the network."

4. Menyediakan Cluster GKE

Buat cluster GKE Standard yang dikonfigurasi untuk mendukung pemasangan GCS Fuse dan beban kerja Ray Operator.

  1. Buat cluster:
    gcloud container clusters create ${CLUSTER_NAME} \
    --project=${PROJECT_ID} \
    --location=${REGION} \
    --release-channel=rapid \
    --machine-type=e2-standard-4 \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --subnetwork=${GVNIC_NETWORK_PREFIX}-tpu \
    --num-nodes=1 \
    --gateway-api=standard \
    --enable-managed-prometheus \
    --enable-dataplane-v2 \
    --enable-dataplane-v2-metrics \
    --workload-pool=${PROJECT_ID}.svc.id.goog \
    --addons=HttpLoadBalancing,GcsFuseCsiDriver,RayOperator,HorizontalPodAutoscaling,NodeLocalDNS \
    --enable-ip-alias
  2. Ambil Kredensial Cluster:
    gcloud container clusters get-credentials ${CLUSTER_NAME} --region=${REGION}
  3. Buat Secret Hugging Face:
    kubectl create secret generic llm-d-hf-token \
    --from-literal=hf_api_token=${HF_TOKEN} \
    --dry-run=client -o yaml | kubectl apply -f -

5. Membuat Node Pool TPU yang Dicadangkan

Sediakan 8 node pool khusus untuk slice TPU v6e menggunakan reservasi Anda.

Jalankan loop berikut untuk membuat 8 node pool:

for i in {1..8}
do
  gcloud beta container node-pools create "tpu-v6e-single-$i" \
    --project=${PROJECT_ID} \
    --cluster=${CLUSTER_NAME} \
    --region=${REGION} \
    --node-locations=${ZONE} \
    --machine-type=ct6e-standard-4t \
    --tpu-topology=2x2 \
    --num-nodes=1 \
    --reservation-affinity=specific \
    --reservation=${RESERVATION_NAME} \
    --workload-metadata=GKE_METADATA &
done

Tunggu hingga semua node dibuat dan bergabung ke cluster. Anda dapat memeriksa status dengan kubectl get nodes.

6. Men-deploy Layanan llm-d

Sekarang Anda akan men-deploy framework llm-d untuk mengelola penayangan yang terpisah.

  1. Instal Helm untuk men-deploy diagram llm-d:
    curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-4
chmod 700 get_helm.sh
./get_helm.sh
  2. Clone llm-d dan instal dependensi yang diperlukan:
    git clone https://github.com/llm-d/llm-d.git
# When using yq alongside Helm, you almost always want the version by Mike Farah (mikefarah/yq).  We remove the most common yq installation before reinstalling
sudo rm -rf /usr/local/bin/yq
cd llm-d
./helpers/client-setup/install-deps.sh
  3. Siapkan values_tpu.yaml kustom untuk mengonfigurasi penayangan yang dipisah-pisahkan untuk cluster Anda:
    cat <<EOF > llm-d/guides/pd-disaggregation/ms-pd/values_tpu.yaml
multinode: false

# Configure accelerator type for Google TPU
accelerator:
type: google

modelArtifacts:
uri: "hf://Qwen/Qwen3-32B"
size: 200Gi
authSecretName: "llm-d-hf-token"
name: "Qwen/Qwen3-32B"
labels:
    llm-d.ai/inference-serving: "true"
    llm-d.ai/guide: "pd-disaggregation"
    llm-d.ai/hardware-variant: "tpu"
    llm-d.ai/hardware-vendor: "google"
    llm-d.ai/model: "Qwen3-32B"

tracing:
enabled: true
otlpEndpoint: "localhost:4317"
serviceNames:
    routingProxy: "routing-proxy"
sampling:
    sampler: "always_off"
    samplerArg: "0"

routing:
servicePort: 8000
proxy:
    image: ghcr.io/llm-d/llm-d-routing-sidecar:v0.5.0
    connector: nixlv2
    secure: false

decode:
parallelism:
    tensor: 4
create: true
replicas: 4
modelCommand: custom
extraConfig:
    nodeSelector:
    cloud.google.com/gke-tpu-accelerator: "tpu-v6e-slice"
    cloud.google.com/gke-tpu-topology: "2x2"
monitoring:
    podmonitor:
    enabled: true
    portName: "vllm"
    path: "/metrics"
    interval: "30s"
containers:
    - name: "vllm"
    image: "vllm/vllm-tpu:nightly"
    command:
        - "/bin/bash"
        - "-c"
        - |
            # ROLE: kv_consumer (Receives KV cache from prefill)
            KV_CONFIG="{\"kv_connector\":\"TPUConnector\", \"kv_connector_module_path\" : \"tpu_inference.distributed.tpu_connector\", \"kv_role\":\"kv_consumer\", \"kv_ip\" : \"$POD_IP\"}"
            echo "KV_CONFIG=$KV_CONFIG"
            python3 -m vllm.entrypoints.openai.api_server \
            --model "Qwen/Qwen3-32B" \
            --port 8200 \
            --tensor-parallel-size 4 \
            --kv-transfer-config "${KV_CONFIG}" \
            --disable-uvicorn-access-log \
            --max-num-seqs 256 \
            --block-size 128 \
            --gpu-memory-utilization 0.90 \
            --max-model-len 8192
    env:
        - name: POD_IP
        valueFrom:
            fieldRef:
            fieldPath: status.podIP
        - name: TPU_SIDE_CHANNEL_PORT
        value: "9600"
        - name: TPU_KV_TRANSFER_PORT
        value: "9100"
    ports:
        - containerPort: 8200
        name: vllm
        protocol: TCP
        - containerPort: 9100
        name: tpu-kv-transfer
        protocol: TCP
        - containerPort: 9600
        name: tpu-coord
        protocol: TCP
    resources:
        limits:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
        requests:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
    mountModelVolume: true
    volumeMounts:
        - name: metrics-volume
        mountPath: /.config
        - name: shm
        mountPath: /dev/shm
        - name: torch-compile-cache
        mountPath: /.cache
    startupProbe:
        httpGet:
        path: /health
        port: vllm
        initialDelaySeconds: 15
        periodSeconds: 30
        timeoutSeconds: 5
        failureThreshold: 120
    livenessProbe:
        httpGet:
        path: /health
        port: vllm
        periodSeconds: 10
        timeoutSeconds: 5
        failureThreshold: 3
    readinessProbe:
        httpGet:
        path: /v1/models
        port: vllm
        periodSeconds: 5
        timeoutSeconds: 2
        failureThreshold: 3
volumes:
    - name: metrics-volume
    emptyDir: {}
    - name: shm
    emptyDir:
        medium: Memory
        sizeLimit: "16Gi"
    - name: torch-compile-cache
    emptyDir: {}

prefill:
parallelism:
    tensor: 4
create: true
replicas: 4
modelCommand: custom
extraConfig:
    nodeSelector:
    cloud.google.com/gke-tpu-accelerator: "tpu-v6e-slice"
    cloud.google.com/gke-tpu-topology: "2x2"
monitoring:
    podmonitor:
    enabled: true
    portName: "vllm"
    path: "/metrics"
    interval: "30s"
containers:
    - name: "vllm"
    image: "vllm/vllm-tpu:nightly"
    command:
        - "/bin/bash"
        - "-c"
        - |
            # ROLE: kv_producer (Sends KV cache to decode)
            KV_CONFIG="{\"kv_connector\":\"TPUConnector\", \"kv_connector_module_path\" : \"tpu_inference.distributed.tpu_connector\", \"kv_role\":\"kv_producer\", \"kv_ip\" : \"$POD_IP\"}"
            echo "KV_CONFIG=$KV_CONFIG"
            python3 -m vllm.entrypoints.openai.api_server \
            --model "Qwen/Qwen3-32B" \
            --port 8200 \
            --tensor-parallel-size 4 \
            --kv-transfer-config "${KV_CONFIG}" \
            --disable-uvicorn-access-log \
            --enable-chunked-prefill \
            --block-size 128 \
            --gpu-memory-utilization 0.90 \
            --max-model-len 8192
    env:
        - name: POD_IP
        valueFrom:
            fieldRef:
            fieldPath: status.podIP
        - name: TPU_SIDE_CHANNEL_PORT
        value: "9600"
        - name: TPU_KV_TRANSFER_PORT
        value: "9100"
    ports:
        - containerPort: 8200
        name: vllm
        protocol: TCP
        - containerPort: 9100
        name: tpu-kv-transfer
        protocol: TCP
        - containerPort: 9600
        name: tpu-coord
        protocol: TCP
    resources:
        limits:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
        requests:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
    mountModelVolume: true
    volumeMounts:
        - name: metrics-volume
        mountPath: /.config
        - name: shm
        mountPath: /dev/shm
        - name: torch-compile-cache
        mountPath: /.cache
    startupProbe:
        httpGet:
        path: /health
        port: vllm
        initialDelaySeconds: 15
        periodSeconds: 30
        timeoutSeconds: 5
        failureThreshold: 120
    livenessProbe:
        httpGet:
        path: /health
        port: vllm
        periodSeconds: 10
        timeoutSeconds: 5
        failureThreshold: 3
    readinessProbe:
        httpGet:
        path: /v1/models
        port: vllm
        periodSeconds: 5
        timeoutSeconds: 2
        failureThreshold: 3
volumes:
    - name: metrics-volume
    emptyDir: {}
    - name: shm
    emptyDir:
        medium: Memory
        sizeLimit: "16Gi"
    - name: torch-compile-cache
    emptyDir: {}
EOF
  4. Deploy Service dan Gateway menggunakan diagram Helm llm-d:
    cd llm-d/guides/pd-disaggregation/
helmfile apply -e gke_tpu -n $NAMESPACE
kubectl apply -f ./httproute.gke.yaml
  5. Tunggu hingga layanan vLLM dimulaiPantau log POD decode dan prefill hingga Anda melihat "INFO: Application startup complete."
    DECODE_POD=$(kubectl get pods -l llm-d.ai/modelservice-role=decode -o jsonpath='{.items[0].metadata.name}')

# Get the first Prefill pod name
PREFILL_POD=$(kubectl get pods -l llm-d.ai/modelservice-role=prefill -o jsonpath='{.items[0].metadata.name}')

echo "Run each of these until vLLM starts successfully and then ctrl-C out"
echo "kubectl logs -f $DECODE_POD -c vllm"
echo "kubectl logs -f $PREFILL_POD -c vllm"

7. Respons Deployment Pengujian

Skrip di bawah akan menguji konektivitas ke cluster penayangan melalui GKE Inference Gateway, lalu menjalankan uji tolok ukur.

  1. Uji Konektivitas dan Jalankan Tolok Ukur:
    cat <<EOBF > ./run_benchmark.sh
#!/bin/bash

# Configuration
NAMESPACE="default"
JOB_NAME="qwen3-pd-benchmark"
MODEL_NAME="Qwen/Qwen3-32B"

echo "🔍 Discovering Gateway IP..."
GATEWAY_IP=$(kubectl get gateway -n ${NAMESPACE} -o jsonpath='{.items[0].status.addresses[0].value}')

if [ -z "$GATEWAY_IP" ]; then
    echo "❌ Error: Could not find Gateway IP. Check 'kubectl get gateway'."
    exit 1
fi

TARGET_URL="http://${GATEWAY_IP}"
echo "✅ Found Gateway at: $TARGET_URL"

echo "🗑️  Cleaning up old benchmark jobs..."
kubectl delete job $JOB_NAME --ignore-not-found=true

echo "🚀 Generating and applying Benchmark Job..."
cat <<EOF | kubectl apply -f -
apiVersion: batch/v1
kind: Job
metadata:
name: $JOB_NAME
namespace: $NAMESPACE
spec:
template:
    spec:
    containers:
    - name: llm-benchmark
        image: vllm/vllm-openai:latest
        command: ["/bin/bash", "-c"]
        args:
        - |
            # 1. Download dataset
            if [ ! -f /data/sharegpt.json ]; then
            echo "Downloading ShareGPT dataset..."
            curl -L "https://huggingface.co/datasets/anon8231489123/ShareGPT_Vicuna_unfiltered/resolve/main/ShareGPT_V3_unfiltered_cleaned_split.json" -o /data/sharegpt.json
            fi

            # 2. Wait for Gateway readiness
            echo "Checking connectivity to $MODEL_NAME..."
            until curl -s "$TARGET_URL/v1/models" | grep -q "$MODEL_NAME"; do
            echo "Waiting for Gateway backends to sync..."
            sleep 10
            done

            # 3. Run Benchmark
            vllm bench serve \\
            --base-url "$TARGET_URL" \\
            --model "$MODEL_NAME" \\
            --dataset-name "sharegpt" \\
            --dataset-path "/data/sharegpt.json" \\
            --request-rate 80.0 \\
            --num-prompts 2000 \\
            --tokenizer "$MODEL_NAME"
        volumeMounts:
        - name: dataset-volume
        mountPath: /data
    restartPolicy: Never
    volumes:
    - name: dataset-volume
        emptyDir: {}
EOF

echo "⏳ Job submitted. Follow logs with:"
echo "kubectl logs -f job/$JOB_NAME"
EOBF

chmod a+x ./run_benchmark.sh

./run_benchmark.sh
    Anda akan melihat output yang menampilkan permintaan yang sedang diproses dan metrik latensi.

8. Pembersihan

Untuk menghindari biaya berkelanjutan pada akun Google Cloud Anda, hapus resource yang dibuat selama codelab ini.

Jalankan langkah-langkah berikut untuk membersihkan aset Anda:

# 1. Delete LeaderWorkerSet and Helm release
kubectl delete leaderworkerset qwen-simple-anywhere-cache --ignore-not-found
helm uninstall lws --namespace lws-system 2>/dev/null
kubectl delete namespace lws-system --ignore-not-found

# 2. Delete GKE Node Pools
# Note: Usually deleting the cluster deletes the node pools,
# but explicit deletion ensures it's gone before the cluster teardown begins.
for i in {1..8}
do
	gcloud container node-pools delete "tpu-v6e-single-$i" \
	    --cluster="${CLUSTER_NAME}" \
	    --region="${REGION}" \
	    --project="${PROJECT_ID}" --quiet

done

# 3. Delete GKE Cluster
gcloud container clusters delete "${CLUSTER_NAME}" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

echo "--- Starting IAM and Service Account Cleanup ---"

# 1. Define the full Service Account email for clarity
SA_EMAIL="tpu-reader-sa@${PROJECT_ID}.iam.gserviceaccount.com"

# 2. Remove Storage Bucket IAM Binding
# This removes the 'objectViewer' role from the specific bucket
gcloud storage buckets remove-iam-policy-binding gs://inf-demo-model-storage \
    --member="serviceAccount:${SA_EMAIL}" \
    --role="roles/storage.objectViewer" --quiet

# 3. Remove Workload Identity Binding
# This severs the link between the GKE KSA and the GCP SA
gcloud iam service-accounts remove-iam-policy-binding "${SA_EMAIL}" \
    --role="roles/iam.workloadIdentityUser" \
    --member="serviceAccount:${PROJECT_ID}.svc.id.goog[default/default]" --quiet

# 4. Delete the Service Account
gcloud iam service-accounts delete "${SA_EMAIL}" --project="${PROJECT_ID}" --quiet

echo "IAM cleanup complete!"

echo "--- Starting Network and Firewall Cleanup ---"

# 4. Delete Firewall Rules (Must go before the Network)
gcloud compute firewall-rules delete \
    "${GVNIC_NETWORK_PREFIX}-allow-ssh" \
    "${GVNIC_NETWORK_PREFIX}-allow-icmp" \
    "${GVNIC_NETWORK_PREFIX}-allow-internal" \
    "ray-allow-internal" \
    --project="${PROJECT_ID}" --quiet

# 5. Delete Subnets (Must go before the Network)
gcloud compute networks subnets delete "${GVNIC_NETWORK_PREFIX}-tpu" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

gcloud compute networks subnets delete "${GVNIC_NETWORK_PREFIX}-proxy-sub" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

gcloud compute networks subnets delete "proxy-only-subnet" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

# 6. Finally, delete the VPC Network
gcloud compute networks delete "${GVNIC_NETWORK_PREFIX}-main" \
    --project="${PROJECT_ID}" --quiet

echo "Cleanup complete!"

9. Selamat

Selamat! Anda telah berhasil men-deploy Qwen3-32B di TPU v6e yang terpisah menggunakan llm-d dan GKE.

Yang telah Anda pelajari

  • Cara mengonfigurasi jaringan kustom untuk traffic TPU berkecepatan tinggi.
  • Cara menyediakan node pool TPU yang dipesan di GKE.
  • Cara men-deploy llm-d untuk memisahkan workload pengisian otomatis dan decoding.

Langkah Berikutnya
