Esegui il deployment dell'inferenza vLLM TPU disaggregata con llm-d su GKE

1. Introduzione

In questo codelab imparerai a eseguire il deployment di servizi di inferenza disaggregati e ad alte prestazioni su Google Kubernetes Engine (GKE) utilizzando le Google Cloud TPU. Utilizzerai llm-d, un framework open source per la pubblicazione di LLM distribuiti, per separare le fasi di prefill e decodifica su più host TPU, configurare la memorizzazione nella cache KV condivisa e GKE Inference Gateway.

Questa configurazione simula un ambiente di produzione per la pubblicazione di modelli di grandi dimensioni come Qwen3-32B con throughput elevato e bassa latenza.

In questo lab proverai a:

  • Crea una rete VPC personalizzata con MTU ottimizzata per il traffico dell'acceleratore.
  • Esegui il provisioning di un cluster GKE con i componenti aggiuntivi del driver CSI GCS Fuse e dell'operatore Ray.
  • Crea 8 node pool dedicati per gli slice TPU v6e (32 chip in totale).
  • Configura Workload Identity e le autorizzazioni per l'accesso a GCS.
  • Esegui il deployment di llm-d per gestire la distribuzione disaggregata del modello Qwen3-32B.
  • Verifica il deployment con un test di benchmark.

Architettura

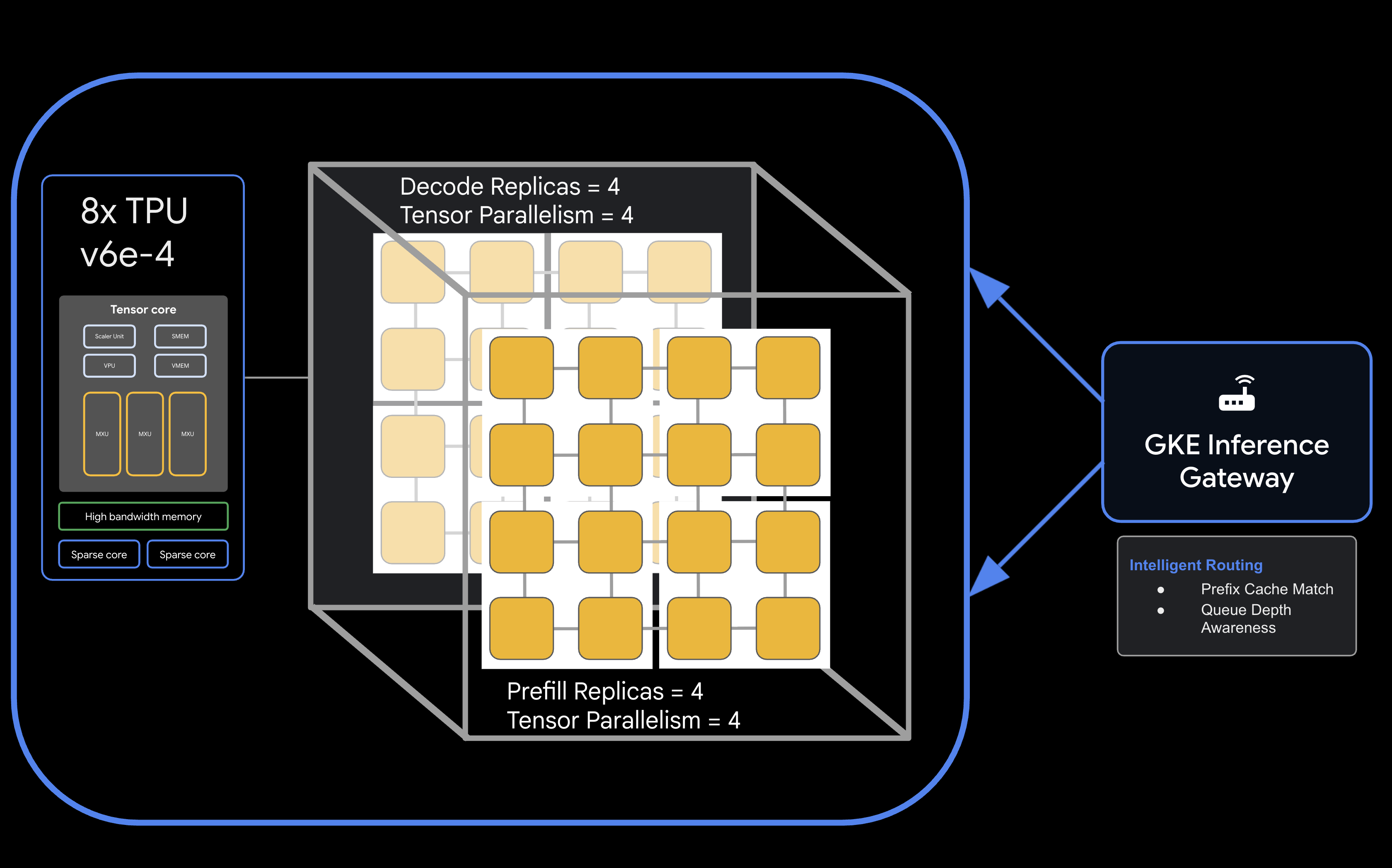

![llm-d disaggregated serving architecture showing model split into 4 2x2 replicas of prefill and the same for decode]

Che cosa ti serve

  • Un progetto Google Cloud con la fatturazione abilitata.
  • Una prenotazione Google Cloud per le risorse TPU v6e (32 chip, ct6e-standard-4t).
  • Un token di accesso utente Hugging Face per scaricare i pesi del modello.
  • Cloud Shell o un terminale locale con gcloud, kubectl e helm installati.
  • Durata stimata: 60 minuti
  • Costo stimato:questo lab prevede l'utilizzo di risorse TPU significative e costerà almeno 60 $per completare il progetto. Assicurati di seguire i passaggi di pulizia immediatamente dopo aver completato gli esercizi.

2. Prima di iniziare

Crea o seleziona un progetto Google Cloud

  1. Nella console Google Cloud, seleziona o crea un progetto Google Cloud.
  2. Assicurati che la fatturazione sia attivata per il tuo progetto Cloud.

Avvia Cloud Shell

  1. Fai clic su Attiva Cloud Shell nella parte superiore della console Google Cloud.
  2. Verifica l'autenticazione:
gcloud auth list
  1. Conferma il progetto:
gcloud config get project
  1. Impostalo se necessario:
export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID

Abilita API

Attiva i servizi Google Cloud richiesti:

gcloud services enable \
    container.googleapis.com \
    compute.googleapis.com \
    iam.googleapis.com \
    cloudresourcemanager.googleapis.com

Imposta le variabili di ambiente

Definisci le seguenti variabili nella shell. Sostituisci <YOUR_ZONE> con la zona TPU allocata, <YOUR_RESERVATION_NAME> con l'ID prenotazione e <YOUR_HUGGING_FACE_TOKEN> con il tuo token.

export PROJECT_ID=$(gcloud config get-value project)
export ZONE="<YOUR_ZONE>" # e.g., us-east5-a
export REGION=${ZONE%-*}
export NAMESPACE=default
export CLUSTER_NAME="qwen-serving-cluster"
export GVNIC_NETWORK_PREFIX="qwen-serving"
export RESERVATION_NAME="<YOUR_RESERVATION_NAME>"
export HF_TOKEN="<YOUR_HUGGING_FACE_TOKEN>"

3. Crea networking personalizzato

Il servizio disaggregato richiede configurazioni di rete specifiche per gestire il traffico a larghezza di banda elevata tra i nodi di precompilazione e decodifica.

  1. Crea la rete VPC con un MTU elevato (8896) per una comunicazione efficiente dell'acceleratore:
    gcloud compute --project=${PROJECT_ID} \
    networks create ${GVNIC_NETWORK_PREFIX}-main \
    --subnet-mode=auto \
    --bgp-routing-mode=regional \
    --mtu=8896
  2. Crea la subnet per il cluster:
    gcloud compute --project=${PROJECT_ID} \
    networks subnets create ${GVNIC_NETWORK_PREFIX}-tpu \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --region=${REGION} \
    --range=10.10.0.0/18
  3. Crea una subnet solo proxy richiesta per l'API GKE Gateway:
    gcloud compute networks subnets create ${GVNIC_NETWORK_PREFIX}-proxy \
    --purpose=REGIONAL_MANAGED_PROXY \
    --role=ACTIVE \
    --region=${REGION} \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --range=172.16.0.0/26
  4. Crea regole firewall per consentire la comunicazione interna:
    gcloud compute --project=${PROJECT_ID} firewall-rules create ${GVNIC_NETWORK_PREFIX}-allow-internal \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --allow=all \
    --source-ranges=172.16.0.0/12,10.0.0.0/8 \
    --description="Allow all internal traffic within the network."

4. Esegui il provisioning del cluster GKE

Crea un cluster GKE Standard configurato per supportare i montaggi GCS Fuse e i carichi di lavoro dell'operatore Ray.

  1. Crea il cluster:
    gcloud container clusters create ${CLUSTER_NAME} \
    --project=${PROJECT_ID} \
    --location=${REGION} \
    --release-channel=rapid \
    --machine-type=e2-standard-4 \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --subnetwork=${GVNIC_NETWORK_PREFIX}-tpu \
    --num-nodes=1 \
    --gateway-api=standard \
    --enable-managed-prometheus \
    --enable-dataplane-v2 \
    --enable-dataplane-v2-metrics \
    --workload-pool=${PROJECT_ID}.svc.id.goog \
    --addons=HttpLoadBalancing,GcsFuseCsiDriver,RayOperator,HorizontalPodAutoscaling,NodeLocalDNS \
    --enable-ip-alias
  2. Recupera le credenziali del cluster:
    gcloud container clusters get-credentials ${CLUSTER_NAME} --region=${REGION}
  3. Crea secret Hugging Face:
    kubectl create secret generic llm-d-hf-token \
    --from-literal=hf_api_token=${HF_TOKEN} \
    --dry-run=client -o yaml | kubectl apply -f -

5. Crea node pool TPU riservati

Esegui il provisioning degli 8 pool di nodi dedicati per le sezioni TPU v6e utilizzando la prenotazione.

Esegui il seguente ciclo per creare gli 8 pool di nodi:

for i in {1..8}
do
  gcloud beta container node-pools create "tpu-v6e-single-$i" \
    --project=${PROJECT_ID} \
    --cluster=${CLUSTER_NAME} \
    --region=${REGION} \
    --node-locations=${ZONE} \
    --machine-type=ct6e-standard-4t \
    --tpu-topology=2x2 \
    --num-nodes=1 \
    --reservation-affinity=specific \
    --reservation=${RESERVATION_NAME} \
    --workload-metadata=GKE_METADATA &
done

Attendi che tutti i nodi vengano creati e si uniscano al cluster. Puoi controllare lo stato con kubectl get nodes.

6. Esegui il deployment del servizio llm-d

Ora devi eseguire il deployment del framework llm-d per gestire la pubblicazione disaggregata.

  1. Installa Helm per eseguire il deployment dei grafici llm-d:
    curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-4
chmod 700 get_helm.sh
./get_helm.sh
  2. Clona llm-d e installa le dipendenze richieste:
    git clone https://github.com/llm-d/llm-d.git
# When using yq alongside Helm, you almost always want the version by Mike Farah (mikefarah/yq).  We remove the most common yq installation before reinstalling
sudo rm -rf /usr/local/bin/yq
cd llm-d
./helpers/client-setup/install-deps.sh
  3. Prepara il file custom values_tpu.yaml per configurare la pubblicazione disaggregata per il tuo cluster:
    cat <<EOF > llm-d/guides/pd-disaggregation/ms-pd/values_tpu.yaml
multinode: false

# Configure accelerator type for Google TPU
accelerator:
type: google

modelArtifacts:
uri: "hf://Qwen/Qwen3-32B"
size: 200Gi
authSecretName: "llm-d-hf-token"
name: "Qwen/Qwen3-32B"
labels:
    llm-d.ai/inference-serving: "true"
    llm-d.ai/guide: "pd-disaggregation"
    llm-d.ai/hardware-variant: "tpu"
    llm-d.ai/hardware-vendor: "google"
    llm-d.ai/model: "Qwen3-32B"

tracing:
enabled: true
otlpEndpoint: "localhost:4317"
serviceNames:
    routingProxy: "routing-proxy"
sampling:
    sampler: "always_off"
    samplerArg: "0"

routing:
servicePort: 8000
proxy:
    image: ghcr.io/llm-d/llm-d-routing-sidecar:v0.5.0
    connector: nixlv2
    secure: false

decode:
parallelism:
    tensor: 4
create: true
replicas: 4
modelCommand: custom
extraConfig:
    nodeSelector:
    cloud.google.com/gke-tpu-accelerator: "tpu-v6e-slice"
    cloud.google.com/gke-tpu-topology: "2x2"
monitoring:
    podmonitor:
    enabled: true
    portName: "vllm"
    path: "/metrics"
    interval: "30s"
containers:
    - name: "vllm"
    image: "vllm/vllm-tpu:nightly"
    command:
        - "/bin/bash"
        - "-c"
        - |
            # ROLE: kv_consumer (Receives KV cache from prefill)
            KV_CONFIG="{\"kv_connector\":\"TPUConnector\", \"kv_connector_module_path\" : \"tpu_inference.distributed.tpu_connector\", \"kv_role\":\"kv_consumer\", \"kv_ip\" : \"$POD_IP\"}"
            echo "KV_CONFIG=$KV_CONFIG"
            python3 -m vllm.entrypoints.openai.api_server \
            --model "Qwen/Qwen3-32B" \
            --port 8200 \
            --tensor-parallel-size 4 \
            --kv-transfer-config "${KV_CONFIG}" \
            --disable-uvicorn-access-log \
            --max-num-seqs 256 \
            --block-size 128 \
            --gpu-memory-utilization 0.90 \
            --max-model-len 8192
    env:
        - name: POD_IP
        valueFrom:
            fieldRef:
            fieldPath: status.podIP
        - name: TPU_SIDE_CHANNEL_PORT
        value: "9600"
        - name: TPU_KV_TRANSFER_PORT
        value: "9100"
    ports:
        - containerPort: 8200
        name: vllm
        protocol: TCP
        - containerPort: 9100
        name: tpu-kv-transfer
        protocol: TCP
        - containerPort: 9600
        name: tpu-coord
        protocol: TCP
    resources:
        limits:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
        requests:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
    mountModelVolume: true
    volumeMounts:
        - name: metrics-volume
        mountPath: /.config
        - name: shm
        mountPath: /dev/shm
        - name: torch-compile-cache
        mountPath: /.cache
    startupProbe:
        httpGet:
        path: /health
        port: vllm
        initialDelaySeconds: 15
        periodSeconds: 30
        timeoutSeconds: 5
        failureThreshold: 120
    livenessProbe:
        httpGet:
        path: /health
        port: vllm
        periodSeconds: 10
        timeoutSeconds: 5
        failureThreshold: 3
    readinessProbe:
        httpGet:
        path: /v1/models
        port: vllm
        periodSeconds: 5
        timeoutSeconds: 2
        failureThreshold: 3
volumes:
    - name: metrics-volume
    emptyDir: {}
    - name: shm
    emptyDir:
        medium: Memory
        sizeLimit: "16Gi"
    - name: torch-compile-cache
    emptyDir: {}

prefill:
parallelism:
    tensor: 4
create: true
replicas: 4
modelCommand: custom
extraConfig:
    nodeSelector:
    cloud.google.com/gke-tpu-accelerator: "tpu-v6e-slice"
    cloud.google.com/gke-tpu-topology: "2x2"
monitoring:
    podmonitor:
    enabled: true
    portName: "vllm"
    path: "/metrics"
    interval: "30s"
containers:
    - name: "vllm"
    image: "vllm/vllm-tpu:nightly"
    command:
        - "/bin/bash"
        - "-c"
        - |
            # ROLE: kv_producer (Sends KV cache to decode)
            KV_CONFIG="{\"kv_connector\":\"TPUConnector\", \"kv_connector_module_path\" : \"tpu_inference.distributed.tpu_connector\", \"kv_role\":\"kv_producer\", \"kv_ip\" : \"$POD_IP\"}"
            echo "KV_CONFIG=$KV_CONFIG"
            python3 -m vllm.entrypoints.openai.api_server \
            --model "Qwen/Qwen3-32B" \
            --port 8200 \
            --tensor-parallel-size 4 \
            --kv-transfer-config "${KV_CONFIG}" \
            --disable-uvicorn-access-log \
            --enable-chunked-prefill \
            --block-size 128 \
            --gpu-memory-utilization 0.90 \
            --max-model-len 8192
    env:
        - name: POD_IP
        valueFrom:
            fieldRef:
            fieldPath: status.podIP
        - name: TPU_SIDE_CHANNEL_PORT
        value: "9600"
        - name: TPU_KV_TRANSFER_PORT
        value: "9100"
    ports:
        - containerPort: 8200
        name: vllm
        protocol: TCP
        - containerPort: 9100
        name: tpu-kv-transfer
        protocol: TCP
        - containerPort: 9600
        name: tpu-coord
        protocol: TCP
    resources:
        limits:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
        requests:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
    mountModelVolume: true
    volumeMounts:
        - name: metrics-volume
        mountPath: /.config
        - name: shm
        mountPath: /dev/shm
        - name: torch-compile-cache
        mountPath: /.cache
    startupProbe:
        httpGet:
        path: /health
        port: vllm
        initialDelaySeconds: 15
        periodSeconds: 30
        timeoutSeconds: 5
        failureThreshold: 120
    livenessProbe:
        httpGet:
        path: /health
        port: vllm
        periodSeconds: 10
        timeoutSeconds: 5
        failureThreshold: 3
    readinessProbe:
        httpGet:
        path: /v1/models
        port: vllm
        periodSeconds: 5
        timeoutSeconds: 2
        failureThreshold: 3
volumes:
    - name: metrics-volume
    emptyDir: {}
    - name: shm
    emptyDir:
        medium: Memory
        sizeLimit: "16Gi"
    - name: torch-compile-cache
    emptyDir: {}
EOF
  4. Esegui il deployment del servizio e del gateway utilizzando il grafico Helm di llm-d:
    cd llm-d/guides/pd-disaggregation/
helmfile apply -e gke_tpu -n $NAMESPACE
kubectl apply -f ./httproute.gke.yaml
  5. Attendi l'avvio dei servizi vLLM. Controlla i log dei pod di decodifica e prefill finché non visualizzi "INFO: Application startup complete."
    DECODE_POD=$(kubectl get pods -l llm-d.ai/modelservice-role=decode -o jsonpath='{.items[0].metadata.name}')

# Get the first Prefill pod name
PREFILL_POD=$(kubectl get pods -l llm-d.ai/modelservice-role=prefill -o jsonpath='{.items[0].metadata.name}')

echo "Run each of these until vLLM starts successfully and then ctrl-C out"
echo "kubectl logs -f $DECODE_POD -c vllm"
echo "kubectl logs -f $PREFILL_POD -c vllm"

7. Risposta al test di deployment

Lo script riportato di seguito testerà la connettività al cluster di pubblicazione tramite GKE Inference Gateway, quindi eseguirà un test di benchmarking.

  1. Verifica la connettività ed esegui il benchmark:
    cat <<EOBF > ./run_benchmark.sh
#!/bin/bash

# Configuration
NAMESPACE="default"
JOB_NAME="qwen3-pd-benchmark"
MODEL_NAME="Qwen/Qwen3-32B"

echo "🔍 Discovering Gateway IP..."
GATEWAY_IP=$(kubectl get gateway -n ${NAMESPACE} -o jsonpath='{.items[0].status.addresses[0].value}')

if [ -z "$GATEWAY_IP" ]; then
    echo "❌ Error: Could not find Gateway IP. Check 'kubectl get gateway'."
    exit 1
fi

TARGET_URL="http://${GATEWAY_IP}"
echo "✅ Found Gateway at: $TARGET_URL"

echo "🗑️  Cleaning up old benchmark jobs..."
kubectl delete job $JOB_NAME --ignore-not-found=true

echo "🚀 Generating and applying Benchmark Job..."
cat <<EOF | kubectl apply -f -
apiVersion: batch/v1
kind: Job
metadata:
name: $JOB_NAME
namespace: $NAMESPACE
spec:
template:
    spec:
    containers:
    - name: llm-benchmark
        image: vllm/vllm-openai:latest
        command: ["/bin/bash", "-c"]
        args:
        - |
            # 1. Download dataset
            if [ ! -f /data/sharegpt.json ]; then
            echo "Downloading ShareGPT dataset..."
            curl -L "https://huggingface.co/datasets/anon8231489123/ShareGPT_Vicuna_unfiltered/resolve/main/ShareGPT_V3_unfiltered_cleaned_split.json" -o /data/sharegpt.json
            fi

            # 2. Wait for Gateway readiness
            echo "Checking connectivity to $MODEL_NAME..."
            until curl -s "$TARGET_URL/v1/models" | grep -q "$MODEL_NAME"; do
            echo "Waiting for Gateway backends to sync..."
            sleep 10
            done

            # 3. Run Benchmark
            vllm bench serve \\
            --base-url "$TARGET_URL" \\
            --model "$MODEL_NAME" \\
            --dataset-name "sharegpt" \\
            --dataset-path "/data/sharegpt.json" \\
            --request-rate 80.0 \\
            --num-prompts 2000 \\
            --tokenizer "$MODEL_NAME"
        volumeMounts:
        - name: dataset-volume
        mountPath: /data
    restartPolicy: Never
    volumes:
    - name: dataset-volume
        emptyDir: {}
EOF

echo "⏳ Job submitted. Follow logs with:"
echo "kubectl logs -f job/$JOB_NAME"
EOBF

chmod a+x ./run_benchmark.sh

./run_benchmark.sh
    Dovresti vedere un output che mostra le richieste in fase di elaborazione e le metriche di latenza.

8. Esegui la pulizia

Per evitare addebiti continui al tuo account Google Cloud, elimina le risorse create durante questo codelab.

Esegui i seguenti passaggi per liberare spazio dagli asset:

# 1. Delete LeaderWorkerSet and Helm release
kubectl delete leaderworkerset qwen-simple-anywhere-cache --ignore-not-found
helm uninstall lws --namespace lws-system 2>/dev/null
kubectl delete namespace lws-system --ignore-not-found

# 2. Delete GKE Node Pools
# Note: Usually deleting the cluster deletes the node pools,
# but explicit deletion ensures it's gone before the cluster teardown begins.
for i in {1..8}
do
	gcloud container node-pools delete "tpu-v6e-single-$i" \
	    --cluster="${CLUSTER_NAME}" \
	    --region="${REGION}" \
	    --project="${PROJECT_ID}" --quiet

done

# 3. Delete GKE Cluster
gcloud container clusters delete "${CLUSTER_NAME}" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

echo "--- Starting IAM and Service Account Cleanup ---"

# 1. Define the full Service Account email for clarity
SA_EMAIL="tpu-reader-sa@${PROJECT_ID}.iam.gserviceaccount.com"

# 2. Remove Storage Bucket IAM Binding
# This removes the 'objectViewer' role from the specific bucket
gcloud storage buckets remove-iam-policy-binding gs://inf-demo-model-storage \
    --member="serviceAccount:${SA_EMAIL}" \
    --role="roles/storage.objectViewer" --quiet

# 3. Remove Workload Identity Binding
# This severs the link between the GKE KSA and the GCP SA
gcloud iam service-accounts remove-iam-policy-binding "${SA_EMAIL}" \
    --role="roles/iam.workloadIdentityUser" \
    --member="serviceAccount:${PROJECT_ID}.svc.id.goog[default/default]" --quiet

# 4. Delete the Service Account
gcloud iam service-accounts delete "${SA_EMAIL}" --project="${PROJECT_ID}" --quiet

echo "IAM cleanup complete!"

echo "--- Starting Network and Firewall Cleanup ---"

# 4. Delete Firewall Rules (Must go before the Network)
gcloud compute firewall-rules delete \
    "${GVNIC_NETWORK_PREFIX}-allow-ssh" \
    "${GVNIC_NETWORK_PREFIX}-allow-icmp" \
    "${GVNIC_NETWORK_PREFIX}-allow-internal" \
    "ray-allow-internal" \
    --project="${PROJECT_ID}" --quiet

# 5. Delete Subnets (Must go before the Network)
gcloud compute networks subnets delete "${GVNIC_NETWORK_PREFIX}-tpu" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

gcloud compute networks subnets delete "${GVNIC_NETWORK_PREFIX}-proxy-sub" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

gcloud compute networks subnets delete "proxy-only-subnet" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

# 6. Finally, delete the VPC Network
gcloud compute networks delete "${GVNIC_NETWORK_PREFIX}-main" \
    --project="${PROJECT_ID}" --quiet

echo "Cleanup complete!"

9. Complimenti

Complimenti! Hai eseguito correttamente il deployment di Qwen3-32B su TPU v6e disaggregate utilizzando llm-d e GKE.

Cosa hai imparato

  • Come configurare una rete personalizzata per il traffico TPU ad alta velocità.
  • Come eseguire il provisioning dei node pool TPU riservati su GKE.
  • Come eseguire il deployment di llm-d per separare i carichi di lavoro di precompilazione e decodifica.

Passaggi successivi
