在 GKE 上使用 llm-d 部署分離式 TPU vLLM 推論

1. 簡介

在本程式碼研究室中，您將瞭解如何使用 Google Cloud TPU，在 Google Kubernetes Engine (GKE) 上部署高效能的非聚合式推論服務。您將使用 llm-d (適用於分散式 LLM 服務的開放原始碼框架)，在多個 TPU 主機之間區隔預填和解碼階段、設定共用 KV 快取，以及 GKE Inference Gateway。

這個設定會模擬正式環境，以高處理量和低延遲提供 Qwen3-32B 等大型模型。

學習內容

  • 建立自訂虛擬私有雲網路，並為加速器流量設定最佳 MTU。
  • 佈建 GKE 叢集，並使用 GCS Fuse CSI 驅動程式和 Ray Operator 外掛程式。
  • 為 TPU v6e 配量 (總共 32 個晶片) 建立 8 個專屬節點集區。
  • 設定 Workload Identity 和權限，以便存取 GCS。
  • 部署 llm-d，管理 Qwen3-32B 模型的非聚合式服務。
  • 使用基準測試驗證部署作業。

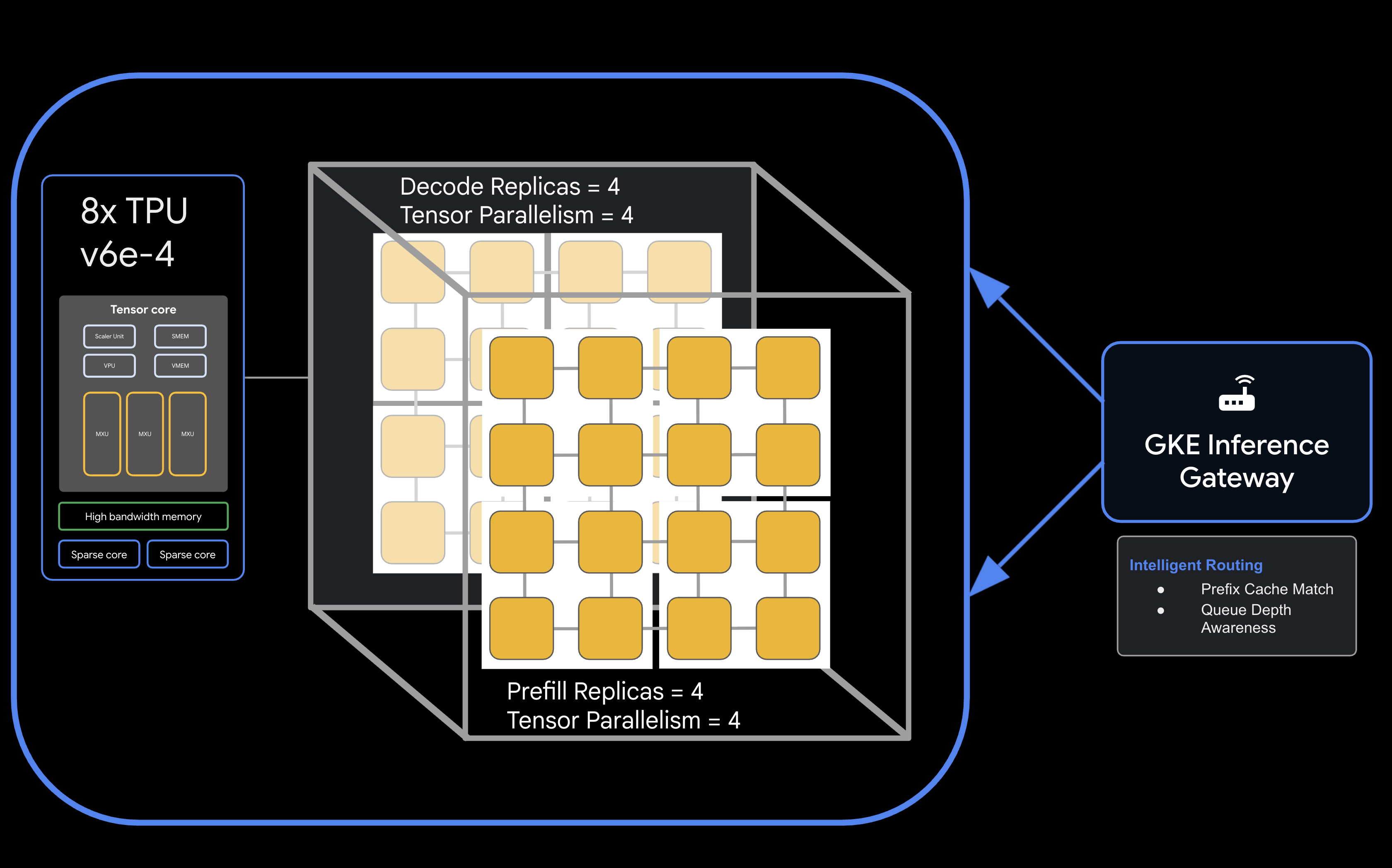

架構

![llm-d disaggregated serving architecture showing model split into 4 2x2 replicas of prefill and the same for decode]

軟硬體需求

  • 已啟用計費功能的 Google Cloud 專案。
  • TPU v6e 資源的 Google Cloud 預訂 (32 個晶片，ct6e-standard-4t)。
  • Hugging Face 使用者存取權杖，用於下載模型權重。
  • Cloud Shell 或已安裝 gcloud、kubectl 和 helm 的本機終端機。
  • 預計時間：60 分鐘
  • 預估費用：本實驗室會用到大量 TPU 資源，完成專案至少需要 $60 美元。請務必在完成練習後立即按照清除步驟操作。

2. 事前準備

建立或選取 Google Cloud 專案

  1. 在 Google Cloud 控制台中，選取或建立 Google Cloud 專案。
  2. 確認 Cloud 專案已啟用計費功能。

啟動 Cloud Shell

  1. 點選 Google Cloud 控制台頂端的「啟用 Cloud Shell」。
  2. 驗證：
gcloud auth list
  1. 確認專案：
gcloud config get project
  1. 視需要設定：
export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID

啟用 API

啟用必要的 Google Cloud 服務：

gcloud services enable \
    container.googleapis.com \
    compute.googleapis.com \
    iam.googleapis.com \
    cloudresourcemanager.googleapis.com

設定環境變數

在殼層中定義下列變數。將 <YOUR_ZONE> 換成您分配到的 TPU 區域，<YOUR_RESERVATION_NAME> 換成預訂 ID，<YOUR_HUGGING_FACE_TOKEN> 換成您的權杖。

export PROJECT_ID=$(gcloud config get-value project)
export ZONE="<YOUR_ZONE>" # e.g., us-east5-a
export REGION=${ZONE%-*}
export NAMESPACE=default
export CLUSTER_NAME="qwen-serving-cluster"
export GVNIC_NETWORK_PREFIX="qwen-serving"
export RESERVATION_NAME="<YOUR_RESERVATION_NAME>"
export HF_TOKEN="<YOUR_HUGGING_FACE_TOKEN>"

3. 建立自訂網路

如要使用分離式服務，必須進行特定網路設定，才能處理預填和解碼節點之間的高頻寬流量。

  1. 建立虛擬私有雲網路，並將 MTU 設為較大的值 (8896)，以提升加速器通訊效率：
    gcloud compute --project=${PROJECT_ID} \
    networks create ${GVNIC_NETWORK_PREFIX}-main \
    --subnet-mode=auto \
    --bgp-routing-mode=regional \
    --mtu=8896
  2. 建立叢集的子網路：
    gcloud compute --project=${PROJECT_ID} \
    networks subnets create ${GVNIC_NETWORK_PREFIX}-tpu \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --region=${REGION} \
    --range=10.10.0.0/18
  3. 建立僅限 Proxy 的子網路，這是 GKE Gateway API 的必要條件：
    gcloud compute networks subnets create ${GVNIC_NETWORK_PREFIX}-proxy \
    --purpose=REGIONAL_MANAGED_PROXY \
    --role=ACTIVE \
    --region=${REGION} \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --range=172.16.0.0/26
  4. 建立防火牆規則，允許內部通訊：
    gcloud compute --project=${PROJECT_ID} firewall-rules create ${GVNIC_NETWORK_PREFIX}-allow-internal \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --allow=all \
    --source-ranges=172.16.0.0/12,10.0.0.0/8 \
    --description="Allow all internal traffic within the network."

4. 佈建 GKE 叢集

建立設定為支援 GCS Fuse 掛接和 Ray Operator 工作負載的 Standard GKE 叢集。

  1. 建立叢集：
    gcloud container clusters create ${CLUSTER_NAME} \
    --project=${PROJECT_ID} \
    --location=${REGION} \
    --release-channel=rapid \
    --machine-type=e2-standard-4 \
    --network=${GVNIC_NETWORK_PREFIX}-main \
    --subnetwork=${GVNIC_NETWORK_PREFIX}-tpu \
    --num-nodes=1 \
    --gateway-api=standard \
    --enable-managed-prometheus \
    --enable-dataplane-v2 \
    --enable-dataplane-v2-metrics \
    --workload-pool=${PROJECT_ID}.svc.id.goog \
    --addons=HttpLoadBalancing,GcsFuseCsiDriver,RayOperator,HorizontalPodAutoscaling,NodeLocalDNS \
    --enable-ip-alias
  2. 擷取叢集憑證：
    gcloud container clusters get-credentials ${CLUSTER_NAME} --region=${REGION}
  3. 建立 Hugging Face Secret：
    kubectl create secret generic llm-d-hf-token \
    --from-literal=hf_api_token=${HF_TOKEN} \
    --dry-run=client -o yaml | kubectl apply -f -

5. 建立預留 TPU 節點集區

使用預留項目，為 TPU v6e 配量佈建 8 個專屬節點集區。

執行下列迴圈，建立 8 個節點集區：

for i in {1..8}
do
  gcloud beta container node-pools create "tpu-v6e-single-$i" \
    --project=${PROJECT_ID} \
    --cluster=${CLUSTER_NAME} \
    --region=${REGION} \
    --node-locations=${ZONE} \
    --machine-type=ct6e-standard-4t \
    --tpu-topology=2x2 \
    --num-nodes=1 \
    --reservation-affinity=specific \
    --reservation=${RESERVATION_NAME} \
    --workload-metadata=GKE_METADATA &
done

等待所有節點建立完成並加入叢集。你可以透過 kubectl get nodes 查看狀態。

6. 部署 llm-d 服務

現在您要部署 llm-d 架構，管理解除匯總的放送作業。

  1. 安裝 Helm，部署 llm-d 圖表：
    curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-4
chmod 700 get_helm.sh
./get_helm.sh
  2. 複製 llm-d 並安裝必要依附元件：
    git clone https://github.com/llm-d/llm-d.git
# When using yq alongside Helm, you almost always want the version by Mike Farah (mikefarah/yq).  We remove the most common yq installation before reinstalling
sudo rm -rf /usr/local/bin/yq
cd llm-d
./helpers/client-setup/install-deps.sh
  3. 準備自訂 values_tpu.yaml，為叢集設定分離式服務：
    cat <<EOF > llm-d/guides/pd-disaggregation/ms-pd/values_tpu.yaml
multinode: false

# Configure accelerator type for Google TPU
accelerator:
type: google

modelArtifacts:
uri: "hf://Qwen/Qwen3-32B"
size: 200Gi
authSecretName: "llm-d-hf-token"
name: "Qwen/Qwen3-32B"
labels:
    llm-d.ai/inference-serving: "true"
    llm-d.ai/guide: "pd-disaggregation"
    llm-d.ai/hardware-variant: "tpu"
    llm-d.ai/hardware-vendor: "google"
    llm-d.ai/model: "Qwen3-32B"

tracing:
enabled: true
otlpEndpoint: "localhost:4317"
serviceNames:
    routingProxy: "routing-proxy"
sampling:
    sampler: "always_off"
    samplerArg: "0"

routing:
servicePort: 8000
proxy:
    image: ghcr.io/llm-d/llm-d-routing-sidecar:v0.5.0
    connector: nixlv2
    secure: false

decode:
parallelism:
    tensor: 4
create: true
replicas: 4
modelCommand: custom
extraConfig:
    nodeSelector:
    cloud.google.com/gke-tpu-accelerator: "tpu-v6e-slice"
    cloud.google.com/gke-tpu-topology: "2x2"
monitoring:
    podmonitor:
    enabled: true
    portName: "vllm"
    path: "/metrics"
    interval: "30s"
containers:
    - name: "vllm"
    image: "vllm/vllm-tpu:nightly"
    command:
        - "/bin/bash"
        - "-c"
        - |
            # ROLE: kv_consumer (Receives KV cache from prefill)
            KV_CONFIG="{\"kv_connector\":\"TPUConnector\", \"kv_connector_module_path\" : \"tpu_inference.distributed.tpu_connector\", \"kv_role\":\"kv_consumer\", \"kv_ip\" : \"$POD_IP\"}"
            echo "KV_CONFIG=$KV_CONFIG"
            python3 -m vllm.entrypoints.openai.api_server \
            --model "Qwen/Qwen3-32B" \
            --port 8200 \
            --tensor-parallel-size 4 \
            --kv-transfer-config "${KV_CONFIG}" \
            --disable-uvicorn-access-log \
            --max-num-seqs 256 \
            --block-size 128 \
            --gpu-memory-utilization 0.90 \
            --max-model-len 8192
    env:
        - name: POD_IP
        valueFrom:
            fieldRef:
            fieldPath: status.podIP
        - name: TPU_SIDE_CHANNEL_PORT
        value: "9600"
        - name: TPU_KV_TRANSFER_PORT
        value: "9100"
    ports:
        - containerPort: 8200
        name: vllm
        protocol: TCP
        - containerPort: 9100
        name: tpu-kv-transfer
        protocol: TCP
        - containerPort: 9600
        name: tpu-coord
        protocol: TCP
    resources:
        limits:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
        requests:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
    mountModelVolume: true
    volumeMounts:
        - name: metrics-volume
        mountPath: /.config
        - name: shm
        mountPath: /dev/shm
        - name: torch-compile-cache
        mountPath: /.cache
    startupProbe:
        httpGet:
        path: /health
        port: vllm
        initialDelaySeconds: 15
        periodSeconds: 30
        timeoutSeconds: 5
        failureThreshold: 120
    livenessProbe:
        httpGet:
        path: /health
        port: vllm
        periodSeconds: 10
        timeoutSeconds: 5
        failureThreshold: 3
    readinessProbe:
        httpGet:
        path: /v1/models
        port: vllm
        periodSeconds: 5
        timeoutSeconds: 2
        failureThreshold: 3
volumes:
    - name: metrics-volume
    emptyDir: {}
    - name: shm
    emptyDir:
        medium: Memory
        sizeLimit: "16Gi"
    - name: torch-compile-cache
    emptyDir: {}

prefill:
parallelism:
    tensor: 4
create: true
replicas: 4
modelCommand: custom
extraConfig:
    nodeSelector:
    cloud.google.com/gke-tpu-accelerator: "tpu-v6e-slice"
    cloud.google.com/gke-tpu-topology: "2x2"
monitoring:
    podmonitor:
    enabled: true
    portName: "vllm"
    path: "/metrics"
    interval: "30s"
containers:
    - name: "vllm"
    image: "vllm/vllm-tpu:nightly"
    command:
        - "/bin/bash"
        - "-c"
        - |
            # ROLE: kv_producer (Sends KV cache to decode)
            KV_CONFIG="{\"kv_connector\":\"TPUConnector\", \"kv_connector_module_path\" : \"tpu_inference.distributed.tpu_connector\", \"kv_role\":\"kv_producer\", \"kv_ip\" : \"$POD_IP\"}"
            echo "KV_CONFIG=$KV_CONFIG"
            python3 -m vllm.entrypoints.openai.api_server \
            --model "Qwen/Qwen3-32B" \
            --port 8200 \
            --tensor-parallel-size 4 \
            --kv-transfer-config "${KV_CONFIG}" \
            --disable-uvicorn-access-log \
            --enable-chunked-prefill \
            --block-size 128 \
            --gpu-memory-utilization 0.90 \
            --max-model-len 8192
    env:
        - name: POD_IP
        valueFrom:
            fieldRef:
            fieldPath: status.podIP
        - name: TPU_SIDE_CHANNEL_PORT
        value: "9600"
        - name: TPU_KV_TRANSFER_PORT
        value: "9100"
    ports:
        - containerPort: 8200
        name: vllm
        protocol: TCP
        - containerPort: 9100
        name: tpu-kv-transfer
        protocol: TCP
        - containerPort: 9600
        name: tpu-coord
        protocol: TCP
    resources:
        limits:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
        requests:
        memory: 64Gi
        cpu: "16"
        google.com/tpu: 4
    mountModelVolume: true
    volumeMounts:
        - name: metrics-volume
        mountPath: /.config
        - name: shm
        mountPath: /dev/shm
        - name: torch-compile-cache
        mountPath: /.cache
    startupProbe:
        httpGet:
        path: /health
        port: vllm
        initialDelaySeconds: 15
        periodSeconds: 30
        timeoutSeconds: 5
        failureThreshold: 120
    livenessProbe:
        httpGet:
        path: /health
        port: vllm
        periodSeconds: 10
        timeoutSeconds: 5
        failureThreshold: 3
    readinessProbe:
        httpGet:
        path: /v1/models
        port: vllm
        periodSeconds: 5
        timeoutSeconds: 2
        failureThreshold: 3
volumes:
    - name: metrics-volume
    emptyDir: {}
    - name: shm
    emptyDir:
        medium: Memory
        sizeLimit: "16Gi"
    - name: torch-compile-cache
    emptyDir: {}
EOF
  4. 使用 llm-d 的 Helm 圖表部署服務和閘道：
    cd llm-d/guides/pd-disaggregation/
helmfile apply -e gke_tpu -n $NAMESPACE
kubectl apply -f ./httproute.gke.yaml
  5. 等待 vLLM 服務啟動觀看解碼和預填 POD 記錄，直到看到「INFO: Application startup complete.」(資訊：應用程式啟動完成)。
    DECODE_POD=$(kubectl get pods -l llm-d.ai/modelservice-role=decode -o jsonpath='{.items[0].metadata.name}')

# Get the first Prefill pod name
PREFILL_POD=$(kubectl get pods -l llm-d.ai/modelservice-role=prefill -o jsonpath='{.items[0].metadata.name}')

echo "Run each of these until vLLM starts successfully and then ctrl-C out"
echo "kubectl logs -f $DECODE_POD -c vllm"
echo "kubectl logs -f $PREFILL_POD -c vllm"

7. 測試部署作業回應

下方的指令碼會透過 GKE Inference Gateway 測試與服務叢集的連線，然後執行基準化測試。

  1. 測試連線並執行基準測試：
    cat <<EOBF > ./run_benchmark.sh
#!/bin/bash

# Configuration
NAMESPACE="default"
JOB_NAME="qwen3-pd-benchmark"
MODEL_NAME="Qwen/Qwen3-32B"

echo "🔍 Discovering Gateway IP..."
GATEWAY_IP=$(kubectl get gateway -n ${NAMESPACE} -o jsonpath='{.items[0].status.addresses[0].value}')

if [ -z "$GATEWAY_IP" ]; then
    echo "❌ Error: Could not find Gateway IP. Check 'kubectl get gateway'."
    exit 1
fi

TARGET_URL="http://${GATEWAY_IP}"
echo "✅ Found Gateway at: $TARGET_URL"

echo "🗑️  Cleaning up old benchmark jobs..."
kubectl delete job $JOB_NAME --ignore-not-found=true

echo "🚀 Generating and applying Benchmark Job..."
cat <<EOF | kubectl apply -f -
apiVersion: batch/v1
kind: Job
metadata:
name: $JOB_NAME
namespace: $NAMESPACE
spec:
template:
    spec:
    containers:
    - name: llm-benchmark
        image: vllm/vllm-openai:latest
        command: ["/bin/bash", "-c"]
        args:
        - |
            # 1. Download dataset
            if [ ! -f /data/sharegpt.json ]; then
            echo "Downloading ShareGPT dataset..."
            curl -L "https://huggingface.co/datasets/anon8231489123/ShareGPT_Vicuna_unfiltered/resolve/main/ShareGPT_V3_unfiltered_cleaned_split.json" -o /data/sharegpt.json
            fi

            # 2. Wait for Gateway readiness
            echo "Checking connectivity to $MODEL_NAME..."
            until curl -s "$TARGET_URL/v1/models" | grep -q "$MODEL_NAME"; do
            echo "Waiting for Gateway backends to sync..."
            sleep 10
            done

            # 3. Run Benchmark
            vllm bench serve \\
            --base-url "$TARGET_URL" \\
            --model "$MODEL_NAME" \\
            --dataset-name "sharegpt" \\
            --dataset-path "/data/sharegpt.json" \\
            --request-rate 80.0 \\
            --num-prompts 2000 \\
            --tokenizer "$MODEL_NAME"
        volumeMounts:
        - name: dataset-volume
        mountPath: /data
    restartPolicy: Never
    volumes:
    - name: dataset-volume
        emptyDir: {}
EOF

echo "⏳ Job submitted. Follow logs with:"
echo "kubectl logs -f job/$JOB_NAME"
EOBF

chmod a+x ./run_benchmark.sh

./run_benchmark.sh
    您應該會看到輸出內容，顯示要求處理情形和延遲指標。

8. 清理

如要避免系統持續向您的 Google Cloud 帳戶收費，請刪除本程式碼研究室建立的資源。

請按照下列步驟清理資產：

# 1. Delete LeaderWorkerSet and Helm release
kubectl delete leaderworkerset qwen-simple-anywhere-cache --ignore-not-found
helm uninstall lws --namespace lws-system 2>/dev/null
kubectl delete namespace lws-system --ignore-not-found

# 2. Delete GKE Node Pools
# Note: Usually deleting the cluster deletes the node pools,
# but explicit deletion ensures it's gone before the cluster teardown begins.
for i in {1..8}
do
	gcloud container node-pools delete "tpu-v6e-single-$i" \
	    --cluster="${CLUSTER_NAME}" \
	    --region="${REGION}" \
	    --project="${PROJECT_ID}" --quiet

done

# 3. Delete GKE Cluster
gcloud container clusters delete "${CLUSTER_NAME}" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

echo "--- Starting IAM and Service Account Cleanup ---"

# 1. Define the full Service Account email for clarity
SA_EMAIL="tpu-reader-sa@${PROJECT_ID}.iam.gserviceaccount.com"

# 2. Remove Storage Bucket IAM Binding
# This removes the 'objectViewer' role from the specific bucket
gcloud storage buckets remove-iam-policy-binding gs://inf-demo-model-storage \
    --member="serviceAccount:${SA_EMAIL}" \
    --role="roles/storage.objectViewer" --quiet

# 3. Remove Workload Identity Binding
# This severs the link between the GKE KSA and the GCP SA
gcloud iam service-accounts remove-iam-policy-binding "${SA_EMAIL}" \
    --role="roles/iam.workloadIdentityUser" \
    --member="serviceAccount:${PROJECT_ID}.svc.id.goog[default/default]" --quiet

# 4. Delete the Service Account
gcloud iam service-accounts delete "${SA_EMAIL}" --project="${PROJECT_ID}" --quiet

echo "IAM cleanup complete!"

echo "--- Starting Network and Firewall Cleanup ---"

# 4. Delete Firewall Rules (Must go before the Network)
gcloud compute firewall-rules delete \
    "${GVNIC_NETWORK_PREFIX}-allow-ssh" \
    "${GVNIC_NETWORK_PREFIX}-allow-icmp" \
    "${GVNIC_NETWORK_PREFIX}-allow-internal" \
    "ray-allow-internal" \
    --project="${PROJECT_ID}" --quiet

# 5. Delete Subnets (Must go before the Network)
gcloud compute networks subnets delete "${GVNIC_NETWORK_PREFIX}-tpu" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

gcloud compute networks subnets delete "${GVNIC_NETWORK_PREFIX}-proxy-sub" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

gcloud compute networks subnets delete "proxy-only-subnet" \
    --region="${REGION}" \
    --project="${PROJECT_ID}" --quiet

# 6. Finally, delete the VPC Network
gcloud compute networks delete "${GVNIC_NETWORK_PREFIX}-main" \
    --project="${PROJECT_ID}" --quiet

echo "Cleanup complete!"

9. 恭喜

恭喜！您已成功使用 llm-d 和 GKE，在分離式 v6e TPU 上部署 Qwen3-32B。

目前所學內容

  • 如何設定自訂網路，以支援高速 TPU 流量。
  • 如何在 GKE 上佈建預留 TPU 節點集區。
  • 如何部署 llm-d，以區隔預填和解碼工作負載。

後續步驟
