Spanner 和 BigQuery：实时欺诈防御盾

1. 简介

欢迎来到 Petverse 的后端，这是一款多人在线游戏，玩家可以在其中创建动物头像、探索世界并交易游戏代币。

最近，游戏的经济系统面临威胁。大量资金正从富有的狗狗玩家的账户中流失，全部转换为优质金枪鱼库存。我们怀疑有一群“罗宾汉猫”，它们从富有的猎犬那里偷东西来喂养猫群。

在此 Codelab 中，您将构建一个实时欺诈防御盾，以捕获主谋及其自动化机器人团伙。您将体验 Spanner 中的运营数据如何与 BigQuery 中的分析数据融合，从而通过图表 (GQL) 和关系型查询检测和调查复杂的欺诈模式。

您将执行的操作

所需条件

  • 启用了结算功能的 Google Cloud 项目。
  • 具备 SQL、终端命令和 Python 的基础知识。
  • 您可能需要 GitHub 账号（代码托管在 GitHub 上）。

受众群体：中级开发者、数据工程师和架构师。

预计总时长：45 至 60 分钟。

费用估算：本 Codelab 中创建的资源产生的费用应低于 5 美元。

2. 准备工作 / 设置

创建或选择 Google Cloud 项目

您需要一个启用了结算功能的 Google Cloud 项目，才能使用本实验所需的服务。

  1. 在 Google Cloud 控制台的项目选择器页面上，选择或创建一个 Google Cloud 项目。
  2. 确保您的 Cloud 项目已启用结算功能。了解如何验证是否已启用结算功能。

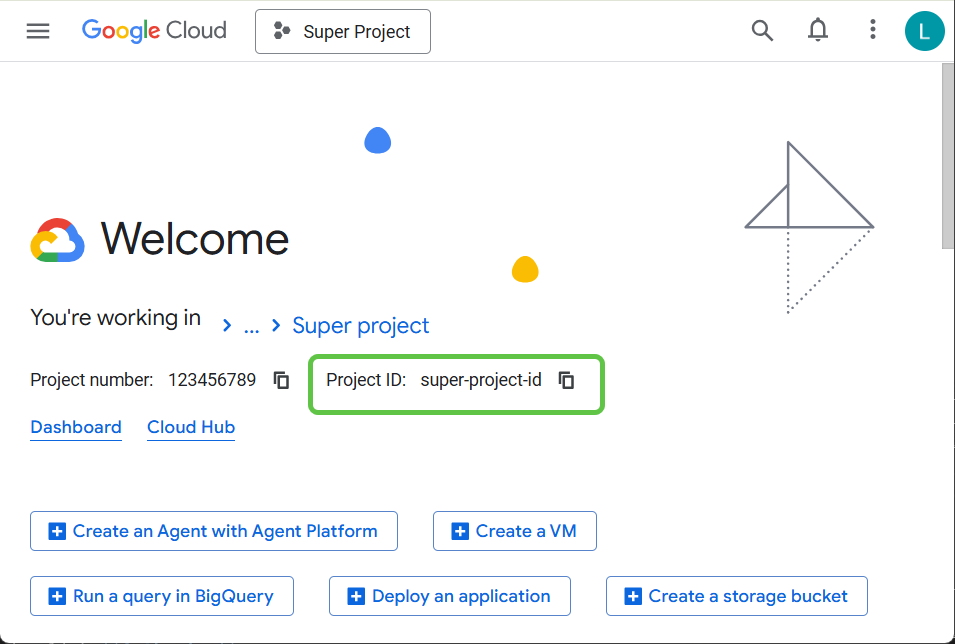

  3. 在 Cloud 控制台首页中找到您的项目 ID

Cloud 控制台首页

启动 Cloud Shell

您将使用 Google Cloud Shell 作为执行环境。Cloud Shell 预安装了 gcloud、git 和其他所需工具。

  1. 前往 Google Cloud Shell。
  2. 如果出现提示，请点击授权。

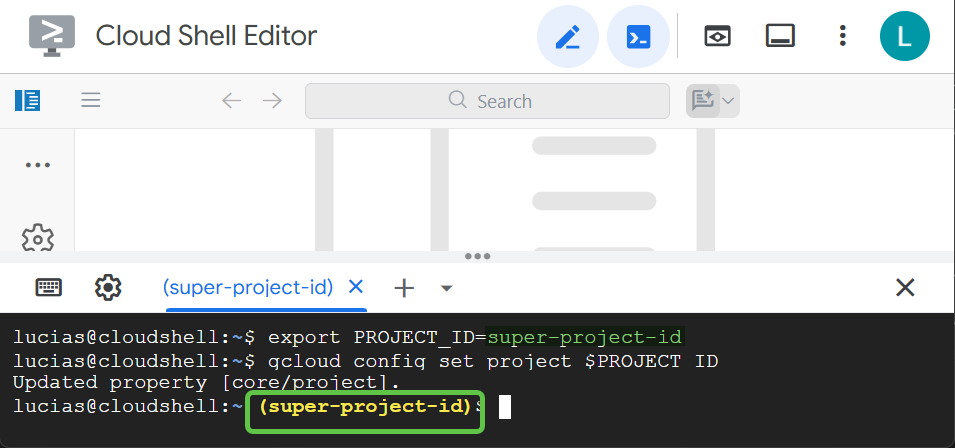

  3. 在 Cloud Shell 终端中设置环境变量，确保您正在自己的项目中操作：
export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID

Cloud Shell：使用 gcloud config 设置项目

启用必要的 API

运行以下命令，以启用 Spanner、BigQuery 和 Vertex AI 的 API：

gcloud services enable spanner.googleapis.com \
    bigquery.googleapis.com \
    aiplatform.googleapis.com \
    run.googleapis.com

克隆代码库

克隆包含应用代码和示例架构的代码库：

git clone https://github.com/GoogleCloudPlatform/cloud-spanner-samples.git
cd cloud-spanner-samples/spanner-bq-fraud-defense

3. 预配基础设施

您现在将在 BigQuery 中设置数据仓库，并在 Spanner 中设置运营数据库。

设置 BigQuery 数据集和连接

BigQuery 将分析游戏中的遥测数据流。

在 Google Cloud Shell 的控制台中，继续运行以下命令，以确保项目 ID 仍处于设置状态：

export PROJECT_ID=<YOUR_PROJECT_ID>
gcloud config set project $PROJECT_ID
  1. 创建 game_analytics BigQuery 数据集：
bq mk -d --location=US game_analytics
  1. 创建连接以连接到存储分区和（可选）Spanner：
bq mk --connection --location=US --project_id=$PROJECT_ID \
    --connection_type=CLOUD_RESOURCE unicorn-connection
  1. 使用架构文件为 GameplayTelemetry、AccountSignals、Players 和 ChatLogs 表创建架构：
bq query --use_legacy_sql=false < bq_schema.sql

设置 Spanner

Google Cloud Spanner 将处理运营实时交易。在本实验中，我们将使用经济实惠的 100 个处理单元 (PU) 实例。

  1. 创建 Spanner 实例：
gcloud spanner instances create game-instance \
    --config=regional-us-central1 \
    --description="Game Instance" \
    --processing-units=100 \
    --edition=ENTERPRISE
  1. 创建 Spanner 数据库 game-db：
gcloud spanner databases create game-db --instance=game-instance
  1. 使用应用表（Players、Transactions、AccountSignals）和属性图（PlayerNetwork）更新 Spanner 架构：
gcloud spanner databases ddl update game-db --instance=game-instance --ddl-file=spanner_schema.sql
  1. 为多模态向量搜索创建 AvatarSearchIndex：
gcloud spanner databases ddl update game-db --instance=game-instance \
    --ddl="CREATE SEARCH INDEX AvatarSearchIndex ON Players(AvatarDescriptionTokens)"

将数据导入 BigQuery

  1. 将演示数据导入 BigQuery：
bq load --source_format=AVRO game_analytics.GameplayTelemetry gs://sample-data-and-media/spanner-bq-fraud-heist/GameplayTelemetry
bq load --source_format=AVRO game_analytics.AccountSignals gs://sample-data-and-media/spanner-bq-fraud-heist/AccountSignals
bq load --source_format=AVRO game_analytics.Players gs://sample-data-and-media/spanner-bq-fraud-heist/Players
bq load --source_format=AVRO game_analytics.ChatLogs gs://sample-data-and-media/spanner-bq-fraud-heist/ChatLogs

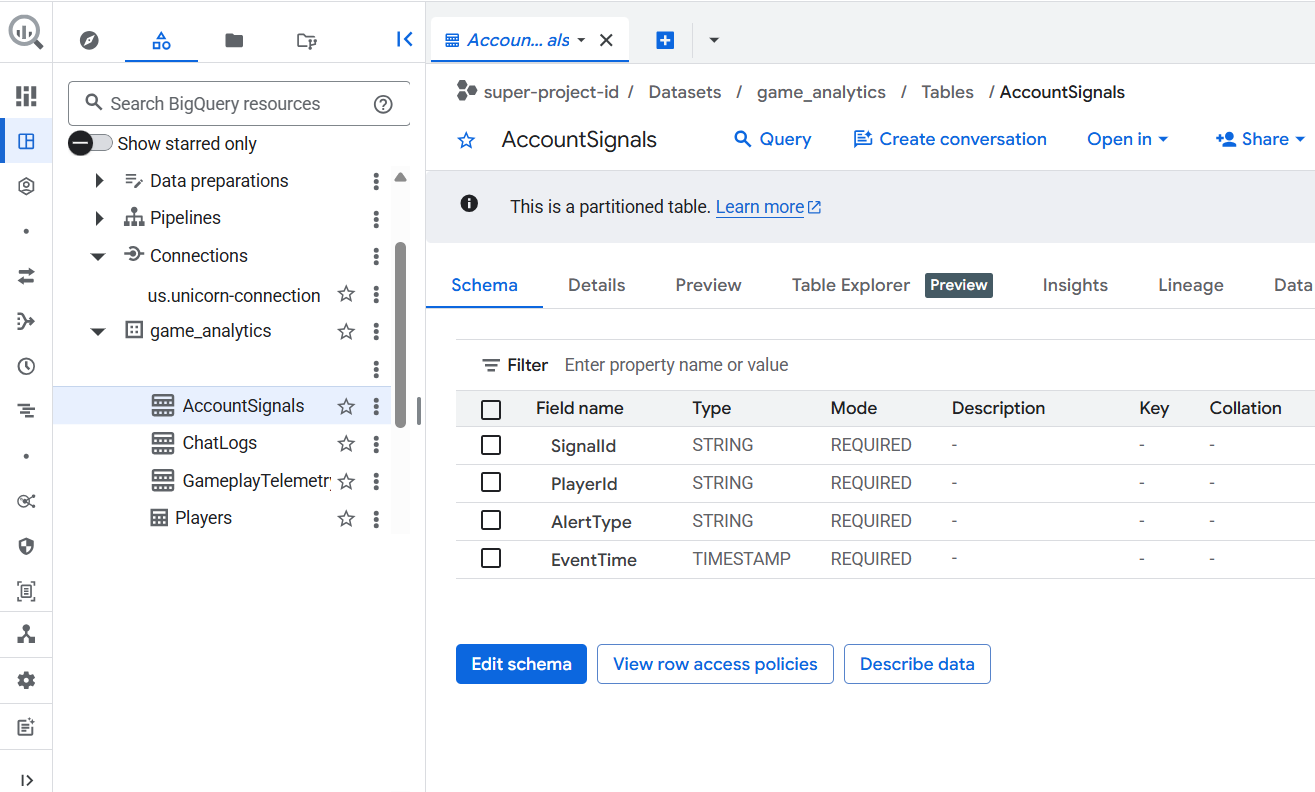

  1. 前往 BigQuery 控制台，然后探索 game_analytics 数据集中的数据。

BigQuery 控制台

将数据导入 Spanner

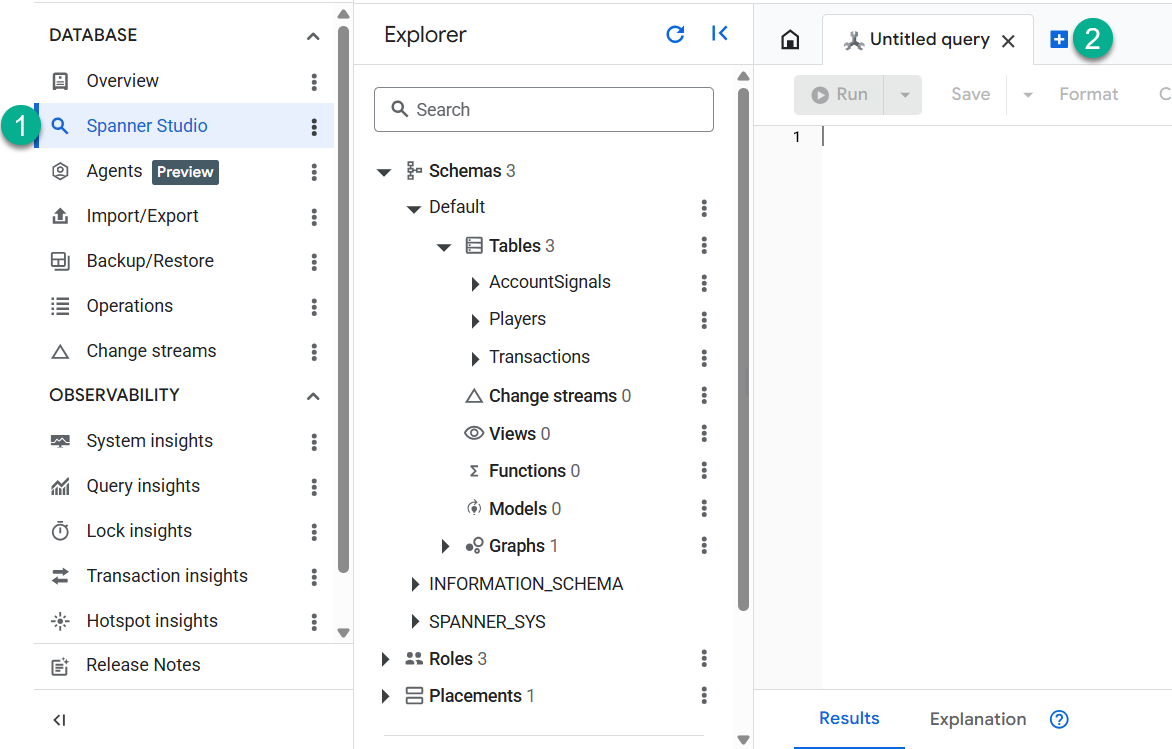

前往 Spanner 控制台，然后探索 game-db 数据库中的数据。

点击 Spanner Studio，然后打开新查询 (+)。

Spanner 控制台

将以下 INSERT 语句粘贴到查询编辑器中，然后点击运行：

-- Table: Players
INSERT INTO Players (
  PlayerId,
  Name,
  Species,
  Clan,
  AvatarDescription,
  ProfilePictureUrl,
  CreatedAt
) VALUES
  ('dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 'Pixel', 'Cat', 'CatClan', 'A heroic cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/pixel_profile_booth.png', '2026-03-02T05:11:28.077335+00:00'),
  ('e82df4fb-0b6d-44dc-8609-70b41430af38', 'Rocky_1', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077374+00:00'),
  ('ea3afac7-54f0-4f68-8ed5-a5b6bd386c59', 'Whiskers_2', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077389+00:00'),
  ('f37d558b-fd0a-404c-a193-bc3a8a2edfba', 'Felix_3', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.077407+00:00'),
  ('f3687206-405e-43b6-afb0-8ca73eee5dd1', 'Luna_4', 'Cat', 'CatClan', 'A tabby cat with a red bandana', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077419+00:00'),
  ('82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', 'Luna_5', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.077429+00:00'),
  ('755c7aff-e538-4681-9b90-4b870a42ac72', 'Buddy_6', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.077439+00:00'),
  ('8a034e84-26b3-4198-8ec9-3749b1f60537', 'Charlie_7', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077462+00:00'),
  ('ca288a07-2bf8-46fa-a121-9bd0d0f44c64', 'Rocky_8', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.077474+00:00'),
  ('7b2881f0-289b-4ea4-9c0e-c1748249b70a', 'Bella_9', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.077484+00:00'),
  ('153f4022-a4ce-404a-8544-25d004fd34ad', 'Simba_10', 'Cat', 'CatClan', 'A tabby cat with a red bandana', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077494+00:00'),
  ('3fb82b8e-75a1-49fd-8691-a9dabb42bc4b', 'Charlie_11', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/staffordshire_bull_terrier_116.jpg', '2026-03-02T05:11:28.077507+00:00'),
  ('e37b6dcf-7ccb-47d0-8b9d-0da2fa30ad09', 'Felix_12', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077516+00:00'),
  ('0b395a7b-0673-4348-afd0-7cea9252629f', 'Bella_13', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.077527+00:00'),
  ('64921a63-bea6-4a5c-9e49-7a817678c94f', 'Charlie_14', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.077537+00:00'),
  ('0d9040df-34a3-4e54-b660-a85e3c60a6fe', 'Felix_15', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.077546+00:00'),
  ('188c23a6-4c3b-4c25-9b40-9ec8ad7712a3', 'Max_16', 'Dog', 'DogClan', 'A fast greyhound wearing a racing vest', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077556+00:00'),
  ('a2eaefc9-dbff-4704-b908-74518d687e17', 'Rocky_17', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/shiba_inu_105.jpg', '2026-03-02T05:11:28.077565+00:00'),
  ('b59d9b9a-a169-43c1-832d-7e7d4acfa19c', 'Felix_18', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.077581+00:00'),
  ('7019b91a-d908-4c93-8ed2-d1c60e518630', 'Nala_19', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.077595+00:00'),
  ('1a972a71-a530-407a-b3f7-1dd9b2532cec', 'Luna_20', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077604+00:00'),
  ('3bd0489d-3f43-428d-be2d-0434f0e04ed8', 'Luna_21', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077613+00:00'),
  ('28d7ab21-7ca7-435b-bdc4-5266a381ef89', 'Whiskers_22', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077623+00:00'),
  ('87d880d4-c949-40e3-8d76-9307b45d57fe', 'Rocky_23', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077632+00:00'),
  ('b49a4523-83ff-4f59-8fca-54356928a18b', 'Nala_24', 'Cat', 'CatClan', 'A tabby cat with a red bandana', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077641+00:00'),
  ('1e049026-1231-4763-bc50-82cb51950fa2', 'Nala_25', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.077650+00:00'),
  ('e83caccd-e81e-454a-bf92-9d9a5a509e25', 'Simba_26', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077659+00:00'),
  ('45650b49-9701-4415-92a9-79073243d198', 'Simba_27', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077668+00:00'),
  ('2eb95b36-c9c3-4720-849b-fc240c9434da', 'Bella_28', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/samoyed_97.jpg', '2026-03-02T05:11:28.077677+00:00'),
  ('491943d2-8aa3-4484-9d6d-afcab7ec579a', 'Buddy_29', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077687+00:00'),
  ('004ac8b2-a37d-42c8-aba3-35b204f596f0', 'Max_30', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.077697+00:00'),
  ('5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 'Whiskers_31', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077706+00:00'),
  ('4736fc20-1c22-49c2-af87-c35802302507', 'Luna_32', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077715+00:00'),
  ('d98fc7ff-dd92-4723-994c-6267ef951bcc', 'Buddy_33', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/staffordshire_bull_terrier_116.jpg', '2026-03-02T05:11:28.077797+00:00'),
  ('3de80488-e1b6-4908-a6ec-9c51f46f43b9', 'Luna_34', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077821+00:00'),
  ('710128e0-4e1d-479c-acbc-497bbc5bc802', 'Bella_35', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/scottish_terrier_108.jpg', '2026-03-02T05:11:28.077836+00:00'),
  ('7e5d416f-f42c-410e-8e2a-19be0cdfc1e5', 'Simba_36', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.077850+00:00'),
  ('b5af580c-4998-4f68-b52f-5c5b6a9d0aab', 'Buddy_37', 'Dog', 'DogClan', 'A robot dog with metal plating', 'gs://sample-data-and-media/scottish_terrier_108.jpg', '2026-03-02T05:11:28.077864+00:00'),
  ('145cc805-810a-4320-864d-ba6b5c6fbc33', 'Max_38', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/staffordshire_bull_terrier_116.jpg', '2026-03-02T05:11:28.077884+00:00'),
  ('34fa84c8-3356-4ed6-9ac5-967cd2baabac', 'Whiskers_39', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077894+00:00'),
  ('a50c967b-2e89-448d-be47-4df628c51572', 'Luna_40', 'Cat', 'CatClan', 'A royal siamese cat wearing a crown', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077906+00:00'),
  ('64aeeb22-42db-46bf-85bd-b21b135c9803', 'Simba_41', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077915+00:00'),
  ('dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', 'Felix_42', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077924+00:00'),
  ('d9380e8d-8949-4849-af57-7a91a1a2b953', 'Bella_43', 'Dog', 'DogClan', 'A police german shepherd with a badge', 'gs://sample-data-and-media/staffordshire_bull_terrier_116.jpg', '2026-03-02T05:11:28.077933+00:00'),
  ('88a425a0-b499-4825-8a16-3d33b85feec9', 'Whiskers_44', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.077942+00:00'),
  ('e17ae312-37c6-4a66-9172-2d20d8528033', 'Simba_45', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.077958+00:00'),
  ('ae82282e-d380-4500-99e0-2dc4e276c0cf', 'Nala_46', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.077967+00:00'),
  ('9ce13d41-dede-4658-a7e4-7bc00372d65c', 'Simba_47', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.077976+00:00'),
  ('8db26b5c-2c09-4578-89bf-f9afaf765e36', 'Whiskers_48', 'Cat', 'CatClan', 'A fluffy persian cat with a golden collar', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.077989+00:00'),
  ('eb113965-6ee6-459e-ba0f-fb6cb1d0ae34', 'Luna_49', 'Cat', 'CatClan', 'A tabby cat with a red bandana', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078002+00:00'),
  ('3f064471-24a0-47cd-8927-925cb3e5df7f', 'Felix_50', 'Cat', 'CatClan', 'A tabby cat with a red bandana', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.078012+00:00'),
  ('ed20f879-2d42-4ba7-8df7-d696c4b6aafd', 'Whiskers_51', 'Cat', 'CatClan', 'A sneaky black cat hiding in the shadows', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.078021+00:00'),
  ('7e9bbec4-e2aa-4d67-b1c0-35f7db1d0dae', 'Buddy_52', 'Dog', 'DogClan', 'A fast greyhound wearing a racing vest', 'gs://sample-data-and-media/yorkshire_terrier_101.jpg', '2026-03-02T05:11:28.078030+00:00'),
  ('398de7e0-8f4f-44ba-adfe-503a157cfe7c', 'Rocky_53', 'Dog', 'DogClan', 'A fast greyhound wearing a racing vest', 'gs://sample-data-and-media/staffordshire_bull_terrier_116.jpg', '2026-03-02T05:11:28.078040+00:00'),
  ('0f2948c8-f5ba-4546-bdba-567a27b6b4f0', 'Bella_54', 'Dog', 'DogClan', 'A loyal golden retriever with a happy smile', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.078049+00:00'),
  ('0b1e7a03-2922-4d53-8871-290520e6bb76', 'Max_55', 'Dog', 'DogClan', 'A fast greyhound wearing a racing vest', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.078059+00:00'),
  ('d0ad6342-88fd-443f-82ba-919fc1d652d0', 'Luna_56', 'Cat', 'CatClan', 'A cyber-punk cat with neon glasses', 'gs://sample-data-and-media/Abyssinian_1.jpg', '2026-03-02T05:11:28.078068+00:00'),
  ('73e9a7c4-09e6-46d8-a093-b241d7d1d5df', 'Charlie_57', 'Dog', 'DogClan', 'A loyal golden retriever with a happy smile', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.078081+00:00'),
  ('55a1207d-a029-48da-a79d-c1f3f6824a37', 'Buddy_58', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.078090+00:00'),
  ('61dd4370-bff0-4d09-be31-19f19c4dad5d', 'Max_59', 'Dog', 'DogClan', 'A tough bulldog with a spiked collar', 'gs://sample-data-and-media/wheaten_terrier_102.jpg', '2026-03-02T05:11:28.078099+00:00'),
  ('4e9dfce6-555b-434a-81b6-237c61b9b530', 'Merry_Cat_0', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078112+00:00'),
  ('686337b0-304e-4270-89c3-d015f9039294', 'Merry_Cat_1', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.078165+00:00'),
  ('1627bc18-c42e-4599-b5f1-6f3d52669edb', 'Merry_Cat_2', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.078212+00:00'),
  ('215b3d04-402a-4ac2-83ed-1edb9a421691', 'Merry_Cat_3', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.078258+00:00'),
  ('78d66ff4-0519-4157-9d95-76c2900ba7f9', 'Merry_Cat_4', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.078301+00:00'),
  ('822a8aae-57bd-460e-9643-69815990bec8', 'Merry_Cat_5', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078349+00:00'),
  ('9f223b65-41a3-495e-940a-5a07d2ba4ba7', 'Merry_Cat_6', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Abyssinian_114.jpg', '2026-03-02T05:11:28.078390+00:00'),
  ('3910b199-caf7-4822-8346-1ba9bd750c8e', 'Merry_Cat_7', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bengal_105.jpg', '2026-03-02T05:11:28.078427+00:00'),
  ('78c129b6-21e5-40c6-b9cf-d25ad5193e68', 'Merry_Cat_8', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bengal_100.jpg', '2026-03-02T05:11:28.078463+00:00'),
  ('eba84e9d-bd10-466e-8fcd-899c0a868149', 'Merry_Cat_9', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078508+00:00'),
  ('37a1e15c-a38c-4763-a2bd-042741bce012', 'Merry_Cat_10', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078544+00:00'),
  ('c5337857-3b58-4b0c-8814-4585dcbf765f', 'Merry_Cat_11', 'Cat', 'RobinHoods', 'A sneaky rebel cat wearing a green tunic and a feathered cap', 'gs://sample-data-and-media/Bombay_104.jpg', '2026-03-02T05:11:28.078587+00:00');

-- Table: Transactions
INSERT INTO Transactions (
  TransactionId,
  SenderId,
  ReceiverId,
  Amount,
  Timestamp,
  IsSuspicious
) VALUES
  ('83086ce9-1813-40c7-8e60-624662e7dff8', '0f2948c8-f5ba-4546-bdba-567a27b6b4f0', '4e9dfce6-555b-434a-81b6-237c61b9b530', 13481, '2026-03-02T05:11:28.078136+00:00', TRUE),
  ('8c8f38a8-424f-4752-b662-78800e04b137', '4e9dfce6-555b-434a-81b6-237c61b9b530', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 7327, '2026-03-02T05:11:28.078145+00:00', TRUE),
  ('e4b88c5e-ad32-4fa7-87d7-7e7e70ab133a', '3fb82b8e-75a1-49fd-8691-a9dabb42bc4b', '686337b0-304e-4270-89c3-d015f9039294', 11283, '2026-03-02T05:11:28.078182+00:00', TRUE),
  ('8fe11946-c0ef-4b84-a259-11850955a3ea', '686337b0-304e-4270-89c3-d015f9039294', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 8181, '2026-03-02T05:11:28.078191+00:00', TRUE),
  ('c2d024eb-9131-47ce-84c0-3404e5a01db0', '145cc805-810a-4320-864d-ba6b5c6fbc33', '1627bc18-c42e-4599-b5f1-6f3d52669edb', 11086, '2026-03-02T05:11:28.078228+00:00', TRUE),
  ('7a51d50f-63ac-4406-b4df-2d6fd862977f', '1627bc18-c42e-4599-b5f1-6f3d52669edb', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 9443, '2026-03-02T05:11:28.078237+00:00', TRUE),
  ('edc980d0-539e-4951-9eaf-4ba98b88b40c', '2eb95b36-c9c3-4720-849b-fc240c9434da', '215b3d04-402a-4ac2-83ed-1edb9a421691', 10438, '2026-03-02T05:11:28.078274+00:00', TRUE),
  ('0e98eb5f-a942-4bb3-931a-1de1bdbb2e03', '215b3d04-402a-4ac2-83ed-1edb9a421691', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 7612, '2026-03-02T05:11:28.078286+00:00', TRUE),
  ('13cf3599-f18a-47a5-8b7d-71f9eda250ab', 'ca288a07-2bf8-46fa-a121-9bd0d0f44c64', '78d66ff4-0519-4157-9d95-76c2900ba7f9', 14301, '2026-03-02T05:11:28.078318+00:00', TRUE),
  ('db7051ef-aa4b-47fa-a54e-54ff03dbabf1', '78d66ff4-0519-4157-9d95-76c2900ba7f9', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 10294, '2026-03-02T05:11:28.078330+00:00', TRUE),
  ('9080d8a1-def2-4b95-bc9f-56c25ec9c3ba', 'e82df4fb-0b6d-44dc-8609-70b41430af38', '822a8aae-57bd-460e-9643-69815990bec8', 9613, '2026-03-02T05:11:28.078365+00:00', TRUE),
  ('06593b48-2546-4a52-a078-cf4ddfaed856', '822a8aae-57bd-460e-9643-69815990bec8', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 9787, '2026-03-02T05:11:28.078376+00:00', TRUE),
  ('d540b1d5-5e20-4252-985c-275b82fdad80', '491943d2-8aa3-4484-9d6d-afcab7ec579a', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 11403, '2026-03-02T05:11:28.078406+00:00', TRUE),
  ('6ba654b3-4c04-48ed-9975-1aae3f557a38', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 13564, '2026-03-02T05:11:28.078413+00:00', TRUE),
  ('da73004f-a9e6-4078-af54-4dc7a697a0e4', '710128e0-4e1d-479c-acbc-497bbc5bc802', '3910b199-caf7-4822-8346-1ba9bd750c8e', 10088, '2026-03-02T05:11:28.078442+00:00', TRUE),
  ('ac25cfd6-1c64-483a-8b36-5fe4c6c36e36', '3910b199-caf7-4822-8346-1ba9bd750c8e', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 11354, '2026-03-02T05:11:28.078450+00:00', TRUE),
  ('3f09bdb0-5831-44f8-b293-98cbdb953c9d', 'd98fc7ff-dd92-4723-994c-6267ef951bcc', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', 12426, '2026-03-02T05:11:28.078479+00:00', TRUE),
  ('65803100-7b84-4ff5-a273-b54fe48d5ad2', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 13858, '2026-03-02T05:11:28.078490+00:00', TRUE),
  ('7caeab6c-eb5c-4284-9857-87ab6ba744d1', '398de7e0-8f4f-44ba-adfe-503a157cfe7c', 'eba84e9d-bd10-466e-8fcd-899c0a868149', 14851, '2026-03-02T05:11:28.078523+00:00', TRUE),
  ('441b31cd-1c7b-4385-a5da-490a6c98d58d', 'eba84e9d-bd10-466e-8fcd-899c0a868149', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 12481, '2026-03-02T05:11:28.078530+00:00', TRUE),
  ('ea509bae-75a0-4878-b73c-0688efd2808e', 'd9380e8d-8949-4849-af57-7a91a1a2b953', '37a1e15c-a38c-4763-a2bd-042741bce012', 8042, '2026-03-02T05:11:28.078564+00:00', TRUE),
  ('7ac7d043-2744-4689-835a-20b21dca962b', '37a1e15c-a38c-4763-a2bd-042741bce012', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 11248, '2026-03-02T05:11:28.078572+00:00', TRUE),
  ('1fdfc9a6-af31-4151-a96e-6df93e8fafff', '3fb82b8e-75a1-49fd-8691-a9dabb42bc4b', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 11357, '2026-03-02T05:11:28.078603+00:00', TRUE),
  ('3408e82d-61c5-49e1-a037-b8e25422d9ca', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 'dc8cf07a-ac0f-48da-9f64-4f379492b1e7', 13411, '2026-03-02T05:11:28.078612+00:00', TRUE),
  ('a63fa5df-9d00-44e4-bd00-3d993c737a99', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', '28d7ab21-7ca7-435b-bdc4-5266a381ef89', 312, '2026-03-02T05:11:28.078658+00:00', FALSE),
  ('26b8b704-7b50-4ce5-894f-452741649286', 'e17ae312-37c6-4a66-9172-2d20d8528033', '7b2881f0-289b-4ea4-9c0e-c1748249b70a', 52, '2026-03-02T05:11:28.078679+00:00', FALSE),
  ('9d8197de-888c-42ce-8bcf-ef0fe6fccc39', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', '188c23a6-4c3b-4c25-9b40-9ec8ad7712a3', 65, '2026-03-02T05:11:28.078700+00:00', FALSE),
  ('b0fd1afe-871a-4afc-be00-5c203b147a90', 'eb113965-6ee6-459e-ba0f-fb6cb1d0ae34', '61dd4370-bff0-4d09-be31-19f19c4dad5d', 292, '2026-03-02T05:11:28.078715+00:00', FALSE),
  ('b7be0c34-2d44-4d48-8cef-ddb74dd11260', 'ea3afac7-54f0-4f68-8ed5-a5b6bd386c59', '45650b49-9701-4415-92a9-79073243d198', 199, '2026-03-02T05:11:28.078730+00:00', FALSE),
  ('0baea611-d24a-43d6-be24-49286f4b80bc', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 'e17ae312-37c6-4a66-9172-2d20d8528033', 313, '2026-03-02T05:11:28.078739+00:00', FALSE),
  ('936234c3-3d96-4649-8679-cdc7a35c7c14', '28d7ab21-7ca7-435b-bdc4-5266a381ef89', 'e83caccd-e81e-454a-bf92-9d9a5a509e25', 306, '2026-03-02T05:11:28.078748+00:00', FALSE),
  ('f29c2881-9ce1-47e3-8934-be21250d807b', '55a1207d-a029-48da-a79d-c1f3f6824a37', '1e049026-1231-4763-bc50-82cb51950fa2', 356, '2026-03-02T05:11:28.078757+00:00', FALSE),
  ('aea90ceb-8669-48b2-ad20-903fa2592cc4', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', 'ca288a07-2bf8-46fa-a121-9bd0d0f44c64', 320, '2026-03-02T05:11:28.078766+00:00', FALSE),
  ('e5cb67d4-7fb5-4788-b705-e4b156846cf1', '37a1e15c-a38c-4763-a2bd-042741bce012', '45650b49-9701-4415-92a9-79073243d198', 96, '2026-03-02T05:11:28.078780+00:00', FALSE),
  ('1484d14a-4ece-4c60-8760-aca02d8912d3', 'b49a4523-83ff-4f59-8fca-54356928a18b', '4e9dfce6-555b-434a-81b6-237c61b9b530', 286, '2026-03-02T05:11:28.078797+00:00', FALSE),
  ('55bfca86-c16e-4d83-a3be-4a9339b5ca90', '7e9bbec4-e2aa-4d67-b1c0-35f7db1d0dae', 'e82df4fb-0b6d-44dc-8609-70b41430af38', 94, '2026-03-02T05:11:28.078812+00:00', FALSE),
  ('626b175d-7954-4b48-bfc3-47e1759eb62e', '4e9dfce6-555b-434a-81b6-237c61b9b530', '2eb95b36-c9c3-4720-849b-fc240c9434da', 364, '2026-03-02T05:11:28.078826+00:00', FALSE),
  ('657b64cd-eb82-47f7-af15-c485f09e4c6a', 'dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', '9ce13d41-dede-4658-a7e4-7bc00372d65c', 180, '2026-03-02T05:11:28.078835+00:00', FALSE),
  ('45a3d118-9ada-400f-8007-f90f6573012f', 'f3687206-405e-43b6-afb0-8ca73eee5dd1', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 21, '2026-03-02T05:11:28.078844+00:00', FALSE),
  ('bad0c577-9063-4315-a923-609b55354aec', '28d7ab21-7ca7-435b-bdc4-5266a381ef89', '0f2948c8-f5ba-4546-bdba-567a27b6b4f0', 96, '2026-03-02T05:11:28.078852+00:00', FALSE),
  ('f3f3c44c-29e5-4356-bcdb-34fceead7277', '4e9dfce6-555b-434a-81b6-237c61b9b530', '45650b49-9701-4415-92a9-79073243d198', 206, '2026-03-02T05:11:28.078863+00:00', FALSE),
  ('89e9f697-6cfe-4a11-ada1-2846a9a0e815', '7b2881f0-289b-4ea4-9c0e-c1748249b70a', '1627bc18-c42e-4599-b5f1-6f3d52669edb', 62, '2026-03-02T05:11:28.078878+00:00', FALSE),
  ('2d980b9e-ec93-4d4c-98b1-4f9440489e0e', '28d7ab21-7ca7-435b-bdc4-5266a381ef89', 'e17ae312-37c6-4a66-9172-2d20d8528033', 379, '2026-03-02T05:11:28.078894+00:00', FALSE),
  ('1eabdf25-5b41-4773-8870-bb3e71ad320a', '0b395a7b-0673-4348-afd0-7cea9252629f', '7b2881f0-289b-4ea4-9c0e-c1748249b70a', 10, '2026-03-02T05:11:28.078911+00:00', FALSE),
  ('eeb9524c-5aa7-4c5a-a8b6-b96fea0c0502', '1a972a71-a530-407a-b3f7-1dd9b2532cec', '78d66ff4-0519-4157-9d95-76c2900ba7f9', 200, '2026-03-02T05:11:28.079050+00:00', FALSE),
  ('2c38f9e6-97fe-477f-8ceb-a6e29880c926', '188c23a6-4c3b-4c25-9b40-9ec8ad7712a3', '0f2948c8-f5ba-4546-bdba-567a27b6b4f0', 197, '2026-03-02T05:11:28.079063+00:00', FALSE),
  ('a85ab466-5c6d-4863-b5fd-ec5418a52534', 'a50c967b-2e89-448d-be47-4df628c51572', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 215, '2026-03-02T05:11:28.079079+00:00', FALSE),
  ('b273c634-1b47-492e-9651-d32e54bdcbb8', 'ae82282e-d380-4500-99e0-2dc4e276c0cf', '491943d2-8aa3-4484-9d6d-afcab7ec579a', 298, '2026-03-02T05:11:28.079088+00:00', FALSE),
  ('93956d3c-c44b-4624-87d8-ac139b1310d0', 'dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', '2eb95b36-c9c3-4720-849b-fc240c9434da', 495, '2026-03-02T05:11:28.079096+00:00', FALSE),
  ('1d827b0f-710e-4af6-8492-4e8753c11584', '153f4022-a4ce-404a-8544-25d004fd34ad', '9ce13d41-dede-4658-a7e4-7bc00372d65c', 242, '2026-03-02T05:11:28.079107+00:00', FALSE),
  ('226c5063-77e1-4888-90f1-a1f23cfb7461', '004ac8b2-a37d-42c8-aba3-35b204f596f0', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 63, '2026-03-02T05:11:28.079115+00:00', FALSE),
  ('11584808-fc90-4f7f-bbb0-d9b444bf09b9', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', 'a50c967b-2e89-448d-be47-4df628c51572', 385, '2026-03-02T05:11:28.079124+00:00', FALSE),
  ('69ac1396-8377-4e44-9257-d14eafdd8c3d', 'b59d9b9a-a169-43c1-832d-7e7d4acfa19c', '4e9dfce6-555b-434a-81b6-237c61b9b530', 331, '2026-03-02T05:11:28.079133+00:00', FALSE),
  ('c0400153-b737-4c54-8ae3-c6958c481aa5', '4e9dfce6-555b-434a-81b6-237c61b9b530', 'f3687206-405e-43b6-afb0-8ca73eee5dd1', 254, '2026-03-02T05:11:28.079142+00:00', FALSE),
  ('80ca0f0e-6a9d-446a-adeb-16a4388120f4', '755c7aff-e538-4681-9b90-4b870a42ac72', '0b1e7a03-2922-4d53-8871-290520e6bb76', 183, '2026-03-02T05:11:28.079150+00:00', FALSE),
  ('289f79a4-5743-4577-9880-85648f4e4c17', '8db26b5c-2c09-4578-89bf-f9afaf765e36', '1a972a71-a530-407a-b3f7-1dd9b2532cec', 344, '2026-03-02T05:11:28.079159+00:00', FALSE),
  ('fcea8d5f-c180-480d-83eb-45bd0801e1f3', 'a50c967b-2e89-448d-be47-4df628c51572', '78d66ff4-0519-4157-9d95-76c2900ba7f9', 416, '2026-03-02T05:11:28.079167+00:00', FALSE),
  ('a142f26e-c281-44d7-b7f2-e023a2362f56', '8a034e84-26b3-4198-8ec9-3749b1f60537', 'a2eaefc9-dbff-4704-b908-74518d687e17', 168, '2026-03-02T05:11:28.079176+00:00', FALSE),
  ('ad62fcc0-2bb3-430c-9dda-dd309e346f59', '0f2948c8-f5ba-4546-bdba-567a27b6b4f0', 'e83caccd-e81e-454a-bf92-9d9a5a509e25', 18, '2026-03-02T05:11:28.079185+00:00', FALSE),
  ('2ba99e26-8967-4cc0-b024-4545ea3220d9', '61dd4370-bff0-4d09-be31-19f19c4dad5d', 'dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', 489, '2026-03-02T05:11:28.079194+00:00', FALSE),
  ('7c8c664b-5491-47f2-bd93-c5ad2a263e87', 'b5af580c-4998-4f68-b52f-5c5b6a9d0aab', '7e9bbec4-e2aa-4d67-b1c0-35f7db1d0dae', 175, '2026-03-02T05:11:28.079202+00:00', FALSE),
  ('3e5b5fae-26c5-44ff-97c0-e1b0624e208d', '7019b91a-d908-4c93-8ed2-d1c60e518630', '9ce13d41-dede-4658-a7e4-7bc00372d65c', 272, '2026-03-02T05:11:28.079211+00:00', FALSE),
  ('6995eaea-b5f3-4291-a1e4-68450d25b19b', 'd98fc7ff-dd92-4723-994c-6267ef951bcc', '88a425a0-b499-4825-8a16-3d33b85feec9', 186, '2026-03-02T05:11:28.079219+00:00', FALSE),
  ('9c50c700-e887-4336-b092-d5e37120d304', 'f37d558b-fd0a-404c-a193-bc3a8a2edfba', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', 15, '2026-03-02T05:11:28.079232+00:00', FALSE),
  ('9e27bc69-bb96-4392-8e2c-a911db3e9dcb', 'e37b6dcf-7ccb-47d0-8b9d-0da2fa30ad09', 'd9380e8d-8949-4849-af57-7a91a1a2b953', 81, '2026-03-02T05:11:28.079241+00:00', FALSE),
  ('ba31c88c-49ec-4934-bc99-f036aa1e3cb5', '0d9040df-34a3-4e54-b660-a85e3c60a6fe', 'f37d558b-fd0a-404c-a193-bc3a8a2edfba', 208, '2026-03-02T05:11:28.079259+00:00', FALSE),
  ('93e0c429-0788-492a-935a-4674a4cf1522', '4736fc20-1c22-49c2-af87-c35802302507', '5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 244, '2026-03-02T05:11:28.079268+00:00', FALSE),
  ('9f001cbb-a6fb-4192-a0ae-892219b99444', '4736fc20-1c22-49c2-af87-c35802302507', 'eba84e9d-bd10-466e-8fcd-899c0a868149', 239, '2026-03-02T05:11:28.079277+00:00', FALSE),
  ('0ee4d029-3905-49ab-98cb-c7e5ffcd08bc', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 'f37d558b-fd0a-404c-a193-bc3a8a2edfba', 204, '2026-03-02T05:11:28.079290+00:00', FALSE),
  ('e39956dd-af1f-4cc9-8831-cabbfbf5bec6', '61dd4370-bff0-4d09-be31-19f19c4dad5d', '398de7e0-8f4f-44ba-adfe-503a157cfe7c', 129, '2026-03-02T05:11:28.079310+00:00', FALSE),
  ('2404c2d3-4738-40f3-a169-9af84c909a79', '1e049026-1231-4763-bc50-82cb51950fa2', '87d880d4-c949-40e3-8d76-9307b45d57fe', 14, '2026-03-02T05:11:28.079319+00:00', FALSE),
  ('c9ba7281-5b78-4fe2-ad7c-105fafaad0b4', '8db26b5c-2c09-4578-89bf-f9afaf765e36', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', 232, '2026-03-02T05:11:28.079327+00:00', FALSE),
  ('b848f820-a6d9-4f2b-b7e1-13ddfd887fe1', '61dd4370-bff0-4d09-be31-19f19c4dad5d', 'dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', 426, '2026-03-02T05:11:28.079336+00:00', FALSE),
  ('db409655-050a-41e1-be6b-52c9d792deb2', '1a972a71-a530-407a-b3f7-1dd9b2532cec', 'eba84e9d-bd10-466e-8fcd-899c0a868149', 448, '2026-03-02T05:11:28.079344+00:00', FALSE),
  ('79811268-69cf-4542-8258-ad795155964c', '73e9a7c4-09e6-46d8-a093-b241d7d1d5df', '4e9dfce6-555b-434a-81b6-237c61b9b530', 244, '2026-03-02T05:11:28.079353+00:00', FALSE),
  ('71b40f64-aef1-4a83-a021-3118c6404475', 'd0ad6342-88fd-443f-82ba-919fc1d652d0', '9ce13d41-dede-4658-a7e4-7bc00372d65c', 223, '2026-03-02T05:11:28.079361+00:00', FALSE),
  ('06b9f40d-2988-446f-9eaf-7222198b7c52', '0b395a7b-0673-4348-afd0-7cea9252629f', '37a1e15c-a38c-4763-a2bd-042741bce012', 290, '2026-03-02T05:11:28.079374+00:00', FALSE),
  ('d3a2bd8f-5796-48bd-82bb-1c94f89b24a4', '0b1e7a03-2922-4d53-8871-290520e6bb76', 'b5af580c-4998-4f68-b52f-5c5b6a9d0aab', 411, '2026-03-02T05:11:28.079385+00:00', FALSE),
  ('1b8d50ce-4083-4b0b-b12d-b94529d200f3', '0b395a7b-0673-4348-afd0-7cea9252629f', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 237, '2026-03-02T05:11:28.079393+00:00', FALSE),
  ('d6ed7dff-b106-42cf-99c7-4f15bf114b79', 'e82df4fb-0b6d-44dc-8609-70b41430af38', '215b3d04-402a-4ac2-83ed-1edb9a421691', 205, '2026-03-02T05:11:28.079402+00:00', FALSE),
  ('de837bd6-5b12-47a3-ac05-c8fa4ac02ca3', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', '73e9a7c4-09e6-46d8-a093-b241d7d1d5df', 251, '2026-03-02T05:11:28.079411+00:00', FALSE),
  ('56080f4e-a404-4340-b119-8f82a1f2d6d0', '3fb82b8e-75a1-49fd-8691-a9dabb42bc4b', '755c7aff-e538-4681-9b90-4b870a42ac72', 334, '2026-03-02T05:11:28.079419+00:00', FALSE),
  ('db94e731-6ed8-42a4-a62d-2227814c95f7', '78d66ff4-0519-4157-9d95-76c2900ba7f9', '87d880d4-c949-40e3-8d76-9307b45d57fe', 477, '2026-03-02T05:11:28.079428+00:00', FALSE),
  ('cf051085-4625-44aa-bf03-e4529f1324d8', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', '34fa84c8-3356-4ed6-9ac5-967cd2baabac', 285, '2026-03-02T05:11:28.079441+00:00', FALSE),
  ('137f933b-40a1-441d-b547-d296bc977244', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', '822a8aae-57bd-460e-9643-69815990bec8', 34, '2026-03-02T05:11:28.079449+00:00', FALSE),
  ('164295cd-bb80-4c24-bbfa-29b582aa8e0f', '3f064471-24a0-47cd-8927-925cb3e5df7f', 'b59d9b9a-a169-43c1-832d-7e7d4acfa19c', 311, '2026-03-02T05:11:28.079458+00:00', FALSE),
  ('2b3a7e6b-7474-439e-b387-baa708683ca8', 'e83caccd-e81e-454a-bf92-9d9a5a509e25', '755c7aff-e538-4681-9b90-4b870a42ac72', 432, '2026-03-02T05:11:28.079466+00:00', FALSE),
  ('fcecd45c-f950-4704-9405-8ff6cc34f3fc', 'ea3afac7-54f0-4f68-8ed5-a5b6bd386c59', 'b5af580c-4998-4f68-b52f-5c5b6a9d0aab', 368, '2026-03-02T05:11:28.079474+00:00', FALSE),
  ('c2d81a86-0c03-4495-a1e8-702e1754f424', '2eb95b36-c9c3-4720-849b-fc240c9434da', '34fa84c8-3356-4ed6-9ac5-967cd2baabac', 353, '2026-03-02T05:11:28.079483+00:00', FALSE),
  ('462f5078-6df6-4f57-843e-47d0b51bc7ea', '8a034e84-26b3-4198-8ec9-3749b1f60537', '1a972a71-a530-407a-b3f7-1dd9b2532cec', 173, '2026-03-02T05:11:28.079496+00:00', FALSE),
  ('059a2a27-e019-4f5f-8e24-8208898c723f', '4e9dfce6-555b-434a-81b6-237c61b9b530', '5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 411, '2026-03-02T05:11:28.079507+00:00', FALSE),
  ('8ab52f88-d38c-4c60-b9ca-c2d08a337a33', '64921a63-bea6-4a5c-9e49-7a817678c94f', '5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 457, '2026-03-02T05:11:28.079516+00:00', FALSE),
  ('117ff05e-21d2-48ab-a3c8-29e61658c822', 'c5337857-3b58-4b0c-8814-4585dcbf765f', '7b2881f0-289b-4ea4-9c0e-c1748249b70a', 142, '2026-03-02T05:11:28.079525+00:00', FALSE),
  ('34e5ea80-59b4-4cb0-a8c1-552e2ba6ecc5', 'eb113965-6ee6-459e-ba0f-fb6cb1d0ae34', '3910b199-caf7-4822-8346-1ba9bd750c8e', 142, '2026-03-02T05:11:28.079533+00:00', FALSE),
  ('db1cfbb1-8555-492e-b6c9-45f8040c469b', '0f2948c8-f5ba-4546-bdba-567a27b6b4f0', 'ae82282e-d380-4500-99e0-2dc4e276c0cf', 478, '2026-03-02T05:11:28.079542+00:00', FALSE),
  ('370f50b3-e558-447e-bfbe-fe4eca7e9628', '9ce13d41-dede-4658-a7e4-7bc00372d65c', '3910b199-caf7-4822-8346-1ba9bd750c8e', 72, '2026-03-02T05:11:28.079550+00:00', FALSE),
  ('d08c71a3-bfde-4f95-895a-dc6fa810250f', 'b59d9b9a-a169-43c1-832d-7e7d4acfa19c', '822a8aae-57bd-460e-9643-69815990bec8', 330, '2026-03-02T05:11:28.079558+00:00', FALSE),
  ('81d6bb50-9127-4e2d-acd5-ecaaa797fcb1', '1a972a71-a530-407a-b3f7-1dd9b2532cec', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', 149, '2026-03-02T05:11:28.079567+00:00', FALSE),
  ('6ac1ba71-9852-4f0c-97b2-0bb166057ef0', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', '2eb95b36-c9c3-4720-849b-fc240c9434da', 479, '2026-03-02T05:11:28.079575+00:00', FALSE),
  ('9125a495-66f2-435b-8eab-8a2557f55820', '7b2881f0-289b-4ea4-9c0e-c1748249b70a', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 220, '2026-03-02T05:11:28.079670+00:00', FALSE),
  ('e11b19c9-6bf7-45e2-9831-bb42050b7e8e', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', '4e9dfce6-555b-434a-81b6-237c61b9b530', 380, '2026-03-02T05:11:28.079687+00:00', FALSE),
  ('09b6649c-99a3-48c3-864b-9cbd3d57980a', '7e9bbec4-e2aa-4d67-b1c0-35f7db1d0dae', 'ed20f879-2d42-4ba7-8df7-d696c4b6aafd', 317, '2026-03-02T05:11:28.079696+00:00', FALSE),
  ('68940de9-65d3-4afb-b080-0354b5c6b1a5', '153f4022-a4ce-404a-8544-25d004fd34ad', '82383e2d-d3a2-481d-b0cf-bfe165ed9bfd', 284, '2026-03-02T05:11:28.079710+00:00', FALSE),
  ('050b1905-c72a-446d-81f7-087cddb24434', '1a972a71-a530-407a-b3f7-1dd9b2532cec', 'e17ae312-37c6-4a66-9172-2d20d8528033', 156, '2026-03-02T05:11:28.079870+00:00', FALSE),
  ('7d1bbcaf-69eb-4acc-855d-3174d659a430', '188c23a6-4c3b-4c25-9b40-9ec8ad7712a3', '755c7aff-e538-4681-9b90-4b870a42ac72', 210, '2026-03-02T05:11:28.079923+00:00', FALSE),
  ('07fb83e9-5818-4991-aeba-54f65239954e', 'e83caccd-e81e-454a-bf92-9d9a5a509e25', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', 291, '2026-03-02T05:11:28.079938+00:00', FALSE),
  ('a8a3e69b-392d-4d59-a016-183152eda94a', '64aeeb22-42db-46bf-85bd-b21b135c9803', '8a034e84-26b3-4198-8ec9-3749b1f60537', 261, '2026-03-02T05:11:28.079948+00:00', FALSE),
  ('dcdbd81b-9c64-42cb-9960-4f10b13675ac', '398de7e0-8f4f-44ba-adfe-503a157cfe7c', 'a50c967b-2e89-448d-be47-4df628c51572', 104, '2026-03-02T05:11:28.079958+00:00', FALSE),
  ('df5490e1-cb3f-4109-be18-2aa10a52d848', '491943d2-8aa3-4484-9d6d-afcab7ec579a', '7019b91a-d908-4c93-8ed2-d1c60e518630', 302, '2026-03-02T05:11:28.079967+00:00', FALSE),
  ('801607a9-a4f7-424d-b80f-915094a6f389', '3de80488-e1b6-4908-a6ec-9c51f46f43b9', '55a1207d-a029-48da-a79d-c1f3f6824a37', 129, '2026-03-02T05:11:28.079979+00:00', FALSE),
  ('80851b7f-a1b5-4eb5-a54e-2c3c55e9dd2a', 'a50c967b-2e89-448d-be47-4df628c51572', '710128e0-4e1d-479c-acbc-497bbc5bc802', 450, '2026-03-02T05:11:28.079999+00:00', FALSE),
  ('b1b728aa-177f-4b2f-a5ff-0267898ff6b1', '145cc805-810a-4320-864d-ba6b5c6fbc33', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', 490, '2026-03-02T05:11:28.080011+00:00', FALSE),
  ('bc2e3265-7349-4ef4-a47d-9cd004d8baa4', 'a50c967b-2e89-448d-be47-4df628c51572', '5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 82, '2026-03-02T05:11:28.080021+00:00', FALSE),
  ('1b51395e-1dc0-4201-9596-34f3dbac4a14', 'eb113965-6ee6-459e-ba0f-fb6cb1d0ae34', '1e049026-1231-4763-bc50-82cb51950fa2', 175, '2026-03-02T05:11:28.080032+00:00', FALSE),
  ('cb319fb3-2707-4712-a042-b58a51d5407a', 'a2eaefc9-dbff-4704-b908-74518d687e17', '188c23a6-4c3b-4c25-9b40-9ec8ad7712a3', 20, '2026-03-02T05:11:28.080041+00:00', FALSE),
  ('5339f7f9-fd7e-4dc5-861b-98121e3fd696', '2eb95b36-c9c3-4720-849b-fc240c9434da', 'd9380e8d-8949-4849-af57-7a91a1a2b953', 339, '2026-03-02T05:11:28.080050+00:00', FALSE),
  ('ae4424b0-27d2-43d3-89d7-a1d8c49f5ee0', '37a1e15c-a38c-4763-a2bd-042741bce012', 'a50c967b-2e89-448d-be47-4df628c51572', 342, '2026-03-02T05:11:28.080059+00:00', FALSE),
  ('92c39e1d-45a3-41c9-9583-cfcaca15c4a3', '1a972a71-a530-407a-b3f7-1dd9b2532cec', 'a50c967b-2e89-448d-be47-4df628c51572', 484, '2026-03-02T05:11:28.080067+00:00', FALSE),
  ('a7cf23d8-b178-4a65-ba03-3ece7b259d51', 'dec825d6-91f4-4f8f-b44b-74cf6b4b78f6', '4736fc20-1c22-49c2-af87-c35802302507', 400, '2026-03-02T05:11:28.080076+00:00', FALSE),
  ('1a1981a8-b63a-4a73-9b8a-ff517286745d', 'ed20f879-2d42-4ba7-8df7-d696c4b6aafd', '8a034e84-26b3-4198-8ec9-3749b1f60537', 72, '2026-03-02T05:11:28.080087+00:00', FALSE),
  ('473dbb0e-652c-43b3-b571-f88c1af1e8c5', '7e9bbec4-e2aa-4d67-b1c0-35f7db1d0dae', '5cf1a55e-7904-4937-a4bd-bf3d1fc1c839', 146, '2026-03-02T05:11:28.080095+00:00', FALSE),
  ('26ebb626-b5a4-4a23-b411-9428219bc8ae', 'b5af580c-4998-4f68-b52f-5c5b6a9d0aab', '2eb95b36-c9c3-4720-849b-fc240c9434da', 261, '2026-03-02T05:11:28.080104+00:00', FALSE);

-- Table: AccountSignals
-- This is pushed by BigQuery through a continuous query if it is configured
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('50b64a6a-2e8f-4a0b-9742-c7e180949e82', '4e9dfce6-555b-434a-81b6-237c61b9b530', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078156+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('d2659e80-bce0-46b0-9570-6bb8b3c99d34', '686337b0-304e-4270-89c3-d015f9039294', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078198+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('10504018-b7a4-47a4-89b2-950fa492bbd4', '1627bc18-c42e-4599-b5f1-6f3d52669edb', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078244+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('ccbba78a-0f45-49b9-a58b-21777de250cf', '215b3d04-402a-4ac2-83ed-1edb9a421691', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078293+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('affa841d-0f9a-4b0f-ad6d-eb3e180263fe', '78d66ff4-0519-4157-9d95-76c2900ba7f9', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078337+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('1fbdd097-b431-4a21-9a5c-a1f53db6d754', '822a8aae-57bd-460e-9643-69815990bec8', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078383+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('0fc87891-dd4b-494b-8c47-f6ccc2c592c7', '9f223b65-41a3-495e-940a-5a07d2ba4ba7', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078420+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('cc117869-7a6b-4e66-89bf-e3148ac8c6ea', '3910b199-caf7-4822-8346-1ba9bd750c8e', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078456+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('c85a78c6-3cc8-4262-8fd2-2fb9661a1b96', '78c129b6-21e5-40c6-b9cf-d25ad5193e68', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078499+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('ccdb20f8-cd05-42ae-b942-cb41396ec27d', 'eba84e9d-bd10-466e-8fcd-899c0a868149', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078537+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('721511f1-ebc4-45dc-adb5-9dafc5426bc3', '37a1e15c-a38c-4763-a2bd-042741bce012', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078579+00:00');
INSERT INTO AccountSignals (SignalId, PlayerId, AlertType, EventTime) VALUES ('4d8b0f0d-211a-4537-8c79-c2fd815812f3', 'c5337857-3b58-4b0c-8814-4585dcbf765f', 'SUSPICIOUS_MOVEMENT', '2026-03-02T05:11:28.078627+00:00');

这可能需要几分钟时间才能运行完毕。完成后，您应该能够预览数据。

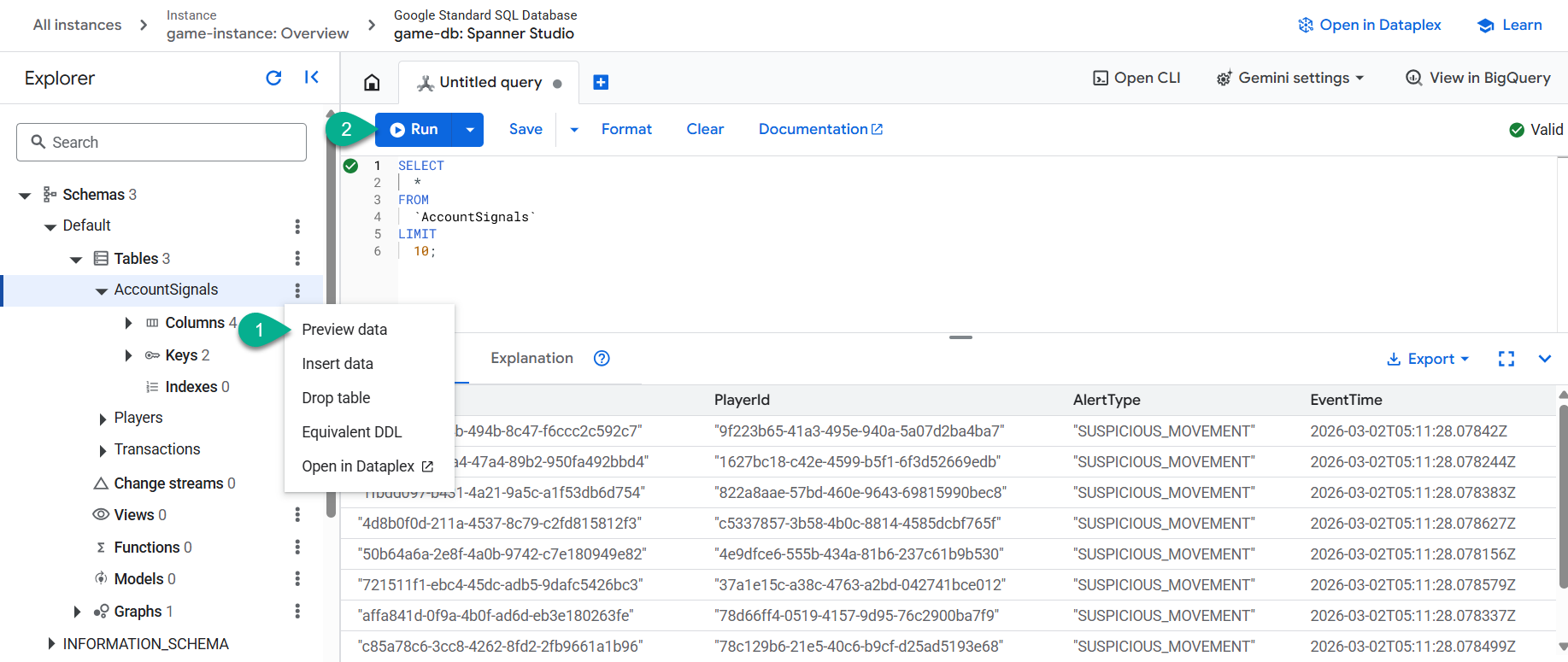

Spanner Studio 中的数据预览

4. Watchdog（BigQuery 持续查询和 Spanner 同步）

我们的第一道防线是流式传输到 BigQuery 的遥测数据。我们希望监控可疑移动（例如，不可能的距离），并实时将提醒推送回 Spanner。

在实际应用场景中，您可以使用 BigQuery 持续查询和反向 ETL 来流式传输这些数据。不过，这需要预留使用企业版或更高级别。

如果预留可用，该命令将如下所示。如果您尚未设置预留，则无需将此内容复制到控制台中：

EXPORT DATA
  OPTIONS (
    uri = 'https://spanner.googleapis.com/projects/<YOUR_PROJECT_ID>/instances/game-instance/databases/game-db',
    format='CLOUD_SPANNER',
    spanner_options="""{ "table": "AccountSignals" }"""
  ) AS
SELECT
  GENERATE_UUID() as SignalId,
  PlayerId,
  'SUSPICIOUS_MOVEMENT' as AlertType,
  CURRENT_TIMESTAMP() as EventTime
FROM `game_analytics.GameplayTelemetry`
WHERE
  EventType = 'player_move'
  AND (LocationX > 1000 OR LocationY > 1000);

如需创建持续查询，您可以在 BigQuery 控制台 SQL 工作区中依次点击更多 > 创建持续查询。

此查询充当反向 ETL 引擎，可确保我们的事务系统 (Spanner) 立即了解分析系统 (BigQuery) 中检测到的异常情况。

在本实验中，我们人为地向 Spanner 插入了一些事务。

5. 多模态侦探（Spanner Graph 和向量搜索）

现在，Spanner 收到“高风险”信号，您可以调查欺诈团伙了。我们将使用 Spanner Graph 可视化金融网络并找到幕后主使。

在 Spanner Studio 中运行这些查询

图表：找到主导者

此查询会追踪受害者向窃贼转账，然后窃贼向头目节点转账的金融交易网络。按首领分组，并对战利品求和。

将其复制到 Spanner Studio 中，然后点击运行。

GRAPH PlayerNetwork
MATCH (victim)-[:Transfers]->(thief)-[t:Transfers]->(boss)
RETURN
  boss.Name AS RingLeader, COUNT(t) AS TributesReceived,
  SUM(t.Amount) AS TotalLoot
GROUP BY RingLeader
ORDER BY TotalLoot DESC
LIMIT 5;

您应该会看到“Pixel”是获得赞扬最多的收件人。

多信号调查

接下来，我们将 Graph 结果与之前从 BigQuery 推送的实时行为信号联接起来。我们希望找到向“Pixel”汇款且被标记为有可疑活动的玩家。

SELECT DISTINCT
  p.Name,
  s.AlertType as BQ_Signal,
  s.EventTime as SignalTime
FROM GRAPH_TABLE (
  PlayerNetwork
  MATCH (associate:Players)-[:Transfers]->(boss:Players)
  WHERE boss.Name = 'Pixel'
  RETURN DISTINCT associate.Name
) as g
JOIN Players p
  ON p.Name = g.Name
JOIN AccountSignals s
  ON p.PlayerId = s.PlayerId
ORDER BY s.EventTime DESC;

向量搜索：识别机器人账号

这些是真人玩家还是有组织的机器人团伙？使用向量搜索功能来识别个人资料描述与“Pixel”的描述可疑地相似的账号。

SELECT
  Name, AvatarDescription,
  COSINE_DISTANCE(AvatarEmbedding, (SELECT AvatarEmbedding FROM Players WHERE Name = 'Pixel')) as Similarity
FROM Players
WHERE Name != 'Pixel'
ORDER BY Similarity ASC
LIMIT 5;

相似度得分越低，表示它们越接近“Pixel”向量。如果这些账号的说明类似，则很可能是机器人！

我们还可以在 MATCH 子句中应用标量函数：

GRAPH PlayerNetwork
MATCH (associate:Players)-[:Transfers]->(boss:Players)
WHERE boss.Name = 'Pixel'
ORDER BY (
  COSINE_DISTANCE(associate.AvatarEmbedding, (SELECT AvatarEmbedding FROM Players WHERE Name = 'Pixel'))
) ASC
RETURN DISTINCT associate.Name

6. 揭秘剧情（BigQuery 属性图和 GCS 集成）

我们抓到了主谋，但需要了解他们是如何协调这起大规模“金枪鱼抢劫案”的。我们将使用 BigQuery 属性图在 BigQuery 中跟踪通信模式，以查询游戏聊天记录。

在 BigQuery Studio 中运行以下查询：

BigQuery 属性图

跟踪“Pixel”与其他玩家之间的通信：

GRAPH game_analytics.CatChatNetwork
MATCH (p1:Players)-[c:Communicates]->(p2:Players)
WHERE p1.Name = 'Pixel' OR p2.Name = 'Pixel'
RETURN
  p1.Name AS Sender,
  p2.Name AS Receiver,
  c.Message,
  -- Resolving structured metadata from ObjectRef
  p1.ProfilePictureUrl.uri AS SenderProfilePic
ORDER BY Message DESC;

观察“Operation Fishbowl is a go”（鱼缸行动开始）和“Diverting funds to the central tuna reserve”（将资金转移到中央金枪鱼储备）等消息。您可以了解 BigQuery 属性图如何让您分析包含非结构化数据的通信（使用 ProfilePictureUrl.uri 的 GCS 图片引用）。

如果您下载图片或点击结果中的经过身份验证的 GCS 链接，您将看到该球员的图片：

Pixel 个人资料照片

此分析查询进一步比较了欺诈团伙成员之间的聊天模式和图片。

在运行此代码之前，请先声明一个多模态模型，以生成存储在 Cloud Storage 存储分区中的个人资料照片的嵌入。此模型通过初始设置中创建的连接进行连接，因此您还需要向附加到该连接的技术用户授予 Vertex AI 用户权限。

将 <> 替换为您的项目 ID。

GRANT `roles/aiplatform.user`
ON PROJECT `<<PROJECT_ID>>`
TO "connection:<<PROJECT_ID>>.us.unicorn-connection";

您现在可以创建连接了。

CREATE OR REPLACE MODEL `game_analytics.multimodal_model`
  REMOTE WITH CONNECTION `us.unicorn-connection`
  OPTIONS (ENDPOINT = 'multimodalembedding@001');

如果因权限错误而失败（即“bqcx-12345745345345@gcp-sa-bigquery-condel.iam.gserviceaccount.com 无权访问或使用端点…”），请等待几分钟，直到权限传播完毕，然后重试。

以下查询使用 AI.GENERATE_EMBEDDING 函数遍历存储分区中的图片并创建嵌入。然后，使用 COSINE_DISTANCE 对这些嵌入进行比较，以便更好地了解聊天记录和个人资料照片的相似程度。

-- BigQuery Property Graph: Tracing communication patterns in chat logs
-- AND calculating distance between auto-embedded chat message and profile picture
-- BigQuery Property Graph: Tracing communication patterns
-- AND identifying similarity AMONG the fraudsters themselves
WITH GraphResults AS (
  SELECT *
  FROM GRAPH_TABLE(
  game_analytics.CatChatNetwork
   MATCH (p1:Players)-[c:Communicates]->(p2:Players)
   WHERE p1.Name = 'Pixel' OR p2.Name = 'Pixel'
   RETURN
    p1.Name AS Sender,
    c.Message,
    p1.ProfilePictureUrl.uri AS SenderProfilePic,
    c.MessageEmbedding.result AS MessageEmbedding
  )
),
UniquePics AS (
  SELECT DISTINCT SenderProfilePic AS uri FROM GraphResults
),
PicEmbeddings AS (
  SELECT embedding, uri
  FROM AI.GENERATE_EMBEDDING(
    MODEL game_analytics.multimodal_model,
    (
      SELECT OBJ.MAKE_REF(uri, 'us.unicorn-connection') as content, uri
      FROM UniquePics
    )
  )
),
CatData AS (
  -- Distinct list of players (excluding Pixel) with their embeddings and HTTPS Pic URLs
  SELECT DISTINCT
    g.Sender,
    g.MessageEmbedding,
    g.Message,
    p.embedding AS PicEmbedding,
    REPLACE( g.SenderProfilePic, 'gs://sample-data-and-media/spanner-bq-fraud-heist/profile_pics/', 'https://storage.mtls.cloud.google.com/sample-data-and-media/spanner-bq-fraud-heist/profile_pics/') AS SenderProfilePic
  FROM GraphResults g
  LEFT JOIN PicEmbeddings p ON g.SenderProfilePic = p.uri
  WHERE g.Sender != 'Pixel'
    AND g.MessageEmbedding IS NOT NULL
    AND p.embedding IS NOT NULL
)
SELECT
  c1.Sender AS Fraudster_A,
  c2.Sender AS Fraudster_B,
  c1.SenderProfilePic AS Pic_A,
  c2.SenderProfilePic AS Pic_B,
  c1.Message,
  -- Compare chat messages between Fraudster A and B
  COSINE_DISTANCE(c1.MessageEmbedding, c2.MessageEmbedding) AS MessageDistance,
  -- Compare profile pictures between Fraudster A and B
  COSINE_DISTANCE(c1.PicEmbedding, c2.PicEmbedding) AS PictureDistance
FROM CatData c1
CROSS JOIN CatData c2
WHERE c1.Sender < c2.Sender -- Avoid self-comparison and duplicate pairs (A-B and B-A)
  AND c1.SenderProfilePic <> c2.SenderProfilePic
ORDER BY PictureDistance ASC, MessageDistance ASC
LIMIT 10;

如果您打开这些个人资料照片，会发现氏族成员的自我展示方式非常相似。

直观呈现欺诈团伙

您可以使用笔记本和 Python Cell Magic 直观呈现欺诈团伙。这样，我们就可以轻松直观地查看图表结果。如需详细了解相关信息，请参阅可视化图表文档。

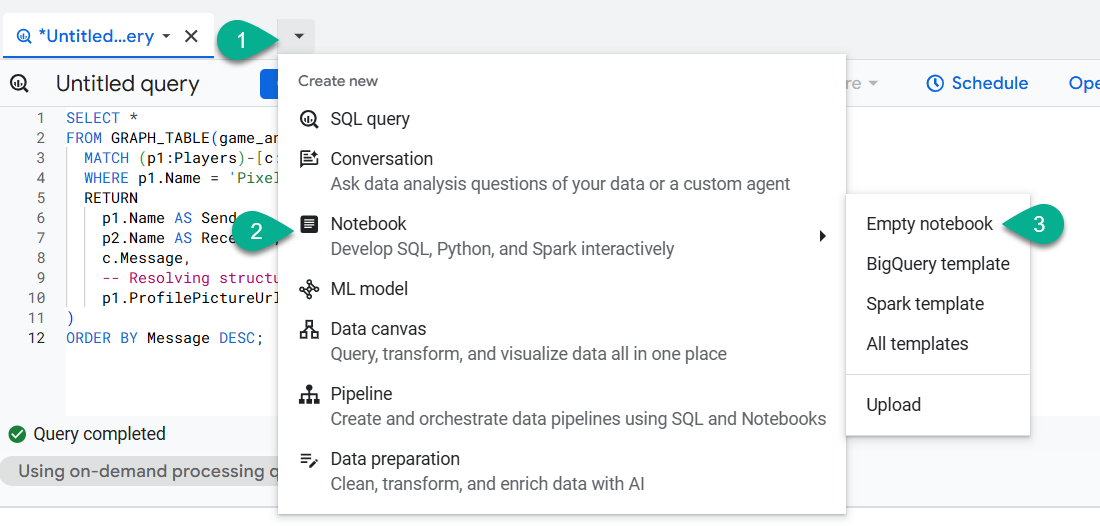

在 BigQuery Studio 中，依次点击更多 > 笔记本 > 空白笔记本。

创建笔记本

将以下内容粘贴到代码单元中：

!pip install bigquery-magics==0.12.1

使用 + 代码按钮创建一个新单元，然后粘贴以下内容：

%%bigquery --graph
GRAPH game_analytics.CatChatNetwork
MATCH p=(p1:Players)-[c:Communicates]-(p2:Players)
WHERE p1.Name = 'Pixel' OR p2.Name = 'Pixel'
RETURN TO_JSON(p) AS full_path

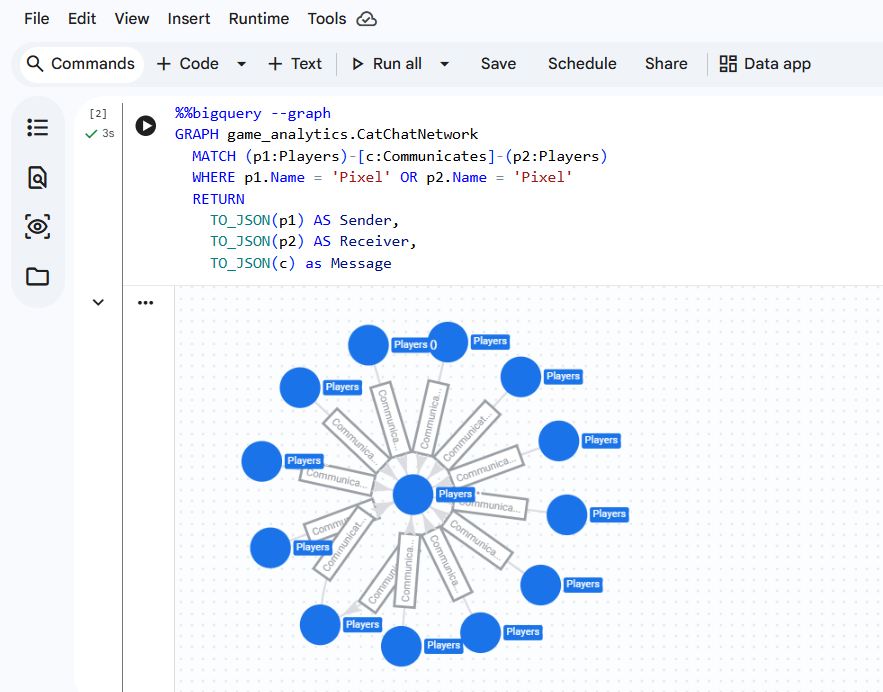

点击全部运行。大约一分钟后，您应该会看到通信网络的可视化图表。

图表可视化

7. 清理

为避免系统因本 Codelab 中使用的资源向您的 Google Cloud 账号收取费用，请删除您创建的资源。

删除 Spanner 实例

gcloud spanner instances delete game-instance

删除 BigQuery 数据集

bq rm -r -f -d game_analytics

或者，删除项目

如果您为此实验创建了一个新项目，可以删除整个项目：

gcloud projects delete <YOUR_PROJECT_ID>

8. 恭喜！

恭喜！您已成功使用 Spanner 和 BigQuery 构建了实时欺诈防御盾。

您学习了如何：

  • 使用 BigQuery 持续查询将实时数据洞见推送到 Spanner。
  • 使用 Spanner Graph 跟踪财务关系。
  • 使用 Spanner 向量搜索对非结构化数据执行相似度查询。
  • 使用 BigQuery 图跟踪通信网络。

接下来怎么做？
