Vertex AI Pipelines PSC Interface Explicit Proxy

1. Introduction

A Private Service Connect interface is a resource that lets a producer Virtual Private Cloud (VPC) network initiate connections to various destinations in a consumer VPC network. Producer and consumer networks can be in different projects and organizations.

If a network attachment accepts a connection from a Private Service Connect interface, Google Cloud allocates the interface an IP address from a consumer subnet that's specified by the network attachment. The consumer and producer networks are connected and can communicate by using internal IP addresses.

A connection between a network attachment and a Private Service Connect interface is similar to the connection between a Private Service Connect endpoint and a service attachment, but it has two key differences:

  • A network attachment lets a producer network initiate connections to a consumer network (managed service egress), while an endpoint lets a consumer network initiate connections to a producer network (managed service ingress).
  • A Private Service Connect interface connection is transitive. This means that a producer network can communicate with other networks that are connected to the consumer network.

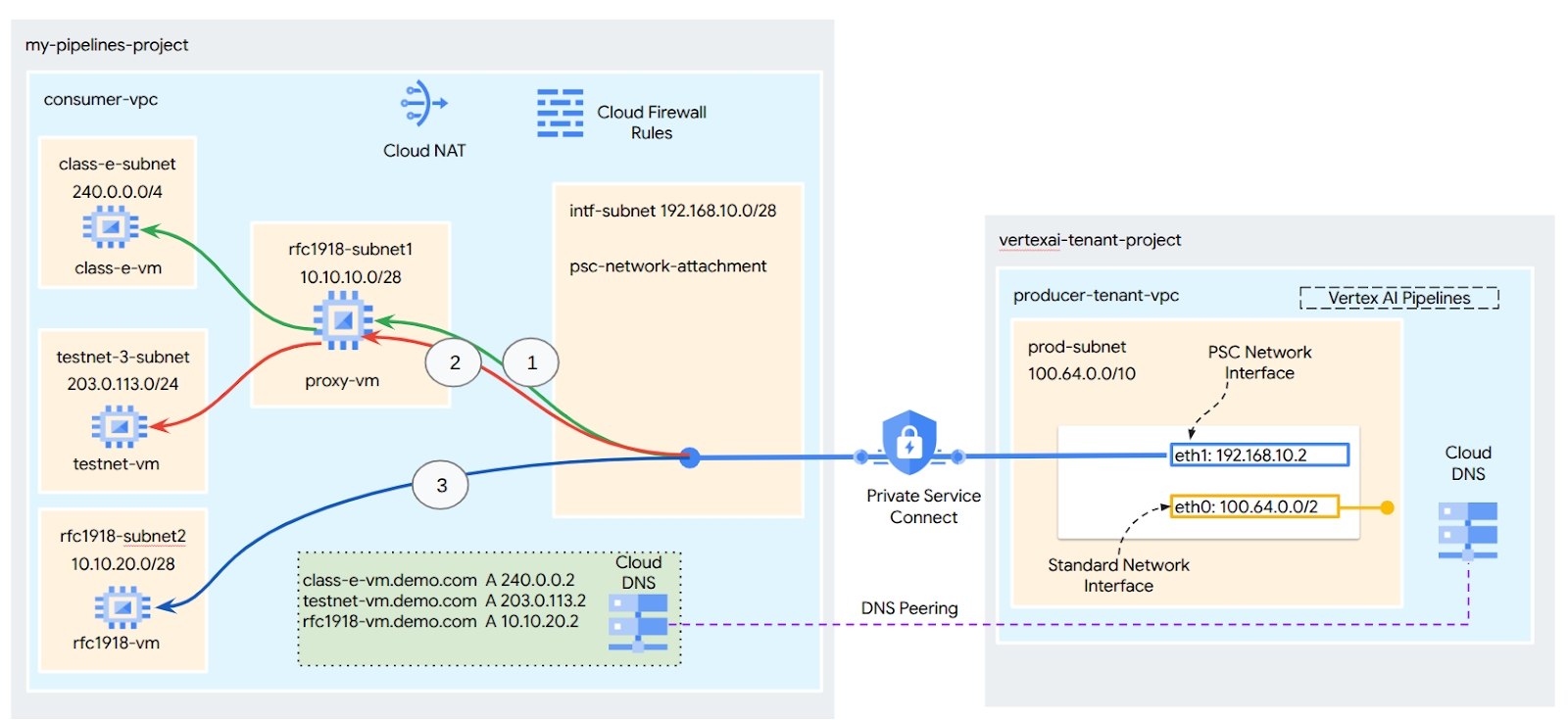

Vertex AI PSC-Interface reachability considerations

  • PSC-Interface is capable of routing traffic to VPC or on-premesis based destinations within the RFC1918 address block.
  • PSC-Interface targeting non rfc-1918 address blocks requires an explicit proxy deployed in the consumer's VPC with a rfc-1918 address. Within the Vertex AI deployment, the proxy must be defined along with a FQDN of the target endpoint. See figure 1 that represents the explicit proxy configured in the customers VPCs to facilitate routing to the following non rfc-1918 CIDRs:

[1] 240.0.0.0/4

[2] 203.0.113.0/2

[3]10.10.20.0/28 no proxy required, falls into the rfc1918 range.

  • When you configure your deployment with only a PSC Interface, it retains its default internet access. This outbound traffic egresses directly from the secure, Google-managed tenant network.


Vertex AI PSC-Interface VPC-SC considerations

  • When your project is part of a VPC Service Controls perimeter, the Google-managed tenants default internet access is blocked by the perimeter to prevent data exfiltration.
  • To allow the deployment access to the public internet in this scenario, you must explicitly configure a secure egress path that routes traffic through your VPC. The recommended way to achieve this is by setting up a proxy server inside your VPC perimeter with a RFC1918 address and create a Cloud NAT gateway to allow the proxy VM to access the internet.

For additional information, refer to the following resources:

Set up a Private Service Connect interface for Vertex AI resources | Google Cloud

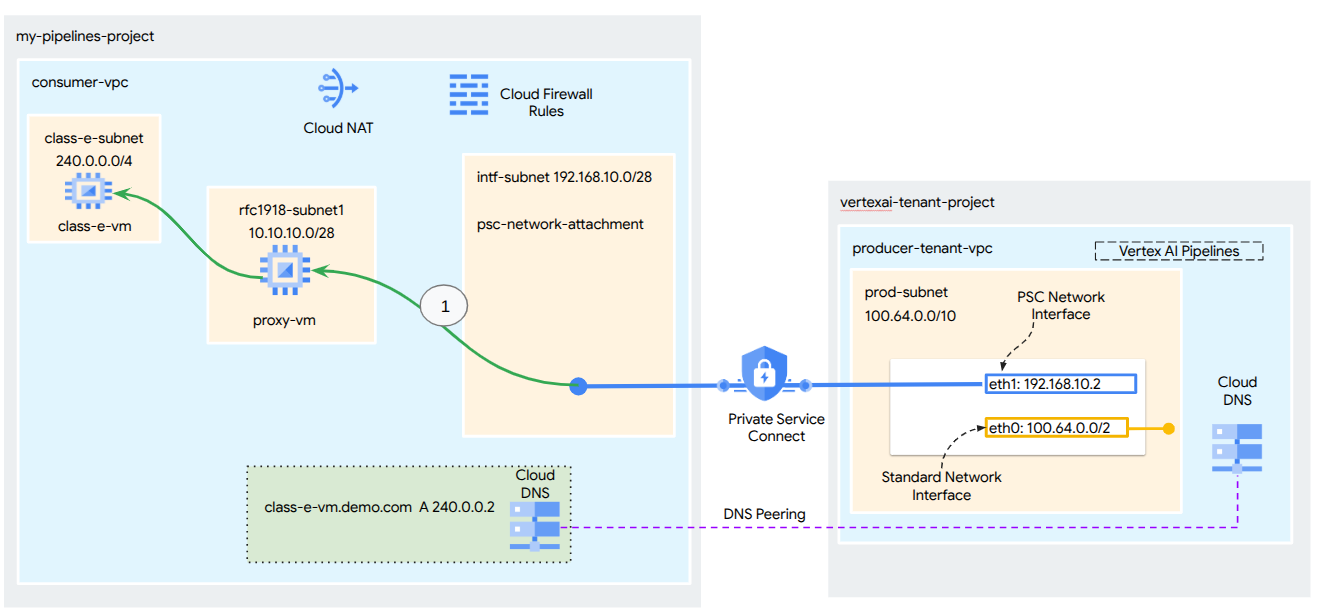

What you'll build

In this tutorial, you're going to build a comprehensive Vertex AI Pipelines deployment with Private Service Connect (PSC) Interface to allow connectivity from the producer to the consumer's compute as illustrated in Figure 1 targeting non rfc-1928 endpoints.

Figure 2


You'll create a single psc-network-attachment in the consumer VPC leveraging DNS peering to resolve the consumers VMs in the tenant project hosting Vertex AI Training resulting in the following use cases:

  1. Deploy Vertex AI Pipelines and configuring a proxy VM to act as an explicit proxy, allowing it to perform a wget against a VM in the Class E subnet.

What you'll learn

  • How to create a network attachment
  • How a producer can use a network attachment to create a PSC interface
  • How to establish communication from the producer to the consumer using DNS Peering
  • How to establish communication to non-rfc1918 IP Address space from Vertex AI Pipelines

What you'll need

Google Cloud Project

IAM Permissions

2. Before you begin

Update the project to support the tutorial

This tutorial makes use of $variables to aid gcloud configuration implementation in Cloud Shell.

Inside Cloud Shell, perform the following:

gcloud config list project
gcloud config set project [YOUR-PROJECT-NAME]
projectid=YOUR-PROJECT-NAME
echo $projectid

API Enablement

Inside Cloud Shell, perform the following:

gcloud services enable "compute.googleapis.com"
gcloud services enable "aiplatform.googleapis.com"
gcloud services enable "dns.googleapis.com"
gcloud services enable "notebooks.googleapis.com"
gcloud services enable "storage.googleapis.com"
gcloud services enable "cloudresourcemanager.googleapis.com"
gcloud services enable "artifactregistry.googleapis.com"
gcloud services enable "cloudbuild.googleapis.com"

3. Consumer Setup

Create the Consumer VPC

Inside Cloud Shell, perform the following:

gcloud compute networks create consumer-vpc --project=$projectid --subnet-mode=custom

Create the consumer subnets

Inside Cloud Shell, perform the following:

gcloud compute networks subnets create class-e-subnet --project=$projectid --range=240.0.0.0/4 --network=consumer-vpc --region=us-central1

Inside Cloud Shell, perform the following:

gcloud compute networks subnets create rfc1918-subnet1 --project=$projectid --range=10.10.10.0/28 --network=consumer-vpc --region=us-central1

Create the Private Service Connect Network Attachment subnet

Inside Cloud Shell, perform the following:

gcloud compute networks subnets create intf-subnet --project=$projectid --range=192.168.10.0/28 --network=consumer-vpc --region=us-central1

Cloud Router and NAT configuration

In this tutorial, Cloud NAT is used to provide internet access for the proxy VM, which doesn't have a public IP address. Cloud NAT makes it possible for VMs with only private IP addresses to connect to the internet, allowing them to perform tasks like installing software packages.

Inside Cloud Shell, create the cloud router.

gcloud compute routers create cloud-router-for-nat --network consumer-vpc --region us-central1

Inside Cloud Shell, create the NAT gateway.

gcloud compute routers nats create cloud-nat-us-central1 --router=cloud-router-for-nat --auto-allocate-nat-external-ips --nat-all-subnet-ip-ranges --region us-central1 --enable-logging --log-filter=ALL

4. Enable IAP

To allow IAP to connect to your VM instances, create a firewall rule that:

  • Applies to all VM instances that you want to be accessible by using IAP.
  • Allows ingress traffic from the IP range 35.235.240.0/20. This range contains all IP addresses that IAP uses for TCP forwarding.

Inside Cloud Shell, create the IAP firewall rule.

gcloud compute firewall-rules create ssh-iap-consumer \
    --network consumer-vpc \
    --allow tcp:22 \
    --source-ranges=35.235.240.0/20

5. Create consumer VM instances

Inside Cloud Shell, create the consumer vm instance, class-e-vm.

gcloud compute instances create class-e-vm \
    --project=$projectid \
    --machine-type=e2-micro \
    --image-family debian-11 \
    --no-address \
    --shielded-secure-boot \
    --image-project debian-cloud \
    --zone us-central1-a \
    --subnet=class-e-subnet \
    --metadata startup-script="#! /bin/bash
      sudo apt-get update
      sudo apt-get install tcpdump
      sudo apt-get install apache2 -y
      sudo service apache2 restart
      echo 'Class-e server !!' | tee /var/www/html/index.html
      EOF"

Within Cloud Shell, create the consumer VM instance, proxy-vm, which will serve as the explicit proxy for Vertex AI Pipelines. We will utilize tinyproxy as the application for proxying HTTP traffic, although HTTPS is also supported.

gcloud compute instances create proxy-vm \
    --project=$projectid \
    --machine-type=e2-micro \
    --image-family debian-11 \
    --no-address \
    --can-ip-forward \
    --shielded-secure-boot \
    --image-project debian-cloud \
    --zone us-central1-a \
    --subnet=rfc1918-subnet1 \
    --metadata startup-script="#! /bin/bash
      sudo apt-get update
      sudo apt-get install tcpdump
      sudo apt-get install tinyproxy -y
      sudo apt-get install apache2 -y
      sudo service apache2 restart
      echo 'proxy server !!' | tee /var/www/html/index.html
      EOF"

6. Private Service Connect network attachment

Network attachments are regional resources that represent the consumer side of a Private Service Connect interface. You associate a single subnet with a network attachment, and the producer assigns IPs to the Private Service Connect interface from that subnet. The subnet must be in the same region as the network attachment. A network attachment must be in the same region as the producer service.

Create the network attachment

Inside Cloud Shell, create the network attachment.

gcloud compute network-attachments create psc-network-attachment \
    --region=us-central1 \
    --connection-preference=ACCEPT_AUTOMATIC \
    --subnets=intf-subnet

List the network attachments

Inside Cloud Shell, list the network attachment.

gcloud compute network-attachments list

Describe the network attachments

Inside Cloud Shell, describe the network attachment.

gcloud compute network-attachments describe psc-network-attachment --region=us-central1

Make note of the psc-network-attachment name, psc-network-attachment, that will be used by the producer when creating the Private Service Connect Interface.

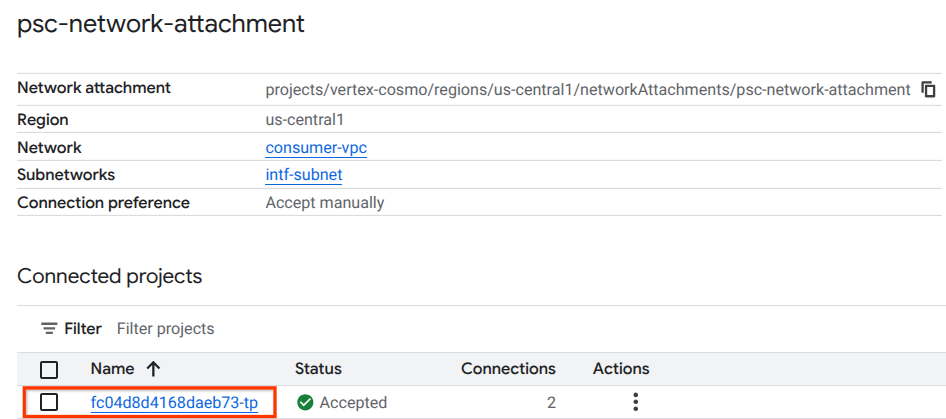

To view the PSC Network Attachment URL in Cloud Console, navigate to the following:

Network Services → Private Service Connect → Network Attachment → psc-network-attachment


7. Private DNS Zone

You'll create a Cloud DNS Zone for demo.com and populate it with A records that point to your VMs' IP addresses. Later, DNS peering will be deployed in the Vertex AI Pipelines job, which will allow it to access the consumer's DNS records.

Inside Cloud Shell, perform the following:

gcloud dns --project=$projectid managed-zones create private-dns-codelab --description="" --dns-name="demo.com." --visibility="private" --networks="https://compute.googleapis.com/compute/v1/projects/$projectid/global/networks/consumer-vpc"

Inside Cloud Shell, perform a describe against the VM instances to obtain the respective IP Addresses.

gcloud compute instances describe class-e-vm --zone=us-central1-a | grep  networkIP:

gcloud compute instances describe proxy-vm --zone=us-central1-a | grep  networkIP:

Inside Cloud Shell, create the records set for the VM, class-e-vm, ensure to update the IP Address based on your environment's output.

gcloud dns --project=$projectid record-sets create class-e-vm.demo.com. --zone="private-dns-codelab" --type="A" --ttl="300" --rrdatas="240.0.0.2"

Inside Cloud Shell, create the records set for the VM, proxy-vm, ensure to update the IP Address based on your environment's output.

gcloud dns --project=$projectid record-sets create proxy-vm.demo.com. --zone="private-dns-codelab" --type="A" --ttl="300" --rrdatas="10.10.10.2"

Create a Cloud Firewall rule to allow access from the PSC Interface

In the following section, create a firewall rule that allows traffic originating from the PSC Network Attachment access RFC1918 compute resources in the consumers VPC.

In Cloud Shell, create the ingress firewall rule that allows access from the PSC Network Attachment subnet to the proxy-vm.

gcloud compute firewall-rules create allow-access-to-proxy \
    --network=consumer-vpc \
    --action=ALLOW \
    --rules=ALL \
    --direction=INGRESS \
    --priority=1000 \
    --source-ranges="192.168.10.0/28" \
    --destination-ranges="10.10.0.0/19" \
    --enable-logging

In Cloud Shell, create the ingress firewall rule that allows access from the proxy-vm subnet to the class-e subnet.

gcloud compute firewall-rules create allow-access-to-class-e \
    --network=consumer-vpc \
    --action=ALLOW \
    --rules=ALL \
    --direction=INGRESS \
    --priority=1000 \
    --source-ranges="10.10.10.0/28" \
    --destination-ranges="240.0.0.0/4" \
    --enable-logging

8. Update the explicit proxy

In the following section, you will need to ssh into the explicit proxy and update tinyproxy.conf configuration file followed by performing a reset.

From Cloud Shell

gcloud compute ssh --zone us-central1-a "proxy-vm" --tunnel-through-iap --project $projectid

Open the tinyproxy config file, update using an editor or your choice. Below is an example using VIM.

sudo vim /etc/tinyproxy/tinyproxy.conf

# Locate the "Listen" configuration line to restrict listening to only its private IP address of the Proxy-VM, rather than all interfaces.

Listen 10.10.10.2

# Locate the "Allow" configuration line to allow requests ONLY from the PSC Network Attachment Subnet

Allow 192.168.10.0/24

Save the configs by the following steps:
1. Press the `ESC` key to enter Command Mode.
2. Type `:wq` to save (w) and quit (q).
3. Press `Enter`

Restart the tinyproxy service to apply the changes:
sudo systemctl restart tinyproxy

Validate the tinyproxy service is running:
sudo systemctl status tinyproxy

Perform an exit returning to cloud shell
exit

9. Create a Jupyter Notebook

The following section guides you through creating a Jupyter Notebook. This notebook will be used to deploy a Vertex AI Pipelines Job that sends a wget from Vertex AI Pipelines to the test instances. The Datapath between Vertex AI Pipelines and the consumer network containing the instances uses a Private Service Connect Network Interface.

Create a user managed service account

In the following section, you will create a service account that will be associated with the Vertex AI Workbench instance used in the tutorial.

In the tutorial, the service account will have the following roles applied:

Inside Cloud Shell, create the service account.

gcloud iam service-accounts create notebook-sa \
    --display-name="notebook-sa"

Inside Cloud Shell, update the service account with the role Storage Admin.

gcloud projects add-iam-policy-binding $projectid --member="serviceAccount:notebook-sa@$projectid.iam.gserviceaccount.com" --role="roles/storage.admin"

Inside Cloud Shell, update the service account with the role Vertex AI User.

gcloud projects add-iam-policy-binding $projectid --member="serviceAccount:notebook-sa@$projectid.iam.gserviceaccount.com" --role="roles/aiplatform.user"

Inside Cloud Shell, update the service account with the role Artifact Registry Admin.

gcloud projects add-iam-policy-binding $projectid --member="serviceAccount:notebook-sa@$projectid.iam.gserviceaccount.com" --role="roles/artifactregistry.admin"

Inside Cloud Shell, update the service account with the role Cloud Build Editor.

gcloud projects add-iam-policy-binding $projectid --member="serviceAccount:notebook-sa@$projectid.iam.gserviceaccount.com" --role="roles/cloudbuild.builds.editor"

Inside Cloud Shell, allow the notebook service account to use the Compute Engine default service account.

gcloud iam service-accounts add-iam-policy-binding \
    $(gcloud projects describe $(gcloud config get-value project) --format='value(projectNumber)')-compute@developer.gserviceaccount.com \
    --member="serviceAccount:notebook-sa@$projectid.iam.gserviceaccount.com" \
    --role="roles/iam.serviceAccountUser"

10. Create a Vertex AI Workbench Instance

In the following section, create a Vertex AI Workbench instance that incorporates the previously created service account, notebook-sa.

Inside Cloud Shell create the private-client instance.

gcloud workbench instances create workbench-tutorial --vm-image-project=cloud-notebooks-managed --vm-image-family=workbench-instances --machine-type=n1-standard-4 --location=us-central1-a --subnet-region=us-central1 --subnet=rfc1918-subnet1 --disable-public-ip --shielded-secure-boot=true --shielded-integrity-monitoring=true --shielded-vtpm=true --service-account-email=notebook-sa@$projectid.iam.gserviceaccount.com

11. Vertex AI Service Agent Update

Vertex AI acts on your behalf to perform operations such as obtaining an IP Address from the PSC Network Attachment subnet used to create the PSC Interface. To do so, Vertex AI uses a service agent (listed below) that requires Network Admin permission.

service-$projectnumber@gcp-sa-aiplatform.iam.gserviceaccount.com

Inside Cloud Shell, obtain your project number.

gcloud projects describe $projectid | grep projectNumber

Inside Cloud Shell, obtain your project number.

gcloud projects describe $projectid | grep projectNumber
projectNumber: '234086459238'

Inside Cloud Shell, set your project number.

projectnumber=YOUR-PROJECT-Number

Inside Cloud Shell, create a service account for AI Platform. Skip this step if you have an existing service account in your project.

gcloud beta services identity create --service=aiplatform.googleapis.com --project=$projectnumber

Inside Cloud Shell, update the service agent account with the role compute.networkAdmin.

gcloud projects add-iam-policy-binding $projectid --member="serviceAccount:service-$projectnumber@gcp-sa-aiplatform.iam.gserviceaccount.com" --role="roles/compute.networkAdmin"

Inside Cloud Shell, update the service agent account with the role dns.peer

gcloud projects add-iam-policy-binding $projectid --member="serviceAccount:service-$projectnumber@gcp-sa-aiplatform.iam.gserviceaccount.com" --role="roles/dns.peer"

Default Service Account Update

Enable the Compute Engine API and grant your default service account access to Vertex AI. Note that it might take some time for the access change to propagate.

Inside Cloud Shell, update the default service account with the role aiplatform.user

gcloud projects add-iam-policy-binding $projectid \
  --member="serviceAccount:$projectnumber-compute@developer.gserviceaccount.com" \
    --role="roles/aiplatform.user"

Inside Cloud Shell, update the default service account with the role storage.admin

gcloud projects add-iam-policy-binding $projectid \
  --member="serviceAccount:$projectnumber-compute@developer.gserviceaccount.com" \
    --role="roles/storage.admin"

Inside Cloud Shell, update the default service account with the role storage.admin

gcloud projects add-iam-policy-binding $projectid \
  --member="serviceAccount:$projectnumber-compute@developer.gserviceaccount.com" \
    --role="roles/artifactregistry.admin"

12. Enable Tcpdump

To validate IP connectivity from Vertex AI Pipelines, we can use TCPDUMP. This will allow us to observe communication originating from the PSC Network Attachment subnet, 192.168.10.0/28 when invoking the get request from Vertex AI Pipelines to the vm, class-e-vm.demo.com (240.0.0.0/4).

From Cloud Shell ssh into the proxy vm.

gcloud compute ssh --zone us-central1-a "proxy-vm" --tunnel-through-iap --project $projectid

From the proxy-vm OS execute tcpdump filtering on the class-e-vm and PSC network attachment subnet.

sudo tcpdump -i any net 240.0.0.0/4 or 192.168.10.0/28 -nn

Open a new Cloud Shell tab, update your project variable and ssh into the class-e-vm

gcloud compute ssh --zone us-central1-a "class-e-vm" --tunnel-through-iap --project $projectid

From the class-e-vm OS execute tcpdump filtering on the proxy-vm subnet..

sudo tcpdump -i any net 10.10.10.0/28 -nn

13. Deploy Vertex AI Pipelines Job

In the following section, you will create a notebook to perform a successful wget from Vertex AI Pipelines to the explicit proxy. This allows you to reach non-RFC 1918 VMs, such as the class-e-vm. An explicit proxy is not required for Vertex AI Pipelines to access rfc1918-vm, as its target is an RFC 1918 IP address.

Run the training job in the Vertex AI Workbench instance.

  1. In the Google Cloud console, go to the instances tab on the Vertex AI Workbench page.
  2. Next to your Vertex AI Workbench instance's name (workbench-tutorial), click Open JupyterLab. Your Vertex AI Workbench instance opens in JupyterLab.
  3. Select File > New > Notebook
  4. Select Kernel > Python 3

In your JupyterLab notebook, create a new cell and run the following.

# Install gcloud
!pip install google-cloud

# Install the pipeline required packages
!pip install --upgrade google-cloud-aiplatform \
                         google-cloud-storage \
                         kfp \
                         google-cloud-pipeline-components

# Import libraries
from time import gmtime, strftime
import json
import requests

In your JupyterLab notebook, create a new cell, update and run the following. Ensure to update PROJECT_ID with your environment's details.

import json
import requests
import pprint

PROJECT_ID = 'YOUR-PROJECT-ID' #Enter your project ID
PROJECT_NUMBER=!gcloud projects list --filter="project_id:$PROJECT_ID" --format="value(PROJECT_NUMBER)"
PROJECT_NUMBER=str(PROJECT_NUMBER).strip('[').strip(']').strip("'")
print(PROJECT_NUMBER)

In your JupyterLab notebook, create a new cell and run the following.

# us-central1 is used for the codelab
REGION = "us-central1" #@param {type:"string"}
SERVICE_NAME = "aiplatform" #@param {type:"string"}
SERVICE ="{}.googleapis.com".format(SERVICE_NAME)
ENDPOINT="{}-{}.googleapis.com".format(REGION, SERVICE_NAME)
API_VERSION = "v1" # @param {type: "string"}

LOCATION = REGION

In your JupyterLab notebook, create a new cell and run the config below, note the following highlights:

  • proxy_server = "http://proxy-vm.demo.com:8888" FQDN is associated with the proxy vm deployed in the consumer VPC. We are using DNS peering to resolve the FQDN in a later step.
%%writefile main.py

import logging
import socket
import sys
import os

def make_api_request(url: str, proxy_vm_ip: str, proxy_vm_port: str):
    """
    Makes a GET request to a non-rfc1918 API and saves the response.

    Args:
        url: The URL of the API to send the request to.
    """
    import requests

    try:
        # response = requests.get(url)
        proxy_server = f"http://proxy-vm.demo.com:8888" # replace with you VM's IP and proxy port.

        proxies = {
          "http": proxy_server,
          "https": proxy_server,
        }

        response = requests.get(url, proxies=proxies)
        logging.info(response.text)

        response.raise_for_status()  # Raise an exception for bad status codes
        logging.info(f"Successfully fetched data from {url}")
    except requests.exceptions.RequestException as e:
        logging.error(f"An error occurred: {e}")
        raise e

if __name__ == '__main__':
  # Configure logging to print clearly to the console
  logging.basicConfig(
      level=logging.INFO,
      format='%(levelname)s: %(message)s',
      stream=sys.stdout
  )
  url_to_test = os.environ['NONRFC_URL']
  proxy_vm_ip = os.environ['PROXY_VM_IP']
  proxy_vm_port = os.environ['PROXY_VM_PORT']

  logging.info(f"url_to_test: {url_to_test}")
  logging.info(f"proxy_vm_ip: {proxy_vm_ip}")
  logging.info(f"proxy_vm_port: {proxy_vm_port}")
  make_api_request(url_to_test, proxy_vm_ip, proxy_vm_port)

In your JupyterLab notebook, create a new cell and run the following.

%%writefile Dockerfile
FROM python:3.9-slim

RUN apt-get update && \
  apt-get install -y iputils-ping && \
  apt-get install -y wget

RUN pip install cloudml-hypertune requests kfp

COPY main.py /main.py

ENTRYPOINT ["python3", "/main.py"]

In your JupyterLab notebook, create a new cell and run the following.

!gcloud artifacts repositories create pipelines-test-repo-psc --repository-format=docker --location=us-central1

In your JupyterLab notebook, create a new cell and run the following.

IMAGE_PROJECT = PROJECT_ID
IMAGE_REPO = 'pipelines-test-repo-psc'
IMAGE_NAME = 'nonrfc-ip-call'
TAG = 'v1'

IMAGE_URI= f'us-central1-docker.pkg.dev/{IMAGE_PROJECT}/{IMAGE_REPO}/{IMAGE_NAME}:{TAG}'
IMAGE_URI

In your JupyterLab notebook, create a new cell and run the following.

!gcloud auth configure-docker us-docker.pkg.dev --quiet

In your JupyterLab notebook, create a new cell and run the following. Disregard the error (gcloud.builds.submit) if present.

!gcloud builds submit --tag {IMAGE_URI} --region=us-central1

In your JupyterLab notebook, create and run the cell below, note the following highlights:

  • DNS Peering to consumer VPCs is configured using dnsPeeringConfigs (dnsPeeringConfigs) for the domain name demo.com.
  • The explicit proxy, defined as the variable PROXY_VM_IP, is proxy-vm.demo.com. Resolution is handled via DNS peering within the consumer's VPC.
  • Port 8888 is the listening port (default) configured in tinyproxy
  • Wget to class-e-vm-demo.com is resolved through DNS peering
  • The code specifies the "psc-network-attachment" for Vertex, enabling it to utilize the network attachment subnet to deploy two PSC Interface instances.
import json
from datetime import datetime


JOB_ID_PREFIX='test_psci-nonRFC' #@param {type:"string"}
JOB_ID = '{}_{}'.format(JOB_ID_PREFIX, datetime.now().strftime("%Y%m%d%H%M%S"))

# PSC-I configs

PRODUCER_PROJECT_ID = PROJECT_ID
DNS_DOMAIN = 'class-e-vm.demo.com' #@param {type:"string"}
NON_RFC_URL = f"http://{DNS_DOMAIN}"

PROXY_VM_IP = "proxy-vm.demo.com" #@param {type:"string"}
PROXY_VM_PORT = "8888" #@param {type:"string"}

CUSTOM_JOB = {
  "display_name": JOB_ID,
  "job_spec": {
      "worker_pool_specs": [
          {
           "machine_spec": {
             "machine_type": "n1-standard-4",
           },
           "replica_count": 1,
           "container_spec": {
             "image_uri": IMAGE_URI,
             "env": [{
               "name": "NONRFC_URL",
               "value": NON_RFC_URL
             },
             {
               "name": "PROXY_VM_IP",
               "value": PROXY_VM_IP
             },
             {
               "name": "PROXY_VM_PORT",
               "value": PROXY_VM_PORT
             }]
           },
         },
      ],
      "enable_web_access": True,
      "psc_interface_config": {
        "network_attachment": "psc-network-attachment",
        "dns_peering_configs": [
          {
            "domain": "demo.com.",
            "target_project": PROJECT_ID,
            "target_network": "consumer-vpc"
          },
        ]
      },
  }
}

print(json.dumps(CUSTOM_JOB, indent=2))

In your JupyterLab notebook, create a new cell and run the following.

import requests
bearer_token = !gcloud auth application-default print-access-token
headers = {
    'Content-Type': 'application/json',
    'Authorization': 'Bearer {}'.format(bearer_token[0]),
}

request_uri = f"https://{REGION}-aiplatform.googleapis.com/{API_VERSION}/projects/{PROJECT_NUMBER}/locations/{REGION}/customJobs/"

print("request_uri: ", request_uri)

In your JupyterLab notebook, create a new cell and run the following.

response_autopush = requests.post(request_uri, json=CUSTOM_JOB, headers=headers)
response = response_autopush
print("response:", response)
if response.reason == 'OK':
  job_name = response.json()['name']
  job_id = job_name.split('/')[-1]
  print("Created Job: ", response.json()['name'])
else:
  print(response.text)

In your JupyterLab notebook, create a new cell and run the following.

# Print KFP SDK version (should be >= 1.6)
! python3 -c "import kfp; print('KFP SDK version: {}'.format(kfp.__version__))"

# Print AI Platform version
! python3 -c "from google.cloud import aiplatform; print('AI Platform version: {}'.format(aiplatform.__version__))"

In your JupyterLab notebook, create a new cell and run the following.

BUCKET_URI = "your-unique-bucket" # Provide a globally unique bucket name

In your JupyterLab notebook, create a new cell and run the following.

!gcloud storage buckets create gs://{BUCKET_URI}

In your JupyterLab notebook, create a new cell and run the following.

# pipeline parameters
CACHE_PIPELINE = False # @param {type: "string"}
_DEFAULT_IMAGE = IMAGE_URI
BUCKET_URI = "gs://{BUCKET_URI}"  # @param {type: "string"}
PIPELINE_ROOT = f"{BUCKET_URI}/pipeline_root/intro"
PIPELINE_DISPLAY_NAME = "pipeline_nonRFCIP" # @param {type: "string"}

In your JupyterLab notebook, create a new cell and run the following.

from re import S
import kfp
from kfp import dsl
from kfp.dsl import container_component, ContainerSpec
from kfp import compiler
from google.cloud import aiplatform


# ==== Component with env variable ====

@container_component
def dns_peering_test_op(dns_domain: str, proxy_vm_ip:str, proxy_vm_port:str):
    return ContainerSpec(
        image=_DEFAULT_IMAGE,
        command=["bash", "-c"],
        args=[
            """
            apt-get update && apt-get install inetutils-traceroute inetutils-ping netcat-openbsd curl -y

            echo "Local IP(s): $(hostname -I)"

            echo "Attempting to trace route to %s"
            traceroute -w 1 -m 7 "%s"

            echo "Sending curl requests to http://%s via proxy %s:%s and recording trace..."
            if curl -L -v --trace-ascii /dev/stdout -x http://%s:%s "http://%s"; then
                echo "Curl request succeeded!"
            else
                echo "Curl request failed!"
                exit 1
            fi
            """ % (dns_domain, dns_domain, dns_domain, proxy_vm_ip, proxy_vm_port, proxy_vm_ip, proxy_vm_port, dns_domain)

        ]
    )

# ==== Pipeline ====
@dsl.pipeline(
    name="dns-peering-test-pipeline",
    description="Test DNS Peering using env variable",
    pipeline_root=PIPELINE_ROOT,
)
def dns_peering_test_pipeline(dns_domain: str, proxy_vm_ip:str, proxy_vm_port:str):
    dns_test_task = dns_peering_test_op(dns_domain=dns_domain, proxy_vm_ip=proxy_vm_ip, proxy_vm_port=proxy_vm_port)
    dns_test_task.set_caching_options(enable_caching=CACHE_PIPELINE)

# ==== Compile pipeline ====
if __name__ == "__main__":
    aiplatform.init(project=PROJECT_ID, location=LOCATION)

    compiler.Compiler().compile(
        pipeline_func=dns_peering_test_pipeline,
        package_path="dns_peering_test_pipeline.yaml",
    )
    print("✅ Pipeline compiled to dns_peering_test_pipeline.yaml")

In your JupyterLab notebook, create a new cell and run the following.

# Define the PipelineJob body; see API Reference https://cloud.google.com/vertex-ai/docs/reference/rest/v1/projects.locations.pipelineJobs/create

import requests, json
import datetime

bearer_token = !gcloud auth application-default print-access-token
headers = {
    'Content-Type': 'application/json',
    'Authorization': 'Bearer {}'.format(bearer_token[0]),
}

request_uri = f"https://{REGION}-aiplatform.googleapis.com/{API_VERSION}/projects/{PROJECT_NUMBER}/locations/{REGION}/pipelineJobs/"

print("request_uri: ", request_uri)

14. PSC Interface Validation

You can also view the Network Attachment IPs used by Vertax AI Pipelines by navigating to the following:

Network Services → Private Service Connect → Network Attachment → psc-network-attachment

Select the tenant project (project name ending in -tp)


The highlighted field denotes the IP address used by Vertex AI Pipelines from the PSC Network Attachment.


15. Cloud Logging Validation

The Vertex AI Pipelines job will take approx 14 minutes to run the first time, subsequent runs are much shorter. To validate a successful outcome perform the following:

Navigate to Vertex AI → Training → Custom jobs

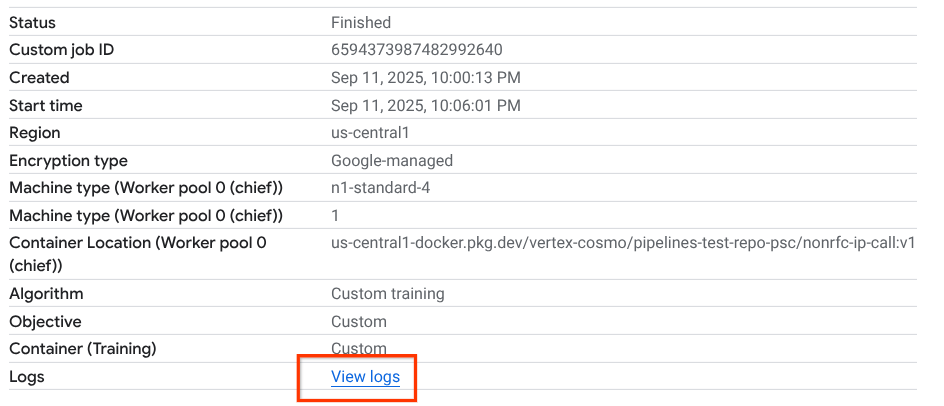

Select the executed custom job


Select View Logs

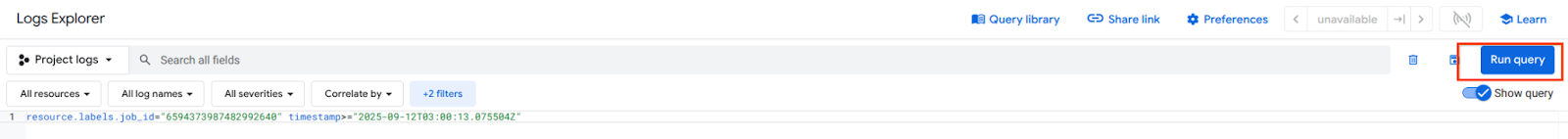

Once Cloud Logging is available, select Run Query that generates the highlighted selection below that confirms a successful wget from Vertex AI Pipelines to the class-e-vm.



16. TCPDump Validation

Let's review the TCPDUMP output that further validates the connectivity to compute instances:

From proxy-vm observe the HTTP GET and 200 OK

03:05:34.778574 ens4  Out IP 10.10.10.2.40326 > 240.0.0.2.80: Flags [P.], seq 1:63, ack 1, win 511, options [nop,nop,TS val 1435446009 ecr 2475360885], length 62: HTTP: GET / HTTP/1.0
03:05:34.778946 ens4  In  IP 240.0.0.2.80 > 10.10.10.2.40326: Flags [.], ack 63, win 506, options [nop,nop,TS val 2475360889 ecr 1435446009], length 0
03:05:34.778974 ens4  Out IP 10.10.10.2.40326 > 240.0.0.2.80: Flags [P.], seq 63:185, ack 1, win 511, options [nop,nop,TS val 1435446010 ecr 2475360889], length 122: HTTP
03:05:34.781999 ens4  In  IP 240.0.0.2.80 > 10.10.10.2.40326: Flags [.], ack 185, win 506, options [nop,nop,TS val 2475360892 ecr 1435446010], length 0
03:05:34.906678 ens4  In  IP 240.0.0.2.80 > 10.10.10.2.40326: Flags [P.], seq 1:265, ack 185, win 506, options [nop,nop,TS val 2475361016 ecr 1435446010], length 264: HTTP: HTTP/1.1 200 OK

From class-e-vm observe the HTTP GET and 200 OK

03:05:34.778768 ens4  In  IP 10.10.10.2.40326 > 240.0.0.2.80: Flags [P.], seq 1:63, ack 1, win 511, options [nop,nop,TS val 1435446009 ecr 2475360885], length 62: HTTP: GET / HTTP/1.0
03:05:34.778819 ens4  Out IP 240.0.0.2.80 > 10.10.10.2.40326: Flags [.], ack 63, win 506, options [nop,nop,TS val 2475360889 ecr 1435446009], length 0
03:05:34.781815 ens4  In  IP 10.10.10.2.40326 > 240.0.0.2.80: Flags [P.], seq 63:185, ack 1, win 511, options [nop,nop,TS val 1435446010 ecr 2475360889], length 122: HTTP
03:05:34.781856 ens4  Out IP 240.0.0.2.80 > 10.10.10.2.40326: Flags [.], ack 185, win 506, options [nop,nop,TS val 2475360892 ecr 1435446010], length 0
03:05:34.906503 ens4  Out IP 240.0.0.2.80 > 10.10.10.2.40326: Flags [P.], seq 1:265, ack 185, win 506, options [nop,nop,TS val 2475361016 ecr 1435446010], length 264: HTTP: HTTP/1.1 200 OK

17. Clean up

From Cloud Shell, delete tutorial components.

gcloud compute instances delete proxy-vm --zone=us-central1-a --quiet

gcloud compute instances delete workbench-tutorial --zone=us-central1-a --quiet

gcloud compute routers delete cloud-router-for-nat --region=us-central1 --quiet

gcloud compute network-attachments delete psc-network-attachment --region=us-central1 --quiet

gcloud compute networks subnets delete intf-subnet rfc1918-subnet1 --region=us-central1 --quiet

gcloud dns record-sets delete class-e-vm.demo.com --zone=private-dns-codelab  --type=A
gcloud dns record-sets delete proxy-vm.demo.com --zone=private-dns-codelab  --type=A

gcloud dns managed-zones delete private-dns-codelab
gcloud compute networks delete consumer-vpc --quiet

18. Congratulations

Congratulations, you've successfully configured and validated a Private Service Connect Interface with Vertex AI Pipelines.

You created the consumer infrastructure, and you added a network attachment that allowed the producer to create a multi nic vm to bridge consumer and producer communication. You learned how to create DNS peering while deploying an explicit proxy in the consumer VPC network that allowed connectivity to the class-e-vm instance that is not routable directly from Vertex.

Cosmopup thinks tutorials are awesome!!


What's next?

Further reading & Videos

Reference docs
