Distributed tracing with Spring Cloud Sleuth and Cloud Trace

1. Overview

Distributed tracing is important to gain insight and observability to a multi-tier microservices architecture. When you have chained service to service calls, from service A to service B to service C, it's important to understand that the calls were successful and also the latency at every step.

In Spring Boot, you can use Spring Cloud Sleuth to seamlessly add the distributed tracing instrumentation to your application. By default, it can forward the trace data to Zipkin.

Google Cloud Platform has Cloud Trace, which is a managed service that allows you to store trace data without having to manage your own Zipkin instance nor storage. Cloud Trace can also produce latency distribution reports and automatically detect performance regressions.

You have two options to use Cloud Trace from a Spring Boot application:

  1. Use a Stackdriver Trace Zipkin Proxy and simply configure Spring Cloud Sleuth to use this proxy as the Zipkin endpoint
  2. Or, use Spring Cloud GCP Trace, which seamlessly integrates with Spring Cloud Sleuth and forwards the trace data directly to Cloud Trace.

In this codelab, you will learn how to build a new Spring Boot application and use Spring Cloud GCP Trace for distributed tracing.

What you'll learn

  • How to create a Spring Boot Java application and configure Cloud Trace.

What you'll need

  • A Google Cloud Platform Project
  • A Browser, such Chrome or Firefox
  • Familiarity with standard Linux text editors such as Vim, EMACs or Nano

How will you use use this tutorial?

Read it through only Read it and complete the exercises

How would you rate your experience with building HTML/CSS web apps?

Novice Intermediate Proficient

How would you rate your experience with using Google Cloud Platform services?

Novice Intermediate Proficient

2. Setup and Requirements

Self-paced environment setup

  1. Sign-in to the Google Cloud Console and create a new project or reuse an existing one. If you don't already have a Gmail or Google Workspace account, you must create one.




  • The Project name is the display name for this project's participants. It is a character string not used by Google APIs. You can always update it.
  • The Project ID is unique across all Google Cloud projects and is immutable (cannot be changed after it has been set). The Cloud Console auto-generates a unique string; usually you don't care what it is. In most codelabs, you'll need to reference your Project ID (typically identified as PROJECT_ID). If you don't like the generated ID, you might generate another random one. Alternatively, you can try your own, and see if it's available. It can't be changed after this step and remains for the duration of the project.
  • For your information, there is a third value, a Project Number, which some APIs use. Learn more about all three of these values in the documentation.
  1. Next, you'll need to enable billing in the Cloud Console to use Cloud resources/APIs. Running through this codelab won't cost much, if anything at all. To shut down resources to avoid incurring billing beyond this tutorial, you can delete the resources you created or delete the project. New Google Cloud users are eligible for the $300 USD Free Trial program.

Google Cloud Shell

While Google Cloud and Kubernetes can be operated remotely from your laptop, in this codelab we will be using Google Cloud Shell, a command line environment running in the Cloud.

Activate Cloud Shell

  1. From the Cloud Console, click Activate Cloud Shell 853e55310c205094.png.


If this is your first time starting Cloud Shell, you're presented with an intermediate screen describing what it is. If you were presented with an intermediate screen, click Continue.


It should only take a few moments to provision and connect to Cloud Shell.


This virtual machine is loaded with all the development tools needed. It offers a persistent 5 GB home directory and runs in Google Cloud, greatly enhancing network performance and authentication. Much, if not all, of your work in this codelab can be done with a browser.

Once connected to Cloud Shell, you should see that you are authenticated and that the project is set to your project ID.

  1. Run the following command in Cloud Shell to confirm that you are authenticated:
gcloud auth list

Command output

 Credentialed Accounts
ACTIVE  ACCOUNT
*       <my_account>@<my_domain.com>

To set the active account, run:
    $ gcloud config set account `ACCOUNT`
  1. Run the following command in Cloud Shell to confirm that the gcloud command knows about your project:
gcloud config list project

Command output

[core]
project = <PROJECT_ID>

If it is not, you can set it with this command:

gcloud config set project <PROJECT_ID>

Command output

Updated property [core/project].

3. Create a new Spring Boot REST Service

After Cloud Shell launches, you can use the command line to generate a new Spring Boot application with Spring Initializr:

$ curl https://start.spring.io/starter.tgz -d packaging=jar \
  -d bootVersion=2.7.6 \
  -d dependencies=web,lombok,cloud-gcp,distributed-tracing \
  -d jvmVersion=17 \
  -d type=maven-project \
  -d baseDir=trace-service-one | tar -xzvf - \
  && cd trace-service-one

Create a new REST controller by adding a new class:

src/main/java/com/example/demo/WorkController.java

package com.example.demo;

import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Random;

@RestController
@Slf4j
public class WorkController {
  Random r = new Random();

  public void meeting() {
    try {
      log.info("meeting...");
      // Delay for random number of milliseconds.
      Thread.sleep(r.nextInt(500));
    } catch (InterruptedException e) {
    }
  }

  @GetMapping("/")
  public String work() {
    // What is work? Meetings!
    // When you hit this URL, it'll call meetings() 5 times.
    // Each time will have a random delay.
    log.info("starting to work");
    for (int i = 0; i < 5; i++) {
      this.meeting();
    }
    log.info("finished!");
    return "finished work!";
  }
}

Make sure you have the right JVM version for the application:

$ export JAVA_HOME=/usr/lib/jvm/java-1.17.0-openjdk-amd64

You can start the Spring Boot application normally with the Spring Boot plugin. Let's skip tests for this lab:

$ ./mvnw -DskipTests spring-boot:run

Once the application started, click on the Web Preview icon 3a9b40fafa650b2b.pngin the Cloud Shell toolbar and choose preview on port 8080.


After a short wait you should see the result:


In Cloud Shell, you should also see the log messages with trace ID and span ID:


4. Using Cloud Trace

Enable Cloud Trace API

You must enable Cloud Trace API first before using Cloud Trace to store your trace data. To enable the API, execute:

$ gcloud services enable cloudtrace.googleapis.com

Setup Application Default Credential

For this lab, you'll need to configure an application default credential. This credential will be automatically picked up by Spring Cloud GCP Trace starter.

First, login:

$ gcloud auth application-default login
You are running on a Google Compute Engine virtual machine.
The service credentials associated with this virtual machine
will automatically be used by Application Default
Credentials, so it is not necessary to use this command.
If you decide to proceed anyway, your user credentials may be visible
to others with access to this virtual machine. Are you sure you want
to authenticate with your personal account?
Do you want to continue (Y/n)? Y

Go to the following link in your browser:
    https://accounts.google.com/o/oauth2/auth...
Enter verification code: ...

Click on the link to open a new browser tab, and then click Allow


Then, copy and paste the verification code back into Cloud Shell and press enter. You should see:

Credentials saved to file: [/tmp/tmp.jm9bnQ4R9Q/application_default_credentials.json]
These credentials will be used by any library that requests
Application Default Credentials.

Add Spring Cloud GCP Trace

In this service, we already used Spring Cloud Sleuth for tracing. Let's add Spring Cloud GCP Trace starter to forward the data to Cloud Trace.

Add the Spring Cloud GCP Trace dependency:

pom.xml

<project>
  ...
  <dependencies>
    ...
    <!-- Add Cloud Trace Starter -->
    <dependency>
      <groupId>com.google.cloud</groupId>
      <artifactId>spring-cloud-gcp-starter-trace</artifactId>
    </dependency>
  </dependencies>
  ...
</project>

By default, Spring Cloud Sleuth does not sample every request. To make our testing a little easier, increase the sample rate to 100% in application.properties to ensure we see the trace data, as well as ignore some URLs that we do not care about:

$ echo "
spring.sleuth.sampler.probability=1.0
spring.sleuth.web.skipPattern=(^cleanup.*|.+favicon.*)
" > src/main/resources/application.properties

Run the application again, and use the Cloud Shell Web Preview to view the application:

$ export GOOGLE_CLOUD_PROJECT=`gcloud config list --format 'value(core.project)'`
$ ./mvnw -DskipTests spring-boot:run

By default, Spring Cloud GCP Trace batches trace data and sends them out once every 10 seconds, or when a minimum number of trace data is received. This is configurable and you can refer to the Spring Cloud GCP Trace reference documentation for more information.

Make request to the service:

$ curl localhost:8080

In the Cloud Console, navigate to OperationsTraceTrace list


On the top, narrow down the time range to 1 hour. By default, Auto Reload is on. So as trace data arrive, it should show up in the console!


The trace data should show up in ~30 seconds or so.


Click on the blue dot to see trace detail:


That was pretty simple!

5. Create a second Spring Boot Web Application

Open a new Cloud Shell session by clicking on the + icon:


In the new session, create the second Spring Boot application:

$ curl https://start.spring.io/starter.tgz -d packaging=jar \
  -d bootVersion=2.7.6 \
  -d dependencies=web,lombok,cloud-gcp,distributed-tracing \
  -d jvmVersion=17 \
  -d type=maven-project \
  -d baseDir=trace-service-two | tar -xzvf - \
  && cd trace-service-two

Create a new REST controller by adding a new class:

src/main/java/com/example/demo/MeetingController.java

package com.example.demo;

import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Random;

@RestController
@Slf4j
public class MeetingController {
  Random r = new Random();

  @GetMapping("/meet")
  public String meeting() {
    try {
      log.info("meeting...");
      Thread.sleep(r.nextInt(500 - 20 + 1) + 20);
    } catch (InterruptedException e) {
    }
    return "finished meeting";
  }
}

Add Spring Cloud GCP Trace to pom.xml

pom.xml

<project>
  ...
  <dependencies>
    ...
    <!-- Add Cloud Trace starter -->
    <dependency>
      <groupId>com.google.cloud</groupId>
      <artifactId>spring-cloud-gcp-starter-trace</artifactId>
    </dependency>
  </dependencies>
  ...
</project>

Configure Sleuth to sample 100% of the requests:

src/main/resources/application.properties

$ echo "
spring.sleuth.sampler.probability=1.0
spring.sleuth.web.skipPattern=(^cleanup.*|.+favicon.*)
" > src/main/resources/application.properties

Finally, you can start the Spring Boot application on port 8081 with the Spring Boot plugin:

$ export GOOGLE_CLOUD_PROJECT=`gcloud config list --format 'value(core.project)'`
$ ./mvnw -DskipTests spring-boot:run -Dspring-boot.run.jvmArguments="-Dserver.port=8081"

6. Update First Service to Consume Second Service

While you have trace-service-two running, go back to the first Cloud Shell session window and make modification to trace-service-one.

First initialize a new RestTemplate bean:

src/main/java/com/example/demo/DemoApplication.java

package com.example.demo;

...

import org.springframework.web.client.RestTemplate;
import org.springframework.context.annotation.Bean;

@SpringBootApplication
public class DemoApplication {
        @Bean
        public RestTemplate restTemplate() {
                return new RestTemplate();
        }

        public static void main(String[] args) {
                SpringApplication.run(DemoApplication.class, args);
        }
}

In WorkController.meeting(), make a call out to the Meeting service.

src/main/java/com/example/demo/WorkController.java

package com.example.demo;

...
import org.springframework.web.client.RestTemplate;
import org.springframework.beans.factory.annotation.Autowired;

@RestController
@Slf4j
public class WorkController {
  @Autowired
  RestTemplate restTemplate;

  public void meeting() {
    String result = restTemplate.getForObject("http://localhost:8081/meet", String.class);
    log.info(result);
  }

  ...
}

Start the service again and trigger the endpoint from the command line:

$ export GOOGLE_CLOUD_PROJECT=`gcloud config list --format 'value(core.project)'`

# The '&' places the process in the background. Bring it back to the foreground with 'fg'.
$ ./mvnw -DskipTests spring-boot:run &

$ curl localhost:8080

In both session windows, you should see the log messages, with the Trace ID propagated from one service to another.

In Cloud Trace's Trace List, you should see the second trace:

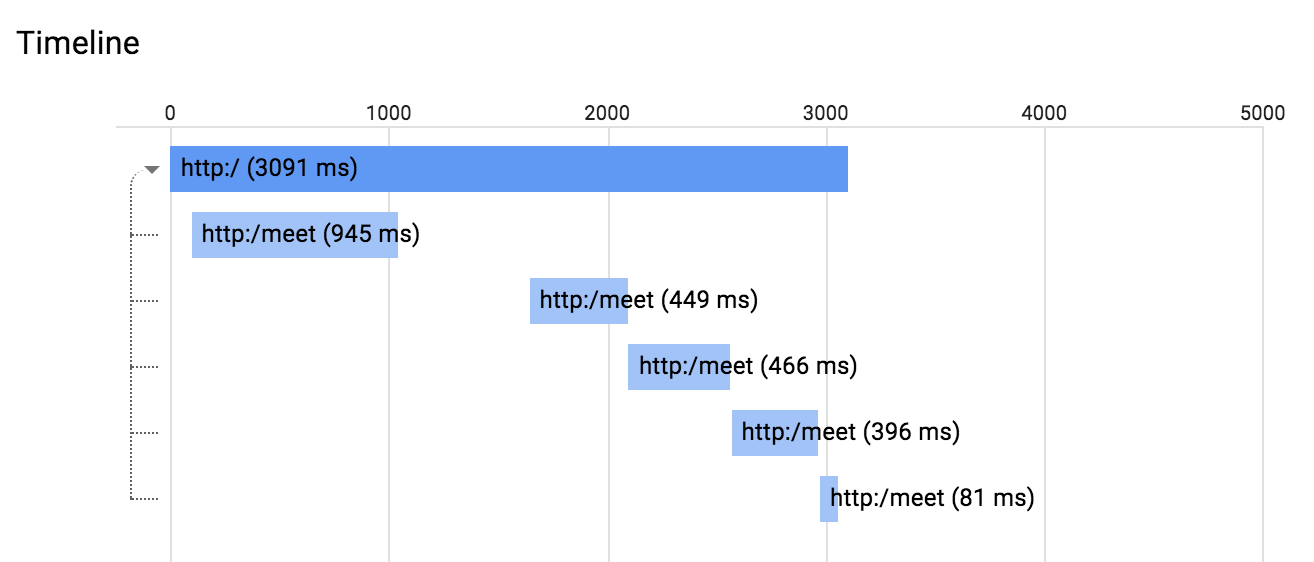

You can click on the new blue dot and see the trace detail:


You can also click on any span in this diagram to see the span detail.

7. Latency Distribution & Performance Report

When you use Cloud Trace as the trace data storage, Cloud Trace can use the data to build latency distribution report. You'll need more than 100 traces in order to build the report like this:


You can run those first 100+ requests using hey, which comes pre-installed on the Cloud Shell!

$ hey localhost:8080 -n 150

In addition, Cloud Trace can automatically detect performance regression of the same service across two different time periods under Analysis Report.

8. Summary

In this lab, you created 2 simple services and added distributed tracing with Spring Cloud Sleuth, and used Spring Cloud GCP to forward the trace information to Cloud Trace..

9. Congratulations!

You learned how to write your first App Engine web application!
