About this codelab

Last updated Jul 15, 2025

Written by Muhammad Saipul Rohman, Alvin Prayuda Juniarta Dwiyantoro

1. Introduction

In this codelab, you will learn how to leverage the power of Apache Spark for data transformation within the familiar interface of BigQuery Studio. You will read data from BigQuery, perform data cleansing and transformation using PySpark, and write the results back to a new BigQuery table, all from a single notebook.

Through the codelab, you will employ a step by step approach as follows:

1. Prepare your Google Cloud project and Enable all the required API on it
2. Create GCS bucket for temporary folder
3. Import required libraries for run apache spark
4. Initialize Spark session with BigQuery connector
5. Read data sample Google Analytics from BigQuery Public Dataset
6. Do transform data with aggregate data by device browser (basic metrics)
7. Do transform data with Traffic source analysis with revenue calculations
8. Do transform data with Geographic analysis
9. Write data after transformation to BigQuery table

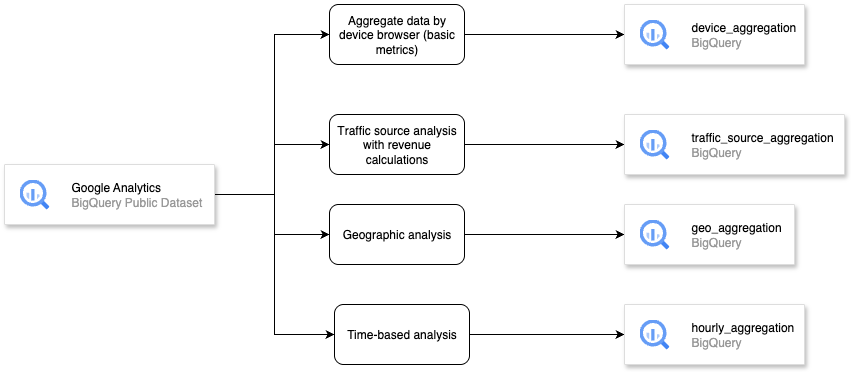

Architecture Overview

Prerequisites

• A Google Cloud Platform (GCP) project with billing enabled.
• The BigQuery API and BigQuery Connection API enabled in your GCP project.
• Basic knowledge of SQL and Python.

What you'll learn

• How to extract data using apache spark in BigQuery Studio Notebook
• How to transform or aggregate data using apache spark in BigQuery Studio Notebook
• How to write data after transform or aggregate data using apache spark in BigQuery Studio Notebook

What you'll need

• Chrome web browser
• A Gmail account
• A Cloud Project with billing enabled

2. Basic setup and Requirements

Self-paced environment setup

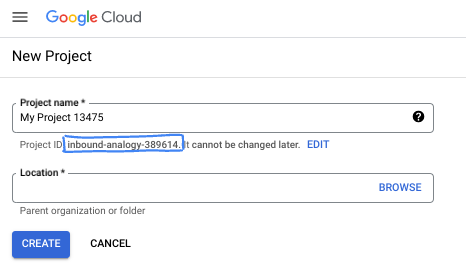

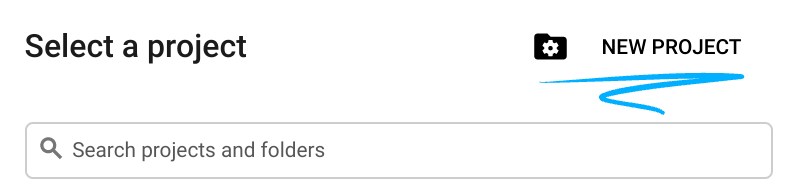

1. Sign-in to the Google Cloud Console and create a new project or reuse an existing one. If you don't already have a Gmail or Google Workspace account, you must create one.

• The Project name is the display name for this project's participants. It is a character string not used by Google APIs. You can always update it.
• The Project ID is unique across all Google Cloud projects and is immutable (cannot be changed after it has been set). The Cloud Console auto-generates a unique string; usually you don't care what it is. In most codelabs, you'll need to reference your Project ID (typically identified as PROJECT_ID). If you don't like the generated ID, you might generate another random one. Alternatively, you can try your own, and see if it's available. It can't be changed after this step and remains for the duration of the project.
• For your information, there is a third value, a Project Number, which some APIs use. Learn more about all three of these values in the documentation.

Caution: A project ID is globally unique and can't be used by anyone else after you've selected it. You are the only user of that ID. Even if a project is deleted, the ID can't be used again

Note: If you use a Gmail account, you can leave the default location set to No organization. If you use a Google Workspace account, choose a location that makes sense for your organization.

2. Next, you'll need to enable billing in the Cloud Console to use Cloud resources/APIs. Running through this codelab won't cost much, if anything at all. To shut down resources to avoid incurring billing beyond this tutorial, you can delete the resources you created or delete the project. New Google Cloud users are eligible for the $300 USD Free Trial program.

3. Before you begin

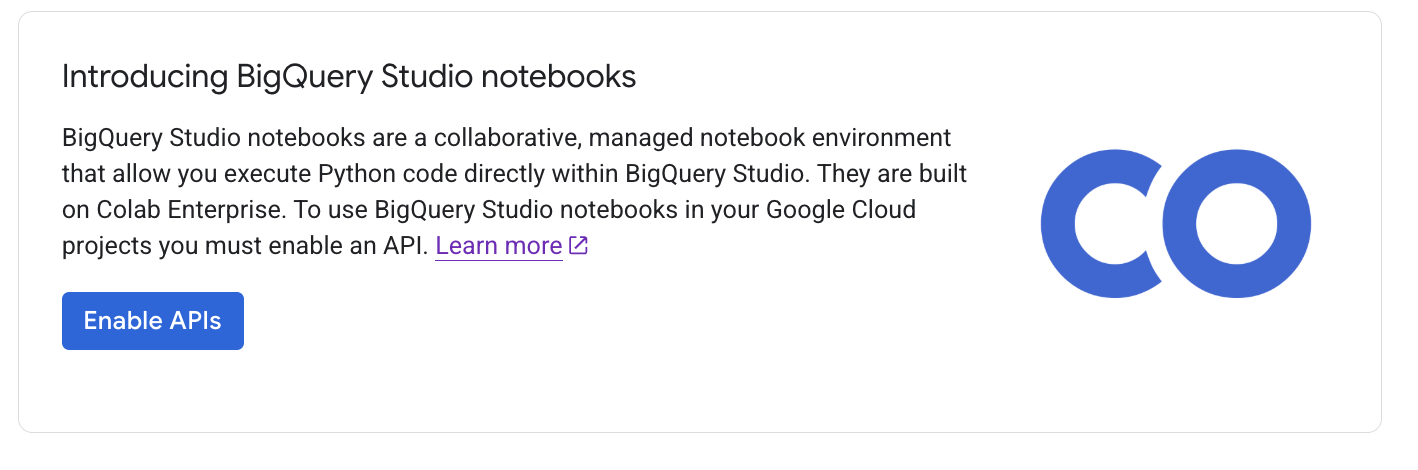

Enable API

Before use BigQuery Studio Notebooks, we must enable the following APIs:

• The Compute Engine API
• The Dataform API
• The Vertex AI API

For manual enable, go to Bigquery. In the tab bar of the editor pane, click the arrow drop-down next to the + sign, hold the pointer over Notebook, and then select BigQuery template or Empty Notebook or Spark template

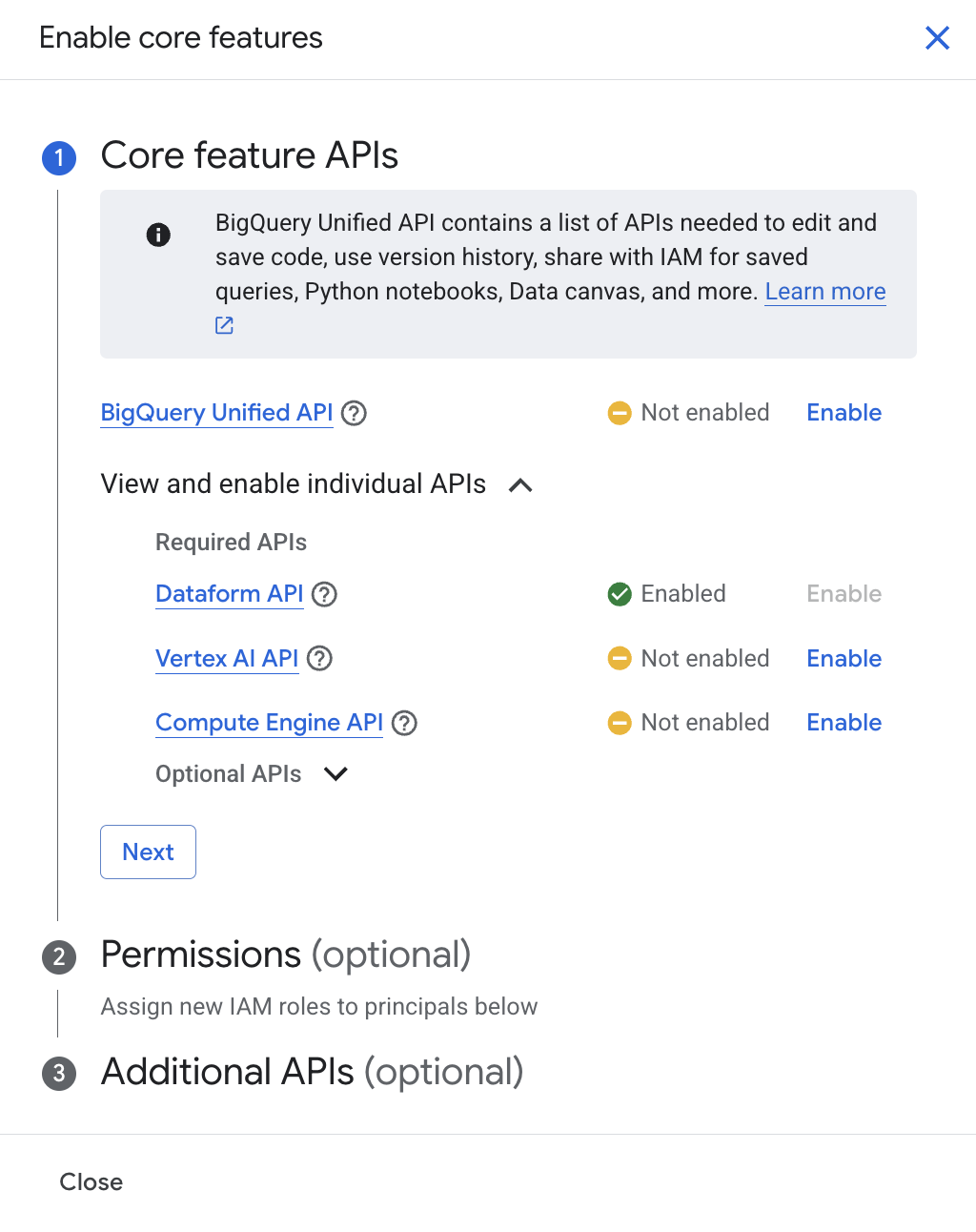

In window Enable Core feature API, Click Enable in BigQuery Unified API

After finishing, enable then click Close. Please refer to Enable BigQuery Studio for asset management for more details

4. Read a public dataset

First, we will create a GCS bucket for temporary use in order can run spark in BigQuery Studio Notebooks.

1. In the Google Cloud Console, navigate to BigQuery

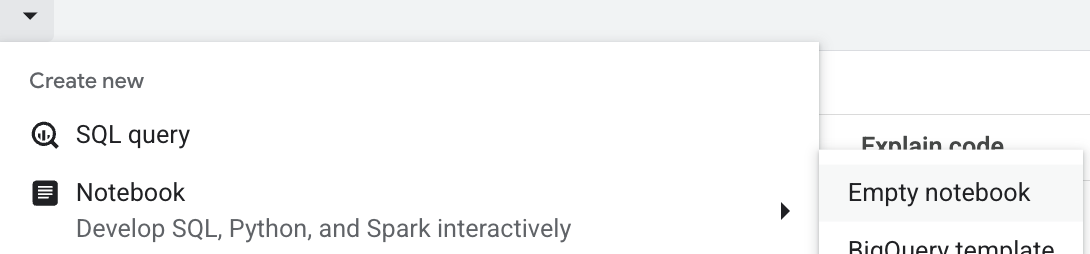

2. In the tab bar of the editor pane, click the arrow drop-down next to the + sign, hold the pointer over Notebook, and then select Empty Notebook.
3. Click the code cell then type cli script below to create GCS bucket then Click the Run cell button or press Shift + Enter

!gsutil mb -p <your_project_id> -c STANDARD -l US gs://ioxid2025-<your_project_id>

Update the values for <your_project_id> as per what you have selected while creating the Google Cloud Project. Update the values for <your_project_id> with your project id for create GCS unique bucket name. After that then Click the Run cell button or press Shift + Enter to run the code cell

Then next, we will initiate a spark session. In this codelab, we will use SparkSession library although we can use DataprocSession to leverage dataproc capabilities to run spark in BigQuery Studio Notebook

1. Click the code cell then type cli script below to init spark session. Click the Run cell button or press Shift + Enter.

# Import required libraries
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, sum, count, countDistinct, when, expr, date_format
from pyspark.sql.types import DecimalType

# Initialize Spark session with BigQuery connector
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, sum, count, countDistinct, when, expr, date_format
from pyspark.sql.types import DecimalType

# Initialize Spark session with BigQuery connector
spark = SparkSession.builder \
 .appName("Google Analytics ETL with Apache Spark") \
 .config("spark.jars.packages", "com.google.cloud.spark:spark-bigquery-with-dependencies_2.12:0.32.0") \
 .getOrCreate()

spark

Expected Output :

SparkSession - in-memory
SparkContext
Spark UI
Version
v3.5.4
Master
local[*]
AppName
Google Analytics ETL with Apache Spark

2. Click the code cell then type cli script below to set GCP project and GCS temporary bucket.

# Set GCP project and temporary bucket
project_id = "your-gcp-project-id"  # Replace with your GCP project ID
bucket = "your-gcs-bucket"  # Replace with your GCS bucket for temporary files spark.conf.set("temporaryGcsBucket", bucket)

Google Analytics Sample Database

The Google Analytics Sample Database is provided on BigQuery through Google Cloud's public dataset program. The dataset provides 12 months (August 2016 to August 2017) of obfuscated Google Analytics 360 data from the Google Merchandise Store , a real ecommerce store that sells Google-branded merchandise, in BigQuery. It's a great way analyze business data and learn the benefits of using BigQuery to analyze Analytics 360 data Learn more about the data

The data includes The data is typical of what an ecommerce website would see and includes the following information:

• Traffic source data: information about where website visitors originate, including data about organic traffic, paid search traffic, and display traffic
• Content data: information about the behavior of users on the site, such as URLs of pages that visitors look at, how they interact with content, etc.
• Transactional data: information about the transactions on the Google Merchandise Store website.

Run code below to display sample top 5 data in apache spark

# EXTRACT: Read data from BigQuery
print("Extracting data from BigQuery...")
ga_df = spark.read.format("bigquery") \
   .option("table", "bigquery-public-data.google_analytics_sample.ga_sessions_20170801") \
   .load()

# Show schema sample data
print("Sample data:")
ga_df.show(5, truncate=False)

Expected output :

Extracting data from BigQuery...
Sample data:
+---------+-----------+----------+--------------+--------+---------------------------------------------------------------+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+--------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------+------+--------+---------------+--------------------+
|visitorId|visitNumber|visitId   |visitStartTime|date    |totals                                                         |trafficSource                                                                                                                                                                          |device                                                                                                                                                                                                                                                                                                                                                                                                                      |geoNetwork                                                                                                                                                                                                                                                                     |customDimensions    |hits                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                 |fullVisitorId      |userId|clientId|channelGrouping|socialEngagementType|
+---------+-----------+----------+--------------+--------+---------------------------------------------------------------+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+--------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------+------+--------+---------------+--------------------+
|NULL     |1          |1501591568|1501591568    |20170801|{1, 1, 1, NULL, 1, NULL, NULL, 1, NULL, NULL, NULL, NULL, 1}   |{NULL, (not set), (direct), (none), NULL, NULL, {NULL, NULL, NULL, NULL, NULL, NULL, not available in demo dataset, NULL, NULL, NULL, NULL, NULL}, NULL, NULL}                         |{Chrome, not available in demo dataset, not available in demo dataset, Windows, not available in demo dataset, false, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, NULL, not available in demo dataset, not available in demo dataset, not available in demo dataset, desktop} |{Europe, Southern Europe, Greece, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, tellas.gr, not available in demo dataset, not available in demo dataset, not available in demo dataset}          |[]                  |[{1, 0, 5, 46, NULL, true, true, true, https://www.google.gr/, {/google+redesign/bags/google+zipper+front+sports+bag.axd, shop.googlemerchandisestore.com, Page Unavailable, NULL, NULL, /google+redesign/, /bags/, /google+zipper+front+sports+bag.axd, }, NULL, NULL, NULL, {NULL, NULL, NULL, NULL, NULL, NULL, NULL, NULL, shop.googlemerchandisestore.com/google+redesign/bags/google+zipper+front+sports+bag.axd, shop.googlemerchandisestore.com/google+redesign/bags/google+zipper+front+sports+bag.axd, shop.googlemerchandisestore.com/google+redesign/bags/google+zipper+front+sports+bag.axd, 0}, {NULL, true, NULL, NULL}, NULL, [], [], NULL, NULL, {0, 1, NULL}, [], NULL, [], [], [], PAGE, {NULL, NULL, NULL, NULL, (not set), NULL, No,  : }, NULL, NULL, {(not set), Bags, (not set), (not set), (not set), (entrance), (entrance), (entrance), (entrance), (entrance), NULL, 1, NULL, NULL, NULL}, web, []}]     |3418334011779872055|NULL  |NULL    |Organic Search |Not Socially Engaged|
|NULL     |2          |1501589647|1501589647    |20170801|{1, 1, 1, NULL, 1, NULL, NULL, NULL, NULL, NULL, NULL, NULL, 1}|{/analytics/web/, (not set), analytics.google.com, referral, NULL, NULL, {NULL, NULL, NULL, NULL, NULL, NULL, not available in demo dataset, NULL, NULL, NULL, NULL, NULL}, NULL, NULL}|{Chrome, not available in demo dataset, not available in demo dataset, Windows, not available in demo dataset, false, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, NULL, not available in demo dataset, not available in demo dataset, not available in demo dataset, desktop} |{Asia, Southern Asia, India, Maharashtra, (not set), Mumbai, not available in demo dataset, unknown.unknown, not available in demo dataset, not available in demo dataset, not available in demo dataset}                                                                      |[{4, APAC}]         |[{1, 0, 5, 14, NULL, true, true, true, https://analytics.google.com/analytics/web/, {/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com, Page Unavailable, NULL, NULL, /google+redesign/, /shop+by+brand/, /youtube, }, NULL, NULL, NULL, {NULL, NULL, NULL, NULL, NULL, NULL, NULL, NULL, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, 0}, {NULL, true, NULL, NULL}, NULL, [], [], NULL, NULL, {0, 1, NULL}, [], NULL, [], [], [], PAGE, {NULL, NULL, NULL, NULL, (not set), NULL, No,  : }, NULL, NULL, {(not set), Brands, (not set), (not set), (not set), (entrance), (entrance), (entrance), (entrance), (entrance), NULL, 1, NULL, NULL, NULL}, web, []}]                                                                        |2474397855041322408|NULL  |NULL    |Referral       |Not Socially Engaged|
|NULL     |1          |1501616621|1501616621    |20170801|{1, 1, 1, NULL, 1, NULL, NULL, 1, NULL, NULL, NULL, NULL, 1}   |{/analytics/web/, (not set), analytics.google.com, referral, NULL, NULL, {NULL, NULL, NULL, NULL, NULL, NULL, not available in demo dataset, NULL, NULL, NULL, NULL, NULL}, NULL, NULL}|{Chrome, not available in demo dataset, not available in demo dataset, Windows, not available in demo dataset, false, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, NULL, not available in demo dataset, not available in demo dataset, not available in demo dataset, desktop} |{Europe, Northern Europe, United Kingdom, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, as9105.com, not available in demo dataset, not available in demo dataset, not available in demo dataset} |[{4, EMEA}]         |[{1, 0, 12, 43, NULL, true, true, true, https://analytics.google.com/analytics/web/?utm_source=demoaccount&utm_medium=demoaccount&utm_campaign=demoaccount, {/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com, Page Unavailable, NULL, NULL, /google+redesign/, /shop+by+brand/, /youtube, }, NULL, NULL, NULL, {NULL, NULL, NULL, NULL, NULL, NULL, NULL, NULL, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, 0}, {NULL, true, NULL, NULL}, NULL, [], [], NULL, NULL, {0, 1, NULL}, [], NULL, [], [], [], PAGE, {NULL, NULL, NULL, NULL, (not set), NULL, No,  : }, NULL, NULL, {(not set), Brands, (not set), (not set), (not set), (entrance), (entrance), (entrance), (entrance), (entrance), NULL, 1, NULL, NULL, NULL}, web, []}]|5870462820713110108|NULL  |NULL    |Referral       |Not Socially Engaged|
|NULL     |1          |1501601200|1501601200    |20170801|{1, 1, 1, NULL, 1, NULL, NULL, 1, NULL, NULL, NULL, NULL, 1}   |{/analytics/web/, (not set), analytics.google.com, referral, NULL, NULL, {NULL, NULL, NULL, NULL, NULL, NULL, not available in demo dataset, NULL, NULL, NULL, NULL, NULL}, NULL, NULL}|{Firefox, not available in demo dataset, not available in demo dataset, Windows, not available in demo dataset, false, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, NULL, not available in demo dataset, not available in demo dataset, not available in demo dataset, desktop}|{Americas, Northern America, United States, Texas, Dallas-Ft. Worth TX, Dallas, not available in demo dataset, h5colo.com, not available in demo dataset, not available in demo dataset, not available in demo dataset}                                                        |[{4, North America}]|[{1, 0, 8, 26, NULL, true, true, true, https://analytics.google.com/analytics/web/, {/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com, Page Unavailable, NULL, NULL, /google+redesign/, /shop+by+brand/, /youtube, }, NULL, NULL, NULL, {NULL, NULL, NULL, NULL, NULL, NULL, NULL, NULL, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, 0}, {NULL, true, NULL, NULL}, NULL, [], [], NULL, NULL, {0, 1, NULL}, [], NULL, [], [], [], PAGE, {NULL, NULL, NULL, NULL, (not set), NULL, No,  : }, NULL, NULL, {(not set), Brands, (not set), (not set), (not set), (entrance), (entrance), (entrance), (entrance), (entrance), NULL, 1, NULL, NULL, NULL}, web, []}]                                                                        |9397809171349480379|NULL  |NULL    |Referral       |Not Socially Engaged|
|NULL     |1          |1501615525|1501615525    |20170801|{1, 1, 1, NULL, 1, NULL, NULL, 1, NULL, NULL, NULL, NULL, 1}   |{/analytics/web/, (not set), adwords.google.com, referral, NULL, NULL, {NULL, NULL, NULL, NULL, NULL, NULL, not available in demo dataset, NULL, NULL, NULL, NULL, NULL}, NULL, NULL}  |{Chrome, not available in demo dataset, not available in demo dataset, Windows, not available in demo dataset, false, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, NULL, not available in demo dataset, not available in demo dataset, not available in demo dataset, desktop} |{Americas, Northern America, United States, not available in demo dataset, not available in demo dataset, not available in demo dataset, not available in demo dataset, (not set), not available in demo dataset, not available in demo dataset, not available in demo dataset}|[{4, North America}]|[{1, 0, 12, 25, NULL, true, true, true, https://adwords.google.com/analytics/web/?__o=cues&authuser=0, {/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com, Page Unavailable, NULL, NULL, /google+redesign/, /shop+by+brand/, /youtube, }, NULL, NULL, NULL, {NULL, NULL, NULL, NULL, NULL, NULL, NULL, NULL, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, shop.googlemerchandisestore.com/google+redesign/shop+by+brand/youtube, 0}, {NULL, true, NULL, NULL}, NULL, [], [], NULL, NULL, {0, 1, NULL}, [], NULL, [], [], [], PAGE, {NULL, NULL, NULL, NULL, (not set), NULL, No,  : }, NULL, NULL, {(not set), Brands, (not set), (not set), (not set), (entrance), (entrance), (entrance), (entrance), (entrance), NULL, 1, NULL, NULL, NULL}, web, []}]                                                     |6089902943184578335|NULL  |NULL    |Referral       |Not Socially Engaged|
+---------+-----------+----------+--------------+--------+---------------------------------------------------------------+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+--------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------+------+--------+---------------+--------------------+
only showing top 5 rows

5. Aggregate data by device browser (basic metrics)

This code aggregates Google Analytics data by device browser, calculating various metrics like total sessions, visits, hits, pageviews, bounces, time on site, unique visitors, and average time per visit, then renames a column and sorts the results.

print("Transformation 1: Aggregating by device browser...")
device_agg = ga_df.groupBy("device.browser") \
   .agg(
       count("*").alias("total_sessions"),
       sum("totals.visits").alias("total_visits"),
       sum("totals.hits").alias("total_hits"),
       sum("totals.pageviews").alias("total_pageviews"),
       sum("totals.bounces").alias("total_bounces"),
       sum("totals.timeOnSite").alias("total_time_on_site"),
       countDistinct("fullVisitorId").alias("unique_visitors"),
       (sum("totals.timeOnSite")/sum("totals.visits")).alias("avg_time_per_visit")
   ) \
   .withColumnRenamed("browser", "device_browser") \
   .orderBy("total_sessions", ascending=False)

# Show sample transformed data
print("\nDevice Aggregation Sample:")
device_agg.show(5)

Expected output :

Transformation 1: Aggregating by device browser...

Device Aggregation Sample:
+-----------------+--------------+------------+----------+---------------+-------------+------------------+---------------+------------------+
|   device_browser|total_sessions|total_visits|total_hits|total_pageviews|total_bounces|total_time_on_site|unique_visitors|avg_time_per_visit|
+-----------------+--------------+------------+----------+---------------+-------------+------------------+---------------+------------------+
|           Chrome|          1900|        1900|     10896|           8956|          870|            354691|           1689|186.67947368421054|
|           Safari|           397|         397|      1260|           1137|          218|             43150|            364|108.69017632241814|
|          Firefox|           101|         101|       390|            343|           59|             10659|             95|105.53465346534654|
|Internet Explorer|            54|          54|       107|            102|           36|              5589|             50|             103.5|
|             Edge|            23|          23|        63|             55|           12|              2623|             23|114.04347826086956|
+-----------------+--------------+------------+----------+---------------+-------------+------------------+---------------+------------------+
only showing top 5 rows

6. Analyzing traffic source with revenue calculations

This code analyzes Google Analytics data by traffic source and medium, calculating metrics such as session count, transactions, total revenue, revenue per session, and unique visitors, then renames columns and sorts the results by total revenue.

print("Transformation 2: Analyzing traffic sources...")
traffic_source_agg = ga_df.groupBy("trafficSource.source", "trafficSource.medium") \
   .agg(
       count("*").alias("session_count"),
       sum(when(col("totals.transactions").isNotNull(), 1).otherwise(0)).alias("transactions"),
       sum("totals.totalTransactionRevenue").cast(DecimalType(20,2)).alias("total_revenue"),
       (sum("totals.totalTransactionRevenue")/count("*")).cast(DecimalType(10,2)).alias("revenue_per_session"),
       countDistinct("fullVisitorId").alias("unique_visitors")
   ) \
   .withColumnRenamed("source", "traffic_source") \
   .withColumnRenamed("medium", "traffic_medium") \
   .orderBy("total_revenue", ascending=False)

print("\nTraffic Source Aggregation Sample:")
traffic_source_agg.show(5)

Expected output :

Transformation 2: Analyzing traffic sources...

Traffic Source Aggregation Sample:
+--------------------+--------------+-------------+------------+-------------+-------------------+---------------+
|      traffic_source|traffic_medium|session_count|transactions|total_revenue|revenue_per_session|unique_visitors|
+--------------------+--------------+-------------+------------+-------------+-------------------+---------------+
|            (direct)|        (none)|         2166|          42|8872040000.00|         4096048.01|           1943|
|     mail.google.com|      referral|            2|           1|  17960000.00|         8980000.00|              2|
|       google.com.tw|      referral|            1|           0|         NULL|               NULL|              1|
|analytics.google.com|      referral|           57|           0|         NULL|               NULL|             53|
|           quora.com|      referral|            6|           0|         NULL|               NULL|              5|
+--------------------+--------------+-------------+------------+-------------+-------------------+---------------+
only showing top 5 rows

7. Geographic analysis

This code performs geographic analysis on Google Analytics data by country and region, calculating session count, total pageviews, total time on site, average time per session, and unique visitors, then renames columns and sorts by session count.

print("Transformation 3: Geographic analysis...")
geo_agg = ga_df.groupBy("geoNetwork.country", "geoNetwork.region") \
   .agg(
       count("*").alias("session_count"),
       sum("totals.pageviews").alias("total_pageviews"),
       sum("totals.timeOnSite").alias("total_time_on_site"),
       (sum("totals.timeOnSite")/count("*")).alias("avg_time_per_session"),
       countDistinct("fullVisitorId").alias("unique_visitors")
   ) \
   .withColumnRenamed("country", "country") \
   .withColumnRenamed("region", "region") \
   .orderBy("session_count", ascending=False)

print("\nGeographic Aggregation Sample:")
geo_agg.show(5)

Expected output :

Transformation 3: Geographic analysis...

Geographic Aggregation Sample:
+--------------+--------------------+-------------+---------------+------------------+--------------------+---------------+
|       country|              region|session_count|total_pageviews|total_time_on_site|avg_time_per_session|unique_visitors|
+--------------+--------------------+-------------+---------------+------------------+--------------------+---------------+
| United States|not available in ...|          564|           2326|             97829|  173.45567375886526|            494|
| United States|          California|          420|           3102|            116563|   277.5309523809524|            347|
| United States|            New York|          109|            845|             39976|   366.7522935779817|             84|
|United Kingdom|not available in ...|           82|            161|              7791|   95.01219512195122|             79|
|         India|not available in ...|           62|            139|              2869|  46.274193548387096|             61|
+--------------+--------------------+-------------+---------------+------------------+--------------------+---------------+
only showing top 5 rows

8. Time-based analysis

This code performs time-based analysis by extracting the hour from the visitStartTime column, then groups the data by hour to calculate the session count, transactions, total revenue, and total pageviews for each hour, finally ordering the results by hour.

print("Transformation 4: Time-based analysis...")
hourly_agg = ga_df.withColumn("hour", date_format(col("visitStartTime").cast("timestamp"), "H")) \
   .groupBy("hour") \
   .agg(
       count("*").alias("session_count"),
       sum("totals.transactions").alias("transactions"),
       sum("totals.totalTransactionRevenue").cast(DecimalType(20,2)).alias("total_revenue"),
       sum("totals.pageviews").alias("total_pageviews")
   ) \
   .orderBy("hour")

print("\nHourly Aggregation Sample:")
hourly_agg.show(5)

Expected Output :

Transformation 4: Time-based analysis...

Hourly Aggregation Sample:
+----+-------------+------------+-------------+---------------+
|hour|session_count|transactions|total_revenue|total_pageviews|
+----+-------------+------------+-------------+---------------+
|   0|           87|        NULL|         NULL|            372|
|   1|          102|        NULL|         NULL|            494|
|  10|           67|        NULL|         NULL|            149|
|  11|           73|        NULL|         NULL|            167|
|  12|           99|        NULL|         NULL|            313|
+----+-------------+------------+-------------+---------------+
only showing top 5 rows

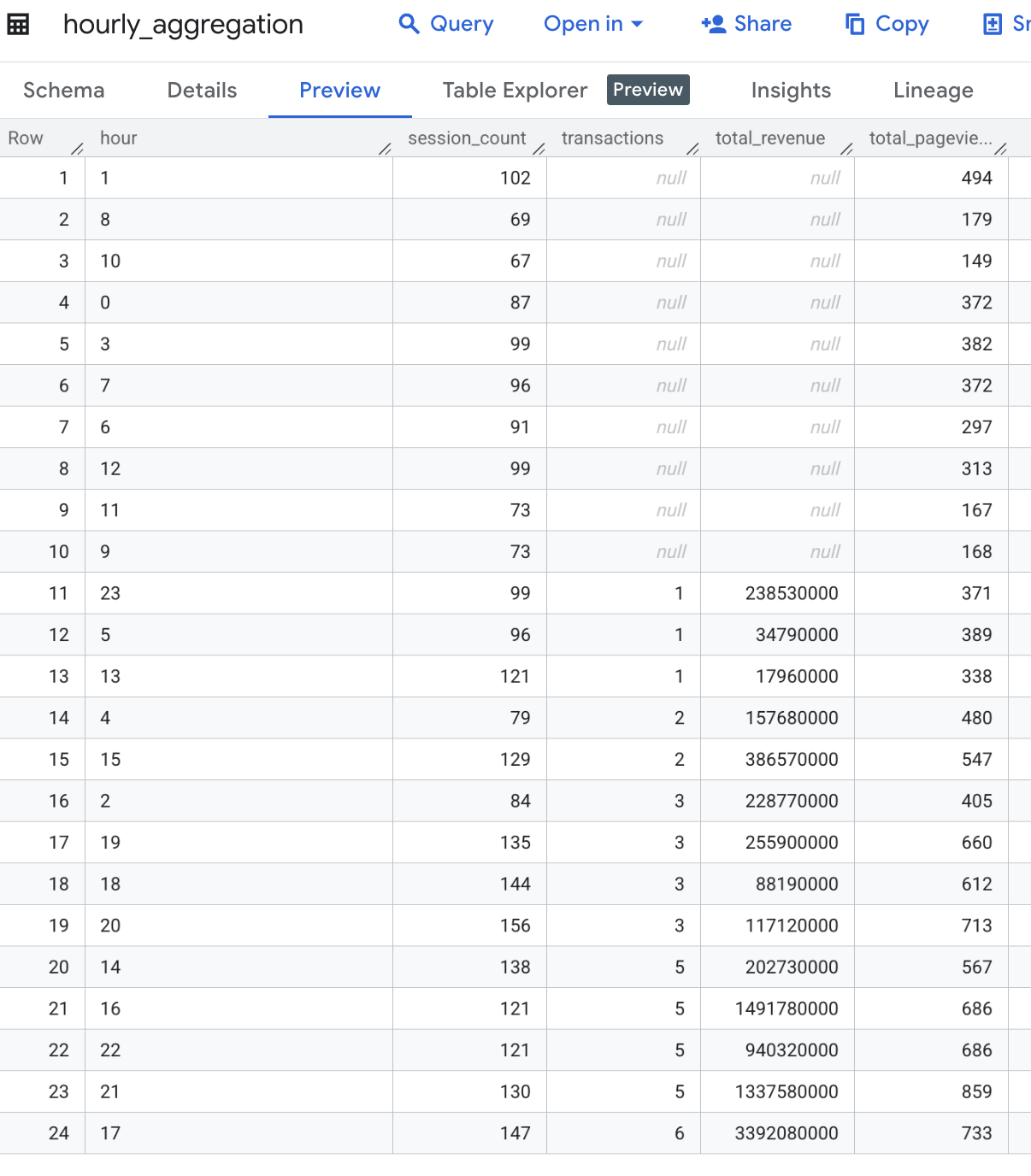

9. Write result to BigQuery table

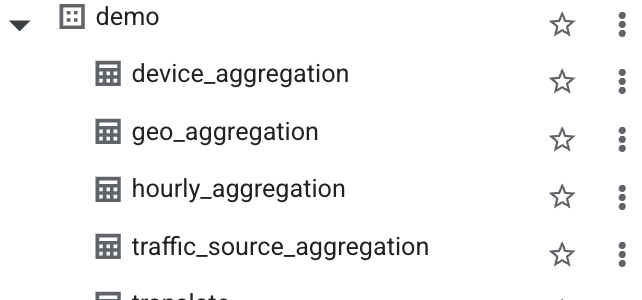

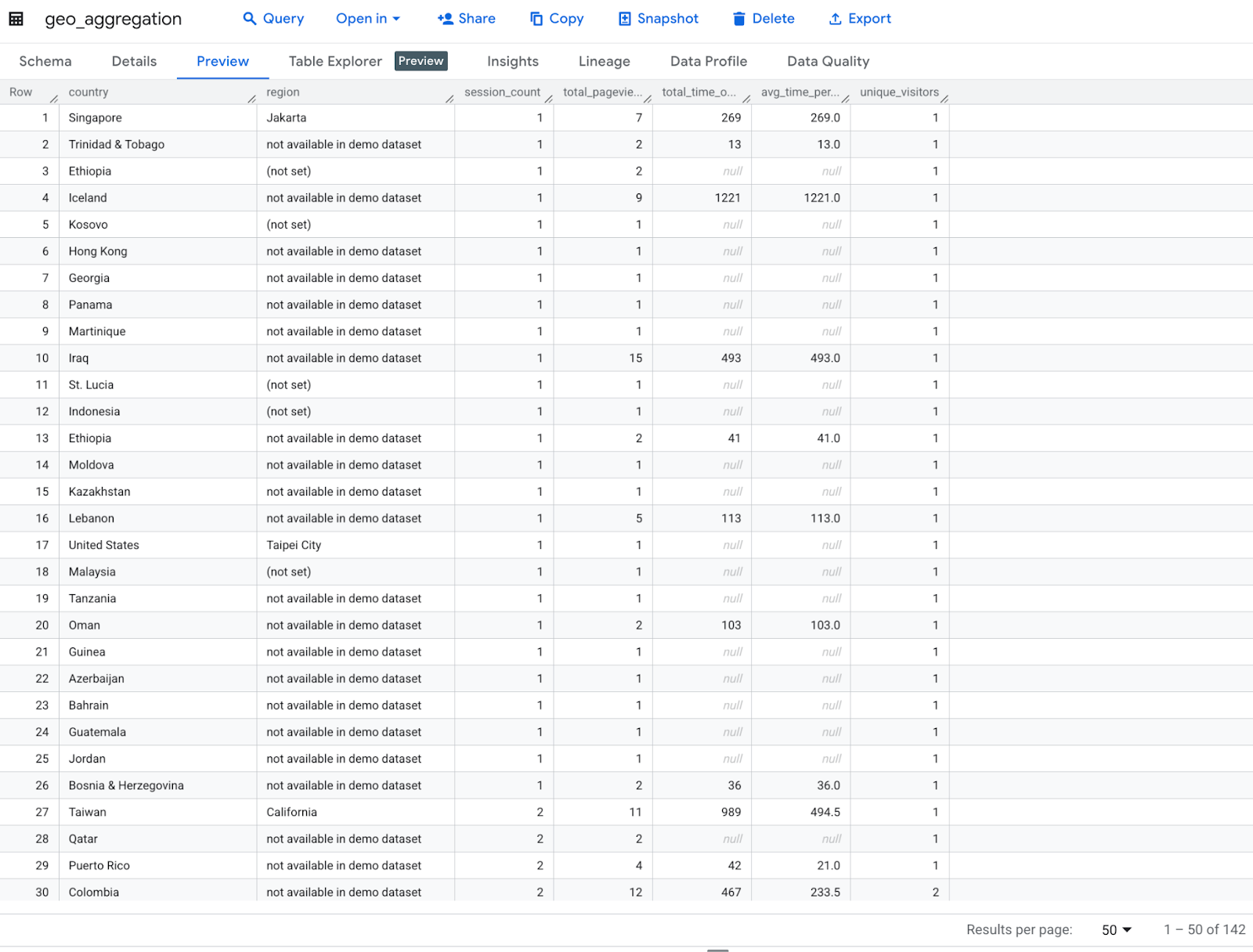

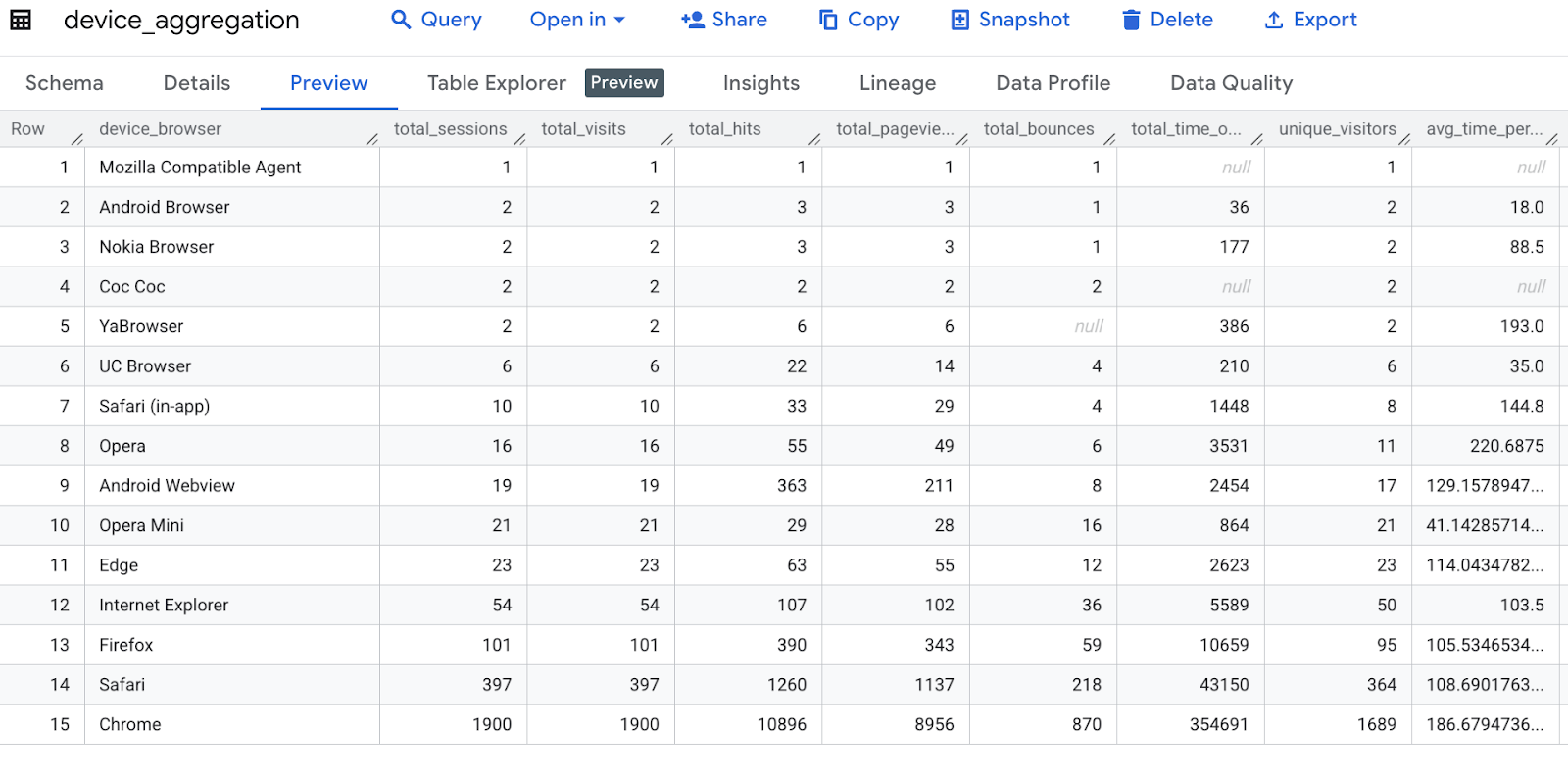

This code exports four aggregated dataframes (device_agg, traffic_source_agg, geo_agg, and hourly_agg) to separate tables in Google BigQuery, overwriting existing tables if they exist, using a direct write method.

# Write to BigQuery tables
print("\nLoading data to BigQuery...")

# Set output tables
device_output_table = f"{project_id}.analytics_sample.device_aggregation"
traffic_output_table = f"{project_id}.analytics_sample.traffic_source_aggregation"
geo_output_table = f"{project_id}.analytics_sample.geo_aggregation"
hourly_output_table = f"{project_id}.analytics_sample.hourly_aggregation"

dataset_id = "demo"  # Replace with your BigQuery dataset ID

# Set BigQuery output table
device_output_table = f"{project_id}.{dataset_id}.device_aggregation"
traffic_output_table = f"{project_id}.{dataset_id}.traffic_source_aggregation"
geo_output_table = f"{project_id}.{dataset_id}.geo_aggregation"
hourly_output_table = f"{project_id}.{dataset_id}.hourly_aggregation"

# Write each DataFrame to BigQuery
device_agg.write \
   .format("bigquery") \
   .option("table", device_output_table) \
   .option("writeMethod", "direct") \
   .mode("overwrite") \
   .save()

traffic_source_agg.write \
   .format("bigquery") \
   .option("table", traffic_output_table) \
   .option("writeMethod", "direct") \
   .mode("overwrite") \
   .save()

geo_agg.write \
   .format("bigquery") \
   .option("table", geo_output_table) \
   .option("writeMethod", "direct") \
   .mode("overwrite") \
   .save()

hourly_agg.write \
   .format("bigquery") \
   .option("table", hourly_output_table) \
   .option("writeMethod", "direct") \
   .mode("overwrite") \
   .save()

Check output table in BigQuery to make sure data successfully saved after do some transformation

device_aggregation table

geo_aggregation table

hourly_aggregation table

traffic_source_aggregation

10. Orchestrate BigQuery Studio notebook code (Optional)

You can orchestrate BigQuery Studio notebook code in the following ways:

• Schedule notebook code from the Google Cloud console ( notebook pricing applies).
• Run notebook code as a Dataproc Serverless batch workload ( Dataproc Serverless pricing applies).

In this codelab, we will use Schedule notebook code from the Google Cloud console.

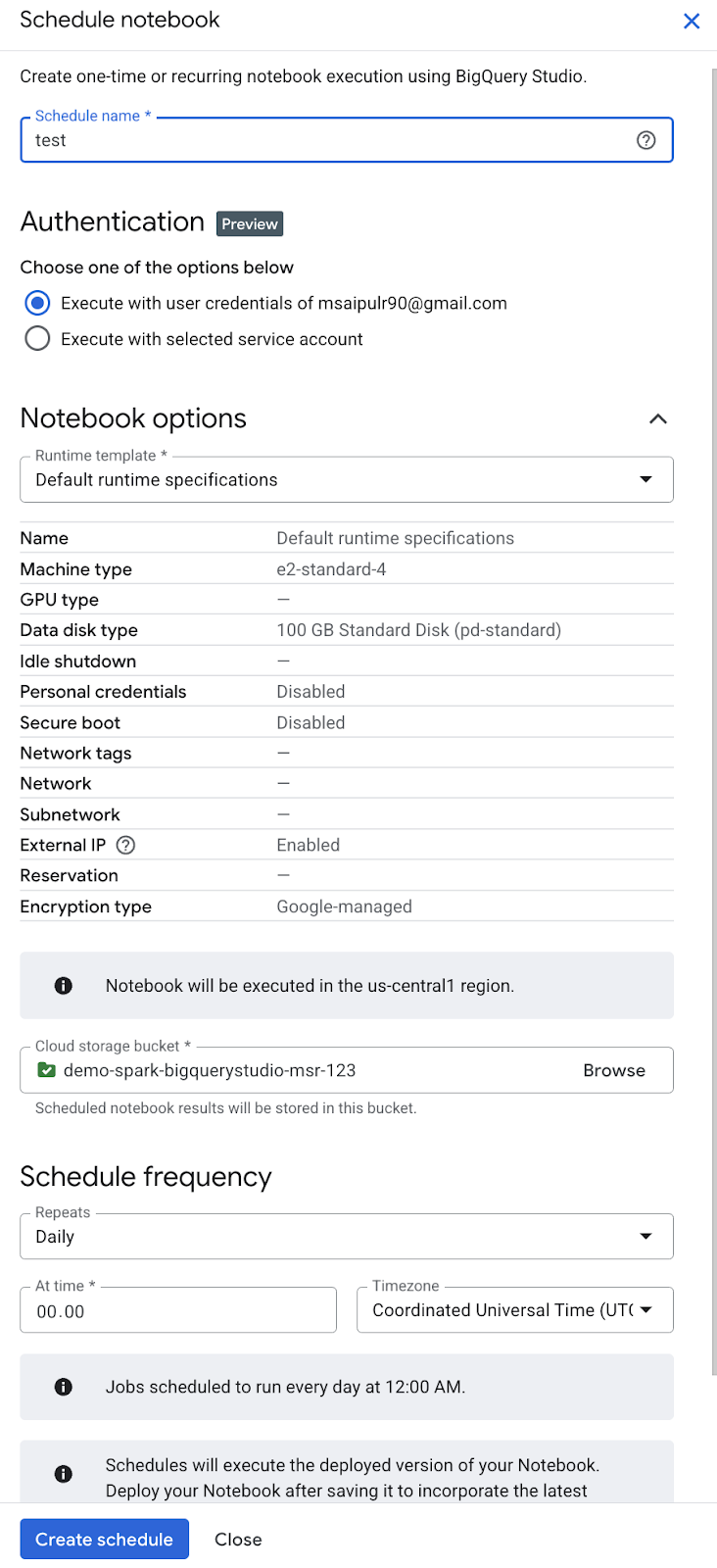

1. In the Notebook toolbar, click Schedule.
2. In the Schedule Notebook pane, in the Schedule name field, enter a name for the schedule.
3. In the Authentication section, authorize the notebook with your Google Account user credentials or a service account.
4. To use your Google Account user credentials ( Preview), select Execute with my user credentials.
5. To use a service account, select Execute with selected service account, then select a service account.
6. In the Notebook options section, in the Runtime template field, select a Colab notebook runtime template or the default runtime specifications. For details on creating a Colab notebook runtime template, see Create a runtime template.
7. In the Cloud Storage bucket field, click Browse and select or create a Cloud Storage bucket. The selected service account must be granted the Storage Admin (roles/storage.admin) IAM role on the selected bucket. For more information, see Enable notebook scheduling.
8. In the Schedule frequency section, do the following:
9. In the Repeats menu, select the frequency of scheduled notebook runs.
10. In the At time field, enter the time for scheduled notebook runs.
11. In the Timezone menu, select the timezone for the schedule.
12. Click Create schedule. If you selected Execute with my user credentials for your authentication method, you must authorize your Google Account ( Preview).

11. Clean Up

To avoid incurring charges to your Google Cloud account for the resources used in this codelab, follow these steps:

1. In the Google Cloud console, go to the Manage resources page.
2. In the project list, select the project that you want to delete, and then click Delete.
3. In the dialog, type the project ID, and then click Shut down to delete the project.

12. Congratulations

You have finished doing data transformations and analysis by leveraging apache spark serverless in BigQuery Studio Notebooks. Along the way you've explored Google Cloud's Public Datasets, performed serverless ETL with apache spark in BigQuery Studio Notebook and Orchestrated BigQuery Studio Notebook. Fantastic job!

Next steps :

• Orchestrate notebook with use service account for automation purposes.
• Add script for monitoring duration when run ETL job.
• Deploy a notebooks.
• Use DataprocSparkSession for leveraging real distributed apache spark capabilities with Serverless Dataproc in BigQuery Studio Notebooks.
• Create stored procedure for Apache Spark in BigQuery Studio. This way can apply OOP principles to structure your PySpark code for better organization, reusability, and maintainability.

References :

• https://cloud.google.com/bigquery/docs/use-spark
• https://cloud.google.com/bigquery/docs/orchestrate-notebooks#explorer-pane
• https://cloud.google.com/bigquery/docs/spark-procedures
• https://cloud.google.com/bigquery/docs/service-dependencies#manually-enable-code-assets
• Gemini
